USER MANUAL Latte Creme BEEM

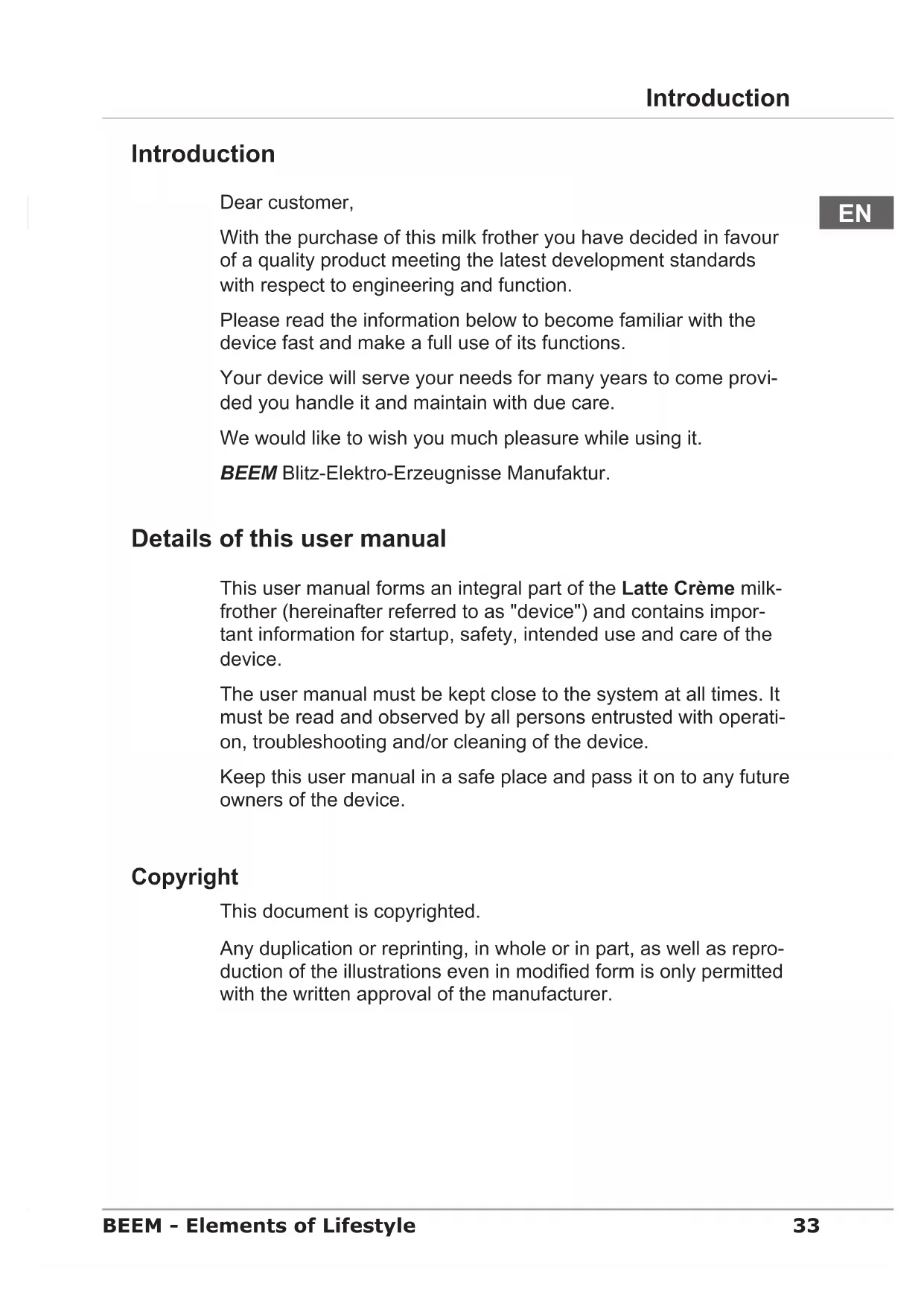

Introduction Dear customer, With the purchase of this milk frother you have decided in favour of a quality product meeting the latest development standards with respect to engineering and function. Please read the information below to become familiar with the device fast and make a full use of its functions. Your device will serve your needs for many years to come provi- ded you handle it and maintain with due care. We would like to wish you much pleasure while using it. BEEM Blitz-Elektro-Erzeugnisse Manufaktur. Details of this user manual This user manual forms an integral part of the Latte Crème milk- frother (hereinafter referred to as "device") and contains impor- tant information for startup, safety, intended use and care of the device. The user manual must be kept close to the system at all times. It must be read and observed by all persons entrusted with operati- on, troubleshooting and/or cleaning of the device. Keep this user manual in a safe place and pass it on to any future owners of the device. Copyright This document is copyrighted. Any duplication or reprinting, in whole or in part, as well as repro- duction of the illustrations even in modied form is only permitted with the written approval of the manufacturer.34 Details of this user manual BEEM - Elements of Lifestyle

Warnings The following warnings are used in this user manual: DANGER A warning of this category indicates an impending dange- rous situation. If the dangerous situation is not avoided, it may lead to serious injury or even death. Follow the instructions in this warning to avoid the danger of ► serious injury or even death. WARNING A warning of this category indicates a potentially dange- rous situation. If the dangerous situation is not avoided, it may lead to injuries. Follow the instructions in the warning to prevent injuries to ► persons. CAUTION A warning of this category indicates potential material damage. If the situation is not avoided, it may lead to material damage. Follow the instructions in the warning to prevent damage. ► NOTE A note indicates additional information that simplies the use ► of the device.35 Details of this user manual BEEM - Elements of Lifestyle

Intended use The device is intended only to heat and froth milk in enclosed rooms for non-commercial use. If used commercially, please pay attention to the modied warranty period. Use in any other or further way is not considered an intended use. WARNING Danger from use for other than the intended purpose! If not used for its intended purpose and/or used in any other way, the device may be or become a source of danger. Use the machine only for its intended purpose. ► Observe the procedures described in this user manual. ► No claims of any kind will be accepted for damage or injury resul- ting from use of the device for other than its intended purpose. The risk has to be borne solely by the machine owner. Disclaimer All technical information, data and instructions on installation, operation and maintenance of the device contained in this user manual represent the latest status at the time of printing. No claims can be derived from the information, illustrations and descriptions in this user manual. The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modications or use of non-approved spare parts.36 Safety BEEM - Elements of Lifestyle

Safety This appliance complies with the prescribed safety regulations. Improper use can however result in personal injury and/or device damage. Danger of electric shock DANGER Danger to life by electric shock! Contact with live wires or components could lead to seri- ous injury or even death! Observe the following safety precautions to avoid electric shocks: Do not use the device if the connecting cable, plug or ► housing are damaged. Do not open the housing of the device. Danger of electric ► shock if live connections are touched and/or the electrical and mechanical conguration is changed. Danger of burns/danger of scalding WARNING Parts of the device and the milk heated become very hot! Observe the following safety precautions to avoid burning or scalding yourself and/or others: Do not touch the hot surfaces during operation. ► Do not move the device while it is switched on. Moving the ► device can cause hot milk to leak out. Use the handle to take hold of the device while it is in ope- ► ration. Before cleaning, allow the device to cool down. ►37 Safety BEEM - Elements of Lifestyle

Fundamental safety precautions For safe use of the device, observe the following fundamental safety precautions and the precautions described separately in the individual sections: Inspect the device for visible signs of damage before use. Do ■ not use a damaged device. Do not remove the rating plate or any warning signs on the ■ device. Keep the device out of the reach of children. ■ Do not operate the device for prolonged periods without su- ■ pervision. Only use the device in connection with the base plate sup- ■ plied. Persons who due to their physical, mental or motor response ■ abilities are unable to operate the device may only use the de- vice under supervision or instruction by a responsible person. Never immerse the device, the mains cable or the mains plug ■ in water or other liquids. Do not pull the cable to remove the plug from the mains so- ■ cket. Repairs to the machine may only be carried out by the spe- ■ cialist retailer or by the works after-sales service. Unqualied repairs can lead to considerable danger for the user. They will also void the warranty. Repairs to the device during the warranty period may only be ■ carried out by service centres authorised by the manufacturer as the warranty will otherwise be voided in the event of dama- ge or subsequent damage. Defective parts may only be replaced with original spare parts. ■ Only original spare parts guarantee that the safety require- ments are met.38 Setting up and connection BEEM - Elements of Lifestyle

Setting up and connection Safety precautions WARNING Persons may be injured or material damage may be caused during startup! Observe the following safety precautions to avoid any danger: Never play with packaging material. Risk of suffocation. ► Observe all information on the requirements for the place of ► operation and the electrical connection of the device to avoid personal injury and material damage. Checking contents and packaging The device is supplied with the following components as stan- dard: Milk container ● Frother ● Base plate with integrated electrical adapter and mains cable ● User manual ● NOTE Check for visible signs of damage or missing items on ► delivery. Report an incomplete or damaged delivery to your supplier/retailer immediately.39 Setting up and connection BEEM - Elements of Lifestyle

Disposal of the packaging The packaging protects the device against damage during tran- sit. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled. Recycling the packaging material for further use saves raw mate- rials and reduces the waste. When no longer required, dispose of the packaging materials in accordance with the local regulations. NOTE If possible, keep the original packaging during the warranty ► period in order to pack the device properly in the event of a warranty claim. Transport damage will invalidate the warran- ty. Requirements for the place of use For safe and trouble-free operation of the device, the place of operation must satisfy the following requirements: Place the device on a level, heat resistant surface that is also ■ resistant to splashing milk. Do not place the appliance in a hot, wet or very humid envi- ■ ronment or in the vicinity of inammable materials. There must be a gap of at least 15 cm between the device and any walls, furniture or other objects. Select a location that does not allow children to reach the hot ■ surfaces of the device. The device is not intended to be mounted. ■ The mains socket must be easily accessible so that the plug ■ can be quickly pulled out in an emergency.40 Setting up and connection BEEM - Elements of Lifestyle

Electrical connection For safe and trouble-free operation of the device, the following instructions have to be observed for the electrical connection: Before connecting the device, compare the connection data ■ (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the device. If in doubt, ask your electrical device retailer. The mains socket must be protected by at least a 10 A circuit ■ breaker. Ensure that the connecting cable is undamaged and is not laid ■ over hot surfaces or sharp edges. The connecting cable must not be strained, bent or come into ■ contact with the hot device. Place the cable in such a way as to avoid danger from trip- ■ ping. The device may not be connected using an extension cable or ■ multiple power strip. The ■ electrical safety of the device is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualied electrician. The manufacturer as- sumes no liability for injury or damage caused by a missing or interrupted protective earth conductor. Before using for the rst time Clean the device as described in section Cleaning and maintenance. NOTE The device must ► not be cleaned in a dishwasher.41 Design and function BEEM - Elements of Lifestyle

ON switch with control lamp

Connecting cable with mains plug

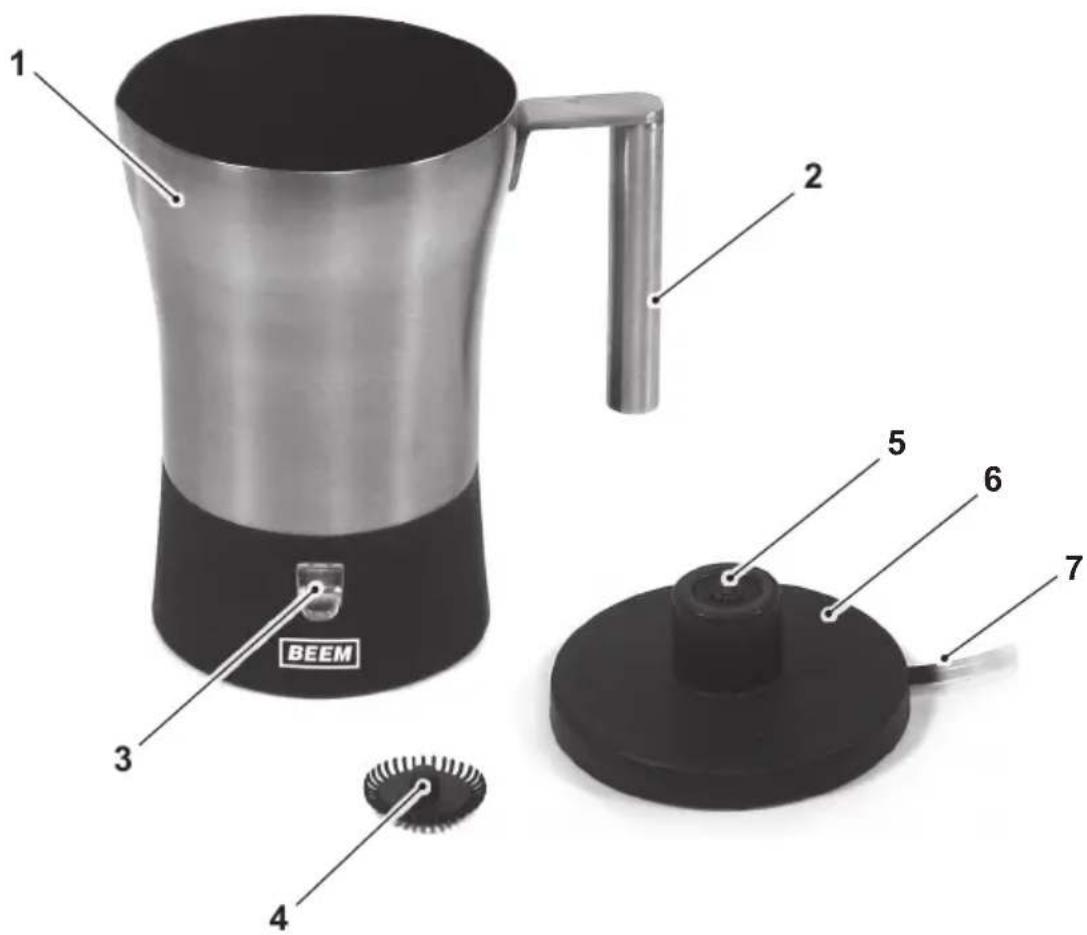

Design and function BEEM - Elements of Lifestyle

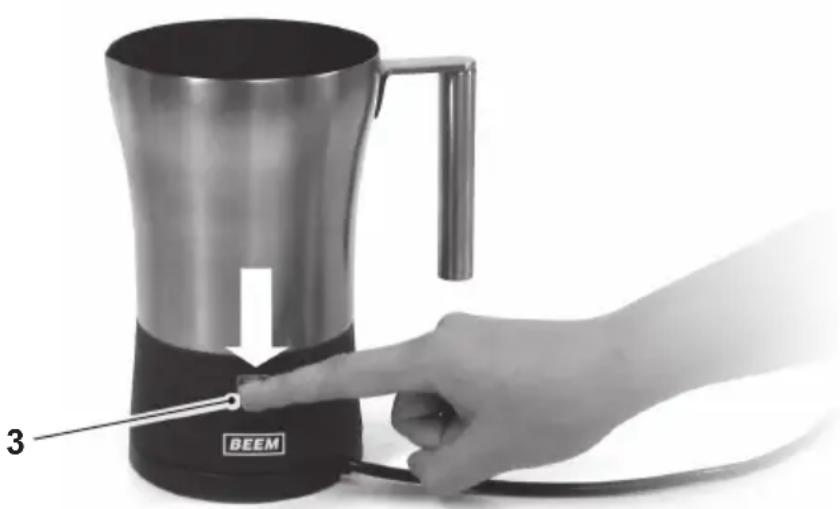

Operating elements ON switch To switch on the device, proceed as follows: Push the ON switch (3) briey so that the control light goes on. NOTE Do not press the ► ON switch (3) again after the device has been switched on. The device ► cannot be switched off via the ON switch (3); it switches itself off automatically. NOTE If the ON switch (3) was already pressed before connec- ► tion of the device, the device will be switched on when the mains cable (7) is inserted into the mains socket. The device switches itself off automatically only after frothing ► or when the required milk temperature has been reached.

Preparing BEEM - Elements of Lifestyle

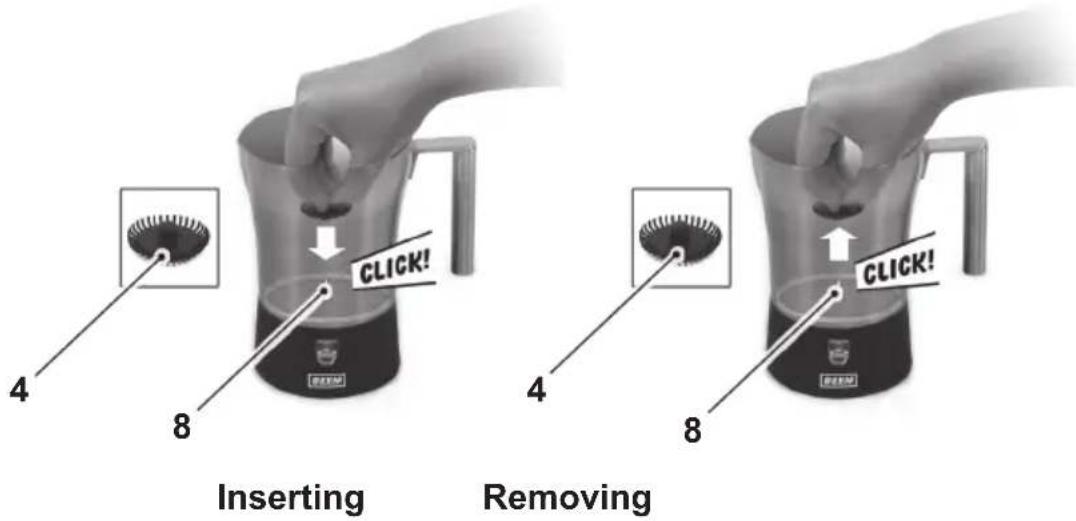

Preparing Inserting/removing the frother WARNING Danger of injury by accidentally switching on the device. Switching on the the device accidentally can cause burns. Do not insert the plug into the mains socket yet. ► Do not place the milk container (1) onto the the base plate ► (6) yet. Put the frother (4) on the holding pin (8) on the bottom of the milk container (1) and push it with minimal force until it snaps in with a "click". Pull the frother (4) carefully with minimal force from the hol- ding pin (8) of the milk container (1). Placing the milk container onto the base plate Place the milk container (1) onto the middle of the base plate (6). This makes an electrical contact between the milk contai- ner (1) and the base plate (6). Insert the mains plug of the connecting cable (7) into the mains socket.

Inserting Removing44 Operation and use BEEM - Elements of Lifestyle

Operation and use This section contains important information on the operation of the device. Safety precautions WARNING Improper use may cause injury to persons or material damage! In addition to the fundamental safety precautions, observe all information stated in this section in order to avoid danger. Do not put any inammable substances onto the device or ► into the vicinity of the appliance. Notes on the non-stick coating of the milk container NOTE The inside of milk container (1) has a non-stick ceramic coa- ► ting. This is designed to prevent milk and fat from sticking to the container. Possibilities for use You can prepare tasty milk froth for approx. three to four cups of cappuccino or Latte Macchiato easily with the device. You can use various different milk types. It does not matter if you froth milk from cows, goats or soy, the protein content is decisive for the result and not the origin or fat content. It is therefore possible to create creamy froth from milk with a low fat content. Another advantage: if you are allergic to cow‘s milk, you could use soy milk instead. You do not have to do without a tasty cap- puccino!45 Operation and use BEEM - Elements of Lifestyle

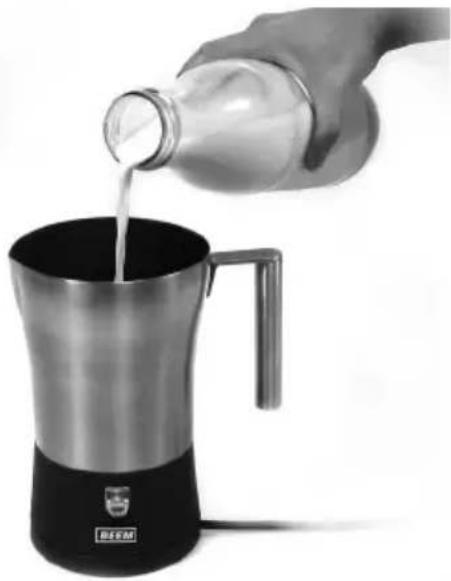

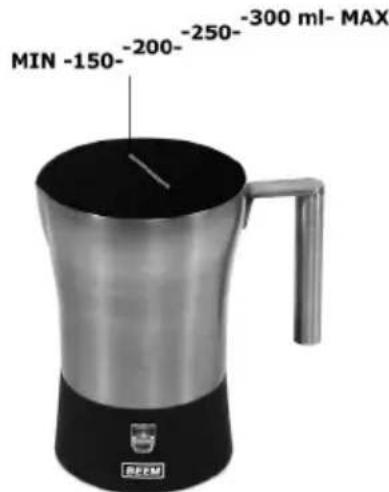

Using the device CAUTION Danger of damage if heated dry. Using the device without any liquid (milk) can cause overhea- ting and cause damage to the device. Before using the device, always ll the milk container with ► milk. Fill the milk container with the desired quantity of milk. NOTE Pay attention to the minimum and maximum lling levels. ► Too much milk can froth over. Refer to the level mark on the inside of the milk container: minimum lling quantity: 150 ml maximum lling quantity: 300 ml46 Operation and use BEEM - Elements of Lifestyle

Place the milk container (1) onto the base plate (6). Insert the mains plug of the connecting cable (7) into the mains socket. Switch on the device as described in the section Switching on by briey pressing the ON switch (3). Wait until the milk is warmed up and frothy and the device switches itself off (the control lamp in the ON switch (3) goes out). NOTE Depending on the quantity, the frothing process can take ► approx. 1-2 minutes. The more milk is poured into the device, the longer the ► frothing process takes. CAUTION Risk of overheating. Continued use of the device without allowing it to cool down can lead to overheating and cause damage to the device. Do ► not press the ON switch (3) after the device has auto- matically switched itself off. Do press and hold the ON switch (3) for longer periods of ► time. DANGER Danger of burns from hot surfaces / danger of scalding from hot milk! Do not touch the hot milk container and only use the handle ► (2) to pick it up. Move the milk container slowly and carefully so that hot milk ► does not spray or spill out.47 Operation and use BEEM - Elements of Lifestyle

Pick up the milk container (1) from the base plate (6) using the handle (2). Pour the froth into a cup or use a spoon to remove it from the milk container. NOTE Before you begin frothing milk again, you must allow the de- ► vice too cool down. The device cannot be switched on again until it has cooled down sufciently. Rinse the milk container (1) with cold water after each ► frothing process to accelerate cooling down. Switching off NOTE The device ► cannot be switched off via the ON switch (3). The device switches itself off automatically only after frothing ► or when the required milk temperature has been reached. Pull the mains plug out of the mains socket if you acciden- ► tally switch on the device and remove the milk container (1) from the base plate (6). Pull the plug out of the mains socket after the device has automatically switched itself off.48 Cleaning and maintenance BEEM - Elements of Lifestyle

After use Pull the plug out of the mains socket. Allow the device to cool down and clean it as described in the section Cleaning and maintenance. Cleaning and maintenance This section contains important information on cleaning and main- tenance of the device. Safety precautions DANGER Danger to life by electric shock! Wait until the device has switched itself off before discon- ► necting the mains plug from the mains socket and beginning with cleaning. WARNING Risk of burning from the hot device! The device remains hot after use. Danger of burning! Wait until the device has cooled down before you start to ► clean it. Cleaning CAUTION Possible damage to the non-stick coating by scratching! The surface on the inside of the milk container (1) has a non-stick coating. Observe the following instructions to avoid damage: When cleaning the milk container (1), do not use abrasive ► cleaners, metal brushes or other objects that could scratch the surface.49 Cleaning and maintenance BEEM - Elements of Lifestyle

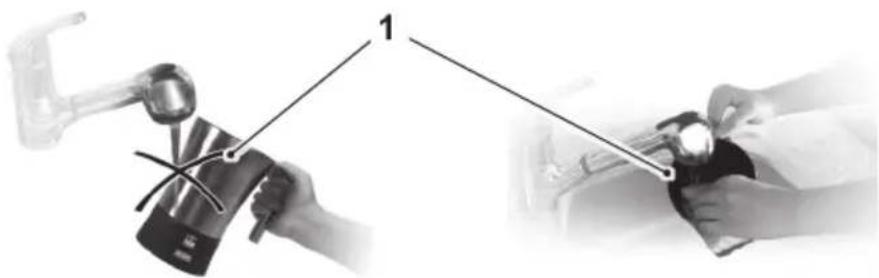

The device must be cleaned after each use. NOTE Clean the device as soon as it has cooled down. Waiting too ► long makes cleaning unnecessarily difcult. Before cleaning, remove the frother (4) from the holding pin (8) and clean each part separately. NOTE Clean regularly to prevent milk residue from sticking to the ► frother (4) and holding pin (8). Rinse the milk container with cold water after each frothing process. CAUTION Damage to the device by penetrating liquids Only rinse the inside of the milk container (1). ► The device is ► not suitable for cleaning in a dishwasher. Never immerse the device, the base plate or the mains ► cable with mains plug in water or other liquids.

Wipe the device with damp cloth or sponge and a little wa- shing-up liquid and then with a damp cloth without washing- up liquid.

Troubleshooting Safety precautions DANGER Danger to life by electric shock! Pull the plug out of the mains socket before starting trouble- ► shooting. WARNING Danger caused by unqualied repairs! Unqualied repairs can lead to considerable danger for the user and cause serious damage to the device. Repairs to electrical appliances may only be carried out by ► the works customer service or by specialists trained by the manufacturer.51 Troubleshooting BEEM - Elements of Lifestyle

Faults - causes and remedies Fault Possible cause Remedy Device cannot be swit- ched on Plug not inserted into mains socket Insert plug Automatic circuit breaker in fuse box tripped Switch on the auto- matic circuit breaker again Milk container (1) does not sit properly on the base plate (6) Place the milk con- tainer (1) properly in the middle of the base plate (6) Device is still too warm from previous use Allow the device to cool down (e.g., rinse with cold water) The automatic circuit breaker in the fuse box trips. Too many devices con- nected to the same power circuit. Reduce the number of devices on the power circuit. Device is defective Contact customer service. Device does not switch off automatically Defective thermostatic switch Disconnect device from the mains and contact customer service Milk froths over Milk container (1) too full Pay attention to the maximum lling quantity Frothing is not satis- factory Frother (4) is not sitting properly on the holding pin (8) Put the frother (4) pro- perly onto the holding pin (8) Frother (4) and/or holding pin (8) dirty/stuck Clean frother (4) and/ or holding pin (8) NOTE If you cannot resolve the problem with the steps described ► above, please contact customer service.52 Information on storage/disposal BEEM - Elements of Lifestyle

Information on storage/disposal Storage If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and mainte- nance to prevent mould from building up. Mould fungi can dama- ge the device and cause marks that cannot then be removed. Disposal In the European Community, this product must not be disposed of in the domestic refuse. Dispose of the device in accordance with the EU Directive 2002/96/EU-WEEE (Waste Electrical and Electronic Equipment). Should you have any questions, please contact the local authority responsible for waste disposal. Appendix Technical data Model Milk frother Latte Crème Type number W7.001 Operating voltage 230 VAC Mains frequency 50 Hz Power consumption 600 W Dimensions

(H x W x D) Approximate weight 0.9 kg Protection class I Type of protection IP 20 Filling quantity max. 300 ml min. 150 ml We reserve the right to modify design and technology at any time.53 Appendix BEEM - Elements of Lifestyle

Spare parts and other accessories Item* Article No. Designation 4 900 482 001 Frother

• according to the drawing in the description of the device Certications Symbol Meaning The W7.001 device is tested and certied by SGS. The device conforms to the rele- vant EU Directives (see Declara- tion of Conformity). This device conforms to the Directives on the Restriction of Hazardous Substances in Electrical and Electronic Devices (RoHS). This device conforms to the provisions of the Waste Electri- cal and Electronic Equipment Directive (WEEE).54 Appendix BEEM - Elements of Lifestyle

Guarantee, service and repairs This is a quality product from BEEM and was produced using the latest manufacturing methods. We guarantee the perfect condition of this quality product. We will remedy any faults due to material aws or manufacturing faults free of charge within the warranty period. The warranty period for this product is two years. For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as dened by the German Civil Code, the warranty period is 6 months. This does not infringe the warranty disclaimer. Warranty disclaimer: The warranty does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modica- tions, unauthorised attempted repairs and attempted repairs by unqualied third parties. Faults caused by normal wear are also excluded. If we are obliged by law to provide a warranty, we will comply with such obligation – to the exclusion of the right to cancellation or price reduction – and at our discretion, repair or replace the product free of charge. Should the remedy fail despite several att- empts or should the replacement product exhibit faults attributab- le to us, the customer shall be entitled – at his/her discretion – to reduce the purchase price or to cancel the contract of purchase. Claims under warranty do not prolong the warranty period. For exchange or return of the device (withdrawal from the purchase contract) or reduction of the purchase price, the rst contact is always the retailer from whom you purchased the product. This particularly applies to returning the device or the claim for reduc- tions as these have to be settled with respect to the purchase price. Refunding the purchase price or a credit note in the event of a reduction of the purchase price can only be handled by the retailer from whom you purchased the device.55 Appendix BEEM - Elements of Lifestyle

Should faults nevertheless occur, please try to resolve the matter by telephone rst. Should this not be successful, please send the carefully packed device to your retailer or to the customer service address shown below. Please state your complete address, type and model number and the serial number of the device. This information can be found on the rating plate of the device. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a prin- ted and dated receipt of purchase or invoice. No services under warranty can be provided for repairs, spare parts or other claims without a printed receipt of purchase or an invoice. Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor rst. Information can be obtained – preferably by e-mail – from the customer service address indicated below. Repairs not covered by the warranty can also be performed against individual payment by customer service - outside Germa- ny by the retailer from whom you purchased the device or by a service centre, if available. Replacement parts and consumables can be ordered from your retailer or the stated customer service address. Please con- tact your dealer or the local distributor if you live outside Germa- ny. For product information, accessory orders or questions on service handling, please contact your retailer or the stated customer service address. Outside Germany and in particular in non-EU countries, please contact your retailer or the local distributor rst. You can also use the Internet. You will nd accessories and spare parts, as well as user manuals in various languages on our website www.beem.de . Additional product information can also be found here.56 Appendix BEEM - Elements of Lifestyle

EC Declaration of Conformity Name/address of manufacturer: BEEM Blitz-Elektro-Erzeugnisse Manufaktur Handels-GmbH Dieselstrasse 19-21 D-61191 Rosbach v.d.H. We hereby declare that the product Model: Frother Latte Crème Type: W7.001 conforms to the following relevant regulations: EU Directive 2006/95/EU Electrical devices for use within certain voltage limits, EU Directive 2004/108/EU Electromagnetic Compatibility. The following harmonised standards were applied in whole or in part: EN 60335-2-9:2003 + A1:2004 + A2:2006 + A12:2007 EN 60335-1:2002 + A11:2004 + A1:2004 + A12:2006 + A2:2006 + A13:2008 EN 62233:2008 EN 55014-1:2006 + A1:2009 EN 55014-2:1997 + A1:2001 + A2:2008 EN 61000-3-2:2006 + A2:2009 EN 61000-3-3:2008 We declare that this device and its components comply with the European directive on materials and articles intended to come into contact with food, C1935/2004/EC as well as the European directive on materials and articles made of plastic intended to come into contact with food, 2002/72/EC

Overall migration as well as specic migrations are below the statutory limit values. Tests were conducted according to the directives 82/711/EEC und 85/572/EC. Rosbach, 28.07.2010 Bijan Mehshat ________________________________________(Legally binding signature of the issuer)57 Index BEEM - Elements of Lifestyle

EC Declaration of Conformity . 37, 56 Electrical connection...........40 Electrical safety...............40

New owner ...............33, 48 Non-stick coating .............44

Using for the rst time..........40
