USER MANUAL Milk Perfect BEEM

Black BEEM water heater with a handle and control panel, no visible text or symbols on the device itself.

MILK-PERFECT

08158

Gebrauchsanleitung

Instruction manual

Mode d'emploi

Simple line drawing of a coiled spring inside a circle (no text or symbols)

DE

On the fold-out page you will find all the illustrations that are referred to in these operating instructions. Open up the page before reading the operating instructions.

FR

Black and silver photo of a milk carton being poured into it, no visible text or symbols on the device itself.

Hand holding a black and silver coffee cup with milk being poured (no visible text or symbols)

Close-up of a black BEEM appliance with a circular button and metallic rim (no visible text or symbols)

Black-and-white photo of a hand pouring liquid from a metal cup into a glass of milk (no text or symbols visible)

1 2 3 4 5 6 7 BEEM

Two 3D mechanical components with labeled parts (9 and 8), no text or symbols present.

Top-down view of a circular mechanical component with concentric rings and a central hole, labeled 'A' in the top left corner (no other text or symbols)

B MAX MAX

Top-down view of a metallic kitchen fan with a handle and central screw, labeled 'C' in the top-left corner (no other text or symbols)

Top-down view of a circular device with internal components and a cable, labeled 'D' in the top left corner (no text or symbols on the device itself)

Optional erhältlich | Optionally available | Disponibles en option | Opcionalmente disponible | Disponibili come opzione

White rectangular product packaging with printed text and a small logo (no visible text or symbols on the packaging itself)

BEEM Premium Reinigungstabletten

Cleaning tablets

13 Items Supplied
13 Device Overview
14 Information About Your Operating Instructions
14 Intended Use
15 Safety Notices
17 Before Initial Use
18 Safety Devices
18 Setting Up and Connecting the Device
19 Preparation and Operation
19 Programme Selection
19 Markings in the Milk Jug
19 Preparation
20 Cleaning and Care
21 Storage
21 Troubleshooting
22 Warranty and Limitations of Liability
22 Technical Data
22 Disposal

Items Supplied

• Base station
• Milk jug
• Lid
• Frothing spiral
• Stirring insert
• Operating instructions

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove all packaging materials and any possible protective films used for protection during transportation. Never remove the rating plate and any possible warnings!

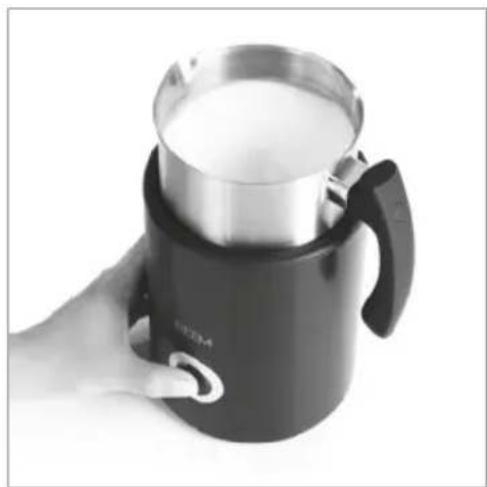

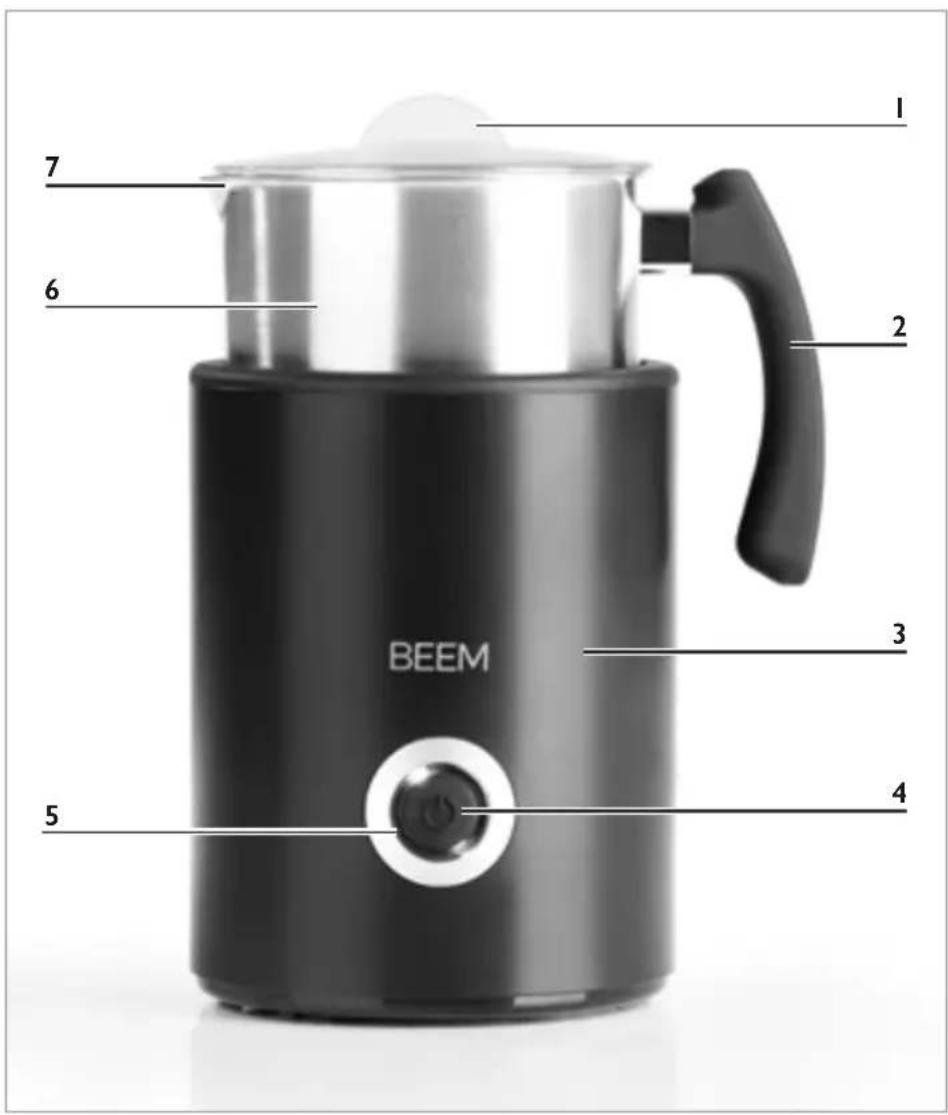

Device Overview

(See fold-out page for illustrations)

I Lid
2 Handle
3 Base station

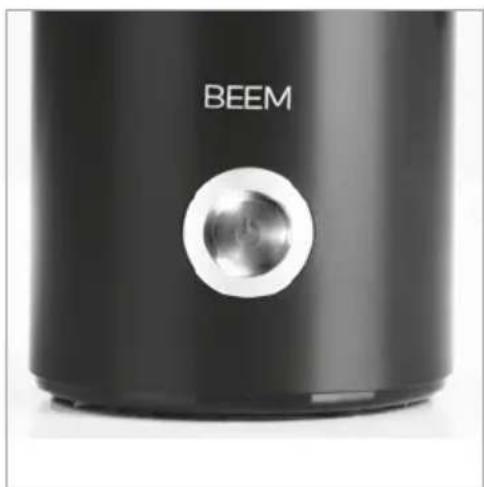

4 On/Off button
5 LED ring
6 Milk jug
7 Pouring spout

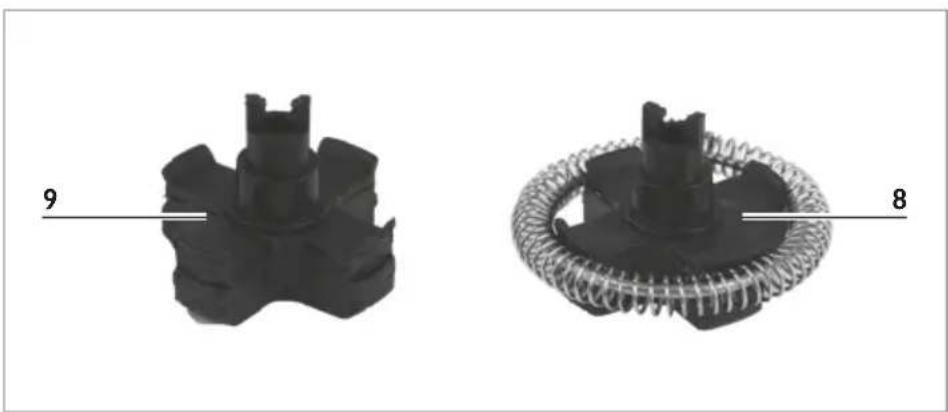

8 Frothing spiral
9 Stirring insert

Key numbers are shown as follows: (1)

Picture references are shown as follows: (Picture A)

Congratulations!

Dear Customer,

We are delighted that you have chosen this milk frother.

If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website: www.beem.de

Information About Your Operating Instructions

Before using the device for the first time, please read through the operating instructions carefully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. They are an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

Explanation of the Symbols

Four warning symbols: triangular warning triangle with exclamation mark, lightning bolt symbol, flame icon, and smokestack symbol.

Danger symbols: These symbols indicate dangers of injury. Read through the associated safety notices carefully and follow them to prevent any personal injury.

Beware of hot surfaces!

Supplementary information

Suitable for use with food.

Read operating instructions before use!

Explanation of the Signal Words

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

CAUTION – low risk, may result in minor or moderate injury

NOTICE – may result in risk of damage to material

Intended Use

• This device is only intended to be used for heating and/or frothing milk and for making cocoa or hot chocolate. However, it cannot be used to cool down warm milk.
• The device is designed exclusively for (chocolate) milk. It is also suitable for alternative types of milk such as oat milk or almond milk. Do not heat any other liquids.
• The device is for personal use only and is not intended for commercial or domestic-like applications, e. g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
• The device should only be used as described in the operating instructions. Any other use is deemed to be improper.

Safety Notices

Warning: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and/or injuries.

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  • Children must not play with the device.
• Cleaning and user maintenance must not be carried out by children, unless they are older than 8 years of age and are supervised.
• Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.

CAUTION: hot surfaces!

The device and the accessories are very hot during and shortly after use. While the device is in operation or immediately after it is switched off, only the handles and operating elements may be touched. Allow the device to cool down completely before it is cleaned.

• Never exceed the maximum fill levels (MAX markings). If the milk jug is overfilled, hot milk could splash out or overflow during use.
• The device is not designed to be operated with an external timer or a separate remote control system.
• Never immerse the device and the connecting cable in water or other liquids and ensure that these components cannot fall into water or become wet.

• The device must always be disconnected from the mains power when it is left unattended or before cleaning it.

• Use the milk jug only with the base station provided. Do not use the base station with other devices.

• Do not make any modifications to the device. Do not replace the connecting cable yourself. If the device or the connecting cable of the device are damaged, they must be repaired or replaced by the manufacturer, customer service department or authorised distributors in order to avoid any hazards.
• It is essential to follow the instructions in the “Cleaning and Care” chapter.

DANGER – Danger of Electric Shock

• Use the device only in closed rooms.
• Do not use the device in rooms with high humidity.
• If the device falls into water while it is connected to the mains power, switch off the power supply immediately! Only after this should you pull the device out of the water.
• Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
• Make sure that the steam which emerges is not aimed directly at electrical devices and equipment containing electrical components.

WARNING – Danger of Injury

- Keep the packaging material away from children and animals. There is a danger of suffocation!

- Make sure that the connecting cable is always kept out of the reach of small children and animals. There is a danger of strangulation.

Danger of scalding from heat, hot steam or condensation!

• Avoid coming into contact with the rising steam. Do not open the lid of the milk jug during the heating and frothing process.
• Never pour milk into the milk jug with the device switched on.
• Allow the device to cool down before using it again.

• Do not move the device during the heating and frothing process.

• In the interest of your own safety, inspect the device and the connecting cable for damage each time before you use it. Use the device only if it is in working order.

• Make sure that the connecting cable does not present a trip hazard. The connecting cable should not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.

WARNING – Danger of Fire

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
• Do not operate the device in the vicinity of combustible materials. Do not place any combustible materials (e.g. cardboard, paper, wood or plastic) in or on the device.
• Do not cover the device during operation.

NOTICE – Risk of Damage to Material and Property

• Only use suitable extension cables whose technical data is the same as that of the device.
• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
• Never pull or carry the base station by the connecting cable. When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!
• Never wrap the connecting cable around the base station.
• Protect the device from other heat sources, flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
• Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

Before Initial Use

Clean the device and accessories before you first use them to remove any possible production residues on the device. To do this, follow the instructions in the “Cleaning and Care” chapter.

Safety Devices

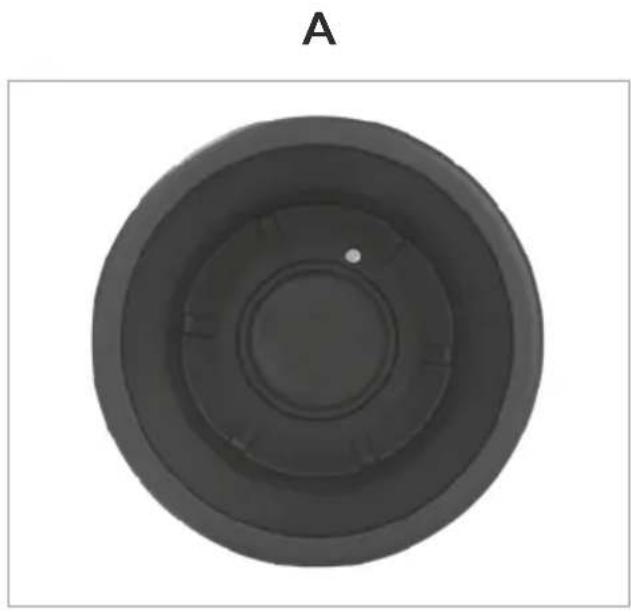

The device has a safety switch (Picture A). It can only be switched on when the milk jug (6) is placed in the base station (3). If the milk jug is removed from the base station during use, this switches off automatically. The LED ring (5) flashes in all colours (red, white, blue) and beeps. If you then want to use the device again, place the milk jug back into the base station. The LED ring goes out and the beeps fall silent. Now set the programme you want again to start the device.

In addition, the device is equipped with overheating protection. If it is operated without any contents, the device switches off after approx. 40 seconds. Five beeps are heard and the LED ring (5) goes out. The fan then continues to run for a few seconds to cool down the device. Fill the milk jug once it has cooled down, and set the programme you want again.

Setting Up and Connecting the Device

PLEASE NOTE!

• Only connect the device to a plug socket that is properly installed. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device.
• Lay the connecting cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).
• Always set up the device with a clear space at the sides (at least 20 cm) and clear space above it (at least 30 cm) on a flat, solid and heat-resistant surface that is resistant to splashing.
• Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!

I. Place the device on the kitchen unit or another dry, clean work surface, following the safety notices and the notices provided at the beginning of this chapter.
2. Fully unwind the connecting cable and plug the mains plug into a plug socket. The LED ring (5) lights up in all colours (red, white, blue) and goes out again. In addition, a beep is heard.

Preparation and Operation

Programme Selection

The On / Off button (4) can be used to switch between the different programmes. The device has three programmes. The LED ring (5) indicates the selected programme by the colour.

Programme Control lamp Insert Intended use
1	Red	Stirring insert Heating milk
		Frothing spiral Preparing warm milk froth
2	White Stirring insert		Making warm cocoa / hot chocolate
3	Blue	Stirring insert Making cold cocoa
		Frothing spiral Preparing cold milk froth

The degree to which the milk is heated is dependent on the temperature of the milk that is used. For the best possible result, we recommend using cold milk from the fridge for frothing.

To switch between the different programmes, press the On / Off button several times.

Markings in the Milk Jug

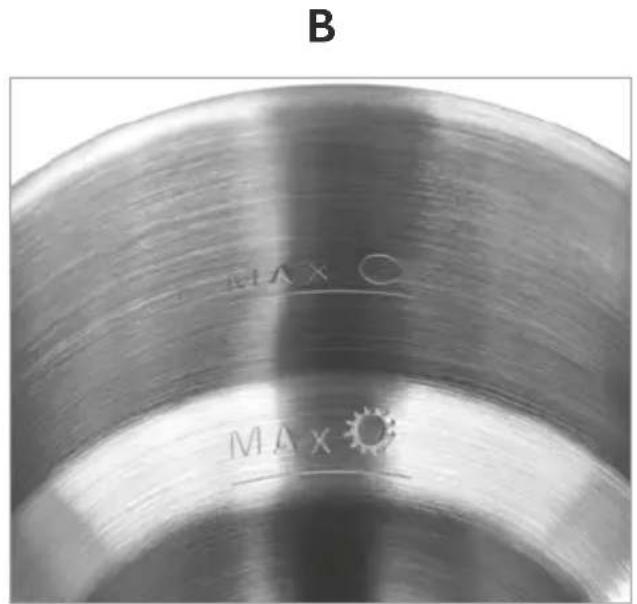

The milk jug (6) contains two different markings (PICTURE B):

MAX

Maximum fill level for heating without frothing (approx. 500 ml)

MAX

Maximum fill level for frothing (approx. 260 ml)

Preparation

PLEASE NOTE!

• Do not fill the milk jug if it is positioned in the base station! Remove the milk jug from the base station to fill it.
  • Never use the milk jug without milk!
• Never use the milk jug without the lid. Hot milk could spray out during frothing and heating.

When the device is first used, production-related additives (e.g. grease) may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.

I. Take the lid (1) off the milk jug (6).

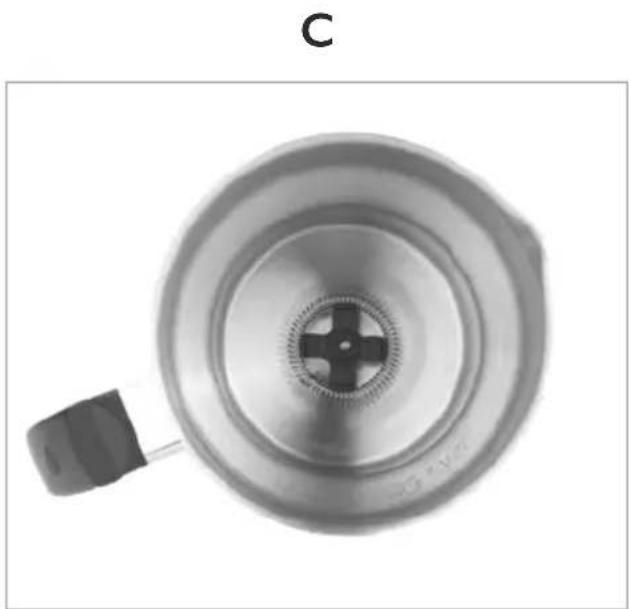

2. Depending on the programme, place the frothing spiral (8) or the stirring insert (9) on the magnetic pin on the bottom of the milk jug (Picture C) (see the “Preparation and Operation” chapter – “Programme Selection”).
3. Fill the milk jug with the appropriate amount of milk depending on the programme. Note the maximum fill levels (see the “Preparation and Operation” chapter – “Markings in the Milk Jug”).
4. Place the lid on the milk jug and press it down as far as it will go.

1. Place the filled milk jug into the base station (3).

2. Set the programme you want by pressing the On/Off button (4). The LED ring (5) indicates the selected programme by flashing in the corresponding colour (see the “Preparation and Operation” chapter – “Programme Selection”).

The programme then starts automatically. During the programme sequence, the LED ring lights up constantly in the colour of the set programme.

At the end of the programme you will hear five beeps and the LED ring goes out. The device switches off automatically.

The programme sequence can be aborted at any time by pressing the On / Off button.

1. Pull the mains plug out of the plug socket after use. The LED ring lights up in all colours (red, white, blue) and goes out again.

Cleaning and Care

PLEASE NOTE!

- Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the device. These may damage the surface.

I. If necessary, empty the milk jug (6).
2. Wipe down the base station (3) with a damp cloth. If necessary, use a little detergent to remove more intense soiling.
3. Clean the milk jug and the lid (I) with warm water and detergent or in the dishwasher.
Please Note: However, regular cleaning in the dishwasher may have a detrimental effect on fittings. We therefore recommend cleaning by hand.
IMPORTANT! The frothing spiral (8) and the stirring insert (9) must not be cleaned in the dishwasher! Only rinse them by hand. For more thorough cleaning of the frothing spiral, you can remove the ring.
4. Dry all parts well before you reassemble and / or store away the device.

Storage

Disconnect the device from the mains power when it is not going to be used for a prolonged period. Clean the device again if necessary (see the “Cleaning and Care” chapter) and let it dry completely.

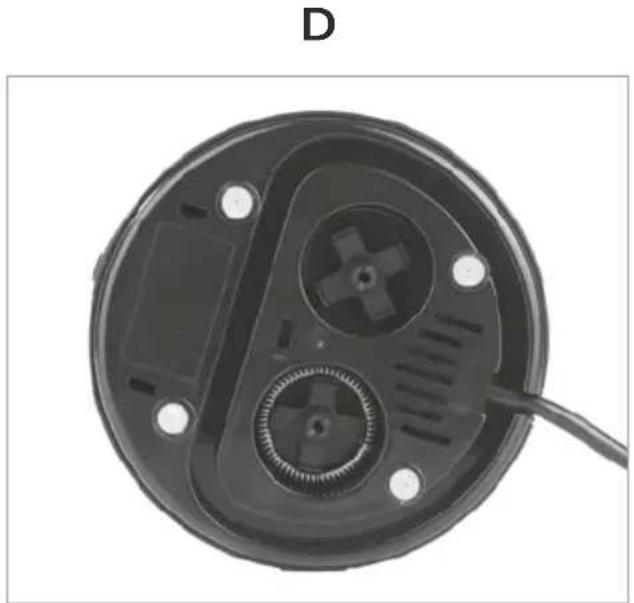

For practical storage, the frothing spiral (8) and the stirring insert (9) can be inserted in the recesses on the bottom of the base station (3) (Picture D).

Store the device and all accessories in a dry, clean, frost-free place that is protected from direct sunlight and cannot be accessed by children or animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact our customer service department.

Do not attempt to repair an electrical device yourself!

Problem Possible cause Fix
The device cannot be switched on.	The mains plug is not inserted correctly in the plug socket.	Correct the fit of the mains plug.
	The plug socket is defective. Try another plug socket.
	There is no mains voltage.	Check the fuse of the mains connection.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
The programme is aborted. / The LED ring (5) flashes in all colours and the device beeps.	The milk jug (6) has been removed from the base station (3) during operation.	Place the milk jug back into the base station. The LED ring goes out and the beeps fall silent. Start the programme you want again.
Milk runs out of the milk jug.	There is too much milk in the milk jug.	Do not overfill the milk jug!
During use, an unpleasant smell is detected.	The device is being used for the first time.	A smell often develops when new devices are first used. The smell disappears once the device has been used several times.

Warranty and Limitations of Liability

The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• failure to follow the operating instructions
  • non-designated use
• improper or unsuitable handling
  • repairs which are not carried out properly
• unauthorised modifications
  • use of outside parts or spare parts
• use of unsuitable additional parts or accessories

Keep the original packaging during the warranty period of the device so that the device can be properly packaged up if it needs to be returned. The warranty claim will lapse if any damage is caused during transport.

Technical Data

Article number: 08158

Model number: SB-012-1

Voltage supply: 220 – 240 V \~ 50 Hz

Power: max. 500 W

Protection class: I

ID of operating instructions: Z 08158 M BE V3 0422 mh

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The adjacent symbol (crossed-out bin underlined) means that used devices should not be disposed of in the domestic waste, but should instead be taken to special collection and return systems.

Owners of used devices from private households can take them free of charge to the collection points of the public waste disposal authorities or the disposal points which are set up by manufacturers and distributors under the Electrical Equipment Act. Businesses which market electrical and electronic devices are also obliged to take back used devices.
