USER MANUAL 2520VG DOVRE

Installiecondities 9

Algemeen.9

Schoorsteen 9

$$ \bullet = \text {D i c h t} $$

$$ \hat {\circ} = \text {O p e n} $$

Stoken met hout

Nominal vermogen 23, 26-27

0

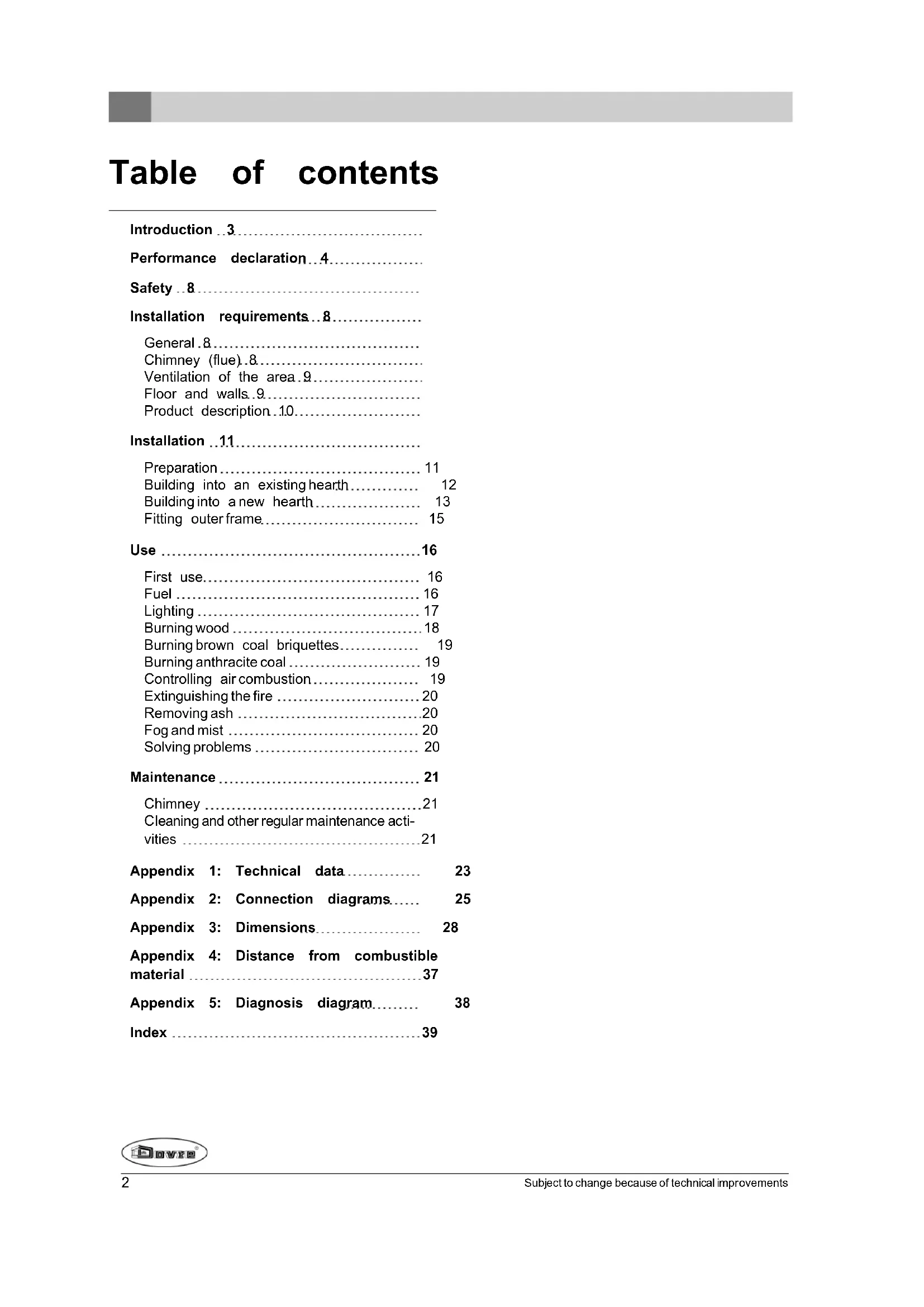

Performance declaration. 4

Safety 8

Installation requirements 8

General.8
Chimney (flue).8.
Ventilation of the area.9
Floor and walls.9
Product description.10

Installation 11

Preparation 11

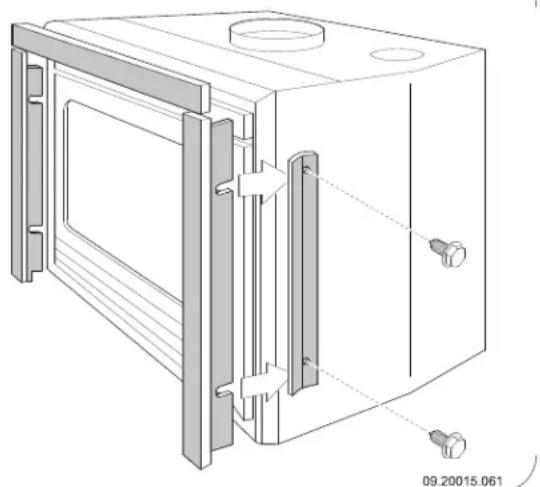

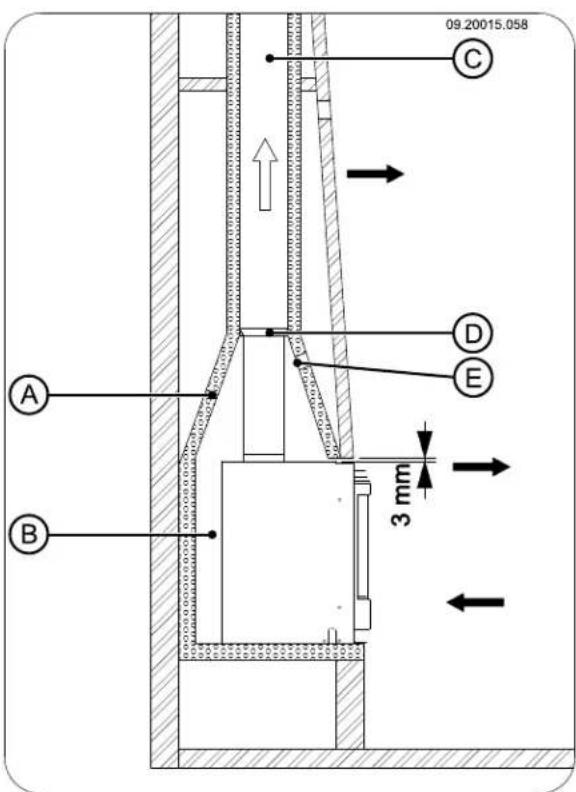

Building into an existing hearth 12

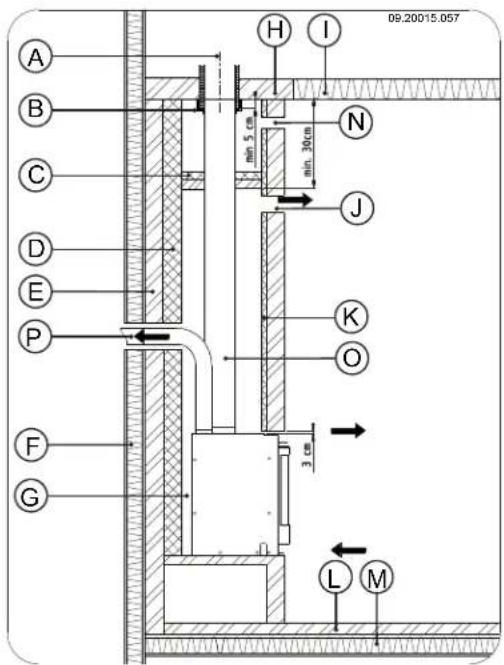

Building into a new hearth. 13

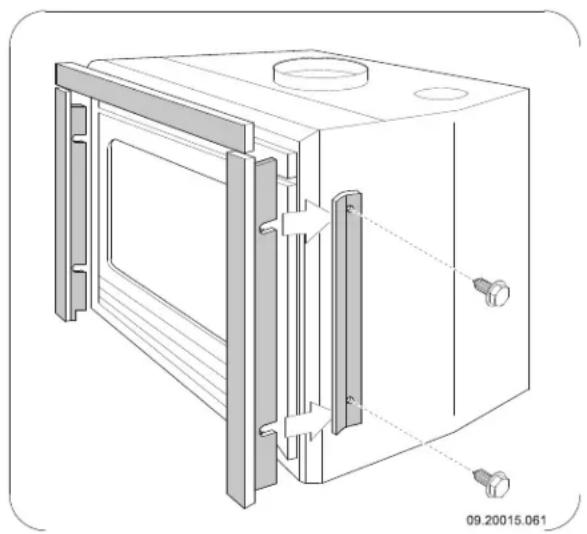

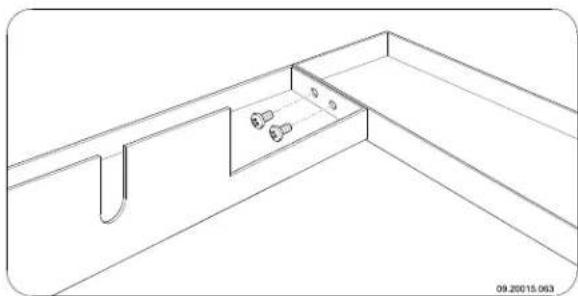

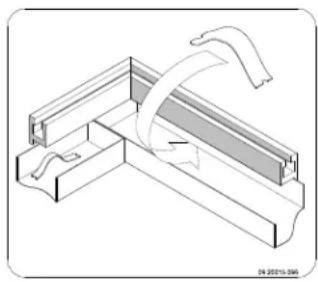

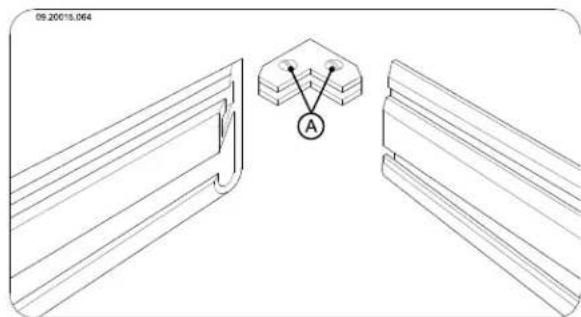

Fitting outer frame. 15

Use 16

First use. 16
Fuel 16

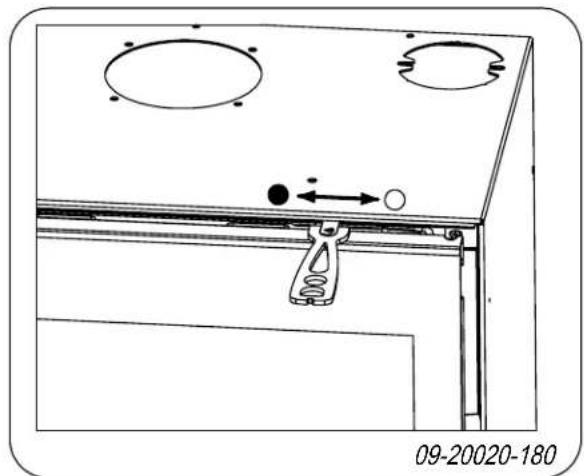

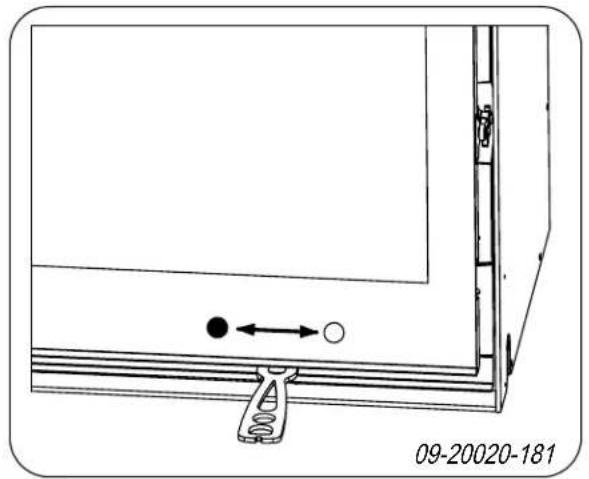

Lighting 17

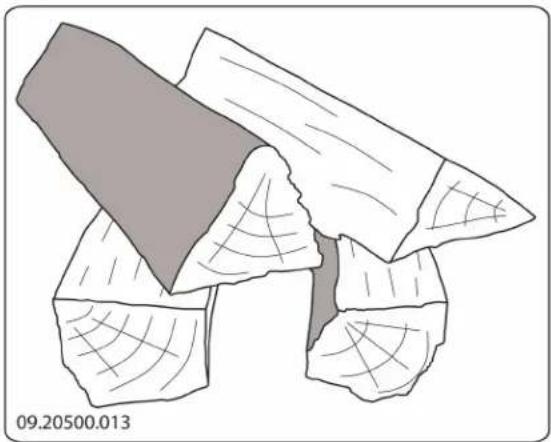

Burning wood 18
Burning brown coal briquettes 19
Burning anthracite coal 19
Controlling air combustion. 19
Extinguishing the fire 20
Removing ash 20
Fog and mist 20
Solving problems 20

Maintenance 21

Chimney 21
Cleaning and other regular maintenance activities 21

Appendix 1: Technical data 23
Appendix 2: Connection diagrams. 25

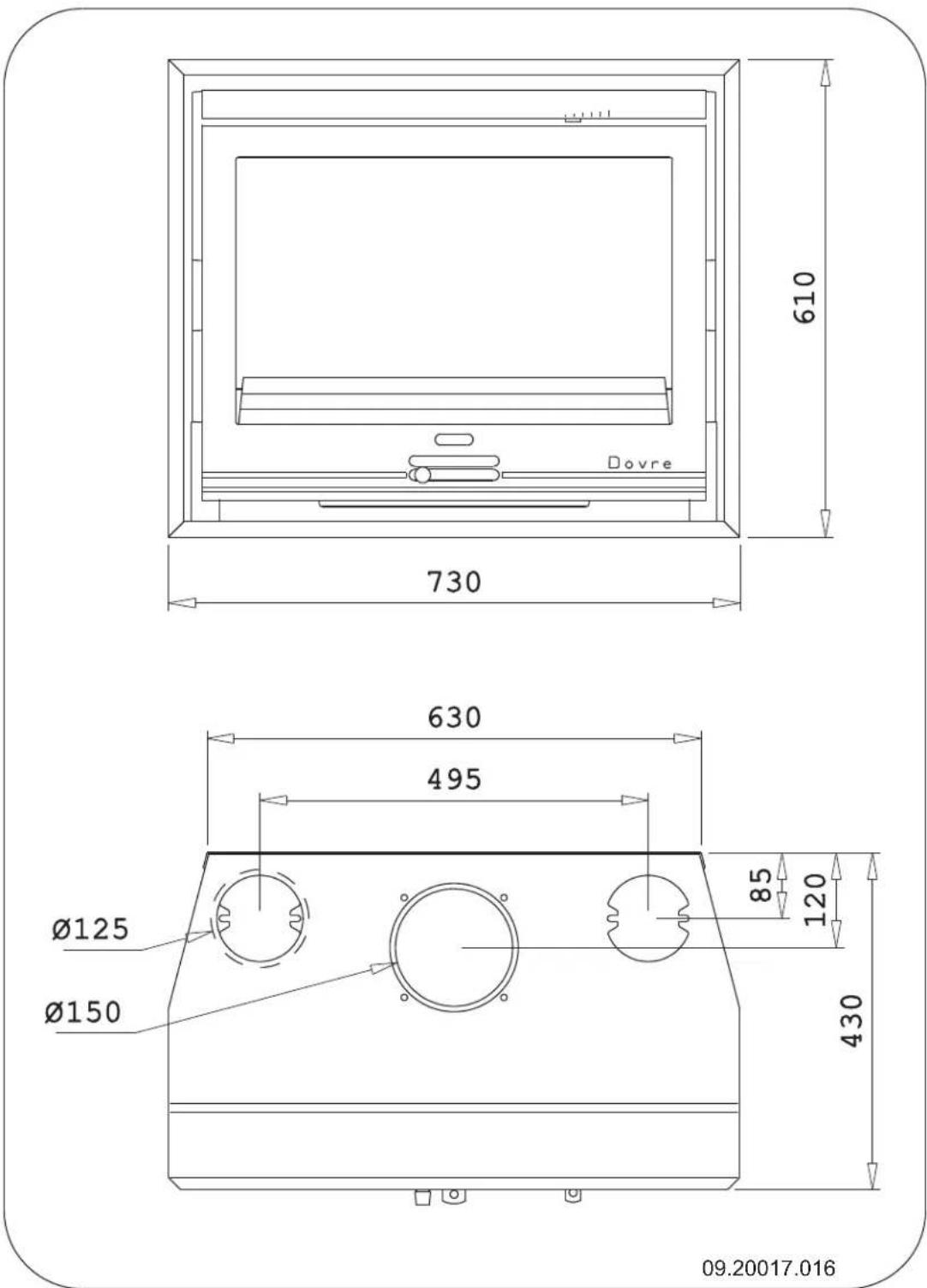

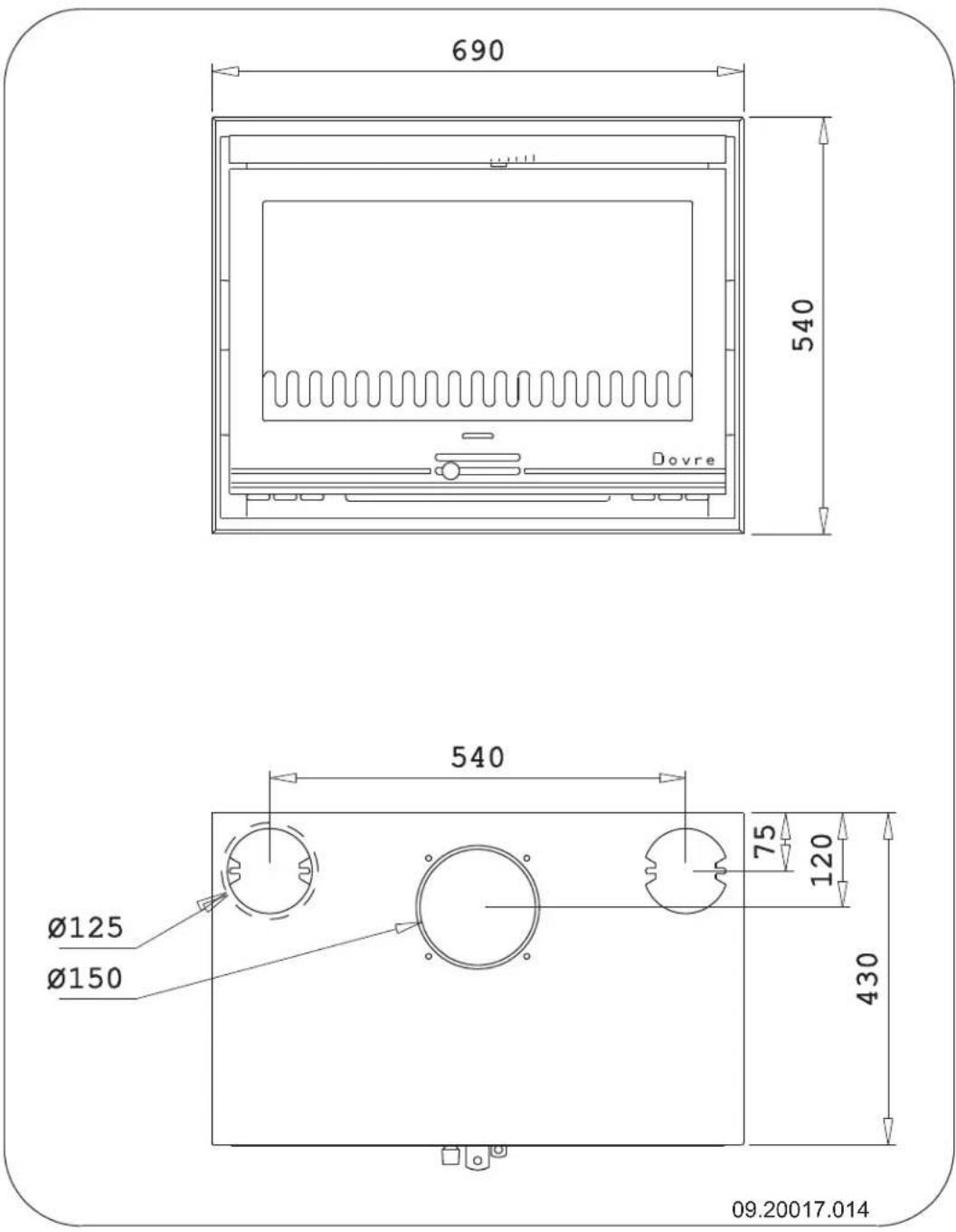

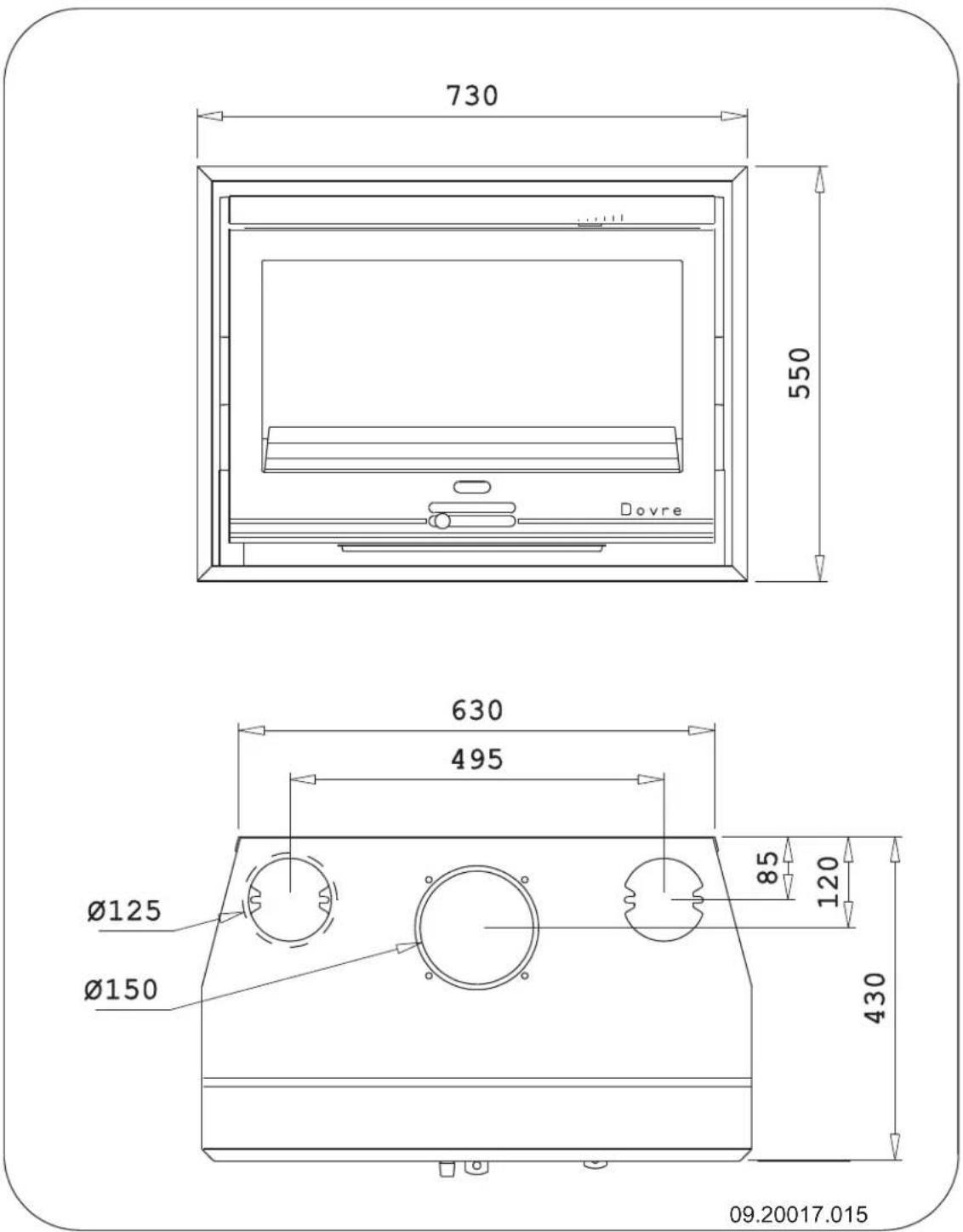

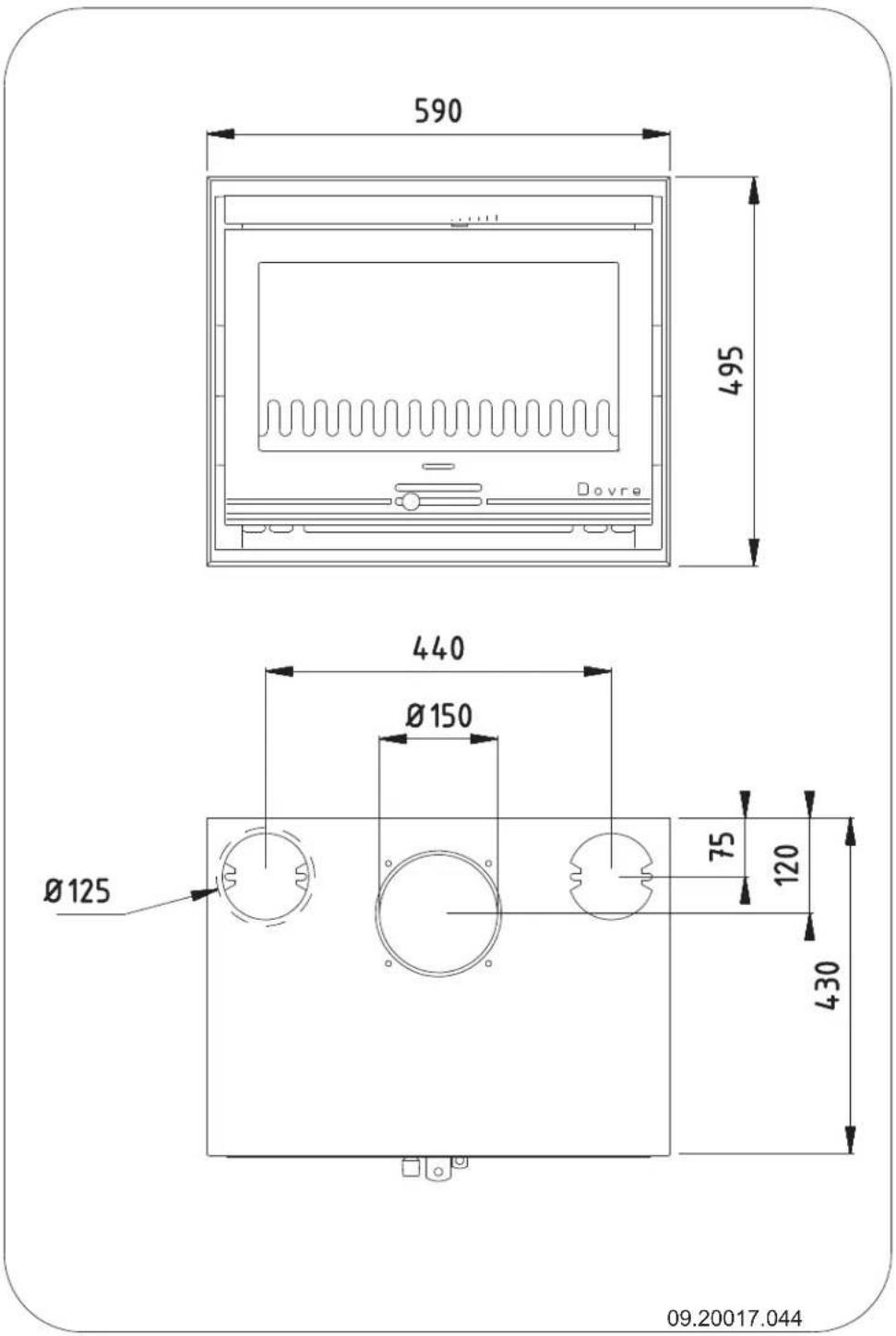

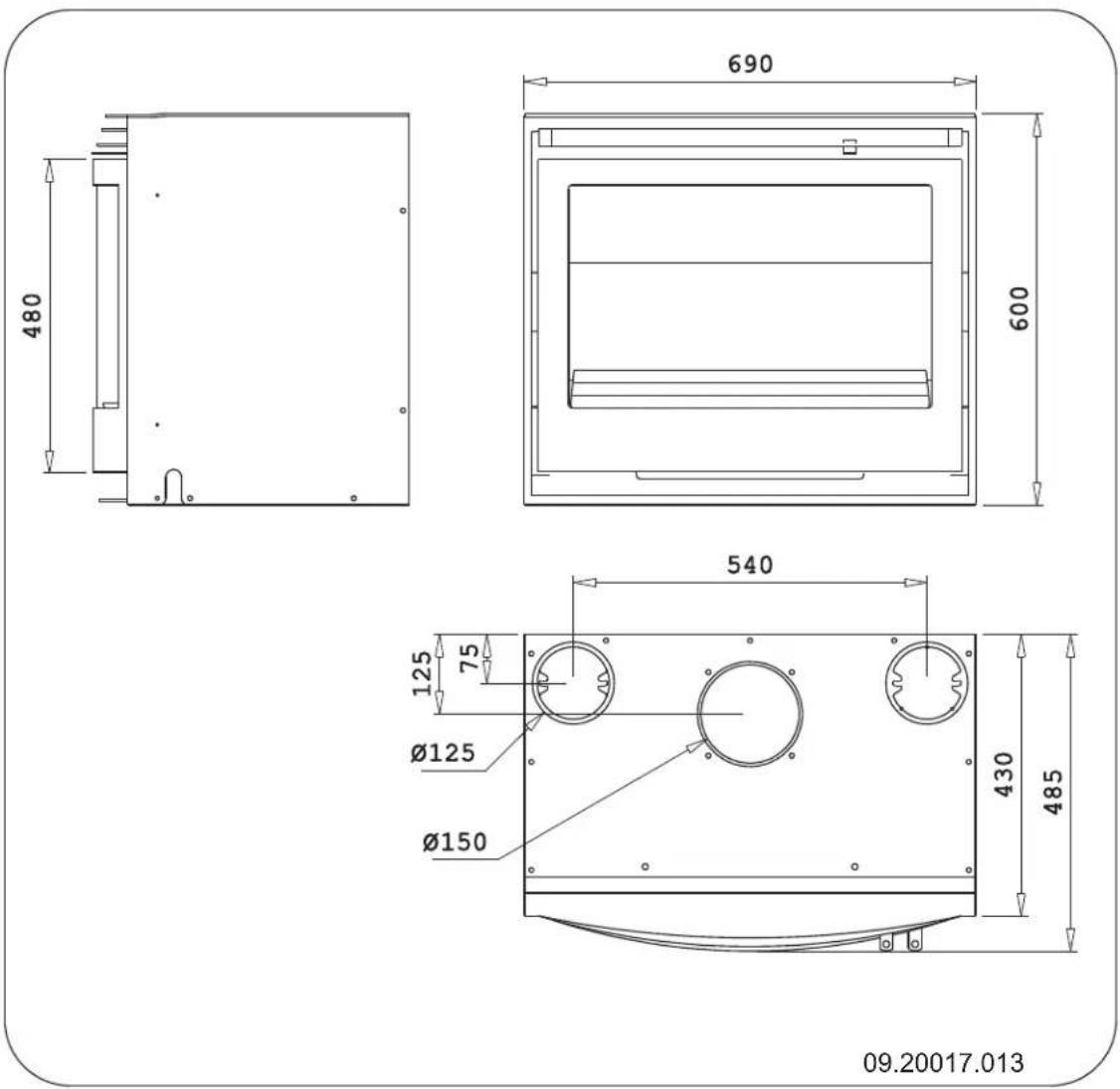

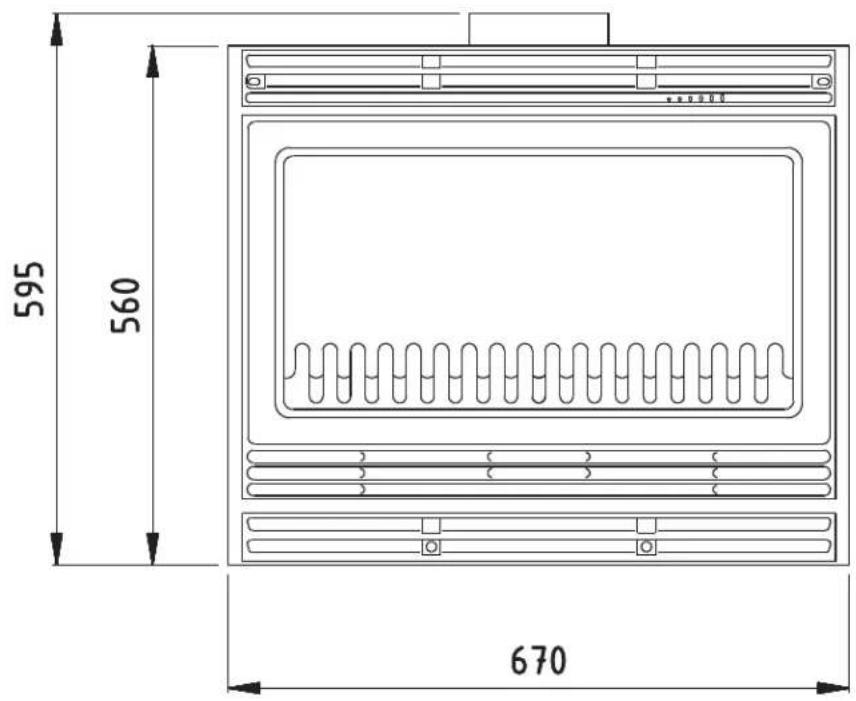

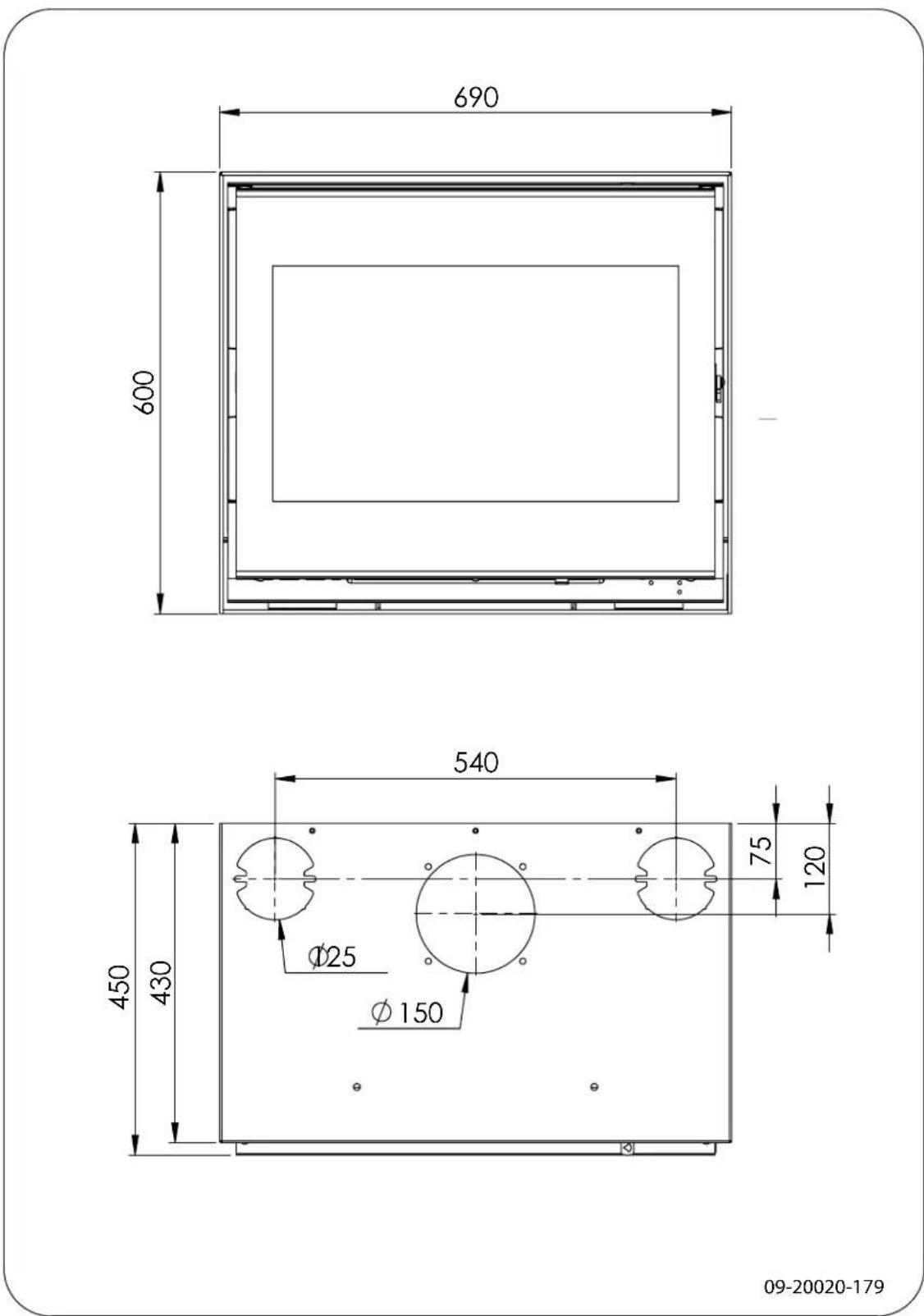

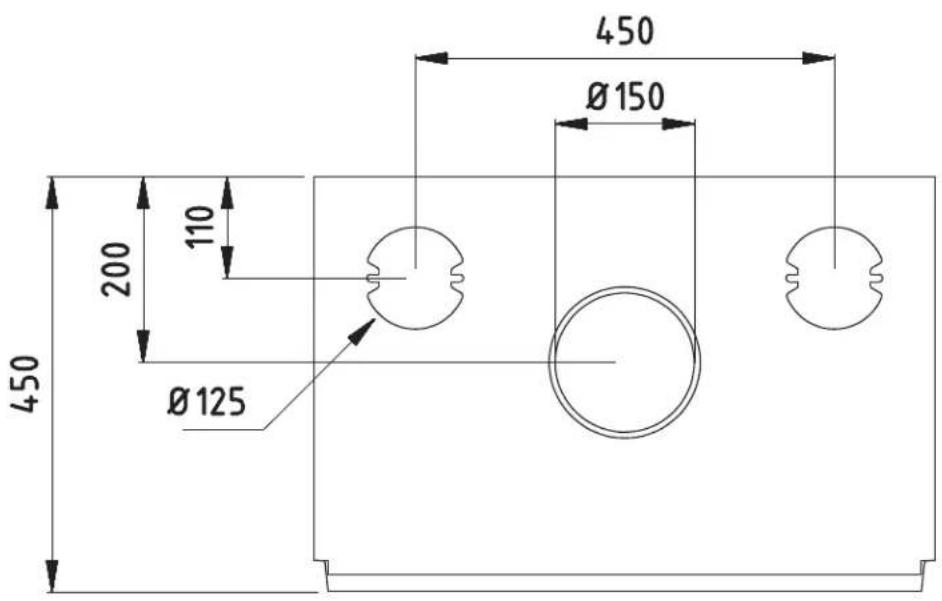

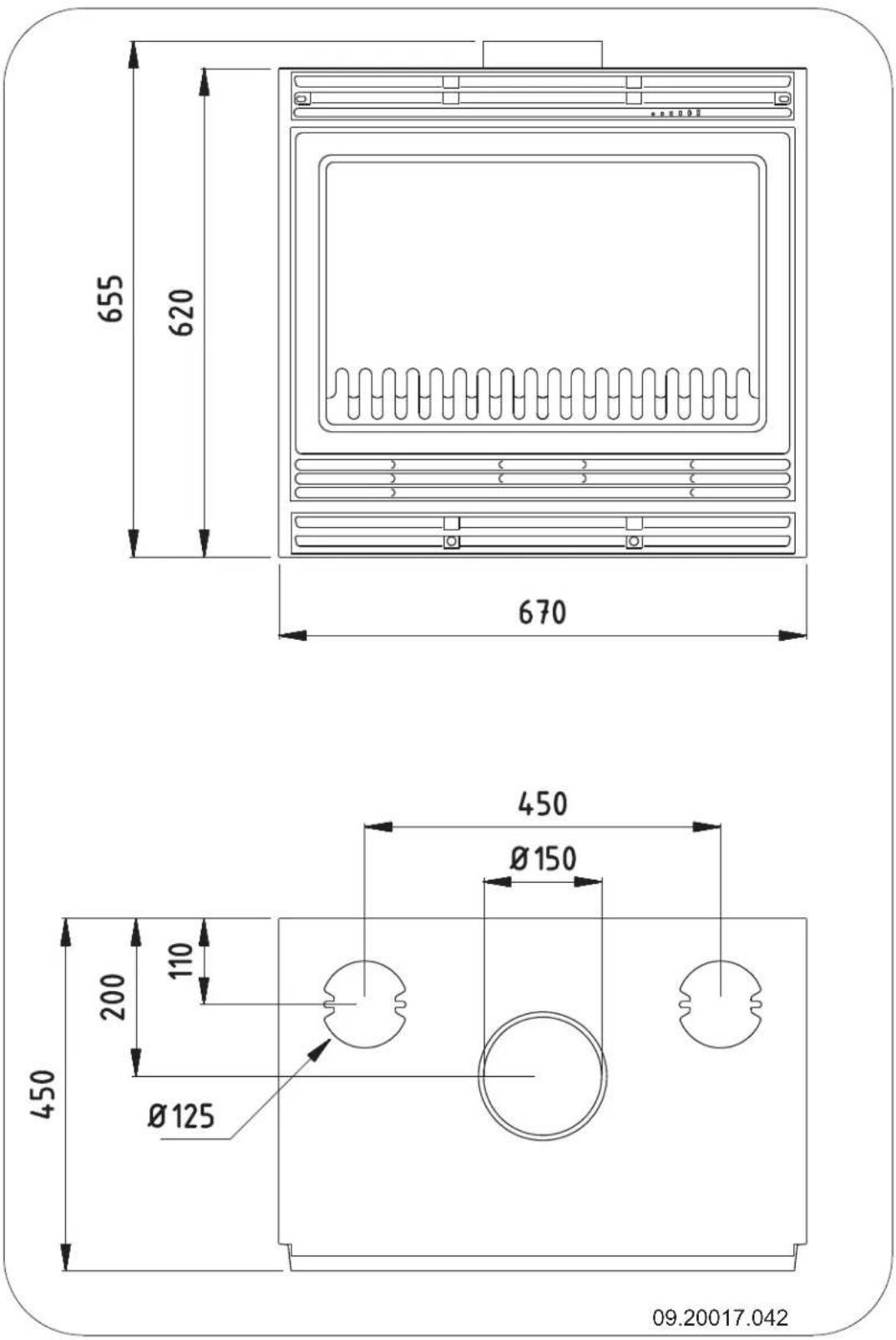

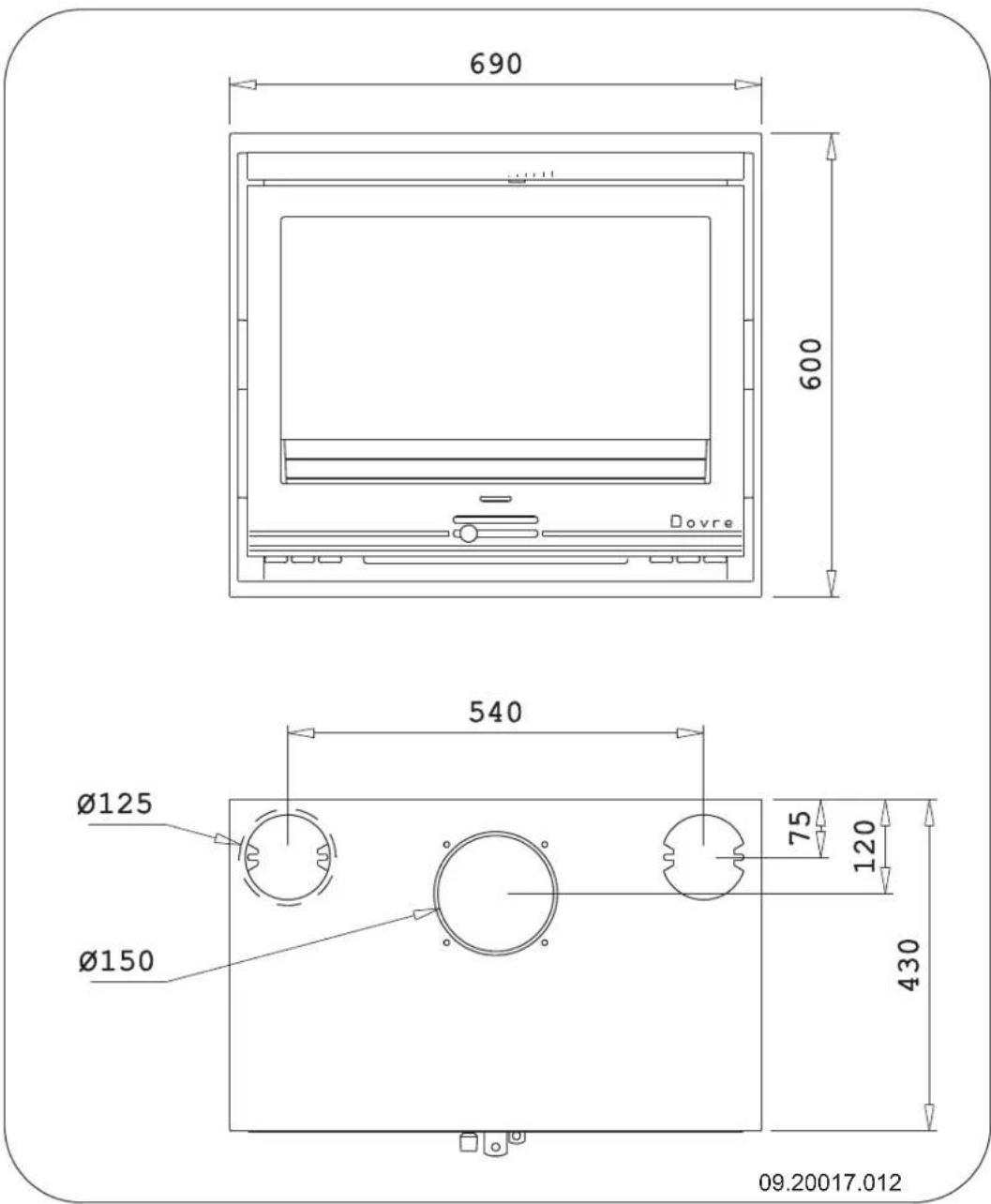

Appendix 3: Dimensions 28

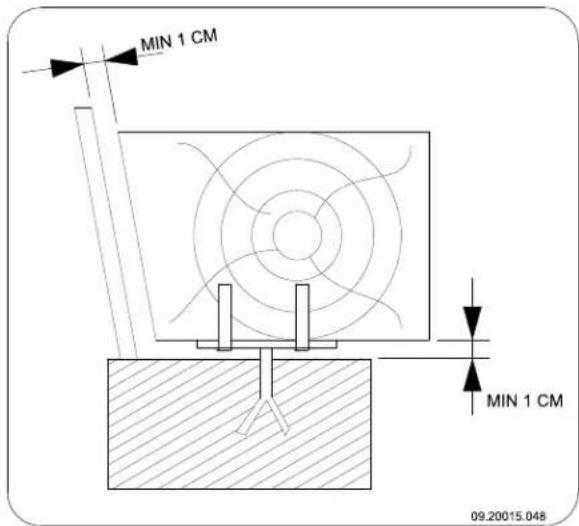

Appendix 4: Distance from combustible material 37
Appendix 5: Diagnosis diagram. 38
Index 39

Introduction

Dear user,

In buying this DOVRE heating appliance, you have chosen a high quality product. This product is part of a new generation of energy-efficient and environmentally-friendly heating appliances. These appliances make optimum use of convection heat as well as thermal radiation (radiant heat).

• Your DOVRE appliance has been manufactured with state-of-the-art production equipment. In the unlikely event of a malfunction, you can always rely on DOVRE for support and service.
  The appliance should not be modified; please always use original parts.
  The appliance is intended for use in a living room. It should be connected hermetically to a well-functioning chimney.
  We advise you have the appliance installed by an authorized and competent installer.
  DOVRE cannot be held liable for any problems or damage resulting from incorrect installation.
  Observe the following safety regulations when installing and using the appliance.

In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an installation problem, please first contact your supplier.

© 2012 DOVRE NV

Performance declaration

In accordance with construction products regulation 305/2011

No. 102-CPR-2013

1. Unique identification number of the product type:

2020S / 2200 / 2210 / 2220

1. Type, batch or serial number or other form of identification for the construction product, as scribed in article 11, subsection 4:

Unique serial number.

1. Intended use for the construction product, in accordance with the applicable harmonised techr specification, as specified by the producer:

stove for solid fuel without production of warm water in accordance with EN 13240.

1. Name, registered trade name or registered trademark and contact address of the producer, as scribed in article 11, subsection 5:

1. If applicable, name and contact address for the authorised whose mandate covers the tasks cified in article 12, subsection 2:

一

1. The system or systems for the assessment and verification of the performance durability of construction product, specified in appendix V:

System 3

1. If the performance declaration concerns a construction product that falls under a harmonised

The appointed RRF instance, registered under the number 1625, has performed a type test under system 3 and has issued the test report no. 2905903.

1. If the performance declaration concerns a construction product for which a European technical assessment is issued:

2. Declared performance:

The harmonised norm EN 13240 :2001/A2 :2004/AC :2007
Essential characteristics	Performance Wood	Performance Brown coal	Performance Coal
Fire safety
Fire resistance A1 A1 A1
Distance from combustible material (minimum distance in mm)	Rear: 100 Side: 100	Rear: 100 Side: 100	Rear: 100 Side: 100
Risk of glowing particles falling out Conform	Conform	Conform
Emission of combustion products	CO: 0.10% (13%O2)	CO: 0.06% (13%O2)	CO: 0.04% (13%O2)
Surface temperature Conform	Conform
Electrical safety	-	-	-
Ease of cleaning	Conform	Conform
Maximum operating pressure	-	-	-
Flue gas temperature at nominal output	295 °C	289 °C	272 °C
Mechanical resistance (weight carry of chimney)	Not determined	Not determined	Not determined
Nominal output	7 kW	7 kW	8 kW
Efficiency	78.3 %	75.4 %	76.4 %

1. The performance of the product described in points 1 and 2 conform with the performance in point 9.

This performance declaration is supplied under the exclusive responsibility of the producer specifi in point 4:

26/08/2013 Weelde

Tom Gehem
CEO

In accordance with construction products regulation 305/2011

No. 105-CPR-2013

1. Unique identification number of the product type:

2500/2510/2520/2620

1. Type, batch or serial number or other form of identification for the construction product, as scribed in article 11, subsection 4:

Unique serial number.

1. Intended use for the construction product, in accordance with the applicable harmonised techr specification, as specified by the producer:

stove for solid fuel without production of warm water in accordance with EN 13240.

1. Name, registered trade name or registered trademark and contact address of the producer, as scribed in article 11, subsection 5:

1. If applicable, name and contact address for the authorised whose mandate covers the tasks cified in article 12, subsection 2:

1. The system or systems for the assessment and verification of the performance durability of construction product, specified in appendix V:

System 3

1. If the performance declaration concerns a construction product that falls under a harmonised

The appointed RRF instance, registered under the number 1625, has performed a type test under system 3 and has issued the test report no. 2905904.

1. If the performance declaration concerns a construction product for which a European technical assessment is issued:

2. Declared performance:

The harmonised norm EN 13240 :2001/A2 :2004/AC :2007
Essential characteristics	Performance Wood	Performance Brown coal	Performance Coal
Fire safety
Fire resistance A1 A1 A1
Distance from combustible material (minimum distance in mm)	Rear: 100 Side: 100	Rear: 100 Side: 100	Rear: 100 Side: 100
Risk of glowing particles falling out Conform	Conform	Conform
Emission of combustion products	CO: 0.10% (13%O2)	CO: 0.09% (13%O2)	CO: 0.05% (13%O2)
Surface temperature Conform	Conform
Electrical safety	-	-	-
Ease of cleaning	Conform	Conform
Maximum operating pressure	-	-	-
Flue gas temperature at nominal output	264 °C	318 °C	314 °C
Mechanical resistance (weight carry of chimney)	Not determined	Not determined	Not determined
Nominal output	10 kW	10 kW	10 kW
Efficiency	80.0 %	76.4 %	79.0 %

1. The performance of the product described in points 1 and 2 conform with the performance in point 9.

This performance declaration is supplied under the exclusive responsibility of the producer specifi in point 4:

26/08/2013 Weelde

Tom Gehem
CEO

Due to continuous product improvement, the supplied appliance specifications may vary from the description in this brochure without prior notice having been given.

DOVRE N.V.

Please note: All safety regulations must be complied with strictly.
Please read carefully the instructions supplied with the appliance for installation, use and maintenance before using the appliance.
The appliance must be installed in accordance with the legislation and requirements applicable in your country.
All local regulations and the regulations relating to national and European standards must be observed when installing the appliance.
The appliance should preferably be installed by Ask the fire brigade and/or your insurance com- an authorised installer. Installers will be aware pany about any specific requirements and reg- of the applicable regulations and requirements. uations.
The appliance is designed for heating purposes. All surfaces, including the glass and connecting tube, can become very hot (over 100^ ! When operating, use a so-called "col hand" or an oven glove.
Make sure there is sufficient protection if young children, disabled persons or old people are in the vicinity of the appliance.
Safety distances from flammable materials must be strictly adhered to.
A poorly-functioning flue or chimney can cause smoke Do not place any curtains, clothes, laundry or escape into the room when the door is opened. other combustible materials on or near the appiage caused by smoke emissions into the room is ance. not covered by the warranty.
When in use, do not use flammable or explosive substances in the vicinity of the appliance.
Avoid chimney fires by having the chimney swept regularly. Never burn wood with the door open.
In the event of a chimney fire: close all the appliance's air inlets and alert the fire service. Ask your installer for advice regarding the flue. Refer
If the glass in the appliance is broken or cracked, it must be replaced before the stove can be used again.
Ensure that there is adequate ventilation in the The flue or chimney must be made of fire-resistant room in which the appliance is installed. If vent material, preferably ceramics or stainless steel. ilation is insufficient, combustion will be incomple tplete whereby in toxic gases can spread

through the room. See the chapter "Installation requirements" for more information on ventilation.

The flue or chimney must be airtight and well-cleaned and guarantee sufficient draught.

A draught/vacuum of 15 - 20 Pa during normal operation is ideal.

Starting from the flue spigot, the flue must run vertically as possible. Changes in direction and horizontal pieces disrupt the outward flow of combustion gases and may cause soot deposits.

To prevent combustion gases from cooling down too much, which reduces the draught, ensure that the interior diameter is not too big.

The flue or chimney should ideally have the same diameter as the connection collar.

For the nominal diameter: see the appendix a "Technical data". If the smoke channel is well insulated, the diameter may be slightly bigger (up to 2x the section of the connection collar).

The section (area) of the smoke channel must be constant. Wider segments and (in particular) narrower segments disrupt the outward flow of combustion gases.

• When using a cover plate or exhaust hood : make The stove is in an area that is well-insulated.
• sure that the cover does not restrict the flue outlet There is mechanical ventilation, for example a cent-
• and that the cap does not impede the outward flowral extraction system or an extraction hood in an
• of combustion gases. open kitchen.

The flue must end in a zone that is not affected by can provide extra ventilation by having a vent- surrounding buildings, trees or other obstacles. ilation louvre fitted on the outside wall.

The flue outside the house must be insulated.

The chimney must be at least 4 metres high.

As a rule of thumb: 60 cm above the ridge of the roof.

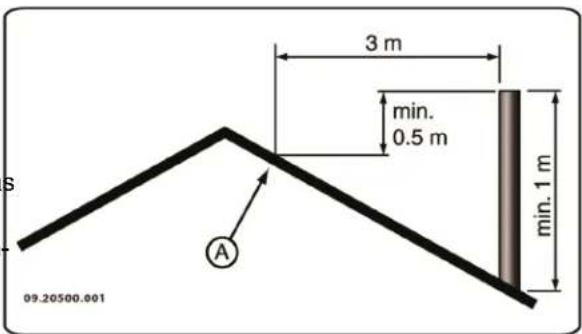

If the ridge of the roof is more than 3 metres a from the flue: stick to the measurements in the lowing figure. A = the highest point of the roof within a distance of 3 metres.

Ventilation of the area

For good combustion, the stove needs air (oxygen). This air is supplied via adjustable air inlets from the area in which the stove is installed.

The combustion will be incomplete in case of insufficient ventilation, which results in toxic gases being produced and spread through the area.

As a rule of thumb, the air supply should be 5.5cm^2 /kW Extra ventilation is needed when:

ike The stove is in an area that is well-insulated.
let There is mechanical ventilation, for example a cent-. flow extraction system or an extraction hood in an open kitchen.

You can provide extra ventilation by having a ventilation louvre fitted on the outside wall.

Make sure that other air consuming appliances (such as tumble-driers, other heating appliances or a bathroom fan) have their own supply of outside air, or are switched off when you use the appliance.

Floor and walls

The floor on which the appliance is placed must have sufficient bearing capacity. The weight of the appliance is given in the appendix "Technical Data appendix".

There may not be any electrical wires in the floor below the appliance and in the walls around it.

All flammable materials must be removed from under the appliance or protected by at least a 6 cm concrete slab.

Flammable walls bordering the appliance must be protected by at least a 10 cm stone wall 5 cm insulation.

Protect non-flammable walls bordering the appliance with at least 2.5cm insulation to avoid cracking.

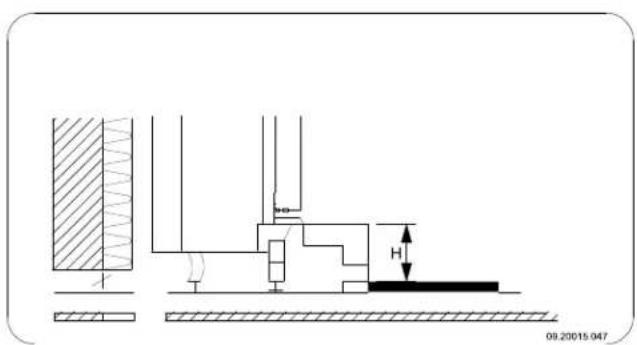

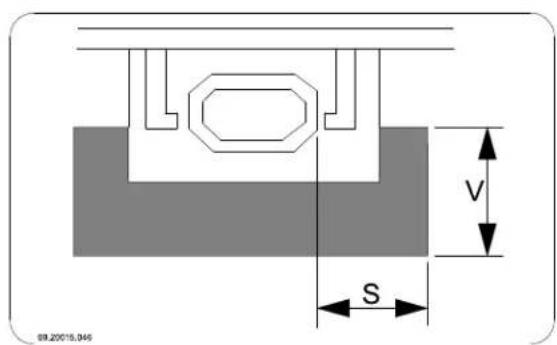

Protect a flammable floor from heat radiation and falling ash by means of a fireproof protective plate. See the appendix "Distance from combustible material".

Keep enough distance between the appliance and combustible materials such as furniture.

Ensure sufficient ventilation around flammable materials such as a mantelpiece. See appendix "Distance from combustible material".

Carpets and rugs must be at least 80 cm away. Riddling rod from the fire.

Do not place any flammable materials within 50~cm of any convection outlets.

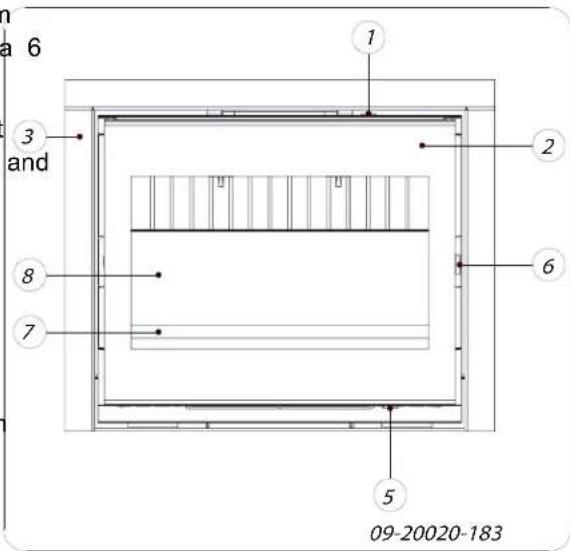

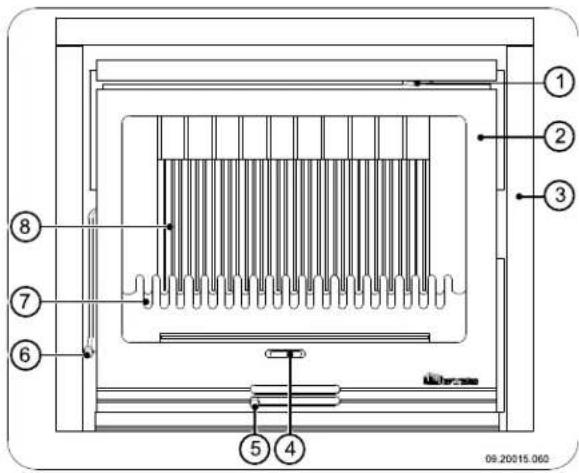

Product description

1. Secondary air slide
2. Door
3. Outside decorative frame

Riddlingrod

1. Primary air slide
2. Latch
3. Fire basket
4. Fireproof inner plates

Features of the appliance

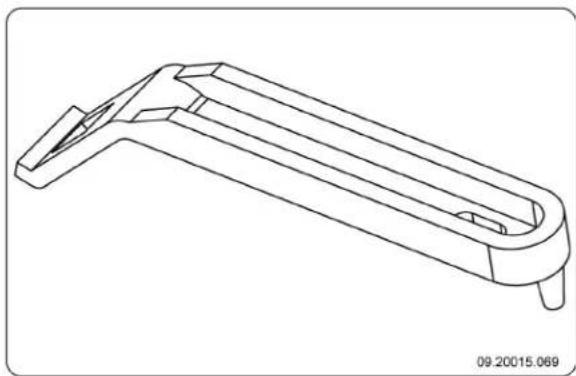

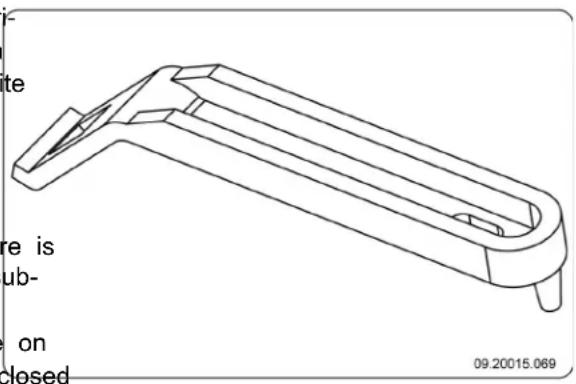

The appliance is supplied with a separate handle, the so-called 'cold hand', for opening the door.
The appliance is supplied with a second separate handle, the so-called 'cold hand', for removing the ash pan; see next figure.

The opening direction of the door can be changed. The appliance is supplied with a door turning to the right. An optional locking rod is required for a left turning door (supplied separately). The instructions for changing the door swing direction are provided with this locking rod.
The appliance is supplied with a connecting kit for the outside air supply.
The appliance is not suitable for continuous use.
The insert fireplace has an integrated convection system. This means that when installing the appliance it is not necessary for a separate convection space to be built and the use of air inlet and out grates for convection is not necessary.

The space between the cast-iron fireplace and steel convection box serves as the convection space. Surrounding air is drawn in at the bottom of the appliance. The air is directed to the fireplace where it is heated. The heated air then leaves the front side of the convection space through the air opening on the upper side of the fireplace.

reparation

Please check the appliance for damage caused during transport or any damage or defects immediately after delivery.

If you detect damage caused during transport or any other damage or defects, do not use the appliance and notify the supplier.

Remove the removable parts (fire-resistant inner plates, fire compartment, fire basket, ash removal port and ash pan) from the appliance before you start installing the appliance.

i By removing removable parts, it is easier to move the appliance and to avoid damage.

Note the location of the removable parts, so that you can re-position the parts in the correct place later on.

1. Remove the fire-resistant inner plates.
   i Cast iron inner plates protect the combustion chamber and dissipate heat to the surroundings.

The appliance is equipped with two additional connections in order to transport convection heat to other areas.
The appliance is equipped with two built-in fans that aid convection. The turning speed of the fan Fitting the handle can be adjusted using a speed control. This speed control is supplied with the appliance. The fan and speed control are connected to the mains electric

circuit; see paragraph "Connecting fan to the mains".

The form of the "cold hand" depends on the model of the appliance.

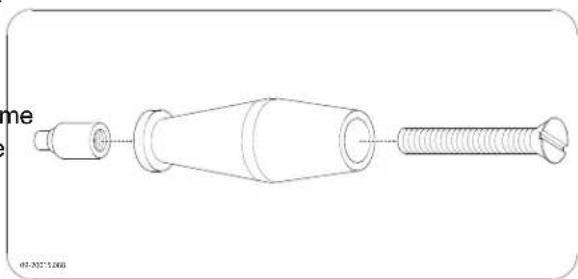

The fan works thermostatically. That meansFit the wooden handle to the adaptor using screw that the fan only starts to operate if the M8x50 provided; see following figure. insert fireplace is sufficiently warm and the fan switches off once the insert fireplace has cooled sufficiently.

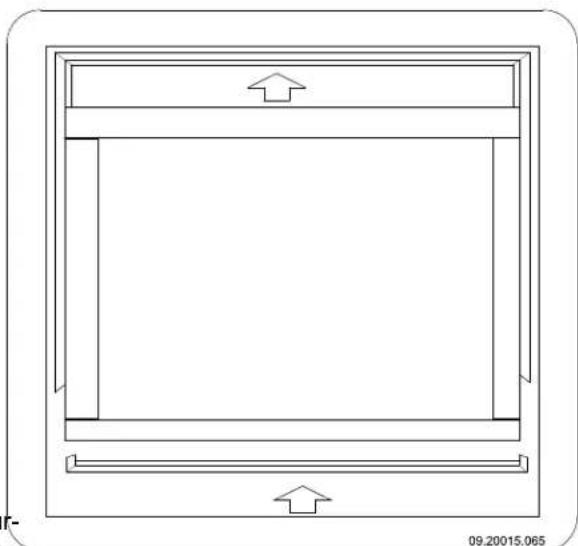

The appliance can be supplied with an outer frame to which you can attach a decorative frame. The decorative frame is supplied as an option.

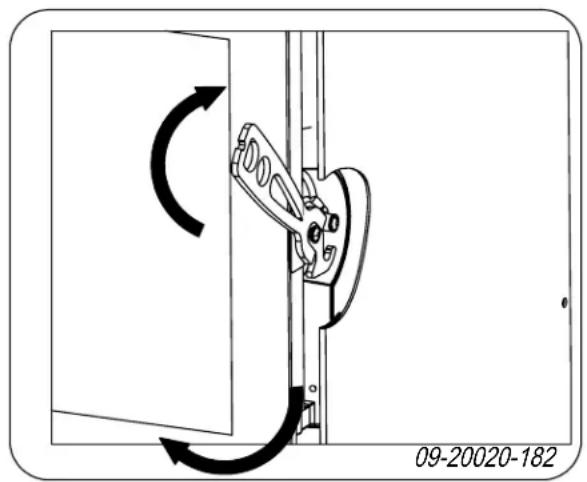

See the next figure for opening the door.

Changing the opening direction the door

If desired, the opening direction of the door can be changed. The appliance is supplied with a door opening to the right. Follow the instructions below.

1. Unscrew the door latch.
2. Unscrew the locking cam from the post.
3. Pull the hinge pins out of the hinges.

Be sure to support the door sufficiently; without the hinge pins, the door can come loose une2: pectedly.

1. Remove the door from the appliance.
2. Remove the washers from the hinge lobe and place them on the other side of the appliance.
3. Position the door above the hinge lobes and insert the hinge pins into the hinges.
4. Screw the latch onto the other side of the door.
5. Screw the locking cam onto the other side of the door.

Comment: See the "Maintenance" chapter for adjusting the closing of the door.

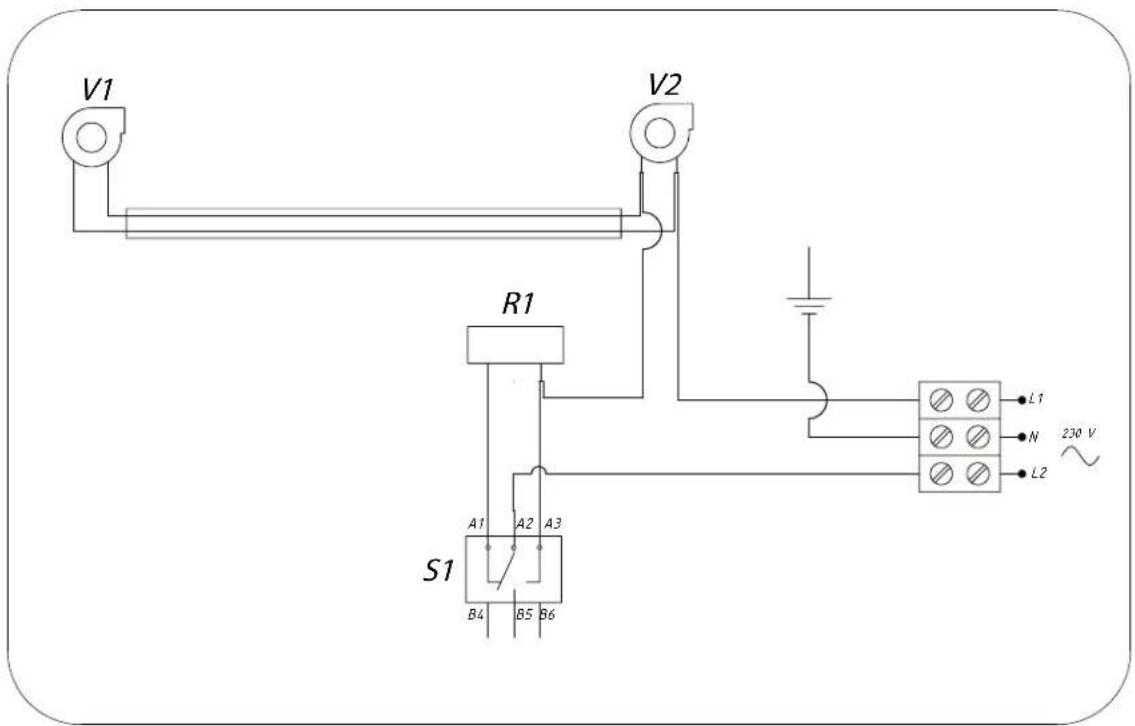

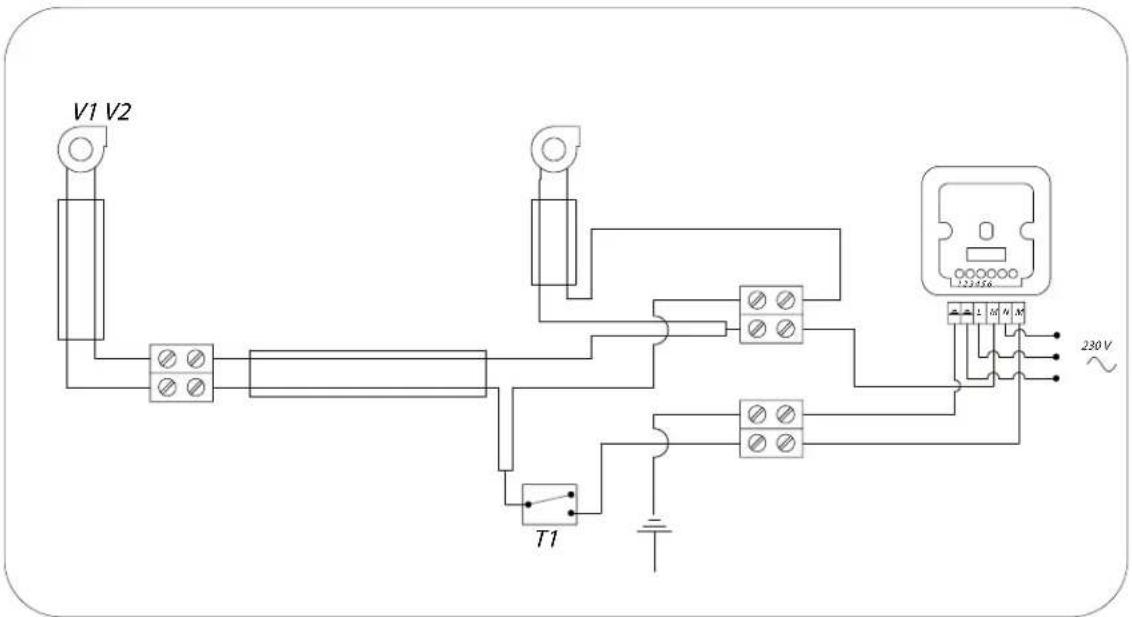

Connecting the fan to the mains

The fireplace insert is supplied with two built-in fans and with a separate revolution control unit. The appliance is also fitted with a thermo switch that turns the fan on and off at a set temperature.

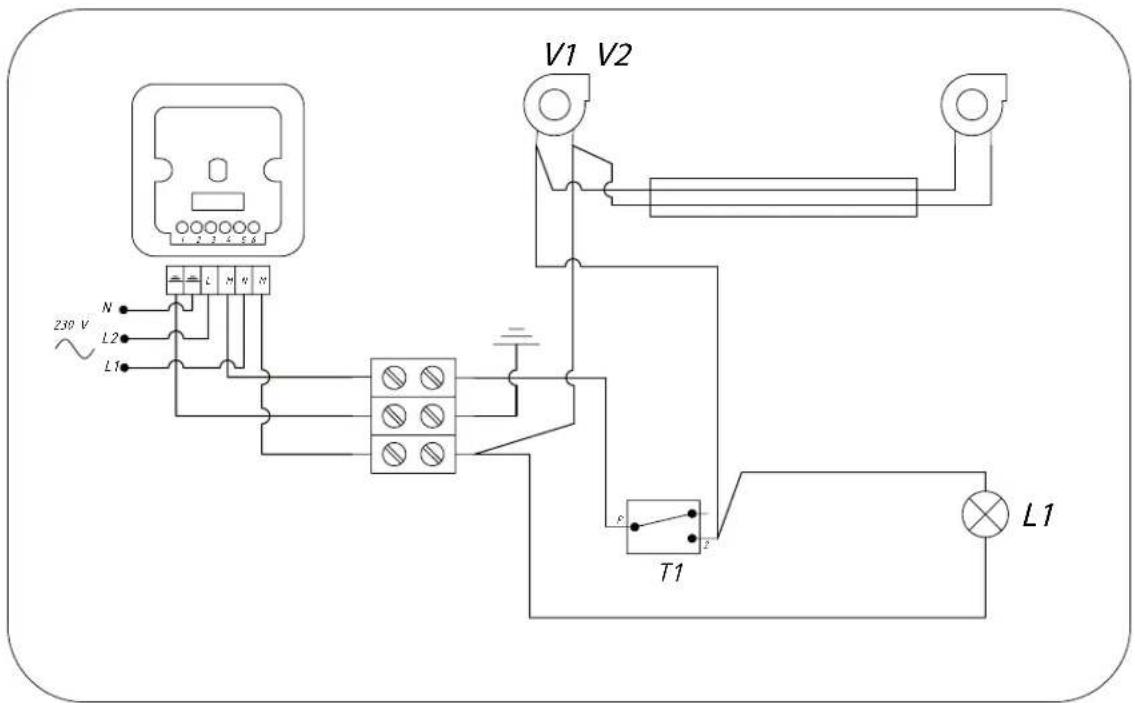

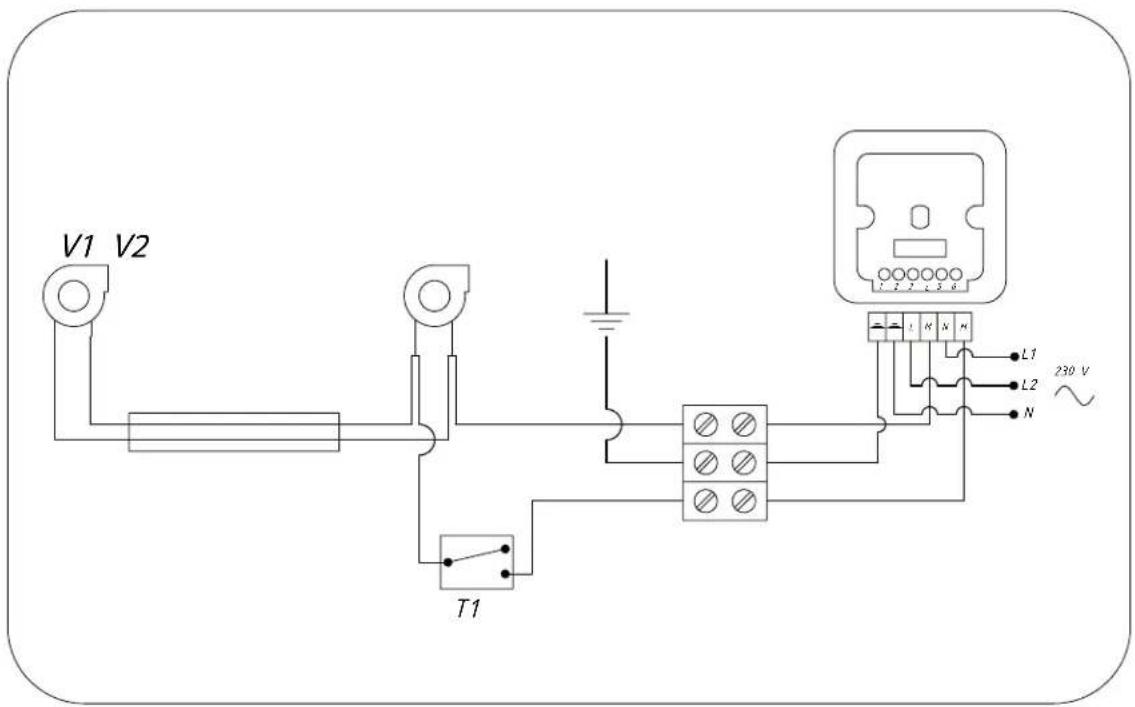

These parts must be connected to the mains as shown in one of the connection diagrams below.

The connection diagram is specific to the model.
Have the connection made by a qualified installer.
The fireplace insert is provided with a three-core cable.
The fireplace insert must be isolated from the mains by a 2-pole switch.
Ensure that the fireplace insert is properly earthed.

See Appendix 2 for extended connection diagrams.

Building into an existing hearth

To build the stove into an existing hearth, follow the steps below:

1. Place the appliance at the right height and level it.
   Keep the electrical cable of the appliance free.

If you are going to put an external casing around the appliance, you should fit the clamping plates supplied to the sides of the appliance without fully tightening the screws. This is because the outside casing fits between the appliance and the clamping plates; see next figure.

1. Close the base of the flue with incombustible material.
2. Make a 150 cm diameter opening in the base the extraction duct.
3. Centre the opening in the base on the connection collar on the stove.
4. Put the extraction duct in the opening. Make sure that the duct can be pulled down so that it fits in the connection collar. For example, use a variable-length duct.

If you are using a RFS-flexible duct: screw the duct onto the connector supplied, put the connector into the connection collar and secure the connector by bending the two lips outwards.

The figure below provides an example of the placing a fireplace insert in a hearth which is done using the instructions given above.

A Existing hearth
B Ventilation space (minimum 15 mm)
C Existing flue
D Fireproof material or connector
E Opening to prevent pressure build-up

Building into a new hearth

The fireplace insert is installed in two stages:

Placing and connecting the fireplace

Building up the hearth around the fireplace.

Placing and connecting the fireplace insert

1. Place the appliance at the right height and level it.
   If you are going to put an external casing around the appliance, you should fit the clamping plates supplied to the sides of the appliance without fully tightening the screws. This is because the outside casing fits between the appliance and the clamping plates; see next figure.

1. Check that there is at least 15mm of free convection space between the existing walls - which must have the necessary insulation (see chapter "Installation Conditions") - and the back of the appliance.
2. The masonry should not rest on the fireplace. If required, use a support such as a steel beam. Leave a clearance of at least 3mm between the support and the appliance.
3. Connect the appliance to the flue hermetically.
4. Check the draught in the flue and the seal of the connection on the flue gas duct by making a small,

intense trial fire with newspaper and dry, small 1. Lay the floor of the hearth.

kindling.

If there is new masonry then wait until the masonry has dried sufficiently.

Drawing off convection air

The appliance is equipped with two additional connections in order to transport convection heat to other areas. There must be air grids in these areas. If you wish to make use of this function, proceed as follows:

1. Remove the two push-out plates on top of the co- vection box by tapping them loose with a hammer
2. Fit the two connection collars supplied with a diameter of 125mm on the resulting openings using the M8x16 screws and M8 bolts supplied.
3. Connect flexible tubing with a diameter of 125mm and route them to the desired areas.
4. Connect the flexible tubing to the outlet grates in 4 the rooms.

Building the new hearth

Make sure the door of the appliance can swing freely over the hearth floor.

1. Build the hearth up to the smoke dome.

Ensure that a clearance of 2mm is maintained between the appliance and the masonry to accommodate the thermal expansion of the fireplace.

WBS: The inside of the hearth may, if desired, be clad-ironed with reflective, insulating material.

Additional cladding of the built-in space prevents unnecessary thermal radiation to outer walls and/or adjacent rooms. It also prevents damage to the hearth wall insulation.

Build the rest of the hearth up to the flue opening hole in the ceiling.

The masonry should not rest on the fireplace. Use a support such as a steel beam. Leave a clearance of at least 3mm between the support and the appliance.

Inside the hearth you provide space for convection. Close the built-in space with the cover plate.
this space the air must be able to move freely. It must be possible for air to be sucked in for combustion, and Put an air grate below the cover plate to allow for the air heated by the fireplace (the convection air) the ventilation of the appliance.
must be able to flow freely into the area to be heated. Make an opening above the cover plate in order to see next figure. prevent any pressure build-up.

When building the hearth, follow these instruRe figure below provides an example of the placing of tions: a fireplace insert in a hearth which is done using the

The top of the hearth must be closed airtight using a cover plate of incombustible and heat-resistant material.
The cover plate must be level and placed at least 30~cm below the flue opening in the ceiling.
If desired, an additional outlet grate can be fitted at the top of the hearth, just below the cover plate.

Do not use combustible material in the hearth space and prevent thermal bridging by using materials that conduct heat.

Follow the instruction below when building the hearth:

A Flue
B Fireproof material or connector
C Cover plate
D Insulation material (minimum 5 cm)
E Fireproof wall
F Combustible wall
G Ventilation space (minimum 15 mm)
H Fireproof ceiling
I Combustible ceiling
J Convection air opening
K Insulation (optional)
L Fireproof base
M Combustible base
N Opening to prevent pressure build-up
O Connection pipe
P Convection air to another area

Fitting outer frame

The appliance can be supplied with a three- or four-sided outer frame. An optional decorative frame can also be supplied and that is fitted to the outer frame.

1. Fit the outer frame by fitting the sides together with two screws; see next figure.

1. Fit the decorative frame by joining the sides of the frame with a connecting element and fastening it with the two screws (A) of the connecting element; see next figure.

1. Centre the decorative frame on the outer frame; see next figure.

Put three supporting plates on each side between the decorative and the outer frame; see next figure.

1. Attach the (assembled) frame to the appliance by sliding the tabs on the vertical sides of the frame between the appliance and the clamping plates; see next figure.

Finishing

1. Re-position all removed parts in the correct places in the appliance.
2. Ensure that the newly built hearth is sufficiently dry before you start to use the appliance.

Never use the appliance without the fire-resistant inner plates.

The appliance is now ready for use.

Use

First use

When you use the stove for the first time, make an intense fire and keep it going for a good few hours.

This will cure the heat-resistant paint finish. This magBrown coal briquettes have approximately the same result in some smoke and odours. You could open burning characteristics as wood.

windows and doors for a while in the area in which the stove is located.

Fuel

The appliance is suitable for burning natural wood (sawn, split and sufficiently dry), brown coal briquettes and anthracite coal.

Do not use other fuels, as they can cause serious damage to the stove.

You are not allowed to use the following fuels, as they pollute the environment and because they heavily soil the appliance and flue, which may lead to a chimney fire:

Treated wood, such as scrap wood, painted wood, impregnated wood, preserved wood, plywood and chipboard.
Plastics, scrap paper and domestic waste.

Wood

Hardwood, such as oak, beech, birch and fruit tree wood is the ideal fuel for your stove. This type of wood burns slowly with calm flames. Softwood contains more resins, burns faster and sparks more.
Use seasoned wood that contains no more than 20% moisture. The wood should have been seasoned for at least 2 years.
- Saw the wood to size and split it while it is still fresh. Fresh wood is easier to split, and split wood dries more easily. Store the wood under a roof where the wind has free access.
Do not use damp wood. Damp logs do not produce heat as all the energy is used in the evaporation of moisture. This will result in a lot of smoke and soot deposits on the stove door and in the chimney. The water vapour will condense in the stove and can leak away through chinks in the stove, causing black stains on the floor. It may also condense in the chimney and form creosote. Creosote is a highly flammable compound and may cause a chimney fire.

Brown coal briquettes

• Ensure there is a good charcoal bed before you start burning brown coal briquettes.
  For lighting the fireplace, follow the instructions in the "Lighting" paragraph.

Anthracite coal

Anthracite coal is categorised on the basis of characteristics, sometimes prescribed by law, such as the percentage of volatile substances. The ash content of anthracite coal is between 3% and 13% . The lower the ash content, the higher the net heating value and the less often you have to remove ash.

Preferably use category A anthracite coal with a low ash content.
Use the recommended size 12/22 or 20/30.
For lighting the fireplace, follow the instructions in the "Lighting" paragraph.

Lighting

1. Close the door of the appliance and open the primary air inlet and the secondary air inlet of the appliance; see the following figure.
2. Allow the fire develop into a good blaze until there is glowing bed of charcoal. You can then add fuel and adjust the appliance, see the chapter "Stoking

You can check whether the flue has sufficient draught with wood".

by lighting a ball of paper above the baffle plate. A cold

flue often has insufficient draught and consequently, O

some smoke may escape into the room instead of up

the chimney. You can avoid this problem by lighting The appliance has two air slides. The primary air slide at the bottom of the door regulates the air under the grid. The secondary air slide above the door regulates

1. Stack two layers of medium sized logs crosswises the air for the glass (air wash system).
2. Stack two layers of kindling crosswise on top of The air slide can be operated using the "cold hand". the logs. The form of the "cold hand" depends on the model of
3. Place a firelighter cube in the lower layer of kind- the appliance. ling and light the cube according to the instructi- see the following figure for the open and closed pos- on the packaging. 0tions of the air slide.

• = Closed

= Open

Burning wood

After you have followed the instructions for lighting :

1. Slowly open the stove door.
2. Spread the charcoal evenly across the bottom of the stove base.
3. Stack a few logs on the charcoal.

Open stacking

If the logs are stacked openly, the wood will burn quickly as the oxygen can reach each log easily. If you want to use the stove for a short while, make an open stack.

Compact stacking

If the logs are stacked tightly, the wood will burn more slowly as the oxygen can only reach some logs easily. If you want to burn wood for a longer period, make a compact stack.

1. Close the door of the appliance.
2. Close the primary air inlet and leave the secondary air inlet open.

Fill the appliance up to one third capacity.

Burning brown coal briquettes

Brown coal briquettes burn in almost the same way wood. Using the primary air inlet, ensure sufficient supply of air under the fire. For further information the paragraph "Burning wood".

Burning brown coal briquettes creates a lot of ash. Regularly remove excess ash. See the paragraph "Removing ashes" for instructions.

i

For the properties and use of brown coal briquettes: consult your brown coal briquettes supplier or see the brown coal briquettes' pack aging.

After you have followed the instructions for lighting:

1. Slowly open the door of the appliance.
2. Spread the charcoal evenly across the bottom of the stove base.
3. Place the brown coal briquettes on the charcoal bed.
4. Close the door.

Burning anthracite coal

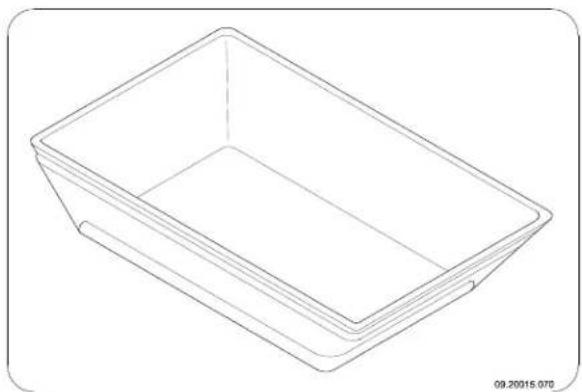

Use a coal basket to keep the anthracite coal in; s following figure. The coal bin is available as an op

Always close the secondary air slide when burning anthracite coal.

Open the fire grate by pulling the riddling rod ward.

After you have followed the instructions for lighting:

1. Open the primary air slide completely.
2. Slowly open the door of the appliance.
3. Spread the charcoal evenly across the bottom of a 5^ as the stove base.

See Spread a shovelful of coal on the charcoal bed and wait with the next shovelful until the coals start to glow.
5. Now add more coal.

Be careful not to smother the fire by adding too much coal at once.

You have added as much as you can when the glow from the previous load is only just visible.

1. Close the door.

2. Allow the coal to burn for 20-30 minutes and regulate the air supply using the primary slide.
   f8. Use the riddling rod to shake the grate until glowing embers drop into the ashpan.

3. Open the primary air slide completely.
4. Add fresh coal up to the maximum level.

Make sure the grate is open by pulling the riddling rod forward.

1. After a few minutes, move the primary air slide to see the desired position.

on

If the coal basket or the grate begins to glow red, you are burning the fire too hard. This can lead to warping of the grate and/or coal basket.

Controlling air combustion

The appliance has various provisions for air control.

The primary air slide regulates the air under the grid.

The secondary air slide regulates the air for the glass (air wash).

Advice

Never burn wood with an open door.

for

Regularly burn wood with intense roaring fires.

If you frequently have low intensity fires, tar and creosote may be deposited in the chimney.

Tar and creosote are highly combustible substances. Thicker layers of these substances may catch fire if the temperature in the chimney increases suddenly. By allowing the fire to

It burn very intensely regularly, layers of tar and T. creosote will disappear.

• Low intensity fires also cause tar deposits on the stove window and door.

When the outside temperature is not very low, it is better to have a small amount of air from

It is better to burn wood intensely for a few hours instead of having a low intensity fire fo2.aUse the riddling rod to make the ash drop through long period of time. the grate into the ash pan.

The ash should never reach the bottom of the grate. This will cause the grate to overheat and be damaged.

The flow of air through the fire plate must not be obstructed, and ash must not be allowed to accumulate behind an inner plate. Remove the excess ash regularly.

Control the air supply with the secondary air inle. Using the cold handle glove supplied, remove the

The secondary air inlet not only supplies air to

the fire but to the glass as well, so that it does not quickly become dirty.

• Open the primary air inlet for the time being if the air supply by the secondary air inlet is inadequate or if you want to fan the fire.
  It is better to add a small amount of logs regularly than to add many logs at the same time.
  Regularly adding small amounts of brown coal briquettes or anthracite coal is better than adding a large amount of brown coal briquettes or anthracite coal in one go.

Extinguishing the fire

Do not add fuel and just let the fire go out. If a fire is damped down by reducing the air supply, harmful substances will be released. For this reason, the fire should be allowed to go out naturally. Keep an eye on the fire until it has gone out. All air inlets can be closed once the fire has died completely.

1. Replace the ash pan and close the door of the appliance.

Removing ash

After wood has burnt, a relatively small amount of ash is left over. This ash bed is a good insulating layer for the stove base plate and improves combustion. It is good idea to leave a thin layer of ash on the stove base plate. Fog and mist hinder the flow of flue gases through the flue. Smoke can blow back and cause a stench. If it is not strictly necessary, it is better not to use the stove in foggy and misty weather.

After brown coal briquettes and anthracite coal have burnt, a relatively large amount of ash is left over. Remove the excess ash regularly.

Fog and mist

Fog and mist hinder the flow of flue gases through the flue. Smoke can blow back and cause a stench. If it is not strictly necessary, it is better not to use the stove in foggy and misty weather.

Solving problems

Refer to the appendix "Diagnostic diagram" to resolve any problems in using the stove.

Maintenance

Follow the maintenance instructions in this chapter to keep the stove in good condition.

Chimney

In many countries, you are required by law to have your chimney checked and maintained.

At the beginning of the heating season: have the chimney swept by an expert.
During the heating season and after the chimney has not been used for a long time: have the chimney checked for soot deposits.
After the heating season: seal off the chimney with a ball of paper.

Cleaning and other regular maintenance activities

Do not clean the stove when it is still warm.

Clean the exterior of the stove with a dry lint-free cloth.
You can clean the stove interior thoroughly at the end of the heating season: 5.
If necessary, first remove the fire-resistant inner plates. See the chapter "Installation" for instructions on removing and installing the inner plates.
If necessary, clean the air supply ducts.
Remove the baffle plate at the top of the appliance and clean it.

i Cast-iron inner plates last a long time if you remove frequently the ash that can accumulate behind them. If accumulated ash behind the cast-iron plate is not removed, the plate will no longer be able to dissipate the heat to the surroundings and this may cause the plate to warp or crack.

Never use the stove without the fire-resistant inner plates.

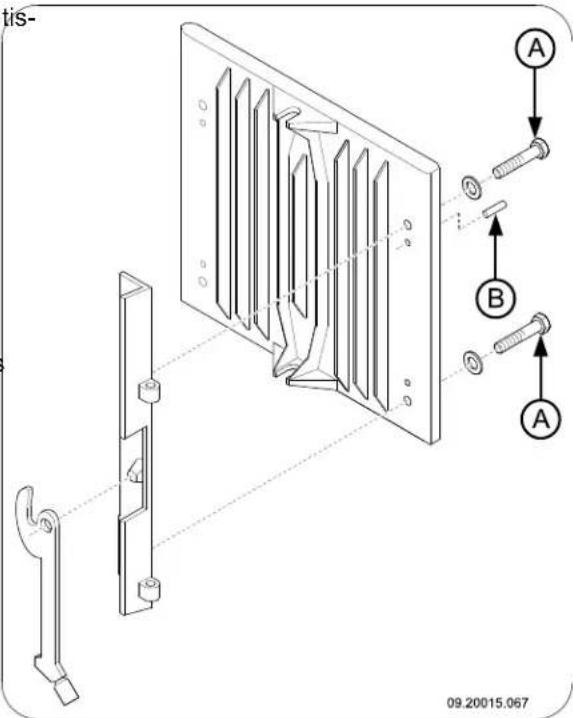

Dismantling damper and baffle

plate

Both the damper and the baffle plate can be dismantled. To dismantle the baffle plate, the damper and the damper rod must first be removed.

1. Open the stove door.
2. Lift the closed damper slightly and slide it above the baffle plate so that they are both free.

3. Remove the damper and the damper rod from the appliance.

4. Loosen the support plate by loosening the M8 nut. The support plate is located in the middle against the top plate of the appliance.

5. Lift the baffle plate at the front, pull the baffle plate forward and take the baffle plate out of the appliance.

Comment: To fit the damper and the baffle plate, before starting to use the appliance, follow the above instructions in the reverse order.

Cleaning glass

Checking fire-resistant inner plates

The fire-resistant inner plates are consumables and subject to wear. Check the fire-resistant inner plates frequently and replace them when necessary. 2
See the chapter "Installation" for instructions on removing and installing the inner plates.
The insulating vermiculite or chamotte inner plates may develop hairline cracks, but this does not affect their performance adversely.

1. Remove dust and loose soot with a dry cloth.
2. Clean the glass with stove glass cleaner:

a. Apply stove glass cleaner to a kitchen sponge, rub down the entire glass surface and give the cleaning agent time to react.
b. Remove the dirt with a moist cloth or kitchen tissue.

1. Clean the glass again with a normal glass cleaning product.

2. Rub the glass clean with a dry cloth or kitchen sue.

Do not use abrasive or aggressive products to clean the glass.
Wear household gloves to protect your hands.

If the glass in the appliance is broken or cracked, it must be replaced before you can use the appliance again.

Make sure that no stove window cleaner runs between the glass and the cast-iron door.

Lubrication

Although cast-iron is slightly self-lubricating, you will still need to lubricate moving parts frequently.
Lubricate the moving parts (such as guide systems, hinge pins, latches and air slides) with heat resistant grease that is available in the specialist trade.

Touching-up the paint finish

Small areas of damaged paint finish can be touched up with a spraying can of special heat-resistant paint finish available from your supplier.

Checking the seal

Check whether the door sealing rope is still in goadUse the adjusting screws to adjust the hinge post condition and works well. The sealing rope is sub- widthwise in the appliance. ject to wear and will need to be replaced over time
Check the appliance for air leaks. Close any chinks with stove sealant.

Allow the sealant to harden fully before lighting the stove, as any moisture in the sealant will form bubbles, resulting in a new air leak.

Adjust door

Check if the door closes properly; if necessary, adjust the hinge post; see next figure.

Appendix 1: Technical data

Model 2200 / 2210 / 2220 / 2020

Model 2200 2210 2220 2020
Nominal output 8 kW 8 kW 8 kW 7 kW
Flue connection (diameter) 150 mm 150 mm 150 mm	150 mm	150 mm
Weight	140 kg	175 kg	150 kg	130 kg
Recommended fuel	Wood	Wood	Wood	Wood
Fuel property, max. length wood	50 cm	50 cm	50 cm	40 cm
Electrical connection	230 V, 50 Hz, 0.5 A

Fuel	Wood	Brown coal bri-quettes	Anthracite coal
Mass flow of flue gasses	7.7 g/s	8.9 g/s	7.8 g/s
Temperature increase measured in the measuring section	295 K	289 K	272 K
Temperature measured at appliance exit	340 °C	-	-
Minimum draught	14 Pa	14 Pa	14 Pa
CO emission (13%2)	0.10 %	0.06 %	0.04 %
NOx emission (13%2)	106 mg/Nm3	-	-
CnHm emission (13%2)	51 mg/Nm3	-	-
Particulate emission	31 mg/Nm3	-	-
Efficiency	78.3 %	75.4 %	76.4 %

Model 2500 / 2510 / 2520 / 2620

Model 2500 2510 2520 2620
Nominal output 10 kW 10 kW 10 kW	10 kW
Flue connection (diameter) 150 mm 150 mm 150 mm	150 mm	150 mm
Weight 150 kg 180 kg	160 kg	160 kg
Recommended fuel	Wood	Wood	Wood	Wood
Fuel property, max. length wood	50 cm	50 cm	50 cm	50 cm
Electrical connection	230 V, 50 Hz, 0.5 A

Fuel	Wood	Brown coal bri-quettes	Anthracite coal
Mass flow of flue gasses	9.2 g/s	9.7 g/s	8.1 g/s
Temperature increase measured in the measuring section	264 K	318 K	314 K
Temperature measured at appliance exit	320 °C	-	-
Minimum draught	14 Pa	14 Pa	14 Pa
CO emission (13%Q)	0.10 %	0.09 %	0.05 %
NOx emission (13% O2)	52 mg/Nm3	-	-
CnHm emission (13%Q)	21 mg/Nm3	-	-
Particulate emission	16 mg/Nm3	-	-
Efficiency	80.0 %	76.4 %	79.0 %

Appendix 2: Connection diagrams

The codes in the diagrams below have the following meaning:

T1 thermoswitch

V1 fan

V2 fan

L1 lamp

R1 resistor

S1 2-position switch

Model 2020

Model 2220, model 2520 and model 2620

Model 2210 and model 2510

Models 2200 and 2500 are designed with two-position switches for speed control; they have no mostat function.

Appendix 3: Dimensions

2020

2200

09.20017.043

2210

2220

2500

2510

2520

2520BS

2620SC

Appendix 4: Distance from combustible material

Minimum ventilation outside the radiation range

Dimensions of fireproof floor plate in centimetres

Minimum dilinesions of fireproof floor plate

V > H + 30 > 60

S > H + 20 > 40

Appendix 5: Diagnosis diagram

				Problem
●				Wood will not stay lit
	●			Gives off insufficient heat
		●		Smoke emissions into the room when adding wood
			●	Fire in stove is too intense, is hard to adjust
				Deposit on the glass
				possible cause possible	solution
●	●	●		Insufficient draught	A cold flue usually failsto create sufficient draught. Follow the instruc-tionsfor starting a fire in the 'Use' section; open a window.
●	●	●		Wood too damp Use wood with no more than 20%moisture.
●	●	●		Logs too large	Use small piecesof kindling. Use split logs no larger than 30 cm in cir-cumference.
●	●	●	●	Wood stacked incorrectly	Stackthe logs in a way that allows adequate air flow between the logs (open stacking, see "Burning wood")
●	●	●		Chimney does not work properly	Check whether the chimney meets the requirements: at least 4 metres high, correct diameter, well-insulated, smooth inside, not too many bends, no obstructions in chimney (bird'snest, too much soot deposit), hermetically tight (no chinks).
●	●	●		Chimney stack incorrect Sufficiently high	above the roof, no obstacles in the vicinity
●	●	●	●	Air inlets set incorrectly Open the air	inlets completely.
●	●	●		Stove connected to the chimneyincor-rectly	Connection should be hermetically tight.
●	●	●		Vacuum in area in which the stove is installed	Switch off extraction systems.
●	●	●		Insufficient supply of fresh air	Provide an adequate air supply; if necessaryuse outside air con- nection.
●	●	●		Bad weather? Inversion (reversed air flow in chim- because of a high outside temperature) if required, installan extra hood on the flue to increase the draught.
		●		Draught in the living room	Avoid draught in the living room, do not place the appliance near a door or heating air ducts.
			●	Flames touch the glass	Make sure the wood is not positioned too close to the glass. Slide the primary air inlet cover closer to the "Closed" position.
			●		Stove is leaking air Check the door seals and stove joints.

Index

A

Adding

anthracite coal 20

brown coal briquettes 20

Adding fuel.20

Adding wood

smoking stove 38

Air combustion control.19.

Air control.19

Air inlets..17.

Air leak 22

Air supply for fire. 20

Anthracite coal. 17

ash 20

Ash pan open 20

Ashes remove 20

B

Baffle plate fit 21

Bearing capacity of floor. 9

Brown coal ash 19

burning 19

Brown coal briquettes. 16

Burning adding fuel. 19

anthracite coal 19

appliance is hard to adjust. 38

brown coal briquettes 19

fire is too intense. 38

insufficient heat 38

Burning wood. 18

add fuel 20

adding logs. 18

insufficient heat 20

C

Carpet 9

Cast iron fire resistant 11

inner plates. 11

Chimney height 9

sweep 21

Chinks in appliance. 22

Clean glass 21

Cleaning appliance 21

Coal ash content. 17

Combustible material distance from. 37

Connecting dimensions 28

Continuous use 11

Control air supply. 20

Convection drawing off.11,14 other areas 11,14

convection hear. 11, 14

Convection space cover plate. 14

Cover on flue. 9

Cover plate convection space 14

Creosote 19

D

Damp wood. 16

Damper fit 21

Decorative surround fit 15

Dimensions 28

Door adjust 22 change swing direction. 1

closing 22
sealing rope. 22

Draught 23-24

Drawing off. 11, 14

Drying wood 16

E

Efficiency 5,7,23-24

External air supply

connecting to.13

F

Fan

electric 11

thermostatic .11

Filling height.18

Finishing

decorative frame 15

Finishing coat, maintenance.22.

Fire

extinguishing 20

lighting 17

Fire-resistant inner plates

maintenance 21

Fire going out.20

Fire safety

distance from combustible material.37....

floor 9

furniture 9

walls 9

Fireproof inner plates

warning 16

Floors

bearing capacity 9

fire safety. 9

Flue

connecting to.13

connection diameter 23-24

maintenance.21

requirements 8

Flue gas

temperature 5.7

Flue gasses

mass flow.23-24

Fog, do not burn wood 20

Frame

fit 15

Fuel

adding 20

adding wood 18

anthracite coal 16-17

brown coal 16

brown coal briquettes 16

necessary amount 20

suitable 16

unsuitable 16

wood 16

G

Glass

clean 21

deposit 38

H

Heat, insufficient. 20, 38

Hinge

set 22

Hood on the flue. 9

1

Inner plates

cast iron 11

Installing

dimensions 28

K

Kindled fire 17

Kindling 38

L

Lighting 17

Lubricant 22

Lubricate 22

M

Maintenance

chimney 21

clean glass. 21

cleaning the appliance 21

fire-resistant inner plates 21

lubrication 22

sealing 22

measuring section 23-24

Mist, do not burn wood. 20

N

Nominal output 20, 23-24

0

Open

ash pan 20

P

Paint finish. 16

Particulate emission.23-24

Prevent a chimney fire.19

Primary air inlet 17.

R

Removing ash 20

brown coal.19

s

Screens clean 21 deposit .38

Sealing rope for door 22

Secondary air inlet. 17

Smoke on first use. 16

Smoke emissions into the room 8

Smoking stove. 38

Softwood 16

Solving problems. 20, 38

Stacking logs 18

Storing wood 16

Stove window cleaner 21

Suitable fuel 16

Sweep chimney 21

Swing direction change 11

T

Tar 19

Temperature 23-24

Temperature increase 23-24

U

Unsuitable fuel 16

V

Ventilation 9 rule of thumb. 9

Ventilation louvre 9

W

Walls fire safety. 9

Warning chimney fire. 16, 19

chimney fires 8

fireproof inner plates. 16

flammable materials 8

glass broken or cracked 22

glass is broken or cracked 8

hot surface. 8

requirements 8

stove window cleaner. 22

terms and conditions for insurance 8

ventilation 8-9

Weather conditions, do not burn wood. 20

Weight 23-24

Wood 16

damp 16

drying 16

right sort. 16

storing 16

will not stay lit. 38

Table des matieres

Introduction 3

Conditions dinstallation

Généralités

Tom Gehem
Director executivo

Tom Gehem
Director executivo
