USER MANUAL HV051 Duronic

Creative Consumer Electronics

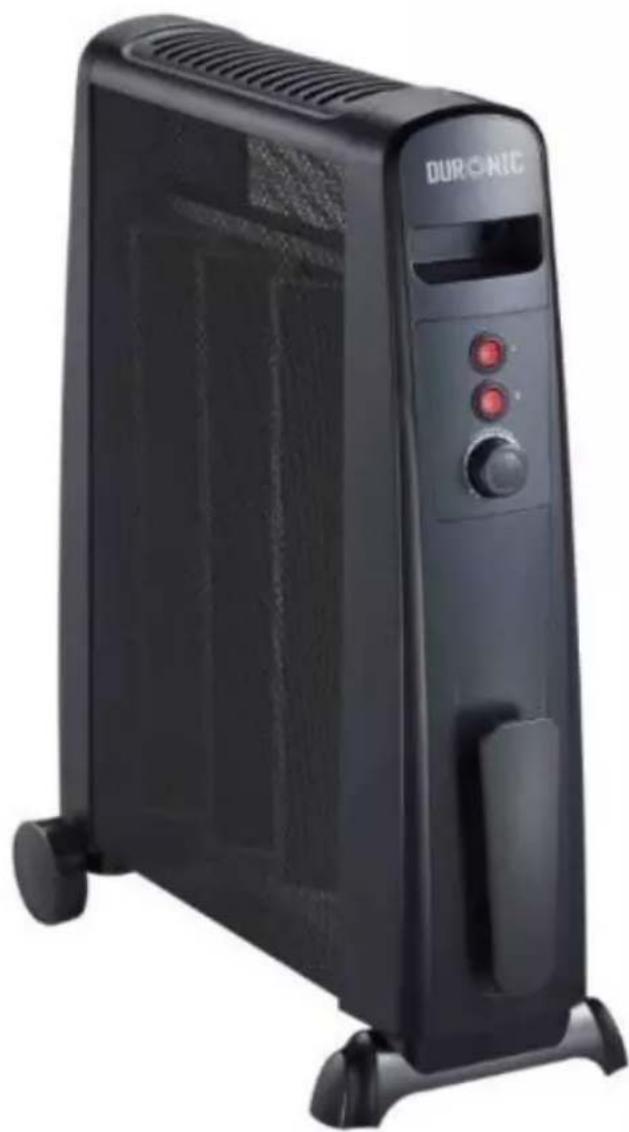

Black DURONIC portable heater with two red indicator lights (no visible text or symbols on the device body)

Mica Heater - HV051 / HV101

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

Features & Specifications 8

Introduction 9

Remove Packaging 10

Installation of Wheels 11

Operation 12

Important Safeguards 14

Cleaning, Storage & Warning 16

Trouble-shooting 17

Features & Specifications

Oil-Free Column Heater

The Duronic HV101 and HV051 use a “Mica Heating Element” which is a leading technology in heating. Our mode is not only oil free, but also offers more than a standard oil heater. It heats up within a minute hence making it a very cost effective heater. All our Mica heaters have easy carry handles and wheels to make it a fantastic portable heater.

Special Features

Full heat in 1 Minute

Three Power settings

Covering sensor (overheat protection) and Tip over protection

On/Off switch with light indicator

Temperature setting indicator

Comfortable zone

Anti -frost

Light weight

Quiet operation

No oil = No leakage

No dehumidifying

Power cord storage on front

Specification

Item Power Voltage Rating Unit Size Unit Weight
HV101 25	00W 220-240V,50/60Hz		710(L)*232(W)*648(H)mm 6.1kg
HV051 15	00W 220-240V,50/60Hz		525(L)"232(W)"648(H)mm 4.8kg

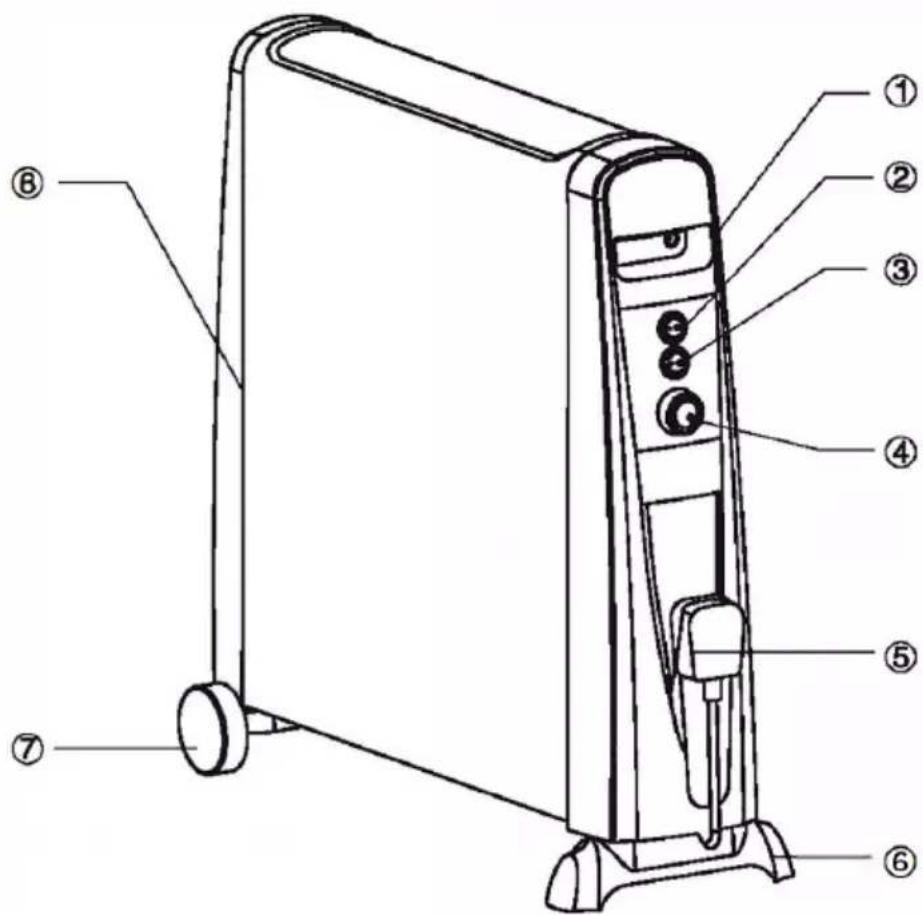

Unit Layout

1. Built-in handle
2. I ON/OFF Switch
3. I ON/OFF Switch
4. Temperature Control Knob
5. Storage location for cord
6. Stand
7. Wheel
8. Right panel

Labeled diagram of a portable electronic device with numbered parts for identification

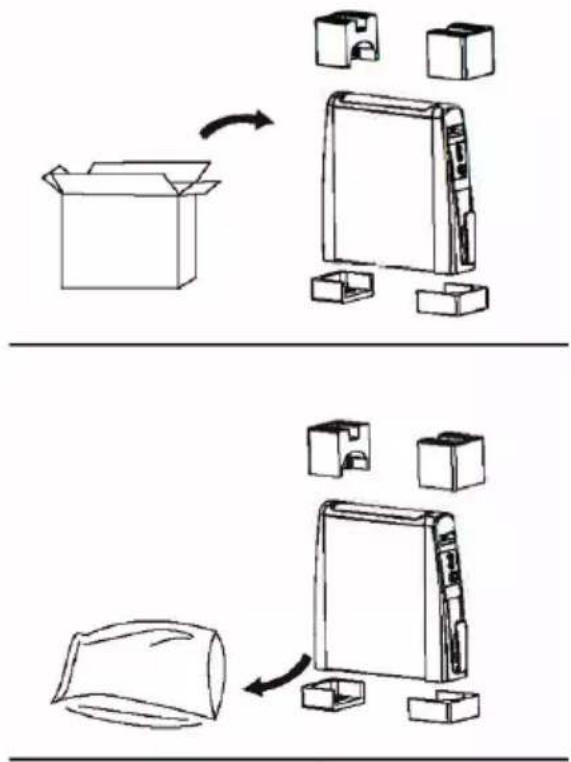

Removing the Packaging

1. Take the heater and the packaging out of the box.

2. Remove the foam from both ends of the heater. Remove the polybag which is covering the heater and store away. Keep any bags and foam away from children.

3. Remove the front foot and wheels from the foam packaging

4. Keep your packaging safe, as this is part of the guarantee. It is also useful for storing the heater when not in use.

Diagram illustrating the process of packaging or packing steps, showing a box being rotated to a device and then being folded into a plastic bag.

Line drawing of a refrigerator with various compartments and fixtures (no text or symbols)

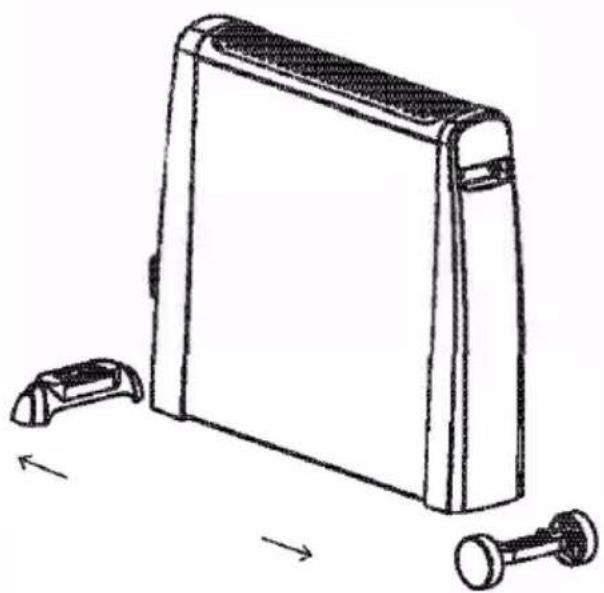

Installation of the wheels and the base

Insert the wheels and the base onto the bottom of the heater by slotting them into the gaps.

Line drawing of a rectangular electronic device with two connectors and directional arrows indicating movement (no text or symbols)

Operation

PLEASE READ THE INSTRUCTIONS IN FULL BEFORE USING THIS HEATER.

1. Check that the unit is at:
2. [OFF] position (Fig. 1).
   -The Temperature Control Knob is at [OFF] position (Fig. 2).

- Also the power at Low Heat Position (Fig. 3)

2.Plug in the power cord to a suitable electrical outlet.

(Rated not less than 10 AMP)

1. Press the ON/OFF switch to [ON] position.

At this moment, its light indicator is on.

1. Turn the temperature control knob to your desired temperature. The light indicator and heater will turn on until the room has reached the desired temperature. It will then automatically turn off until the room temperature drops. The heater will then turn on again so that the desired room temperature is maintained. According to personal needs you can adjust the temperature control knob to increase or decrease the room temperature.

Fig1

Fig2

Fig3

EU

[Non-Text]

AUS

Conventional

LOWER TEMPERATURE Cavity TEMPERATURE HIGHER TEMPERATURE

1. Then press the Power switch to: [I] Heating power setting I [II] Heating power setting II HV101

[ I ] 1500W, [ II ] 1 000W,

[ I ]& [ II ] 2500W HV051

[I] 1000W, [II] 500 W, [I] & [II] 1500W

1. For a pleasant temperature there is an area indicated on the Temperature Control Knob which is known as the "Comfortable Zone".

2. Anti-Frost Function

This function will keep the surrounding temperature above freezing point. To do this, simply plug in the power cord, and turn the Temperature control knob to the "Snowflake" position.

a. Covering Sensors

Even though a warning label "DO NOT COVER" has been placed on the unit, some users may accidentally cover the unit with towels or blankets etc.

Therefore, a safety device has been installed within the heater to detect overheating. Once the unit overheats, power will be cut off. When the unit temperature falls again, power will be resumed.

1. Tip over protection.

If the heater is accidentally knocked over, it will switch off automatically.

Low power setting [I] or [II]

High power setting [1] or [II]

Cartoon illustration of a surprised character with a head covering, surrounded by steam lines (no text or symbols)

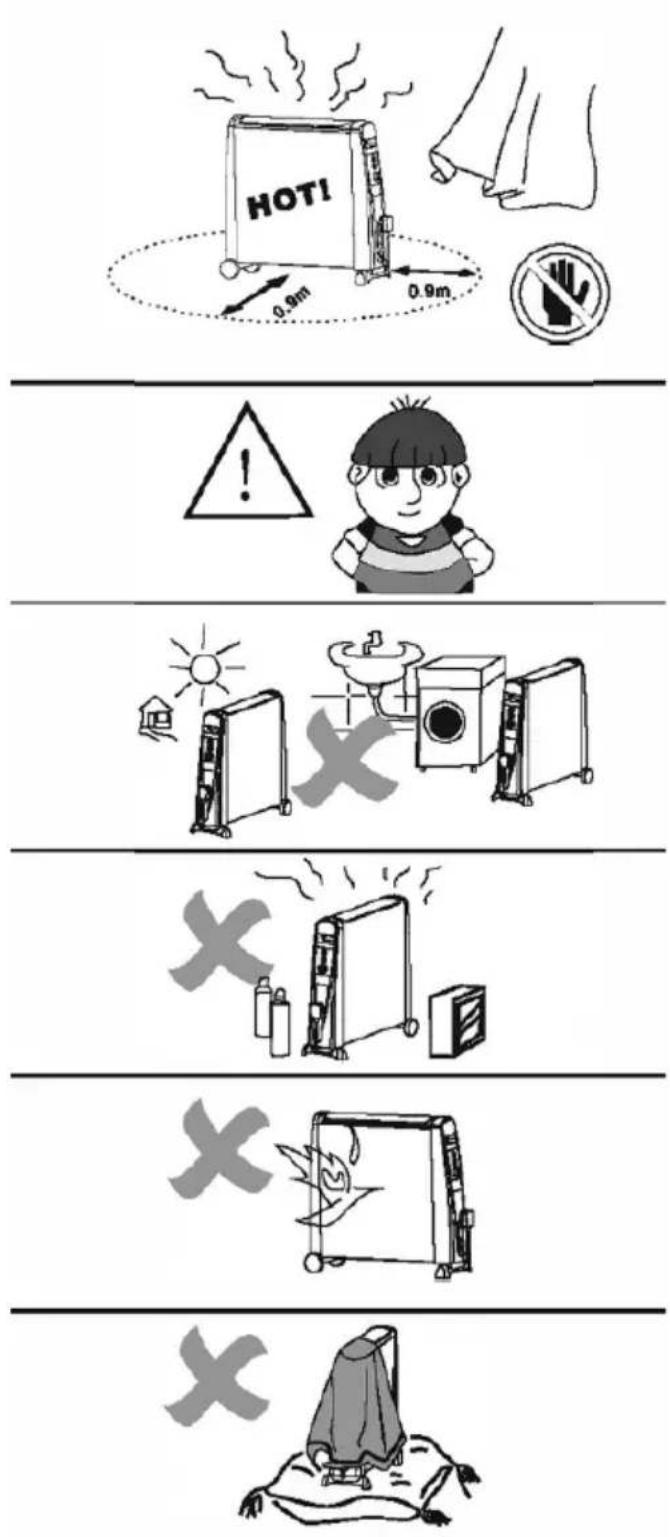

Important Safeguards

The heater is hot when in use. To avoid burns, do not let bare skin touch the hot surface. Use the handles when moving the heater. Keep combustible materials, such as curtains etc., and other furnishings at least 3 feet (0.9m) radius from the heater to avoid a fire hazard.

Extreme caution is necessary when any heater is used near children, Do not leave children unattended when this heater is ON. The heater is not a toy.

Do not use the heater outdoors. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never use the heater near any forms of water. Do not use the heater in areas where gasoline, paint or flammable liquids are used or stored.

Do not insert or allow any objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.

To prevent a possible fire, do not block air intakes or exhaust in any manner.

Do not operate this appliance on a soft or uneven surface as that can block the openings.

HOT! 0.9m 0.9m NO ! X X X X X

Always unplug the heater when not in use. To disconnect the heater, remove plug from outlet.

Please avoid using an extension lead with this heater. All extension leads have a maximum wattage allowance, and by using this heater with other appliances the wattage allowance may be exceeded and overheat the plug and extension socket and result in a fire risk.

Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, etc. Arrange the cord tidily where is cannot be tripped over. Do not operate any heater with a damaged cord or plug. If the supply cord is damaged, it must be replaced by a qualified person in order to avoid hazard.

Connect to properly grounded outlets only.

Use this heater only for the purpose as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

Cleaning

1. Before cleaning turn off the heater, unplug the power cord and allow the heater to cool.
2. Do not immerse the power cord, plug or heater in water or other liquids, or pour water or other liquids over the heater.
3. Use a vacuum cleaner to remove dust and lint from the metal grill of the heater. Wipe the heater with a dry cloth to remove dust and a damp cloth (not wet) to clean off stains.
4. Do not use detergents, abrasive cleaning products or any kind of polishing material on the body of the heater as these can damage the finish.

Storage

1. Store the heater in a cool dry location, preferably covered to prevent dust and dirt building up in the heater. Use old packaging to repack the unit.
2. Unplug the heater and store the mains lead in the storage tidy at the front of the heater. Ensure that the plug does not trail.

Warning

Any other servicing should be performed by an authorized service representative.

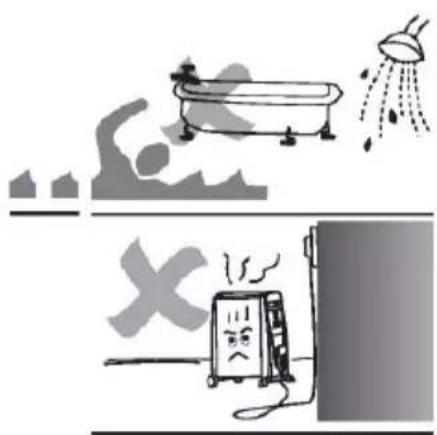

Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool

The heater must not be located immediately below a socket-outlet.

Illustration showing a shower scene with a bathtub and shower, and a distressed refrigerator with a sad face, accompanied by a warning symbol.

Troubleshooting

Heater is not warm

1. Check the heater is plugged in.

2. Check that the heater is not covered.

1. Check that the temperature setting is in right position.

1. On the lowest heat settings not all panels heat up. This does not mean that the heater is defect.

Heater is not operating

1. Check the power cord is plugged into the electrical outlet

2. Make sure the power switch is at the [ON] position.

1. Check whether the electricity or the main fuse is working

1. Check that heater is on the Thermostat Control Condition.

There is a smell coming from the heater

After storage or restarting the heater, the heater may smell slightly. This is because the heater absorbs the air from the room, which may contain cigarette smoke, cosmetic fumes and smells from furniture or the walls etc. When the heater starts up again, it will emit those smells, this is normal and after a short period of time the smell will start to disappear.

Keep these instructions safe

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with BS:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Technical diagram of a portable air conditioner unit with numbered parts labeled 1 through 8

Emballage

Diagram showing a box being folded into a device with an arrow indicating rotation (no text or symbols present)

Diagram showing a device with a lid and three boxes, illustrating a mechanical or electronic assembly process (no text or symbols present)

Line drawing of a portable electronic device with various components and mounting brackets (no text or symbols)

Line drawing of a rectangular electronic device with two connectors and directional arrows indicating movement (no text or symbols)

Utilisation

Diagram illustrating five different electrical circuit states: one with a switch, another with a plug, and three others showing the same operation.

Cartoon illustration of a person reading a book next to a laptop (no text or symbols present)

Nettoyage

Illustration showing a bathtub with shower and a distressed printer, accompanied by a warning sign and a falling figure.

Dépannage

Technical diagram of a portable electronic device with numbered parts labeled 1 through 8

Auspacken

Diagram illustrating a 3D printer's internal structure and assembly process, showing part folding and disassembly steps.

Line drawing of a portable electronic device with various components and mounting brackets (no text or symbols)

Line drawing of a rectangular electronic device with two side connectors and directional arrows indicating motion (no text or symbols)

Betrieb

[ I ] 1500W, [ II ] 1000W,

[ I ]& [ II ] 2500W

HV051:

[I] 1000W, [II] 500W, [I] & [II] 1500W

Cartoon character with a surprised expression and head covering, surrounded by motion lines (no text or symbols)

HOT! 0.9m 0.9m NO ! X X X X X

Safety warning illustration showing a shower, bathtub, and a distressed device with a 'X' symbol indicating failure or hazard.

Fehlerbehebung

Technical diagram of a portable electronic device with numbered components for identification

Embalaje

Diagram showing two steps of packaging or assembly process: one with a box, the other with a tray and boxes (no text or symbols)

Line drawing of a refrigerator with various compartments and accessories (no text or labels)

Line drawing of a rectangular electronic device with two connectors and directional arrows indicating motion (no text or symbols)

Operación

POR FAVOR LEA TODAS LAS INSTRUCCIONES

Comforting

LOWER TEMPERATURE HIGHER TEMPERATURE Conventional

Low power setting [1]or[II]

High power setting [I] or [II]

Cartoon character with surprised expression and head covering, surrounded by expressive eyes and motion lines (no text or symbols)

Illustration showing a bathtub, showerhead, and a distressed printer with a sad face (no text or symbols)

Technical diagram of a portable electronic device with numbered components for identification

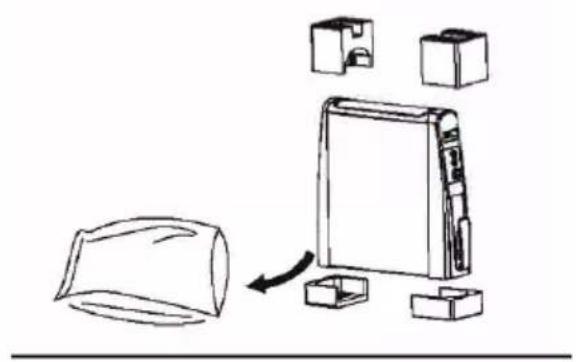

Rimuovere l'imballo

Diagram showing a box being transferred to a computer monitor, with additional boxes nearby (no text or symbols)

Diagram showing a device with a cylindrical component and a rectangular device with three boxes, illustrating a mechanical or electronic assembly process (no text or symbols present)

Technical line drawing of a portable electronic device with accessories and ports (no text or symbols)

Line drawing of a rectangular electronic device with two connectors and directional arrows indicating motion (no text or symbols)

Operatività

SI PREGA DI LEGGERE ATTENTAMENTE LE PRESENTI ISTRUZIONI PRIMA DI UTILIZZARE IL CALORIFERO.

LOWER TEMPERATURE COMMERELDE HIGHER TEMPERATURE

[ I ] 1500W, [ II ] 1000W,

[ I ]& [ II ] 2500W HV051

[I] 1000W, [II] 500 W, [I] & [II] 1500W

Low power setting [1]or[II]

High power setting [1] or [11]

Cartoon character with surprised expression and head covering, surrounded by expressive eyes and motion lines (no text or symbols)

Safety warning illustration showing a showerhead spraying water and a distressed washing machine with a sad face, accompanied by pictograms of people and equipment.

Technical diagram of a portable electronic device with numbered parts labeled ① through ⑧

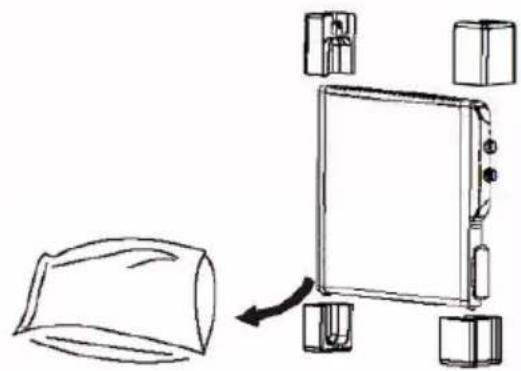

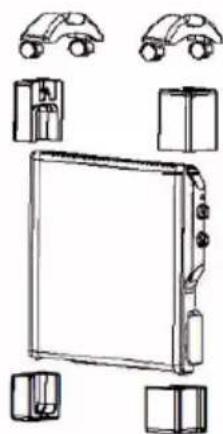

Odpakowywanie

Diagram showing a box transforming into a device with wheels and doors (no text or symbols)

Diagram showing a device with a curved panel and a rectangular panel, connected by an arrow indicating rotation (no text or symbols present)

Line drawing of a rectangular electronic device with multiple car illustrations above it (no text or symbols)

Instalacja kół

Line drawing of a rectangular electronic device with two connectors and directional arrows indicating orientation (no text or symbols)

Obstuga

DOKŁADNIE ZAPOZNAJ SIE Z INSTRUKCJĄ ZANIM UŻYJESZ URZĄDZENIA

Simple diagram with concentric circles and a left-pointing arrow, no text or symbols present.

Comfortable

LOWER TEMPERATURE HIGHER TEMPERATURE Combriable Ion

Low power setting [I]or[II]

High power setting [1]or[II]

Cartoon character with surprised expression and surprised expression (no text or symbols)

Diagram of a device with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram illustrating swimming and shower activities with corresponding illustrations of a person diving into a bathtub and a showerhead.

Labeled diagram of a portable electronic device with numbered parts for identification

Paketin Çıkarılması

Diagram illustrating the step-by-step assembly of a box, showing folding and disassembly steps.

Technical line drawing of a portable electronic device with various components (no text or symbols)

Line drawing of a rectangular electronic device with two connectors and directional arrows indicating movement (no text or symbols)

Operasyon

BU ISITICIYI KULLANMADAN ÖNCE LÜTFEN TALIMATLARIN TAMAMINI OKUYUN.

Condensation

LOWER TEMPERATURE Cavity TEMPERATURE HIGHER TEMPERATURE

Low power setting [1]or[II] High power setting [1]or[II]

Cartoon character with a surprised expression and head covering, surrounded by expressive faces (no text or symbols)

HOT! 0.9m 0.9m No ! X X X X X

Safety warning illustration showing a shower spraying water above a bathtub, with a distressed device and a 'X' symbol indicating failure or hazard.

Sorun giderme

Isitici sıcak değil

Features & Specifications 110

Introductie 111

Trouble-shooting 119

Features & Specifications

Olie-vrije Radiator

Full heat in 1 Minute

Technical diagram of a portable electronic device with numbered components for identification

Diagram illustrating the step-by-step assembly of a box, showing folding and disassembly steps.

Technical line drawing of a portable electronic device with accessories (no text or symbols)

Line drawing of a rectangular electronic device with two connectors and directional arrows indicating movement (no text or symbols)

Gebruik

LEES GELIEVE ALLE INSTRUCTIES ZORGVULDIG DOOR VOOR U DE RADIATOR GEBRUIKT.

[ I ] 1500W, [ II ] 1000W,

[ I ]& [ II ] 2500W HV051

[I] 1000W, [II] 500 W, [I] & [II] 1500W

Low power setting [I] or [II]

High power setting [1] or [II]

Cartoon character with a surprised expression and head covering, surrounded by expressive faces (no text or symbols)

HOT! 0.9m 0.9m No ! X X X X X

Safety warning illustration showing a shower spraying water above a bathtub and a distressed device with a sad face, accompanied by a warning symbol.

Troubleshooting
