HV220 - Heating Duronic - Free user manual and instructions

Product type	Oil-free MICA heater
Brand	Duronic
Model	HV220
Power	2000 W (adjustable 1000 W / 2000 W)
Supply voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	580 x 130 x 690 mm
Weight	4.6 kg
Heating elements	MICA panels
Main functions	Power I (1000 W), Power II (2000 W), adjustable thermostat, anti-frost function
Safety	Overheat protection, anti-tip (automatic shut-off if knocked over)
Noise level	Silent
Mobility	Integrated handle and swivel castors
Maintenance and cleaning	Unplug and let cool; vacuum dust from grilles; wipe with a dry or damp cloth without detergent
Storage	In a dry, cool place, preferably in original packaging
Warranty	1 year (by Shine-Mart Ltd, owner of the Duronic brand)
Included accessories	Castors with base, user manual
Cord storage	Dedicated space under the appliance

Frequently Asked Questions - HV220 Duronic

How to install the castors on the Duronic HV220 heater?

Place the heater upside down, then screw the provided feet into the designated slots. Turn the appliance back over. Make sure it is switched off before handling.

What power settings are available?

The heater offers two settings: Power I (1000 W) and Power II (2000 W). You can activate one or both simultaneously using the switches on the appliance.

What to do if the heater does not heat?

Check that the appliance is turned on (switch in position I and/or II), the thermostat is not set to 0, the cord is plugged in, and the socket works. Also ensure no objects are blocking the front.

How does the anti-frost function work?

The anti-frost function keeps the room at a positive temperature. To activate it, plug in the heater and turn the thermostat to the position marked with a snowflake.

What to do if there is an unusual smell during first use?

After storage or first use, odors may be released due to dust or particles in the air. They usually disappear quickly. If the smell persists or becomes strong, turn off the appliance and contact after-sales service.

The heater turns off by itself, is this normal?

Yes, this may be due to the thermostat: when the room reaches the set temperature, the appliance turns off and then automatically turns back on when the temperature drops. It could also be due to overheat protection if the appliance is covered or obstructed.

How to clean the HV220 heater?

Unplug the appliance and let it cool. Use a vacuum cleaner to remove dust from the grilles. Wipe metal surfaces with a dry or slightly damp cloth. Never use abrasive detergents or chemicals.

Can I use an extension cord with this heater?

It is not recommended to use an extension cord as it may not handle the power and pose a fire risk. Always plug the heater directly into a wall socket of at least 10 A.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by a qualified person (authorized after-sales service) to avoid any electrical risk.

How to store the heater during summer?

Unplug it, clean it, coil the cord and store it in its dedicated slot. Place the appliance in its original packaging and store it in a dry, cool place away from dust.

USER MANUAL HV220 Duronic

Creative Consumer Electronics

Exterior view of a black rectangular solar heating unit with control knobs and wheels (no visible text or symbols)

Mica Heater - HV220

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

Features & Specifications 8

Introduction 9

Remove Packaging 10

Installation of Wheels 11

Operation 12

Important Safeguards 14

Clearning, Storage & Warning 16

Trouble-shooting 17

Features & Specifications

Oil-Free Column Heater

The Duronic HV220 uses a “Mica Heating Element” which is a leading technology in heating. Our mode is not only oil free, but offers more than a standard heater. It heats up within a minute, making it a very cost effective heater. All our Mica heaters have wheels, making them fantastic portable heaters.

Special Features

Full heat in 1 Minute

Two Power settings

Covering sensor (overheat protection) and Tip over protection

Anti - frost

Light weight

Quiet operation

No oil = No leakage

No dehumidifying

Power cord storage on front

Specification

Item Power Voltage Rating Unit Size Unit Weight
HV220 2000W 220-240V,50/60Hz			580(L)*130(W)*690(H)mm 4.6kg

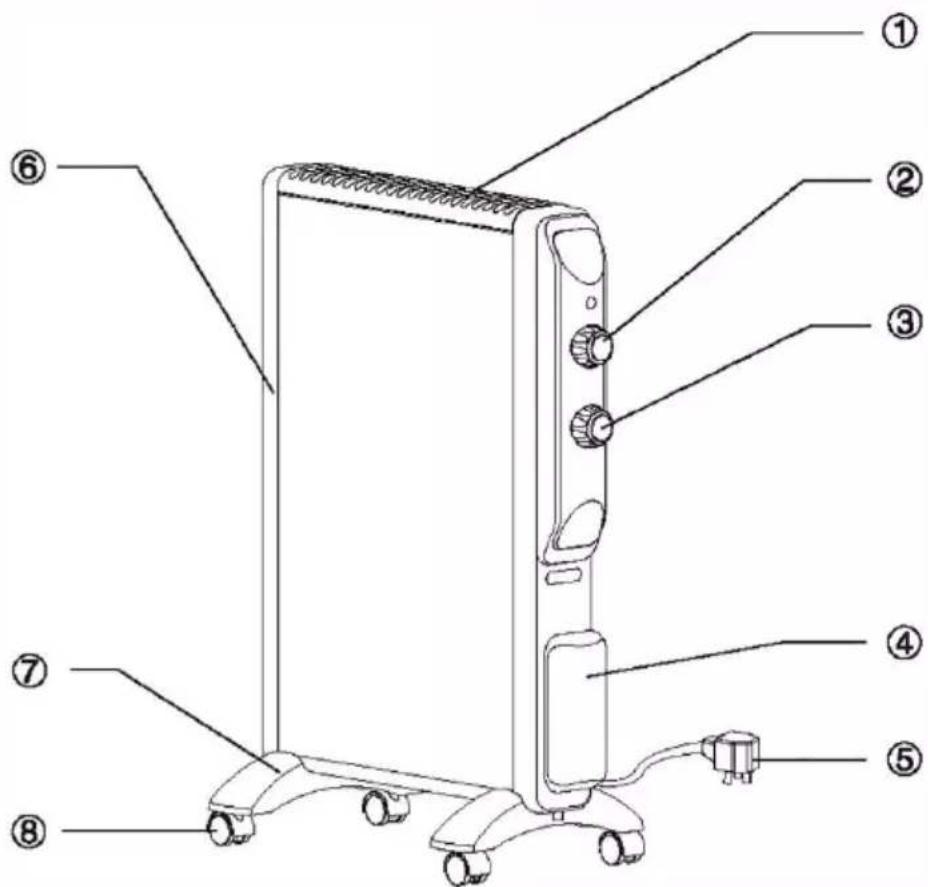

Unit Layout

1. Top cover
2. Power switch knob
3. Temperature control knob
4. Cable storage
5. The power cord
6. Left Plastic Cover
7. Footbase
8. Wheels

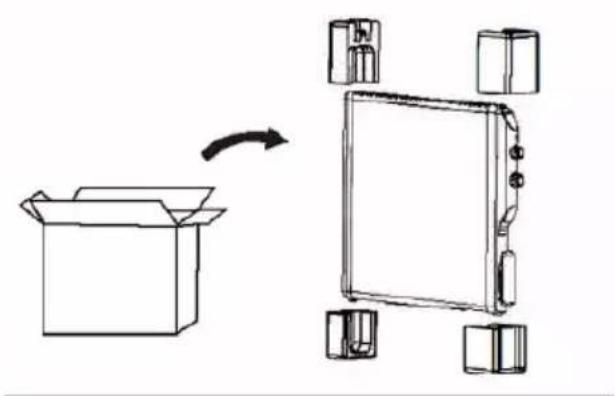

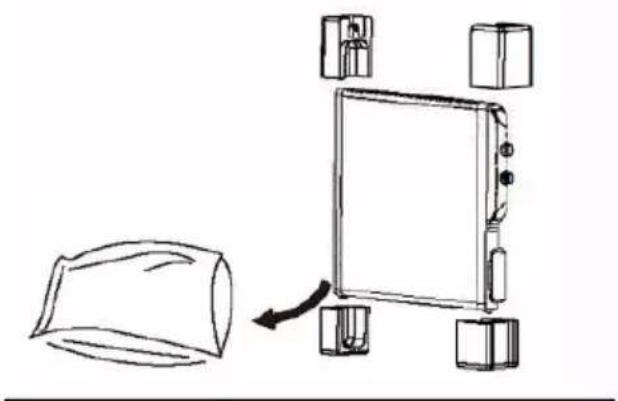

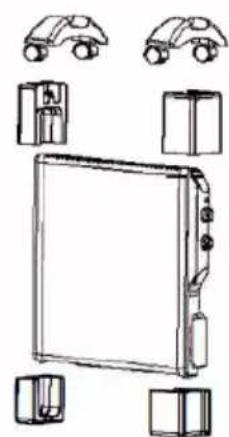

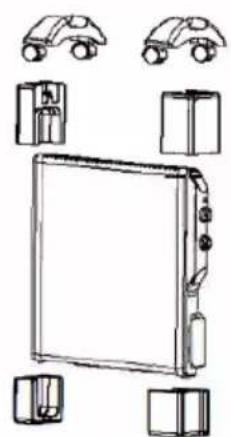

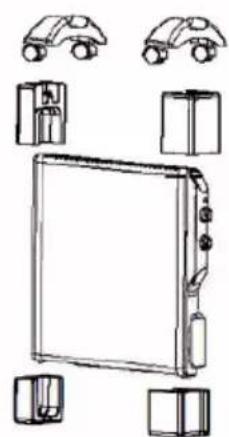

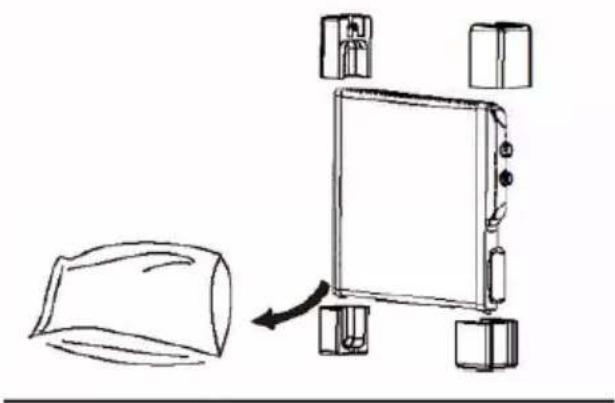

Removing Packaging

1. Take the heater and the packaging out of the box.
2. Remove foam from both ends of the heater. Remove the polybag which is covering the heater and store away. Keep any bags and foam away from children.
3. Remove the front foot and wheels from the foam packaging
4. Keep your packaging safe, as this is part of the guarantee. It is also useful for storing the heater when not in use.

Diagram showing a box transforming into a device with wheels and doors (no text or symbols)

Diagram showing a device with a curved panel and a rectangular unit, connected by a directional arrow (no text or symbols)

Line drawing of a rectangular electronic device with multiple car illustrations above it (no text or symbols)

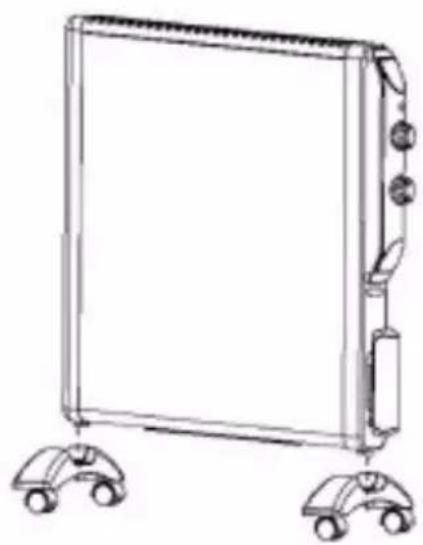

Assembly Instructions

1. Position the heater carefully upside down.

2. Place screws in center round hole of foot base and screw in tightly with a screwdriver.

3. Repeat for other leg

4. Turn the heater the right way up.

Line drawing of a rectangular electronic device with two small car models on both sides (no text or symbols)

Line drawing of a curved mechanical component with two circular ends and a base, no text or symbols present

Operation

PLEASE READ THE INSTRUCTIONS IN FULL BEFORE USING THIS HEATER.

• Turn the Power Switch Knob to [OFF] position (Fig. 1).
• Turn the Temperature Control Knob to [OFF] position (Fig. 2).
• Then plug in power cord to a suitable electrical outlet. (Rated not less than 1 O AMP) At this moment, the light indicator should be on.
• Turn the Temperature control knob clockwise to turn the heater on. The heater will heat the room to the chosen temperature and then automatically turn off. When the indoor temperature drops, the heater will operate again and emit heat until the temperature of the indoor temperature reaches the desired temperature. This cycle will repeat to maintain your chosen temperature. The temperature can be altered by turning the temperature control knob.

Fig1

Fig2

EU

UK

AUS

Simple circular diagram with arrows indicating rotation or direction (no text or symbols)

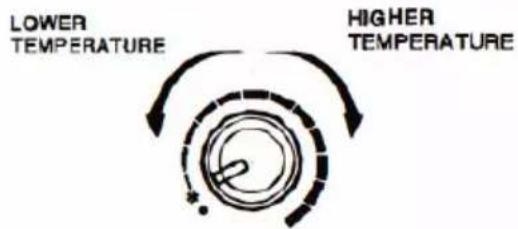

LOWER TEMPERATURE
HIGHER TEMPERATURE

Abstract spiral diagram with curved arrows and concentric rings (no text or symbols)

1. Then switch the heater ON by selecting as below:

[I] Heating power setting I

[ II ] Heating power setting II

[1]1000W

[II] 2000W

1. Anti-Frost Function

This function will keep the surrounding temperature above freezing point. To do this, simply plug in the power cord, and turn the Temperature control Knob to the “Snowflake” position.

1. Covering Sensors

Even though a warning label “DO NOT COVER” has been placed on the unit, some users may accidentally cover the unit with a towel or blanket etc. Therefore, a safety device known has been installed within the heater to protect against overheating. If the unit overheats, the power will be cut off. When the unit temperature falls again, power will be resumed.

1. Tip over protection

If the heater is accidentally knocked over, it will switch off automatically.

Cartoon illustration of a surprised face with a head covering, surrounded by steam lines (no text or symbols)

Line drawing of a portable electronic device with a curved arrow indicating rotation (no text or symbols)

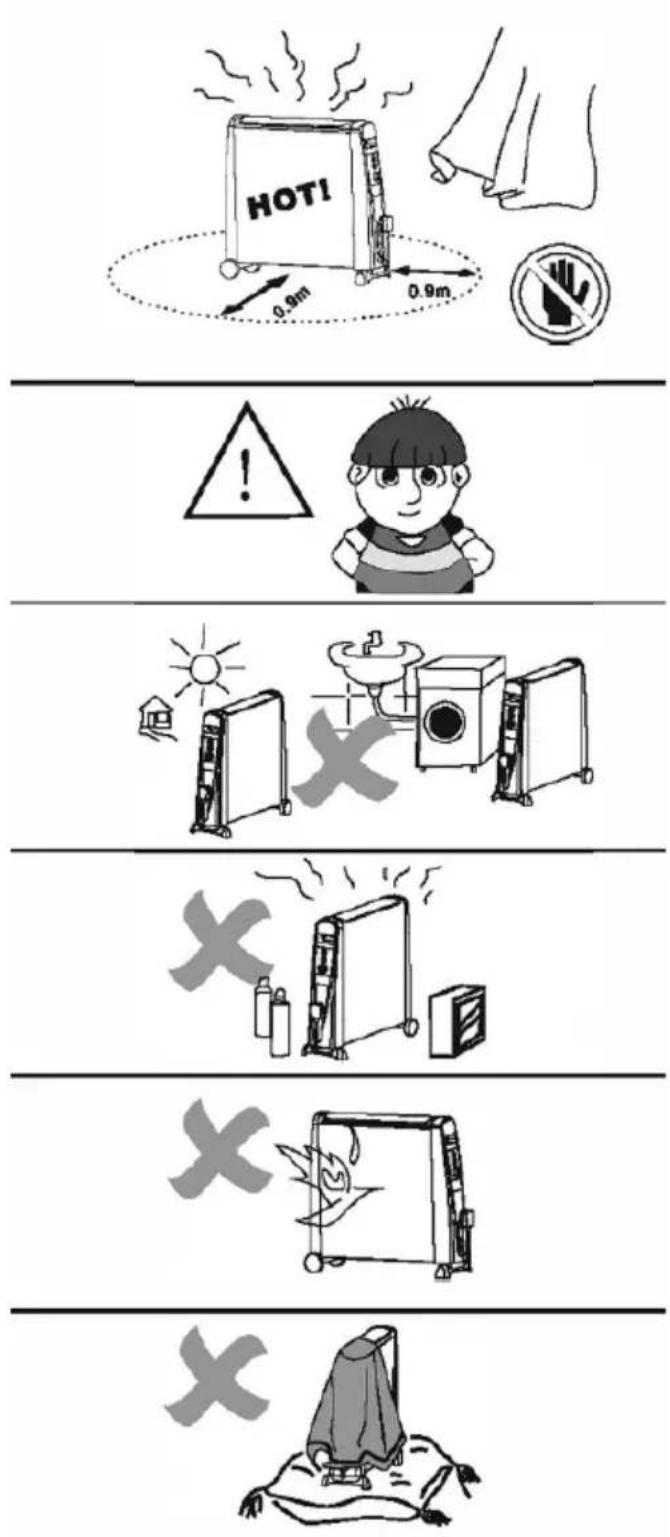

Important Safeguards

The heater is hot when in use. To avoid burns, do not let bare skin touch the hot surface, please use the handles to move the heater. Keep combustible materials, such as curtains etc at least 3 feet (0.9m) radius from the heater to avoid a fire hazard. Extreme caution is necessary when any heater is used near children. Do not leave children unattended when this heater is ON. The heater is not a toy.

Do not use the heater outdoors. This heater is not intended for use in bathrooms, laundry areas and near water.

Do not use the heater in areas where gasoline, paint or flammable liquids are used or stored.

Do not insert or allow any objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.

To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not operate this appliance on a soft or uneven surface as it may block the air inlets.

Always unplug heater when not in use. To disconnect heater, remove plug from outlet.

Please avoid using an extension lead with this heater. All extension leads have a maximum wattage allowance, by using this heater with other appliances the wattage allowance may be exceeded and may overheat the plug and extension socket and result in a fire risk.

Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord tidily where it cannot be tripped over. Do not operate any heater with a damaged cord or plug. If the supply cord is damaged, it must be replaced by a qualified person in order to avoid hazard. Connect to properly grounded outlets only.

Use this heater only described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, as a fire risk exists if the heater is covered or positioned incorrectly.

Cleaning

1. Before cleaning, turn off the heater, unplug the power cord and allow the heater to cool.
2. Do not immerse power cord, plug or heater in water or other liquid, or pour water or other liquids over the heater.
3. Use a vacuum cleaner to remove dust and lint at the metal grill of the heater. Wipe the heater with a dry cloth to remove dust and a damp cloth (not wet) to clean off stains.
4. Do not use detergents, abrasive cleaning products or any kind of polishing material on the body of the heater, as these can damage the finish.

Storage

1. Store the heater in a cool dry location, preferably covered to present dust and dirt. Use old packaging to repack the unit.
2. Unplug the heater and store the mains lead in the storage tidy at the front of the heater. Ensure that the plug does not trail before cleaning.

Warning

Any other servicing should be performed by an authorized service representative.

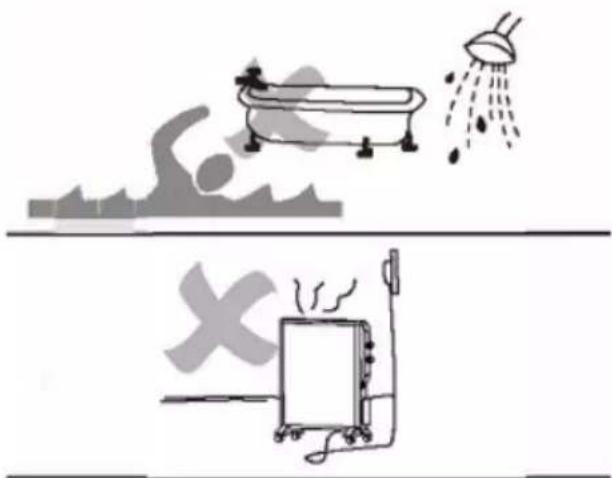

Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool

The heater must not be located immediately below a socket-outlet.

Troubleshooting

Heater is not warm

1. Check the heater is operating

2. Check the heater is not covered

1. Check the temperature setting is in the right position

2. On low temperature settings not all panels heat up. This does not mean that the heater is not working.

Heater is not operating

1. Check the power cord plug in the electrical outlet

2. Make sure the power switch is at the [ON] position.

1. Check whether the electricity or the main fuse is working

2. Check the heater if it is on the thermostat control condition.

There is a smell coming from the heater

After storage/restarting the heater, a slight smell may be released from the heater. This is because the heater absorbs the air in the room, which may contains cigarette smoke, cosmetic fumes, and smells from the furniture and walls. When the heater starts up again, it will emit those smells. This is normal, and after a short period of time the smell will start to disappear.

Keep these instructions safe

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with BS:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

CE

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Emballage

Diagram showing a box moving rightward toward a vehicle chassis (no text or symbols present)

Line drawing of a device with a curved panel and a rectangular unit, showing a transformation or assembly process (no text or symbols)

Line drawing of a rectangular electronic device with multiple car illustrations above it (no text or symbols)

Line drawing of a rectangular electronic device with two small car wheels at the bases (no text or symbols)

Line drawing of a car dashboard with steering wheel and keyway (no text or symbols)

Utilisation

Abstract circular diagram with concentric rings and radial arrows, no text or symbols present

LOWER
TEMPERATURE
HIGHER
TEMPERATURE

Abstract spiral diagram with curved arrows and concentric rings (no text or symbols)

Cartoon illustration of a surprised face with a headlamp, no text or symbols present

Line drawing of a portable electronic device with a curved arrow indicating rotation (no text or symbols)

Mesures de sécurité

Dépannage

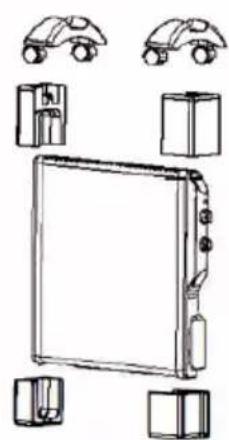

Auspacken

Diagram showing a box transforming into a device with wheels and doors (no text or symbols)

Diagram showing a device with a curved arrow indicating rotation or movement, next to a flat object (no text or symbols present)

Line drawing of a portable electronic device with various accessories (no text or symbols)

Einbau der Räder

Line drawing of a rectangular electronic device with two wheels and control knobs (no text or symbols)

Line drawing of a mechanical lever mechanism with no visible text or symbols

Betrieb

Simple circular diagram with arrows indicating rotation or direction (no text or symbols)

Cartoon illustration of a surprised computer with steam lines (no text or symbols)

Line drawing of a portable electronic device with a curved arrow indicating rotation (no text or symbols)

Fehlerbehebung

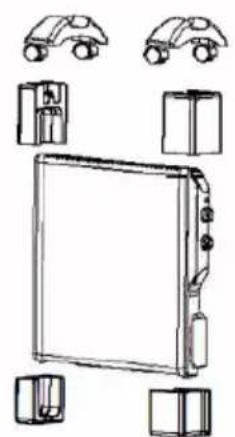

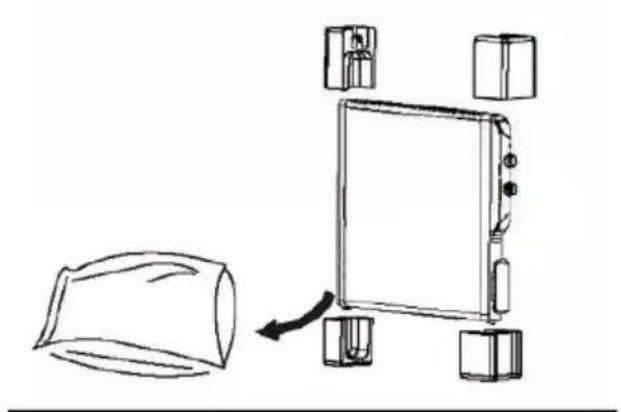

Embalaje

Diagram showing a box transforming into a device with wheels and doors (no text or symbols)

Diagram showing a device with a curved surface and a rectangular panel, no text or symbols present

Line drawing of a rectangular electronic device with multiple car icons above it, no text or symbols present.

Line drawing of a rectangular electronic device with wheels and a side-mounted base (no text or symbols)

Line drawing of a mechanical device with ports and components (no text or symbols)

Operación

Abstract circular diagram with concentric rings and radial arrows, no text or symbols present

Cartoon illustration of a surprised computer with steam lines indicating sound (no text or symbols)

Line drawing of a portable electronic device with a curved arrow indicating rotation (no text or symbols)

Rimuovere l'imballo

Diagram showing a box transforming into a device with wheels and boxes (no text or symbols)

Diagram showing a device with a curved surface and a rectangular panel, no text or symbols present

Line drawing of a rectangular electronic device with multiple car illustrations above it (no text or symbols)

Line drawing of a rectangular electronic device with wheels and a side-mounted base (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Operatività

SI PREGA DI LEGGERE ATTENTAMENTE LE PRESENTI ISTRUZIONI PRIMA DI UTILIZZARE IL CALORIFERO.

Abstract circular diagram with concentric rings and radial arrows, no text or symbols present

Cartoon illustration of a surprised face with a surprised expression (no text or symbols)

Line drawing of a portable electronic device with a curved arrow indicating rotation (no text or symbols)

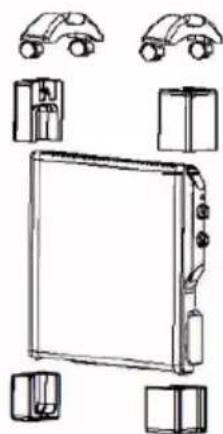

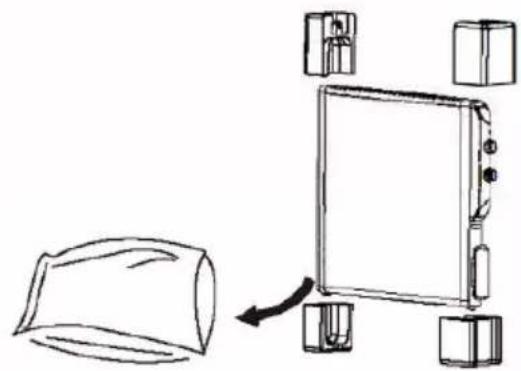

Odpakowywanie

Diagram showing a box transforming into a device with wheels and doors (no text or symbols)

Diagram showing a device with a curved panel and a rectangular panel, connected by an arrow indicating rotation (no text or symbols present)

Line drawing of a rectangular electronic device with multiple car illustrations above it (no text or symbols)

Instalacja kół

Line drawing of a rectangular electronic device with two small car wheels at the base (no text or symbols)

Line drawing of a curved mechanical component with two circular ports and a base, no text or symbols present

Obsługa

DOKŁADNIE ZAPOZNAJ SIEŻ Z INSTRUKCJĄ ZANIM UŻYJESZ URZĄDZENIA

Simple circular diagram with arrows indicating rotation or direction (no text or symbols)

LOWER TEMPERATURE

Abstract spiral diagram with curved arrows and concentric rings (no text or symbols)

HIGHER TEMPERATURE

Cartoon illustration of a surprised cube with a head covering, emitting a light burst (no text or symbols)

Line drawing of a portable electronic device with a curved arrow indicating rotation (no text or symbols)
