Brand	Duronic
Model	HV180
Product type	Portable electric heater
Heating technology	Mica heating element (oil-free)
Maximum power	1800 W
Power settings	2 settings: 900 W (I) and 1800 W (II)
Supply voltage	220-240 V, 50/60 Hz
Dimensions (W × D × H)	495 × 150 × 550 mm
Weight	4.5 kg
Heating time	Heats in 1 minute
Protection rating	IP24 (splash and dust resistant)
Operation	Silent
Safety	Overheat protection, automatic shut-off in case of overturning (tip-over), cover sensor
Anti-freeze function	Yes (maintains temperature above freezing point)
Control type	Rotary dials for power and temperature
Cable wrap	Yes, with side hook
Assembly required	Yes, attaching feet (screws included)
Use	Indoor use only, supplementary heating
Cleaning	Vacuum cleaner and damp cloth (do not immerse)
Warranty	1 year (Shine-Mart Ltd / Duronic)
Certifications	CE, WEEE

Frequently Asked Questions - HV180 Duronic

How to adjust the power of the HV180 heater?

Turn the power control dial to position I for 900 W or to II for 1800 W. Position 0 to turn off.

What to do if the heater does not turn on?

Check that the cable is properly plugged into a working mains socket, that the main fuse has not blown, that the power dial is set to I or II and that the temperature dial is not in the off position.

How to activate the anti-freeze function?

Plug in the device and turn the temperature control dial to the snowflake position (freeze symbol). The heater will then maintain a temperature above 0°C to prevent freezing.

Can I use this heater in a bathroom?

Yes, because it has an IP24 protection rating which makes it splash-resistant. However, place it at least one meter away from any water source and do not use it in the immediate vicinity of a bathtub or shower.

How to clean the HV180 heater?

Turn off and unplug the device, let it cool down. Use a vacuum cleaner to dust the grilles, then a well-wrung damp cloth for stains. Do not use abrasive detergents and never immerse the heater.

The heater gives off a strange smell, is this normal?

Yes, after storage or first use, odours may appear due to dust or absorbed particles. These odours disappear after a few minutes of operation.

Can I plug the heater into a power strip?

No, it is strongly advised against using an extension cord or power strip because the heater's power (1800 W) poses a risk of overheating and fire. Plug it directly into a wall socket.

How to assemble the heater's feet?

Place the heater upside down on a stable surface. Position one foot on the base aligning the holes, insert the two provided screws and tighten them. Repeat for the second foot.

What to do if the heater turns off by itself?

This may be due to overheating (the cover sensor or tip-over protection has activated). Make sure nothing is blocking the grilles and that the heater is on a stable surface. If the problem persists, contact customer service.

Can this heater serve as main heating?

No, the HV180 is designed for supplementary heating or occasional use, in well-insulated spaces. It does not replace a central heating system.

USER MANUAL HV180 Duronic

Creative Consumer Products

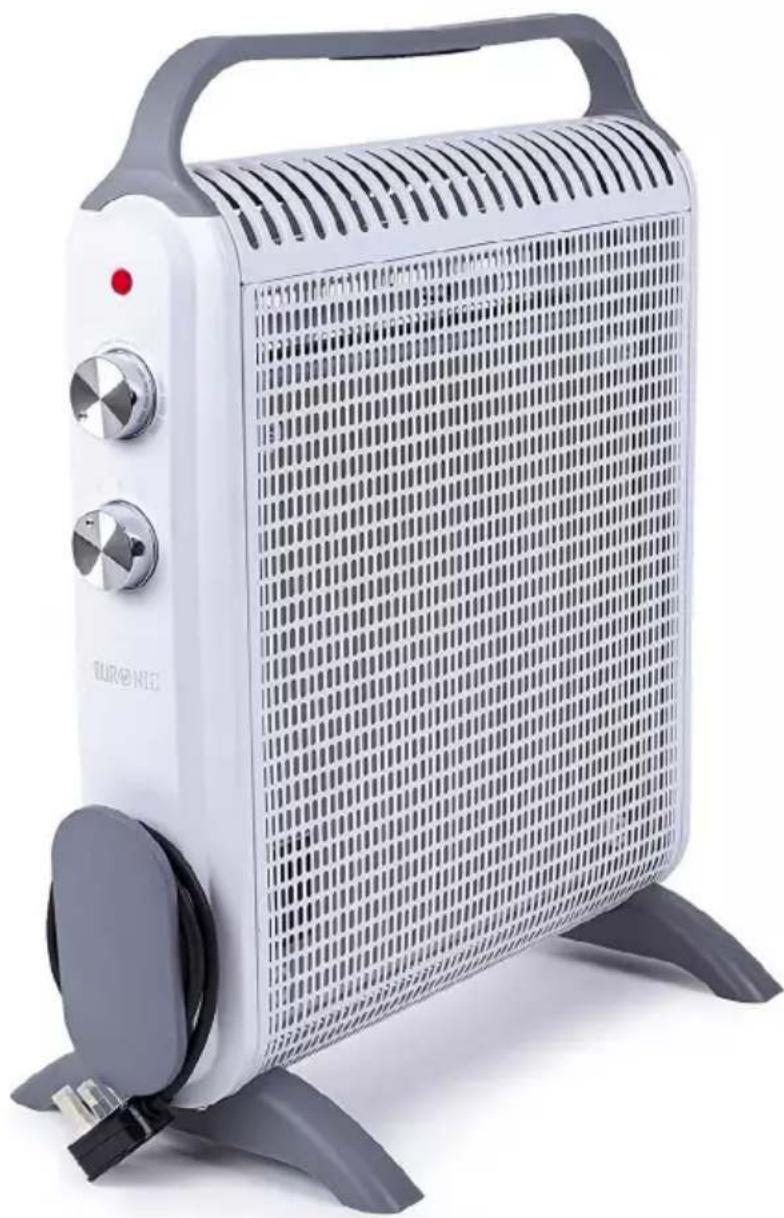

White portable electric heater with grid-patterned panel and gray handle, no visible text or symbols on the device body.

Mica Heater - HV180

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

Features and Specifications

Model Number	Power Voltage Dimensions		Weight
HV180 1800W		220-240V,50/60Hz	495(L)x150(W)x550(H)mm	4.5kg

The Duronic HV180 uses a Mica heating element, which is a leading technology in the world of heating. Our model is oil-free and offers more much more than a standard heater.

The HV180 heats up within one minute, making it a very cost-effective and energy-efficient heater.

Equipped with a long handle, moving and relocating this portable heater from one place to another is easy to do.

Special Features

• Heats up in 1 minute
- Two power settings
• Cover sensor (overheat protection)
- Tip-over protection
- Anti-frost
• Lightweight portable design
- Quiet operation
- Oil-free
- Does not dehumidify
• Power cable storage on the side
• IP24 rated: dust-proof and splash-proof

DURONIC

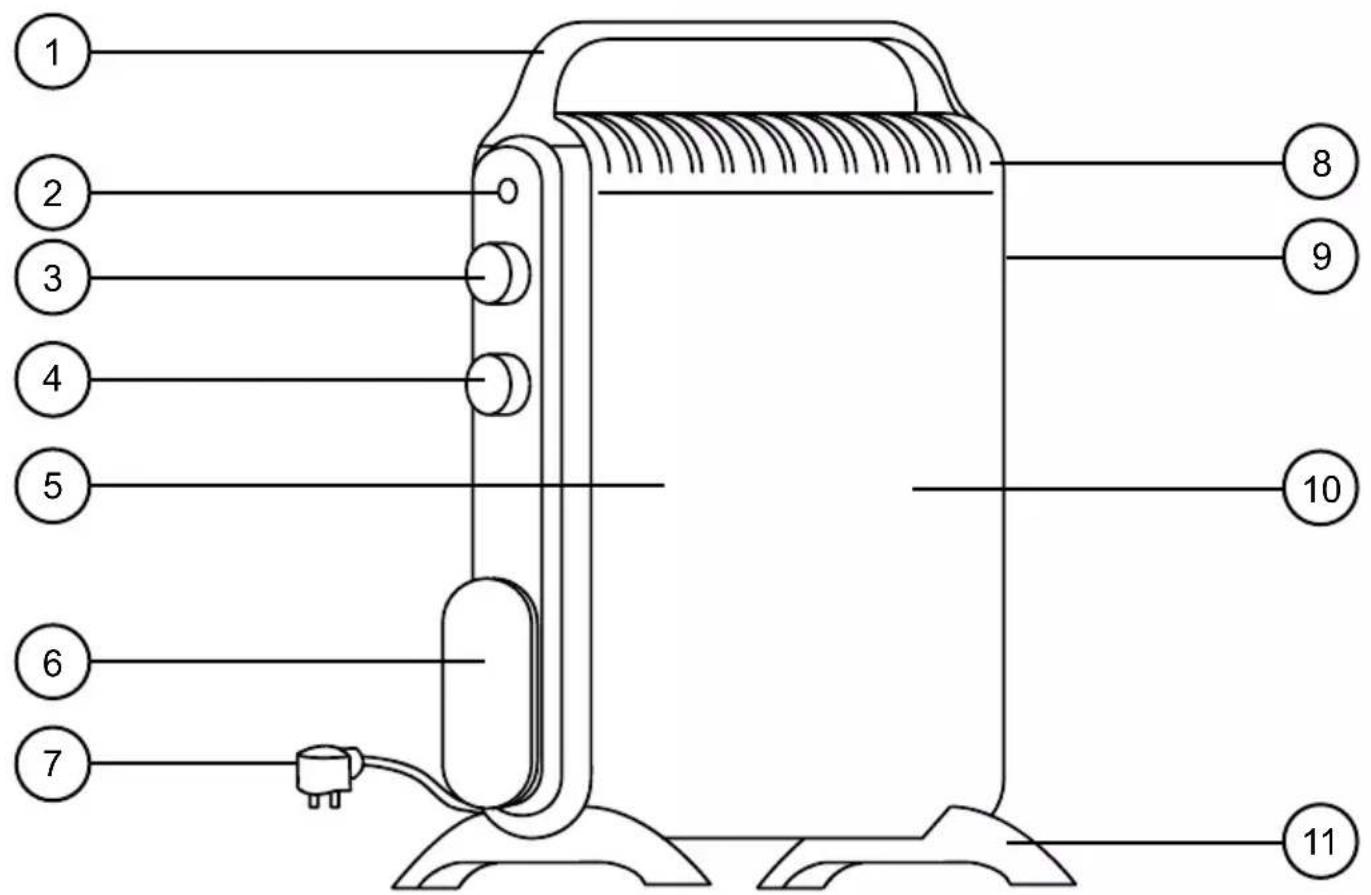

1. Handle
2. Power indicator
3. Temperature control dial
4. Power control dial
5. Front cover
6. Cable storage hook
7. Power cable with plug
8. Top cover
9. Rear cover
10. Protective mesh
11. Legs

DURONIC

Safety Instructions

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• This appliance is for indoor/household use only. Do not use outdoors.
• This heater is not designed for commercial or industrial use; it is solely for household use only.
• Ensure that the voltage is the same as indicated on the rating label of the heater.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Some parts of this product can become very hot and cause burns. Do not touch the front of the heater, the protective grill or vent whilst it is in use.
  • Particular attention has to be given where children and vulnerable people are present.
• If either the appliance or power cable is damaged, return the heater to Duronic for service or repair by a professional technician.
• Never open and repair the machine yourself. Do not modify the machine in any way that is not described in the instructions for use.
  • Always operate the appliance on a dry, smooth, even and stable surface. Do not use on long pile carpet or deep pile rugs.
  • Always ensure that your hands are dry before operating or adjusting any switch on the product or touching the plug and socket.
• Cleaning should be done as per instructions in this manual. Do not immerse the heater in water or any other liquid.
• Do not insert or allow any foreign object to enter any intake or outlet openings, as this may cause an electric shock, fire or damage to the appliance.

DURONIC

- Keep the appliance and cable away from sources of heat, sharp objects or anything that might cause damage.

• To avoid overheating, do not cover the heater. To prevent a possible fire hazard, do not block the air intakes or the outlet in any way.

- Ensure the appliance is always switched off before connecting it to the mains power supply.

- This appliance is not intended to be operated using an external timer or separate remote-control system.

- Do not plug the heater into an extension lead or multi-plug power adapter as the heater is too powerful for it. Using an extension lead or adapter with this heater is a fire hazard and may cause damage to the heater or the user. Always plug a heater directly into a mains socket.

- Switch off the power supply and unplug the appliance whenever it is not in use, before cleaning it or carrying out any maintenance.

- Ensure the heater is positioned at a minimum distance of 1 metre from any wall or objects.

- This heater must not be located immediately below a plug socket.

• To disconnect the appliance, switch it off, and then remove the plug from the socket.

- Do not pull the cable to unplug it.

- Do not operate the heater in areas where petrol, paint or other flammable liquids are used or stored.

- Do not touch the hot surfaces.

- Do not leave this appliance unattended when it is in use.

- The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by disconnecting the appliance and then vacuum cleaning the air vents and grills.

- Place the cable in such a way that it is not in any high traffic area to avoid it being tripped over or stood on.

DURONIC

- Before cleaning, turn off the heater. Unplug the power cable and allow the heater to cool down.

- Do not put the heater away until it has cooled down completely. Store the heater in cool dry location when not in use.

- This product is only suitable for well insulated spaces or occasional use.

- Remember, portable electric heaters are designed for spot heating, or as a supplementary heat source. They are not intended to be main sources of heat.

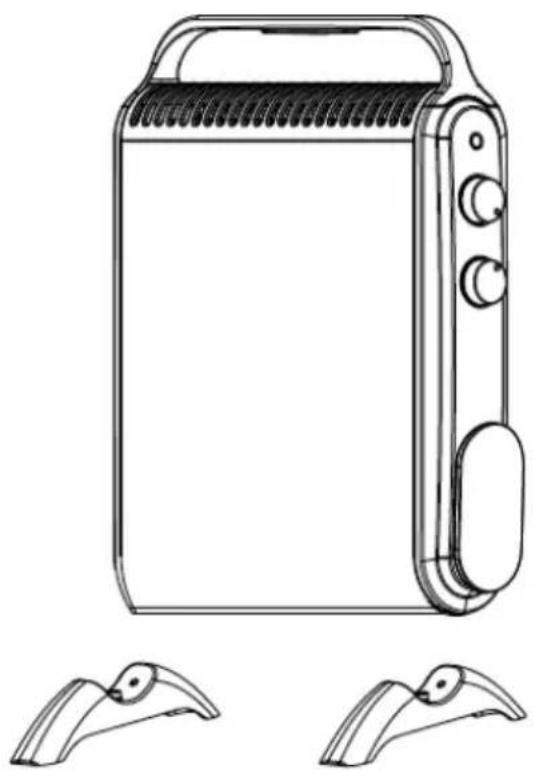

Assembly Instructions

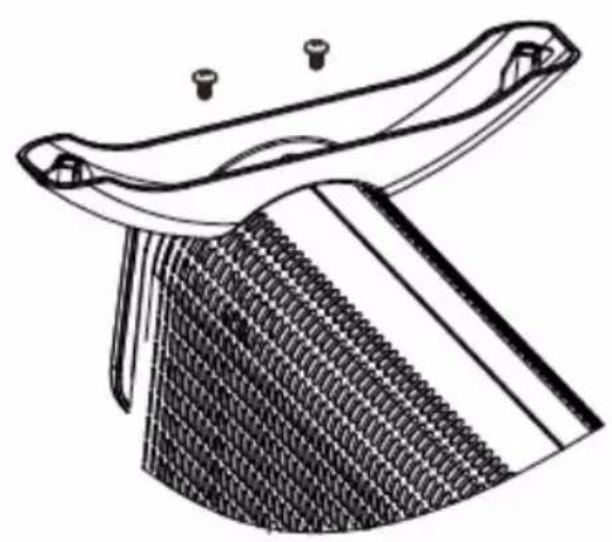

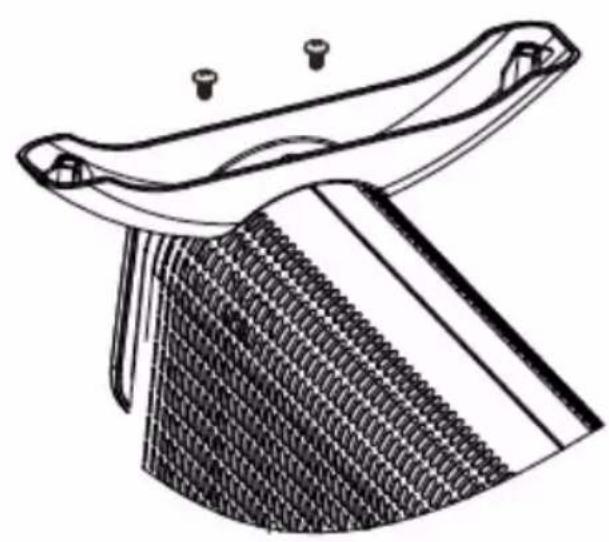

1. Position the heater carefully upside down.

2. Attach one leg at a time. Position the first leg onto the base and align with the screw holes in the bottom of the heater. Insert two screws into the base of the leg and tighten them up fixing the leg in place securely. Repeat the same steps to attach the second leg.

Line drawing of a portable electric stove with two side arm handles (no text or symbols)

Technical line drawing of a mechanical component with threaded base and flange (no text or symbols)

Operating Instructions

Please read these instructions in full before using this heater and retain for future reference.

When not in use:

Check that the power switch dial is turned OFF [0] (Fig 1) and the temperature control dial is turned OFF (Fig 2).

Fig 1

Abstract circular diagram with concentric rings and small symbols (no text or labels)

Fig 2

Connecting the Power:

Plug the power cable into a suitable mains socket (rated not less than 10 AMP). Once plugged in and the socket is switched on, the light indicator will turn on.

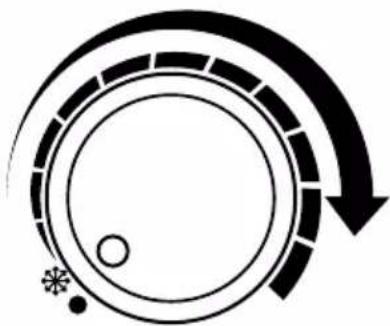

Setting the Temperature:

Select the temperature you prefer and the heater will heat the room to the chosen temperature and then turn off automatically.

When the indoor temperature drops below the set temperature, the heater will start to work again emitting heat until the indoor temperature reaches the

Abstract circular diagram with concentric rings and arrows, no text or symbols present

desired temperature once again. This cycle will repeat to maintain your chosen temperature. The temperature can be adjusted by simply turning the temperature control dial to the temperature you want.

Switching on the Heater:

To turn the heater on, rotate the power dial to your preferred power level:

[1] Setting 1: 900W
[II] Setting 2: 1800W

Low Power Setting

High Power Setting

Operating Instructions (continued)

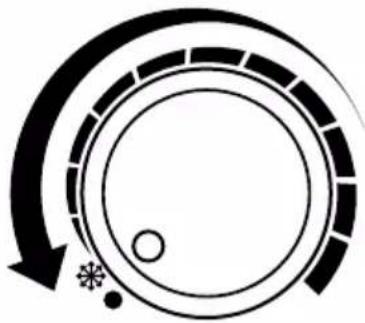

Anti-Frost Function:

This function will keep the surrounding temperature above ‘freezing point’. To activate this function, simply plug in the power cable and turn the temperature control dial to the snowflake position.

Abstract circular diagram with concentric rings and arrows, no text or symbols present

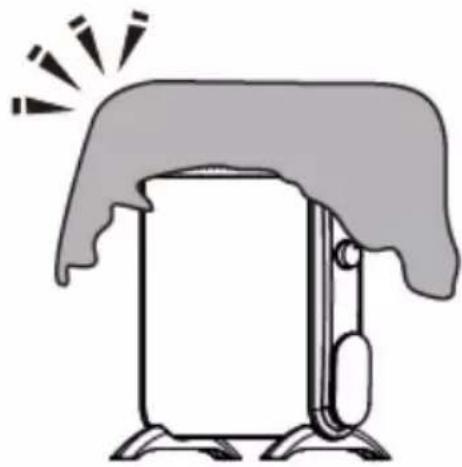

Overheat Protection

A warning label saying “DO NOT COVER” has been placed on the heater to warn against putting anything on top of the heater. Despite this, it has been known that some users still accidentally cover the heater with a towel or blanket etc. Therefore, there is an inbuilt safety device within the heater to protect against over heating.

Illustration of a mechanical device emitting vapor or heat, with no visible text or symbols

If the heater overheats, the power will be cut off automatically.

When the heater detects that the temperature has dropped again, the power will switch back on.

Illustration of a portable electronic device with a curved arrow indicating rotation or change (no text or symbols)

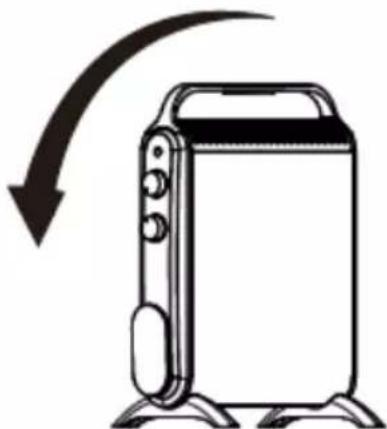

Tip-Over Protection:

If the heater is accidentally knocked over, it will switch off automatically.

DURONIC

Cleaning

• Before cleaning, turn off the heater. Unplug the power cable and allow the heater to cool down.
• Do not immerse the power cord, plug or the heater itself into water or any liquid. Do not pour water or any liquid over the heater.
  • To clean the heater safely, use a vacuum cleaner to remove any dust and lint on the grill/mesh cover. Wipe the heater with a dry cloth to remove any extra dust and a damp (well wrung) cloth to clean off any stains.
• Do not use detergents, abrasive cleaning products or any kind of polishing material on the body of the heater as this can damage the finish.

Storage

• Unplug the heater and wind up the power cable onto the cable storage hook.
• Store the heater in a cool dry place.

Cover to prevent dust and dirt building up on the machine.

Old packaging is ideal for using as a cover.

Warning

• Any other maintenance or servicing should be performed by a qualified person or by the manufacturer.

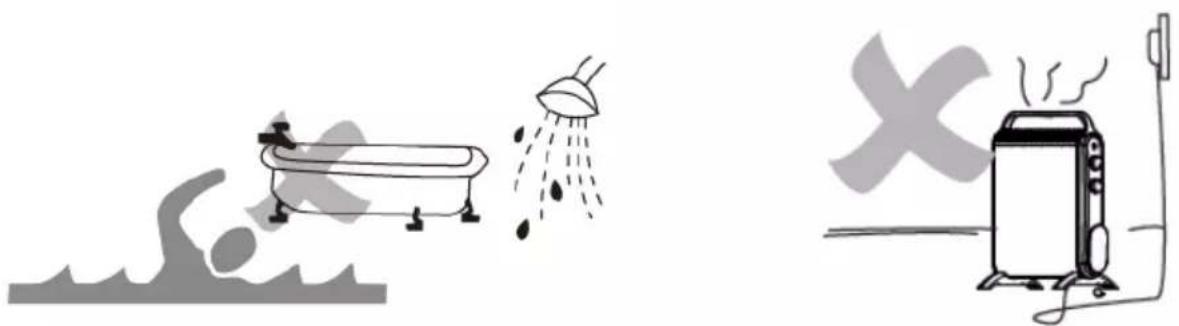

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• The heater must not be located immediately below a socket-outlet.

Illustration showing a bathtub, showerhead spraying water, and a portable electric stove with steam rising (no text or symbols)

DURONIC

Troubleshooting

Heater does not heat up:

1. Check if the heater is working or not.

1. Check if the temperature setting is in the right position.

1. Check if there is any object covering the front of the heater.

1. The heater does not function when one set of elements are not working.

Heater is not operating:

1. Check the power cable is plugged into the mains socket.

1. Check if electricity or the main fuse is working or not.

2. Make sure the power switch is at "I" or "II" position.

1. Check if the temperature control dial is in a working position.

Smell comes out from the heater:

After storing or restarting the heater, some smell may be released.

This can be because the heater absorbed the air in the room, which may contain cigarette, smoke, cosmetic smells, household chemical fragrances or any other surrounding pollutants.

Be assured, when the heater starts up again it will release these smells but after a short time the smell will disappear.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest of quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give a very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 year from the date of original purchase. If any defect arises due to faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instruction's contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

Line drawing of a portable electric stove with two side arm handles (no text or symbols)

Technical line drawing of a mechanical component with threaded base and flange (no text or symbols)

Abstract circular diagram with concentric rings and small symbols (no text or labels)

Fig 2

Abstract circular diagram with concentric rings and curved arrows, no text or symbols present

Abstract circular diagram with concentric rings and arrows, no text or symbols present

:anti-surchauffeProtection

Illustration of a mechanical device with a dome-shaped top and base, emitting sound waves (no text or symbols)

Illustration of a portable electronic device with a curved arrow indicating rotation or change (no text or symbols)

Illustration of a bathtub, showerhead, and electric cooker with no visible text or symbols

DURONIC

Dépannage

Line drawing of a portable electric stove with two side arm handles (no text or symbols)

Technical line drawing of a mechanical component with threaded base and flange (no text or symbols)

Bedienungsanleitung

Abstract circular diagram with concentric rings and small symbols (no text or labels)

Fig 2

Abstract circular diagram with concentric rings and arrows, no text or symbols present

Circular diagram with concentric rings and arrows, no text or symbols present

Überhitzungsschutz:

Illustration of a device emitting vapor or heat from its lid, with no visible text or symbols.

Illustration of a portable electronic device with a curved arrow indicating rotation or compression (no text or symbols)

Umkippschutz:

Illustration showing a bathtub, showerhead spraying water, and a medical device with steam rising (no text or symbols)

DURONIC

Fehlerbehebung

Line drawing of a portable electric stove with two side arm handles (no text or symbols)

Technical line drawing of a mechanical component with threaded base and flange (no text or symbols)

DURONIC

Abstract circular diagram with concentric rings and small symbols (no text or labels)

Fig 2

Abstract circular diagram with concentric rings and arrows, no text or symbols present

Circular diagram with concentric rings and arrows, no text or symbols present

Illustration of a device emitting vapor or heat from its lid, with no visible text or symbols.

Illustration of a portable electronic device with a curved arrow indicating motion or change (no text or symbols)

DURONIC

Limpieza

Illustration showing a bathtub, showerhead spraying water, and a portable electric cooker with steam rising (no text or symbols)

DURONIC

Line drawing of a portable electric stove with two side arm handles (no text or symbols)

Technical line drawing of a mechanical component with threaded base and flange (no text or symbols)

Abstract circular diagram with concentric rings and small symbols (no text or labels)

Fig 2

Avviare la stufa:

Abstract circular diagram with concentric rings and arrows, no text or symbols present

Circular diagram with concentric rings and arrows, no text or symbols present

Illustration of a device emitting vapor or smoke from its lid, with no visible text or symbols.

Illustration of a portable electronic device with a curved arrow indicating rotation or change (no text or symbols)

Illustration showing a bathtub, showerhead spraying water, and a portable electric cooker with steam rising (no text or symbols)

DURONIC

Line drawing of a portable electric stove with two side arm handles (no text or symbols)

Technical line drawing of a mechanical component with threaded base and flange (no text or symbols)

Obsługa

Abstract circular diagram with concentric rings and small symbols (no text or labels)

Rys. 2

Abstract circular diagram with concentric rings and arrows, no text or symbols present

Circular diagram with concentric rings and arrows, no text or symbols present

Illustration of a device emitting vapor or heat from its lid, with no visible text or symbols.

Illustration of a portable electronic device with a curved arrow indicating rotation or change (no text or symbols)

Illustration of a bathtub, showerhead, and electric heater (no text or symbols)

DURONIC
