USER MANUAL Custom Grind 80365 HAMILTON BEACH

Visit hamiltonbeach.com for delicious recipes and to register your product online!

Francais 10

Canada:1-800-267-2826

• Do not immerse this appliance in water or other liquid.
• This appliance has a polarized plug (one wide blade) that reduces the risk of electrical shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or using an adaptor. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put unit, cord or plug in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Call our toll free customer service number on the front cover for information on examination, repair or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot surfaces including stove.

10. Check removable grinding chamber for presence of foreign objects before using.

11. Do not use appliance for other than intended purpose.
12. Do not remove grinding cover until blade has completely stopped rotating.
13. This appliance is intended for household use only.

SAVE THESE INSTRUCTIONS

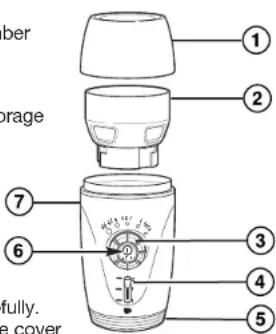

Parts and Features

1. Grinding Cover
2. Removable Grinding Chamber
3. Grind Setting Dial
4. Cup Selector Switch
5. Base with Manual Cord Storage
6. ON/OFF Button
7. Base
8. Coffee Brush (located in back of unit)

NOTES:

• Blade is sharp. Handle carefully.
• Do not attempt to defeat the cover interlock mechanism.

How to Use

1. Before First Use: Clean coffee grinder.
2. Remove grinding cover, if locked in place, by tuming counterclockwise to unlock position, then lift straight up.

1. Twist grinding chamber clockwise to locked position. Make sure that the grinding chamber is FIRMLY locked into position.

1. Pour whole coffee beans directly into grinding chamber and fill to desired level. Use the convenient cup markings, which correspond to cups of brewed coffee.

2. Place grinding cover onto grinder. Make sure the arrow on cover is aligned with the unlock symbol on back of grinder. Turn lid clockwise to locked position. Grinding cover will "click" when locked into position.

3. Hold unit and pull away cord storage cover. Unwind cord to desired length.

1. Secure cord in notch and push cord storage cover closed. Plug into outlet.
2. Rotate Grind Setting Dial to select desired fineness of grind. PERCOLATOR: coarse grind for French Press or percolators

DRIP: medium grind for automatic drip coffeemakers

ESPRESSO: fine grind for steam or pump espresso machines NOTE: There are two additional settings that will yield results in between the three shown.
9. Move Cup Selector Switch to total number of cups to be

SELECT	CUPS
4	1-4 (250 ml-1 L)
8	5-8 (1.25-2 L)
10	9-10 (2.25-2.5 L)
12	11-12 (2.75-3 L)

NOTE: Grinding Cover can become etched or cloudy as a result of grinding. This is normal.

5 continued on next page

1. Press ON/OFF button and release once grinding has begun. The coffee grinder will stop automatically when grinding is complete. To stop grinding cycle at any time, push ON/OFF button. If ON/OFF button is pressed again, grinder will start from beginning of timed cycle. If unit does not turn on, make sure BOTH removable grinding chamber AND grinding cover are firmly LOCKED into position.

2. Remove cover and grinding chamber from base. Pour ground coffee into paper or permanent filter. The brush can be used to remove remaining grounds.

3. When finished, unplug grinder. Clean grinding chamber. Open the Cord Storage by pulling it away from the grinder body. Wrap cord around center post. Secure cord in notch. Close the hide-away cord storage to cover the cord.

Follow How to Use instructions using guidelines in this chart for amounts and settings when grinding whole spices.

Grinding Whole Spices

IF GRINDING ...	USE ...	GRIND SETTING
Peppercoms	up to 4 tablespoons (60 ml)	ESPRESSO
Cinnamon Sticks	up to 3 tablespoons (45 ml) (broken into thirds)	ESPRESSO
Whole Cloves	up to 4 tablespoons (60 ml)	ESPRESSO
Coriander Seeds	up to 4 tablespoons (60 ml)	ESPRESSO
Flax Seed	up to 4 tablespoons (60 ml)	ESPRESSO

NOTE: Always move Cup Selector Switch to 12 Cups for maximum grinding time. When desired fineness of grind is reached, press ON/OFF to stop grinder.

Tips for Best Results

• For best flavor, store coffee beans in an airtight container.
  Grind beans immediately before brewing.
• Grinding times will vary by amount and fineness setting.
• To ensure optimal grinding performance, allow grinder to cool for at least one minute between uses.
• Coffee flavor and strength is a personal preference. Vary the type of coffee beans, amount of coffee and fineness of grind to find the flavor you prefer.
• Grinding should be cleaned between coffee and spice grinding to help prevent taste and odor transfer.
• Grinderr is not recommended for fresh herbs.

How To Clean

1. Unplug from outlet before cleaning.
2. Remove cover by turning counter-clockwise to unlock position, then lift straight up.
3. Remove grinding chamber by turning counter-clockwise until it comes loose from base. Lift grinding chamber straight up out of base.
4. Grinding chamber and lid can be washed in sink. Grinding chamber may also be washed on top shelf of dishwasher.
5. Wipe base with a damp cloth.
6. Open the Cord Storage by pulling it away from the grinder body. Wrap cord around center post. Secure cord in notch. Close the hide-away cord storage to cover the cord.

WARNING

Electrical Shock Hazard

• Unplug unit before cleaning.
• Do not immerse base, plug or cord in water or other liquid.

Failure to follow these instructions can result in death or electrical shock.

This warranty applies to product purchased in the U.S. or Canada.

LIMITED WARRANTY

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREIGNING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDING. There is no warranty with respect to the following, which may be supplied with this product, including without limitation: glass parts, glass containers, cutter/strainers, blades, soakes, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect including failure to clean product regularly in accordance with manufacturer's instructions, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you.
If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

CUSTOMER SERVICE NUMBERS

In the U.S. 1-800-851-8900

In Canada 1-800-267-2826

hamiltonbeach.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!
