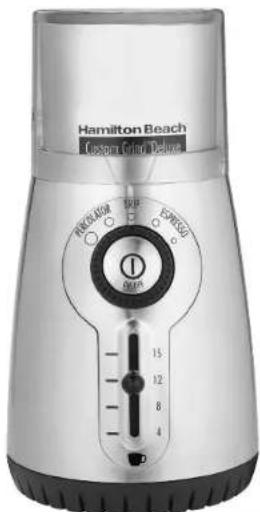

Custom Grind Deluxe 80374 - Coffee grinder HAMILTON BEACH - Free user manual and instructions

Product Type	Electric Coffee Grinder
Brand	Hamilton Beach
Model	Custom Grind Deluxe 80374
Dimensions (approx.)	12.5 x 12.5 x 22 cm (estimated)
Weight (approx.)	1.0 kg (estimated)
Power Source	120 V ~ 60 Hz, 150 W (estimated)
Reservoir Capacity	Up to 15 cups of ground coffee
Grind Selector	Percolator (coarse), Filter (medium), Espresso (fine)
Quantity Selector	4 cups (1-4), 8 cups (5-8), 12 cups (9-12), 15 cups (13-15)
Control	ON/OFF Button
Additional Features	Can grind spices, seeds, nuts, herbs, garlic, cinnamon sticks
Care and Cleaning	Unplug before cleaning. Do not immerse base, cord or plug. Wipe with a damp cloth.
Safety	Polarized plug; do not remove lid until blade stops completely; not for outdoor use
Reservoir Material	Clear plastic (estimated)
Blades	Stainless steel blades
Color	White and black (typical)
Warranty	1 year limited (parts and labor)
Spare Parts and Repairability	Not specified; contact customer service for repair
General Information	Household use only. Visit hamiltonbeach.ca for recipes and registration

Frequently Asked Questions - Custom Grind Deluxe 80374 HAMILTON BEACH

What grind types does the Hamilton Beach 80374 grinder offer?

It offers three settings: Percolator (coarse grind for French press or percolators), Filter (medium grind for electric drip coffee makers) and Espresso (fine grind for espresso machines and spices).

How do I select the amount of coffee to grind?

Use the quantity selector on the appliance: 4 cups (1-4), 8 cups (5-8), 12 cups (9-12) or 15 cups (13-15). This automatically adjusts the grinding duration.

Can I grind things other than coffee with this grinder?

Yes, it can grind spices, flax seeds, herbs, garlic, nuts, cinnamon sticks and cloves. Use the Espresso setting and the 15-cup quantity for maximum grinding.

How do I clean the coffee grinder?

Always unplug the appliance before cleaning. Never immerse the base, cord or plug in water. Wipe the exterior with a damp cloth. The lid and reservoir can be washed in soapy water (dry thoroughly).

Why does the lid become cloudy over time?

This is normal: the plastic lid may become opaque with use. This does not affect performance. Clean it regularly to slow down this process.

What is the maximum capacity of the reservoir?

The capacity is stated for grinding up to the equivalent of 15 cups of coffee. For spices and other items, do not exceed 4 tablespoons.

What should I do if the grinder does not start?

Check that the plug is properly inserted and the outlet is powered. Make sure the lid is correctly closed. If the problem persists, contact customer service.

Can I use an extension cord with this grinder?

Yes, but it must have a power rating at least equal to the appliance (150 W). Place it to avoid any tripping hazard.

How do I preserve the flavor of coffee beans?

Store the beans in an airtight container, away from light and humidity. Grind them just before preparation for maximum freshness.

What is the warranty period?

The limited warranty is one year from the date of purchase. It covers defects in material and workmanship. Keep your proof of purchase and contact customer service at 1.800.851.8900 (USA) or 01.800.71.16.100 (Mexico).

USER MANUAL Custom Grind Deluxe 80374 HAMILTON BEACH

Visit hamiltonbeach.com for delicious recipes and to register your product online!

Questions? Please call us - our friendly associates are ready to help. USA:1,800,851,8900

CAN:1.800.267.2826
MEX:01 800 71 16 100
Le invitamos a beerguidedamente
este instructivo antes de usar su
aparato.

Hamilton Beach.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put unit, cord or plug in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Call our toll free customer service number for information on examination, repair or electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.

8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter or touch hot surfaces including stove.
10. Check grinding chamber for presence of foreign objects before using.
11. Do not use appliance for other than intended purpose.
12. Do not remove cover until blade has completely stopped rotating.

SAVE THESE INSTRUCTIONS!

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug.

If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

840166600 ENnv04.qxd 8/29/07 8:36 AM Page 3

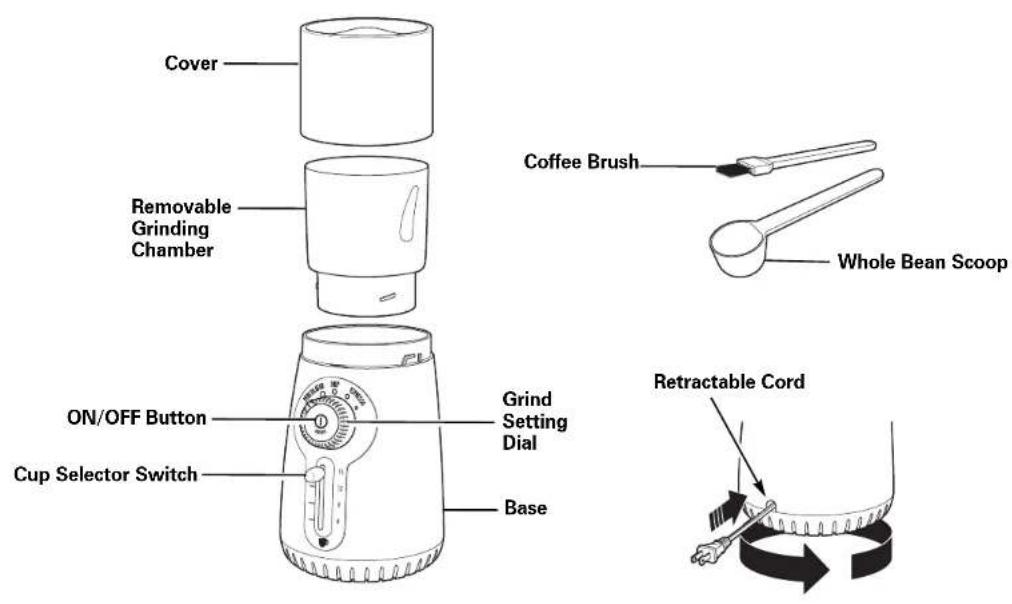

Parts and Features

Using the Coffee Grinding

NOTE: Clean coffee grinder before first use.

Using the Coffee Grinding (cont.)

SELECT	CUPS
4	1-4
8	5-8
12	9-12
15	13-15

IF GRINDING ...	USE ...	GRIND SETTING
Peppercorns	up to 4 tablespoons	ESPRESSO
Cinnamon Sticks	up to 3 tablespoons (broken into thirds)	ESPRESSO
Whole Cloves	up to 4 tablespoons	ESPRESSO
Coriander Seeds	up to 4 tablespoons	ESPRESSO
Flax Seed	up to 4 tablespoons	ESPRESSO

NOTE: When grinding spices, always move Cup Selector Switch to 12 Cups for maximum grinding time. When desired fineness of grind is reached, press ON/OFF to stop grinder.

Cleaning the Coffee Grinding

WARNING

Electrical Shock Hazard.

Disconnect power before cleaning.

Do not immerse cord, plug or base in any liquid.

Tips for Best Use

NOTE: Cover will become cloudy with use.

• For best flavor, store coffee beans in an airtight container.
  Grind beans immediately before brewing.
• Grinding times will vary by amount and fineness setting.
  To ensure optimal grinding performance, allow coffee grinder to cool for at least one minute between uses.
• Coffee flavor and strength is a personal preference. Vary the type of coffee beans, amount of coffee and fineness of grind to find the flavor you prefer.
• To grind flax seed, spices, herbs, garlic, and nuts: place one to four tablespoons of food in the grinding chamber. Select espresso grind and 15 cups for maximum grinding time. Press ON/OFF button to start grinder. When desired ground size is reached, press ON/OFF to stop grinder

CHOOSE:

PERCOLATOR

for coarse grind (French Press or percolators)

DRIP

for medium grind (automatic drip coffeemakers)

ESPRESSO

for fine grind (steam or pump espresso machines, spices)

Warranty

LIMITED WARRANTY

This warranty applies to products purchased in the U.S. or Canada.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase, except as noted below. During this period, we will repair or replace this product at our option. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCUSED. There is no warranty with respect to the following, which may be supplied with this product, including without limitation: glass parts, glass containers, cutter/strainers, blades, seals, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect including failure to clean product regularly in accordance with manufacturer's instructions, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you.

If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.)

CUSTOMER SERVICE NUMBERS

In the U.S. 1-800-851-8900

In Canada 1-800-267-2826

In Mexico 01-800-71-16-100

hamiltonbeach.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!
