WS6830 - INSTRUCTION MANUAL
LED WEATHER STATION WITH RADIO CONTROLLED CLOCK AND ALARM


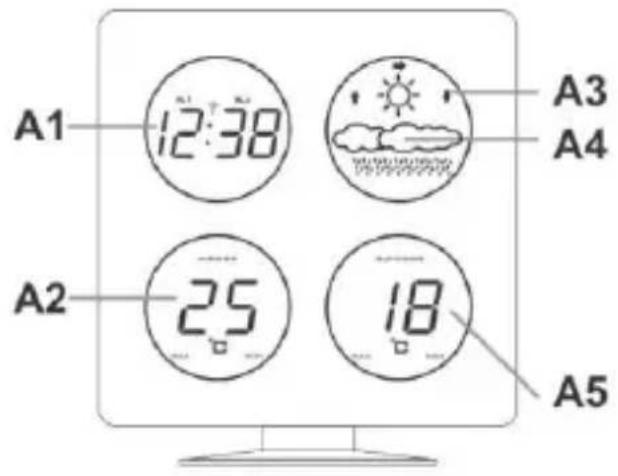

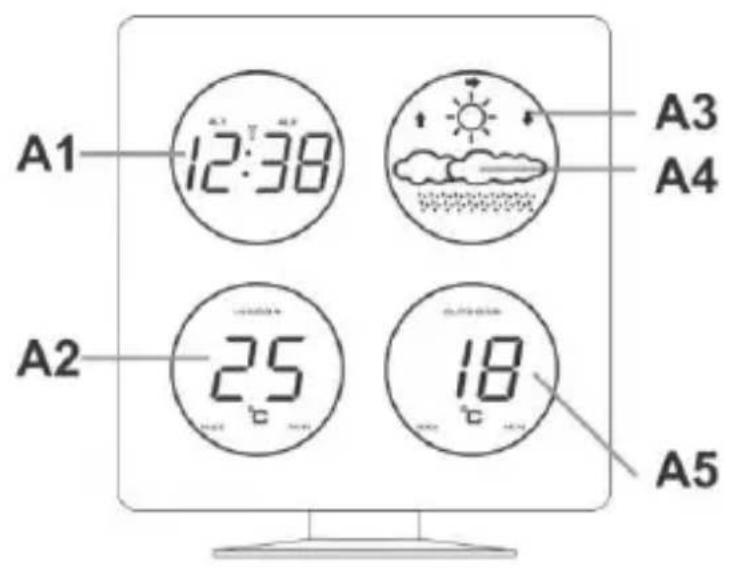

A1: Time A2: Indoor temperature A3: Tendency indicator
A4: Weather forecast A5: Outdoor temperature

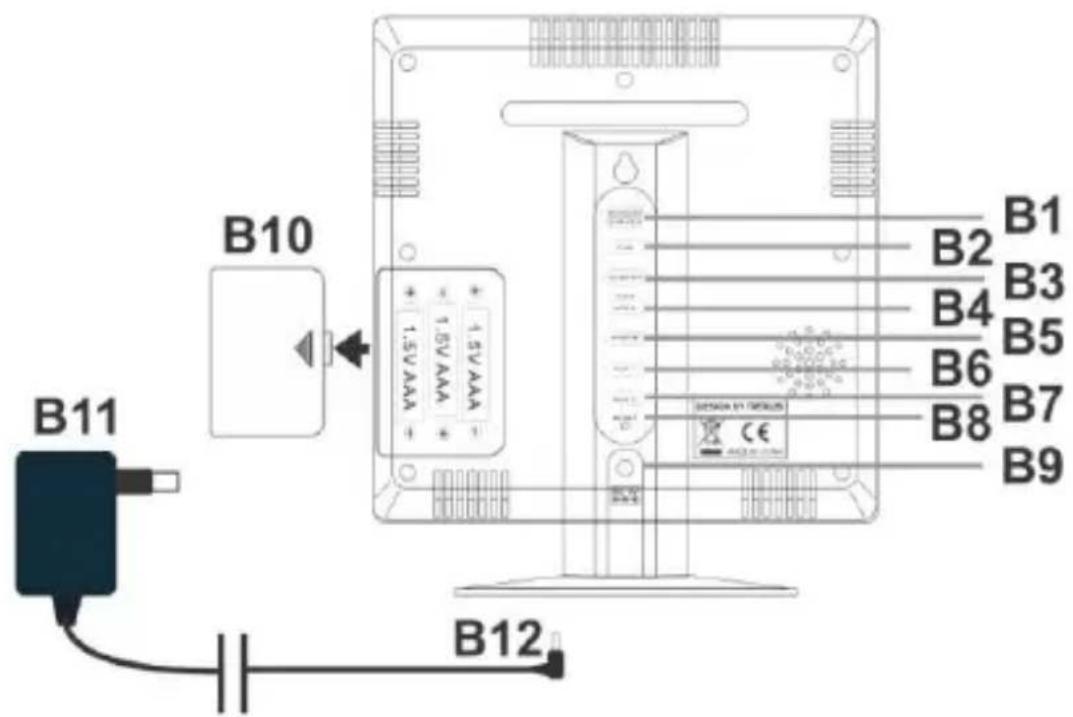

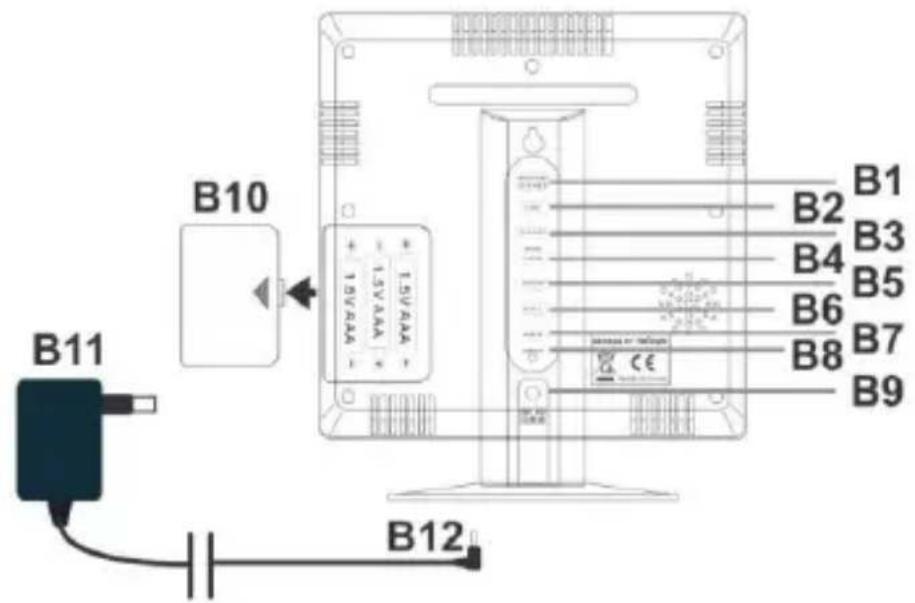

B - Back side
B1: Snooze/Dimmer button B2: Time button B3: Alarm On/Off button
B4: Hour/Wave button B5: Minute button B6: Alarm 1 button
B7: Alarm 2 button B8: Reset button B9: DC socket
B10: Battery compartment door B11: AC/DC adaptor B12: DC plug-in jack

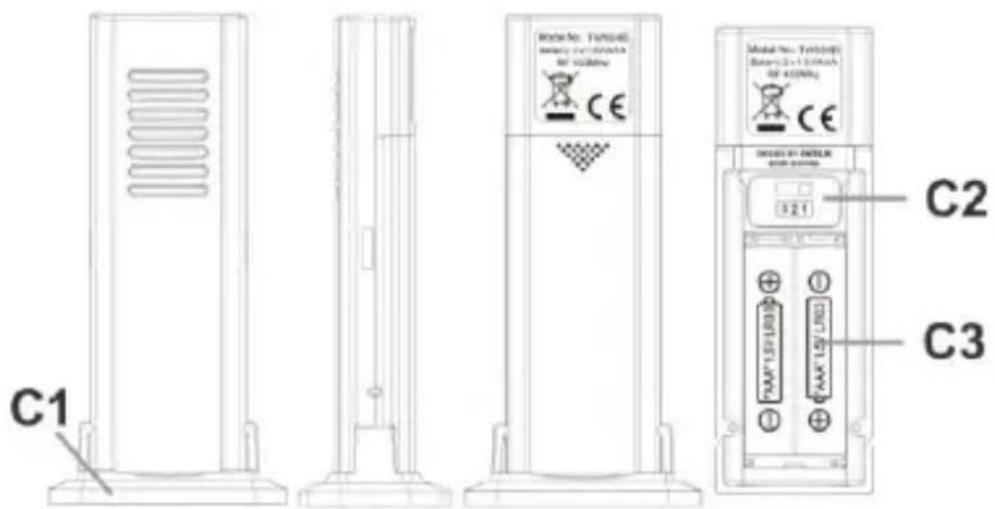

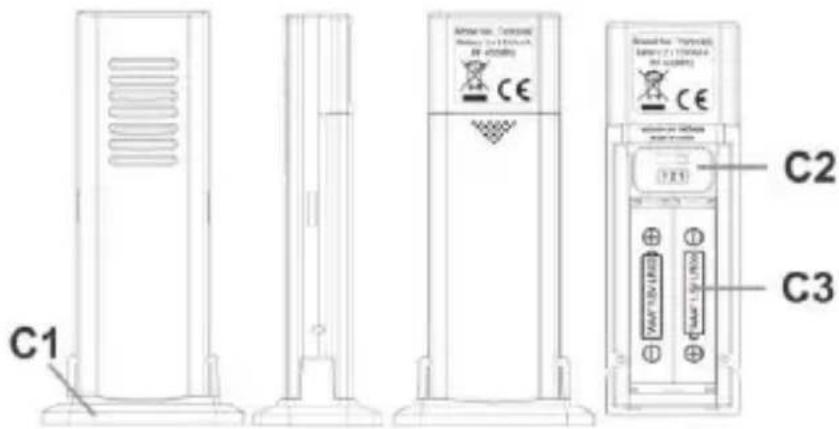

C – Outdoor sensor
C1: Stand C2: Channel selection switch C3: Battery compartment
ENVIRONMENTAL RECEPTION EFFECTS
The weather station obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:
• Long transmitting distance
• Nearby mountains and valleys
• Among tall buildings
• Near freeway, railway, airports, high voltage cable etc.
• Near construction site
• Inside concrete buildings
• Near electrical appliances (computers, TV's, etc)
• Inside moving vehicles
• Near metallic structures
QUICK SETUP

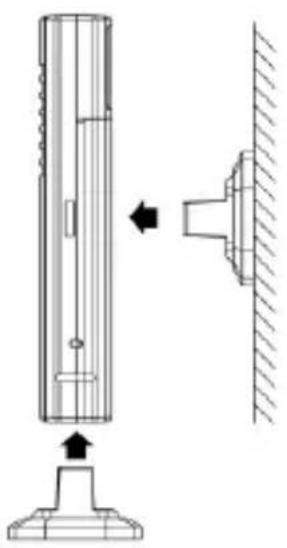

Step 1 Keep your weather station and wireless sensor next to each other. Slide open the battery cover at the back of your wireless outdoor sensor. Make sure the channel selector is set at position 1 (top position), then insert 2 x AAA batteries (not included) to the back of it. Replace the battery cover. Only one sensor is receivable by the station.
Step 2 Insert the AC/DC adaptor to any 230V AC household outlet. Then insert the AC jack to the back case of the station. Insert the round base to the back pole (as indicated) of your LED weather station, turn the base to the right to secure it in position.
Step 3 Slide open the battery cover at the back of the station, then insert 3 x AAA batteries (not included) by observing the correct “+/-” polarity signs inside the battery compartment. Then replace the battery cover.
Step 4 Peel off the protective label on the front. The weather station is ready to work.
The station will receive data signal from the outdoor sensor in few seconds. Then place the outdoor sensor in a dry and shaded area outdoor.
During reception of the DCF time signal, your thermometer does not take temperature measurement. It will change to low brightness and will resume to high brightness after auto reception. After first time installation, the temperature readings will get stable and become more accurate in around 30 minutes.
BACK-UP BATTERIES
When the power supply is not in use, the station will be powered by the back-up batteries. The LED display is turned off, but time and alarm time remain stored (also in the event of a power failure).
DCF SIGNAL RECEPTION AND SIGNAL INDICATOR
After the station is powered up, it starts to receive DCF signal. The icon flashes.
Receiving DCF signal ( Icon flashing)
Successful reception ( Icon becomes static)
Failed reception ( Icon disappear)
During reception, press the HOUR / WAVE button will display reception mode and signal strength indication:
When strong DCF signal is detected, display shows with 3 bars
When weak or no DCF signal is detected, display shows

During reception, the signal strength may move from 1 bar to 2 bars to 3 bars. This is normal since the clock is detecting DCF signal and other signals in the air at the same time. Press the TIME button will return to the normal time display (if the clock does not catch DCF time signal for 21 minutes, it will go back to normal time display).
Press and hold the HOUR / WAVE button again to stop receive the DCF.
Successful reception or failed reception
Icon becomes static on (stop blinking) when reception is successful. Icon disappears when reception is failed.
Automatic reception and manual reception
This clock starts reception automatically everyday at 1:00 am. If auto reception fails at 1:00 am, it will start again at 2:00 am. If it fails at 2:00 am, it will start again at 3:00 am, 4:00 am and 5:00 am. If auto reception still fails at 5:00 am, it will start automatic reception at 1:00 again in the next day.
For manual reception simply press and hold the HOUR / WAVE button, the station starts manual reception.
The weather station has a built-in barometer which measures the barometric pressure. After power up, the display shows SUNNY & CLOUDY icon. The weather station takes around 24 hours to gather data of barometric pressure changes and predicts next 12-24 hours weather conditions.
There are four types of weather display in the weather station:
Note: Moving the weather station within the house or in the vicinity will causing a sudden change in the attitude of the station and it affects the accuracy and correctness of the weather forecast. After the weather station is powered up, it will take around 24 hours to get stable. The weather icons on the display give a reference to the next 12-24 hours weather conditions. It may not match with the current weather condition outside.
TIME SETTING
- Press and hold TIME button and at the same time press HOUR button once at a time to set the hour.
- Press and hold TIME button and at the same time press MINUTE button once at a time to set the minute.
Note: The time is displayed in 24-hour display format.
TIME ZONE SETTING
Press TIME and SNOOZE button together, time display changes to 01. Release SNOOZE button and keep pressing TIME button. Then press MINUTE button to set the time zone:
"00" GMT +0 (United Kingdom)
"01" GMT +1 (Central Europaen time)
"02" GMT +2 (Eastern Europaen time)
Note: Time zone can only set when the clock successfully receives a radio signal.
ALARM SETTING
Press and hold ALM 1 button and at the same time press HOUR button once at a time to set hour or press MINUTE button once at a time to set minute.
Press and hold ALM 2 button and at the same time press HOUR button once at a time to set hour or press MINUTE button once at a time to set minute.
To turn on or off the alarm
To turn on Alarm 1 only, press AL ON/OFF button. The ALM 1 LED lights up on the display.
To turn on Alarm 2 only, press AL ON/OFF button again. The ALM 2 LED lights up on the display.
To turn on both alarms, press AL ON/OFF button again. The ALM 1 and ALM 2 LEDs lights up on the display.
To in-activate both alarms permanently, press AL ON/OFF button again. The ALM 1 and ALM 2 LED s turn off.
Note: Alarm duration is 5 minutes.
To use the snooze function
When time reaches the set alarm time, the station will give a beep sound to wake you up. The ALM 1 or ALM 2 LED will flash.
- Press SNOOZE once to stop the alarm temporarily, ALM 1 or ALM 2 LED keeps flashing. The alarm will beep again after the set snooze duration.
- To stop the daily alarm, press the ALM 1 or ALM 2 button when alarm is beeping. The alarm will stop and ALM 1 or ALM 2 LED becomes static. The alarm will beep again same time next day.
To set snooze duration (from 5 to 60 min)
Press and hold SNOOZE and time display will show 05 (default snooze duration) and then press MINUTE button to set your desired snooze duration.
DIMMER FUNCTION
Press the SNOOZE / DIMMER button to adjust high or low brightness of the LED display.
TROUBLE SHOOTING
In case the station shows false digits, it may be affected by electrostatic discharge or interferences from other devices. Press the RESET button of the station and then takeout and reinstall batteries into outdoor sensor. The station will be reset to default setting of time and calendar and it will start to receive radio controlled time signal again.
If you lose the outdoor temperature
When the outdoor temperature digits show “--”, the wireless transmission is either interrupted or lost. Press and hold the MINUTE button of the station, then takeout and reinstall batteries into outdoor sensor. If you continue to lose the outdoor temperature display, try placing the transmitter in a different location until you have smooth transmission of temperature data.
Note: Keep in mind that the outdoor transmitter only has a 30 meter transmission range in open area with no obstructions. Each obstruction between the transmitter and the station (roof, walls, floors, ceilings, thick trees, etc.) will effectively cut the transmission range in half.
SPECIFICATIONS
Operation temperature: 0^ C to +45°C
Temperature measuring range:
Indoor: 0^ C to +45^ C
Outdoor: -40^ to +70^
Temperature resolution: 1°C
(display shows HH.H / LL.L if out of this range)
(display shows HH.H / LL.L if out of this range)
Alarm duration: 5 minutes
Snooze duration: 5 to 60 minutes
AC/DC adapter: HX-12-0501200-AG
Precautions
- This main unit is intended to be used only indoors.
- Do not subject the unit to excessive force or shock.
- Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
- Do not immerse in water.
- Avoid contact with any corrosive materials.
- Do not dispose this unit in a fire as it may explode.
- Do not open the inner back case or tamper with any components of this unit.
Batteries safety warnings
- Use only alkaline batteries, not rechargeable batteries.
• Install batteries correctly by matching the polarities (+/-). - Always replace a complete set of batteries.
- Never mix used and new batteries.
- Remove exhausted batteries immediately.
- Remove batteries when not in use.
- Do not recharge and do not dispose of batteries in fire as the batteries may explode.
- Ensure batteries are stored away from metal objects as contact may cause a short circuit.
- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
- Keep all batteries out of reach from children. They are a choking hazard.
Use the product only for its intended purpose!
Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!
Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
