Sky Blue Cottage 1859056 - Coffee machine RUSSELL HOBBS - Free user manual and instructions

Frequently Asked Questions - Sky Blue Cottage 1859056 RUSSELL HOBBS

USER MANUAL Sky Blue Cottage 1859056 RUSSELL HOBBS

Decorative oval logo with stylized cursive text, possibly a brand or emblem

Russell Hobbs

Rochet Rummit Hobbs watermelon with black control panel and digital display (no visible text or symbols on the device itself)

Technical diagram of a coffee maker with numbered components and labeled parts

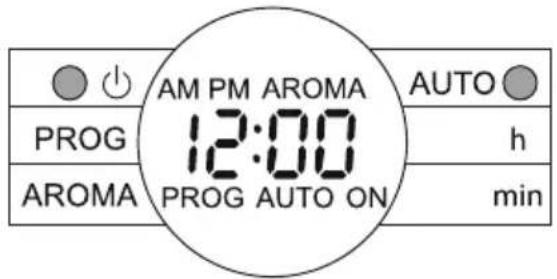

AM PM AROMA 12:00 PROG AUTO ON PROG AUTO ON h min

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

tegn	5 feste	10 varmeplate
1 papirfilter #4	6 deksel	11 deksel
2 flik	7 vann	12 skyv
3 håndtak	8 sprekk	13 håndtak
4 filterholder	9 oversvømme/overløp	14 kanne

BEHANDLING OG VEDLIKEHOLD

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

nákresy	5 uško	10 ohrievacia platňa
1 papierový filter č. 4	6 veko	11 veko
2 uško	7 voda	12 stlačit'
3 rukovát'	8 otvor	13 rukovát'
4 držiak filtra	9 pretečenie	14 varná kanvica

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

crteži	5 ručica	10 grijaća ploča
1 papirnati filter br. 4	6 poklopac	11 poklopac
2 oznaka	7 voda	12 pritisnite
3 drška	8 prorez	13 ručka
4 nosač filtera	9 prelijevanje vode	14 bokal

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

http://www.russellhobbs.com/ifu/550979

Read the instructions, keep them safe, pass them on if you pass the appliance on.

Remove all packaging before use.

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

1 This appliance must only be used by or under the supervision of a responsible adult. Use and store the appliance out of reach of children.

2 Don't put the appliance in liquid, don't use it in a bathroom, near water, or outdoors.

3 Don't touch hot surfaces (e.g. carafe, hotplate).

4 Sit the appliance on a stable, level, heat-resistant surface.

5 Keep the appliance and cable away from the edges of worktops and out of reach of children.

6 Route the cable so it doesn't overhang, and can't be tripped over or caught.

7 Unplug the appliance when not in use, before moving and before cleaning.

8 Don't put the carafe in a microwave oven.

9 Don't try to adjust the metal band round the carafe, you'll break the glass.

10 Don't use accessories or attachments other than those we supply.

11 Don't use the appliance for any purpose other than those described in these instructions.

12 This appliance must not be operated by an external timer or remote control system.

13 Don't use the appliance if it's damaged or malfunctions.

14 If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, in order to avoid hazard.

household use only

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the ▶ mark, and run the appliance without coffee.

Let it cool, discard the water, then use it normally.

FILLING

1 Remove the carafe from the hotplate.
2 Use the grip to open the lid, and expose the reservoir.
3 Use the carafe to fill the reservoir, to avoid overfilling.
4 Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5 Fill with at least 2 cups of water, but not above the 📋 mark.
6 Open up a #4 paper filter, and put it into the filter holder.
7 Put filter-ground coffee into the filter. The amount will vary with the type of coffee and individual taste, but we suggest two rounded teaspoons per cup of water.
8 Close the lid.
9 Replace the carafe on the hotplate.

SWITCH ON

10 Put the plug into the power socket.

COFFEE NOW

11 Ignore the clock.
12 If you're making less than 5 cups of coffee, press the AROMA button, to turn the brew strength feature on. AROMA will appear on the display.
13 It slows the brewing process, so your coffee will have the same strength as coffee from a full carafe.
14 You may hear the switch operating as it does this.
15 Press the ⏻ button. The ⏻ light will come on, and "ON" will show on the display.
16 Shortly afterwards, coffee will start to drip into the carafe.
17 When it's done, the hotplate will keep the carafe warm.

diagrams	5 grip	10 hotplate
1 paper filter #4	6 lid	11 lid
2 tab	7 water	12 press
3 handle	8 slot	13 handle
4 filter holder	9 overflow	14 carafe

COFFEE LATER

18 The clock will retain its settings until the coffee maker is unplugged.
19 The display will show AM for morning, and PM for afternoon.
20 Check that the ⏻ light is off. If it isn't, press the ⏻ button to turn it off.
21 If you're making less than 5 cups of coffee, press the AROMA button, to turn the brew strength feature on. AROMA will appear on the display.
22 Set the clock to the correct time.
23 Use the h and min buttons to set the correct hour and minute.
24 Set the timer to the time you want to start brewing.
25 Press the PROG button. "PROG" will flash on the display.
26 Use the h and min buttons to set the correct hour and minute.
If you don't press either the h or m buttons within 5 seconds, the coffee maker will revert to "normal", and the time will show. You'll have to press the PROG button, and start again.
27 Press the AUTO button. The AUTO light will come on, and "AUTO" will show on the display.
28 When the set time is reached, the AUTO light will go off, the ⏻ light will come on, the display will change from "AUTO" to "ON", and brewing will start.
29 If you want to cancel the timer before brewing has started, press the AUTO button.
30 If you want to stop the coffee maker while it's brewing, press the ⏻ button.

FINISHED?

31 Press the ⏻ button. The ⏻ light will go off.
32 Unplug, and let the appliance and carafe cool down fully before cleaning, or for about 10 minutes before refilling.

AUTO SHUT-OFF

33 About 2 hours after brewing, the coffee maker will shut down
34 If left for much more than an hour, chemical changes in the coffee liquor start to affect the flavour. It's best to pour it away and make a fresh pot.

A QUICK CUP

35 You can remove the carafe at any time.
36 To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.

CARE AND MAINTENANCE

37 Unplug the appliance and let it cool down before cleaning or storing away.
38 Use the grip to open the lid.
39 Use the handles on the sides of the filter holder to lift it out.
40 Tip the contents of the filter holder into the bin.
41 You may clean the carafe and filter holder in warm soapy water. Rinse thoroughly afterwards, to remove all traces of soap.
42 Clean the outside surfaces of the appliance with a damp cloth.
43 Align the tab at the back of the filter holder with the slot at the back of the coffee maker, and lower the filter holder back into the coffee maker.
44 Close the lid.
45 Don't put any part of the appliance in a dishwasher.

DESCALING

46 Descale regularly. Use a proprietary brand of descaler suitable for use in plastic-bodied products. Follow the instructions on the package of descaler.

★ Products returned under guarantee with faults due to scale will be subject to a repair charge.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn't be disposed of with unsorted municipal waste, but recovered, reused, or recycled.

instructions – more detailed instructions are available on our website:

http://www.russellhobbs.com/ifu/550979
