USER MANUAL Heat PTC 1500 OSC SUNTEC

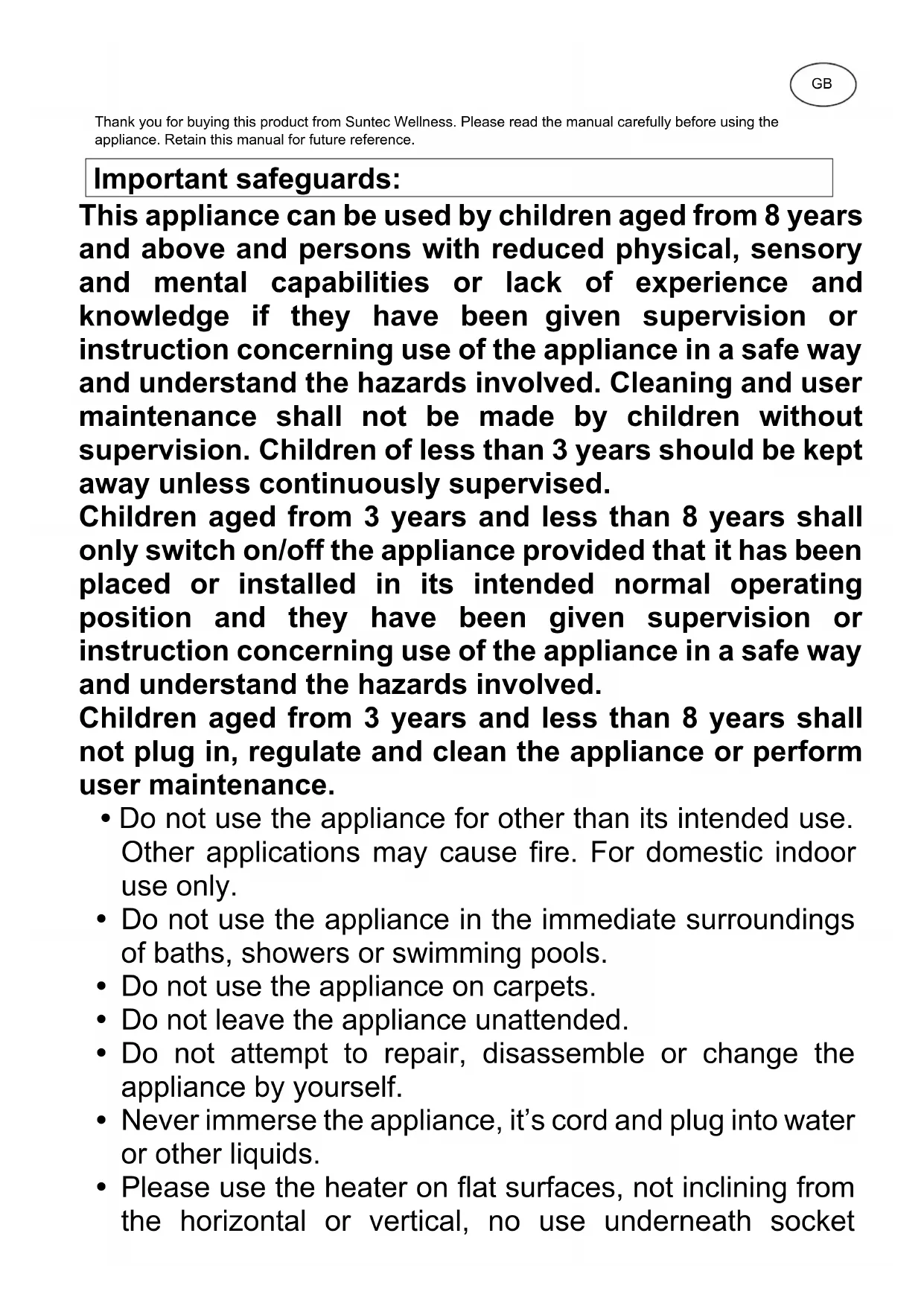

Thank you for buying this product from Suntec Wellness. Please read the manual carefully before using the appliance. Retain this manual for future reference. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Do not use the appliance for other than its intended use. Other applications may cause fire. For domestic indoor use only.

Do not use the appliance in the immediate surroundings of baths, showers or swimming pools.

Do not use the appliance on carpets.

Do not leave the appliance unattended.

Do not attempt to repair, disassemble or change the appliance by yourself.

Never immerse the appliance, it’s cord and plug into water or other liquids.

Please use the heater on flat surfaces, not inclining from the horizontal or vertical, no use underneath socket Important safeguards:directly.

Please do not use your heater in the present of explosive or flammable substance.

Please do not use same socket with other high power electrical appliance at same time when heater on work

Tight connection between plug and socket so as to avoid the overheating plug and malfunction.

Unplug heaters by grasping plug and pulling it from the socket. Never yank the power cord.

Pay attention for using heaters when children, old man, disabled man inside solely. No use when no supervision.

To avoid danger the appliance must be returned to the retailer for changing when power cord damaged.

Please do not use the appliance near hot surface.

Ensure all times that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are not blocked. To avoid any risk of fire, do not cover the heater (ex. with clothes).

Do not insert any objects through the grille into the interior of the appliance.

Warning: In order to avoid overheating, do not cover

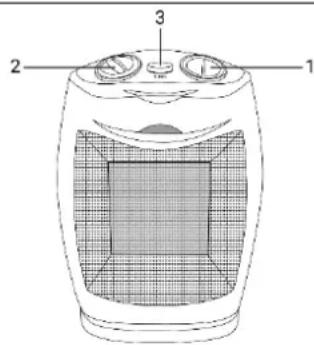

Positioning of the appliance: The heater should only be operated at minimum distance of 50cm from any wall or other object. Position the air flow in order to optimize the heating of the room. Avoid corners, small volumes, floors and ceilings. Description

3. OscillationOperating Instructions:

Your heater is equipped with 4-position rotary switch SYMBOL FUNCTION 0 OFF

Set the rotary switch to maximum for fast warm up of a room. Once the temperature of room is comfortable, select a lower setting to reduce electrical consumption and to prevent the room from becoming too warm.

If you selected low or full output, choose the desired temperature with the thermostat. With the Thermostat, the temperature can be regulated steplessly. When the desired temperature is reached, the unit will automatically switch off. Once the temperature has fallen below the pre-set level, the heater will switch on again.

Pilot light will allow you to check the thermostatic regulation. When the appliance is heating, this pilot light will be on. It will go out when the desired temperature is reached.

Before removing the plug from the socket, switching off and better work for 30-60 second with cool air in condition that protecting inner parts. Oscillation button: This appliance also has an oscillation function. To switch the function on, press the oscillation switch. To stop it, press the oscillation switch again. Overheat protection: This heater is protected with an overheat protection that switches off the appliance automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 30 minutes for it to cool and remove the object which is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact your retailer. Safety control: To avoid damage and danger by overheating, your heater is fitted with super protector that switch as off the heater in the event of overheating until the temperature drops to some extent. Maintenance:

When your heater needs cleaning, wipe exterior surfaces of the heater with a moistened cloth. Not rinse with water directly. Be sure to unplug before cleaning.

To prolong the heater life, not disassemble it personally when malfunction occurs. Send your heater to your retailer for the convenience inspecting. Specifications: Power supply: 220-240V~50-60Hz Power regulation range: 750/1500W In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).

• A free replacement or repair will be excluded from prior improper product handling.

• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.

• If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.

• Without a proof of purchase, generally there will be no repair or replacement.

• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.

• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.

• The dealer or repair service can perform the repair after the expiration of warranty against charge.Note concerning protection of environment This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located. As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled. EC declaration of conformity The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit. With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2022 SUNTEC WELLNESS GMBH Liability is excluded for all printing errors and omissions.

For this appliance we assure 24 months warranty. During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure. Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation. This warranty card is only applicable with the according invoice. In case of service please bring your purchased product to your seller. Product name: Serial number: Name of buyer: Date of purchase: Stamp and signature of seller:
