USER MANUAL Heat Prime SUNTEC

White and black industrial air purifier with perforated grille and control panel (no visible text or symbols)

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

Thank you for buying this product from Suntec Wellness. Please read the manual carefully before using the appliance. Retain this manual for future reference.

IMPORTANT SAFEGUARDS:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

• Make sure the voltage is the same as that indicated on the rating plate of the appliance.
• To prevent a possible fire, do not block air inlet or outlet in any manner.
- Do not place the heater on carpet; do not place the cable under carpets.
- Do not place the heater directly below a power socket
- Please make sure that the unit stands upright.
- Never insert fingers, pencils or other objects into the unit if the power cord is plugged, and especially not during the operation. Warn your children against these dangers.
• Make sure there are no curtains, table cloths, clothing, curtains, hair, etc. located next to the device.
- Do not use the unit if the power cord was damaged, if it seems to be defective or if it toppled down.
- Regularly check the power cord. Please contact your dealer in case of damage.
- Please use only the spare parts and accessories offered by the manufacturer to avoid damage to the device
• This appliance is for the indoor use only.
- Do not use the unit where it could be splashed with an oil or water. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
- Do not use the unit near flammable or explosive gases.
• Before cleaning the unit, switch it off and unplug the power cord.

Warning: In order to avoid overheating, do not cover the heater.

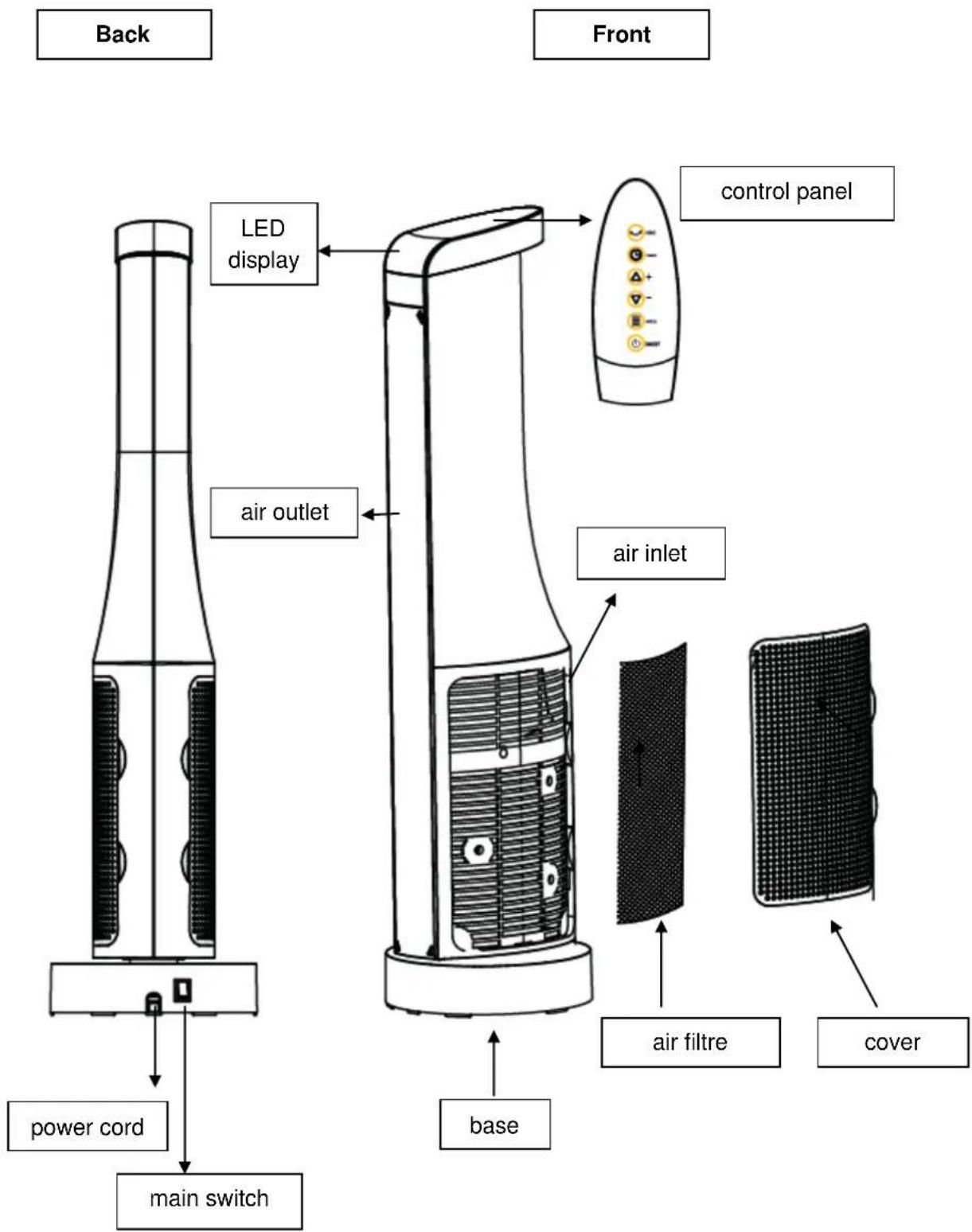

INSTALLATION

Back LED display control panel air outlet power cord main switch base air inlet air filtre cover

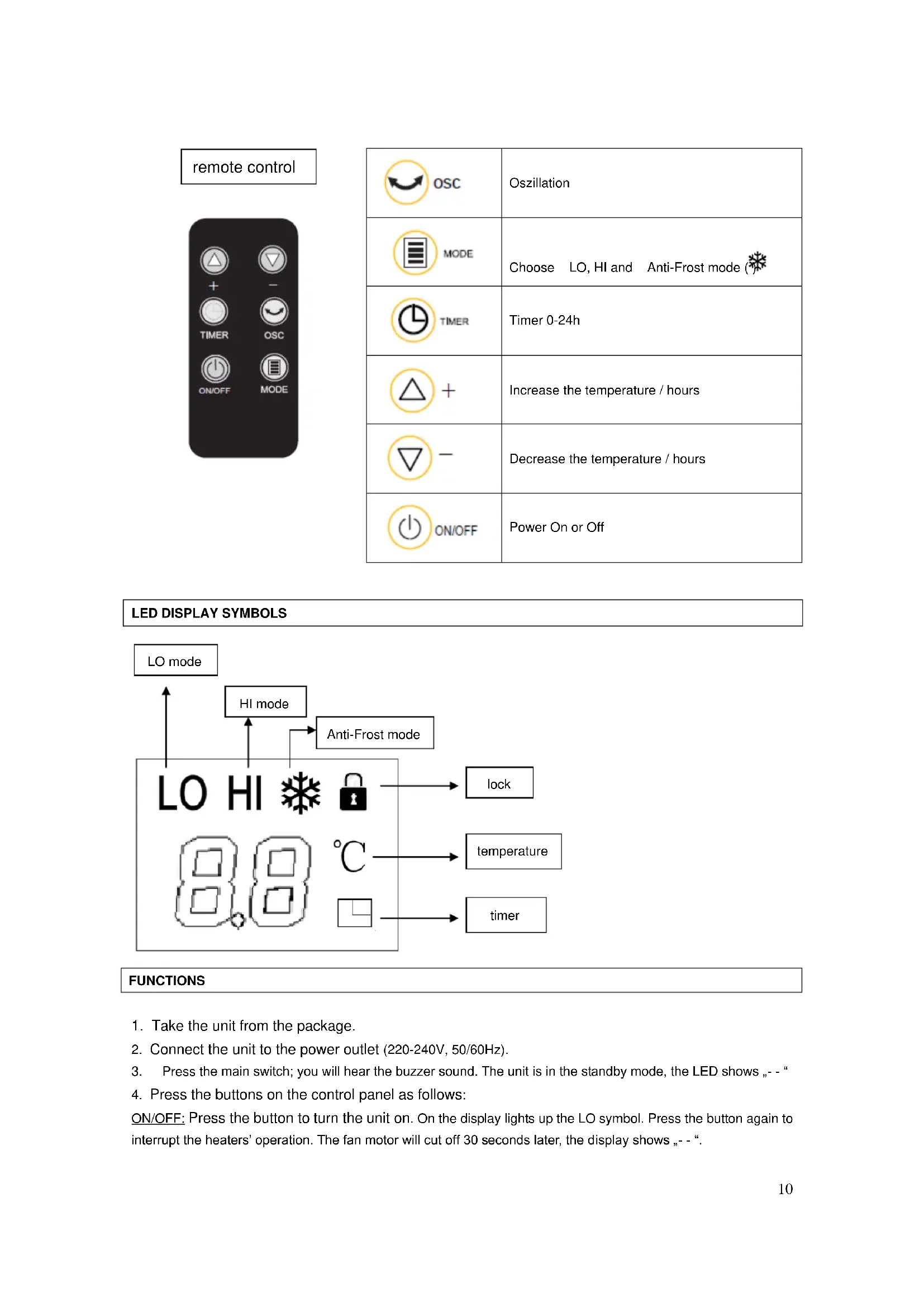

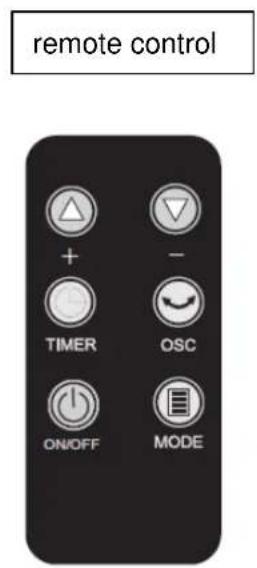

remote control + - TIMER OSC ON/OFF MODE

OSC	Oszillation
MODE	Choose LO, HI and Anti-Frost mode ( )
TIMER	Timer 0-24h
+	Increase the temperature / hours
-	Decrease the temperature / hours
ON/OFF	Power On or Off

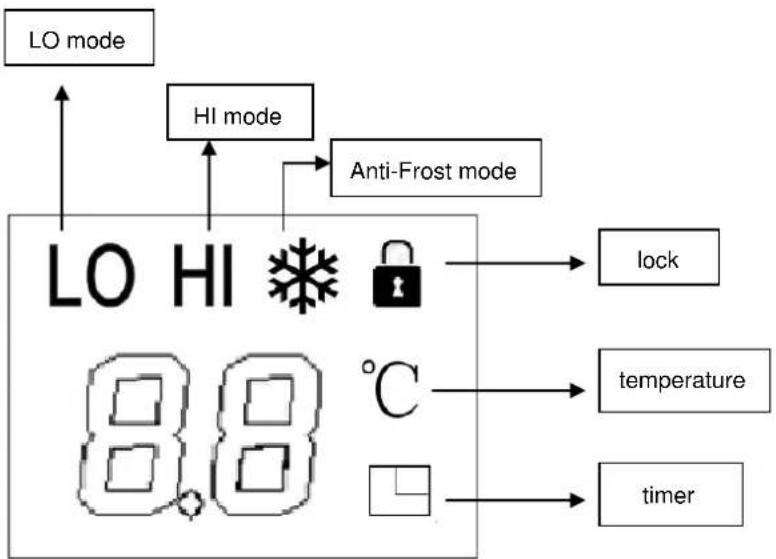

LED DISPLAY SYMBOLS

FUNCTIONS

1. Take the unit from the package.
2. Connect the unit to the power outlet (220-240V, 50/60Hz).
3. Press the main switch; you will hear the buzzer sound. The unit is in the standby mode, the LED shows „-“
4. Press the buttons on the control panel as follows:

ON/OFF: Press the button to turn the unit on. On the display lights up the LO symbol. Press the button again to interrupt the heaters' operation. The fan motor will cut off 30 seconds later, the display shows _ - - ".

MODE: Press the button to choose LO, HI or Anti-Frost mode.

1) LO: the unit runs in low power, the display shows the LO symbol and the set temperature.

2) HI: the unit runs in high power, the display shows the HI symbol and the set temperature.

3) Anti-Frost Modus: By using the anti-freeze function of Heat Prime, you can prevent the frost formation in an unheated room which is not used in the winter for a long time. In this mode, the device maintains a constant room temperature of 7^ C and thus protects the room from the cold damage. After pressing the

appropriate button the display will show the temperature of 7^ C and the symbol.

TEMPERATURE SETTING:

1) Choose the LO or HI mode.

2) Press the buttons and to adjust the temperature.

TIMER: You can set the wishful off-time:

1) Press the button to activate the timer function (0-24).

2) Press the buttons and to adjust the quantity of hours.

3) The display will show the symbol and the set time / set temperature alternately.

4) Once the set time has expired, the unit automatically switches off.

OSC: Press the button to activate or deactivate the oscillation of the heater.

CHILD LOCK: press and hold and for 5 seconds for activate or deactivate the child lock function. On the

control pannel lights up the i symbol; the display shows "[ ]".

All functions can be enabled using the control panel or remote control.

CLEANING AND STORAGE

• Before cleaning the unit turn the power off by pressing the POWER button, wait a few minutes and then unplug the power cord from the outlet.
• Clean the unit using a damp cloth, and then wipe it using a dry cloth.
• Do not use chemical solvents (such as gasoline, alcohol). The surface and the entire housing could be damaged.
• Gently remove the cover, than remove the air filter.
• Rinse the filter under running water and dry it with a soft cloth.
  • We recommend to clean the unit once a month.
• If you do not use the unit for a longer time period, so please turn it off; unplug the power cord and store the unit in a dry, cool and safe place.
• Do not expose the unit to direct sunlight.
• Remove the batteries from the remote control and keep them safe.

TROUBLESHOOTINGS

Problem	Cause	Solution
The unit does not start.	The overheat protection has been activated.	Turn the unit off, unplug it and let it cool down. Verify that there are no objects close to the device; if so – please remove them. Wait 5-10 minutes and then turn the power on again.
	The unit is not supplied with the current.	Check the power socket.Make sure that the unit is on a flat and stable surface so that the tip safety cannot be activated.

EC-DECLARATION OF CONFORMITY

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIAMTRONIC and the Sun logo are registered trademarks. © 2014/03 SUNTEC WELLNESS GMBH

NOTE CONCERNING PROTECTION OF ENVIRONMENT

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.

© 2014 KLIMATRONIC® HEAT PRIME

SUNTEC WELLNESS GMBH / HOLZSTRASSE 2 / 40221 DÜSSELDORF / DEUTSCHLAND

KLIMATRONIC®

Heat Prime

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

EC DECLARATION OF CONFORMITY

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIAMTRONIC and the Sun logo are registered trademarks. © 2014/03 SUNTEC WELLNESS GMBH

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

Mode d'emploi

DÉCLARATION DE CONFORMITÉ CE

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

Upute za uporabu

Zahvaljujemo Vam na kupovini ovog uređaja marke Suntec Wellness. Molimo pažljivo pročitajte ove upute za uporabu prije korištenja uređaja. Spremite ove upute da biste ih mogli opet koristiti kasnije.

VAŽNE ZAŠTITNE MJERE

Ovaj uređaj mogu koristiti i djeca u dobi od 8 godina i starija, kao i osobe sa smanjenim fizičkim, osjetilnim i psihičkim sposobnostima ili s nedostatkom iskustva i/ili znanja ukoliko su pod nadzorom ili su poučene o načinu sigurne uporabe uređaja i o opasnostima koje bi iz njega mogle proizaći. Djeca se ne smiju igrati uređajem. Djeca bez nadzora ne smiju čistiti uređaj ili provoditi održavanje predviđeno za korisnika.

• Provjerite odgovara li napon u vašoj utičnici naponu navedenom na tipskoj pločici samog uređaja.
• Da ne bi došlo do eventualnog požara, nemojte ničim blokirati ulaz i izlaz zraka
• Na stavljajte grijalicu na tepih i na stavljajte kabel ispod tepiha
• Ne stavljajte uređaj ispod utičnice
  • A Pazite da uređaj za vrijeme rada stoji na stabilnoj podlozi.
• Nemojte provlačiti prste, olovke ili druge predmete kroz zaštitnu mrežicu kad je uređaj uključen.
• Pripazite da se pokraj uređaja ne nalaze gardine, stolnjaci, odjevni predmeti, zavjese, kosa i slično
• Nemojte uključivati uređaj ako su kabel ili utikač oštećeni, ako ne funkcionira ispravno, ili ako je na bilo koji način oštećen.
• Prije svakog uključivanja provjerite ima li na električnom kabelu pukotina ili drugih znakova istrošenosti te po potrebi dajte uređaj na kontrolu i zamjenu kabela. Molimo obratite se našoj službi za kupce.
• Molimo koristite samo kao ponuđena od strane proizvođača rezervnih dijelova i dodatne opreme kako bi se izbjegle štete na aparatu.
• Uređaj je namijenjen za uporabu u zatvorenim prostorima
• Uređaj, utikač ili kabel ne smiju doći u dodir s vodom ili vodenom parom niti ih se smije prskati bilokakvim tekućinama. Ne koristite instrument u blizini kadom, tušem ili bazenu.
  • Nemojte uključivati uređaj u blizini eksplozivnih odnosno zapaljivih plinova.
• Izvucite utikač iz utičnice kada ne koristite uređaj odnosno kada postavljate ventilator na neko drugo mjesto, prilikom vađenja ili pričvršćivanja dijelova, ili kada želite očistiti uređaj.

Upozorenje: Kako biste izbjegli pregrijavanje, ne prekrivajte uređaj ne molim!

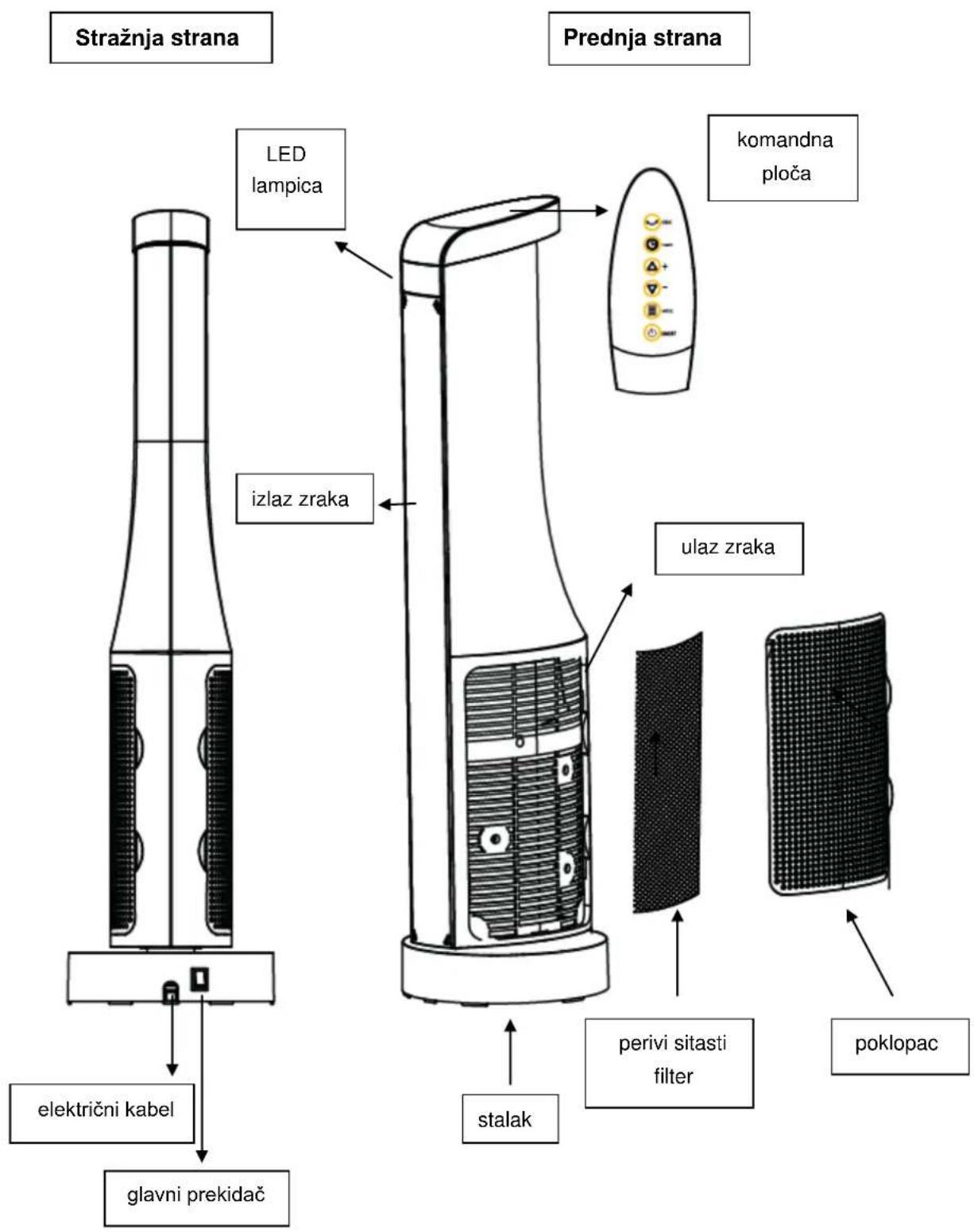

MONTAŽA

Stražnja strana Prednja strana LED lampica komandna ploča izlaz zraka ulaz zraka električni kabel glavni prekidač stalak perivi sitasti filter poklopac

+ - TIMER OSC ON/OFF MODE

OSC	oscilacija
MODE	Izaberite između LO, HI i Anti-Frost modusa (protiv zamrzavanja) ( )
TIMER	Timer 0-24h
+	Povišenje temperature ili broja sati
—	Snižavanje temperature ili broja sati
ON/OFF	uključivanje i isključivanje

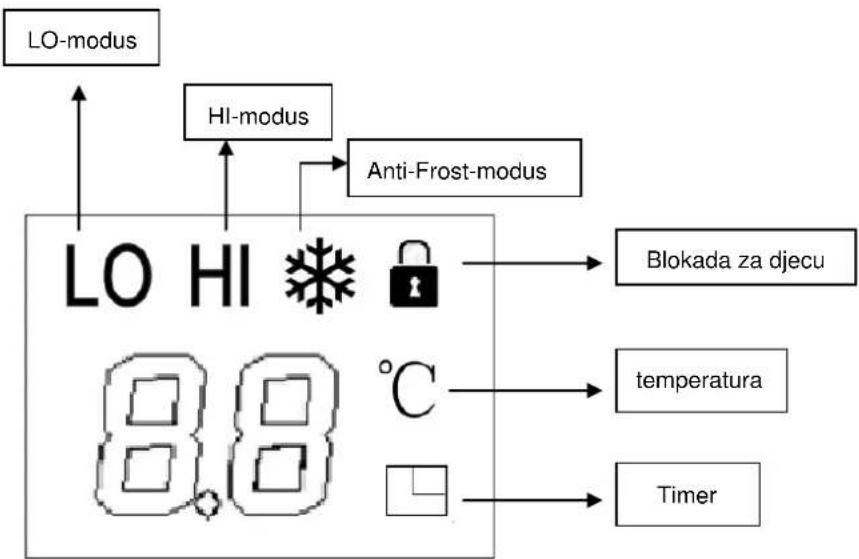

LED DISPLAY SIMBOLI

UPUTE ZA RUKOVANJE

1. Izvadite uređaj iz pakiranja.
2. Utaknite električni kabel uređaja u utičnicu
3. Pritisnite glavni prekidač i čut će se signal za start. Uređaj se nalazi na standby-modusu, a na displeju se pojavljuje „-“
4. Pritisnite gumb na komandnoj ploči i to:

ON/OFF:

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

Uputstvo za upotrebu

Zahvaljujemo Vam na kupovini ovog aparata marke Suntec Wellness. Molimo pažljivo pročitajte ovo uputstvo za upotrebu prije korištenja aparata. Spremite ovo uputstvo da biste ga mogli opet koristiti kasnije.

VAŽNE ZAŠTITNE MJERE

Ovaj aparat mogu da koriste i djeca u dobi od 8 godina i starija, kao i ljudi sa smanjenim fizičkim, senzornim i psihičkim sposobnostima ili s nedostatkom iskustva i/ili znanja, ako su pod nadzorom ili su poučeni o načinu sigurne upotrebe aparata i o opasnostima koje bi iz njega mogle proizaći. Djeca se ne smiju igrati aparatom. Djeca bez nadzora ne smiju čistiti aparat ili obavljati održavanje predviđeno za korisnika.

• Provjerite da li napon u vašoj utičnici odgovara naponu navedenom na tipskoj pločici samog aparata.
- Da ne bi došlo do eventualnog požara, nemojte ničim blokirati ulaz i izlaz zraka
- Na stavljajte grijalicu na čilim i na stavljajte kabel ispod čilima.
• Nemojte da ga stavite ispod utičnice
- Pazite na to, da uređaj za vrijeme pogona stoji na stabilnoj površini.
- Za vrijeme pogona uređaja kroz zaštitnu rešetku nikada nemojte utaknuti prste, olovke ili druge predmete
- Pripazite da se pokraj aparata ne nalaze gardine, stolnjaci, odjevni predmeti, zavjese, kosa i slično
- Uređaj nemojte puštati u pogon, ako su kabel ili utičnica oštećeni ili ako uređaj ne funkcionira ispravno ili ako je na neki drugi način oštećen.
- Prije svakog korištenja provjerite kabel za struju na postojanje pukotina ili drugih znakova istrošenosti i uređaj u danom slučaju dajte provjeriti i dajte zamijeniti kabel za struju. Obratite se molimo Vas servisnom odjelu ili odgovarajućem ovlaštenom zastupniku.
- Molimo koristite samo kao nudi rezervne dijelove i pribor proizvođača da se izbjegne oštećenja na aparatu
- Aparat je namijenjen za upotrebu u zatvorenim prostorima
- Aparat, utikač ili kabel ne smiju doći u dodir s vodom ili vodenom parom niti ih se smije prskati bilokakvim tekućnostima.
- Uređaj nemojte pustiti u pogon u blizini eksplozivnih tj. zapaljivih plinova.
- Iskopčajte utikač iz mrežne utičnice, ako uređaj ne koristite tj. ako ventilator premještate na drugo mjesto, ako vadite ili pričvršćujte njegove građevinske dijelove ili ako uređaj želite očistiti.

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

Zahvaljujemo se vam za nakup naprave znamke Suntec Wellness. Pred zagonom naprave natančno preberite navodila za uporabo. Navodila shranite za kasnejše potrebe.

POMEMBNI ZAŠČITNI UKREPI

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

Návod k použití

DÜLEŽITÉ BEZPEČNOSTI INFORMACE

White and black electric heater with perforated grille and top panel (no visible text or symbols)

DEKLARACJA ZGODNOŚCI WE

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)

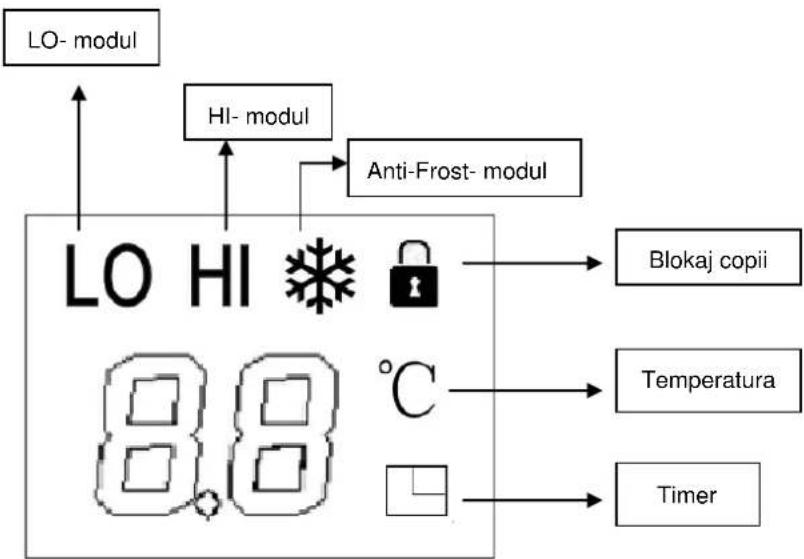

SIMBOLURI LED DISPLAY

INSTRUCTIUNI DE UTILIZARE

White and black industrial air purifier with perforated grille and top panel (no visible text or symbols)
