Heat Ray 800 desktop - Pan SUNTEC - Free user manual and instructions

Product Type	Desktop radiant heater
Brand	Suntec
Model	Heat Ray 800 desktop
Supply voltage	220-240 V
Frequency	50-60 Hz
Max power	800 W
Power settings	400 W (I) and 800 W (I+II)
Dimensions (approx.)	20 x 15 x 25 cm
Weight (approx.)	1.5 kg
Intended use	Supplementary heating for insulated rooms, occasional use
Usage precautions	Do not cover, hot surface, do not use on carpet
Cleaning and maintenance	Unplug before cleaning, do not immerse, clean with a dry cloth
Safety	Overheat protection, hot surface indicated
Warranty	24 months
Manufacturer	Suntec Wellness GmbH, Germany
Spare parts	Contact retailer or after-sales service for parts

Frequently Asked Questions - Heat Ray 800 desktop SUNTEC

How to turn on the Suntec Heat Ray 800 desktop heater?

Make sure the device is off, plug it into a mains socket. For 400 W power, press the I button. For 800 W, press both I and II buttons simultaneously.

What is the noise level of this device?

The radiant heater does not produce any ventilation noise. It is silent during operation, only a slight click may be heard when the thermostat turns on or off.

Can I leave the heater unattended?

No, it is not recommended to leave the device unattended. In case of prolonged absence, always unplug it from the mains socket.

Can this device be used in a bathroom?

No, the device must not be used in immediate proximity of bathtubs, showers or swimming pools, as per safety instructions.

How to clean the heater?

Unplug the device and wait for it to cool down. Clean the exterior with a dry or slightly damp cloth. Never immerse the device, cable or plug in water.

Why does a burning smell occur during first use?

A slight burning smell and some smoke may occur during first use. This is normal and disappears after a few minutes. If the smell persists, contact your retailer.

Is this device suitable as main heating?

No, this product should not be used as a main heating appliance. It is designed as supplementary heating for properly insulated rooms or occasional use.

What to do if the heater does not heat anymore?

Check that the device is plugged in and the socket works. Ensure the power settings are correct (I or I+II). If the problem persists, contact after-sales service.

Can I use an extension cord with this device?

No, the use of multiple sockets or extension cords is not recommended to avoid any risk of overheating. Plug the device directly into a wall socket.

How to benefit from the warranty?

The 24-month warranty is valid upon presentation of the invoice. In case of defect, return the complete appliance with its original packaging and proof of purchase to your point of sale.

USER MANUAL Heat Ray 800 desktop SUNTEC

GB This product is not suitable as the main heater. This product is only suitable for well-insulated rooms or for occasional use.

Heat Ray 800 desktop

Bedienungsanleitung

Thank you for purchasing this product of the brand Suntec Wellness. Before the first use, please read the manual carefully. Keep it for later reference and hand it over to its new owner, if you give the appliance to another person.

Safety Precautions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Do not use the appliance for other than its intended use. Other applications may cause fire. For domestic indoor use only.
  . Do not use the appliance on carpets.
  . Do not use multiple sockets or extension cords.
  Please do not leave the appliance unattended.
  . Do not attempt to repair, disassemble or change the

appliance by yourself.

• Please be careful of hot surfaces and do not touch them as they might cause burns.
  The use of accessory not recommended by the manufacturer, e.g. time switches, may cause harm.
• Only operate the appliance on a flat, stable and heat-resistant surface.
• Remove the appliance from the wall socket when it is not in use, before cleaning, when moving and in case of malfunctions. Pull on the power plug, not on the power cord.
• Never use the appliance with wet hands.
  . Do not insert any objects into the appliance as this may cause electric shocks, fire or damages to the appliance.
  . Do not place the heater under or near curtains, drapes and other flammable materials as well as walls or other objects.
• Never immerse the appliance, it's cord and plug into water or other liquids.
• A slight burning smell and a little smoke may occur when the heater is used for the first time only. Should this be a recurring problem, please return the heater to your retailer.

Warning: In order to avoid overheating, do not cover the heater!

Description:

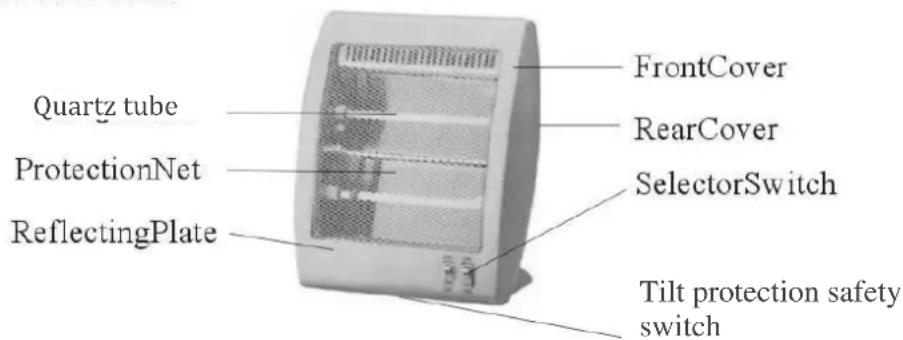

Product Structure

Operation:

1) Open packaging and check the product, if any damage do not use it.
2) Please ensure that unit is switched off before you plug it into the mains.
3) This unit has two settings I is 400W and II for 800W. For the 800W you must press I + I together.

Specifications:

Rated voltage: 220-240V 50-60 Hz

Rated output: 800W

Power consumption: 400W-800W

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
• If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2020/01 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

Consummation: 400W-800W

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany
