USER MANUAL Heat Safe 2020 SUNTEC

GB This product is not suitable as the main heater. This product is only suitable for well-insulated rooms or for occasional use.

Heat Safe 1500/2020/2500

Öl-Radiator

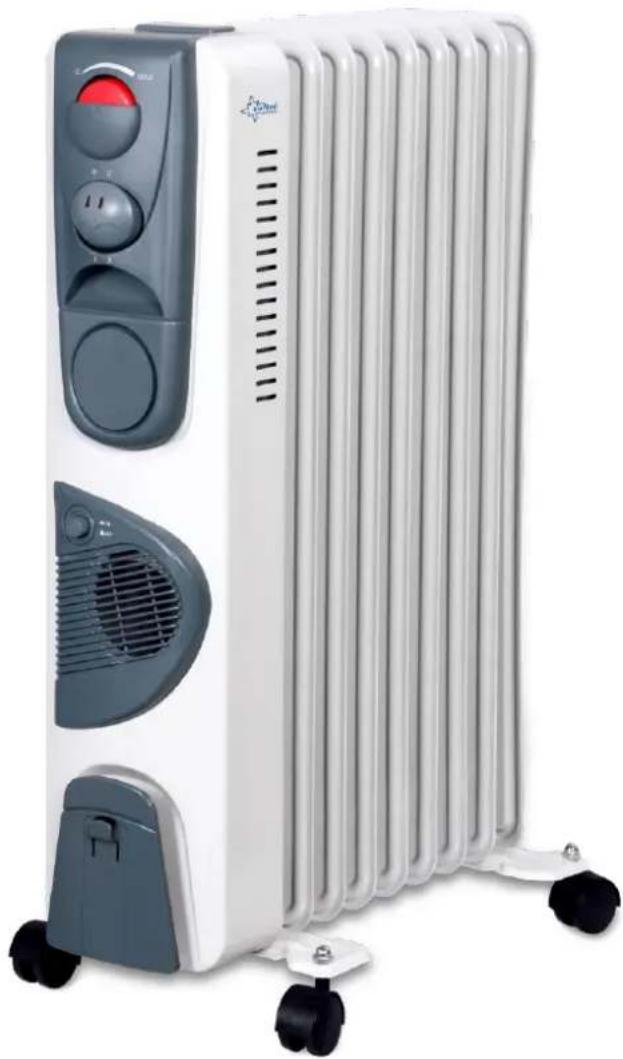

SUNTEC Heat Safe 2020 - Heat Safe 1500/2020/2500 - 1

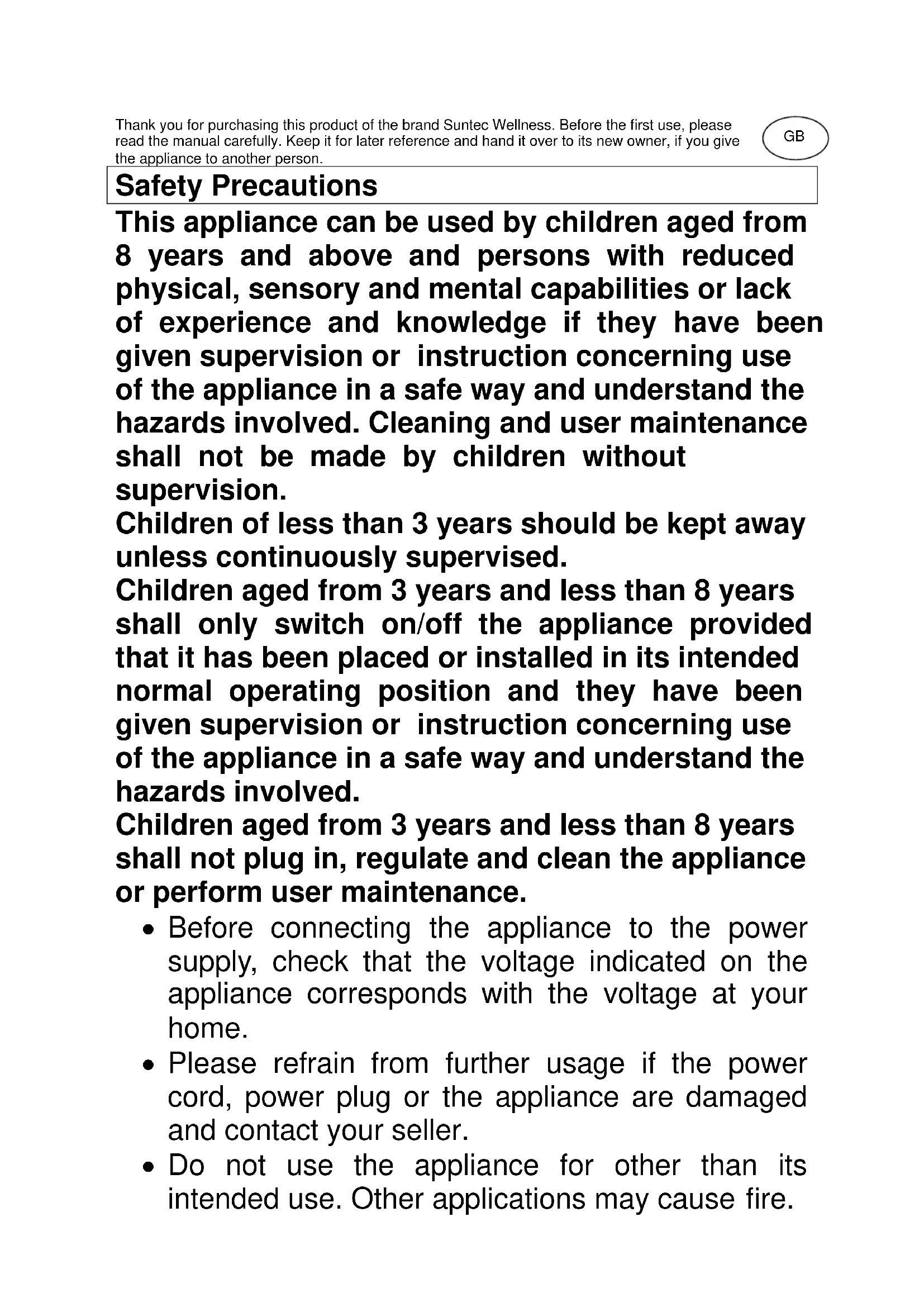

Sicherheitshinweise

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
Do not use the appliance for other than its intended use. Other applications may cause fire.

For domestic indoor use only.

Do not operate the appliance in the immediate surroundings of baths, showers or swimming pools.
Do not use the appliance on carpets.
Do not use multiple sockets or extension cords.
Please do not leave the appliance unattended.
Do not attempt to repair, disassemble or change the appliance by yourself.
Please be careful of hot surfaces and do not touch them as they might cause burns.
The use of accessory not recommended by the manufacturer, e.g. time switches, may cause harm.
Only operate the appliance on a flat, stable and heat-resistant surface.
Remove the appliance from the wall socket when it is not in use, before cleaning, when moving and in case of malfunctions. Pull on the power plug, not on the power cord.
Never use the appliance with wet hands.
Do not insert any objects into the appliance as this may cause electric shocks, fire or damages to the appliance.
Do not place the heater directly under a power socket, near curtains, drapes or other flammable materials as well as walls and other objects.
Never immerse the appliance, it's cord and plug into water or other liquids.

Assembly

Remove the heater and all the accessories from the carton.
Turn the heater upside down.
Position the wheel base assemblies between the end fins.
Attach them to the heater using the U-bolts and wing nuts.
Tighten the wing nuts.
Turn the heater the right way up.

SUNTEC Heat Safe 2020 - Assembly - 1

SUNTEC Heat Safe 2020 - Assembly - 2

SUNTEC Heat Safe 2020 - Assembly - 3

SUNTEC Heat Safe 2020 - Assembly - 4

SUNTEC Heat Safe 2020 - Assembly - 5

Part description

Power setting switch
Thermostat control
Handle
Oil filled fins
Hour timer switch (only HEAT SAFE 1510, 1550, 2010 and 2050)
Turbo (only HEAT SAFE 1520, 1550, 2020, 2500 and 2050)
Turbo switch (only HEAT SAFE 1520, 1550, 2020, 2500 and 2050)
Castors
Cord storage

SUNTEC Heat Safe 2020 - Part description - 1

Operating your KLIKMATRONIC HEAT SAFE Oil-Radiator

Place the heater on the floor at least 90~cm away from the wall and any other objects such as furniture, curtains or plants. (Make sure the power supply use corresponds to the one on the rating label) With the thermostat control switch and the power setting switches in the "OFF" position; Plug the heater into the main power supply.

Using the Thermostat and power switches

Room temperature can be adjusted using the thermostat. Simply turn the thermostat knob clockwise, to increase the heat, and anti-clockwise to decrease the temperature, until you reach the desired temperature.
The heating to one of the following power settings change.

a) Switch one (I) for press

600W (1500 series)

800W (2000 series)

1000W (2500 series)

b) Switch two (II) press for

900W (1500 series)

1200W (2000 series)

1500W (2500 series)

Switch one (I) and two (II) simultaneously for

1500W (1500 series)

2000W (2000 series)

2500W (2500 series)

When the power is switched on, the lamp wil light up..

Note: SAFE HEAT climate is filled with oil and slowly cools down after switching off the electrical supply. Let the appliance cool down before moving; for easy transport should use the standard grip.

To program heating, proceed as follows:

Look at the time on your clock or watch. Assuming it is 10.00 o'clock, turn the numbered timer disk clockwise until the number 10 on the disk coincides with the pointer on the timer. Set the periods of time when you want the appliance to work by pushing the teeth inwards. Each tooth corresponds to a period of 15 minutes. This will leave visible sectors which correspond to the periods of operation. When set, the radiator will operate automatically each day during the times programmed (important: the radiator must always be plugged into the socket.)
To change the programming, push all teeth back into the initial position and set the new periods of functioning.
If you want to make the appliance operate without programming, push all the teeth into the centre. In this case, to turn the mains to avoid continued operation of the timer.
Models with mechanical 24h timer (programming of delayed start). With this timer, you can set the hour you want the radiator to start operating automatically. Proceed as follows.
Turn the appliance on and select the required power and temperature by proceeding as follows.
Rotate the timer knob clockwise until the pointer coincides with the number corresponding to the required hours. The appliance will begin to warm up after the set time has expired.

SUNTEC Heat Safe 2020 - Using the Thermostat and power switches - 1

INSTANT HEAT (+ 400W) (only for KLIMATRONIC HEAT SAFE 1520, 1550, 2020, 2500 and 2050)

This model is fitted with a heating fan which heats the room more quickly. To turn this function on, push the button into the position

Turning the thermostat control clockwise will increase the set temperature
Turning the thermostat control anti-clockwise will decrease the set temperature
Do not cover the heater at any time during operation. There is a risk of fire if the heater is covered.
Once you have finished using your heater, turn the power switches, and the thermostat control switch to the "0" positions and unplug from the mains supply.

CLEANING YOUR KLMATRONIC HEAT SAFE OIL-RADIATOR

Always disconnect the heater from the mains supply before cleaning.
Cleaning the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
3.DO NOT use waxes or polishes as these may react with the heater and cause discolouration.

STORING YOUR OIL RADIATOR

Save the box for off season storage.
Clean the heater following the cleaning instructions above.
Remove the wheel base assemblies.
Place the heater, and wheel assemblies in the original box, and store in a cool, and dry place.
5.If you choose to store your heater fully assembled, be sure to cover it to protect it from dust.

In case of complaint

You can claim the device within 24 months from date of purchase (receipt).
A free replacement or repair will be excluded from prior improper product handling.
Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
Without a proof of purchase, generally there will be no repair or replacement.
In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage or breakage of plastic parts are always to charge.
The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

SUNTEC Heat Safe 2020 - Note concerning protection of environment - 1

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures.

The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

Liability is excluded for all printing errors and omissions.
