Product type	Child car seat (groups 2/3)
Brand	Casualplay
Model	Kode Fix
Approval category	Semi-universal
Weight groups	Group 2 (15-25 kg) and Group 3 (22-36 kg)
Maximum child weight	36 kg
Installation methods	Isofix (fix connectors) or 3-point safety belt
Recline positions	2
Headrest adjustment	Yes, height adjustment by push button
Belt guide	Integrated for diagonal and abdominal belt
Side protection	Yes
Isofix connectors	Integrated, with lock indicator (click + green light)
Shell material	Molded plastic
Cover	Washable fabric according to instructions on textile labels
Cleaning of plastic parts	Neutral soap and warm water
Safety	Mandatory replacement after an accident
Vehicle compatibility	Seats with 3-point retractor belt and/or Isofix anchors
Usage precautions	Do not use non-original cover, do not leave child unattended
Use	Use even for short trips

Frequently Asked Questions - Kode Fix CASUALPLAY

How to install the Kode Fix seat with Isofix connectors?

Place the fix connectors facing the vehicle's Isofix anchors, push the seat until you hear a click and check the green indicator. Make sure both connectors are properly engaged.

How to adjust the recline of the backrest?

Press the buttons on both sides of the backrest to get the most reclined position (fig.1). Pull both buttons outward for the second position (fig.2).

How to adjust the headrest height?

Keep pressing the adjustment button of the headrest and pull upwards to adjust the height. Release the button to lock the desired position.

Can I use the seat without the Isofix connectors?

Yes, the Kode Fix can be installed using only the vehicle's three-point seat belt, passing the diagonal strap through the headrest belt guide and the abdominal part through the red belt guides.

How to wash the car seat cover?

Wash the cover and textile components following the instructions on the textile labels of each component. For plastic parts, use neutral soap and warm water.

What are the weight groups for this seat?

The Kode Fix is suitable for group 2 (15 to 25 kg) and group 3 (22 to 36 kg). The maximum child weight is 36 kg.

What to do after a car accident with the car seat?

After an accident, the car seat must be replaced because its safety may be compromised, even if it appears intact.

How to disassemble the Kode Fix cover for cleaning?

First remove the headrest cover (fig.11), then the backrest cover (fig.12), and finally the seat cover (fig.13). For reassembly, proceed in reverse order.

Is the Kode Fix seat compatible with all vehicles?

It is only suitable for vehicles equipped with three-point seat belts with retractor, approved according to UN/ECE Regulation No. 16, and/or Isofix anchors. Consult the vehicle list provided in the packaging.

What is the correct headrest height for my child?

Adjust the headrest so that the seat belt passes at the level of the child's shoulder, neither too high nor too low. Use the adjustment button to adjust.

USER MANUAL Kode Fix CASUALPLAY

Regulator connectors fix10

Guies Isofix11

Congratulations Parents!

CASUALPLAY would like to thank you for purchasing this safety seat

This product has been designed, manufactured and approved under the strictest safest regulations.

It has been designed to be easy to install and use, but we need your collaboration for correct installation and optimal functioning results.

Please read these instructions carefully before installing the seat in the vehicle. The safety of your child depends on the correct use of this product.

Please contact us if you have any type of query (Tel., e-mail, see back of these instructions).

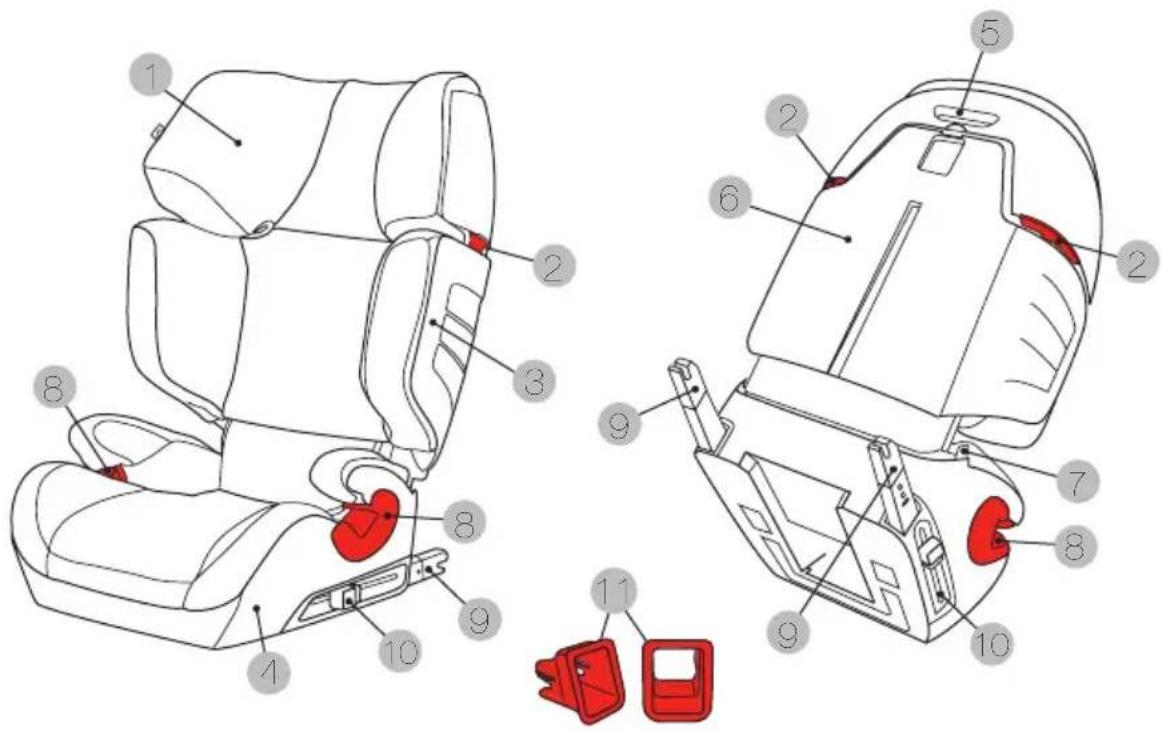

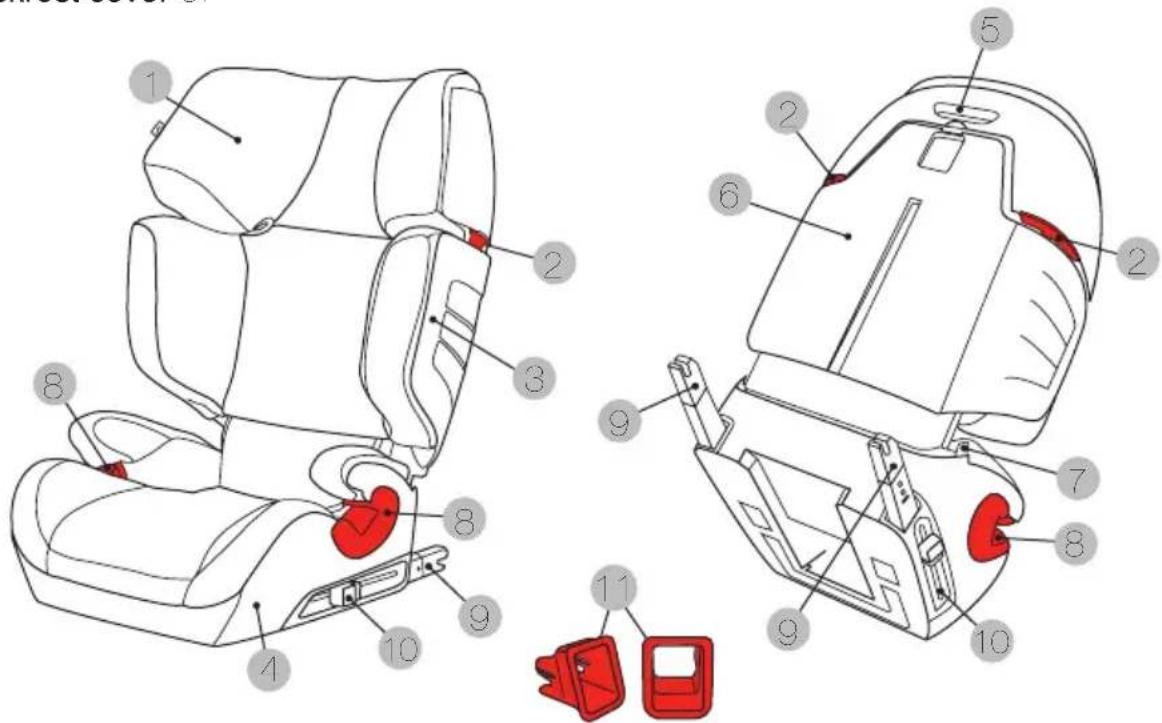

Meet the Kode fix

Headrest

Shoulder belt guide2

Side protection3

Seat4.

Headrest adjustment button5

Backrest cover 6

Backrest end caps7

Abdominal belt guide8.

Fix connectors

Fix connectors adjuster10.

Isofix guides 11.

Warnings and safety notes

THIS INSTRUCTION MANUAL SHOULD BE KEPT WITH THE KODE FIX WHILE IT IS IN USE.

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE ARTICLE AND KEEP THEM FOR FUTURE REFERENCE. THE CHILD'S SAFETY MAY BE AT RISK IF THESE INSTRUCTIONS ARE NOT FOLLOWED.

The Kode fix is a child safety seat belonging to group 2 (15 - 25 kg) and group 3 (22-36 kg).

The seat can be installed in the vehicle and secured with the three-point seat belt with retractor, approved under UN/ECE-16 or other equivalent standards and if isofix anchors are fitted the fix connectors can be used.

The original equipment must not be altered.

After an accident the seat should be replaced.

Make sure that the fold down seat or doors of the vehicle cannot cause any damage to any part of the seat.

In sunlight the inside of the vehicle can reach very high temperatures therefore it is . advisable to cover the seat, when it is not in use, to protect the child from any possible burns.

The straps should never be twisted.

Always use the safety seat, even on short journeys, and never leave the child unattended.
Take the seat out of the car whenever it is not going to be used for a while.

Any luggage or other objects that may cause injury in the event of a collision should be secured.

• We guarantee the safety of the device when it is used by the original buyer, do not use second hand safety products or seats.
• It is important that the other passengers in the vehicle also wear their seat belts, because in the event of an accident they could get flung about and injure the baby.
• Do not use the seat without the upholstery or with other upholstery that is not the original one.

Wash the upholstery and fabric parts following the indications on the care labels on each part.

• Clean the plastic parts with mild soap and warm water.

Make sure that the upholstery of the vehicle seat does not make it difficult to tighten the seat belt or adjust the harness of the seat.

Remember that you are responsible for the child's safety.

NOTE

This is a "SEMI-UNIVERSAL" child restraint system. It is approved for installation in 1. the vehicles and on the seat positions indicated in the vehicle list contained inside this packaging.

Other vehicles and seat positions may also be suitable for this restraint system.2. If in doubt, consult the manufacturer or retailer.3.

IMPORTANT

This product is only suitable for use in the approved vehicles that are fitted with three-point seat belts with a retractor, approved under UN/ECE n^ 16 or other equivalent standards.

Instructions for use

Adjusting the reclining position

NOTE: Make sure that both the backrest end caps are correctly in place for both of the two possible positions.

The seat has two reclining positions.

Press the backrest end caps on both sides, to obtain the most reclined position (fig.1).

Pull both end caps outwards to place the backrest in the second position (fig.2).

Adjusting the height of the headrest (fig.3)

Keep the headrest adjustment button pressed and pull upwards to adjust the height.

Release the button to secure it in the required position.

Installing the car safety seat

NOTE: The KODE FIX can be installed on the vehicle seat with or without the fix connectors.

Put the backrest into one of the two possible positions.

Press the buttons, found on the sides of the seat of the product, and extract the fix • connectors (fig.4).

Position the clips in front of both ISOFIX slots, which are situated between the seat and the backrest (fig.5).

Place the safety seat on the vehicle seat, and put the headrest into the highest position (fig.6).

Find the isofix anchors of the vehicle seat, and line the connectors up with them (fig.7).

Press the child restraint system, leaning on the front part, against the vehicle seat. If using the fix connectors they will click when correctly fastened, and a green signal will appear on the sides of the connectors (fig.8). Make sure that both connectors are correctly fastened.

WARNING: Make sure that both connectors are correctly fastened.

Seat the child and take hold of the end of the seat belt, pass the diagonal section through the guide on the headrest.

The abdominal section should go over the child's legs, under both armrests. It should

go through the guides marked in red.

Fasten the seat belt buckle (fig.9).

Adjust the headrest so that it is at the correct height, and tighten the seat belt.

WARNING: Make sure that the seat belt is not twisted.

Removing the safety seat

Unfasten the seat belt.

Take the abdominal part of the vehicle seat belt out of the guides, and then do the same with the diagonal part.

Take the child out of the restraint system.

If you have used the fix connectors to fasten the safety seat to the vehicle seat, press the buttons on both sides and release the safety seat (fig.10).

If you want to leave the safety seat installed in the car, unfasten the seat belt buckle, take the child out of the seat and then fasten the vehicle seat belt again.

Removing the upholstery

Take the upholstery off the headrest (fig.11).

Take the upholstery off the backrest (fig.12).

Lastly, take the upholstery off the seat (fig.13).

Follow the same steps in reverse to put the upholstery back on again.

Maintenance

Clean the plastic parts with mild soap and warm water.

Wash the upholstery and fabric parts by following the washing instructions indicated on the different fabric care labels.
