USER MANUAL AFI8527ZT ETNA

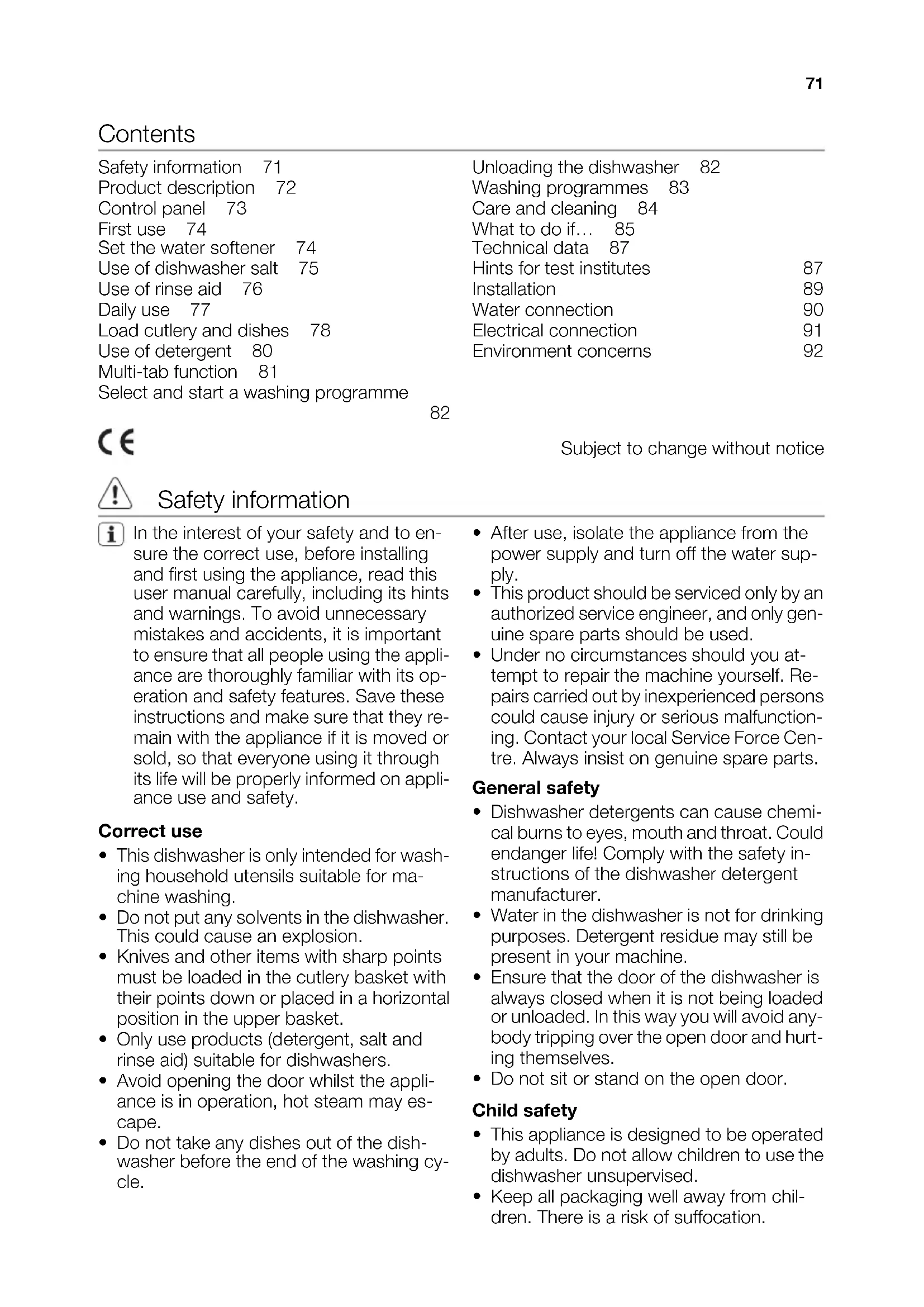

Unloading the dishwasher 82 Washing programmes 83 Care and cleaning 84 What to do if… 85 Technical data 87 Hints for test institutes 87 Installation 89 Water connection 90 Electrical connection 91 Environment concerns 92 Subject to change without notice Safety information In the interest of your safety and to en- sure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appli- ance are thoroughly familiar with its op- eration and safety features. Save these instructions and make sure that they re- main with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appli- ance use and safety. Correct use

• This dishwasher is only intended for wash- ing household utensils suitable for ma- chine washing.

• Do not put any solvents in the dishwasher. This could cause an explosion.

• Knives and other items with sharp points must be loaded in the cutlery basket with their points down or placed in a horizontal position in the upper basket.

• Only use products (detergent, salt and rinse aid) suitable for dishwashers.

• Avoid opening the door whilst the appli- ance is in operation, hot steam may es- cape.

• Do not take any dishes out of the dish- washer before the end of the washing cy- cle.

• After use, isolate the appliance from the power supply and turn off the water sup- ply.

• This product should be serviced only by an authorized service engineer, and only gen- uine spare parts should be used.

• Under no circumstances should you at- tempt to repair the machine yourself. Re- pairs carried out by inexperienced persons could cause injury or serious malfunction- ing. Contact your local Service Force Cen- tre. Always insist on genuine spare parts. General safety

• Dishwasher detergents can cause chemi- cal burns to eyes, mouth and throat. Could endanger life! Comply with the safety in- structions of the dishwasher detergent manufacturer.

• Water in the dishwasher is not for drinking purposes. Detergent residue may still be present in your machine.

• Ensure that the door of the dishwasher is always closed when it is not being loaded or unloaded. In this way you will avoid any- body tripping over the open door and hurt- ing themselves.

• Do not sit or stand on the open door. Child safety

• This appliance is designed to be operated by adults. Do not allow children to use the dishwasher unsupervised.

• Keep all packaging well away from chil- dren. There is a risk of suffocation. 71• Keep all detergents in a safe place out of children’s reach.

• Keep children well away from the dish- washer when the door is open. Installation

• Check your dishwasher for any transport damage. Never connect a damaged ma- chine. If your dishwasher is damaged con- tact your supplier.

• All packaging must be removed before use.

• Any electrical and plumbing work required to install this appliance must be carried out by a qualified and competent person.

• For safety reasons it is dangerous to alter the specifications or attempt to modify this product in any way.

• Never use the dishwasher if the electrical supply cable and water hoses are dam- aged; or if the control panel, work top or plinth area are damaged such that the in- side of the appliance is freely accessible. Contact your local Service Force centre, in order to avoid hazard.

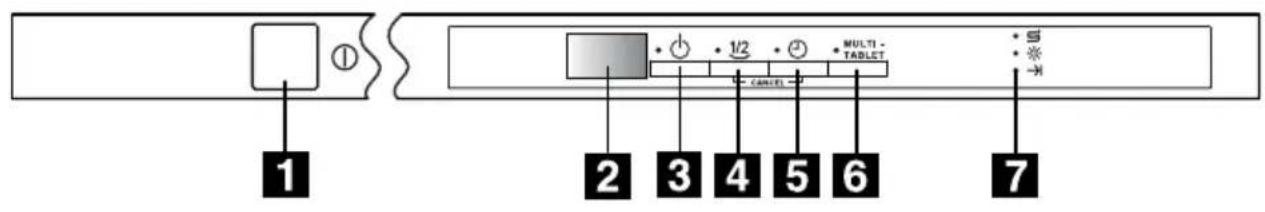

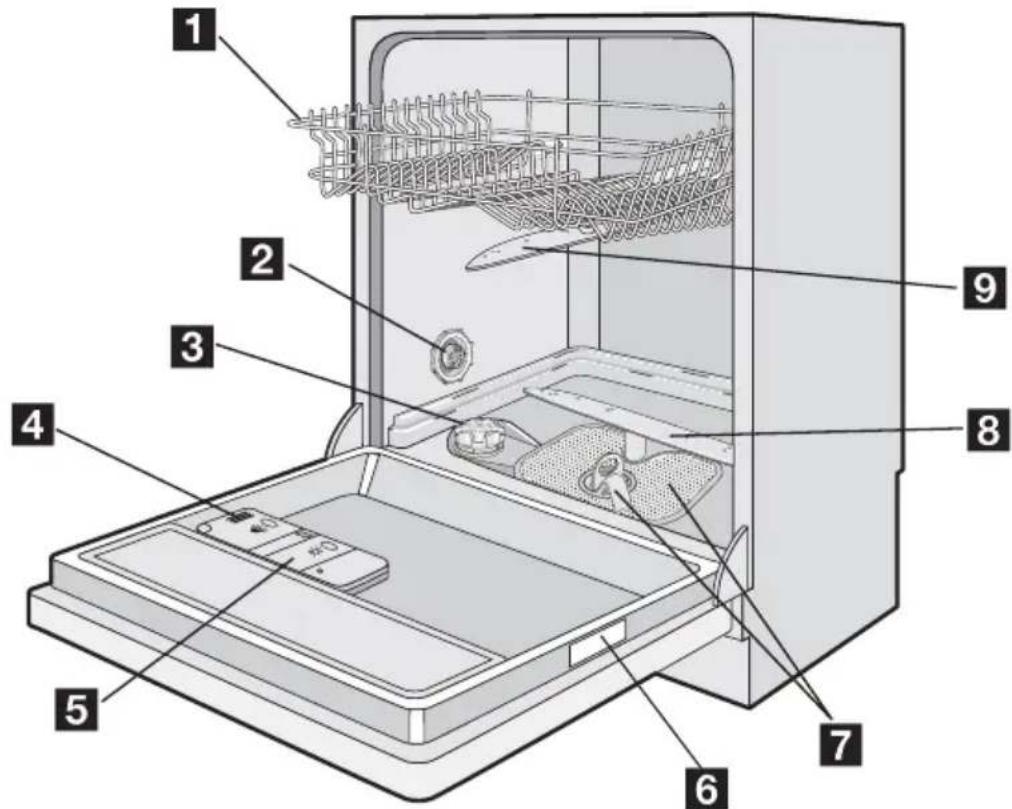

• All sides of the dishwasher must never be drilled to prevent damage to hydraulic and electric components. Warning! For electrical and water connection carefully follow the instructions given in the specific paragraphs. Product description 1 Upper basket 2 Water hardness dial 3 Salt container 4 Detergent dispenser 5 Rinse aid dispenser 6 Rating plate 7 Filters 8 Lower spray arm 9 Upper spray arm 72Control panel 1 On/Off button 2 Digital display 3 Programme selection button 4 Half load button 5 Delay start button 6 Multitab button (MULTI - TABLET) 7 Indicator lights 8 Function buttons Indicator lights Salt Comes on when the special salt has run out. Rinse aid Comes on when the rinse aid has run out. End Comes on when a washing programme has ended. The digital display The digital display indicates:

• the level of hardness to which the water softener is set,

• the number corresponding to the washing programme,

• the approximate remaining time of the run- ning programme,

• activation/deactivation of the rinse aid dis- penser (ONLY with 'Multitab' function ac- tive).

• the end of a washing programme (the dig- ital display shows a zero),

• the countdown for the delay start,

• fault codes concerning malfunction of the appliance,

• activation/deactivation of the audible sig- nals. Half load button This option is useful and economical when baskets are not fully loaded. It reduces the consumption of water and energy. Load both baskets. When using this option reduce the dose of detergent that is normally used for a com- plete load. It is not possible to select this option with all washing programmes. If the half load button is pressed and the op- tion is not provided for the selected pro- gramme, the half load indicator light will not come on. Refer to 'Washing programmes' chapter for the list of washing programmes that are pro- vided with this option. 73Function buttons (A, B and C) The following functions can be set using these buttons:

• setting the water softener level,

• cancelling a washing programme or a de- lay start in progress,

• activation/deactivation of the rinse aid dis- penser when Multitab function is active,

• activation/deactivation of the audible sig- nals. Audible signals Audible signals have been introduced to help indicate which operations the dishwasher is performing: – setting of the water softener, – end of the washing programme, – intervention of an alarm due to malfunction of the machine. Factory setting: audible signals activated It is possible to deactivate the audible signals. Deactivation/activation of the audible signals

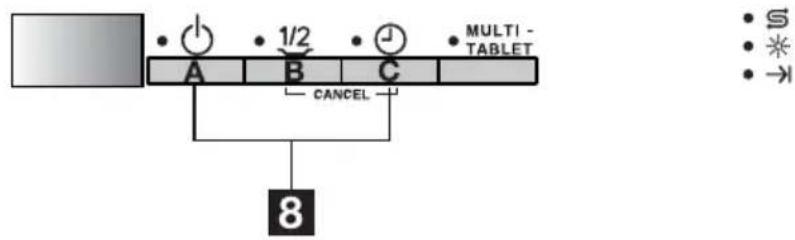

1. Press the On/Off button. The dishwasher

must be in setting mode.

2. Simultaneously press and hold function

buttons B and C until the lights of function buttons A, B and C start flashing.

3. Press function button C, the lights of

function buttons A and B go off while the light of function button C continues to flash. The digital display shows the cur- rent level. Audible signals deactivated Audible signals activated

4. To change the setting, press function

button C again; the digital display shows the new setting.

5. 5. To memorize the operation, switch off

the dishwasher. First use Before using your dishwasher for the first time:

• Ensure that the electrical and water con- nections comply with the installation in- structions

• Remove all packaging from inside the ap- pliance

• Set the water softener level

• Pour 1 litre of water into the salt container and then fill with dishwasher salt

• Fill the rinse aid dispenser If you want to use combi detergent tablets such as: ''3 in 1'', ''4 in 1'', ''5 in 1'' etc... set the Multitab function. (See ''Multitab function''). Set the water softener The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. Water hard- ness is measured in equivalent scales, Ger- man degrees (dH°), French degrees (°TH) and mmol/l (millimol per litre - international unit for the hardness of water). The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. The water softener must be set in two ways: manually, using the water hard- ness dial and electronically. Water hardness Adjusting the water hardness setting Use of salt °dH °TH mmol/l manually electronically

74Water hardness Adjusting the water hardness setting Use of salt °dH °TH mmol/l manually electronically

29 - 36 51 - 64 5,1 - 6,4 2 level 7 yes

23 - 28 40 - 50 4,0 - 5,0 2 level 6 yes

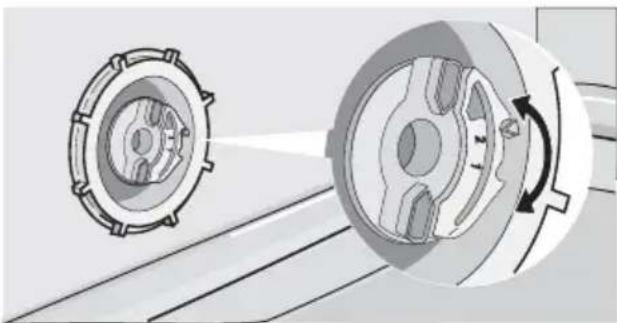

< 4 < 7 < 0,7 1 level 1 no Setting manually The dishwasher is factory set at position

1. Open the dishwasher door.

2. Remove the lower basket from the dish-

3. Turn the water hardness dial to position

Setting electronically The dishwasher is factory set at level 5.

1. Press the On/Off button. The dishwasher

must be in setting mode.

Press function button A, the lights of function buttons B and C go off while the light of function button A continues to flash. The digital display shows the cur- rent level and a sequence of intermittent audible signals are heard. Examples: displayed, 5 intermittent audible sig- nals, pause, etc. = level 5 displayed, 10 intermittent audible signals, pause, etc. = level 10

4. To change the level, press function but-

ton A. Each time the button is pressed the level changes. (For the selection of the new level see the chart). Examples: If the current level is 5, by pressing function button A once, level 6 is selected. If the current level is 10, by pressing func- tion button A once, level 1 is selected.

5. To memorize the operation, switch off the

dishwasher by pressing the On/Off but- ton. Use of dishwasher salt Warning! Only use salt specifically designed for use in dishwashers. All other types of salt not spe- cifically designed for use in a dishwasher, es- pecially table salt, will damage the water soft- ener. Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilt, remaining on the bottom of the machine for any period of time, which may cause corrosion. To fill:

1. Open the door, remove the lower basket

and unscrew the cap of the salt container by turning it anticlockwise.

2. Pour 1 litre of water into the container

(this is necessary only before filling with salt for the first time) .

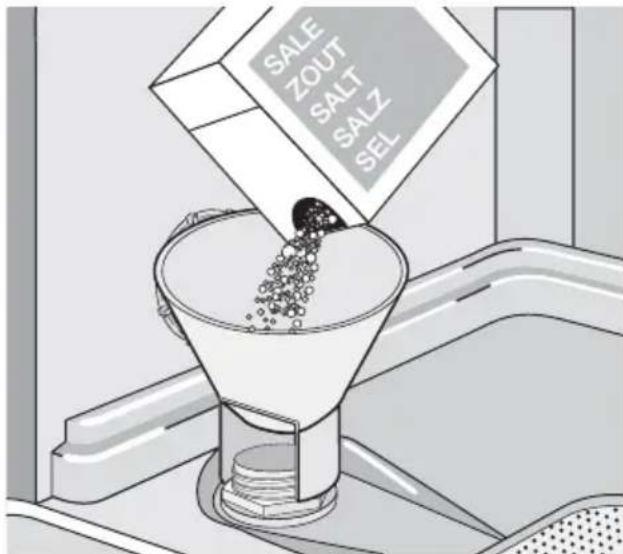

3. Using the funnel provided, pour in the salt

until the container is full.

754. Replace the cap making sure that there

is no trace of salt on the screw thread or on the gasket.

5. Replace the cap tightly turning it clock-

wise until it stops with a click. Do not worry if water overflows from the unit when filling with salt, this is quite normal. The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replen- ished, assuming the dishwasher re- mains switched on. If you are using salt that takes longer to dissolve then this can take longer. The oper- ation of the machine is not affected. Use of rinse aid Warning! Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance. Rinse aid ensures thorough rinsing, and spot and streak free drying. Rinse aid is automatically added during the last rinse.

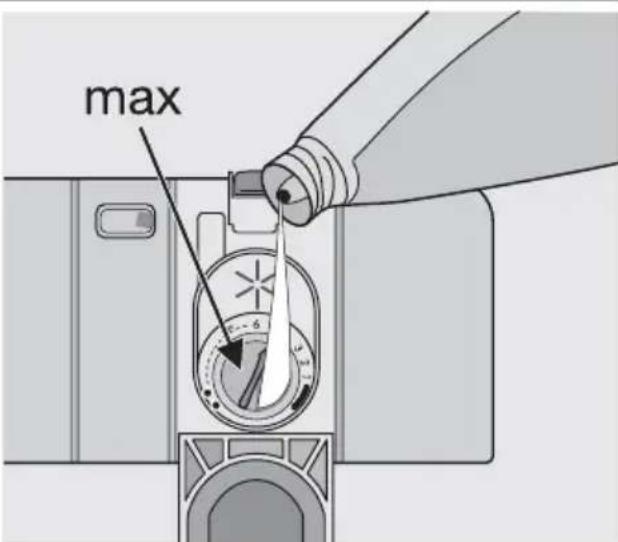

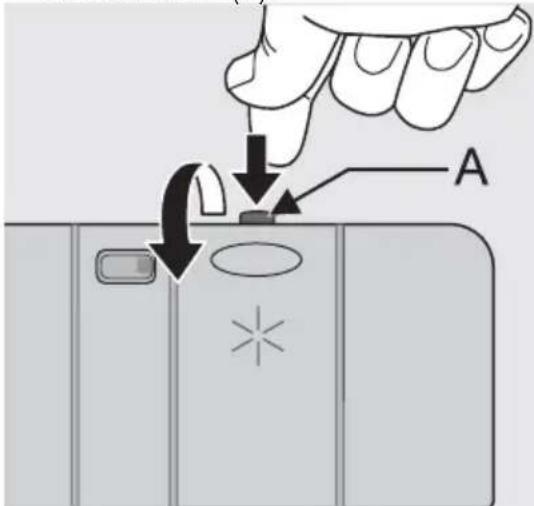

1. Open the container by pressing the re-

2. Add the rinse aid in the container. The

maximum level for filling is indicated by "max". The dispenser holds about 110 ml of rinse aid, which is sufficient for between 16 and 40 washing cycles, depending upon the dosage setting.

3. Ensure that the lid is closed after every

refill. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash. According to the finish and drying results ob- tained, adjust the dose of rinse aid by means of the 6 position selector (position 1 minimum dosage, position 6 maximum dosage). The dose is factory set in position 4. Increase the dose if there are drops of water or lime spots on the dishes after washing. 76Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades. Daily use

• Check if it’s necessary to refill with dish- washer salt or rinse aid.

• Load cutlery and dishes into the dishwash- er.

• Fill with dishwasher detergent.

• Select a wash programme suitable for the cutlery and dishes.

• Start the wash programme. Helpful hints and tips Sponges, household cloths and any object that can absorb water may not be washed in the dishwasher.

• Before loading the dishes, you should: – Remove all left over food and debris. – Soften remnants of burnt food in pans

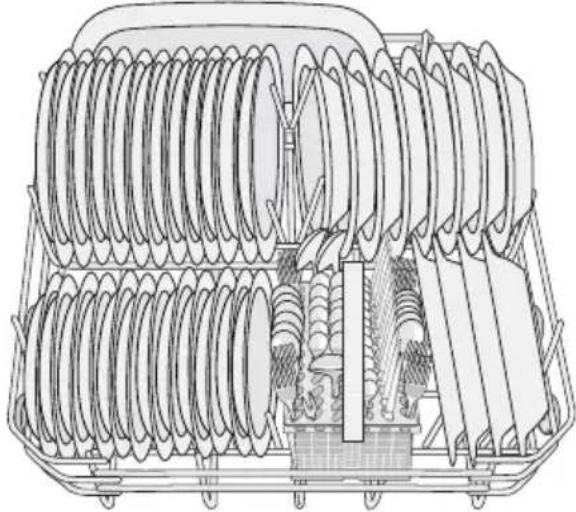

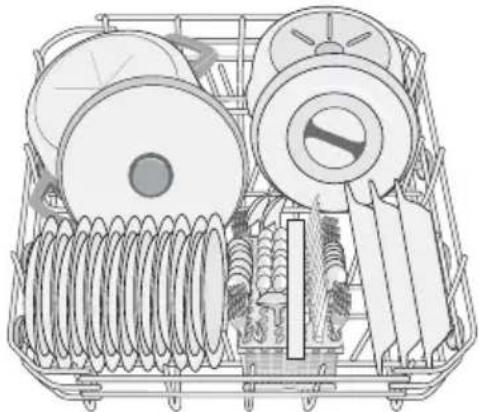

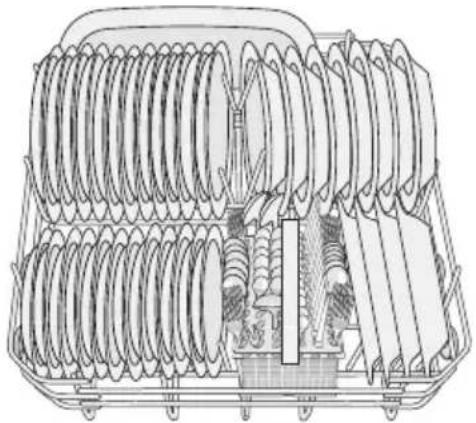

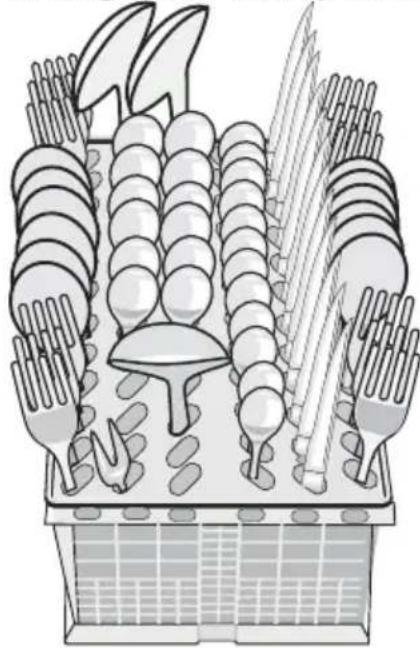

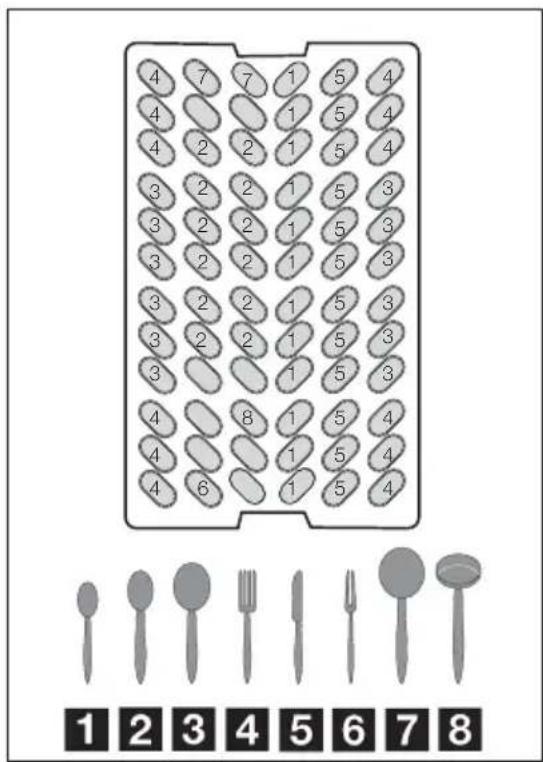

• When loading the dishes and cutlery, please note: – Dishes and cutlery must not impede the rotation of the spray arms. – Load hollow items such as cups, glasses, pans, etc. with the opening downwards so that water cannot collect in the container or a deep base. – Dishes and items of cutlery must not lie inside one another, or cover each other. – To avoid damage to glasses, they must not touch. – Lay small objects in the cutlery basket.

• Plastic items and pans with non stick coat- ings have a tendency to retain water drops; these items will not dry as well as porcelain and steel items.

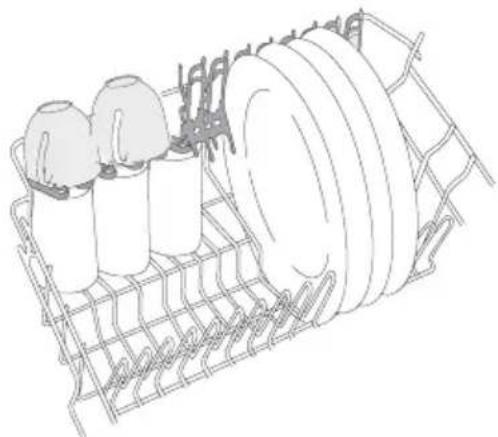

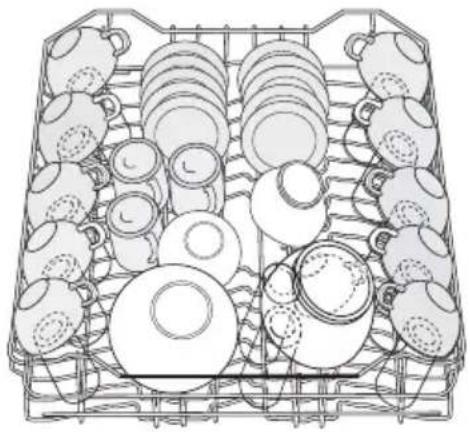

• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged so they do not move. For washing in the dishwasher the following cutlery and dishes are not suitable: are of limited suitability:

• Cutlery with wooden, horn, china or mother-of- pearls handles.

• Plastic items that are not heat resistant.

• Older cutlery with glued parts that are not tem- perature resistant.

• Bonded cutlery items or dishes.

• Pewter or copper items.

• Steel items prone to rusting.

• Items made from synthetics fibres.

• Only wash stoneware in the dishwasher if it is specially marked as being dishwasher-safe by the manufacturer.

• Glazed patterns may fade if machine washed frequently.

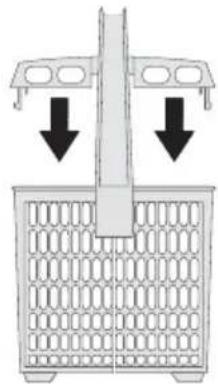

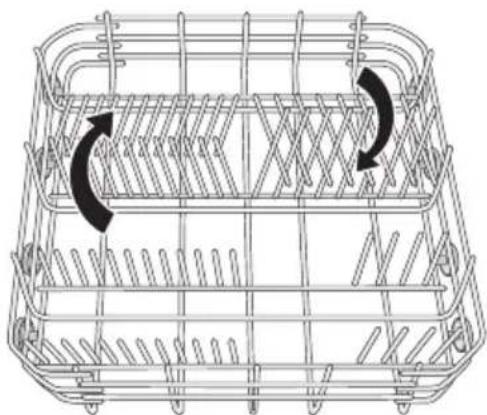

• Silver and aluminium parts have a tendency to discolour during washing: Residues, e.g. egg white, egg yolk and mustard often cause dis- colouring and staining on silver. Therefore al- ways clean left-overs from silver immediately, if it is not to be washed straight after use. 77Load cutlery and dishes The lower basket The lower basket is designed to take sauce- pan, lids, plates, salad bowls, cutlery etc. Service dishes and large lids should be ar- ranged around the edge of the basket, en- suring that the spray arms can turn freely. The rows of prongs in the lower basket can lie flat to allow you to load pots, pans and bowls. The cutlery basket Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives. Forks and spoons should be placed in the removable cutlery basket with the handles facing downwards and the knives with their handles facing upwards. If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards. Mix spoons with other cutlery to prevent them from sticking together. For best results we recommend that you use the cutlery grid (if the size and dimensions of the cutlery allow it). 78The upper basket The upper basket is designed for plates (up to 24 cm in diameter), salad bowls, cups, glasses, pots and lids. Arrange items on and underneath the cup racks so that water can reach all surfaces. Glasses with long stems can be placed up- side down in the cup racks. For taller items, the cup racks can be folded upwards. Before closing the door, ensured that the spray arms can rotate freely. Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. Maximum height of the dishes in the lower basket upper bas- ket lower basket With upper basket raised 20 cm 31 cm Maximum height of the dishes in the lower basket upper bas- ket lower basket With upper basket lowered 24 cm 27 cm To move to the higher position proceed as follows:

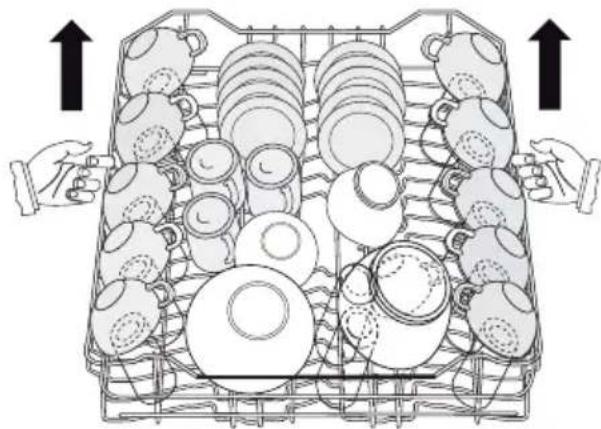

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards until the

mechanism is engaged and the basket is stable. To lower the basket to the original posi- tion proceed as follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards and then

allow the mechanism to drop back down slowly, keeping hold of it. Never lift or lower the basket on one side only With the upper basket raised we recom- mend you adjust the cup racks in the lowest position. After loading your machine always close the door, as an open door can be a hazard. 79Use of detergent Only use detergents specifically de- signed for use in dishwashers. Please observe the manufacturer’s dos- ing and storage recommendations as stated on the detergent packaging. Using no more than the correct amount of detergent contributes to reducing pol- lution. Fill with detergent

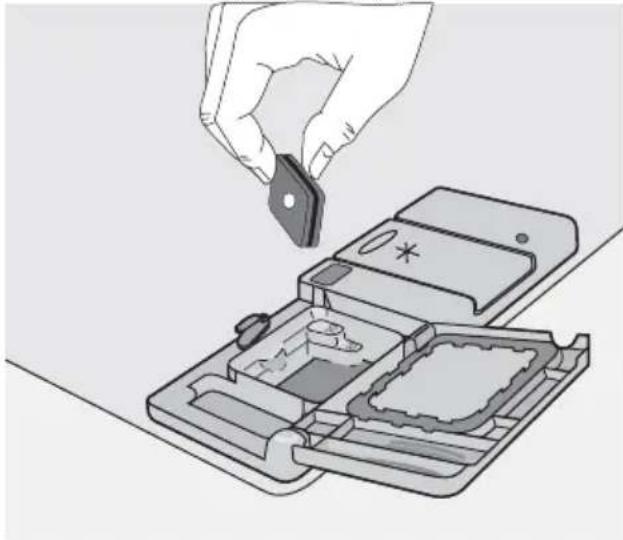

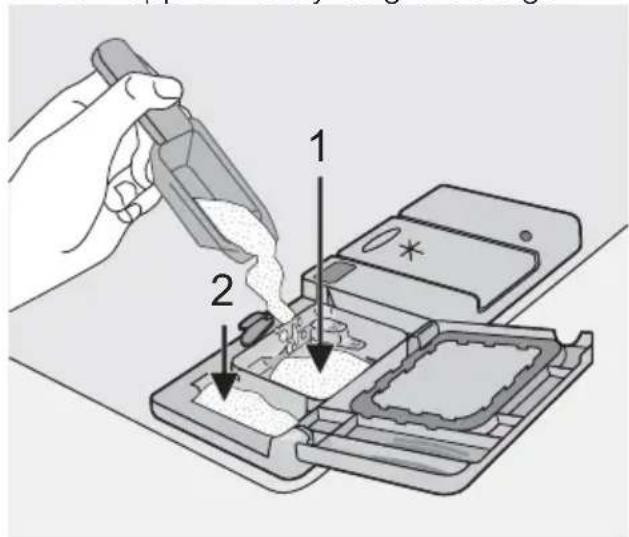

2. Fill the detergent dispenser (1) with de-

tergent. The marking indicates the dosing levels: 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent.

3. All programmes with prewash need an

additional detergent dose (5/10 g) that must be placed in the prewash detergent chamber (2). This detergent will be used during the prewash phase. When using detergent tablets; place the tablet in compartment (1)

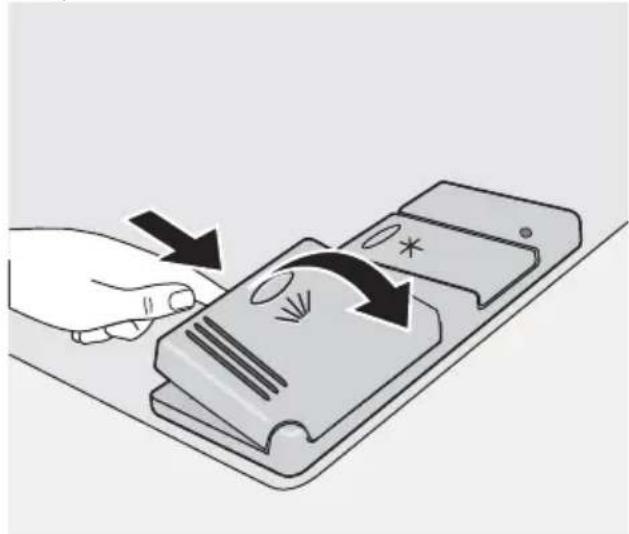

4. Close the lid and press until it locks in

place. Detergent tablets from different manu- facturers dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore, please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent re- siduals. 80Multi-tab function This appliance is equipped with the "Multitab function", that allows the use of the "Multitab" combi detergent tablets. These products are detergents with a com- bined cleaning, rinsing and salt functions. They can also contain other different agents depending on which kind of tablets you choose ("3 in 1", "4 in 1", "5 in 1" etc...). Check whether these detergents are suitable for your water hardness. See the manufac- turers instructions. Once this function is selected it will remain active for all following wash programmes. With the selection of this function the inflow of rinse aid and salt from each respective supply container is automatically deactivated and also the indicator lights for salt and rinse aid are deactivated. When using the "Multitab function", the cycle durations may change. If this is the case, the running time for the programme is automat- ically updated on the digital display. Activate/deactivate the ''Multitab func- tion'' before the start of a washing pro- gramme. Once the programme is running, the "Multitab function " can NO longer be changed. If you want to cancel the "Mul- titab function " you have to cancel the programme setting and then deactivate the ''Multitab function''. In this case you have to set a washing programme (and desired options) again. Activation/deactivation of the Multitab function To activate the Multitab function, press the Multitab button. Corresponding indicator light comes on. To deactivate the function press the Multitab button again. Corresponding indicator light goes off. If the drying results are not satisfac- tory we suggest that you:

1. Fill up the rinse aid dispenser with

• The activation/deactivation of the rinse aid is only possible with the Mul- titab function active. Activation/deactivation of the rinse aid dispenser

1. Press the On/Off button. The dishwasher

must be in setting mode.

function buttons A and C go off while the light of function button B continues to flash. The digital display indicates the cur- rent setting. Rinse aid dispenser deactivated Rinse aid dispenser activated

To change the setting, press button B again, the digital display indicates the new setting.

5. To memorize the operation, switch off the

dishwasher by pressing the On/Off but- ton. If you decide to revert back to the use of individual detergents we ad- vise that you:

aid dispenser again.

3. Adjust the water hardness setting to

the highest setting and perform 1 normal washing programme without loading any dishes.

4. Adjust the water hardness setting

according to the hardness of the wa- ter in your area.

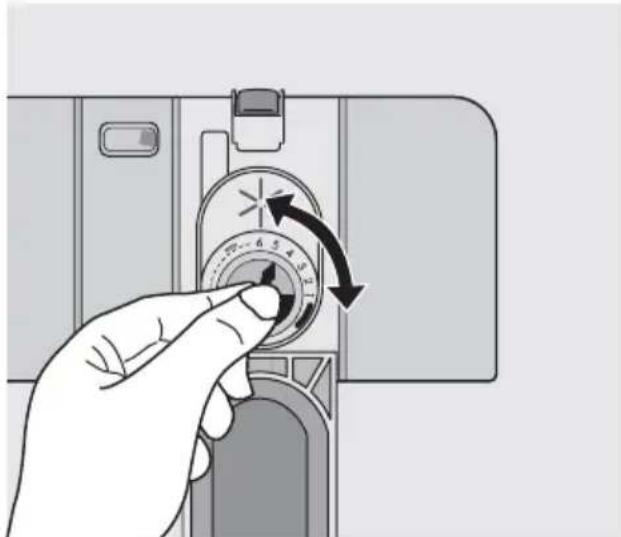

5. Adjust the rinse aid dosage.

81Select and start a washing programme Select the washing programme and delay start with the door slightly opened. The start of the programme or the countdown of the delay start will occur only after the closure of the door. Until then it is possible to modify the settings

1. Check that the baskets have been loaded

correctly and that the spray arms are free to rotate.

2. Check that the water tap is opened.

3. Press the On/Off button. The dishwasher

must be in setting mode.

4. Press the programme selection button

until the digital display shows the number of the programme you want to select. Refer to 'Washing programmes' for the selection of the programme.

5. Close the dishwasher door, the pro-

gramme starts automatically. Setting and starting the programme with delay start

1. After having selected the washing pro-

gramme, press the delay start button until the flashing number of hours for the delay start shows in the digital display. The delay start indicator light comes on. The start of the selected washing pro- gramme can be delayed for between 1 and 19 hours.

2. Close the dishwasher door, the count-

down starts automatically.

3. The countdown will decrease with steps

4. The opening of the door will interrupt the

countdown. Close the door; the count- down will continue from the point at which it was interrupted.

5. Once the delay start has elapsed the pro-

gramme will start automatically. Warning! Interrupt or cancel a washing programme in progress ONLY if it's absolutely necessary. Attention! Hot steam may escape when the door is opened. Open the door carefully. Interrupt a washing programme in progress

• Open the dishwasher door; the pro- gramme will stop. Close the door; the pro- gramme will start from the point at which it was interrupted. Cancel a delay start or a washing programme in progress

• Press and hold the 2 function buttons B and C until the digital display shows 2 hor- izontal bars.

• Cancelling a delay start will also cancel the washing programme. You have to select the washing programme again.

• If a new washing programme is to be se- lected, check that there is detergent in the detergent dispenser. End of the washing programme

• The dishwasher will automatically stop and an audible signal informs you of the end of the washing programme.

1. Open the dishwasher door.

– The digital display shows zero. – End indicator light is on.

2. Switch of the dishwasher.

3. Leave the dishwasher door ajar for a few

minutes before removing the dishes; this way they will be cooler and the drying will be improved. Unloading the dishwasher

• Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down before removing from the appliance.

• Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.

• Water may appear on the sides and the door of the dishwasher as the stainless steel will eventually become cooler than the dishes. When the washing programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off. 82Washing programmes Washing programmes Programme Degree of soil Type of load Programme description

Rinse and Hold Any Partial load (to be completed later in the day). 1 cold rinse (to avoid food scraps from sticking). This programme does not require the use of detergent.

Intensive 70° Heavy soil Crockery, cut- lery, pots and pans Prewash Main wash 1 intermediate rinse Final rinse Drying

Normal 65° Normal soil Crockery, cut- lery, pots and pans Prewash Main wash 1 intermediate rinse Final rinse Drying

Normal or light soil Crockery and cutlery Main wash Final rinse

Normal soil Crockery and cutlery Prewash Main wash 1 intermediate rinse Final rinse Drying

Gentle 45° Normal or light soil Delicate crock- ery and cutlery Prewash Main wash 1 intermediate rinse Final rinse Drying

Glass 40° Normal or light soil Delicate glass- ware Main wash 1 intermediate rinse Final rinse Drying

1) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet

the needs of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.

2 - Intensive 70° YES

Energy consumption (in kWh) Water consumption (in litres)

1) The digital display shows the programme duration.

2) Test programme for test institutes

The consumption values are intended as a guide and depend on the pressure and the temperature of the water and also by the variations of the power supply and the amount of dishes Care and cleaning Cleaning the filters The filters must be checked and cleaned from time to time. Dirty filters will degrade the washing result. Warning! Before cleaning the filters ensure that the machine is switched off.

1. Open the door, remove the lower basket.

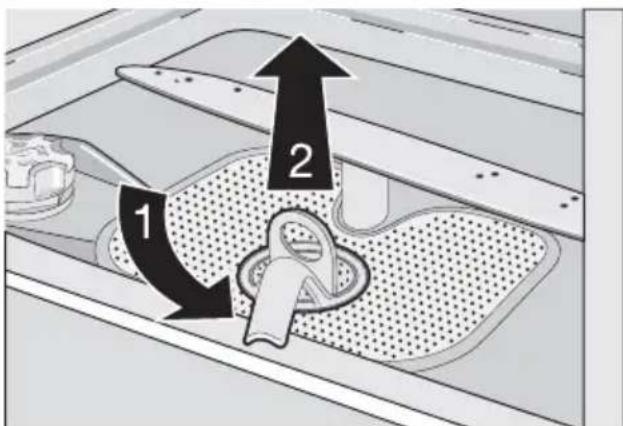

2. The dishwasher filter system comprises a

coarse filter (A), a microfilter (B) and a flat filter. Unlock the filter system using the handle on the microfilter.

3. Turn the handle about 1/4 a turn anti-

clockwise and remove the filter system

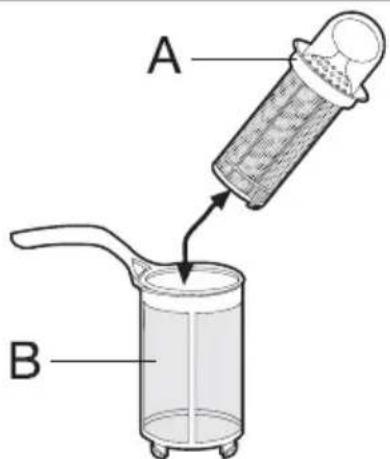

844. Take hold of the coarse filter (A) by the

handle with the hole and remove from the microfilter (B).

5. Clean all filters thoroughly under running

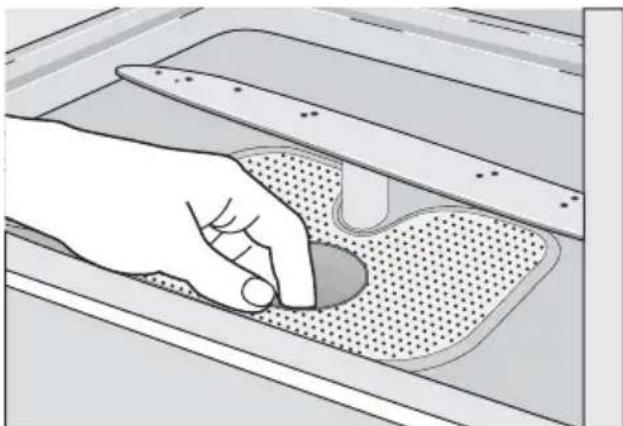

6. Remove the flat filter from the base of the

washing compartment and clean both faces thoroughly.

7. Put the flat filter back in the base of the

washing compartment and ensure that it fits perfectly.

Place the coarse filter (A) in the microfilter (B) and press together.

9. Put the filter combination in place and

lock by turning the handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment. NEVER use the dishwasher without filters. Incorrect repositioning and fitting of the filters will produce poor washing results and will result in damage to the appliance. NEVER try to remove the spray arms. If residues of soil have clogged the holes in the spray arms, remove the debris with a cocktail stick. External cleaning Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or sol- vent (acetone, trichloroethylene etc...). Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend every 3 months you run the wash programme for heavy soiled dishes us- ing detergent but without dishes. Prolonged periods of non-operation If you are not using the machine for a pro- longed period of time you are advised to:

1. Unplug the appliance and then turn off

3. Leave the inside of the machine clean.

Frost precautions Avoid placing the machine in a location where the temperature is below 0°C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it. Moving the machine If you have to move the machine (moving house etc...):

2. Turn the water tap off.

3. Remove the water inlet and discharge

4. Pull the machine out together with the

hoses. Avoid over tilting the machine during trans- portation. What to do if… The dishwasher will not start or stops during operation. Certain problems can be due to the lack of simple maintenance or oversights, which can be solved with the help of the hints described in the chart, without calling out an engineer. 85Open the door and switch off the appliance. Carry out the following suggested corrective actions. Fault codes and malfunction Possible cause and solution

• continuous flashing of the light of the running programme

• intermittent audible signal

appears in the digital display The dishwasher does not fill with water

• The water tap is blocked or furred with lime- scale. Clean the water tap.

• The water tap is turned off. Turn the water tap on.

• The filter (where present) in the inlet hose fitting at the water inlet valve is blocked. Clean the filter.

• The water inlet hose has not been correctly laid or it is kinked or squashed. Check the water inlet hose connection.

• continuous flashing of the light of the running programme

• intermittent audible signal

appears in the digital display The dishwasher will not drain

• The sink spigot is blocked. Clean out the sink spigot.

• The water drain hose has not been correctly laid or it is kinked or squashed. Check the water drain hose connection.

• continuous flashing of the light of the running programme

• intermittent audible signal

appears in the digital display Anti-flood device is activated

• Close the water tap and contact your local Service Force Centre. Malfunction Possible cause and solution The programme does not start

• The dishwasher door has not been properly closed. Close the door.

• The main plug is not plugged in. Insert the main plug

• The fuse has blown out in the household fuse box. Replace the fuse.

• Delay start has been set. If dishes are to be washed immediately, cancel the delay start. Once these checks have been carried out switch on the appliance and close the door. The programme will continue from the point at which it was interrupted. If the malfunction or fault code reappears contact your local Service Force Centre. For other fault codes not described in the above chart, please contact your local Serv- ice Force Centre. Contact your local Service Force Centre, quoting the model (Mod.), product number (PNC) and serial number (S.N.). This information can be found on the rating plate located on the side of the dishwasher door. So that you always have these numbers at hand, we recommend you to make a note of them here: Mod. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PNC : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S.N. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86The wash results are not satisfactory The dishes are not clean

• The wrong programme has been selected.

• The dishes are arranged in such a way as to stop water reaching all parts of a surface. The baskets must not be overloaded.

• The spray arms do not rotate freely due to incorrect arrangement of the load.

• The filters in the base of the washing compartment are dirty or incorrectly positioned.

• Too little or no detergent has been used.

• Where there are limescales deposits on the dishes; the salt container is empty or incorrect level of the water softener has been set.

• The drain hose connection is not correct.

• The salt container cap is not properly closed. The dishes are wet and dull

• Rinse aid was not used.

• The rinse aid dispenser is empty. There are streaks, milky spots or a blu- ish coating on glasses and dishes

• Decrease rinse aid dosage. Water drops have dried onto glasses and dishes

• Increase rinse aid dosage.

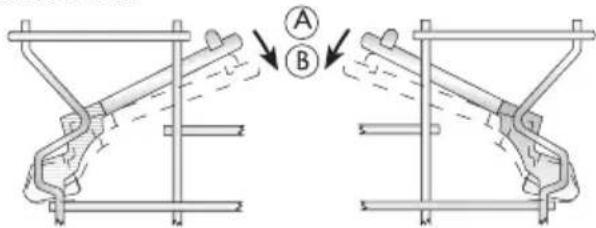

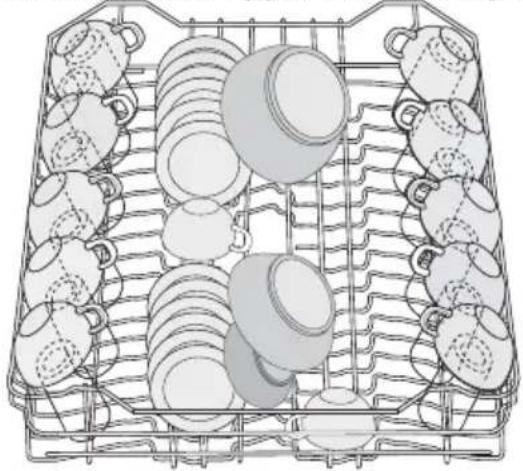

• The detergent may be the cause. Contact the detergent manufacturer con- sumer care line. If after all these checks, the problem persists, contact your local Service Force Centre. Technical data Dimensions Width Height Depth 59,6 cm 81,8 - 89,8 cm 55,5 cm Electrical connection - Voltage - Overall power - Fuse Information on the electrical connection is given on the rating plate on the inner edge of the dishwasher door. Water supply pressure Minimum Maximum 0,05 MPa (0,5 bar) 0,8 MPa (8 bar) Capacity 12 place settings Hints for test institutes Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Consump- tion values"). Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and rinse aid respectively and using the test pro- gramme (see "Consumption values"). Full load: 12 standard place settings Amount of detergent required: 5 g + 25 g (Type B) Rinse aid setting position 4 (Type III) 87Arrangement upper basket Cup racks: position A Arrangement lower basket 88Arrangement cutlery basket

Installation Warning! Any electrical and/or plumbing work required to install this appliance should be carried out by a qualified electrician and/or plumber or competent person. Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a drain. This dishwasher is designed to be fitted un- der a kitchen counter or work surface. Attention! Carefully follow the instructions on the enclosed template for building in the dishwasher and fitting the furniture panel. No further openings for the venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through. The dishwasher incorporates adjustable feet to allow the adjustment of the height. During all operations that involve accessibility to internal components the dishwasher has to be unplugged. When inserting the machine, ensure that the water inlet hose, the drain hose and the sup- ply cable are not kinked or squashed. Fixing to the adjacent units The dishwasher must be secured against tilt- ing. Therefore make sure that the counter it is fixed under, is suitably secured to a fixed structure (adjacent kitchen units cabinets, wall). Levelling Good levelling is essential for correct closure and sealing of the door. When the appliance is correctly levelled, the door will not catch on either side of the cab- inet . If the door does not close correctly, loosen or tighten the adjustable feet until the ma- chine is perfectly level. 89Water connection Water inlet connection This appliance can be connected to either a hot (max. 60°) or cold water supply. With a hot water supply you can have a sig- nificant reduction of energy consumption. This however, depends on how the hot water is produced. (We suggest alternative sources of energy that are more environmentally friendly as e.g. solar or photovoltaic panels and aeolian). For making the connection itself, the cou- pling nut fitted to the appliance water inlet hose is designed to screw onto a 3/4" thread spout or to a purpose made quick-coupling tap such as the Press-block. The water pressure must be within the limits given in the 'Technical data'. Your local Wa- ter Authority will advise you on the average mains pressure in your area. The water inlet hose must not be kinked, crushed, or entangled when it is being con- nected. The appliance features inlet and drain hoses which can be turned either to the left or the right to suit the installation by means of the locknut. The locknut must be correctly fitted to avoid water leaks. Attention! NOT all dishwasher models of have inlet and drain hoses provided with a locknut. In this case, this facility is not available. If the appliance is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few mi- nutes before connecting the inlet hose. DO NOT use connection hoses which have previously been used on an old ap- pliance. This appliance has been fitted with safe- ty features which will prevent the water used in the appliance from returning back into the drinking water system. This appliance complies with the applicable plumbing regulations. Water inlet hose with safety valve After connecting the double-walled water in- let hose, the safety valve is next to the tap. Therefore the water inlet hose is only under pressure while the water is running. If the wa- ter inlet hose starts to leak during this oper- ation, the safety valve cuts off the running water. Please take care when installing the water inlet hose:

• The electrical cable for the safety valve is in the double-walled water inlet hose. Do not immerse the water inlet hose or the safety valve in water.

• If water inlet hose or the safety valve is damaged, remove the mains plug imme- diately.

• A water inlet hose with safety valve must only be replaced by the Service Force Centre. Warning! Dangerous voltage Water drain connection The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing it to the

underside of the work surface. This will prevent waste water from the sink run- ning into the machine.

2. To a stand pipe provided with venthole,

minimum internal diameter 4 cm. The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwash- er. The drain hose can face either to the right or left of the dishwasher 90Ensure the drain hose is not bent or squash- ed as this could prevent or slow down the discharge of water. The sink plug must not be in place when the machine is draining as this could cause the water to syphon back into the machine. If you use a drain hose extension it must be no longer than 2 metres and its internal di- ameter must be no smaller than the diameter of the hose provided. Likewise the internal diameter of the cou- plings used for connections to the waste out- let must be no smaller than the diameter of the hose provided. When connecting the drain hose to an under sink trap spigot, the entire plastic mem- brane (A) must be removed. Failure to re- move all the membrane will result in food particles building up over time eventually blocking the dishwasher drain hose spigot Our appliances are supplied with a se- curity device to protect against the re- turn of dirty water back into the machine. If the spigot of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We therefore advise you to remove it. To avoid water leakage after installation make sure that the water couplings are tight. Electrical connection Warning! Safety standards require the appliance to be earthed. Prior to using the appliance for the first time, ensure that the rated volt- age and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be found on the rating plate. Always plug the mains plug into a correctly installed shockproof sock- et. Multi-way plugs, connectors and ex- tension cables must not be used. This could constitute a fire hazard through overheating. If necessary, have the domestic wir- ing system socket replaced. In case that the electrical cable has to be replaced, contact your local Service Force centre. The plug must be accessible after the appliance has been installed. Never unplug the appliance by pull- ing on the cable. Always pull the plug. The manufacturer accepts no liabil- ity for failure to observe the above safety precautions. 91Environment concerns The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate con- tainer at the community waste disposal fa- cilities. Warning! When a unit is no longer being used:

• Pull the plug out of the socket.

• Cut off the cable and plug and dispose of them.

• Dispose of the door catch. This pre- vents children from trapping them- selves inside and endangering their lives. 92939495117968780-00-052008
