USER MANUAL ToptelTV 100 CME

Instructions and codes

Per ogni evenienza potete scrivere all’assistenza clienti all’indirizzo telecomandi@cme.it oppure chiamare il nostro CALL CENTER al numero 02 66012766. Per facilitare e velocizzare le operazioni di assistenza, è importante che annotiate e ci comunichiate le informazioni essenziali riguardanti i vostriapparecchi utilizzando la seguente tabella:Modello di Telecomando CME : _______________ (vedere sul corpo del telecomando) Marca apparecchio Tipo Modello Mod. telecomando originale Codice marca es: THOMSON TV 25DU78M RCT 4000 10076

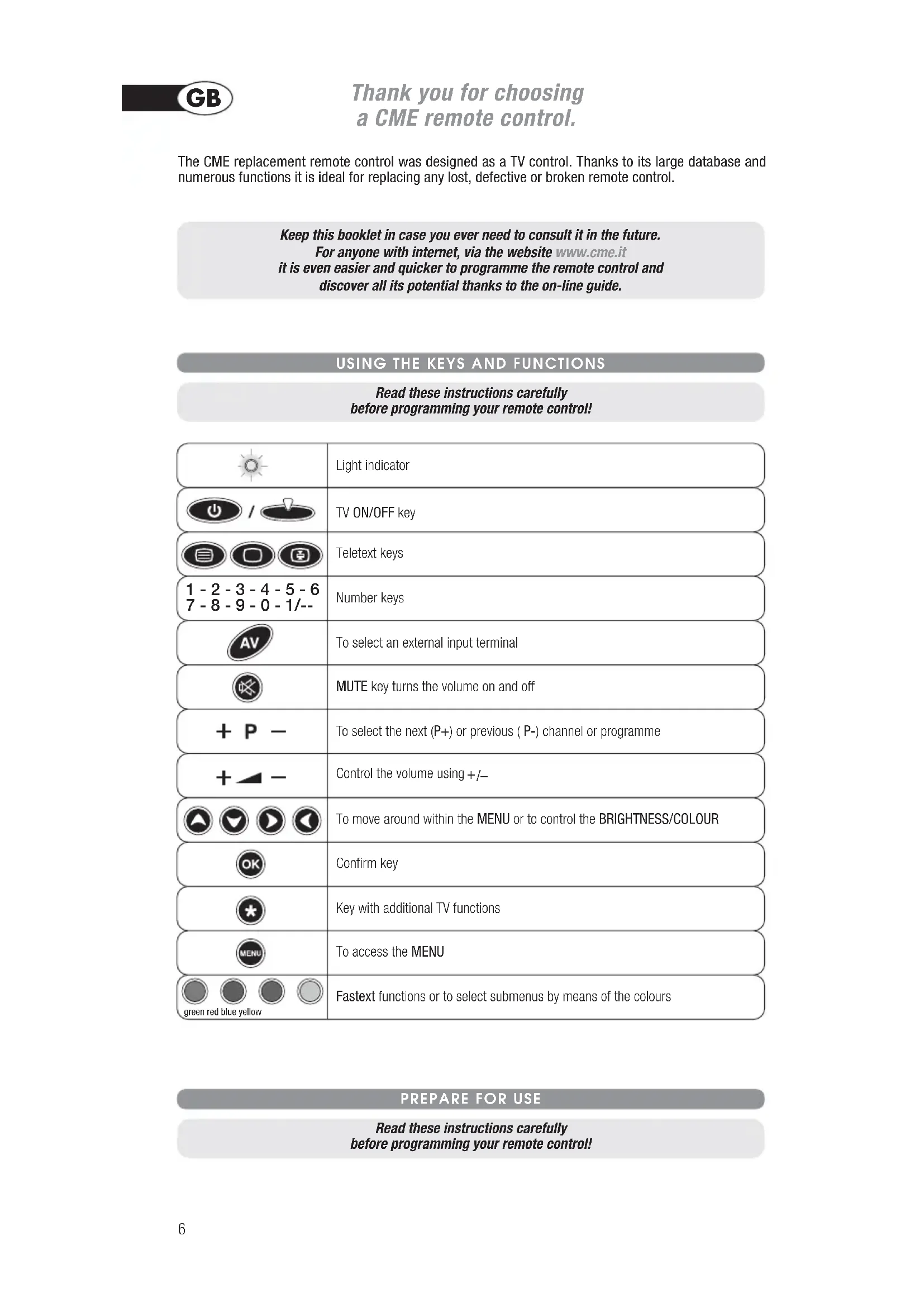

USING THE KEYS AND FUNCTIONS

Read these instructions carefully before programming your remote control! The CME replacement remote control was designed as a TV control. Thanks to its large database andnumerous functions it is ideal for replacing any lost, defective or broken remote control. Thank you for choosing a CME remote control. Keep this booklet in case you ever need to consult it in the future. For anyone with internet, via the website www.cme.it it is even easier and quicker to programme the remote control and discover all its potential thanks to the on-line guide. Teletext keysNumber keysControl the volume using

To select the next (P+) or previous ( P-) channel or programme MUTE key turns the volume on and offConfirm keyFastext functions or to select submenus by means of the coloursTo access the MENUKey with additional TV functionsTo select an external input terminalLight indicatorTV ON/OFF keyTo move around within the MENU or to control the BRIGHTNESS/COLOURgreen red blue yellow

Read these instructions carefully before programming your remote control!7

FITTING THE BATTERIES

Before programming and using the remote control, fit the batteries. The remote control requires 2 new AAA/LR03 batteries.

• Change the batteries if the light indicator starts to flash during use. The batteries are low.

• When you remove the batteries, fit the new ones within 5 minutes or you may have to reprogramme your remote control.

• Make a note of the code for your TV on the adhesive label inside the battery cover in case you have to reprogramme your remote control.

1. Switch on the TV.

Look for the brand of the television you want to programme in the code list and make a note of the corresponding code alongside (e.g. PHILIPS 0025)

3. Hold down the MUTE and ON/OFF keys together for 3

seconds until the light indicator starts to flash indicating that the remote control is being programmed.

4. Release the keys. Within 12 seconds, enter the brand

code previously identified ( e.g. 0025 ). The light indicator flashes more quickly to indicate that the remote control is ready for the search.

5. Point the remote control towards the TV. Press and slowly

release the ON/OFF key several times, stopping when the TV goes off.

6. When the TV goes off, press the OK key to confirm.

Three flashes indicate that the operation has been completed correctly. The quickest and easiest way to programme the remote control is by consulting the website www.cme.it.

HOW TO PROGRAMME THE REMOTE CONTROL

PHILIPS 0025 To display and make a note of the code memorized by means of the search, follow the instructions described in the paragraph CURRENT CODE DISPLAY.

NB: THE LIGHT INDICATOR STOPS FLASHING

The remote control exits programming mode and the light indicator stops flashing:

• if no keys are pressed for 14 seconds

• if an invalid brand code is entered

• if the code search list is completed. In this case, consult the website www.cme.it ADDITIONAL CHECK Check that some of the other keys, corresponding to those on your original remote control, work correctly. If the commands function incorrectly or erratically, you have probably entered a code for a similar remote control but not the right one. In this case, repeat the search procedure starting from point 3, entering the code previously used (e.g. 0025).

This operation can take up to 20 minutes and should be carried out if you have not succeeded in programming the remote control by means of the method described above. To display and make a note of the code memorized by means of the search, follow the instructions described in the paragraph CURRENT CODE DISPLAY.

1. Switch on the TV.

2. Hold down the MUTE and ON/OFF keys together for 5

seconds until the light indicator starts to flash indicating that the remote control is being programmed.

3. Release the keys. Within 12 seconds, enter the code 0000.

The light indicator flashes more quickly to indicate that the remote control is ready for the search.

4. Point the remote control towards the TV. Press and slowly

release the ON/OFF key several times, stopping when the TV goes off.

5. When the TV goes off, press the OK key to confirm.

Three flashes indicate that the operation has been completed correctly. ADDITIONAL CHECK Check that some of the other keys, corresponding to those on your original remote control, work correctly. If the commands function incorrectly or erratically, you have probably entered a code for a similar remote control but not the right one. In this case, repeat the search procedure starting from point 2. NB: THE LIGHT INDICATOR STOPS FLASHING. The remote control exits programming mode and the light indicator stops flashing:

• if no keys are pressed for 14 seconds

• if the code search list is completed. In this case, consult the website www.cme.it

The quickest and easiest way to programme the remote control is by consulting the website www.cme.it.9

To find out the code of your remote control, follow this procedure:

1. Hold down the MUTE and ON/OFF keys together for 5

seconds until the light indicator starts to flash.

2. When the MUTE and ON/OFF keys are released, press

and release the 1-/-- key within 8 seconds.

3. After a pause of several seconds, the indicator light

produces four series of flashes with a space between them, corresponding to the code you are looking for. Count the number of flashes; each series of flashes corresponds to one figure in the code. 10 flashes correspond to 0.

4. Note the code on the adhesive label inside the battery

cover in case you have to reprogramme the remote control subsequently. NB: this operation cannot be interrupted and the remote control cannot therefore be used until the end of the four series of flashes. If you know the exact code with which to programme the remote control, enter it as follows:

1. Hold down the MUTE and ON/OFF keys together for 5

seconds until the light indicator starts to flash.

2. Release the keys and enter the code (eg:

TV 1306 ). Three flashes indicate that the operation has been completed correctly. HOW TO USE THE ADDITIONAL COMMANDS WHICH DO NOT APPEAR ON THE KEYPAD Find them on your remote control by pressing the keys one by one and discovering the commands that interest you. In particular, the additional functions most frequently used, such as NORMALIZATION, COLOUR and BRIGHTNESS, can be found on the following keys: Although not indicated on the keypad, some keys can be used for additional commands. For the functions used less frequently, look for the additional commands on the site www.cme.it. As well as easily finding the code to programme your remote control, consulting the on-line guide will help you to find which keys on the remote control correspond to the additional commands. Normalization: Brightness (+): or green Brightness (-): or red Colour (+): or blue Colour (-): or yellow

5 SEC. ......................................................... = 1 .............................................. = 3 = 0 ............................ = 6 Code obtained = 130610 PROBLEM SOLVING INFO-LINE If you have any queries about your remote control:

• read this Instruction Booklet carefully - you will find an answer to most of your questions

• consult our website www.cme.it where you will find the answers you need easily and quickly. SOLUTION Try some of the other frequently-used keys. If the problem persists, check that the batteries are fitted correctly. If necessary, replace them with 2 new

1.5 V AAA/LR03 batteries.
