Fly - Stroller COSATTO - Free user manual and instructions

Product type	Stroller
Brand	Cosatto
Model	Fly
Usage	From birth up to 15 kg (stroller mode) / 13 kg (car seat mode)
Maximum child weight	15 kg (stroller mode) / 13 kg (car seat mode)
Stroller weight	Approximately 10 kg
Unfolded dimensions (approx.)	100 cm x 60 cm x 80 cm
Folded dimensions (approx.)	85 cm x 60 cm x 30 cm
Harness	5-point with D-rings
Backrest recline	Adjustable to lie-flat position
Handlebar	5 adjustable positions
Wheels	4 wheels, front swivel with lock
Brake	Foot brake with color indicator (red = locked, green = free)
Canopy	With sun visor and visibility window
Shopping basket	Capacity 2 kg
Included accessories	Footmuff, bumper bar, rain cover, car seat adapters
Compliance	BS EN 1888:2012
Care	Sponge clean with warm water and mild detergent; lubricate moving parts with silicone spray
Spare parts	Available at cosatto.com or via customer service
General information	Always use the harness; do not leave child unattended; do not use for running or skating

Frequently Asked Questions - Fly COSATTO

How to install the front and rear wheels?

The front wheels are installed by clicking them onto the front axles of the frame until they click into place. The rear wheels clip on the rear axles in the same way. To remove them, press the release button on the wheel.

How to fold the stroller?

First, lower the backrest to its lowest position. Then, simultaneously press the release buttons on both sides of the hinge and pull the release strap located at the center of the seat upward. Release the strap and fold the frame until the automatic lock engages.

How to clean the stroller?

The canopy can be sponge cleaned with warm water and a mild detergent. The metal and plastic parts can be cleaned the same way. Never use abrasive cleaners, ammonia, bleach, or alcohol. The fabrics have care labels to follow.

Can I use a car seat with this frame?

Yes, the frame is compatible with the Port car seat (not included). Use the included car seat adapters and install the car seat rear-facing. The maximum child weight in this mode is 13 kg.

What is the maximum weight for the child in stroller mode?

The maximum child weight is 15 kg in stroller mode. For car seat mode, the limit is 13 kg.

How to adjust the height of the harness straps?

To adjust the height, remove the strap attachments from the backrest slots by unsnapping the split rings, then reinsert them into the slots corresponding to the desired height. Put the rings back in place.

Can the stroller be used for running or skating?

No, the manufacturer strongly advises against using this stroller for running, rollerblading, or skateboarding, as it could compromise the safety of the child.

How to install the rain cover?

Place the rain cover over the stroller (or car seat). Attach the Velcro straps at the back of the cover and fasten the retaining straps around the front of the frame. Open the zipper if necessary to access the child.

Where can I buy spare parts?

For the UK and Ireland, you can order from the Cosatto website. For other countries, distributor contact details are available at http://www.cosatto.com/stockists. You can also contact customer service at [e-mail].

What to do if the brake does not work properly?

Check that the rear wheels are correctly installed and that the brake mechanism is not obstructed. If the problem persists, inspect the parts and lubricate if necessary with a silicone spray. Contact customer service if the defect remains.

USER MANUAL Fly COSATTO

baby stuff with personality®

FLY

TRAVEL SYSTEM

NITTY GRITTY

GB Important: Keep these instructions for future reference.

Important safety Information

General:

• The travel system is suitable for children from birth up to a maximum user weight of 15kg .
• WARNING: Never leave your child unattended.
• WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
• WARNING: Do not let your child play with this product.
• WARNING: This product is not suitable for running or skating.
• WARNING: Always use the restraint system.
• WARNING: Always use the crotch strap in combination with the waist belt.
• Do not use replacement parts or accessories other than those approved by Cosatto.
• A basket is provided for the carriage of 2kg of goods, evenly distributed.
• Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.
• Do not use a platform with this product as it may render the product unsafe.
  Always apply the brake when placing or removing a child from vehicle.
• Never carry a second child on the product.
  This product complies with BS EN 1888:2012.
• Use the seat in the most reclined ("lie-flat") position for new born babies until they can sit up unaided.
• Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided for the attachment of a separate safety harness approved to BS EN 13210 should this be required.

Car Seat mode:

• This combination is suitable for children from birth up to a maximum user weight of 13kg .
• For use as a travel system, the chassis is only compatible with the Port car seat in this mode.
• This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in suitable cot, bed or carry cot.

Visual language Key:

XX	Refer to warning XX
√	Correct action
X	Incorrect action
"CLICK"	Audible sound
×	Repeat action x times
	General action arrow

	Lock
	Unlock
	Press and hold
	Check
Cont.XX	Continue to step XX
	Repeat on other side

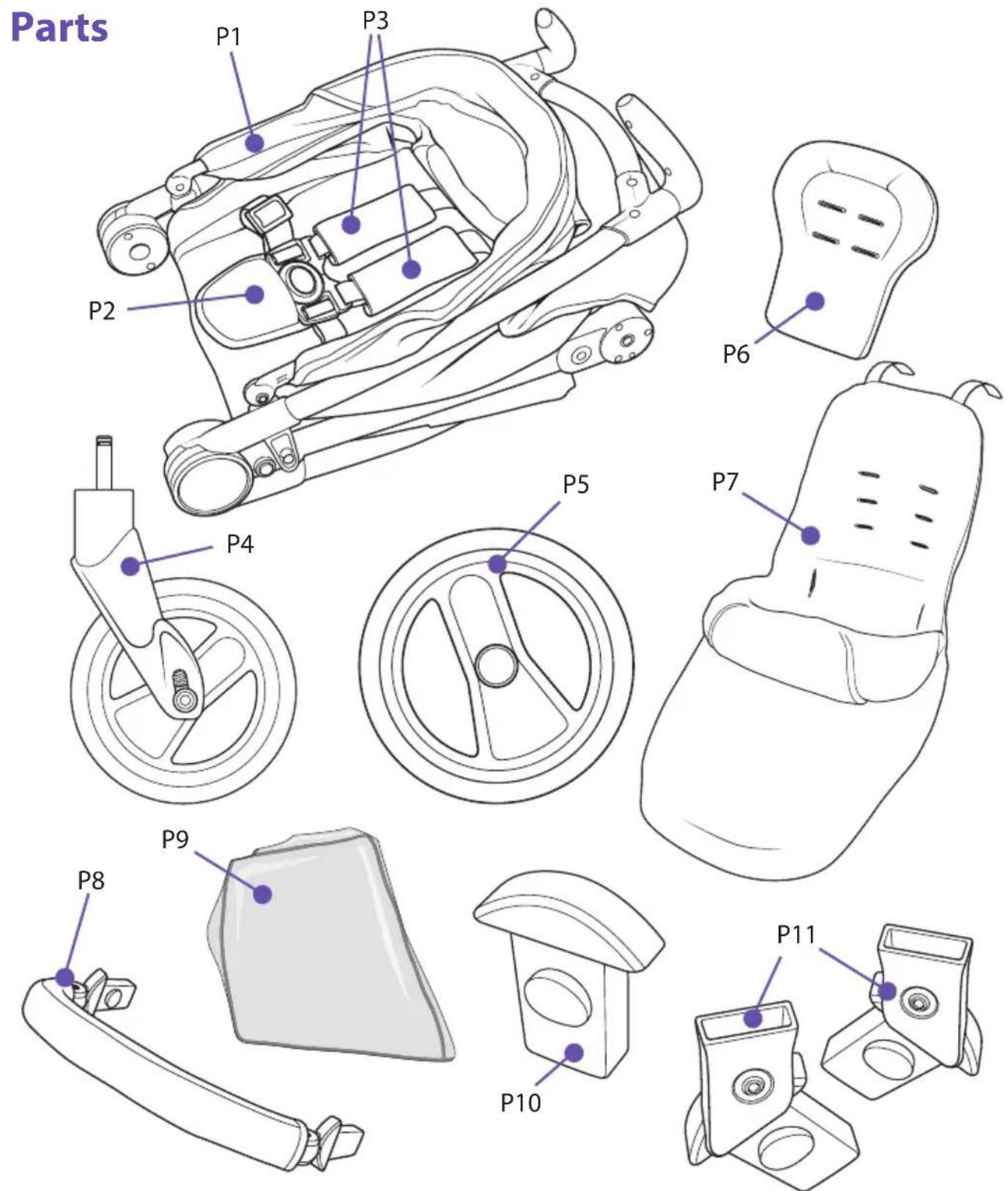

P1: Chassis P7: Footmuff
P2: Crotch pad P8: Bumper bar
P3: Chest pad x 2 P9: Raincover
P4: Front wheel x 2 P10: Bumper bar cap x2
P5: Rear wheel x2 P11: Car Seat Adaptor x2
P6: Headhugger

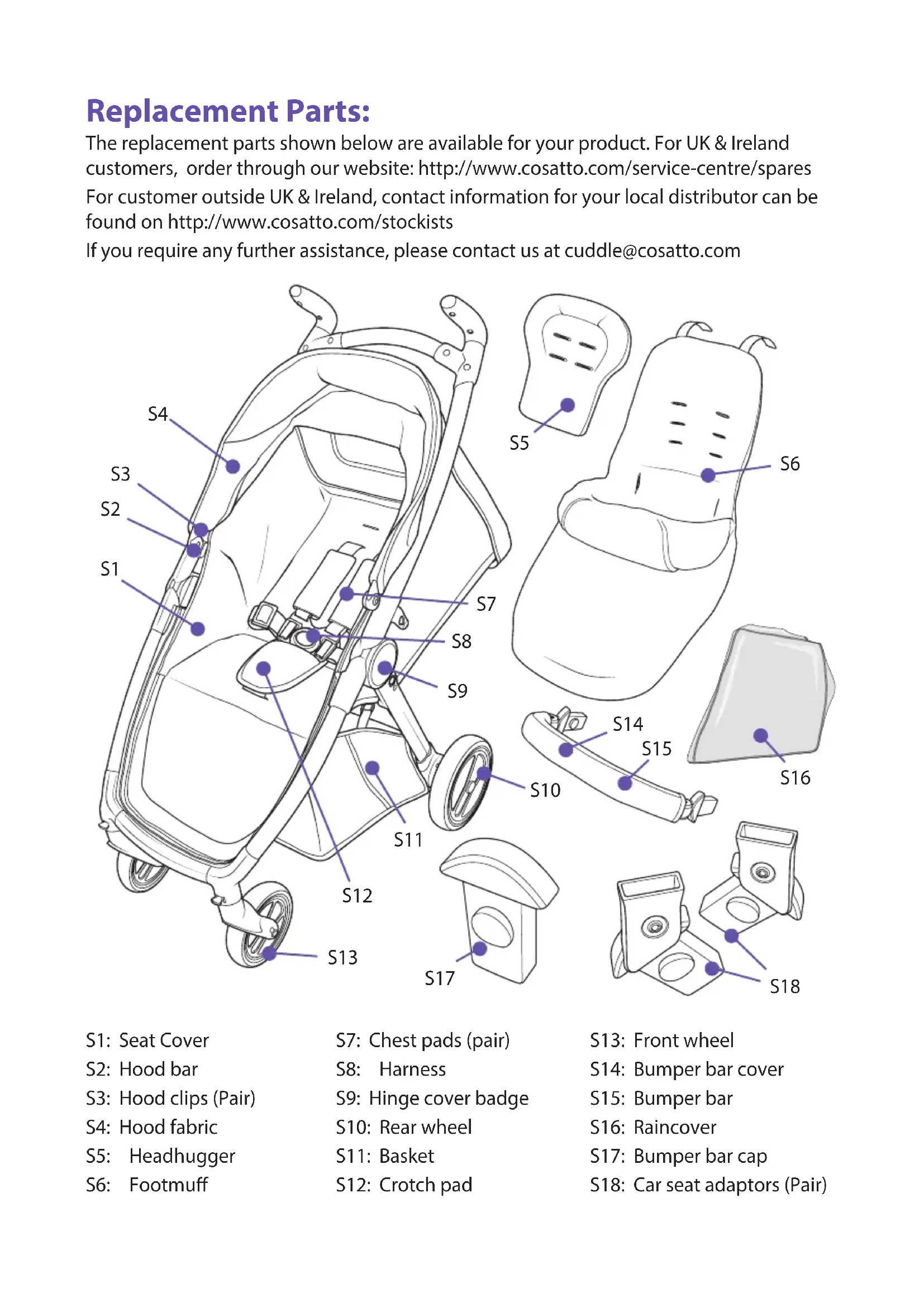

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

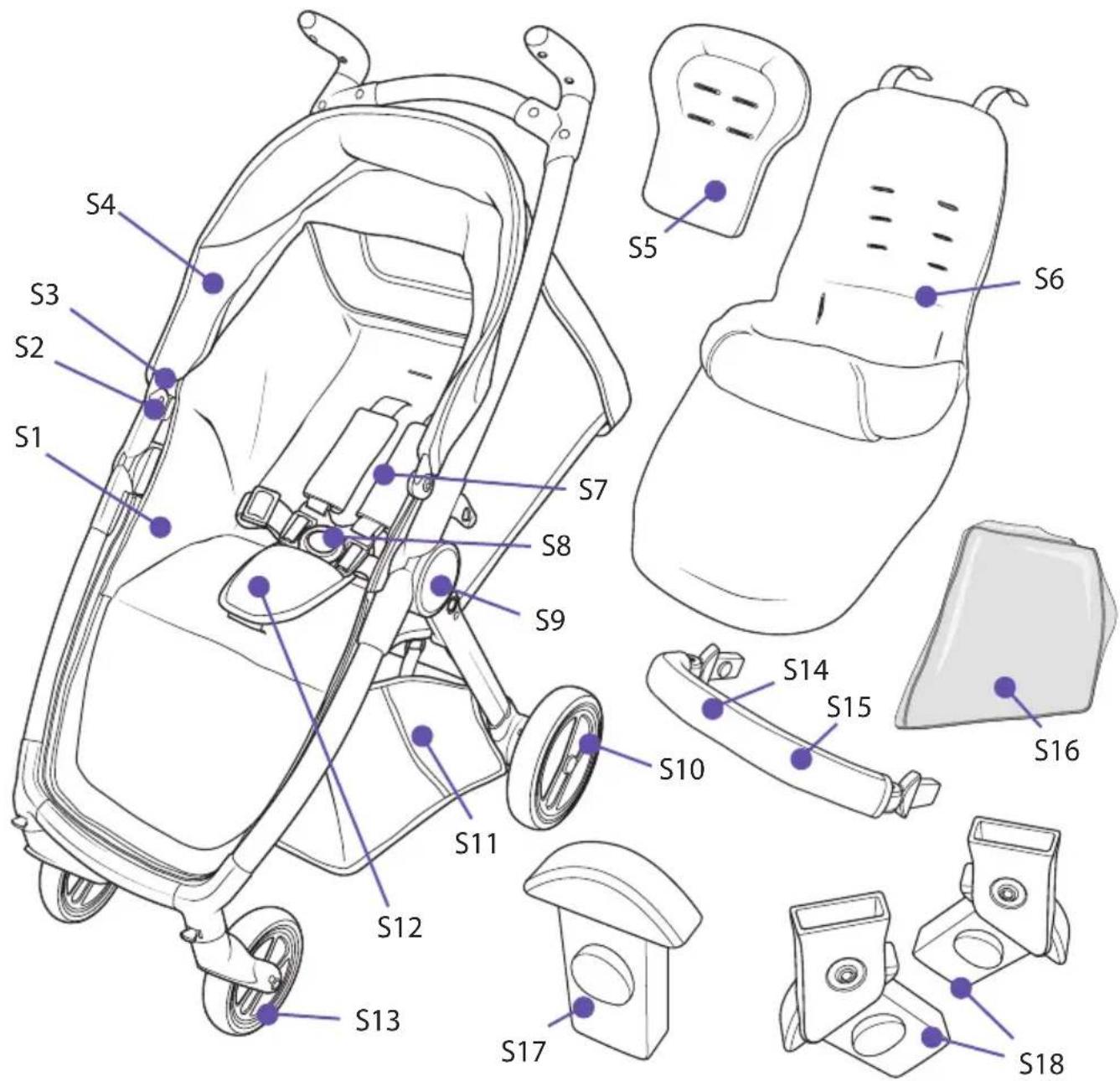

S1: Seat Cover

S2: Hood bar

S3: Hood clips (Pair)

S4: Hood fabric

S5: Headhugger

S6: Footmuff

S7: Chest pads (pair)

S8: Harness

S9: Hinge cover badge

S10: Rear wheel

S11: Basket

S12: Crotch pad

S13: Front wheel

S14: Bumper bar cover

S15: Bumper bar

S16: Raincover

S17: Bumper bar cap

S18: Car seat adaptors (Pair)

Care & Maintenance:

Your travel system has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.

The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs. Continual impact will cause damage.

If your child wears hard shoes these might damage the soft fabric.

Store your travel system in a dry, safe place.

Storing a damp travel system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.

Do not leave the travel system in sunlight for prolonged periods - some fabrics may fade.

Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times.

Cosatto products are designed to operate with minimum maintenance, however regular lubrication of moving parts will extend the life of your travel system and make opening and folding easier.

Should parts of your travel system become stiff or difficult to operate, apply a light application of a spray lubricant e.g. silicone. Do not use oil or grease.

Wheels are subject to wear and should be replaced if necessary.

Your travel system should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.

Hood may be cleaned by sponging lightly using warm water and a mild detergent.

Refer to the wash care label on soft goods for cleaning instruction.

Plastic and metal parts may be sponged clean with warm water and a mild detergent.

Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

Fitting & Operation information:

Please refer to the following diagrams:

1

Opening

Release the auto lock (1) then pull the handles upwards (2) until the front legs fold forwards (3).

Press down on the handles (4) until the chassis locks (5).

Front wheel

2

Fitting

3

Removing

Rear wheel

4

Fitting

5

Removing

Brake

6

Applying

The indicator will turn red.

7

Releasing

The indicator will turn green.

Front wheel swivel lock

8

Applying

9

Releasing

Harness

10

Opening

11

Closing

12

Adjusting the strap length

Slide the strap adjustor to suitable length (1, 2 & 3).

13

Adjusting the shoulder strap position

14

Removing

Push shoulder strap retainer through backrest (1).

Push crotch strap retainer through seat (2).

Rotate "C" clip to expose its opening (3) and slide waist strap out of clip (4).

Refitting is a reversal of this procedure.

Bumper bar cap

15

Removing

Bumper bar

16

Fitting

17

Opening/Removing

Calf support

18

Opening

Closing is the reversal of this procedure.

Hood

19

Opening

Closing is the reversal of this procedure.

20

Using the sun visor

21

Using the viewing window flap

22

Removing

Separate the back of the hood away from the backrest (1).

Unfasten straps on chassis (2).

Unfasten zip unit on the side of the hood (3).

Release the hood brackets from the chassis mounts (4).

23

Removing fabric

Backrest recline

24

Lowering

25

Raising

Adjusting handle position

26

There are 5 handle positions on each side.

Fitting of softgoods

27

Open the harness 10 and remove chest pad & crotch pad (1).

Push the harness straps through the footmuff & headhugger (2).

Attach the footmuff fabric fasteners to the rear of the backrest (3).

Refit chest pad & crotch pad then close the harness 11

Basket

28

Removing

Raincover

29

Fitting

Place the raincover over the travel system as shown.

Attach the fabric fasteners at the rear of the raincover (1).

Fasten the retaining straps around the chassis at the front (2).

Pushchair

30

Closing

Ensure backrest is in the reclined position 24.

Press the releasing buttons on both sides of the hinge (1) (2).

Grasp the releasing strap at the centre of the seat (3) and pull upwards (4).

Release the releasing strap and close the chassis together until the auto lock engages (5).

Car seat mode

31

NOTE: The child car seat should only be fitted rearward facing.

Child car seat adaptor

32

Fitting

33

Removing

Child car seat

34

Fitting

35

Removing

Press the release button on the left hand side car seat mount (1). The button will stay depressed.

Press and hold the release button on the right hand side car seat mount (2).

Lift the child car seat off the chassis (3).

Raincover

36

Fitting

Place the raincover over the travel system as shown.

Unfasten zip unit (1).

Attach the fabric fasteners at the rear of the raincover (2).

Fasten the retaining straps around the chassis at the front (3).

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/stockists
