Schritt 1

Diagram showing a monitor setup with labeled components and viewing angles, including a 30° angle indicator.

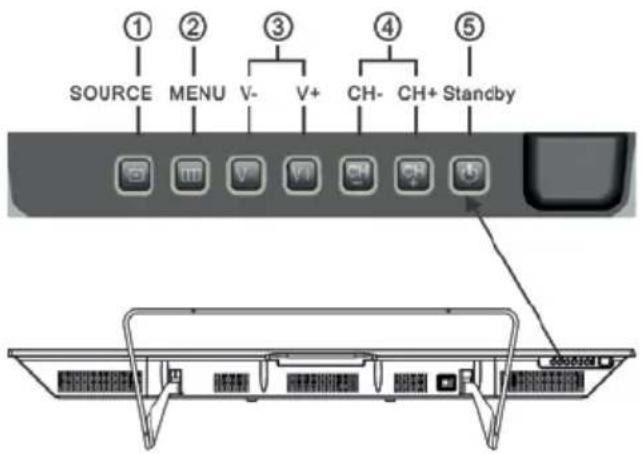

Tastatur

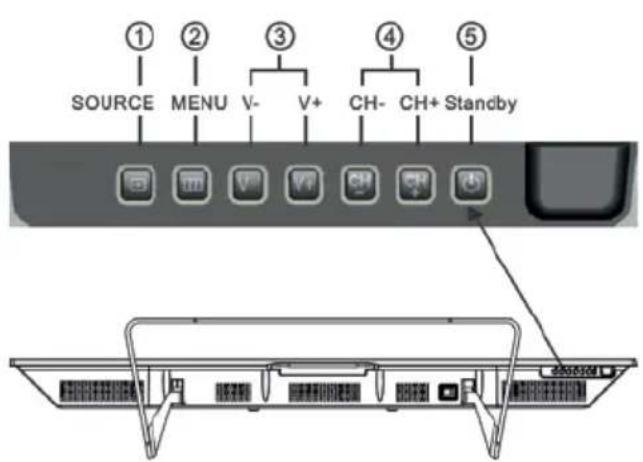

① SOURCE MENU V- V+ CH- CH+ Standby

KM0224

① SOURCE MENU V- V+ CH- CH+ Standby 20020241

KM0232

1. QUELLE

Please select an OSD language English French Portuguese Russian Romanian Deutsch Italiano Polski Czech Slovene Spanish Gre,Nederlands Magyar OK

◄ Tune Type DTV+ATV ► Portugal Serbian Sweden ◄ Rumania Slovenia Switzerland Russian Spain UK ► MENU OK

◄ Tune Type DTV+ATV ► Portugal Serbian Sweden ◄ Rumania Slovenia Switzerland Russian Spain UK ► MENU OK

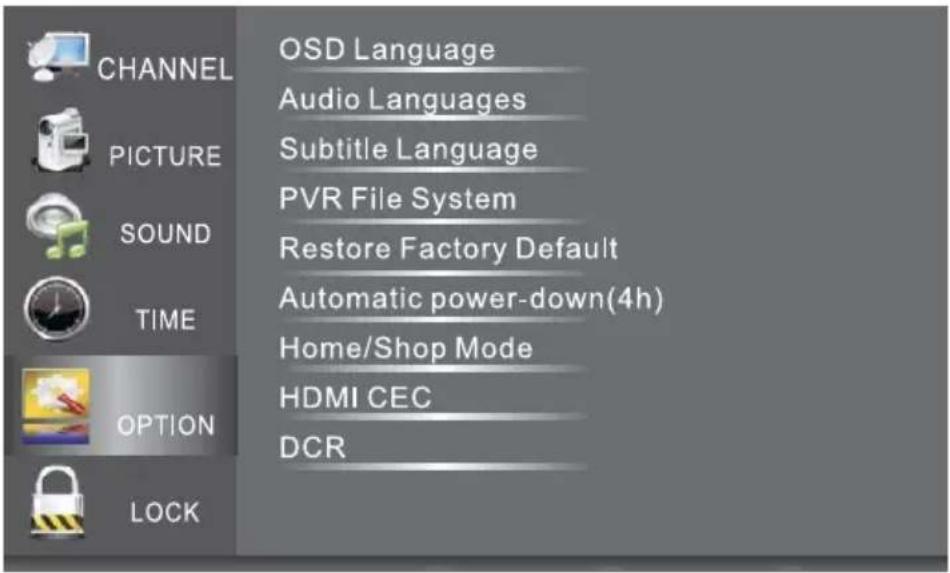

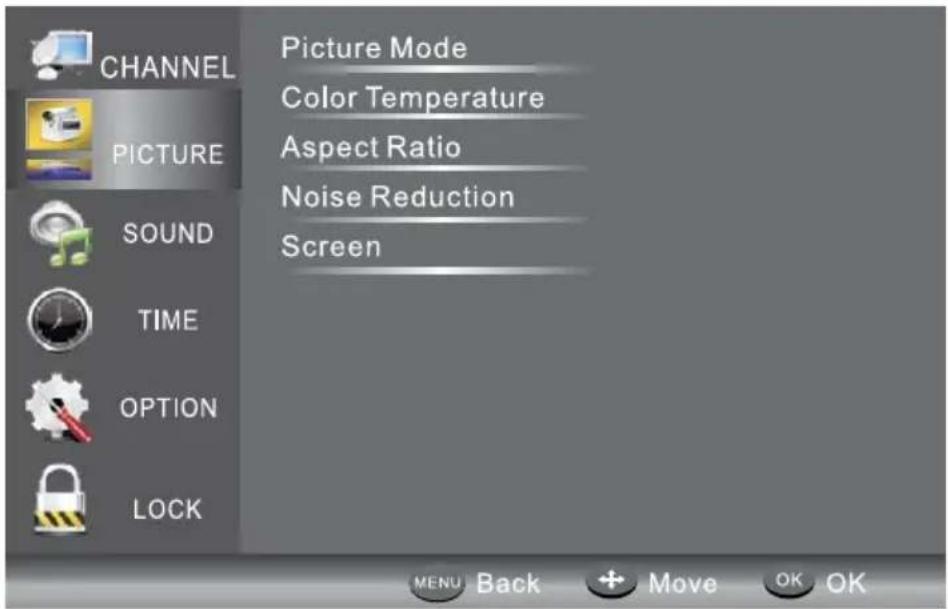

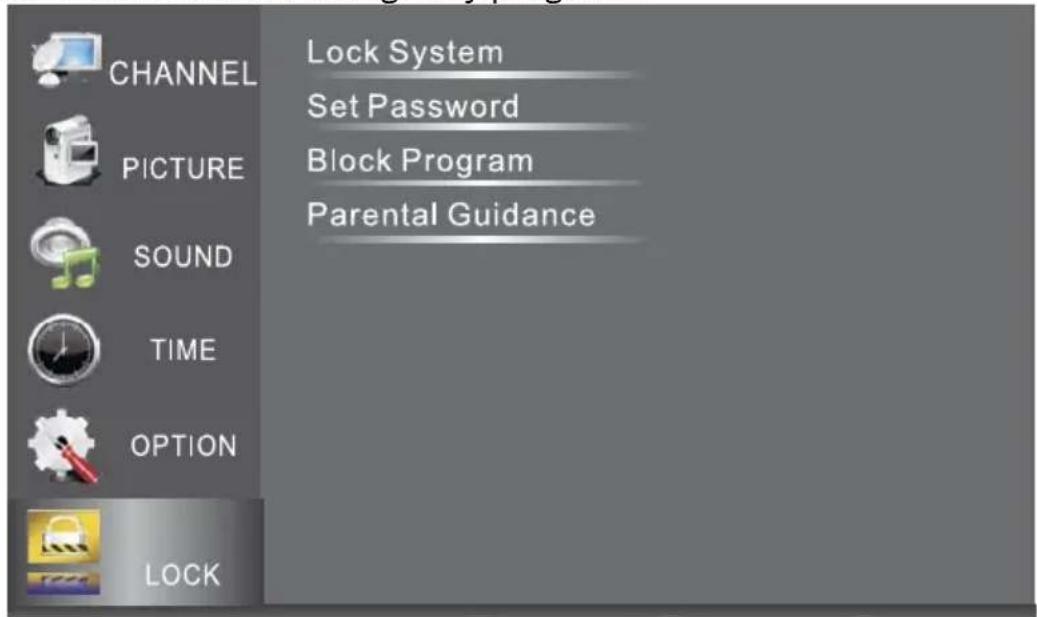

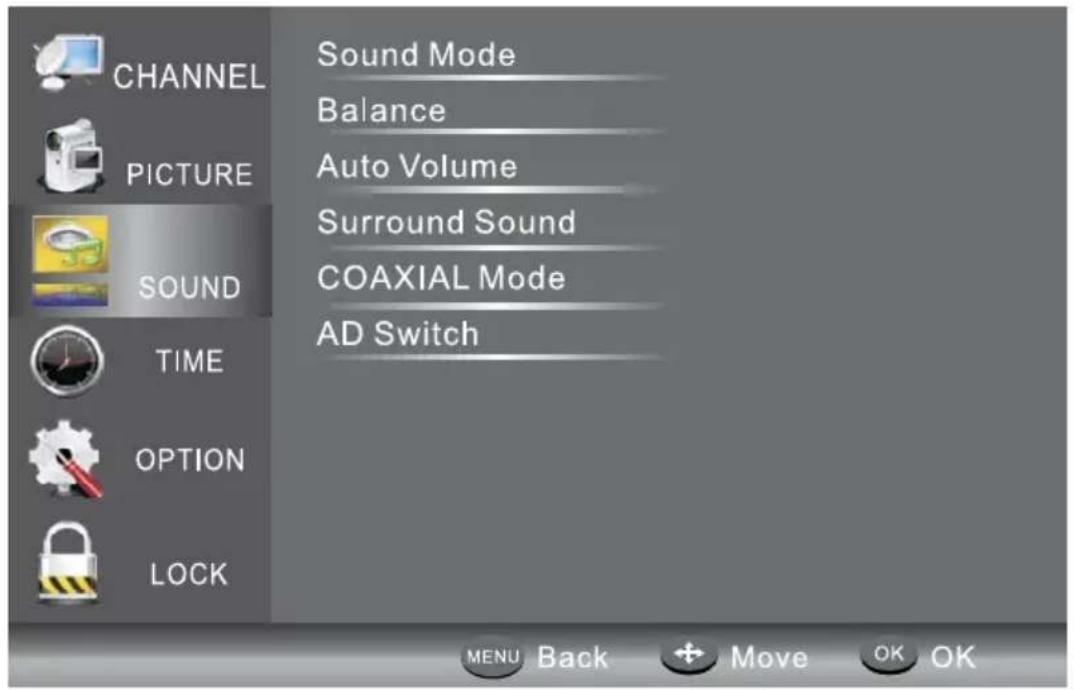

CHANNEL PICTURE SOUND TIME OPTION LOCK Lock System Set Password Block Program Parental Guidance

HINWEIS:

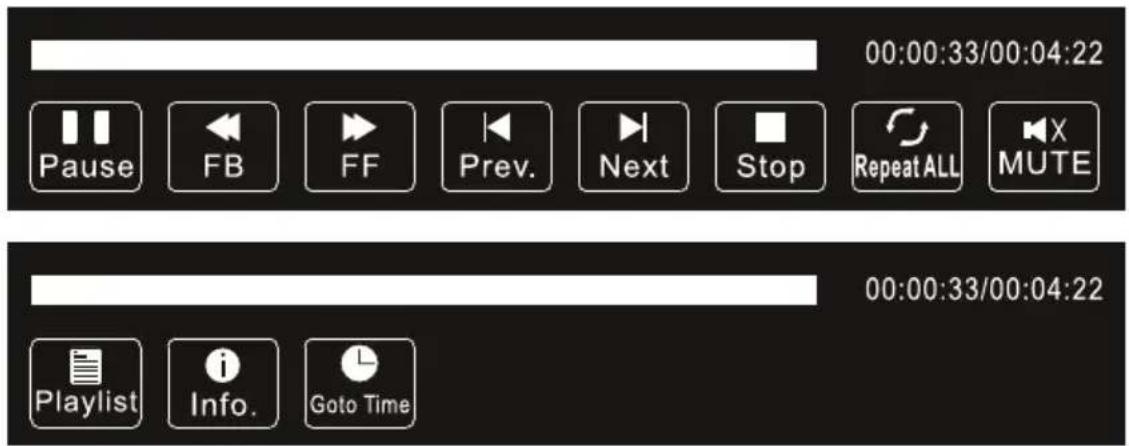

00:00:33/00:04:22 Pause FB FF Prev. Next Stop Repeat ALL MUTE 00:00:33/00:04:22 Playlist Info. Goto Time

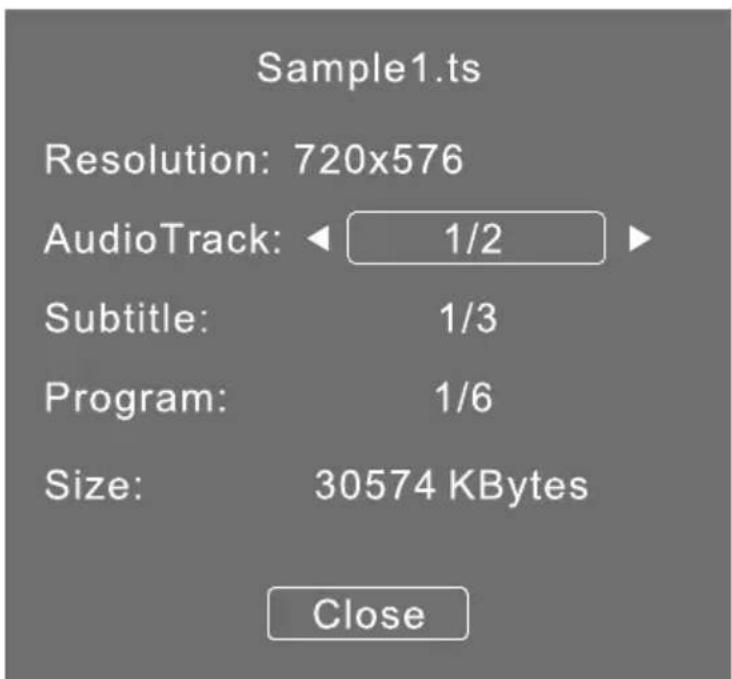

Sample1.ts Resolution: 720x576 AudioTrack: 1/2 Subtitle: 1/3 Program: 1/6 Size: 30574 KBytes Close

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

IMPORTANT SAFETY INSTRUCTION

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, install in accordance with the instructions.
8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lighting storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloth, curtains, etc.
16. No naked flame sources, such as lighted candles, should be placed on the apparatus.
17. Attention should be drawn to the environmental aspects of battery disposal.
18. The use of apparatus in moderate climate.
19. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

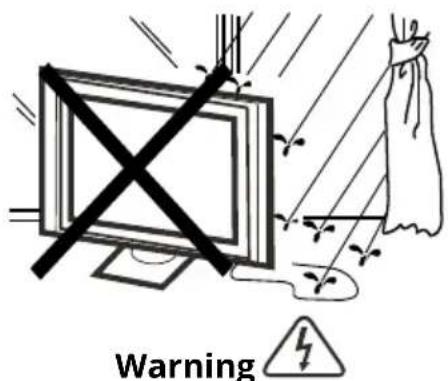

Warning

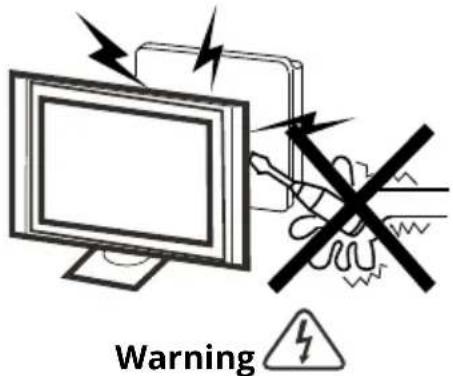

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Caution

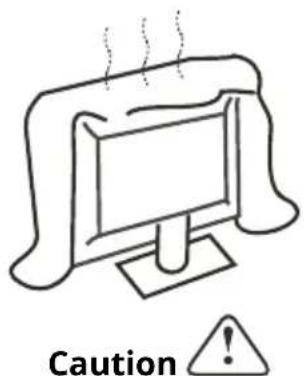

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

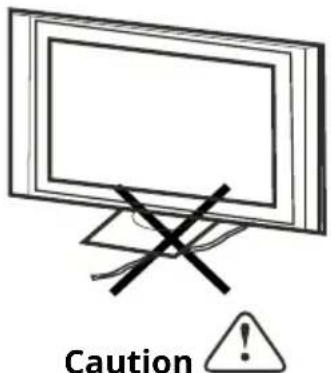

Caution

Do not trap the power supply cord under the television receiver.

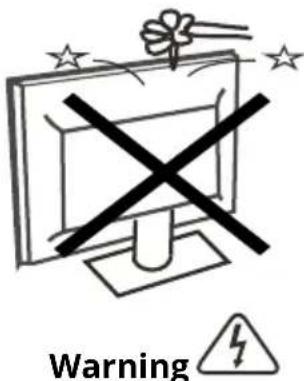

Warning

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

INSTALLATION

* Locate the TV in the room where light does not strike the screen directly.
* Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
* Allow enough space between the TV and the wall to permit ventilation.
* Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
* Do not cover the ventilation openings when using the TV.

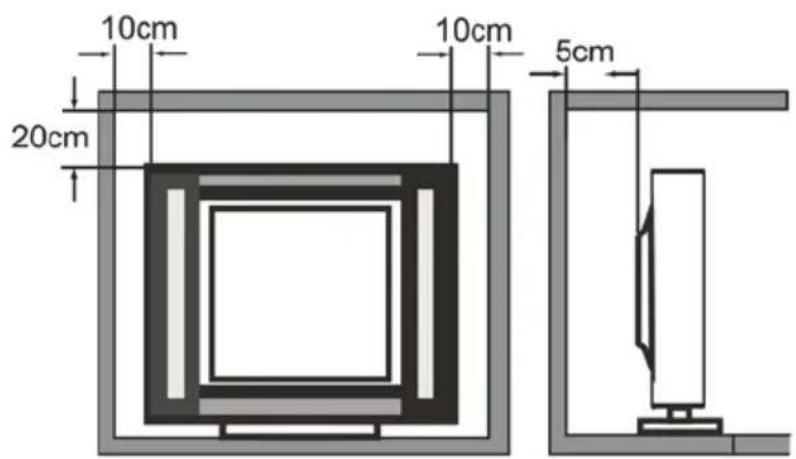

Minimum distances

Z

10cm 20cm 10cm 5cm

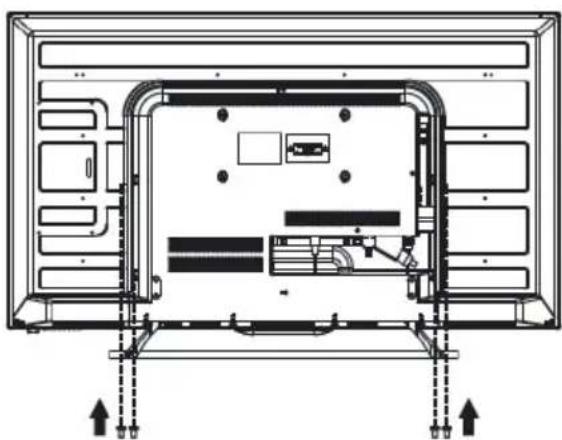

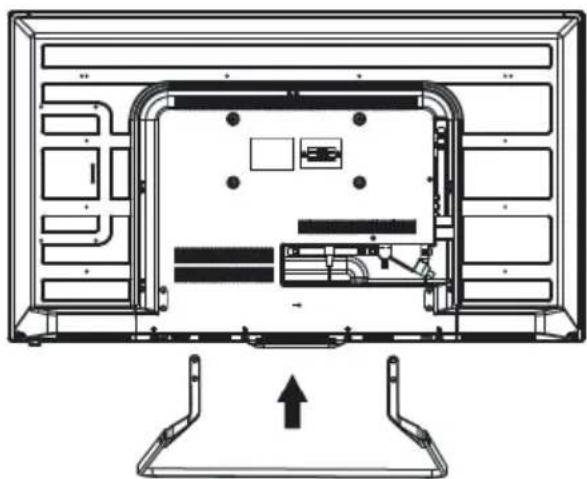

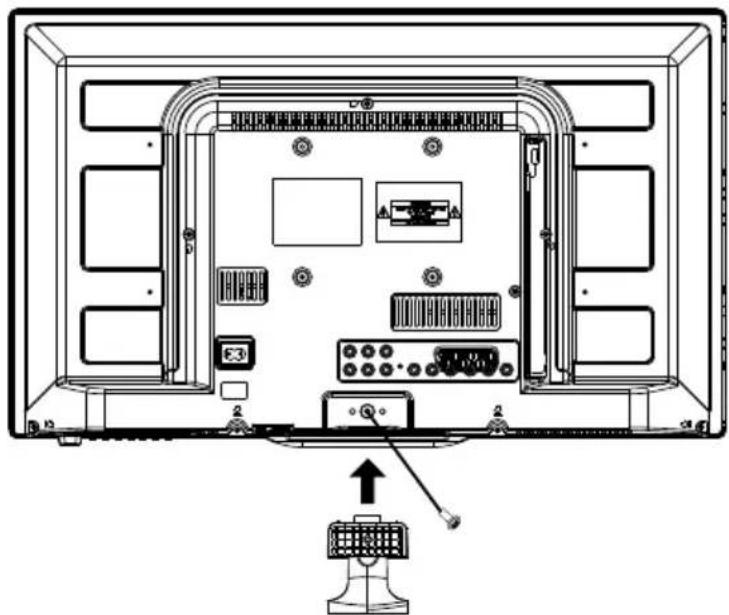

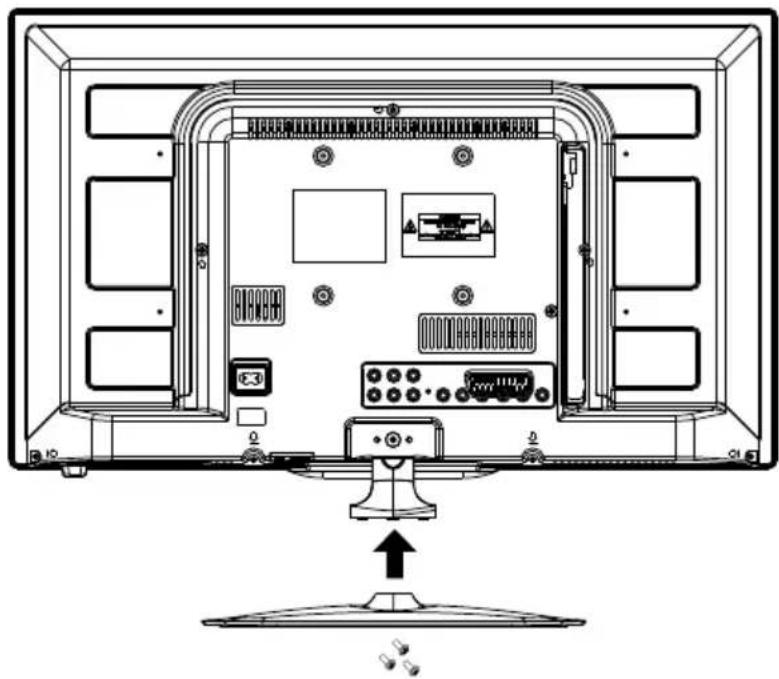

Base stand assembly instruction (KM0224)

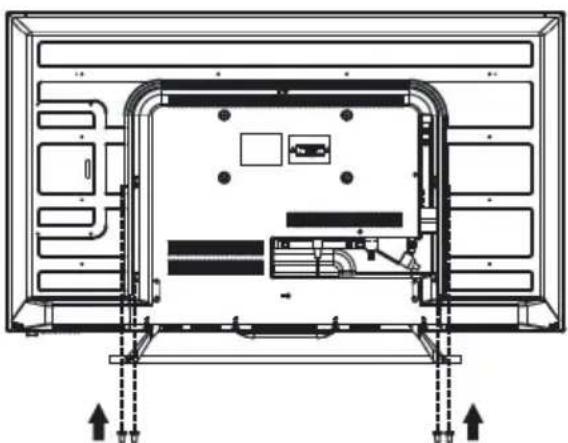

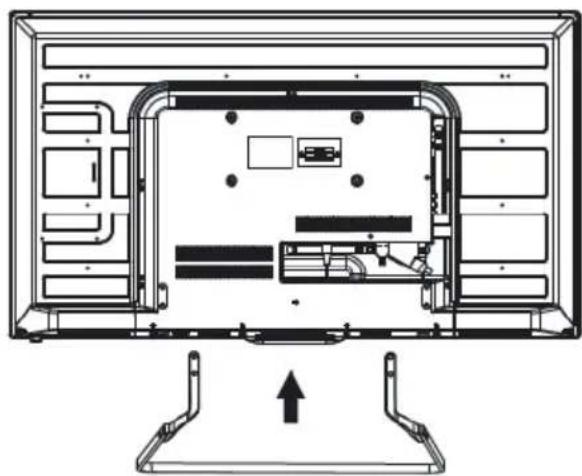

1. Place the TV with the display side down on a flat surface. Use a cloth to protect. Locate the bottom at the stand.

Technical line drawing of an internal TV rear panel with connectors and a connector pin (no text or symbols)

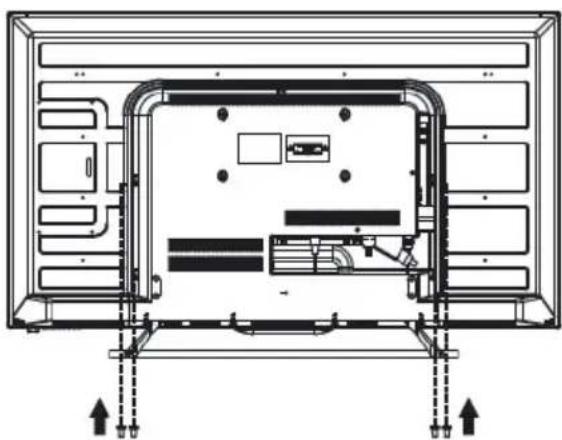

1. Fix the bottom with turning the screw tightly on the stand.

Diagram of an open rear monitor rear panel showing internal components and a base mount (no text or labels)

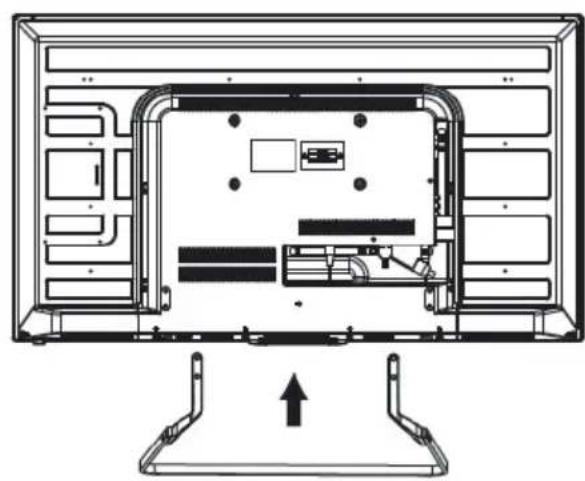

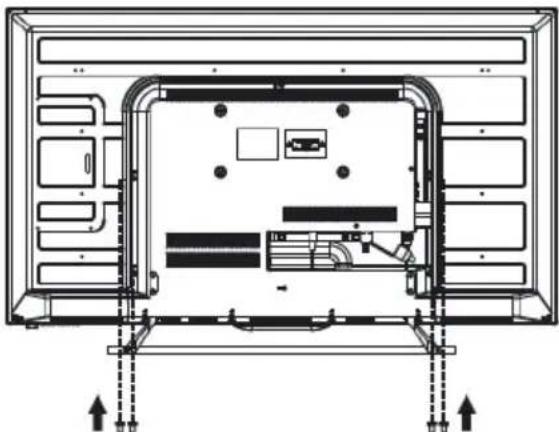

Base stand assembly instruction (KM0232)

When you install the base, the need to face down flat on the TV platform. Before installing (or removing) the stand, unplug the AC power cord from the AC outlet before performing the operation, laying cushion in place the TV will be placed to prevent damage to the TV.

Technical line drawing of a mechanical bracket assembly with two metal brackets and a base plate (no text or symbols)

Diagram of an open computer monitor showing internal layout and ventilation slots (no text or labels)

Z

Technical line drawing of a front view of a computer monitor with internal components and ventilation ducts (no text or symbols)

Step 1

1. Flat base, the base will be one of the pillars placed in the end seat, make sure the screw holes on the base and the base of the pillars aligned.
2. Let screws into the base of the hole and tighten the screw.
3. In the same way to install another base pillars.

Note: Please use standard screws packaging operation.

Step 2

1. Install the screw holes on the back of the base and the base pillars aligned television reserved.

Step 3

1. Let the four screws into the screw holes and tighten the back of the TV.

Note: Please use standard screws packaging operation.

Warning: Be sure to follow the instructions for installation, if the base is not installed correctly, it may result in the TV falling over. To remove the stand, perform the steps in reverse order, the base can not adjust the angle. During the installation process, being careful to avoid damage to the TV and your hand caught and ground to the bottom of the TV.

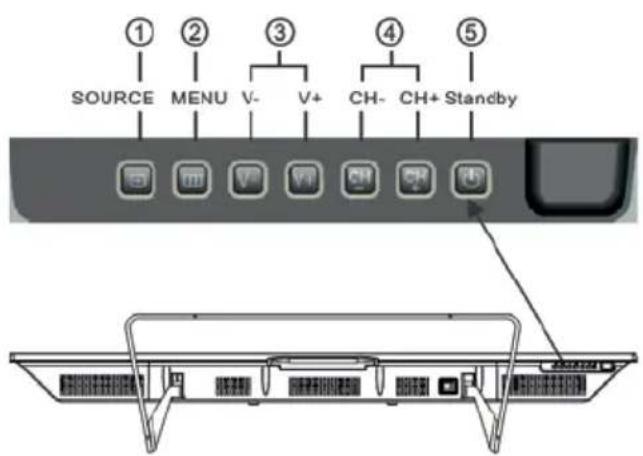

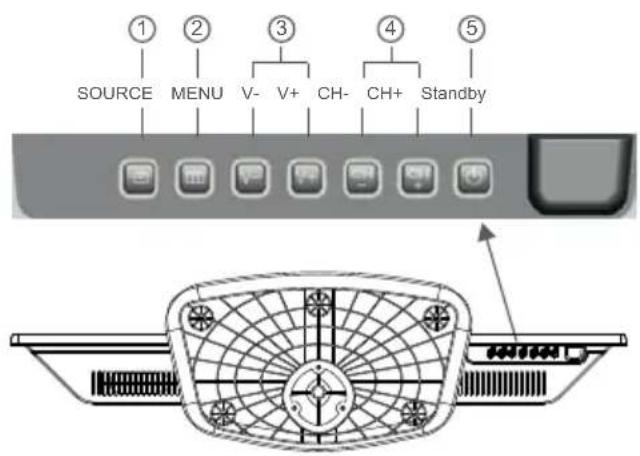

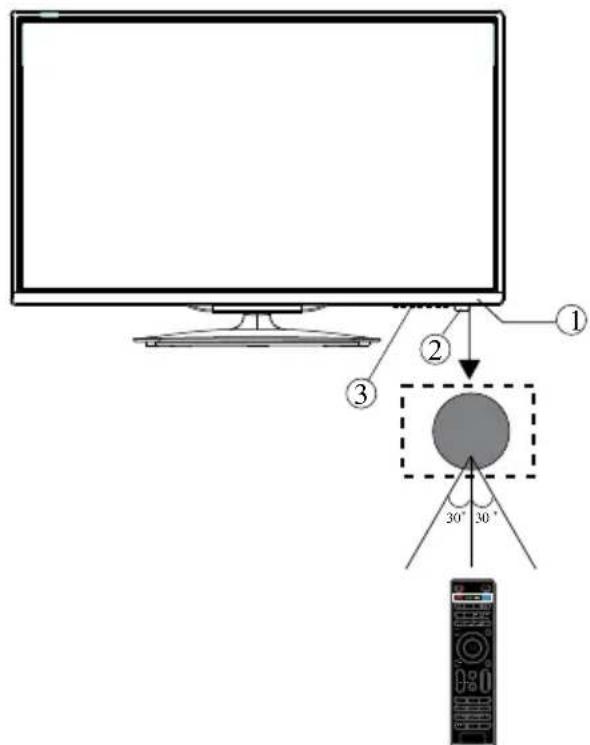

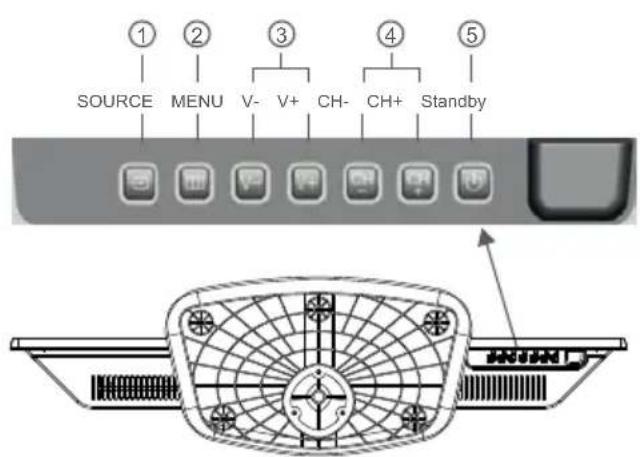

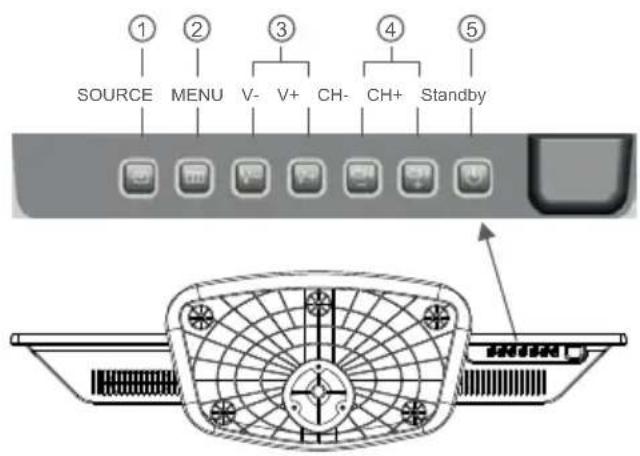

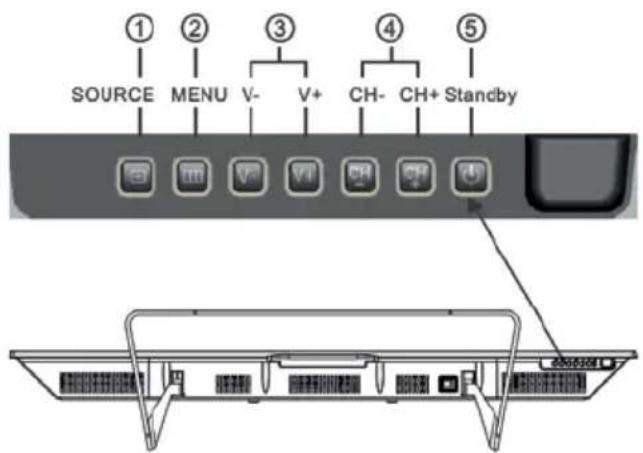

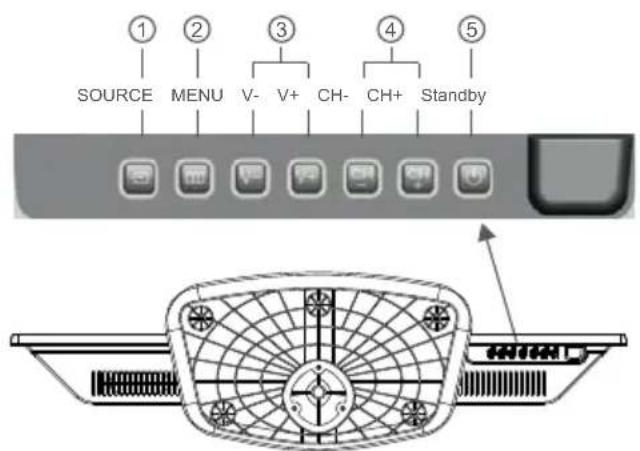

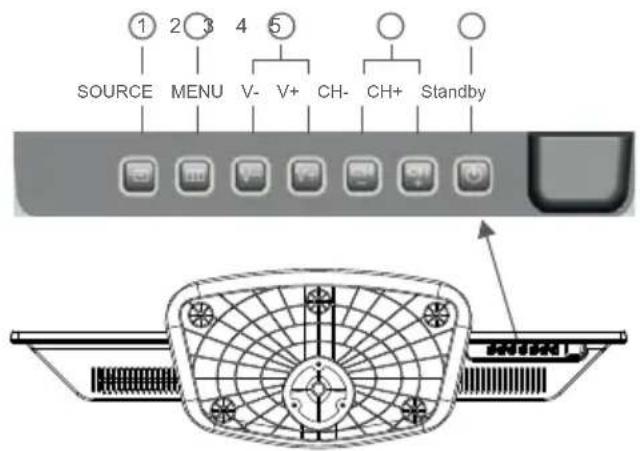

Front panel

1: Remote control sensor
2: Indicator LED
- Red - standby
3: Buttons

Diagram showing a monitor setup with labeled components and viewing angles, including a 30° angle indicator.

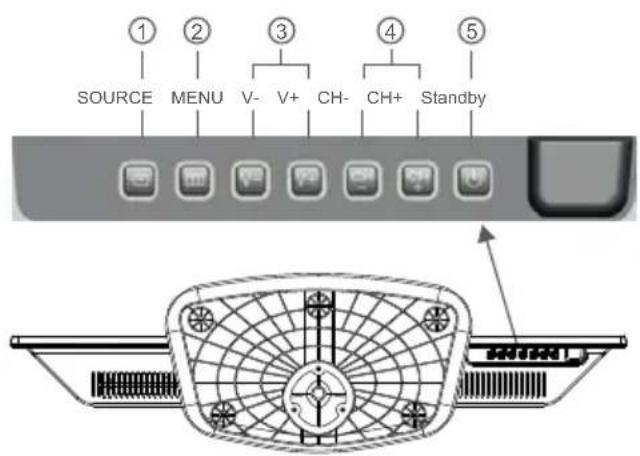

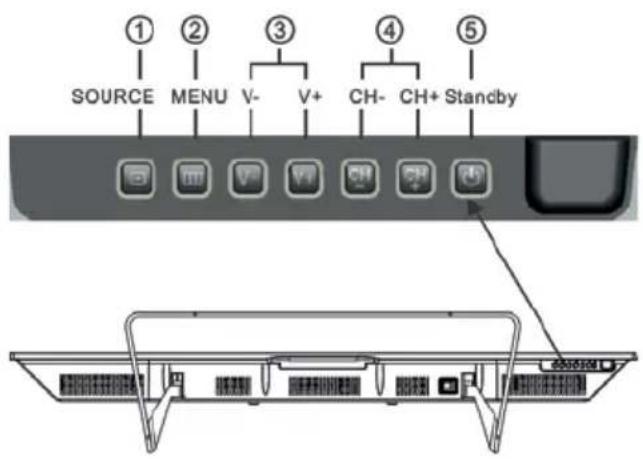

Keyboard

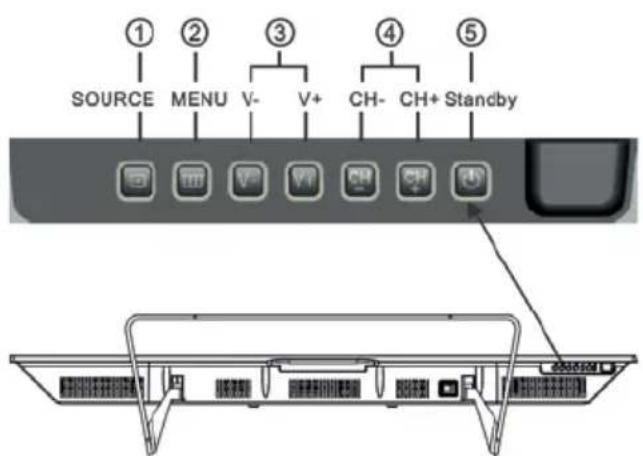

① SOURCE MENU V- V+ CH- CH+ Standby

KM0224

① SOURCE MENU V- V+ CH- CH+ Standby ② ③ ④ ⑤

KM0232

1. SOURCE

Display the input source menu. In MENU mode, press "SOURCE" to confirm the selected item.

2. MENU

Display main MENU.

3. VOL+/VOL-

Adjust sound level.

In MENU mode, press "VOL+" or "VOL-" to adjust the item that you selected.

4. CH+/CH-

In TV mode, press "CH-" or "CH+" to change the channel up and down. In MENU mode, press "CH-" or "CH+" to select items.

5. STANDBY

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.

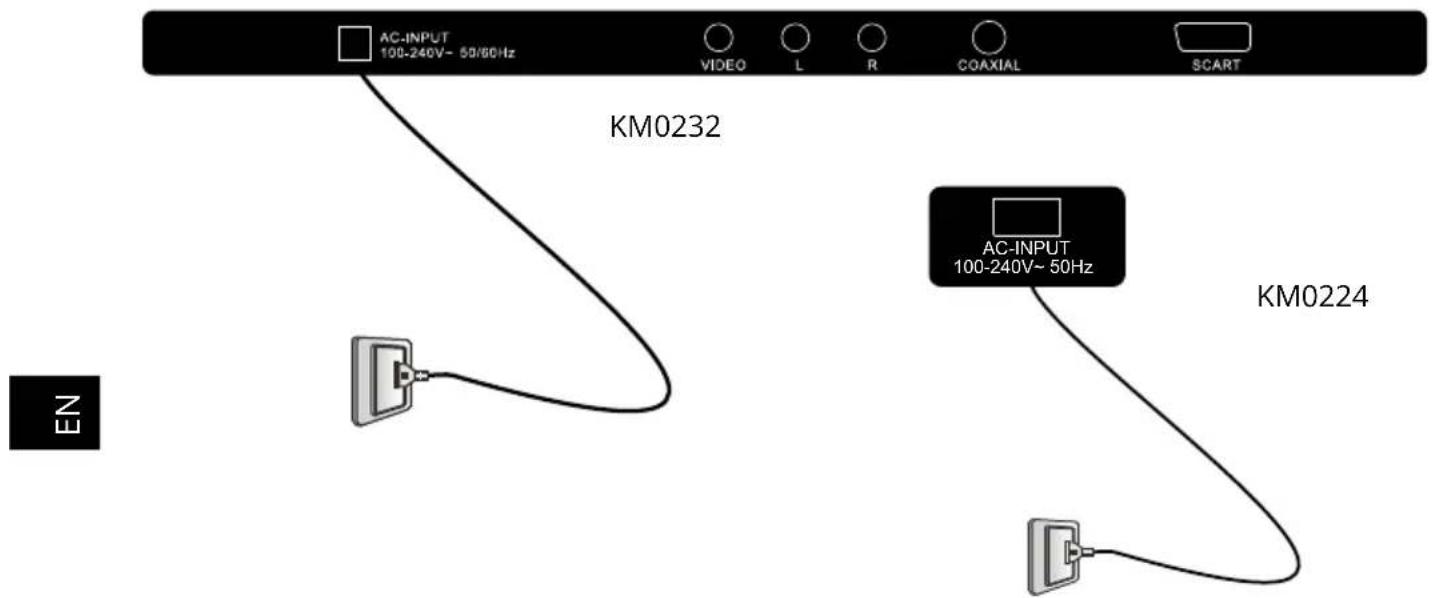

Rear AV connections (KM0224)

AC-INPUT 100-240V~ 50Hz

VIDEO L R COAXIAL SCART

Terminals from left to right: AC power socket, VIDEO, AUDIO inputs, Coaxial output, SCART.

Side AV connections (KM0224)

USB HDMI2 VGA COMMON INTER FACE (CII) HDMI1 HEADPHONE YPbPr PC AUDIO RF

Terminals from left to right: USB, HDMI2, VGA, HDMI1, headphone, CI, YpbPr input, PC audio, RF.

Note: Insert the plug of the earphone into the earphone jack on the unit HEADPHONE. The speakers are now muted.

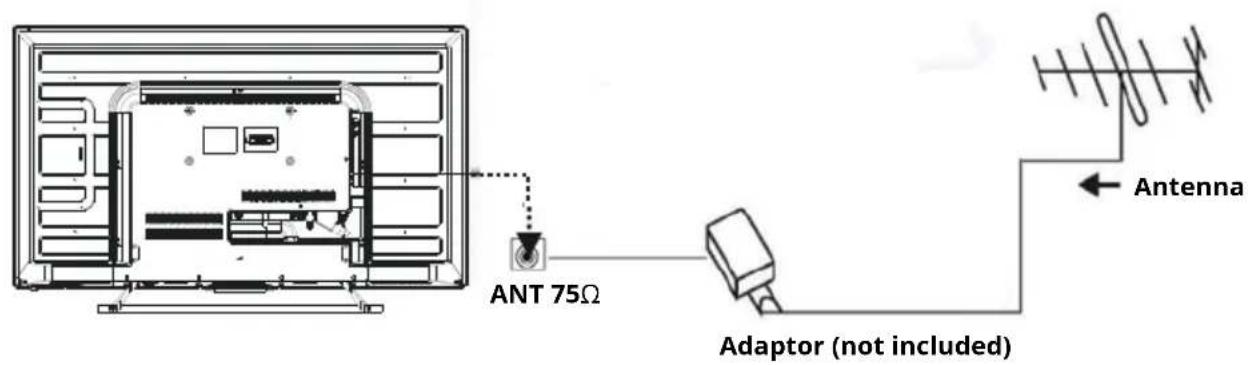

Antenna

Z

ANT 75Ω Adaptor (not included) Antenna

Rear AV connections (KM0232)

AC-INPUT 100-240V\~50/60Hz

Terminals from left to right: AC power socket, VIDEO, AUDIO inputs, Coaxial output, SCART.

Side AV connections (KM0232)

USB HDMI2 VGA COMMON INTERFACE (CI) HDMI1 HEADPHONE YPbPr PC AUDIO RF

Terminals from left to right: USB, HDMI2, VGA, HDMI1, headphone, CI, YpbPr input, PC audio, RF.

Note: Insert the plug of the earphone into the earphone jack on the unit HEADPHONE. The speakers are now muted.

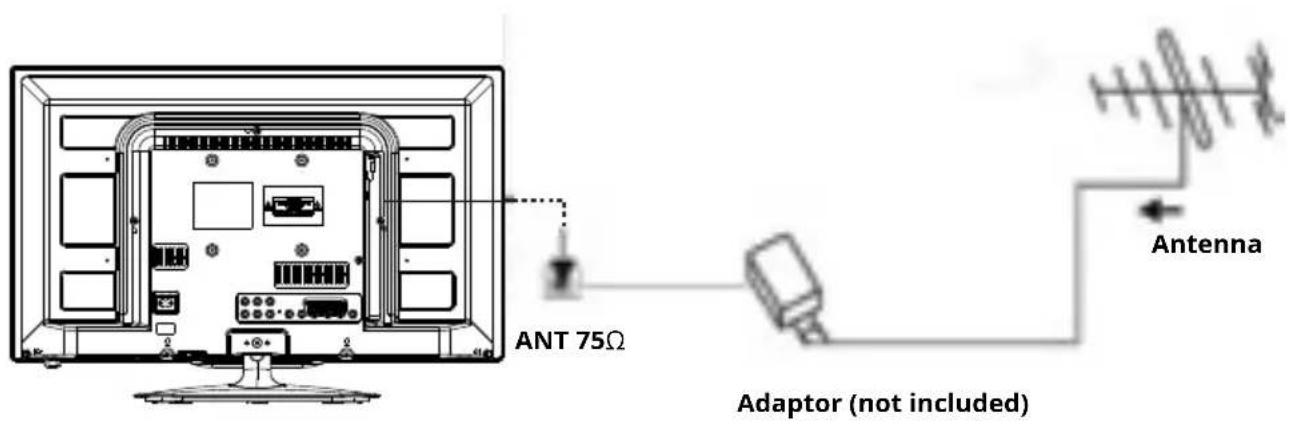

Antenna

ANT 75Ω Adaptor (not included) Antenna

Z

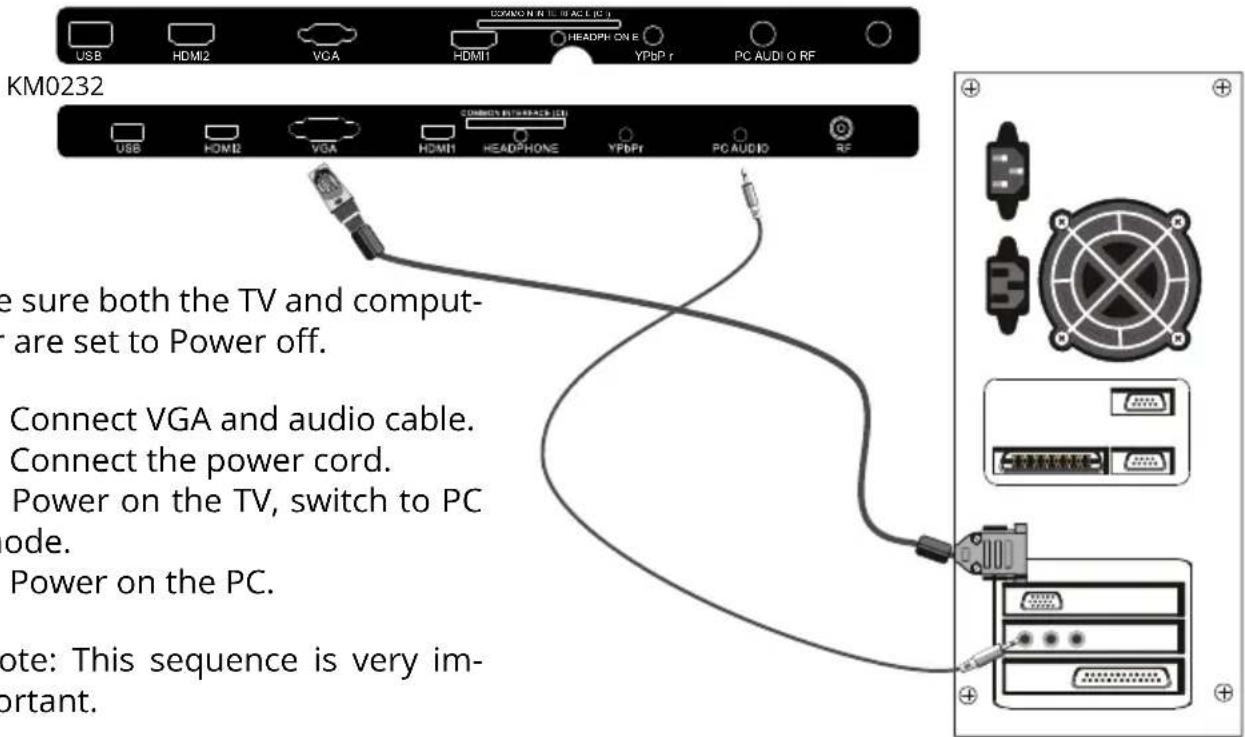

PC
KM0224

KM0232 USB HDMI2 VGA HDMI1 HEADPH ON E YPbPr PC AUDIO RF USB HDMI2 VGA HDMI1 HEADPHONE YPbPr PC AUDIO RF We sure both the TV and comput- are set to Power off. Connect VGA and audio cable. Connect the power cord. Power on the TV, switch to PC ode. Power on the PC. Note: This sequence is very im- ortant.

AC-INPUT 100-240V~ 50/60Hz VIDEO L R COAXIAL SCART KM0232 AC-INPUT 100-240V~ 50Hz KM0224 EN

Resolution V.Freq.(Hz) H.Freq.(Hz)
800*600 60 37.88
640*480 60 31.47
1024*768 60 48.36
1280*1024 60 63.98
1366*768 60 47.7

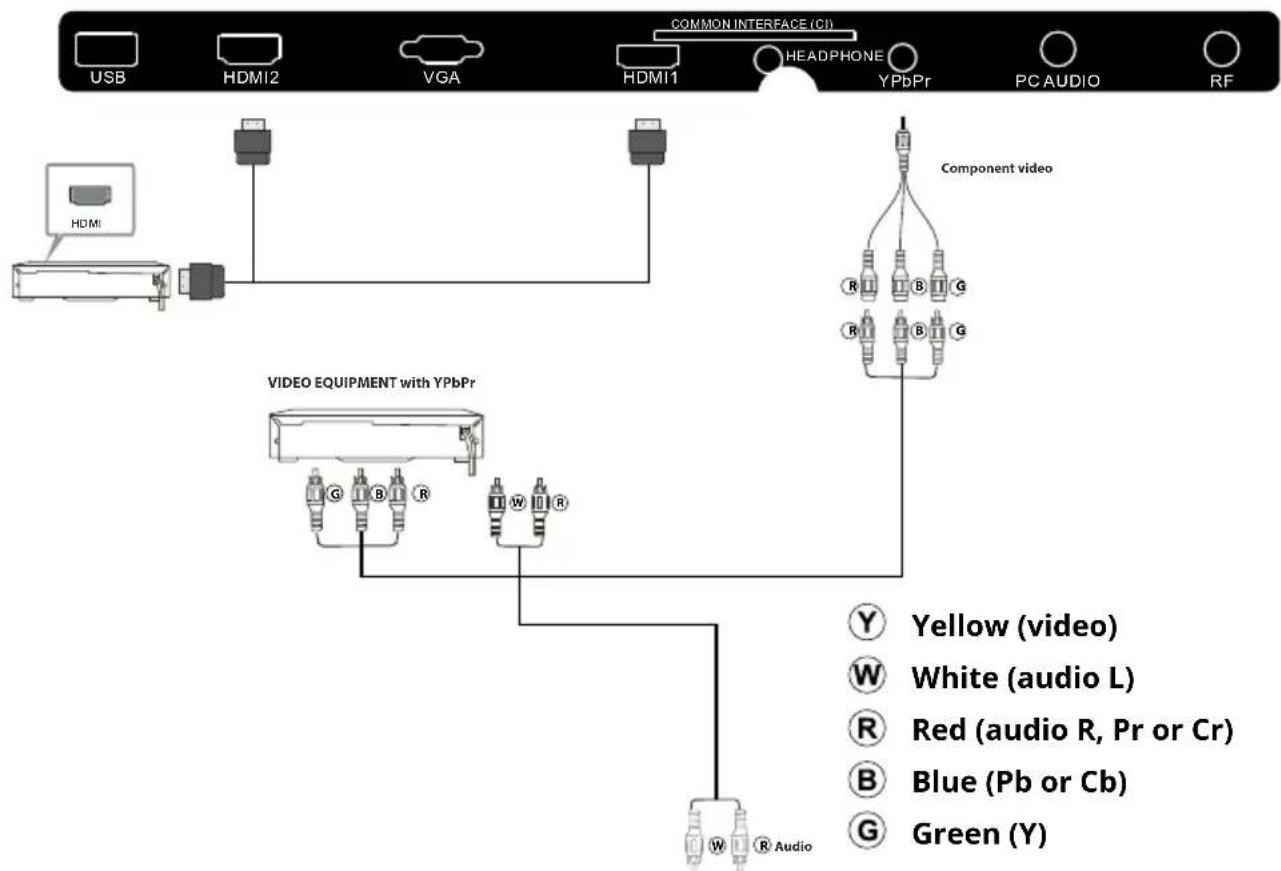

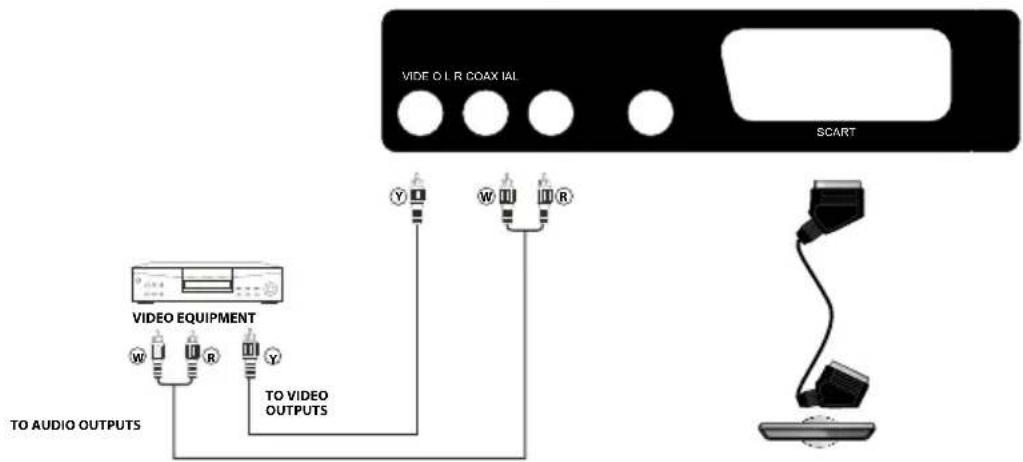

AV equipment (KM0224)

This TV provides one group of AV one group of YPbPr and one SCART for convenient connection to VCR, DVD or other video equipment. Please refer to the owners manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.

VIDEO O L R COAXIAL SCART VIDEO EQUIPMENT W R Y TO AUDIO OUTPUTS TO VIDEO OUTPUTS

It can be connected to the following appliances: VCR, multi disc player, DVD, cam-corder, video game or stereo system, etc .....

YPbPr can support these video formats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.

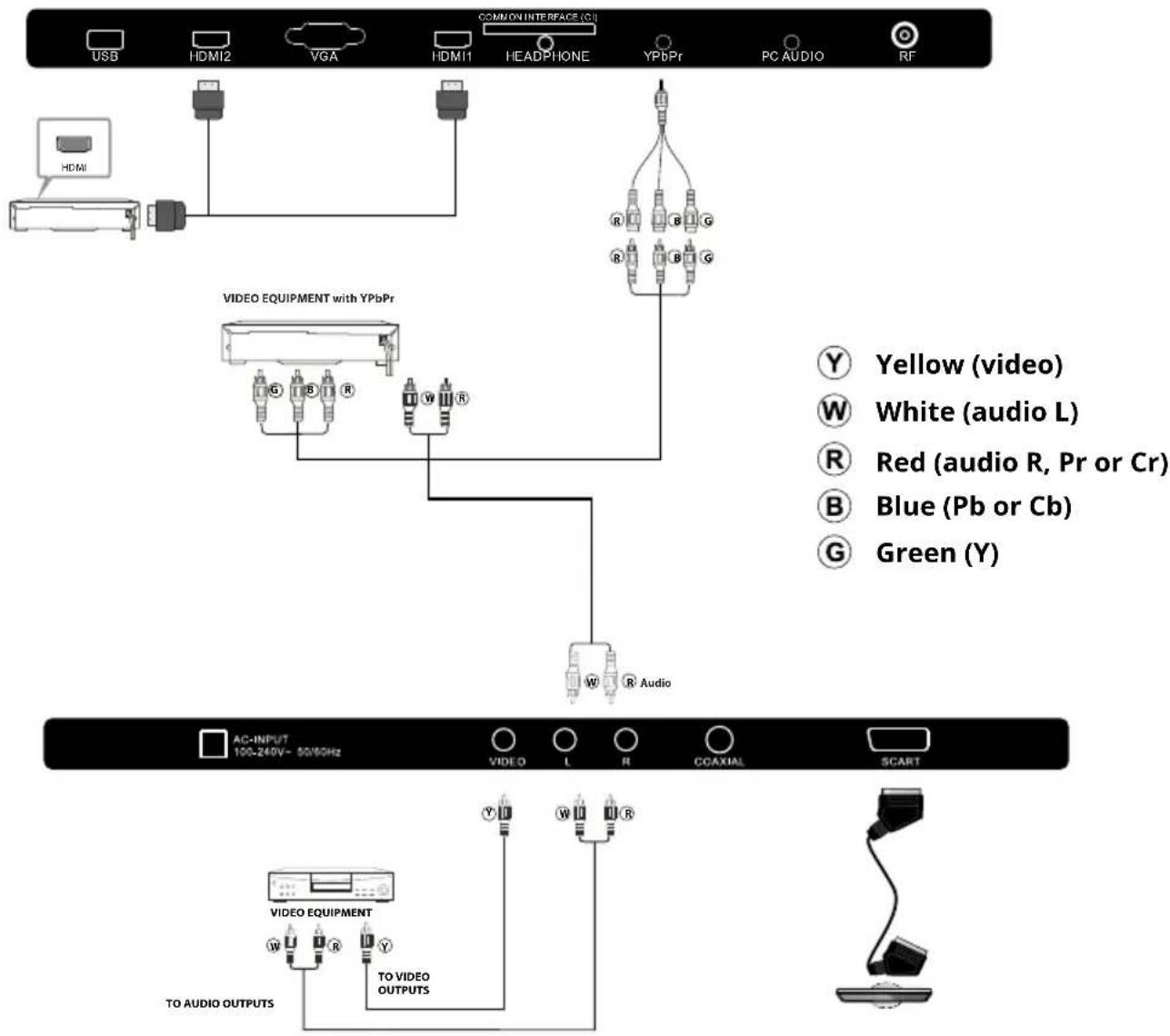

AV equipment (KM0232)

This TV provides one group of AV one group of YPbPr and one SCART for convenient connection to VCR, DVD or other video equipment. Please refer to the owners manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.

COMMON INTERFACE (S) USB HDMI2 VGA HDMI1 HEADPHONE YPbPr PC AUDIO RF HDMI VIDEO EQUIPMENT with YPbPr R G R B G R B G W R Audio Y Yellow (video) W White (audio L) R Red (audio R, Pr or Cr) B Blue (Pb or Cb) G Green (Y) AC-INPUT 100-240V~ 50/60Hz VIDEO L R COAXIAL SCART VIDEO EQUIPMENT W R Y TO AUDIO OUTPUTS TO VIDEO OUTPUTS

It can be connected to the following appliances: VCR, multi disc player, DVD, cam-corder, video game or stereo system, etc .....

YPbPr can support these video formats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.

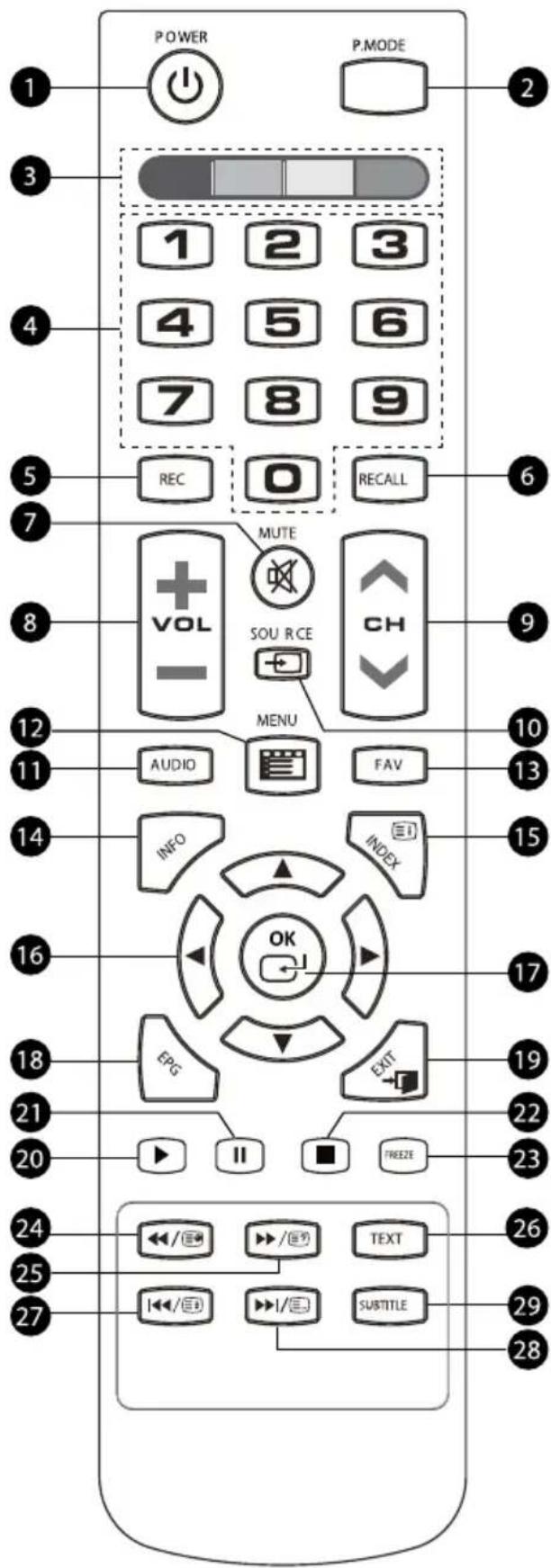

REMOTE CONTROL

POWER P.MODE 1 2 3 4 5 6 7 8 9 REC 0 RECALL MUTE VOL SOU RCE CH MENU AUDIO FAV INFO INDEX OK EPG EXIT FREEZE 22 23 24 // TEXT 25 /// SUBTITLE 26 27

1. Switch the TV between on and standby mode.

2. P.MODE: Select picture mode: ECO / Standard / Mild / Vivid / User.

3. COLOUR BUTTONS: The colour buttons are used to select tasks in specific menus.

4. Number button: Use these keys to input information into the menus or TV features.

5. REC: Press to record TV when watching DTV (to record a program a suitable USB device will need to be fitted to the TV).

6. RECALL: In DTV mode press to jump to the last channel viewed.

7. MUTE: Press to turn the sound on and off.

8. VOL + -: Press to adjust the level of the TV's sound.

9. CH + -: Press to access the next or previous channel.

10. (SOURCE): Press to display and select the available video sources.

11. AUDIO: Use to select the available audio language for DTV programs.

12. MENU: Press to access the TVs on screen menus.

13. FAV: Press to access your favourite channels list in TV or DTV mode.

14. INFO: Press when watching TV to view programme information.

15. (INDEX): Press in TELETEXT mode to access the index.

16. Press to navigate through the menus on the TV.

17. OK: Press to confirm on screen selection.

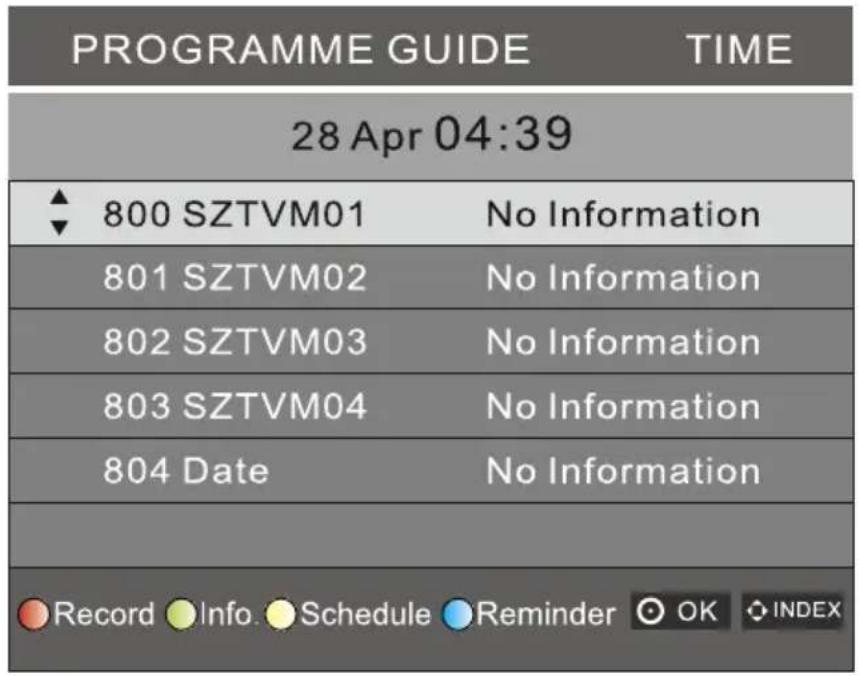

18. EPG: Press to access the electronic programme guide when watching digital TV.

19. EXIT: Press to return to previous page in a menu or to exit the menus.

20. ▶ Press in USB mode to begin or continue playback.

21. ▪ Press in USB mode to pause playback.

22. ■Press to stop playback.

23. FREEZE: Press to freeze the picture you are watching.

24. In ESB mode, use as rewind button. In TELETEXT modeb used as subpage button.

25. ▶USB mode, use as fast forwards button. In TELETEXT mode used as reveal button.

26. TEXT: Press to access TELETEXT.

27. In USB mode, use as previous button. In TELETEXT mode used as hold button.

28. ▶H/USB mode, use as next button. In TELETEXT mode used as list button.

29. SUBTITLE: Press to access subtitles on digital TV stations.

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.)

Press You will obtain
TEXT	This is used to call or exit teletext modes. The summary appears witha list of items that can be accessed. Each item has a corresponding3 digit page number. If the channel selected does not broadcast teletext, the indication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
SELECTING A PAGE	Enter the number of the page required using the 0 to 9 up/down.Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed.Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEM	Colored are as are displayed at the bottom of the screen. The 4 colored keys are used to access the items or corresponding pages. The colored are as flash when the item or the page is not yet available.
i(INDEX)	This returns to the contents page (usually page 100).
SUB PAGE	Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume subpage acquisition. The indication appears top left.
HOLD	To freeze the page.
? (REVEAL)	To display or hide the concealed information (games solutions).
LIST	The user can set four favorite pages to be directly linked to the four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the color keys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.

INSTALLATION GUIDE

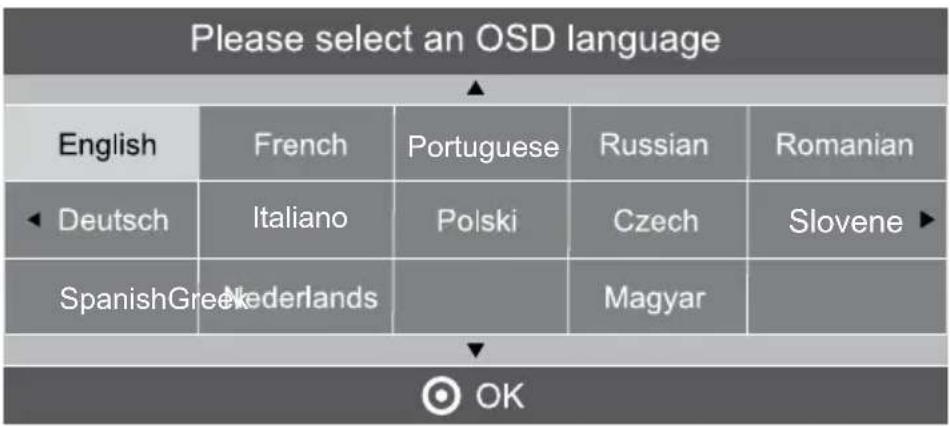

Please select an OSD language English French Portuguese Russian Romanian Deutsch Italiano Polski Czech Slovene Spanish Gre,Nederlands Magyar OK

1). Press the buttons to navigate the menu and change the settings. Press the OK button to confirm.

Select your desired language to be displayed on the menu.

2). Press the buttons to select DVB-T2/DVB-C and then press the OK button to confirm.

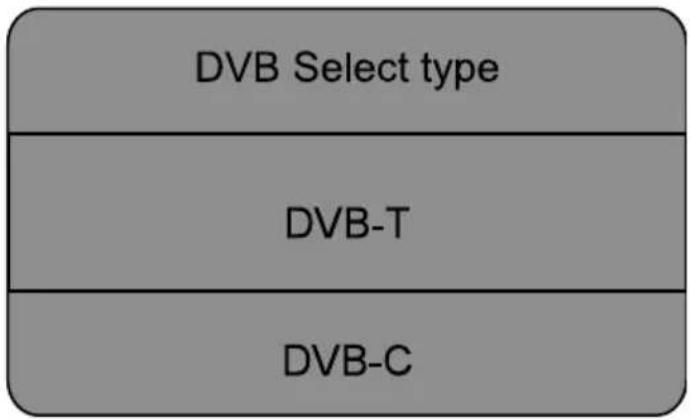


a. If you select DVB-T2 to next step is select the Tune and country the press the OK button to start tuning.

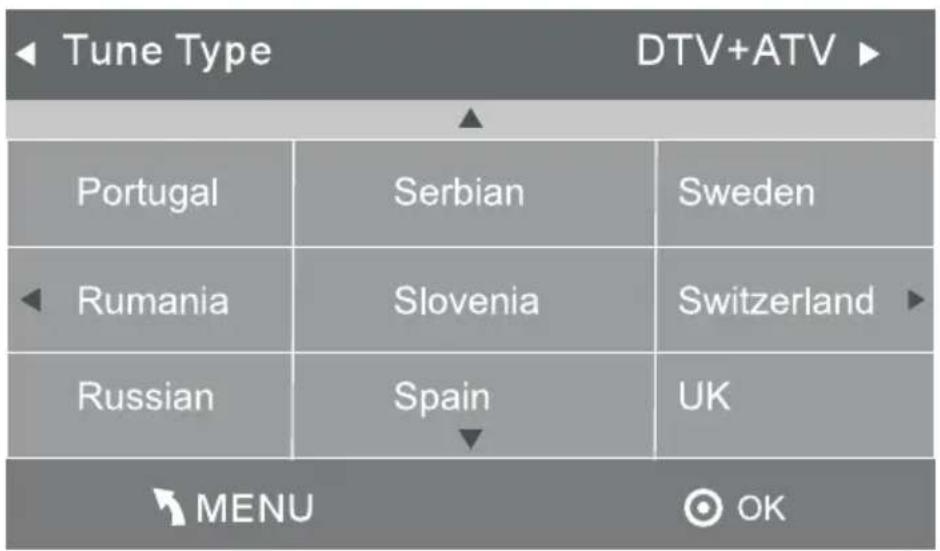

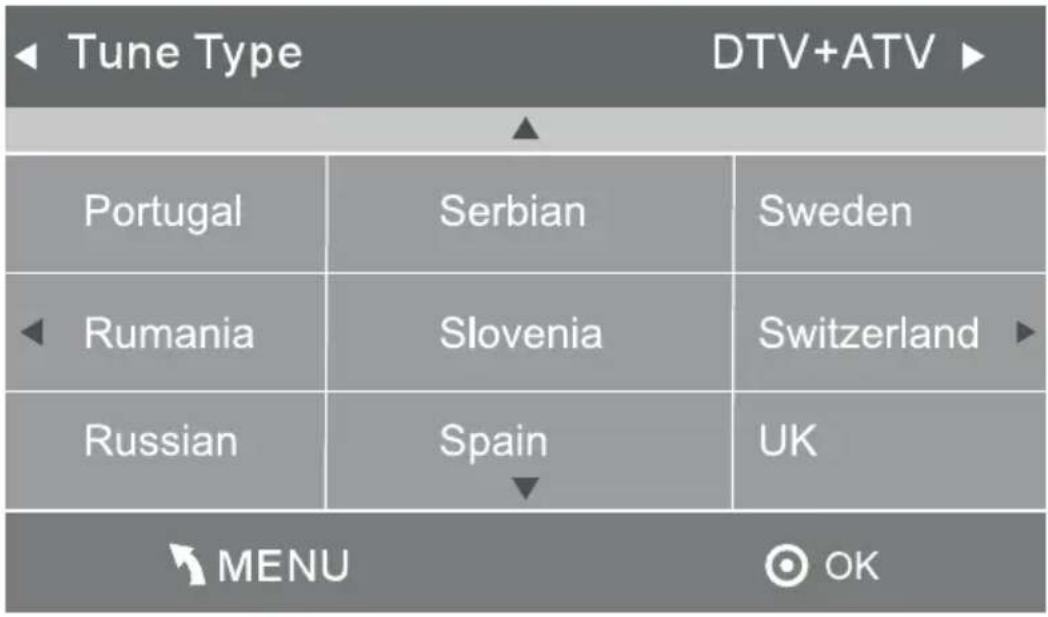

Tune Type DTV+ATV Portugal Serbian Sweden Rumania Slovenia Switzerland Russian Spain UK MENU OK

b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency / Network ID / Symbol KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T2, select the tune type (DTV/ATV).

Choise the right country, press OK button to start tuning.

DVB-C Scan Menu
Scan type	Full
Frequency	610000
Network ID	Auto
Symbol(KS/S)	Auto
◎ OK	MENU

3). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
4). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

Z

Channel Tuning

TV : 3 Programme(s)

4). In the Tune Type menu, press the ◀▶ buttons to select ATV / DTV / DTV + ATV. Press the ▼ button and then press the ● buttons to select the country where you will operate the TV. Press the OK button to confirm.

◄ Tune Type DTV+ATV ► ► Portugal Serbian Sweden ◄ Rumania Slovenia Switzerland ► Russian Spain UK ► MENU OK

5). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
6). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Channel Tuning

TV : 3 Programme(s)

5). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the button and then press the buttons to select the country where you will operate the TV. Press the OK button to confirm.

Tune Type DTV+ATV
Portugal	Serbian	Sweden
Rumania	Slovenia	Switzerland
Russian	Spain	UK
MENU OK

6). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.
6). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Channel Tuning

TV : 3 Programme(s)

You can Delete ,Rename ,Move, Skip , FAV any programs.

Delete

Press teletext red button, the program in cursor will delete.

Move

Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm.

Skip

Press ▼to choose the program, press teletext blue button to skip this program,

the Ⓞ will show on the right side of the program.

Choose the skipped program, press blue button again, you can cancel the skip, the

will disappear.

Favourite

Press ▼▲ to choose the program, press FAV button, it will show ♥ on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, ♥ the will disappear.

Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press ▼to move, press OK to adjust.

CHANNEL PICTURE SOUND TIME OPTION LOCK Picture Mode Color Temperature Aspect Ratio Noise Reduction Screen MENU Back + Move OK OK

Picture Mode	Standard
Contrast 50
Brightness 50
Color 50
Sharpness 50
Tint 50
MENU

Color Temperature	Medium
Red 40
Green 31
Blue 50
MENU

SOUND MENU

The third item of the MENU is the SOUND MENU. You can adjust the sound effect here such as treble, bass, balance etc. Press ▼to move, press OK to adjust.

CHANNEL PICTURE SOUND TIME OPTION LOCK Sound Mode Balance Auto Volume Surround Sound COAXIAL Mode AD Switch MENU Back Move OK OK

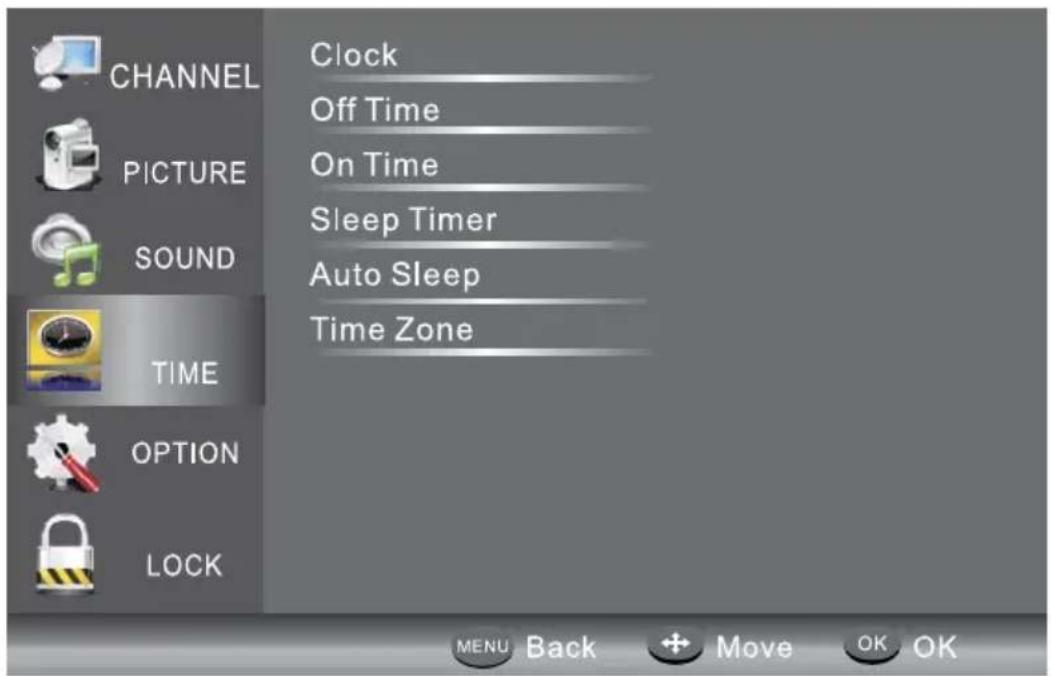

TIME MENU

The fourth item of the menu is the TIME MENU You can adjust the clock, power on/off time, sleep time etc. Press to move, press OK to adjust.

CHANNEL PICTURE SOUND TIME OPTION LOCK Clock Off Time On Time Sleep Timer Auto Sleep Time Zone MENU Back + Move OK OK

Z

OPTION MENU

The fifth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language, Subtitle language etc.

CHANNEL OSD Language Audio Languages PICTURE Subtitle Language PVR File System SOUND Restore Factory Default TIME Automatic power-down(4h) Home/Shop Mode OPTION HDMI CEC DCR LOCK

In PVR File system menu you can set up USB disk for PVR.

Select Disk C:

Check PVR File System Start

USB Disk

Format

Time Shift Size

Speed

Free Record Limit 6 Hr.

OK MENU

NOTE:

Restore factory default will clear all the programs and password.

LOCK MENU

The sixth item of the menu is the LOCK MENU You can lock system, set password, block program and set parental guidance. Once you set the lock system on, you can not search the channels or change any programs.

CHANNEL PICTURE SOUND TIME OPTION LOCK Lock System Set Password Block Program Parental Guidance

NOTE:

The default pass word is 6666.

Block program: Press ▼to choose the program, press teletext green button to block the program. If you want unblock the program, pls enter the main menu, input the password, then press green button again. Parental guidance: Press ▶to choose rating.

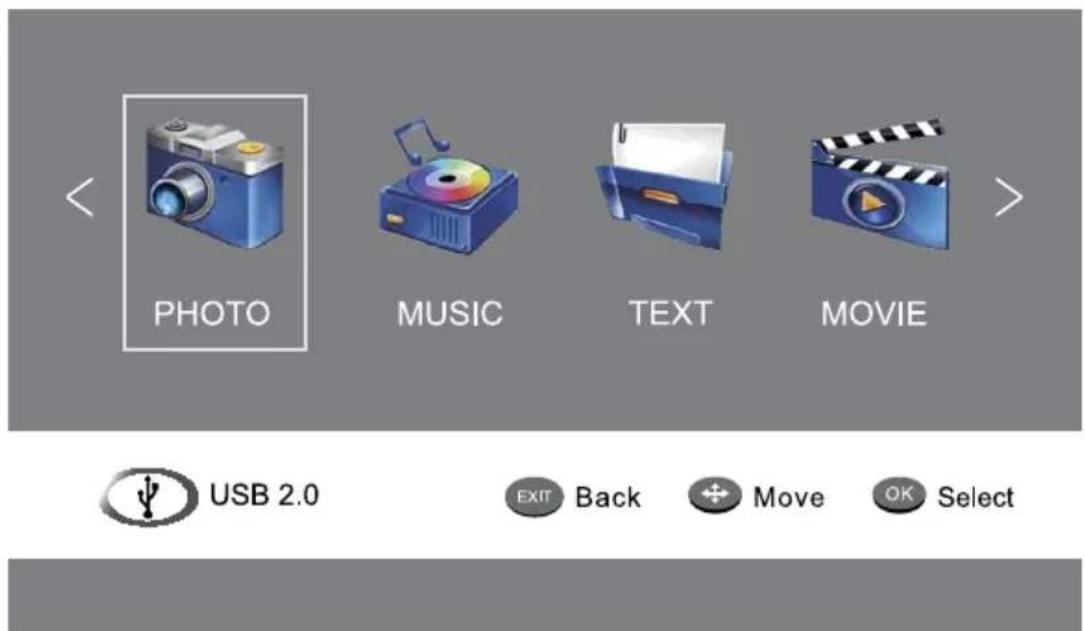

USB

Press the button and then select USB item to enter the USB menu.

PHOTO MUSIC TEXT MOVIE USB 2.0 EXIT Back Move OK Select

Please make sure that the USB device have plugged in the slot. There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing ◀▶, press OK button to enter the disk selection menu.

< Return C EXIT Back + Move OK Select

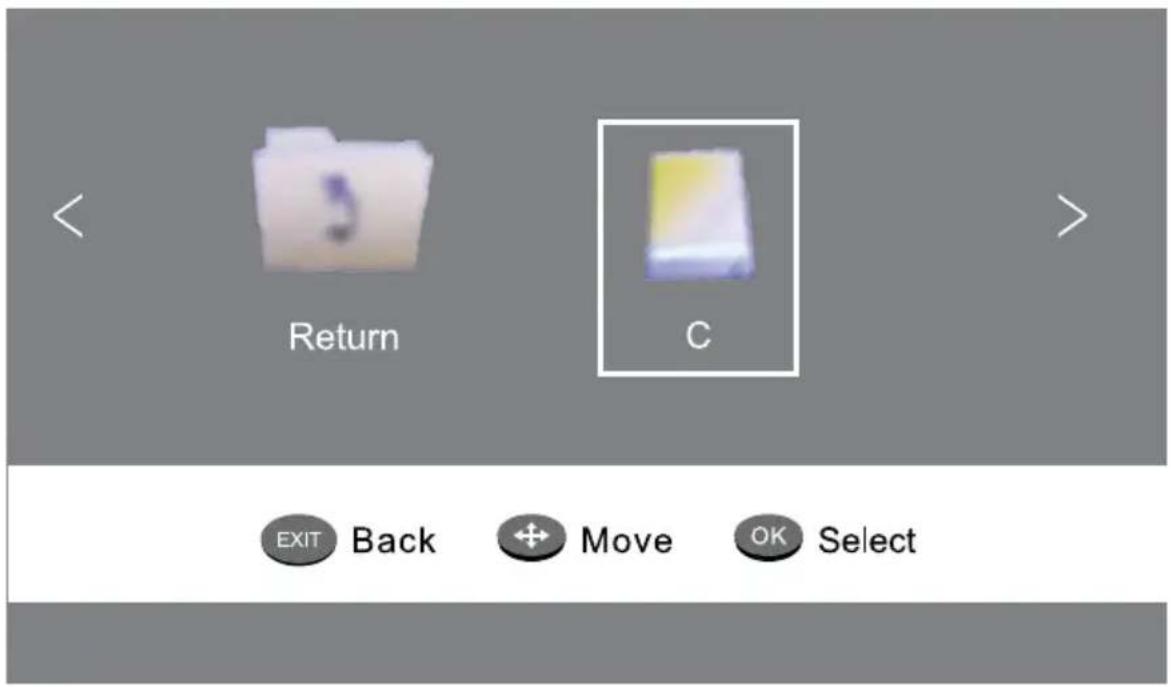

Press the ◀ to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

00:00:33/00:04:22 Pause FB FF Prev. Next Stop Repeat ALL MUTE 00:00:33/00:04:22 Playlist Info. Goto Time

Press ◀ to select the function icon, press OK button to confirm the function. Press ▼ or EXIT button to exit the control bar.

Sample1.ts Resolution: 720x576 AudioTrack: 1/2 Subtitle: 1/3 Program: 1/6 Size: 30574 KBytes Close

Z

USB playback is supported for the following formats.

Photo: JPEG, BMP, PNG

Music: MP3

Text: TXT

Movie: TS (MPEG2 & H.264)

EPG Menu (Electronic Program Guide)

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG button, the following menu will be displayed:

PROGRAMME GUIDE TIME 28 Apr 04:39 800 SZTVM01 No Information 801 SZTVM02 No Information 802 SZTVM03 No Information 803 SZTVM04 No Information 804 Date No Information Record Info Schedule Reminder OK INDEX

Info

Use ✉ to choose the programs. Press INFO key, you can display the highlight program's information.

Schedule

Press the teletext yellow key. It can list all the reminder schedule, press ▼▲ to choose the list. Press red key ● DELETE to delete the schedule list. Press EPG to return to EPG menu.

Record

Press the red key, it can set the program to be recorded.

Remind

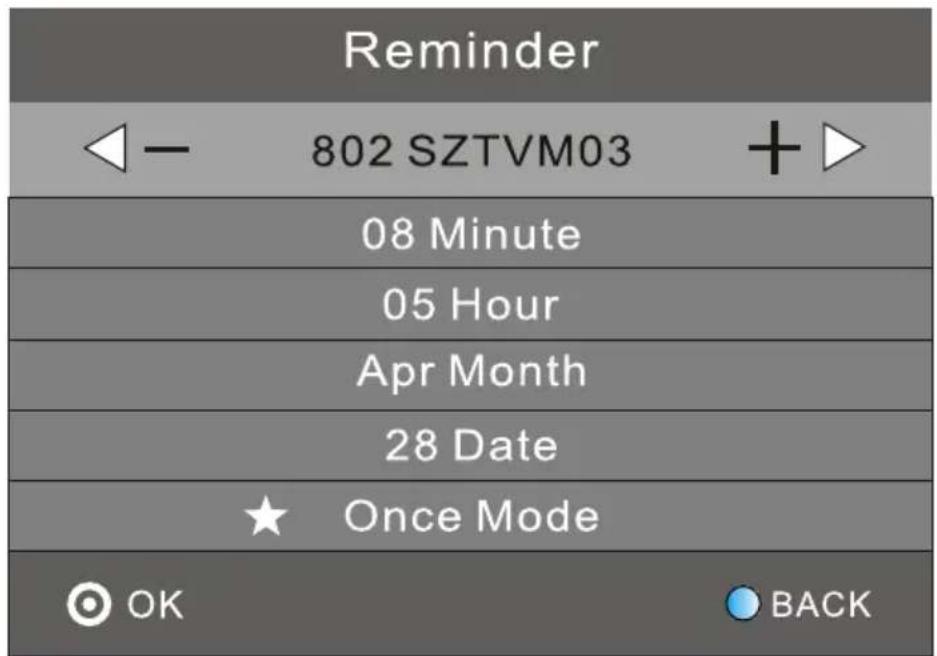

Press the blue key to choose one program and set up one reminder time. The TV screen will skip to the chosen program in the reminder time automatically.

Reminder 802 SZTVM03 08 Minute 05 Hour Apr Month 28 Date Once Mode OK BACK

TROUBLESHOOTING

Picture Sound Inspection check
	Snow		Noise	- antenna position, direction or connection
	Ghost		Normal audio	- antenna position, direction or connection
	Interference		Noise	- electronic equipment, car / motorcycle, fluorescent light
	Normal		Mute	- volume (check if mute is activated or if the audio system connections are not correct)
	No picture		Mute	- power cord is not inserted- power switch is not opened- contrast and brightness/ volume setup- press standby key on the remote control for inspecting
	No color		Normal audio	- color control
	Picture breaking up		Normal audio or weak	- retune channel
	No color		Noise	- TV system

SPECIFICATION

Screen size 24" 32"
Panel type DLED backlight
Aspect ratio 16:9
Pixel number 1366x768
System TV DVB-T2/ C
Standard video PAL
Input power voltage 100-240 V; ~ 50 Hz
Power consumption 35 W 45 W
Power consumption (Standby)	≤0.5 W
Audio output power 2x3 W 2x8 W
RF tuner x1
VGA x1
PC Audio In x1
Headphone x1
CI	x1
HDMI	x2
USB	x1
AV	x1
Ypbpr	x1
Scart	x1
Coaxial	x1
Vesa standard	200x100 mm

LEARN MORE

For more information on this device visit: www.krugermatz.com.

Read owner's manual carefully before using your smartphone.

Visit www.krugermatz.com website for more products and accessories.

In case of any doubts or questions reach out to our Frequently Asked Questions section.

Producer reserves rights to change product overview and specifications without prior notice.

Please note: below illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device! Any information included in this manual are subject to change without prior notice.

Z

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL, Miętne, 1 Garwolińska Street, 08-400 Garwolin.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

ATENCIÓN

PARA EVITAR EL RIESGO DE SUFRIR UNA DESCARGA ELÉCTRICA, NO DEBE RETIRARSE LA CARCASA DEL TELEVISOR. LOS TRABAJOS DE SERVICIO TÉCNICO DEBERÁN SER REALIZADOS EXCLUSIVAMENTE POR PERSONAL CUALIFICADO.

Illustration of a computer monitor with lightning bolts and a hand holding a device, no text or symbols present

Atención

Simple line drawing of a computer monitor with a curved frame and a base, emitting steam lines (no text or symbols)

Atención

Illustration of a TV with a 'X' symbol crossed out by a rope, next to a hanging cloth (no text or symbols)

Atención

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Atención

Simple line drawing of a monitor with a crossed X symbol and a flower on top, surrounded by stars (no text or symbols)

Atención

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Atención

Technical line drawing of an internal electronic device rear panel with connectors and ports (no text or symbols)

Diagram of an open computer monitor rear panel showing internal components and a base mount (no text or labels)

Pure mechanical assembly diagram showing two vertical brackets connected by a base plate, with arrows indicating direction (no text or symbols)

Line drawing of an open computer monitor with internal components and a directional arrow indicating orientation (no text or symbols)

Technical line drawing of a flat-screen TV rear panel with ventilation ducts and indicator lights (no text or symbols)

Paso 1

Diagram showing a monitor setup with labeled components and viewing angles, including a 30-degree angle indicator.

Botones

① SOURCE MENU V- V+ CH- CH+ Standby

KM0224

① SOURCE MENU V- V+ CH- CH+ Standby 00050M

KM0232

1. SOURCE

Please select an OSD language English French Portuguese Russian Romanian Deutsch Italiano Polski Czech Slovene Spanish Gre.Kederlands Magyar OK

Tune Type DTV+ATV Portugal Serbian Sweden Rumania Slovenia Switzerland Russian Spain UK MENU OK

Tune Type DTV+ATV Portugal Serbian Sweden Rumania Slovenia Switzerland Russian Spain UK MENU OK

CHANNEL PICTURE SOUND TIME OPTION LOCK Lock System Set Password Block Program Parental Guidance

ATENCIÓN:

00:00:33/00:04:22 Pause FB FF Prev. Next Stop Repeat ALL MUTE 00:00:33/00:04:22 Playlist Info. Goto Time

Sample1.ts Resolution: 720x576 AudioTrack: 1/2 Subtitle: 1/3 Program: 1/6 Size: 30574 KBytes Close

ES

Illustration of a computer monitor with lightning bolts and a hand holding a device, no text or symbols present

Attention

Simple line drawing of a computer monitor with a stand and smokestack (no text or symbols)

Attention

Illustration of a TV with a cross symbol crossed out, next to a cloth hanging from a rope (no text or symbols)

Attention

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Attention

Simple line drawing of a monitor with a crossed X symbol and a flower on top, surrounded by stars (no text or symbols)

Attention

Cartoon illustration of a person lying on a computer monitor with a crossed-out X symbol (no text or symbols present)

Attention

Simple line drawing of a geometric shape with intersecting lines and a rectangular frame (no text or symbols)

Attention

Illustration of a person running away from a computer screen connected to a cable with a switch, no text or symbols present.

Attention

Technical line drawing of an internal electronic device rear panel with connectors and ports (no text or symbols)

Diagram of an open rear monitor showing internal components and a base mount (no text or labels)

ER

Montage du support (KM0232)

Pure mechanical assembly diagram showing two vertical supports connected to a horizontal beam, with arrows indicating direction (no text or symbols)

Diagram of an open computer monitor showing internal layout and ventilation slots (no text or labels)

Etape 1

Technical line drawing of a flat-screen TV unit with internal components and directional arrows indicating orientation (no text or symbols)

Etape 3

Diagram showing a monitor setup with labeled components and viewing angles, including a 30° angle indicator.

Touches latérales

① ② ③ ④ ⑤ SOURCE MENU V- V+ CH- CH+ Standby

KM0224

① SOURCE MENU V- V+ CH- CH+ Standby 2005241

KM0232

1. SOURCE

Rear AV connections (side) (KM0224)

COMM O N INTE RFACE (CI) USB HDMI2 VGA HDMI1 HEADPHONE YPbPr PC AUDIO RF

Rear AV connections (side) (KM0232)

USB HDMI2 VGA COMMON INTERFACE (CI) HDMI1 HEADPHONE YPbPr PC AUDIO RF

Please select an OSD language English French Portuguese Russian Romanian Deutsch Italiano Polski Czech Slovene Spanish Gre,Nederlands Magyar OK

Tune Type DTV+ATV Portugal Serbian Sweden Rumania Slovenia Switzerland Russian Spain UK MENU OK

CHANNEL PICTURE SOUND TIME OPTION LOCK Lock System Set Password Block Program Parental Guidance

REMARQUE:

00:00:33/00:04:22 Pause FB FF Prev. Next Stop Repeat ALL MUTE 00:00:33/00:04:22 Playlist Info. Goto Time

Sample1.ts Resolution: 720x576 AudioTrack: 1/2 Subtitle: 1/3 Program: 1/6 Size: 30574 KBytes Close

Press the red key, it can set the program to be recorded.

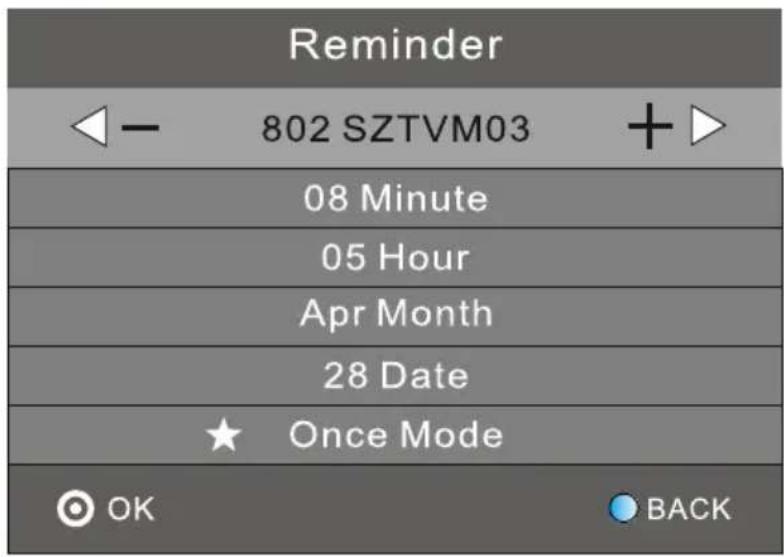

Rappel

Press the blue key to choose one program and set up one reminder time. The TV screen will skip to the chosen program in the reminder time automatically.

Reminder ← - 802 SZTVM03 + 08 Minute 05 Hour Apr Month 28 Date ★ Once Mode OK BACK

FR

SOLUTION DES PROBLEMES

Illustration of a computer monitor with a hand holding a device and a crossed-out black X (no text or symbols)

Let op

Simple line drawing of a computer monitor with a curved frame and a base, emitting steam (no text or symbols)

Let op

Illustration of a TV with a cross symbol crossed out, next to a cloth hanging from a rope (no text or symbols)

Let op

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Let op

Cartoon illustration showing a computer monitor with a crossed X symbol and a flower, indicating a prohibition or rejection scenario.

Let op

Cartoon illustration of a person lying on a computer monitor with a crossed-out black X symbol (no text or symbols present)

Let op

Simple line drawing of a geometric shape with intersecting lines and a partial rectangle, no text or symbols present.

Let op

Illustration of a person running away from a computer screen connected to a circular device with a plug (no text or symbols present)

Let op

Technical line drawing of an internal TV rear panel with connectors and ports (no text or symbols)

Diagram of an open rear monitor rear panel showing internal components and a cable connector (no text or labels)

Technical line drawing of a mechanical bracket assembly with two vertical supports and a horizontal base (no text or symbols)

Diagram of an open computer monitor showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a flat-screen TV rear panel with ventilation ducts and mounting hardware (no text or symbols)

Stap 1

Diagram showing a monitor setup with labeled components and viewing angles, including a 30° angle indicator.

Zijknoppen

① SOURCE MENU V- V+ CH- CH+ Standby

KM0224

① SOURCE MENU V- V+ CH- CH+ Standby ② ③ ④ ⑤

KM0232

1. SOURCE

Please select an OSD language English French Portuguese Russian Romanian Deutsch Italiano Polski Czech Slovene Spanish Gree,Nederlands Magyar OK

Tune Type DTV+ATV Portugal Serbian Sweden Rumania Slovenia Switzerland Russian Spain UK MENU OK

CHANNEL PICTURE SOUND TIME OPTION LOCK Lock System Set Password Block Program Parental Guidance

LET OP:

00:00:33/00:04:22 Pause FB FF Prev. Next Stop Repeat ALL MUTE 00:00:33/00:04:22 Playlist Info. Goto Time

Sample1.ts Resolution: 720x576 AudioTrack: 1/2 Subtitle: 1/3 Program: 1/6 Size: 30574 KBytes Close

Gesteunde formaten van multimedia.

Beeld: JPEG, BMP, PNG

Muziek: MP3

Tekst: TXT

Film: TS (MPEG2 & H.264)

Technical line drawing of an internal TV panel with labeled ports and connectors (no text or symbols)

Technical line drawing of an open rear monitor with labeled ports and connectors, showing internal components and a base mount (no text or symbols present)

PL

Technical line drawing of two mechanical brackets with arrows indicating assembly or movement (no text or symbols)

Line drawing of an open computer monitor showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a device rear panel with internal components and directional arrows indicating movement (no text or symbols)

Krok 1

Diagram showing a monitor setup with labeled components and viewing angles, including a 30° angle indicator.

Przyciski boczne

① SOURCE MENU V- V+ CH- CH+ Standby

KM0224

① SOURCE MENU V- V+ CH- CH+ Standby ② ③ ④ ⑤

KM0232

1. SOURCE

ANT 75Ω Adaptor (not included) Antenna

PL

Illustration of a computer monitor with lightning bolts and a hand holding a device, no text or symbols present

Avertisement

Simple line drawing of a computer monitor with a curved frame and a base, emitting steam (no text or symbols)

Atentie

Illustration of a TV with a cross symbol crossed out, next to a cloth hanging from a rope (no text or symbols)

Avertisement

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Atentie

Cartoon illustration showing a computer monitor with a crossed X symbol and a flower above it, indicating no text or symbols.

Avertisement

Cartoon illustration of a person running away from a computer monitor with a crossed-out X symbol (no text or symbols present)

Atentie

Technical line drawing of an internal electronic device rear panel with labeled ports and connectors (no text or symbols present)

Technical line drawing of an open rear monitor with internal components and a base mount, showing no text or symbols.

Pure mechanical assembly diagram showing two bracket components with arrows indicating motion direction (no text or symbols)

Diagram of an open computer monitor showing internal components and a directional arrow (no text or symbols)

Pasul 1

Technical line drawing of a front view of an electronic device with internal components and mounting brackets (no text or symbols)

Pasul 3

Diagram showing a monitor setup with labeled components and a 30-degree angle indicator for viewing.

Tastatura

① SOURCE MENU V- V+ CH- CH+ Standby

KM0224

① SOURCE MENU V- V+ CH- CH+ Standby ② ③ ④ ⑤ 2000M

KM0232

1. SURSA

ANT 75Ω Adaptor (not included) Antenna

Conexiuni AV spate (KM0232)

AC-INPUT

100-240V

50/60Hz

VIDEO

L

R

COAXIAL

SCART

Conectori (de la stanga la dreapta): cablu de alimentare AC, VIDEO, intrari AUDIO, iesire Coaxial, SCART.

Conexiuni AV Lateral (KM0232)

USB HDMI2 VGA HDMI1 COMMON INTERFACE (CI) HEADPHONE YPbPr PC AUDIO RF

Conectori (de la stanga la dreapta): USB, HDMI2, VGA, HDMI1, casti, CI, intrare YPb-Pr, intrare audio PC, RF.

Please select an OSD language English French Portuguese Russian Romanian Deutsch Italiano Polski Czech Slovene Spanish Gre,Nederlands Magyar OK

Tune Type DTV+ATV
Portugal	Serbian	Sweden
Rumania	Slovenia	Switzerland
Russian	Spain	UK
MENU OK

CHANNEL PICTURE SOUND TIME OPTION LOCK Lock System Set Password Block Program Parental Guidance

NOTA:

Parola prestabilita este 6666.

00:00:33/00:04:22 Pause FB FF Prev. Next Stop Repeat ALL MUTE 00:00:33/00:04:22 Playlist Info. Goto Time

Sample1.ts Resolution: 720x576 AudioTrack: 1/2 Subtitle: 1/3 Program: 1/6 Size: 30574 KBytes Close

Meniul EPG (Electronic Program Guide)

Completely black image with no visible content or text.

QR code image containing encoded data, no visible human-readable text

www.krugermatz.com

Krüger&Matz is a registered trademark
