USER MANUAL KM0224 Krüger&Matz

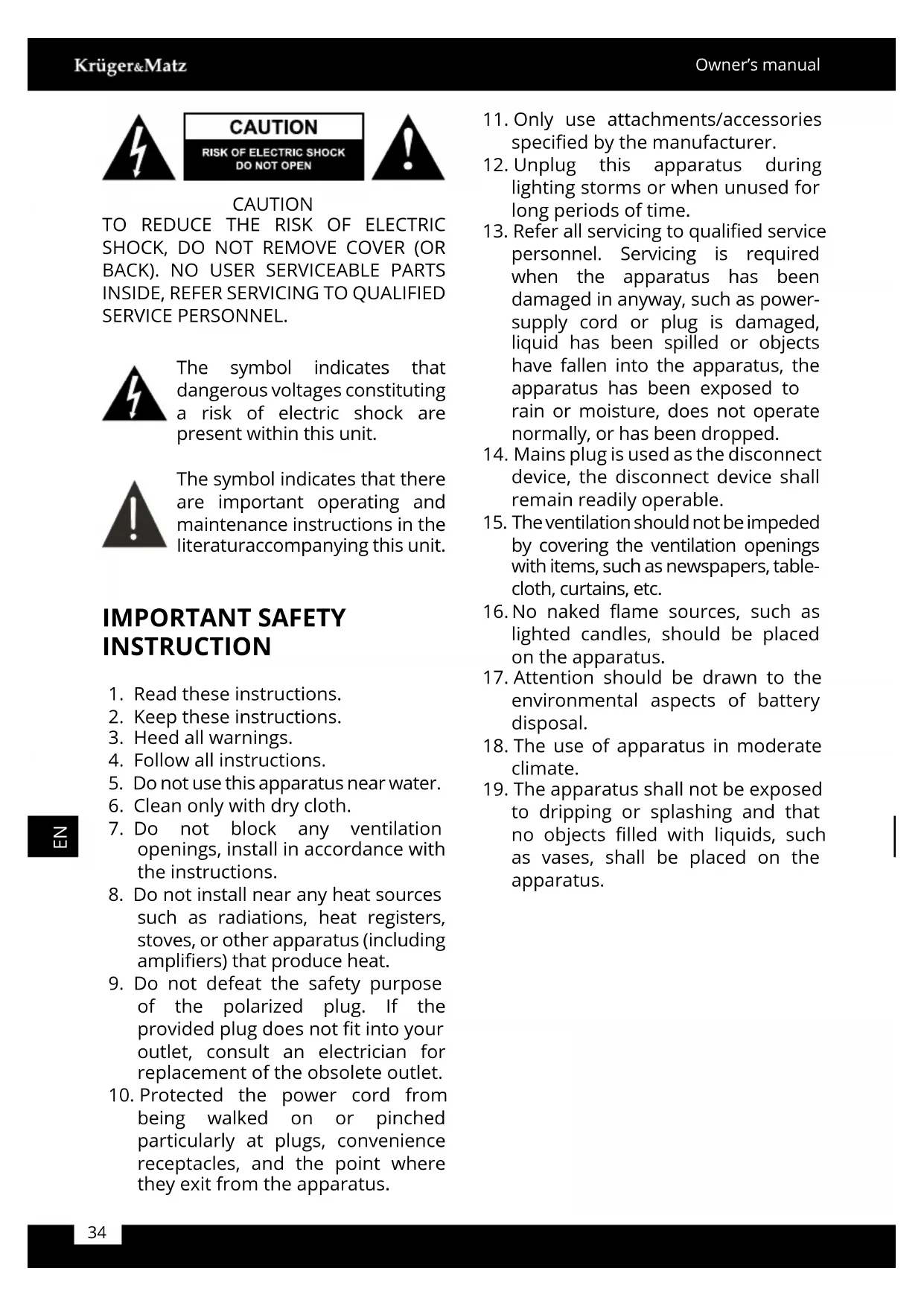

SHOCK, DO NOT REMOVE COVER (OR

11. Only use attachments/accessories

specied by the manufacturer.

12. Unplug this apparatus during

lighting storms or when unused for long periods of time.

13. Refer all servicing to qualied service

personnel. Servicing is required when the apparatus has been damaged in anyway, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Mains plug is used as the disconnect

device, the disconnect device shall remain readily operable.

15. The ventilation should not be impeded

by covering the ventilation openings with items, such as newspapers, table- cloth, curtains, etc.

16. No naked ame sources, such as

lighted candles, should be placed on the apparatus.

17. Attention should be drawn to the

environmental aspects of battery disposal.

to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on the apparatus. The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. The symbol indicates that there are important operating and maintenance instructions in the Iiteraturaccompanying this unit. IMPORTANT SAFETY INSTRUCTION

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings, install in accordance with the instructions.

8. Do not install near any heat sources

such as radiations, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose

of the polarized plug. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protected the power cord from

being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.35 Owner’s manual

Warning High voltages are used in the opera- tion of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualied service per- sonnel. Caution Do not block the ventilation holes in the back cover. Adequate ventilation is es- sential to prevent failure of electrical components. Warning To prevent re or electrical shock haz- ard, do not expose the television receiv- er to rain or moisture. Warning Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the tele- vision receiver. Caution Do not trap the power supply cord un- der the television receiver. Caution Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.36 Owner’s manual

Caution Do not place your television on an un- stable cart, stand, shelf or table. Serious injury to an individual , and damage to the television, may result if it should fall. Caution When the television receiver is not used for an extended period of time, it is ad- visable to disconnect the AC power cord from the AC outlet. INSTALLATION

• Locate the TV in the room where light does not strike the screen directly.

• TotaI darkness or a reection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

• AIIow enough space between the TV and the wall to permit ventilation.

• Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

• Do not cover the ventilation openings when using the TV. Minimum distances37 Owner’s manual

1. Place the TV with the display side down on a fIat surface. Use a cloth to protect.

Locate the bottom at the stand.

2. Fix the bottom with turning the screw tightly on the stand.38

1. Flat base, the base will be one of the

pillars placed in the end seat, make sure the screw holes on the base and the base of the pillars aligned.

2. Let screws into the base of the hole

and tighten the screw.

3. In the same way to install another

base pillars. Note: Please use standard screws packaging operation. Step 2

1. Install the screw holes on the back

of the base and the base pillars aligned television reserved. Step 3

1. Let the four screws into the screw

holes and tighten the back of the TV. Note: Please use standard screws packaging operation. When you install the base, the need to face down flat on the TV platform. Before installing (or removing) the stand, unplug the AC power cord from the AC outlet before performing the operation, laying cushion in place the TV will be placed to prevent damage to the TV.

Warning: Be sure to follow the instructions for installation, if the base is not installed correctly,

it may result in the TV falling over. To remove the stand, perform the steps in reverse order, the base can not adjust the angle. During the installation process, being careful to avoid damage to the TV and your hand caught and ground to the bottom of the TV.39 Owner’s manual

1: Remote control sensor 2: Indicator LED

Adjust sound level. ln MENU mode, press “VOL+” or “VOL-“ to adjust the item that you selected.

ln TV mode, press “CH-” or “CH+” to change the channel up and down. ln MENU mode, press “CH-” or “CH+” to select items.

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY. KM0224 KM023240 Owner’s manual

Terminals from left to right: AC power socket, VIDEO, AUDIO inputs, Coaxial output, SCART. Side AV connections (KM0224) USB HDMI2 VGA HDMI1HEADPHONEYPbPrPC AUDIO RFCOMMON INTER FACE (CI) Terminals from left to right: USB, HDMI2, VGA, HDMI1, headphone, CI, YpbPr input, PC audio, RF. Note: Insert the plug of the earphone into the earphone jack on the unit HEADPHONE. The speakers are now muted. Antenna ANT 75Ω Antenna Adaptor (not included)41 Owner’s manual

Antenna Rear AV connections (KM0232) Terminals from left to right: AC power socket, VIDEO, AUDIO inputs, Coaxial output, SCART. Side AV connections (KM0232) Terminals from left to right: USB, HDMI2, VGA, HDMI1, headphone, CI, YpbPr input, PC audio, RF. Note: Insert the plug of the earphone into the earphone jack on the unit HEADPHONE. The speakers are now muted. Antenna Adaptor (not included) ANT 75Ω42 Owner’s manual

HEADPHONE USB HDMI2 VGA HDMI1HEADPH ON EYPbP rPC AUDI O RFCOMMO N IN TE RFAC E (C I) Be sure both the TV and comput- er are set to Power o.

1. Connect VGA and audio cable.

2. Connect the power cord.

3. Power on the TV, switch to PC

AV equipment (KM0224) This TV provides one group of AV one group of YPbPr and one SCART for conve- nient connection to VCR, DVD or other video equipment. Please refer to the owners manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. It can be connected to the following appliances: VCR, multi disc player, D\/D, cam- corder, video game or stereo system, etc ..... YPbPr can support these video formats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p. Yellow (video) White (audio L) Red (audio R, Pr or Cr) Blue (Pb or Cb) Green (Y) HDMI W R

AV equipment (KM0232) This TV provides one group of AV one group of YPbPr and one SCART for conve- nient connection to VCR, DVD or other video equipment. Please refer to the owners manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. It can be connected to the following appliances: VCR, multi disc player, D\/D, cam- corder, video game or stereo system, etc ..... YPbPr can support these video formats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p. Yellow (video) White (audio L) Red (audio R, Pr or Cr) Blue (Pb or Cb) Green (Y) HDMI W R

1. Switch the TV between on and standby

2. P.MODE: Select picture mode: ECO / Standard

/ Mild / Vivid / User.

3. COLOUR BUTTONS: The colour buttons are

used to select tasks in specic menus.

4. Number button: Use these keys to input

information into the menus or TV features.

5. REC: Press to record TV when watching DTV

(to record a program a suitable USB device will need to be tted to the TV).

6. RECALL: In DTV mode press to jump to the

last channel viewed.

7. MUTE: Press to turn the sound on and o.

8. VOL + –: Press to adjust the level of the TV’s

9. CH + –: Press to access the next or previous

10. (SOURCE): Press to display and select the

available video sources.

11. AUDIO: Use to select the available audio

language for DTV programs.

12. MENU: Press to access the TVs on screen

13. FAV: Press to access your favourite channels

list in TV or DTV mode.

14. INFO: Press when watching TV to view

programme information.

(INDEX): Press in TELETEXT mode to access the index.

16. : Press to navigate through the menus

17. OK: Press to conrm on screen selection.

18. EPG: Press to access the electronic

programme guide when watching digital TV.

19. EXIT: Press to return to previous page in a

menu or to exit the menus.

22. : Press to stop playback.

23. FREEZE: Press to freeze the picture you are

24. : In USB mode, use as rewind button.

In TELETEXT modeb used as subpage button.

25. : In USB mode, use as fast forwards

button. In TELETEXT mode used as reveal button.

26. TEXT: Press to access TELETEXT.

27. : In USB mode, use as previous button.

In TELETEXT mode used as hold button.

28. : In USB mode, use as next button. In

TELETEXT mode used as list button.

29. SUBTITLE: Press to access subtitles on digital

TELETEXT Teletext is an information system broadcast by certain channels which can be con- sulted like a newspaper. lt also oers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.) Press You will obtain TEXT This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corre- sponding 3 digit page number. If the channel selected does not broadcast teletext, the indication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).

Enter the number of the page required using the 0 to 9 up/ down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not trans- mitted. Select another number.

THE ITEM Colored are as are displayed at the bottom of the screen. The 4 colored keys are used to access the items or corre- sponding pages. The colored are as ash when the item or the page is not yet available. (INDEX) This returns to the contents page (usually page 100). (SUB PAGE) Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume subpage acquisition. The indication appears top left. (HOLD) To freeze the page. (REVEAL) To display or hide the concealed information (games solu- tions). (LIST) The user can set four favorite pages to be directly linked to the four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the color keys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.47 Owner’s manual

INSTALLATION GUIDE Portuguese Spanish Greek Italiano Slovene 1). Press the buttons to navigate the menu and change the settings. Press the OK button to confirm. Select your desired language to be displayed on the menu. 2). Press the buttons to select DVB-T2/DVB-C and then press the OK button to confirm. a. If you select DVB-T2 to next step is select the Tune and country the press the OK button to start tuning.48 Owner’s manual

b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency / Network ID / Symbol KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T2, select the tune type (DTV/ATV). Choise the right country, press OK button to start tuning. 3). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found. 4). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.49 Owner’s manual

5). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found. 6). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.51 Owner’s manual

5). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the button and then press the buttons to select the country where you will operate the TV. Press the OK button to confirm. 6). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found. 7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.53 Owner’s manual

Program edit You can Delete ,Rename ,Move, Skip , FAV any programs. Delete Press teletext red button , the program in cursor will delete. Move Use the Arrow Buttons to select the channel you wish to move. Then press the Yel- low Button to select Move function. Once active use the Arrow Buttons to move and then press OK to conrm. Skip Press to choose the program, press teletext blue button to skip this program, the will show on the right side of the program. Choose the skipped program, press blue button again, you can cancel the skip, the will disappear. Favourite Press to choose the program, press FAV button, it will show on the right side of the program. Choose the FAV program, press FAV button again, you can can- cel the FAV, the will disappear . Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.54 Owner’s manual

PICTURE MENU The second item of the MENU is PICTURE MENU. You can adjust picture eect here, such as contrast, brightness, etc. Press to move, press OK to adjust.55 Owner’s manual

SOUND MENU The third item of the MENU is the SOUND MENU. You can adjust the sound eect here such as treble, bass, balance etc. Press to move, press OK to adjust. TIME MENU The fourth item of the menu is the TIME MENU You can adjust the clock, power on/ o time, sleep time etc. Press to move, press OK to adjust.56 Owner’s manual

OPTION MENU The fth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language,Subtitle language etc. In PVR File system menu you can set up USB disk for PVR. NOTE: Restore factory default will clear all the programs and password.57 Owner’s manual

LOCK MENU The sixth item of the menu is the LOCK MENU You can lock system, set password, block program and set parental guidance. Once you set the lock system on, you can not search the channels or change any programs. NOTE: The default pass word is 6666. Block program: Press to choose the program, press teletext green button to block the program. If you want unblock the program, pls enter the main menu , input the password, then press green button again. Parental guidance: Press to choose rating. USB Press the button and then select USB item to enter the USB menu.58 Owner’s manual

Please make sure that the USB device have plugged in the slot. There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing , press OK button to enter the disk selection menu. Press the to select the right disk and press OK to display media les and folder list or choose Return to back to the media type selection menu.59 Owner’s manual

Press to select the function icon, press OK button to conrm the function. Press or EXIT button to exit the control bar. USB playback is supported for the following formats. Photo: JPEG, BMP, PNG Music: MP3 Text: TXT Movie: TS (MPEG2 & H.264)60 Owner’s manual

EPG Menu (Electronic Program Guide) The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG button, the following menu will be displayed: Info Use to choose the programs. Press INFO key, you can display the highlight program’s information. Schedule Press the teletext yellow key. It can list all the reminder schedule, press to choose the list. Press red key DELETE to delete the schedule list. Press EPG to return to EPG menu.61 Owner’s manual

Record Press the red key, it can set the program to be recorded. Remind Press the blue key to choose one program and set up one reminder time. The TV screen will skip to the choosed program in the reminder time automatically.62 Owner’s manual

TROUBLESHOOTING Picture Sound Inspection check Snow Noise - antenna position, direction or connection Ghost Normal audio - antenna position, direction or connection Interference Noise - electronic equipment, car / motorcycle, fluorescent light Normal picture Mute - volume (check if mute is activated or if the audio system connections are not correct) No picture Mute - power cord is not inserted - power switch is not opened - contrast and brightness/ volume setup - press standby key on the remote control for inspecting No color Normal audio - color control

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL, Miętne, 1 Garwolińska Street, 08-400 Garwolin. LEARN MORE For more information on this device visit: www.krugermatz.com. Read owner's manual carefully before using your smartphone. Visit www.krugermatz.com website for more products and accessories. In case of any doubts or questions reach out to our Frequently Asked Questions section. Producer reserves rights to change product overview and specications without prior notice. Please note: below illustrations and descriptions concerning operating system are for reference only, and may vary from actual software on your device! Any information included in this manual are subject to change without prior notice.65 Manual de instrucciones

Enregistrement Press the red key, it can set the program to be recorded. Rappel Press the blue key to choose one program and set up one reminder time. The TV screen will skip to the choosed program in the reminder time automatically.124 Mode d’emploi
