USER MANUAL DA 622 T Dominox

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS....13

CHARACTERISTICS....14

INSTALLATION 15

USE....17

MAINTENANCE....18

Manuel d'Instructions SOMMAIRE

CONSEILS ET SUGGESTIONS 19

CARACTERISTIQUES 20

INSTALLATION 21

UTILISATION....23

ENTRETIEN....24

Illustration of a kitchen appliance with a green crossed line indicating a safety or fire resistance, and a steaming pot nearby (no text or symbols)

Illustration of a laboratory setup with a beaker and a flame, crossed by a green ribbon (no text or symbols)

Ø 120 175 280 598 - 898 0÷152

Componenti

I ON M-V L

Hand pointing at a green circular sign with a green arrow symbol (no readable text)

Filtri antiodore (Versione Filtrante)

SOSTITUZIONE

Illustration of a hand pressing down on a green surface with a downward arrow (no text or symbols)

Illuminazione

Line drawing of a hand holding a tool, no text or symbols present

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.

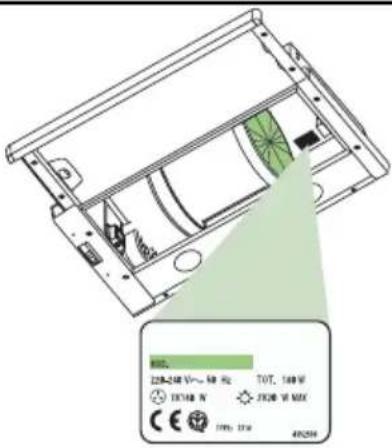

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

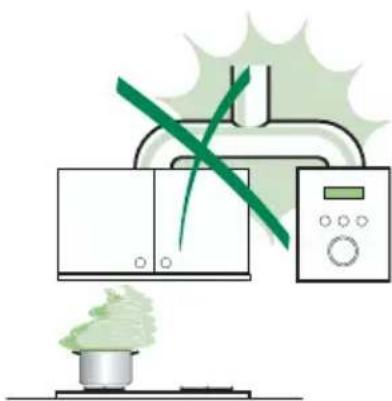

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

220V~ 50Hz TOT, 100Hz EVEV N JF200 V MAX CE 100mA 37.6A 492884

Illustration of a microwave oven with a green X-shaped cutting tool and a steaming pot on the other (no text or symbols)

Illustration of a laboratory setup with a beaker, flame, and smoke (no text or symbols)

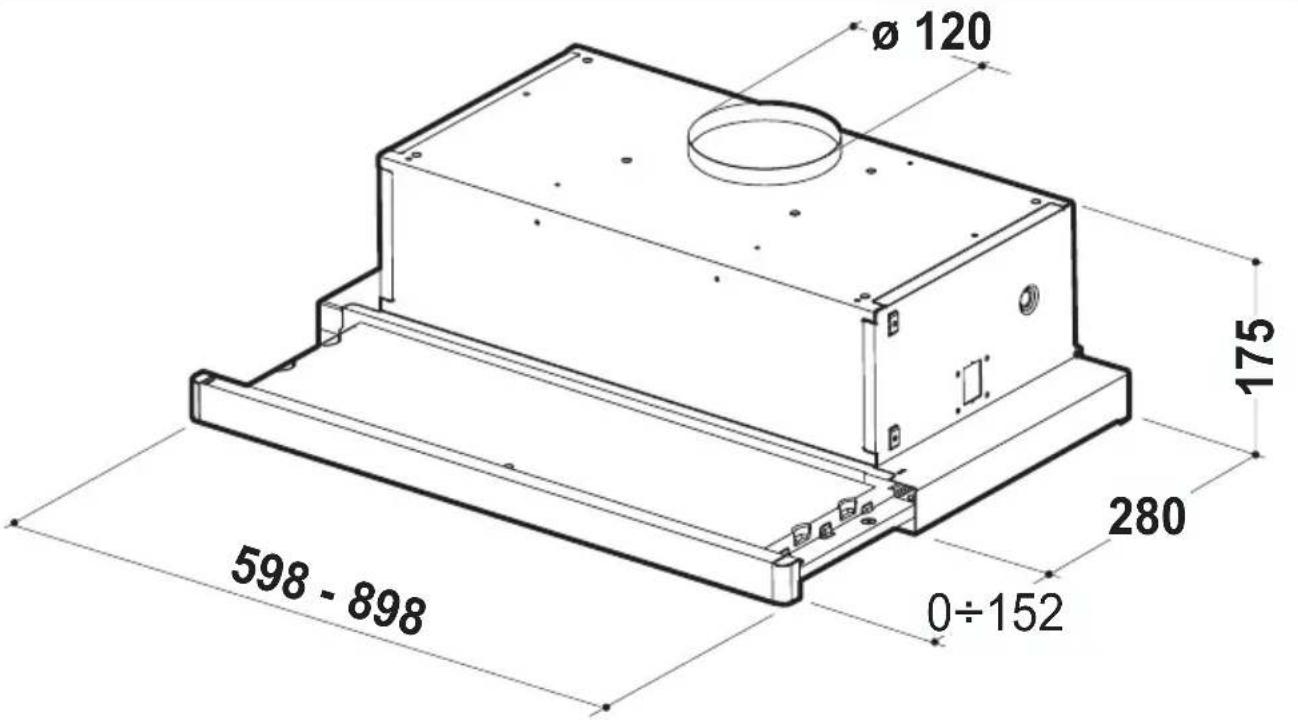

Ø 120 175 280 598 - 898 0÷152

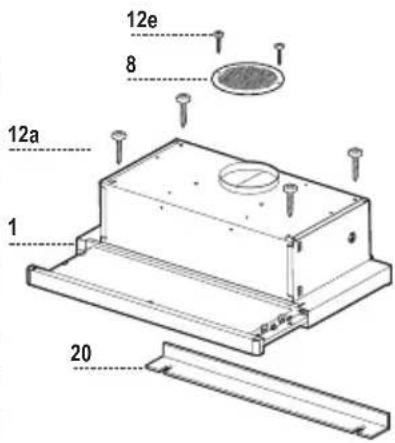

Components

Ref.	Q.ty	Product	Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
8	1	Directional Air Outlet grille
20	1	Closing	element
Ref.	Q.ty	Installation	Components
12a	4	Screws 4,2 x 44,4
12e	2	Screws 2,9 x 9,5
	Q.ty	Documentation
	1	Instruction	Manual

12e 8 12a 1 20

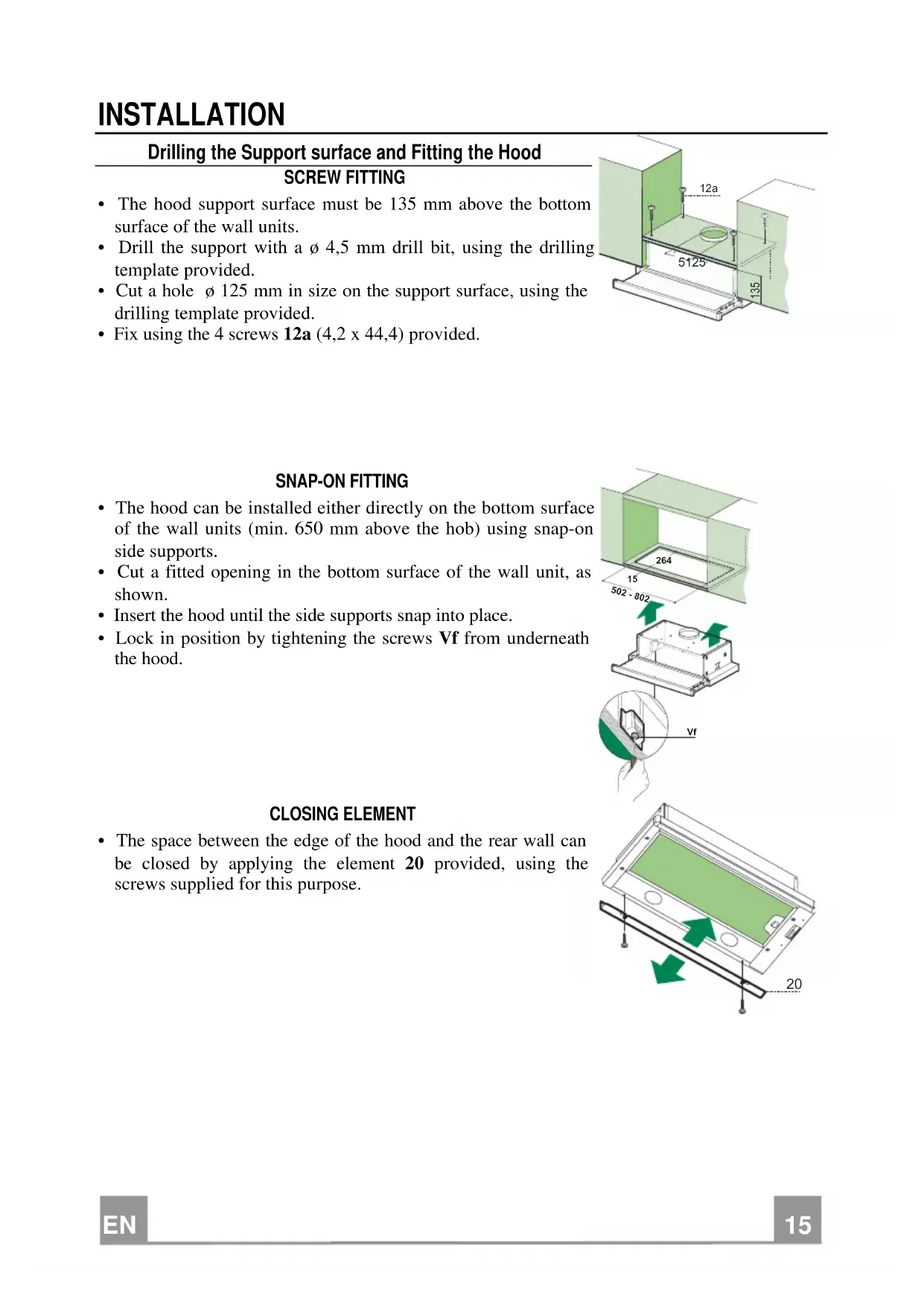

Drilling the Support surface and Fitting the Hood

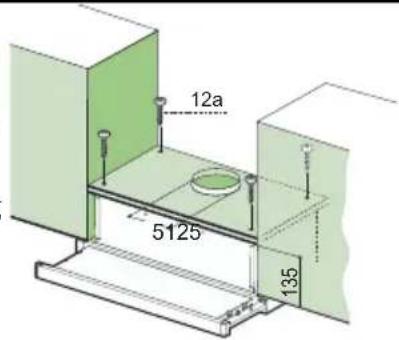

SCREW FITTING

• The hood support surface must be 135 mm above the bottom surface of the wall units.
• Drill the support with a 4,5 mm drill bit, using the drilling template provided.
• Cut a hole 125 mm in size on the support surface, using the drilling template provided.
  • Fix using the 4 screws 12a (4,2 x 44,4) provided.

12a 5125 135

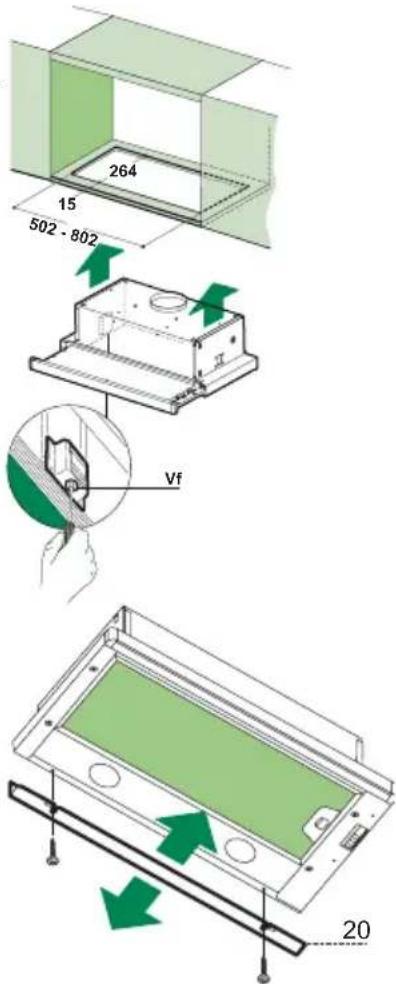

SNAP-ON FITTING

• The hood can be installed either directly on the bottom surface of the wall units (min. 650 mm above the hob) using snap-on side supports.
• Cut a fitted opening in the bottom surface of the wall unit, as shown.
• Insert the hood until the side supports snap into place.
• Lock in position by tightening the screws Vf from underneath the hood.

264 15 502 - 802 Vf 20

CLOSING ELEMENT

- The space between the edge of the hood and the rear wall can be closed by applying the element 20 provided, using the screws supplied for this purpose.

Connections

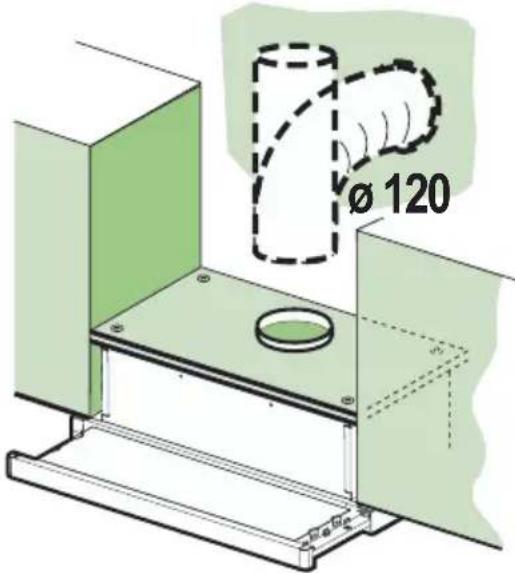

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 120 mm, the choice of which is left to the installer.

- Fix the pipe in position using sufficient pipe clamps (not supplied).

- Remove any activated charcoal filters.

Ø 120

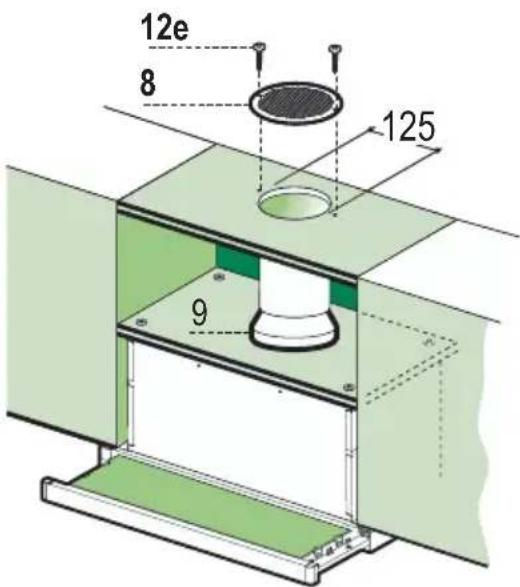

RECIRCULATION VERSION AIR OUTLET

- Cut a hole 125 mm in any shelf that may be positioned over the hood.

- Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe 120mm .

- Fix the pipe in position using sufficient pipe clamps (not supplied).

- Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e (2,9 x 9,5) provided.

- Ensure that the activated charcoal filters have been inserted.

12e 8 125 9

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it clicks.

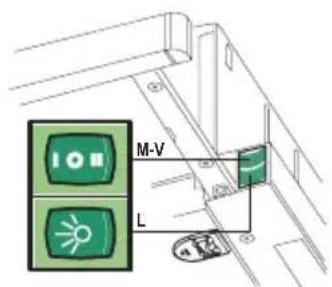

Control panel

L M - V M-100

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.

2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

I ON M-V L

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.

2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

Grease filters

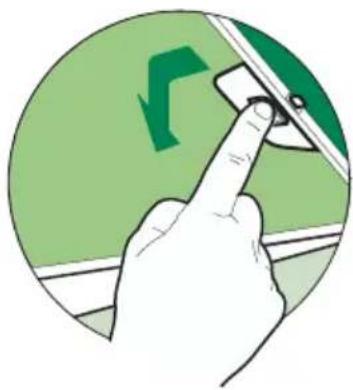

CLEANING METAL CASSETTE GREASE FILTERS

• The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher.
• Pull out the sliding suction panel.
• Remove the filters one by one, after having disconnected the relative fastening elements.
• Wash the filters, taking care not to bend them. Let them get dry before refitting them. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When refitting the filters, make sure that the handle is visible on the outside.
• Close the sliding suction panel.

Hand pointing at a green circular diagram with a green arrow symbol (no text or labels)

Charcoal filter (Recycling version)

REPLACING CHARCOAL FILTERS

• These filters are not washable and cannot be regenerated, and must be replaced approximately every four months or more frequently by particularly heavy use.
• Pull out the sliding suction panel.
• Remove the grease filters.
• Remove the saturated carbon filter by releasing the fixing hooks
• Replace the grease filters.
• Close the sliding suction panel.

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

INSTALLATION

Illustration of a kitchen appliance with a green crossed line indicating a cooking process, and a steaming pot nearby (no text or symbols)

Illustration of a laboratory setup with a beaker, flame, and smoke (no text or symbols)

Ø 120 175 280 598 - 898 0÷152

Composants

Illustration of a hand pointing at a green circular sign with a green arrow symbol (no text or numbers present)

Filtres anti-odeur (Version Filtrante)

REMLACEMENT

Illustration of a hand pressing down on a green surface with a green arrow symbol (no text or labels)

Eclairage

REMLACEMENT LAMPES

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a microwave oven with a green X-shaped cutting tool and a steaming pot on the other (no text or symbols)

Illustration of a laboratory setup with a beaker, flame, and smoke (no text or symbols)

Ø 120 175 280 598 - 898 0÷152

Komponenten

Hand pointing at a green circular sign with a green arrow symbol (no text or numbers present)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Beleuchtung

AUSWECHSELN DER LAMPEN

Glühlampen 40W

Line drawing of a hand using a tool to measure a mechanical component (no text or symbols present)

Illustration of a microwave oven with a green X-shaped mark and a gas stove on the base (no text or symbols)

Illustration of a laboratory setup with a beaker, heating material, and smokestack (no text or symbols)

Ø 120 175 280 598 - 898 0÷152

Parçalar

L M - V 100V

M-V L

Illustration of a hand pointing at a green circular sign with a green arrow symbol (no text or numbers present)

Koku filtreleri (Filtreli Versiyon)

DEĞİŞTİRME

Illustration of a hand pressing down on a green surface with a green arrow symbol (no text or labels)

Aydınlatma

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
