Product TypeHigh Pressure Washer
BrandSTIHL
ModelRE 108
Dimensions (L × W × H)360 × 340 × 610 mm (handle retracted) / 870 mm (handle extended)
WeightUnit: 16 kg; Ready for use: 18.3 kg
Power supply230 V / 1~ / 50 Hz, 7.5 A
Electrical protectionFuse 10 A; Class I; IP X5
Service pressure11 MPa (110 bar)
Max. permissible pressure12 MPa (120 bar)
Max. water flow rate440 l/h
Water flow rate per EN 60335-2-79380 l/h
Max. inlet water temperature40 °C (pressurized supply); 20 °C (suction)
Max. suction height1 m
High-pressure hose length8 m (textile or steel braid depending on equipment)
Main functionsHigh-pressure cleaning, detergent injection, suction mode
Included nozzlesAdjustable flat jet nozzle, turbo nozzle
Safety devicesPressure relief valve, safety button on gun, residual current circuit breaker 30 mA
Routine maintenanceCleaning nozzle and water inlet filter, lubricating couplings
Optional accessoriesLance extension, wet sanding kit, washing brush, non-return valve, etc.
RepairsEntrust to an authorized STIHL dealer; use genuine parts
DisposalDo not dispose of with household waste; recycle

Frequently Asked Questions - RE 108 STIHL

What is the service pressure of the Stihl RE 108?
The service pressure is 11 MPa (110 bar). The maximum permissible pressure is 12 MPa (120 bar).
What type of power supply does the RE 108 require?
It operates on 230 V / 1~ / 50 Hz with a consumption of 7.5 A. The recommended fuse is 10 A.
Can you use the washer with non-potable water?
It is not recommended to use dirty water. For suction supply, use a water filter. If connected to the drinking water network, a non-return valve is mandatory.
How to start the machine?
Open the water tap, fully unroll the high-pressure hose, then turn the switch to I. Squeeze the gun trigger to start.
How to use detergent?
Remove the nozzle, attach the spray kit to the lance, fill the tank with diluted STIHL detergent, adjust the dosage with the ring and apply from bottom to top at about 1 m distance.
What to do if the motor does not start?
Check the mains voltage, plug, cable and switch. Make sure the circuit breaker is not tripped and that the gun is actuated when switching on.
How to clean a clogged nozzle?
Stop the machine, depressurize by squeezing the gun, remove the nozzle, clean it with the provided needle, then rinse it from the front.
What is the maximum suction height?
The maximum suction height is 1 m for 230 V / 50 Hz versions, and 0.5 m for 110-120 V versions.
How to maintain the water inlet filter?
Clean the filter once a month or more often if necessary. Unscrew the fitting, extract the filter with pliers, rinse it with water and check its integrity before reinstalling.
Where can I find spare parts?
Use only genuine STIHL parts available from authorized dealers. For repairs, contact a specialized STIHL retailer.

User questions about RE 108 STIHL

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Pressure washer in PDF format for free! Find your manual RE 108 - STIHL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RE 108 by STIHL.

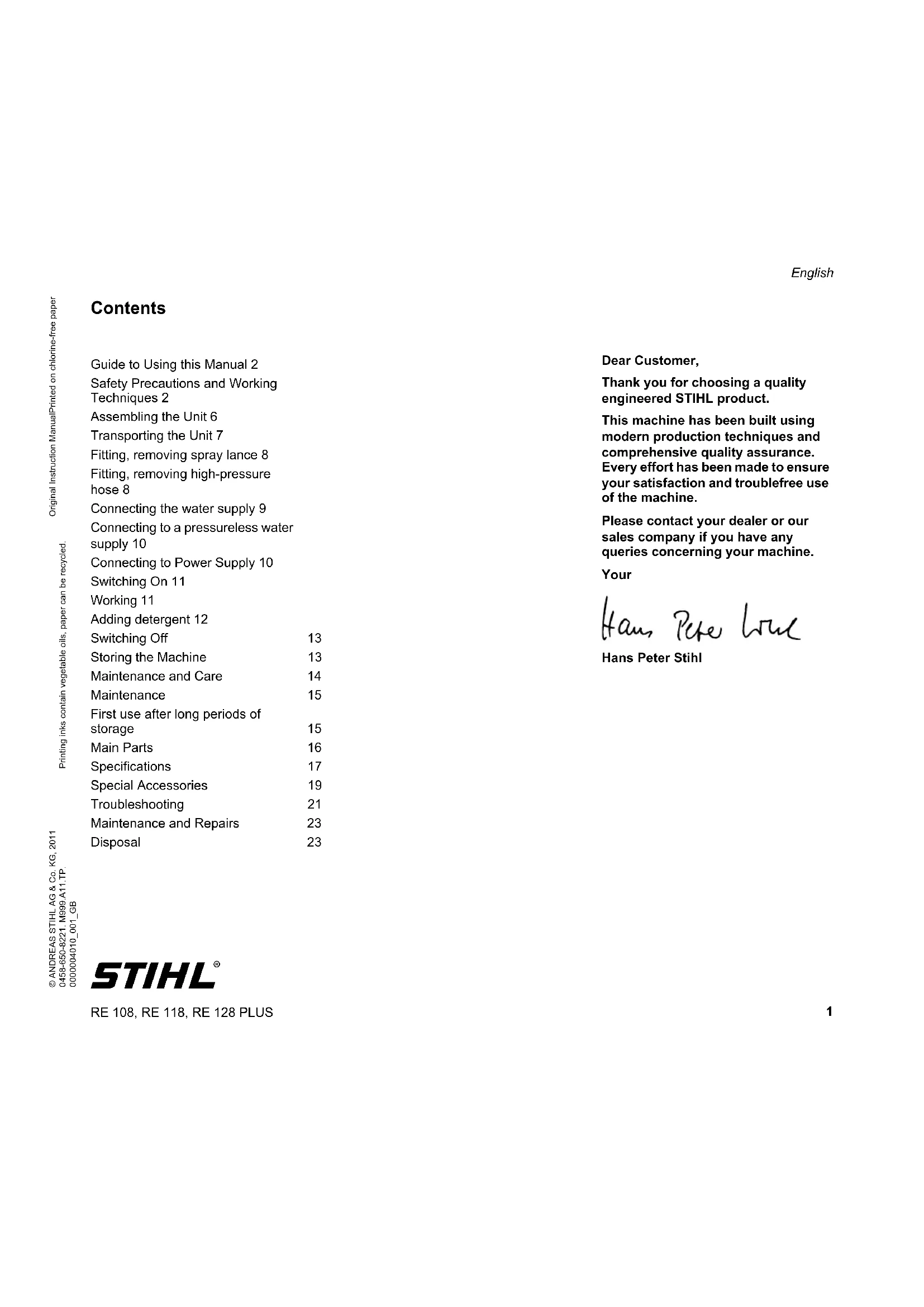

USER MANUAL RE 108 STIHL
