USER MANUAL E442 eMachines

eMachines Notebook Series

Quick Guide

© 2010. All Rights Reserved.

eMachines Notebook Series Quick Guide

Original Issue: 07/2010

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

First things first

We would like to thank you for making an eMachines notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your eMachines notebook, we have designed a set of guides:

First off, the setup poster helps you get started with setting up your computer.

The eMachines Generic User Guide contains useful information applying to all models in the eMachines product range. It covers basic topics such as system recovery, using the keyboard, audio, etc. Please understand that due to its nature, the eMachines Generic User Guide will occasionally refer to functions or features which are only contained in certain models, but not necessarily in the model you have purchased. Such instances are marked in the text with language such as "only for certain models".

This Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the eMachines Generic User Guide, which contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it:

1 Click on 📋 Start > All Programs > eMachines Documentation.

2 Click on eMachines Generic User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on eMachines Generic User Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your eMachines notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new eMachines notebook.

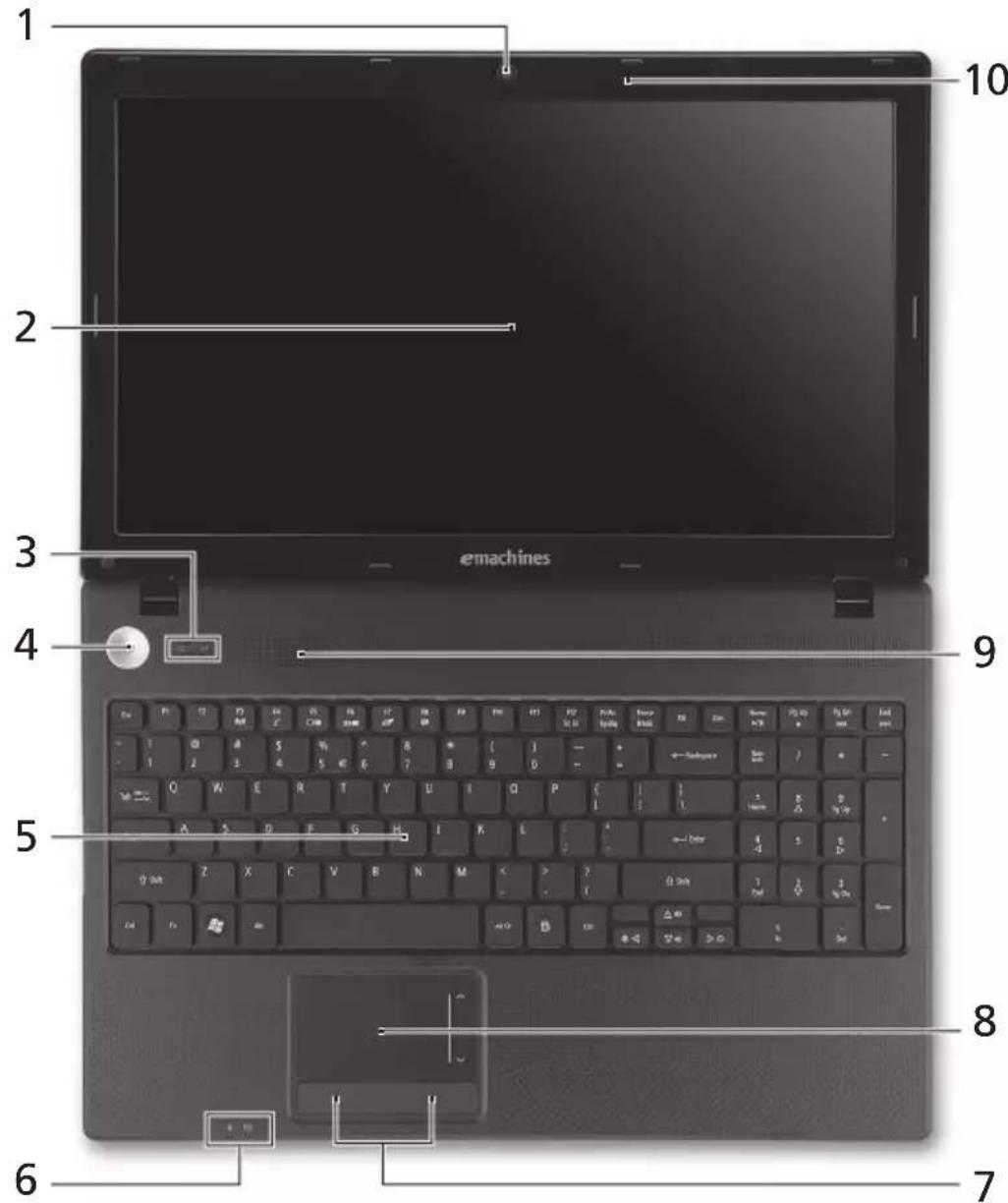

Top view

1 2 3 4 5 6 7 8 9 10 emachines

Icon Item Description

1 Integrated webcam

Web camera for video communication (only for certain models).

#	Icon	Item	Description
2 Display screen Also called Liquid-Crystal Display (LCD), displays computer output (configuration may vary by model).
3 Communication		indicator	Indicates the computer's wireless connectivity device status.
		HDD indicator Indicates when the hard disk drive is active.
4 Power button Turns the computer on and off.
5 Keyboard For entering data into your computer.
6 Power indicator Indicates the computer's power status.
		Battery indicator Indicates the computer's battery status.1. Charging: The light shows amber when the battery is charging.2. Fully charged: The light shows blue when in AC mode.
7 Click buttons (left and right)			The left and right buttons function like the left and right mouse buttons.
8 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
9 Speaker Delivers audio output.
10 Microphone Internal microphone for sound recording.
		2-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard (MMC).Note: Push to remove/install the card. Only one card can operate at any given time.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

+ <F3> Communication Enables / disables the computer's communication devices. (Communication devices may vary by configuration.)
+ <F4> Sleep Date the computer in Sleep mode.
+ <F5> Display toggle Switches display output between the display screen, external monitor (if connected) and both.
+ <F6> Display Turns the display screen backlight off to save power. Press any key to return.
+ <F7> Touchpad toggle Turns the touchpad on and off.
+ <F8> Speaker toggle Turns the speakers on and off.
+ <	Volume up Increases the sound volume.
+ <	Volume down	Decreases the sound volume.
+ <	Brightness up	Increases the screen brightness.
+ <	Brightness down	Decreases the screen brightness.
+ <Home>	Play/Pause	Play or pause a selected media file.
+ <Pg Up>	Stop	Stop playing the selected media file.
+ <Pg Dn>	Previous	Return to the previous media file.
+ <End>	Next	Jump to the next media file.

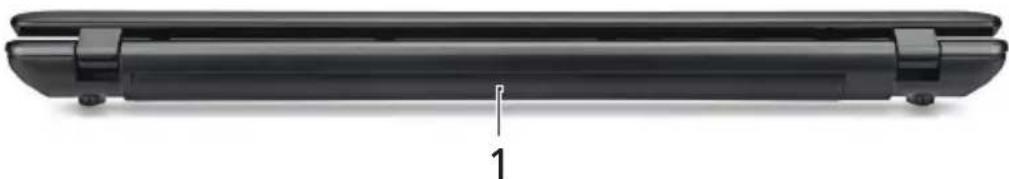

Rear view

Side view of a black electronic device with labeled component '1' (no text or symbols on body)

# Item Description

1 Battery Provides power for the computer to be used while unplugged.

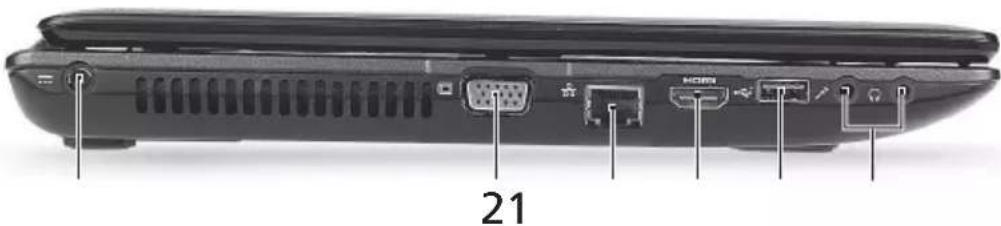

Left view

21

# Icon Item Description

1 DC-in jack Connects to an AC adapter.
2 External display (VGA) port Connects to a display device (e.g., external monitor, LCD projector).
3 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based network.
4 HDMI port Supports high-definition digital video connections.
5 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB camera).
6 Microphone-in jack Accepts inputs from external microphones.

Headphone / speaker / line-out jack Connects to audio line-out devices (e.g., speakers, headphones).

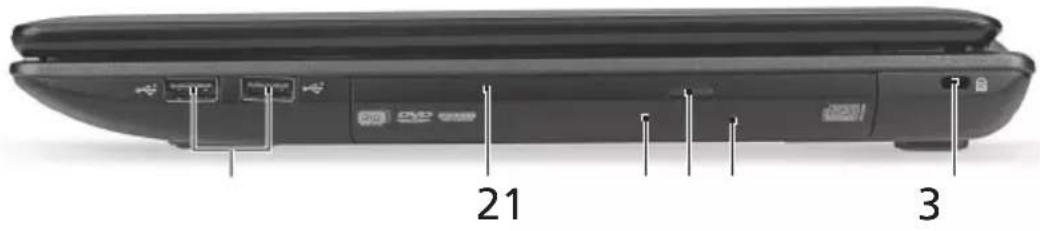

Right view

21 3

# Icon Item Description

1 USB 2.0 ports Connect to USB 2.0 devices (e.g., USB mouse, USB camera).

2 Optical drive Internal optical drive; accepts CDs or DVDs.

3 Optical disk access indicator Lights up when the optical drive is active.

4 Optical drive eject button Ejects the optical disc from the drive.

5 Emergency eject hole Ejects the optical drive tray when the computer is turned off.

Note: Insert a paper clip to the emergency eject hole to eject the optical drive tray when the computer is off.

6 Kensington lock slot Connects to a Kensington-compatible computer security lock.

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Note: Wrap the computer security lock cable around an immovable object such as a table or handle of a locked drawer. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available.

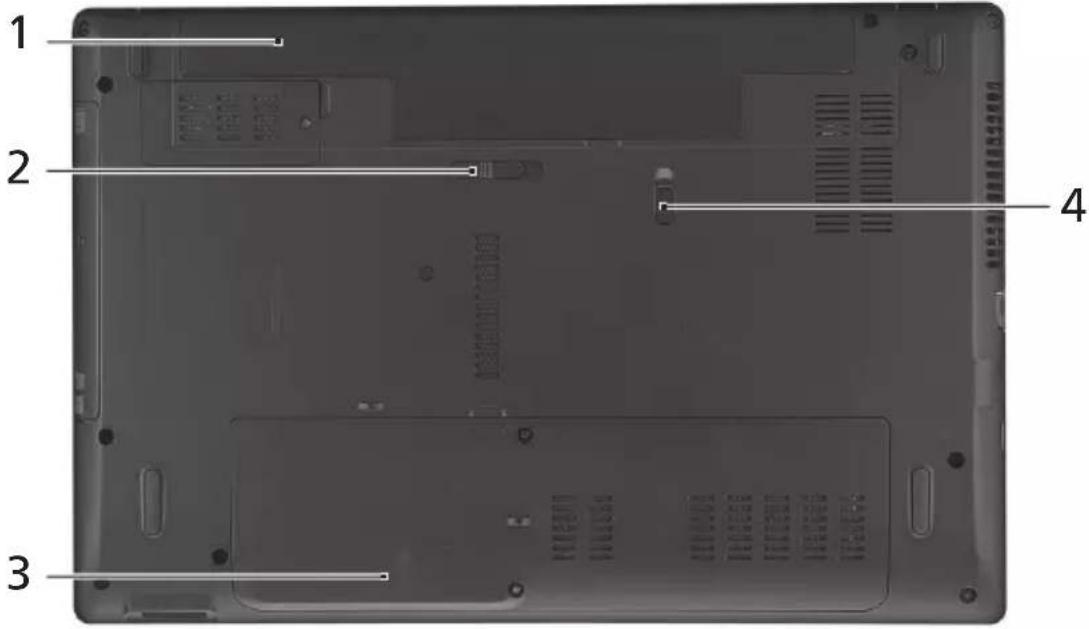

Base view

1 2 3 4

# Icon Item Description

1 Battery bay Houses the computer's battery pack.
2 Battery release latch Releases the battery for removal.

3 Hard disk bay /

memory compartment

Houses the computer's hard disk (secured with screws) and main memory.

4 Battery lock Locks the battery in position.

Environment

- Temperature:

• Operating: 5 °C to 35 °C
  • Non-operating: -20 °C to 65 °C

• Humidity (non-condensing):

• Operating: 20% to 80%
  • Non-operating: 20% to 80%

Gamme de notebook eMachines

Guide rapide

Black electronic device with a labeled component '1' (no other text or symbols visible)

Black electronic device rear panel with labeled component '1' (no other text or symbols visible)

Back view of a laptop computer showing internal components including VGA, USB, and ports (no text or labels visible)

213456

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# Item Descrição

Black cylindrical electronic device with labeled component '1' (no other text or symbols visible)

# Item Beschrijving

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# Element Beskrivelse

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# Emne Beskrivelse

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# Osio Kuvaus

Black cylindrical electronic device with labeled component '1' (no text or symbols on body)

Поз. Описание

Back view of a laptop computer showing port labels and connectors (no text or symbols visible)

21
3

Black cylindrical electronic device with labeled component '1' (no other text or symbols visible)

# Element Opis

Black cylindrical electronic device with labeled component '1' (no other text or symbols visible)

# Elem Leírás

Black cylindrical electronic device with a labeled component '1' (no text or symbols on the device itself)

Položka Popis

Black cylindrical electronic device with a labeled component '1' (no other text or symbols visible)

Položka Popis

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

Predmet Opis

Black cylindrical electronic device with a labeled component '1' (no other text or symbols visible)

Stavka Opis

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

Element Descriere

Black cylindrical electronic device with labeled component '1' (no other text or symbols visible)

Обект Описание

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# Objekt Kirjeldus

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# Elements Apraksts

Black cylindrical electronic device with labeled component '1' (no other text or symbols visible)

Objektas Aprašymas

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

Στοιχείο Περιγραφή

Back panel of a computer with visible ports and connectors (no text or symbols)

21
3

Black electronic device with a labeled component '1' (no other text or symbols visible)

Öğe Açıklama

© 2010 All Rights Reserved.

Black cylindrical electronic device with labeled component '1' (no other text or symbols visible)

# アイテム 説明

© 2010 All Rights Reserved.

Black cylindrical electronic device with a labeled component '1' on its side (no other text or symbols visible)

Back view of a black electronic device with labeled ports and connectors (no readable text or symbols)

213456

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# 項目 說明

Black cylindrical object with a labeled dimension '1' on its side, no other text or symbols visible.

# 项目 描述

1 电池 未插接电源插头时为电脑供电。

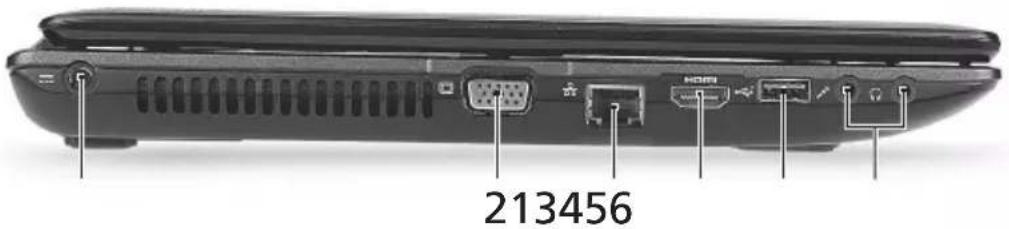

左视图
