USER MANUAL WX331.1 WORX

HAMMERFORCE WORX WORX

Rotary hammer	EN	P05
Bohrhammer	D	P09
Marteau Perforateur	F	P13
Martello Rotativo	I	P17
Martillo rotatorio	ES	P21
Boorhamer	NL	P25
Młot obrotowy	PL	P29
Pneumatikus fúrókalapács	HU	P33
Ciocan articulat	RO	P37
Rotační kladivo	CZ	P41
Otočné kladivo	SK	P45
Martelo rotativo	PT	P49
Rotorhammare	SV	P53
Rotacijski vrtalnik	SL	P56

Original instructions EN
Originalbetriebsanleitung	D
Notice originale F
Istruzioni originali I
Manual original ES
Oorspronkelijke gebruiksaanwijzing NL
Tlumaczenie oryginalnych instrukcji PL
Eredeti használati utasítás HU
Traducerea instructiunilor initiale	RO
Překlad původních pokynů	CZ
Preklad pôvodných pokynov	SK
Manual original PT
Bruksanvisning i original SV
Izvorna navodila SL

WORX POWERFORCE 1 2 3 4 5 6 7 8

A1 ① ② SDS-plusSDS

Diagram illustrating the process of a drill bit with labeled steps and safety symbols

Line drawing of a DHLFORGE electric drill with a coiled drill bit (no text or symbols)

WNO-RX WNO-RX

D ORGE WORK

Technical diagram showing a mechanical component with an arrow indicating direction, alongside icons of a turtle and a gear.

F

G M T T M T M T M T

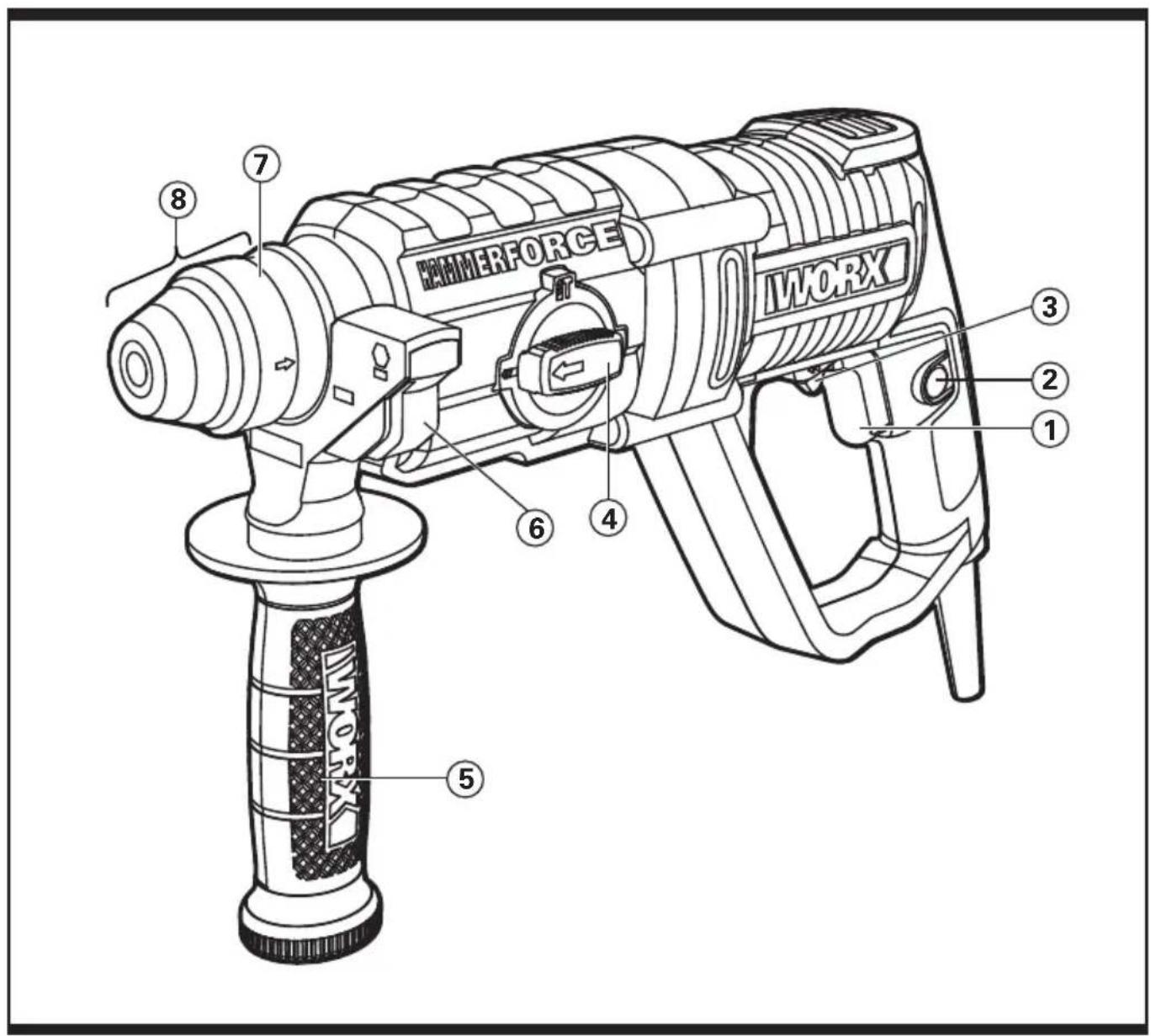

1. ON/OFF SWITCH

2. SWITCH LOCK-ON BUTTON

3. FORWARD AND REVERSE ROTATION CONTROL

4. FUNCTION MODE SELECTION SWITCH

5. AUXILIARY HANDLE

6. ADJUSTABLE DEPTH STOP

7. DUST PROTECTION CAP

8. SDS-PLUS "QUIK-CHANGE" CHUCK

Not all the accessories illustrated or described are included in standard delivery.

TECHNICAL DATA

Type WX331 WX331.1 WX332

(330-359-designation of machinery, representative of rotary hammer)

	WX331WX331.1	WX332
Voltage 230-240V~50Hz
Power input 750W 800W
No load speed 0-1200/min
Impact rate 0-5000bpm
Impact energy 2.0J 2.5J
Protection class	☐/II
Drilling capacity max
Masonry 20mm 26mm
Steel 13mm
Wood	30mm
Machine weight	2.3kg	2.7kg

NOISE INFORMATION

When tested at hammer & drill mode	A weighted sound pressure L_PA = 90.4dB
	A weighted sound power L_WA = 101.4dB

K_PA & K_WA : 3dB(A)

When tested at hammer only mode according to 2000/14/EC

L_PA=92.3dB

L_WA=103.3dB

Wear ear protection when sound pressure is over 80dB(A)

VIBRATION INFORMATION

Vibration total values (triax cover sum) determined according to EN 60745

Hammer drilling into concrete	Vibration emission value a_h,HD = 15.674m/s^2
	Uncertainty K=1.5m/s ^2
Chiseling	Vibration emission value a_h,Cheq = 16.065m/s^2
	Uncertainty K=1.5m/s ^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being drilled. The tool being in good condition and well maintained. The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimize your vibration exposure risk.

ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10°C or less. Plan your work schedule to spread any high vibration tool use across a number of days.

ACCESSORIES

	WX331	WX331.1	WX332
Auxiliary handle 1	1 1
Depth gauge 1 1 1
SDS drill bits / 5 3
SDS flat chisel // 1

We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

HAMMER SAFETY WARNINGS

1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Double insulation

	Warning
	Wear ear protection
	Wear eye protection
	Wear dust mask
	Waste electrical products must not be disposed of with household waste.Please recycle where facilities exist.Check with your local authorities or retailer for recycling advice.
	Before any work on the machine itself, pull the mains plug from the socket outlet.
	Wear protective gloves
	Concrete
	High speed
	Low speed
	Tool holder
	Drilling
	Chiseling

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction to look carefully.

INTENDED USE

The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.

WARNING: Before any work on the machine If, pull the mains plug.

OPERATION

Action Figure

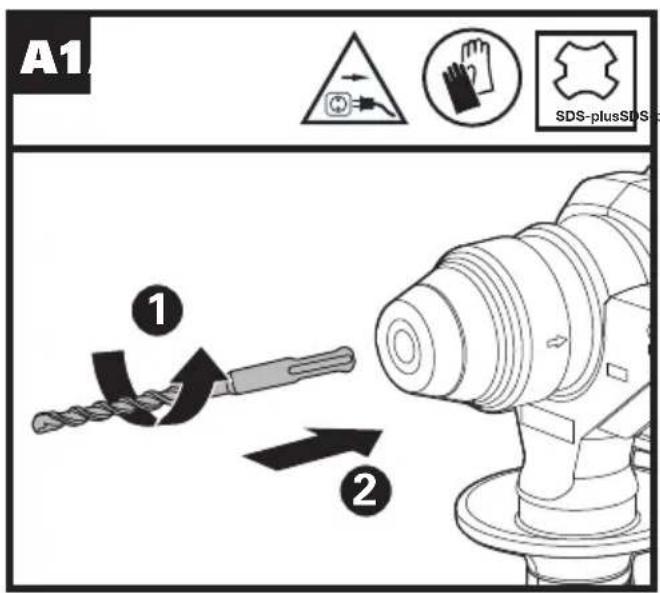

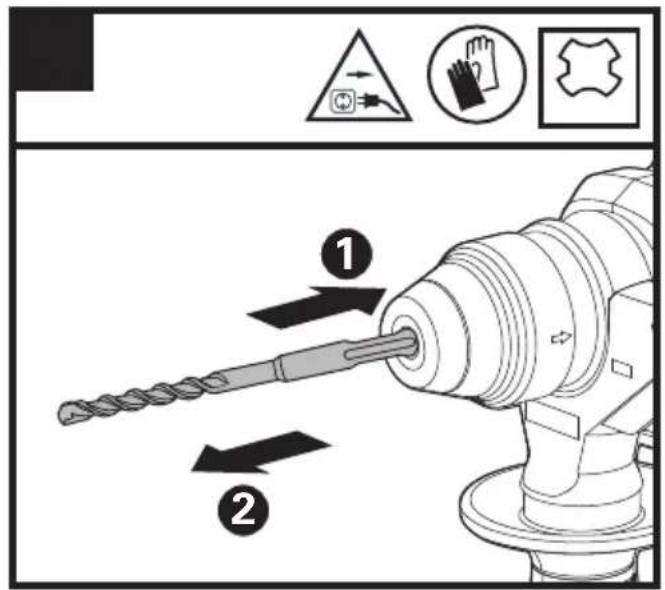

INSERTING AND REMOVING DRILL BIT IN SDS	See Fig. A1&A2

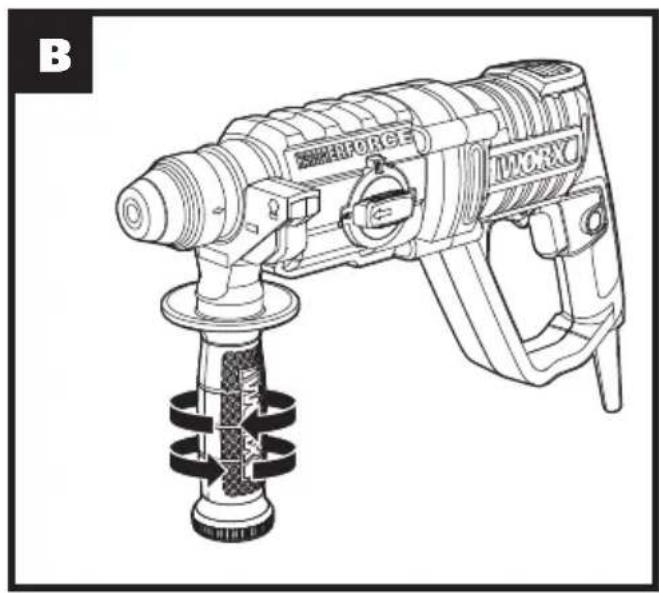

Adjusting the Auxiliary Handle See Fig	B
Using the Depth Gauge See Fig. C

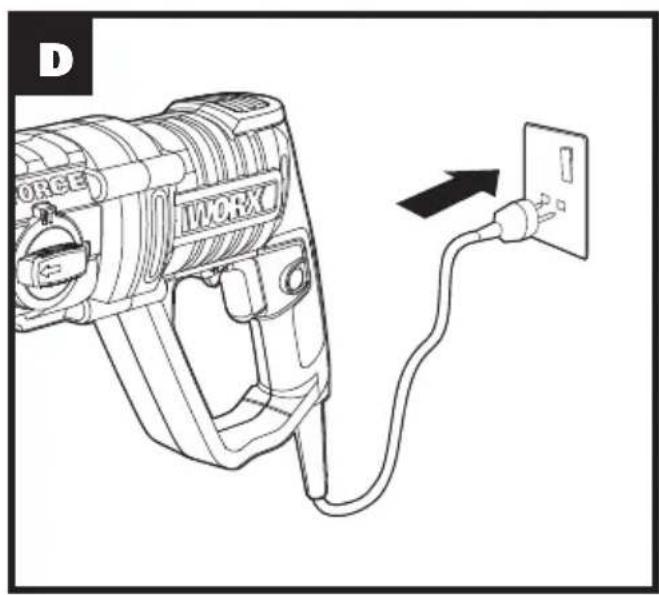

Plugging in the power See Fig. D

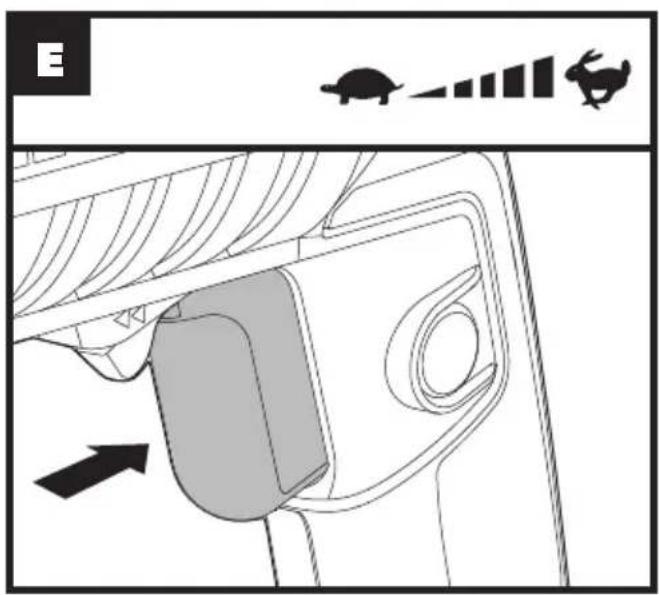

On/Off Switch With Variable Speed Control	See Fig. E

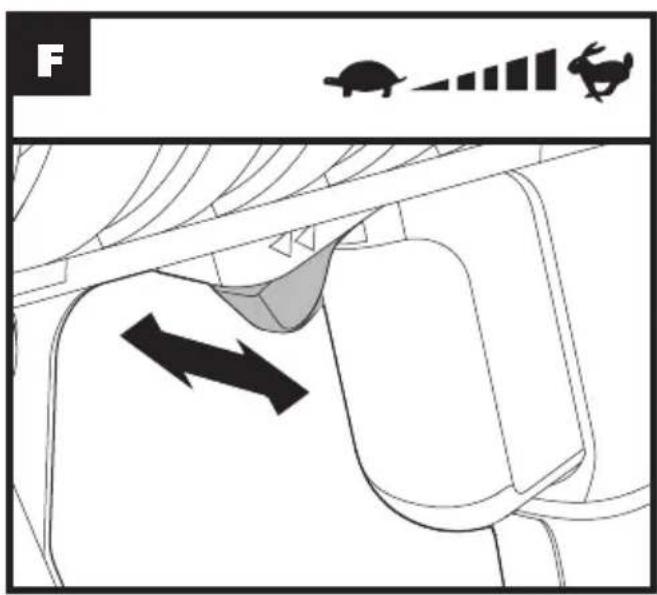

FORWARD / REVERSE ROTATION CONTROL⚠ WARNING: Never change the direction of rotation while the tool is rotating, wait until it has stopped.	See Fig. F

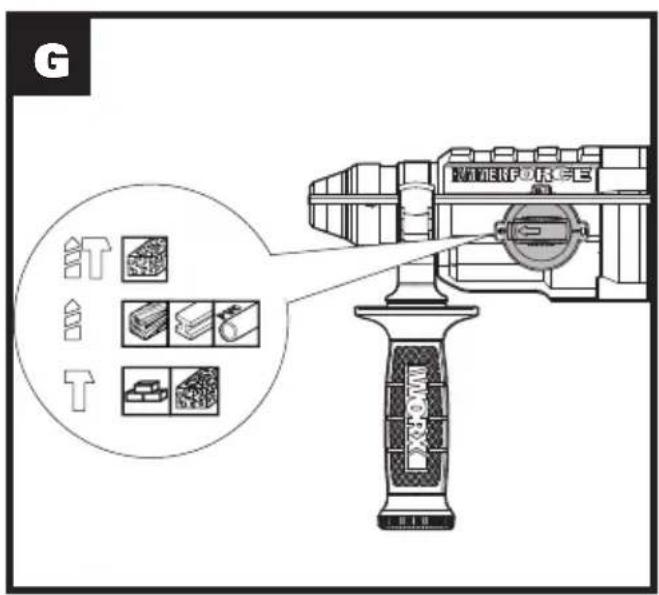

Selecting The Operating Mode For simultaneous drilling and impacting of concrete or masonry, choose the Hammer drilling position.⚠ For screw driving, drilling into steel, wood and plastics choose the Rotary drilling position.⚠ For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position.⚠ WARNING: The operating mode selector switch may be actuated only at a standstill.⚠ WARNING: Prolonged use will cause the aluminum housing to become hot, do not touch.	See Fig. G

WORKING HINTS FOR YOUR DRILL (HAMMER)

If your power tool becomes over heated, set the speed to maximum and run no load for 2-3 minutes

to cool the motor. SDS-plus tungsten carbide drill bits should always be used for concrete and masonry. When drilling in metal, only use HSS drill bits in good condition. Always use a magnetic bit holder when using short screwdriver bits. Where possible use a pilot hole before drilling a large diameter hole.

MAINTENANCE

Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.

Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your

local authorities or retailer for recycling advice.

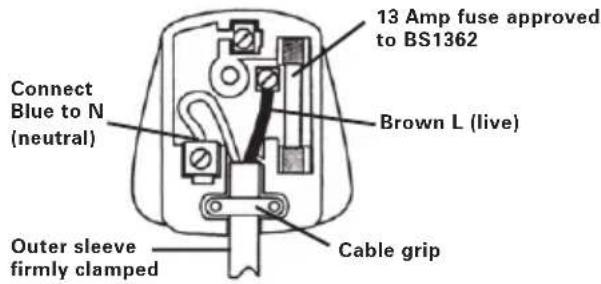

PLUG REPLACEMENT (UK & IRELAND ONLY)

If you need to replace the fitted plug then follow the instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance with the following code:

Blue = Neutral

Brown = Live

As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

WARNING: Never connect live or neutral wires to the earth terminal of the plug. Only approved 13ABS1363/A plug and the correct use.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent

engaging into a socket.

13 Amp fuse approved to BS1362 Brown L (live) Connect Blue to N (neutral) Outer sleeve firmly clamped Cable grip

DECLARATION OF CONFORMITY

We,

POSITEC Germany GmbH

Declare that the product,

Description WORX Rotary hammer

Type WX331 WX331.1 WX332

(330\~359--designation of machinery, representative of Rotary Hammer)

Function Hammering various materials

Complies with the following directives,

2006/42/EC, 2004/108/EC, 2011/65/EU

Standards conform to

EN 60745-1

EN 60745-2-6

EN 55014-1

EN 55014-2

EN 61000-3-2

EN 61000-3-3

The person authorized to compile the technical file, Name Russell Nicholson

Address Positec Power Tools (Europe)Ltd, PO Box 152, Leeds, LS10 9DS, UK

A##

C€

Suzhou 2015/06/30

Allen Ding

Deputy Chief Engineer, Testing & Certification
