USER MANUAL SRNH 100 E3 SILVERCREST

Back & Neck Heat Pad

Operating instructions and safety advice

NL BE

WaRmtekuSSeNvooR Rug eN Nek

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE/NI Operating instructions and safety advice Page 5

List of pictograms used

Introduction

Intended use
Parts description.. 7
Scope of delivery.. 7
Technical data.. 7

Important safety instructions

Safety system Page 9

Start-up Page 9

Switching on/off/Selecting the temperature.. 9
Temperature levels. Page 10
Automatic switch-off Page 10

Cleaning and care

Storage

Disposal

Warranty/Service centre

Declaration of Conformity

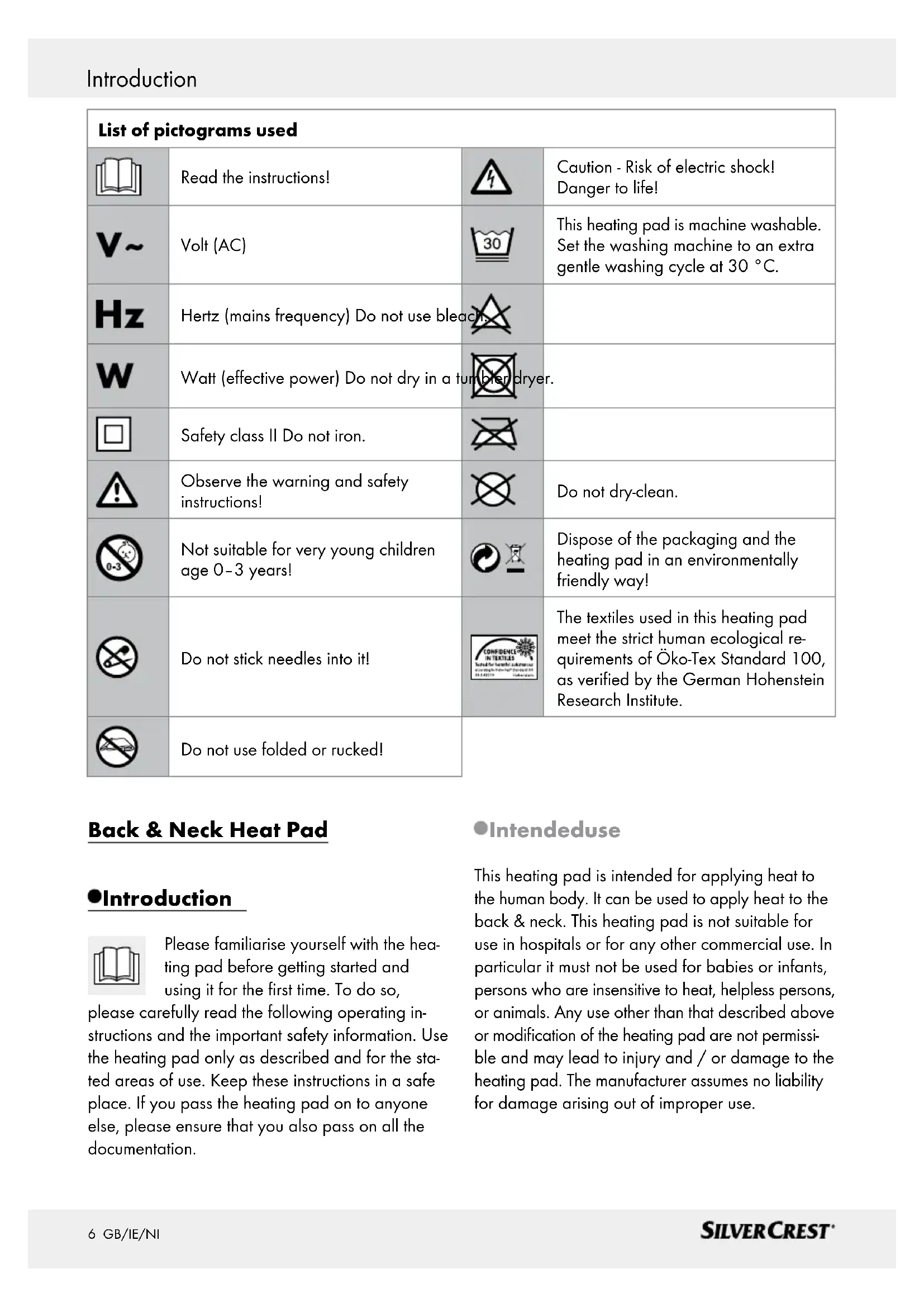

List of pictograms used
	Read the instructions!		Caution - Risk of electric shock! Danger to life!
V~	Volt (AC)	30	This heating pad is machine washable. Set the washing machine to an extra gentle washing cycle at 30 °C.
Hz	Hertz (mains frequency) Do not use bleach.
W	Watt (effective power) Do not dry in a tumbler dryer.
	Safety class II Do not iron.
	Observe the warning and safety instructions!		Do not dry-clean.
	Not suitable for very young children age 0-3 years!		Disposition of the packaging and the heating pad in an environmentally friendly way!
	Do not stick needles into it!		The textiles used in this heating pad meet the strict human ecological requirements of Öko-Tex Standard 100, as verified by the German Hohenstein Research Institute.
	Do not use folded or rucked!

Back & Neck Heat Pad

Introduction

Please familiarise yourself with the heating pad before getting started and using it for the first time. To do so,

please carefully read the following operating instructions and the important safety information. Use the heating pad only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heating pad on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This heating pad is intended for applying heat to the human body. It can be used to apply heat to the back & neck. This heating pad is not suitable for use in hospitals or for any other commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heating pad are not permissible and may lead to injury and / or damage to the heating pad. The manufacturer assumes no liability for damage arising out of improper use.

- Partsdescription

1 Control unit (see fig. A)
2 Function display (see fig. A)
Plug-in connector (see fig. B)

- Scope of delivery

Please check immediately on unpacking that the delivery scope is complete and that the heating pad is in perfect condition.

1 Back & Neck Heat Pad
1 Control unit / Plug-in connector
1 Set of operating instructions

-Technicaldata

Model: SRNH 100 E3

Type: P10N

Power supply: 220-240V/

50-60Hz

Power input: 100W

Dimensions: approx. 62 × 41 cm

Protection class: II/

Electric field strength: max. 5000V / m

Magnetic field strength: max. 80A / m

Magnetic flux density: max. 0.1 milli-Tesla

Material:

Top/bottom: 100% polyester

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Dusseldorf, Germany

IMPORTANT INSTRUCTIONS - KEEP FOR FUTURE REFERENCE!

Important safety instructions

WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following safety instructions and hazard warnings are not only intended to protect your own health and the health of others, but also to prevent damage to the heating pad. Please observe these safety instructions and pass on this operating manual together with the heating pad.

SCALDING HAZARD!

This heating pad may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area, after using analgesics or alcohol). There is a risk of receiving skin burns.

WARNING This heating pad may not be used for very young children (0-3 years), as they are unable

Important safety instructions

to react to overheating. There is a risk of receiving skin burns.

This heating pad may not be used by young children (3-8 years) unless the control unit was set by a parent or a supervising person and the child was adequately instructed on the safe use of the heating pad. There otherwise is a risk of burns.
This heating pad may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the heating pad and understand the associated risks.
Children must be supervised to prevent them from playing with the heating pad. There is a risk of injury.
Children must not perform clean or maintain the product without supervision. There is a risk of injury.
This heating pad is not intended for hospital or commercial use. This poses a risk of injuries and / or damage to the heating pad.

WARNING!

Do not insert needles or

pointed objects into the heating pad. There is a risk of electric shock.

WARNING!

Do not switch on the

heating pad whilst folded or pushed together. The heating pad may otherwise be damaged.

Do not use when wet! Otherwise there is a risk of electric shock.
This heating pad may only be operated together with the control unit specified on the label. The heating pad may otherwise be damaged.
The electric and magnetic fields emitted by this heating pad could potentially interfere with the functionality of your pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000V / m , mag netic field strength: max. 80A / m , magnetic flux density: max. 0.1 milli-Tesla. Therefore please consult your physician and the manufacturer of your pacemaker before using this heating pad.
- Do not pull, twist or kink the cables. The heating pad may otherwise be damaged.
Frequently check the heating pad for wear or damage. If signs thereof are detected, the heating

pad was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.

If the power cord of the heating pad is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person, to avoid hazards.
With the heating pad switched on, never

• place objects on it (e.g. suitcases or clothes baskets),
• place a heating source such as a hot-water bottle, heating pad or similar items on it. The heating pad may otherwise be damaged.

The electronic components inside the control unit will heat up whilst operating the heating pad. For this reason, the control unit must not be covered or be lying on the heating pad during operation. This poses a risk of injuries and / or damage to the heating pad.
Always observe the information on start-up, cleaning and care, and storage.
If you have additional questions on using our products, please contact our Customer Service Department.

- Safetysystem

Note: The heating pad is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches the heating pad off automatically due to a fault, then the function display 2 on the control unit 1 is no longer illuminated, even if the heating pad is switched on.

Please note that, for safety reasons, the heating pad must not be used after a fault and must be returned to the service address indicated.

Start-up

Note: The heating pad may smell of plastic the first time you use it, but this will disappear after a short period of time.

To begin, first connect the control unit 1 to the heating pad with the plug-in connector 3 (see fig. B).
Position the heating pad on your back so that the fastener for the neck section is in the throat area.
Then close the fastener.
Then adjust the length of the belt around your stomach and fit the two ends of the connector together (see Fig. C) to fasten the belt.
To open the belt, press the two catches on the connector at the same time (see Fig. C).

- Switching on/off/Selecting the temperature

Switching on:

Set the control unit to 1, 2, 3, 4, 5 or 6 to switch on the heating pad.

Note: The function display 2 illuminates after the heating pad is switched on.

Note: This heating pad features rapid heating, which allows it to heat up within the first 10 minutes of operation.

Switching off:

Set the control unit to 0 to switch off the heating pad.

Note: The operating display 2 will switch off.

Selecting the temperature:

Just before using the heating pad, set it to the highest temperature setting (setting 6). This will cause the heating pad to warm up quickly.
When using the heating pad for several hours, set it to the lowest temperature setting (setting 1).

WARNING! When operating the heating pad for several hours, we commend setting the control unit 1 to the lowest setting to prevent overheating and potential burns to the part of the body heat is applied to.

- Temperaturelevels

Set the required temperature level on the control unit [1] (see fig. A).

Level0:off

Level 1: minimum heat

Level 2-5: customised heat

Level 6: maximum heat

Automaticswitch-off

Note: The heating pad switches itself off automatically after about 90 minutes. The function display 2 then starts to flash.

Then select the setting 0 and after about 5 seconds, reset the heating pad to the desired temperature setting to switch it on again.

If the heating pad is no longer used after the timer expires:

• switch off the heating pad (setting 0),
• unplug from the socket,
• disconnect the plug-in connection 3, i.e. the control unit 1 from the heating pad.

- Cleaning and care

DAIITIONING! LIFE BY ELECTRIC SHOCK! Always remove the mains plug from the socket and the plug-in connector 3 with the control unit 1 from the heating pad (see fig. B) before cleaning the heating pad. Otherwise there is a risk of electric shock.
Use a dry, lint-free cloth for control unit cleaning and care.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Never immerse the control unit 1 in water or other liquids. It may otherwise be damaged.
If the heating pad is slightly soiled, use a dampened cloth and a little liquid mild detergent, if necessary.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not use chemical cleaning or scouring agents to clean the heating pad and control unit 1. The heating pad and control unit 1 may otherwise be damaged.

he heating pad is machine-washable. Set the washing machine at an extra washing cycle for delicate items at 30^
For ecological reasons, please only wash the heating pad together with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.
Please note that frequent washing will cause wear to the heating pad. It should therefore be washed no more than max. 10 times in a washing machine throughout its useful life.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Please note that the heating pad may not

Cleaning and care / Storage / Disposal / Warranty / Service centre

be dry-cleaned, bleached, wrung out, dried mechanically, mangled or ironed. The heating pad may otherwise be damaged.

o not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).

Do

in a tumbler dryer.

Do

Do

-clean.

Reshape the still damp heating pad to the original size immediately after washing, and dry flat, spread on a clothes drying rack.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! Do

not hang the heating pad up to dry

with pegs or similar. The heating pad may otherwise be damaged.

1

DANGER OF ELECTRIC SHOCK!

Do not reconnect the control unit 1

to the heating pad until the plug-in

connector 3 and the heating pad are completely dry. Otherwise there is a risk of electric shock.

1

DANGER OF ELECTRIC SHOCK!

RISK OF PROPERTY DAMAGE!

Do not under any circumstances switch

the heating pad on to dry. Otherwise there is a risk of electric shock.

Storage

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! Let

the heating pad cool before putting

it away. The heating pad may otherwise be damaged.

RISK OF DAMAGE TO THE

PRODUCT OR PROPERTY! To

prevent the heating pad from beco

ming sharply creased, do not store other objects

on top of the heating pad. The heating pad may otherwise be damaged.

If you do not intend to use the heating pad for any length of time, store it in the original packaging in a dry environment and without weighing it down. Disconnect the plug-in connection 3

i.e. the control unit 1, from the heating pad to do so.

Disposal

The packaging and ancillary packing consist of environmentally friendly materials. They can be disposed of at your local recycling facility.

Do not dispose of electric equipment in the household waste!

In accordance with the European Directive on waste electrical and electronic equipment and its transposition into national law, used electrical equipment must be collected separately and recycled in an environmentally friendly manner.

Contact your local refuse disposal authority for more details of how to dispose of your worn out heating pad.

Warranty/Service centre

We provide a 3-year warranty from the date of purchase for defects in material and manufacture of the heating pad.

The warranty does not cover:

• Damage from improper use.
• Wearparts.
• Damage caused by the customer.
  If the device has been opened by an unauthorized repair shop.

This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty

Warranty / Service centre / Declaration of Conformity

period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.

In the event of a claim, please contact our Service Department listed below:

Service Hotline (toll-free):

GB NI

08009310319

(Mon-Fri: 8 am-6 pm)

品 [e-mail]

IE NI

0 1800939235

(Mon-Fri: 8 am-6 pm)

[e-mail]

If we ask you to return the defective heating pad, please send it to the following address:

NU Service GmbH

Lessingstraße 10b

89231 Neu-Ulm

Germany

IAN 275409

Declaration of Conformity

This heating pad complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.

Service hotline (gratis):

NL

0800 54 30 543 (ma.-fr.: 8-18 klok)
图 [e-mail]

BE

0 0800 70 611 (ma. - fr.: 8-18 klok)
品 [e-mail]

40210 Dusseldorf, Germany

Last Information Update

Version des informations · Stand

van de informatie · Stand der Informationen:

04/2016-Ident.-No.:07.100.178-042016-BE/NL
