POWER CONNECTION

Plug the AC power cord to a household outlet AC source. This unit is equipped with a battery backup system, it requires a 3V CR2032 flat lithium battery (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

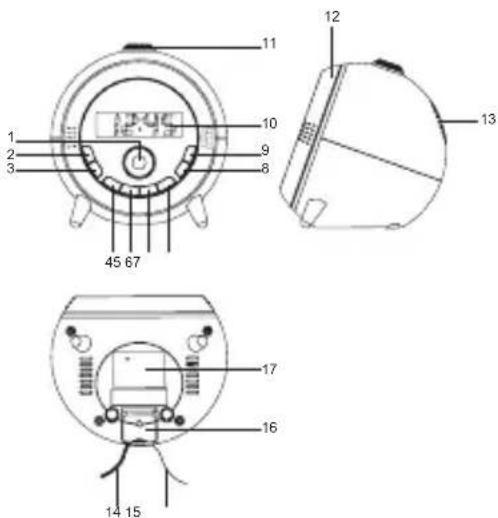

Description of the product & locations of controls

FUNCTION AND CONTROLS

1. SNOOZE / SLEEP / DIMMER/DST
   2.PROJECTION ON/OFF
   3.PROJECTION TIME 180^
2. / TUNE-/YEAR/MONTH/DAY/ DISPLAY AUTO CHANGE ON-OFF
3. TUNE + / AUTO ON-OFF DISPLAY
4. VOLUME DOWN/ALARM 1 ON-OFF SET
5. VOLUME UP/ ALARM 2 ON-OFF SET
6. MEM/MEMORY+/SET/NAP
7. ON-OFF
   10.DISPLAY
8. FOCUS ADJUSTMENT FOR PROJECTION UNIT
9. ROTARY SET DIAL
10. SPEAKER
11. AC POWER CORD
12. FM ANTENNA
13. BATTERY COMPARTMENT
14. RATING LABEL

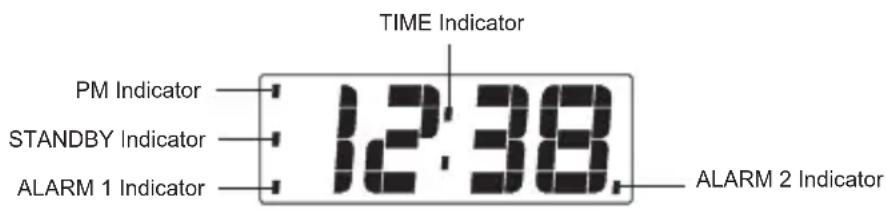

DISPLAY DESCRIPTION AND INDICATORS

TO SET CLOCK MANUALLY:

1. Press and hold the (8) SET Button in standby mode and keep depress over 3 seconds to enter time set mode. The year display will flash.
2. Turn the (12) rotary set dial to adjust the year.
3. Press the (8) SET Button. The date display will flash.
4. Turn the (12) rotary set dial to adjust the date and press the SET button. The clock display will flash.
5. Turn the (12) rotary set dial to adjust the clock and press the SET button the clock setting is complete.

Note:

• Press Tune - button (4) to adjust data backward.
• Press Tune + button (5) to adjust data forward.
• Keep depress or button for 3 seconds to enable auto forward.

SETTING THE ALARMS:

1) Press and hold the (6) alarm 1 or (7) alarm 2 Button until the alarm time flashes.
2) Turn the (12) rotary set dial to set the desired alarm time, weekday alarm, alarm wake beep, alarm wake radio, wake radio volume. Press the alarm button the setting is complete.

Note: select alarm weekday mode as follows:

1-5:Monday to Friday
1-7:Wholeweek
6-7: Saturday & Sunday
1-1:One day of week

Note:

• Press Tune - button (4) to adjust data backward.
• Press Tune + button (5) to adjust data forward.
• Keep depress ar button for 3 seconds to enable auto forward.

ALARM DURATION

Beep alarm or radio alarm will ring for 30 minutes if no key is pressed, then it will stop automatically and wait for same alarm time on next day.

SNOOZE FUNCTION

• When Alarm rings, press Snooze button (6) to suspend the alarm & to activate the snooze function, Beep or Radio alarm will stop. 9 minutes later the alarm will ring again. Press SNOOZE key again, alarm will be suspended again, another 9 minutes later the alarm will ring again and so on until the next alarm rings.

Note: The interval time of the Snooze function is 9 minutes.

• If you want to disable the SNOOZE function and stop alarm completely, press ON/OFF button (9). If you don't press any button, the alarm will ring during 30 minutes & stop automatically.

DISPLAY LIGHT ON/OFF FUNCTION

• Press & hold the display auto on-off button (5) for 3 seconds, the LED display Indicator will light on, the LED display will turn off after 15 seconds automatically, Press any button to maintain the LED display for 15 seconds.

• Press & hold the display auto on-off button (5) for 3 seconds, the LED display Indicator will light off to cancel this function.

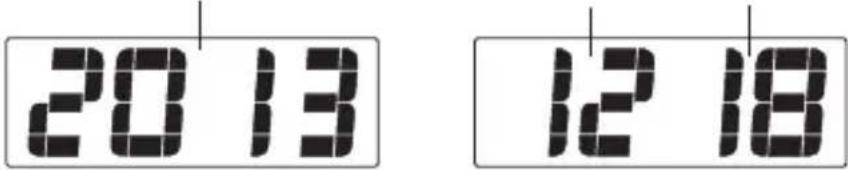

AUTO CHANGE DISPLAY CONTENT

In radio off mode, press & hold the DISPLAY AUTO CHANGE ON/OFF button (4) for 3 seconds to enter time display auto change mode to display the Year and press again to display Month/Day, the display returns to time display after 5 seconds.

YEAR Indicator MONTH Indicator DAY Indicator

RADIO MODE

Note: Ensure that the FM antenna is completely unrolled and extended to have the best FM reception.

Press the ON/OFF button (9) to turn the unit on.

Use the Tune - (4) or Tune + (5) button to select the desired radio station. If you press and hold the Tune - (4) or Tune + (5) button for one second, then release, the unit will automatically scan to the next broadcasting station.

Press the ON/OFF button (9) to turn the radio OFF.

To preset radio station

Press the ON/OFF button (9) to turn the unit ON.

Use the Tune - (4) or Tune + (5) button to select the desired radio station.

Press the Memory/Memory+ (8) button; "P01" will blink in the display. Press the 'Memory/Memory+ (8) button again to set the preset.

Repeat steps 2 through 4 to set more presets.

The unit can preset 10 stations totally for FM.

When "P01-P10" blinks, press Tune - (4) or Tune + (5) button to select the preset number.

To recall the radio preset

To recall a preset station, press Mem/Memory +/NAP (8) button to select the desired preset number.

SLEEP OPERATION

When you listen to the radio, press the SNOOZE/SLEEP/DIMMER (1) button to enter into the sleep mode. You can adjust the sleep timer from 90 minutes to 15 minutes by pressing repeatedly the SNOOZE/SLEEP/DIMMER button (1). When sleep timer is selected, the unit will automatically turn off once time is up.

NAP FUNCTION (count down timer)

In radio off mode, press NAP button (8) button to enter into the NAP mode, the NAP time 90 will be displayed during 5 seconds. In the meantime, press repeatedly NAP button (8) button to set the duration time from 90 min to 10 min.

Once time is up, the alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON/OFF button (9).

Press the NAP button (8) button has no effect during alarm operation. Press ON/OFF button (9) to cancel the NAP function.

DIMMER CONTROL

In standby mode, press the DIMMER (1) button allows you to set the brightness of the LED display to high, medium, low 3 levels.

DAYLIGHT SAVING TIME (DST) MODE

For countries with daylight saving time (DST) (one hour of difference between summer time and winter time), this clock radio offers you DST option to adjust summer time.

In standby mode press and hold for 3 seconds the DST button (1).

The clock advances by one hour. To exit DST mode, repeat the above operation.

PROJECTION UNIT

Note: project time image on the ceiling or wall of a darkened room.

The maximum projection distance is 0,90M 2,70M

Focus setting:

• Adjust the brightness & focus (11) of the projected clock by turning the adjustable focus wheel until the projected time is clearly shown on the ceiling or wall.
• Adjust projected direction thanks to the angle adjustment.
• Flip the projected image by 180^ by pressing 180^ FLIP (3) button.

RESET

If the system does not respond or exhibits erratic or intermittent operation, you may have experienced an electrostatic discharge (ESD) or a power surge that triggered the internal microcontroller

to shut down automatically. If this occurs, simply disconnect the ac power cord and remove the system backup battery, wait at least 3 minutes and then setup the unit again by following the manual.

TECHNICAL SPECIFICATIONS

Model · TCP-137

Power Supply · AC 230V - 50 Hz

Power consumption · 5W

Standby power consumption · < 1W

Battery backup · 3 V (CR2032 Flat Lithium battery x 1)

not included

Radio Frequency Coverage FM: 87.5MHz - 108 MHz

Audio output power 200mW RMS

Net Weight · 0.39~kgs

Dimensions · 106 × 125 × 116 mm

Temperature range for Indoor 0 to +50^ or 32 to 122^

IMPORTANT:

Due to continual revision and improvement on our products design, specifications are subject to change without further notice.

EXCLUSIVE IMPORTER

This product was imported by the Company : LEMA S.A.S. For any questions concerning the conformity of the product, thank you to send your request to :

LEMA S.A.S.

End of Life Disposal

Warning! This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96/CE of January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE).

This symbol means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

If you want to dispose of this equipment, please do not use the ordinary dust bin!

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
• Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.
• If you're used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.
• By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.
