USER MANUAL VHHR065 VIETA

VIETA HOME

VH-HR065

Manual de usuario

Receptor Estéreo

User Manual

Stereo Player

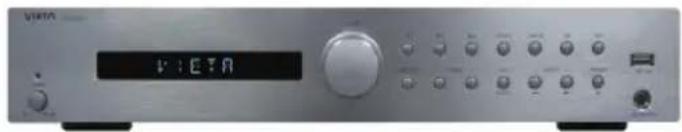

Front view of a black electronic device with control knobs and a digital display (no visible text or symbols)

VISA VISA

VIETA

CONDICIONES DE GARANTÍA

It's too warm!

Conexión eléctrica

220-240V AC~50Hz

10 Maximum 5m

Mando a distancia de funcionamiento total para unidad Vieta
VH-CD030, VH-CD060, VH-HT010, VH-HR065, VH-HA050/075/100

VIETA AUDIO S.A. guarantees its products for a period of 24 months. The guarantee period starts on the date of purchase of brand new products that have never been used by the first end user.

This guarantee covers any possible manufacturing flaws for any Vieta products sold on Spanish territory by authorised distributors. Vieta products acquired in other countries will be covered by the guarantee supplied by the local distributor.

This guarantee will only be valid when accompanied by an invoice for the product that includes the client's name, the distributor and the date of purchase. VIETA AUDIO S.A. agrees to repair any product with a problem occurring during normal use as detailed in the user's manual and when being used for the purpose for which it was designed.

The guarantee will not be extended because a component is changed or the product is replaced.

INCIDENTS THAT ARE EXEMPT FROM GUARANTEE:

1. The guarantee period exceeds the stipulated time.

2. When the product has been handled by centres or personnel that are not authorised by VIETA AUDIO S.A.

3. When the product has been damaged by incorrect handling or use for purposes other than those it is intended for and that are not contemplated in the user's manual, or when it has broken pieces, scratches, cracks, wear and tear, damage produced by particles of paint, sand, water or food within the unit.

4. This guarantee does not cover expenses or damages caused by transport.

5. Loss, robbery or accidents produced by fire, liquid, chemical substances, excessive heat, inadequate ventilation, vandalism, electrical storms, incorrect or excessive power supply, lightening, impact, other external forces, radiation.

6. Any additional cost related to installing or uninstalling the product.

7. Products purchased outside Spanish territory or from distributors that are not authorised.

8. The data contained on our products (photo files, music, digital support, etc.) are not covered by the guarantee under any circumstance: it is the client's responsibility to make back up files before giving us the product. Likewise, any incorrect configuration or installation of software or incompatibility issues with hardware belonging to other equipment, including drivers and controllers.

9. Maintenance, repairs or parts replacement due to use and wear and tear.

10. Rechargeable and/or disposable batteries (life cycle depends on usage frequency).

11. Small faults or variations in the quality of the product that do not affect its value or the purpose for which it was created.

12. Negligence.

13. Accessories:

- Plugs and cases.

- Connector cables.

Headband

• Earlip and sleeve kits

• Decorative finishes.

1. Any issue detected on receipt of the goods must be notified to customer care 902.367.607 or satogvietaees. In accordance with article 366 of trade law, VIETA AUDIO S.A. will not accept any claims regarding broken goods, impacts or missing packages 24 hours after the goods have been delivered.

CUSTOMER CARE / Tel. [phone] / Fax. [phone] / www.vieta.es

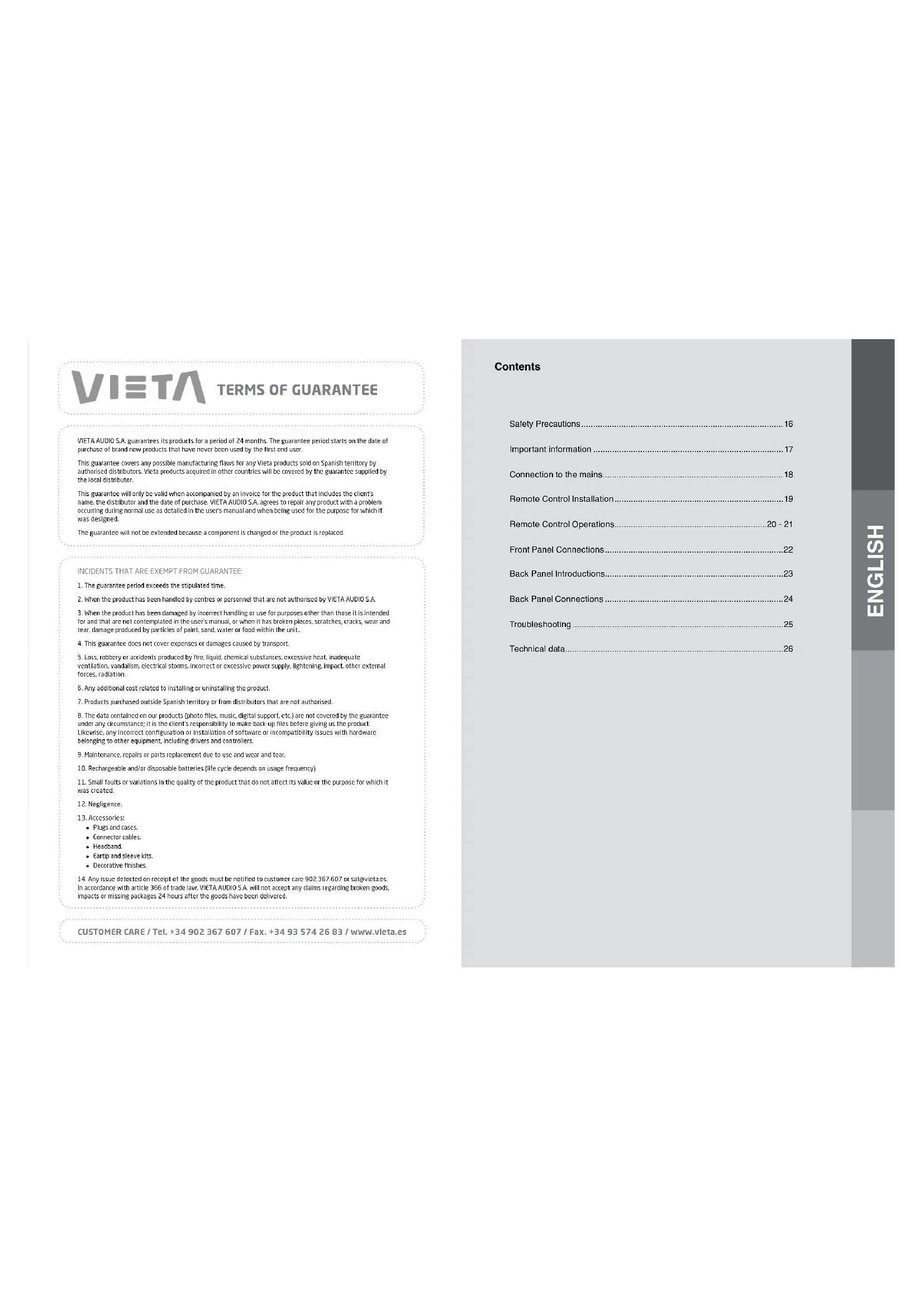

Contents

Safety Precautions....16

Important information 17

Connection to the mains....18

Remote Control Installation....19

Remote Control Operations....20 - 21

Front Panel Connections....22

Back Panel Introductions....23

Back Panel Connections 24

Troubleshooting 25

Technical data....26

Safety Precautions Important Information

A triangle with a lightning symbol draws the user's attention to "dangerous voltage" without insulation in the cabinet which may be high enough to entail a risk of electric shock.

A triangle with an exclamation mark draws the user's attention to important instructions for use and maintenance in the accompanying manual, which should be studied.

A symbol for CLASS II (double insulation)

WARNING: TO MINIMISE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET AS IT CONTAINS DANGEROUS VOLTAGE. ONLY QUALIFIED TECHNICIANS ARE ALLOWED TO CARRY OUT REPAIR AND SERVICE.

CAUTION: if the plug of the power cord needs to be replaced, it is important that the replacement is identical to the plug to be replaced, or that the new plug has been recommended by the manufacturer

TO AVOID ELECTRICAL SHOCK, IT IS IMPORTANT TO INSERT THE PLUG CORRECTLY INTO THE SOCKET.

Handling Instructions

• The top and back panel of the unit may become warm after prolonged use. This is not due to a defect.
• Turn off the power when the unit is not used.

Protect the power cord

• Follow the instructions below to prevent abnormal operation, electrical shock, fire or personal injury:
• Hold the plug firmly when inserting it into the socket.
• Avoid heat-producing devices.
• Do not place objects on the power cord.
• Do not carry out service work on or change the power cord.

Positioning

Do not place the unit in any of the fol. places: - In sunlight, close to heat-producing devices or in an enclosed rack.

• In places with high temperatures (40C or more) or high relative humidity (90% or more).
• In dirty places as some internal parts may be damaged.

Do not put your fingers or any other objects into the unit

• Touching the internal parts is dangerous and may cause injury or damage. Do not open the cabinet.
• Do not place any foreign matter in the unit.

Interference

Placing the unit near a television set, radio or video player may cause poor picture and sound quality. In that case, move the unit further away from the television set, radio or video player.

Condensation

Condensation may occur in the following cases:

• When the unit is moved directly from a cold to a warm place.
• When the unit is used in a room where the radiator has just been switched on or a place where the cold air from the air-conditioning system is directed at the unit.
• If the unit is used in the summer in a warm and humid room just after it has been moved from an air-conditioned room.
• If there is steam or a high level of humidity in the room.

In case of condensation, the unit will not work properly. Turn off the unit. Unplug the unit and leave it for 2-3 hours. The unit will then have adapted to the environment and any condensation will have disappeared.

It's too warm!

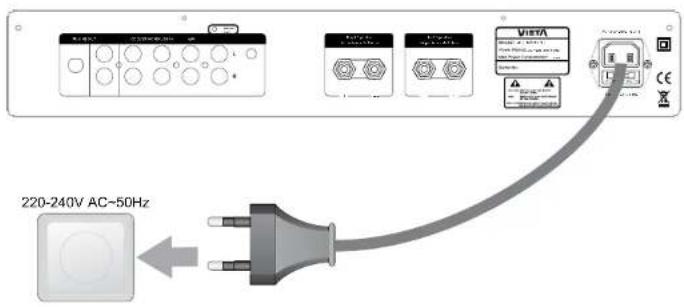

Connection to the Mains

220-240V AC~50Hz

Do not turn on the power before all connections have been made correctly. Check that all connections have been made correctly before turning on the power. Check that the mains voltage is 220-240V AC50Hz before turning on the power.

Connection to the mains

Check that all other connections have been made correctly before inserting the mains plug into the wall socket. Then insert the plug into a suitable socket.

If the unit is to be used abroad, you may need an adapter.

Remote Control Installation

Installation of batteries

1 Remove the cover as illustrated.

3 Replace the cover.

2 Position two batteries of the type AAA/R03/UM4 in the battery compartment. Make sure that the orientation of the batteries is correct (see drawing at bottom).

- Do not mix new and old batteries and do not use different types of batteries.

- If the remote control is not used for prolonged periods, remove the batteries from the remote control to avoid corrosion.

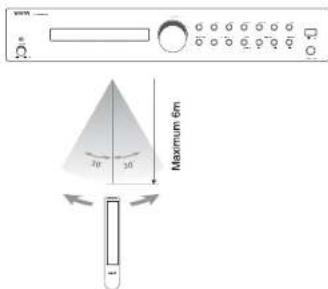

Using the remote control

Direct the remote control at the sensor on the front panel of the unit. When the remote control signal is received, the unit reacts accordingly. The remote control works within a range of 6 metres.

Maximum 5m

• Sometimes the remote control does not work well in strong light. You may have to move the unit if it is a problem.
• Malfunction may occur if other remote controls are used near the unit.
• Do not place any objects on the remote control, as the batteries may become flat if a key is depressed constantly.
• Make sure that there are no obstacles between remote control and unit.
• Do not position the unit behind tinted glass as it may reduce the maximum range of the remote control.

Full function remote control for Vieta
VH-CD030, VH-CD060, VH-HT010, VH-HR065, VH-HA050/075/100

1-Power - Get the unit into standby and ON.				√	√	√	√	√
2 Eject Open and close the disc tray				√	√	×	×
3 Number (0,1-10, +10)	a. Number buttons (0,1~10,110); selects b. Number buttons (0,1~10,110); Note: +10 key could be pressed by 0 button; eg 15, press +10 on a time tumor preset 15, eg. 25, by 2 times pressing	tracks on VH-CD030, VH-CD060. Save presets on VH-HT010 and VH-HT065. 10+leg.10, press +10, button and and than 5 to select CD track or +10 and then 5.	√	√	√	√	×
4 >>	Fast forwards in CD playback; Manual tuning	forward in tuner.	√	√	√	√	×
5 >I	Play/Pause: Starts and pause playback.		√	√	×	√	×
6 >>I	Skip (>>); / Next: Selects the next track	in CD, and the next preset in tuner.	√	√	√	√	×
7 I<<	Skip (<<); / Previous; Selects the last track	In CD, and the last preset in tuner.	√	√	√	√	×
8 REPEAT	Repeat a single or all tracks in CD disc or	USB stick.	√	√	×	√	×
9 PRO/ROM	PRO (Program) in CD090 only; ROM (Random) in CD090 only;	Programming tracks on a CD in a particular order. All tracks are played in random order.	√	√	×	×		×
10 <<	Fast Rowinds in playback CD disc: Manual	tuning backward in Tunor.	√	√	√	√	×
11 TIME - current track : elapsed time; - current track : remaining time - total tracks : remaining time of full disc	Press the key by times, shows (in CD disc)
	- total tracks: elapsed time of full disk;		√		×	×	×
12 STOP	To stop playback in CD prayer.		√	√	×	√	×
13 CD/USB	To select CD/USB source in amplifier Note: Press another time in CD030 to	or receiver; change CD or USB source.	√		×	×√	√
14 DVD	To select DVD source in amplifier or	receiver.	×	×	×	√	√
15 TUNER	To select Tuner source in amplifier or	receiver.	×	×	√	√	√
16 AUX	To select AUX source in amplifier or	receiver.	×	×	×	√	√
17 PHONO	To select PHONO source in amplifier or	receiver	×	×	×	√	√
18 LINE IN amplifier or receiver.	To select line-in source (3.5mm jack in	front panel or back panel)	×	×	×	√	√
19 SPKRS A	Speaker selector, to choose pair-A	speakers to listen;	×	×	×	×	√
20 SPKRS B	Speaker selector, to choose pair-B	speakers to listen;	×	×	×	×	√
21 MUTE	To mute the sound in the amplifier or	receiver.	×	×	×	√	√
22 VOLUME-	To turn down the volume.		×	×	×	√	√
23 VOLUME+	To turn up the volume.		×	×	×	√	√
24 FMAM	For tuner: To switch RM mode or AM mode.		×	×	√	×		×
25 ST/MONO	For lunar: To switch Storoo mode or Mono.	mode in tuner.	×	×	√	√	×
26 AUTO	For lunar: Auto scan the station/s) probably	exils in tuner.	×	×	√	√	×
27 MEMORY	Fortuner: To store the favorite station	(as number buttons instruction).	×	×	√	√	×
28 RDS	Fortuner: To activate the RDS information	In the stations which available exists.	×	×	√	×		×

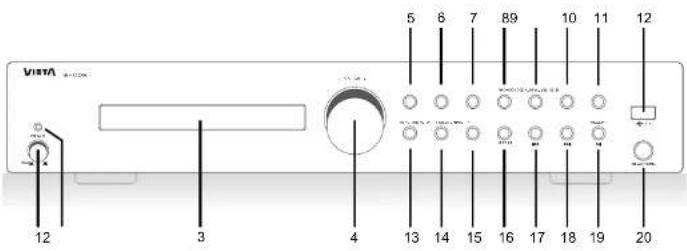

Front Panel Connections

VISTA 12 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

1. Mains switch: Used to turn ON/OFF the power.
2. LED: Lights off when the receiver turns on, lights blue in standby mode.
3. Display: To display the status of operations.
4. Volume knob: Turns up or down the volume.
5. CD: To activate CD source.
6. DVD: To activate DVD source.
7. AUX: To activate AUX source.
8. PHONO: To activate PHONO source.
9. LINE IN: To activate LINE IN source.
10. FM: To activate FM source (cult-in).
11. USB: To activate USB source (built-in).
12. USB connector: For USB plug in.
13. FUNCTION:
    Base: Selects for adjusting the bass (low frequency) up or down.
    Treble: Selects for adjusting the treble (high frequency) up or down.
    Balance: Selects for adjusting Right or Left channel of one pair of connected speakers.
    (Note: if turn the Right or Left to the end, the other channel will be no sound)
14. TUNING: For manual tuning backward in tuner.
15. TUNING+: For manual tuning forward in tuner.
16. AUTO: Auto scan the station(s) probably exits in tuner.
    REPEAT: Repeat a single or all tracks in USD.
17. PRE-: Selects the last prasal (stored station) in tuner.
    k: Selects the last track in USB.
18. PRE+: Selects the next prosel (stored station) in tuncr.

    I: Selects the next track in USB.

19. MEMORY: To store the favorite station in luner.

    (Play/Pause): Starts and pause playback in USB.

20. HEADPHONE: 6mm headphone connector.

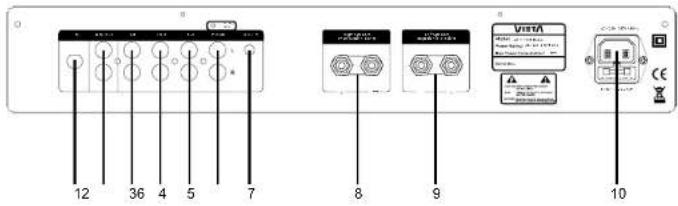

Back Panel Introductions

12 36 4 5 7 8 9 10

1. FM Antenna: FM antenna connector.
2. Line Out: For connection to an external amplifier.
3. CD input: For connection of CD player or optional equipment.
4. DVD input: For connection of DVD player or optional equipment.
5. AUX input: For connection of someone optional equipment
6. PHONO input: For connection of a turntable with an MM phone cartridge
   Note: Ground Screw above inputs must be connected meanwhile.
7. Line in: 3.5mm mini jack source connector, like MP3 player, iPod, iPhone, etc.
8. Speaker connector: Right channel,
9. Speaker connector: Left channel;
10. AC Input: For connection of mains power.

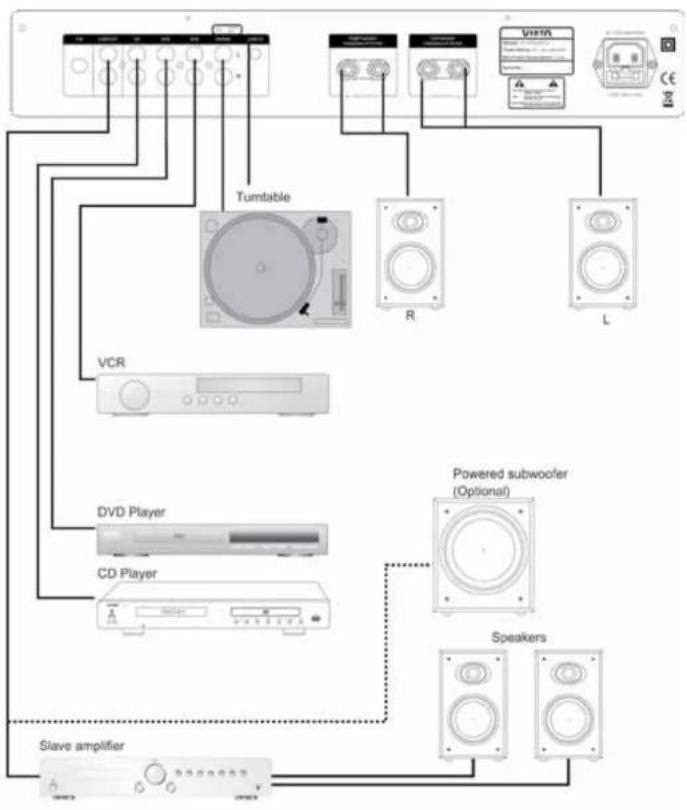

Back panel connections

Troubleshooting

PROBLEM	CAUSE/REMEDY
No power when the amplifier is -Switch on the electric current at the socket. turned on.-Check that the plug has been correctly insertedintothesocket.-The internal fuse has blown and must be replaced by a qualified service technician.
No sound.-The power cord has been damaged and must bereplaced.-The amplifier has not been turned on.-The volume control is set at a minimum.-The speaker cables have not been correctlyconnected.-A wrong input source has been selected.-No input source has been connected.
There is sound in one channel-The audio input cables or speaker cables only.have been incorrectly connected or damaged.-Theinputsourceis- Thespeaksareadef
High buzzing.-The audio input cables have been incorrectlyconnectedordamaged.-The ground cable for the record player has notbeenconnected.-The record player pick-up is defective.
Weak bass and poor stereo perspective.-The speaker connection is out of phase. Check that the positive and negative poles have been correctly connected, both at the back of the amplifier and atthebackofthe
Distortion of sound.-Some of the conductor wires of the speaker cable are in contact with each other which causesdistortion.-The volume is set too high.
The unit does not switch between input-The amplifier is defective and should be serviced modes,by a qualified technician.

Technical data

TECHNICAL DATA

Tuner band: FM 87.5 - 108.0 MHZ

Sensitivity: 12 dBu @SN=20 dB

Phono input:

Input impedance 47K Ohm

Input sensitivity 10.0 mV

Line input:

Input impedance 47K Ohm

Input sensitivity 400 mV

Line output:

Output impedance Line out 10K Ohm

Headphones 32 Ohm

Maximum output level Line out 250 mV

Headphones 2.0 V

Tone control

Treble +/- 14 dB

Bass +/- 14 dB

Output power 2 x 50 Watt at 4 Ohm

Frequency response: 10Hz to 80KHz (-3 dB)

Distortion: <0.2%

Signal/noise ratio: >80 dB

Dimensions (H x W x D): 70 x 430 x 285 mm

Net Weight: 4.80 kg

Supplied Accessories:

1. 1pcs user manual;
2. 1pcs power cord;
3. 1pcs remote control;
4. 1pcs FM antenna cable.

We reserve the right to change the technical data and the design of the product without notice as a result of further development.
