USER MANUAL CE1DL204E CONTINENTAL EDISON

Abstract geometric shapes resembling partial crescent and angular form (no text or symbols)

Continental Edison

BUILD IN REFRIGERATOR

Instruction booklet

RÉFRIGÉRATEUR ENCASTRÉ

Guide d'utilisation

INGEBOUWDE PROVISIEKAST

Instructie handboek

INCORPORATO FRIGORIFERO

Safety Instructions 2

Recommendations 3

Switching On the Appliance 4

HOW TO OPERATE THE APPLIANCE .... 5

Thermostat Setting 5

FOOD STORAGE IN THE APPLIANCE 6

Refrigerator Compartment....6

CLEANING AND MAINTENANCE 6

Defrosting the Refrigerator Compartment: 7

Replacing the Light Bulb 7

BEFORE CALLING YOUR AFTER SALES SERVICE 8

PARTS OF THE APPLIANCE AND THE COMPARTMENTS ......10

-The operating instructions apply to several models. Differences may therefore occur.

PART 1. BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

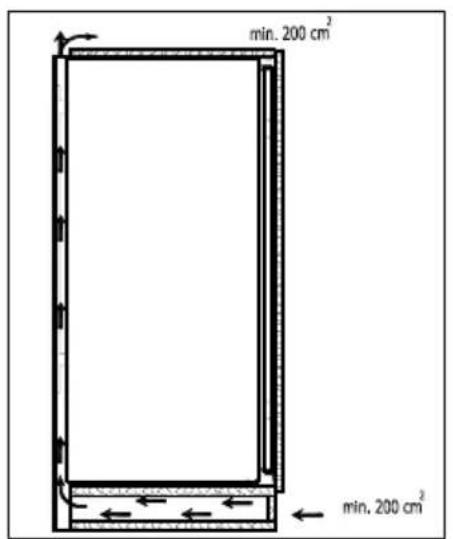

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Symbol of a trash bin crossed out by two diagonal lines, no text or labels present

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not damage the refrigerant circuit.
• Do not allow children to play with the appliance. Children must never sit in the drawers or hang from the door.
• Do not use adapters or shunts, which could cause overheating or burning.
• Do not plug old, warped power supply cables.

Illustration of four hands performing a knot or knotting technique (no text or symbols present)

• Do not twist and bend the cables, and keep them away from hot surfaces.
• Do not plug the power supply with wet hands.
• Your old appliances contain insulation gases and refrigerant that must be disposed of properly. Please ensure that the refrigerant circuit is not damaged before the appliance is taken away for disposal.
  • After installation make sure that the power cable is not trapped underneath appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

• If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed qualified person.

• Do not defrost the appliance with other electrical devices (i.e. hair dryer) or other artificial means, and do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system.

• Do not operate any electrical appliances inside the refrigerator or freezer.
• Do not place bottles (glass or tin) containing liquids (especially sparkling liquids) into the freezer as they could cause the bottle to burst during freezing.
• Do not touch the cooling surfaces while the appliance operates, especially with wet hands, because the skin may stick to cold surfaces.

Cartoon character peeking from behind a door, no text or symbols present

• Do not eat ice, which has just been removed from the freezer.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Switching On the Appliance

• Before switching on, place the appliance on upright position and wait at least three hours without moving the appliance. This will give the refrigerant circuit time to settle and operate efficiently.
• Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).
• Installation of the appliance and electrical connections must be carried out by a qualified technician, in accordance with the Installation Manual and local regulations.

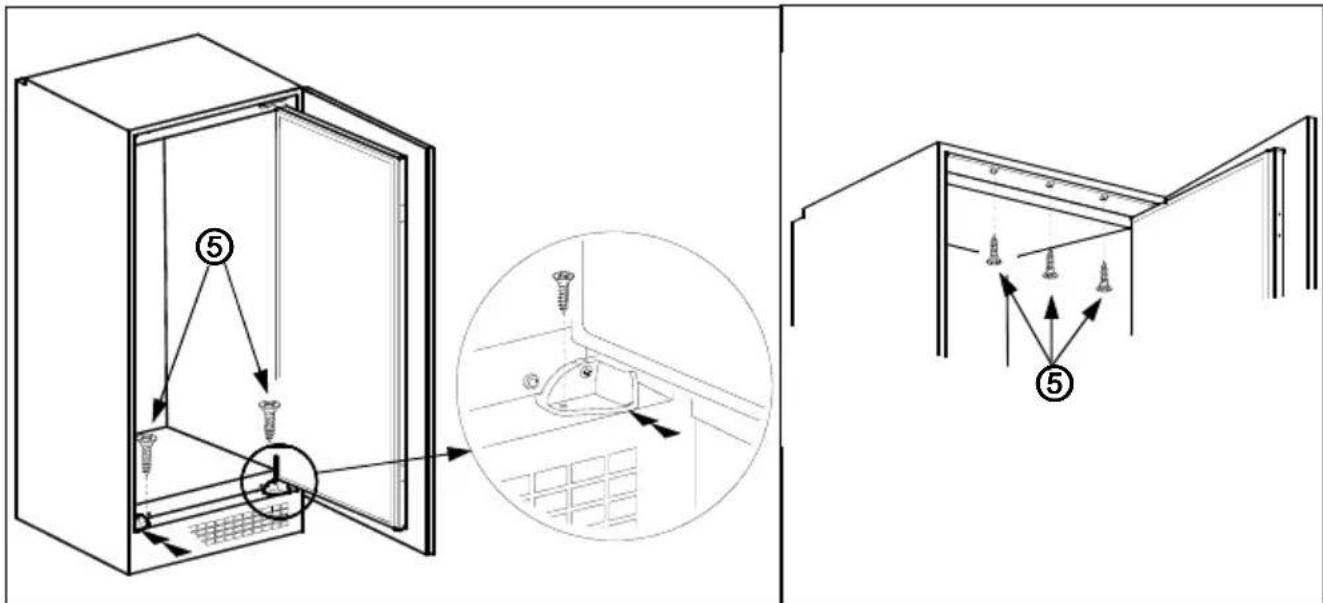

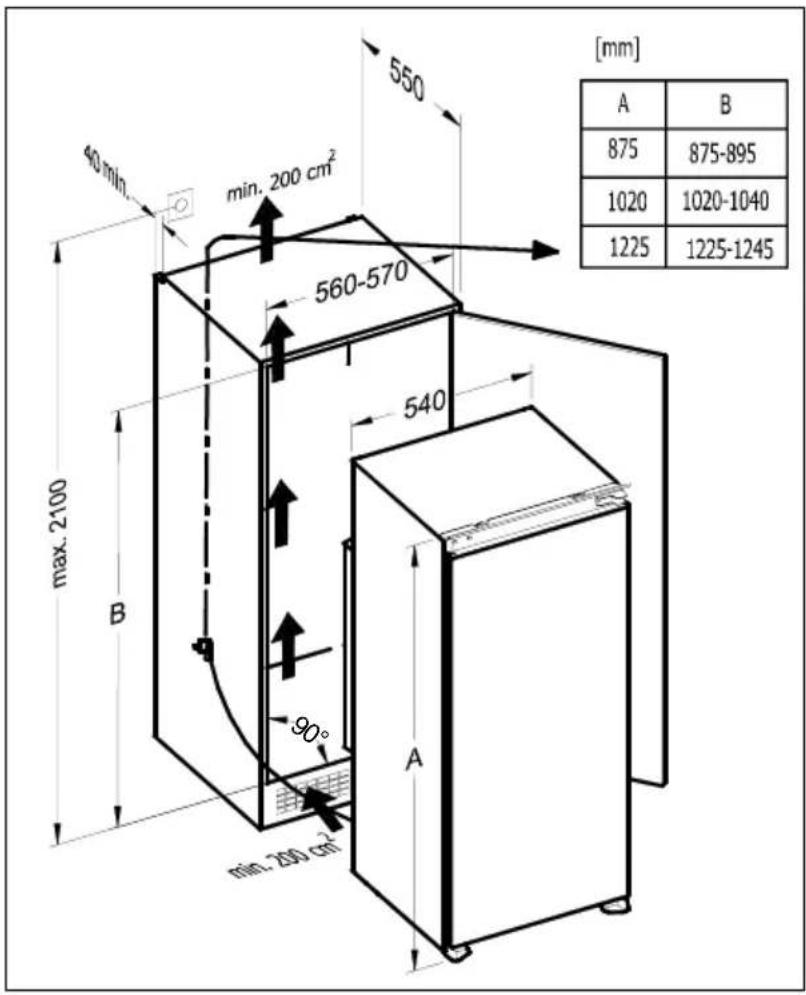

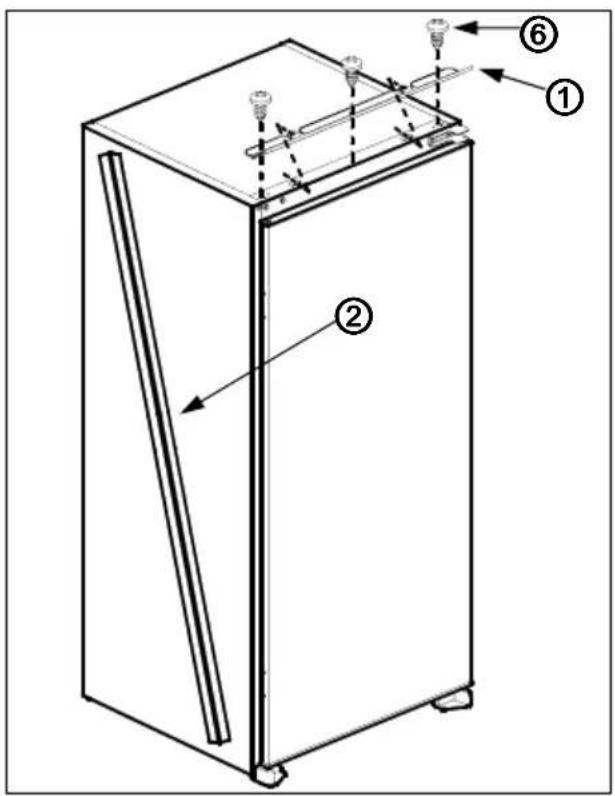

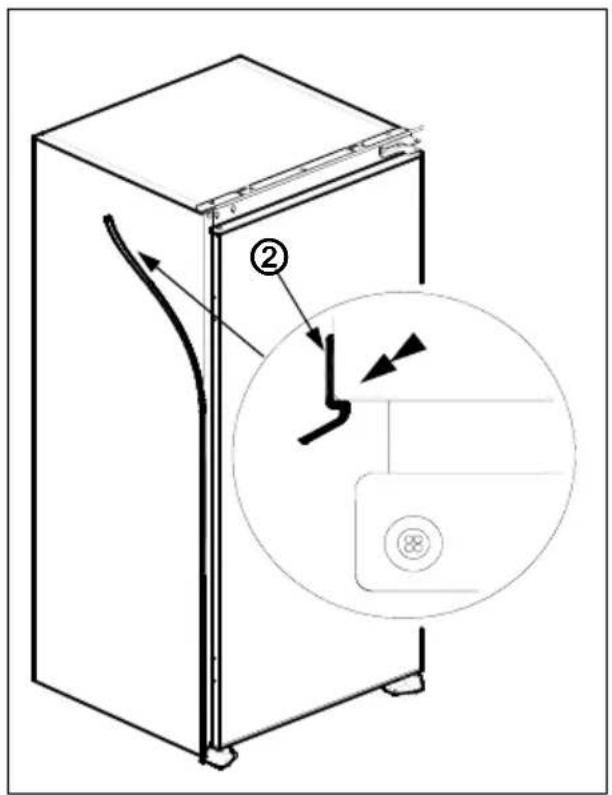

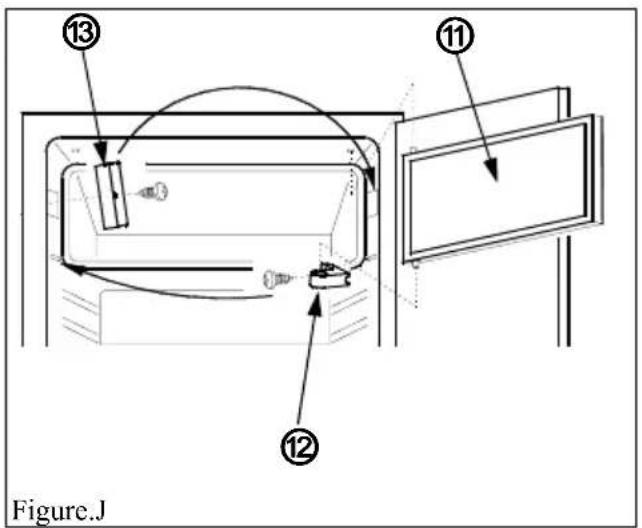

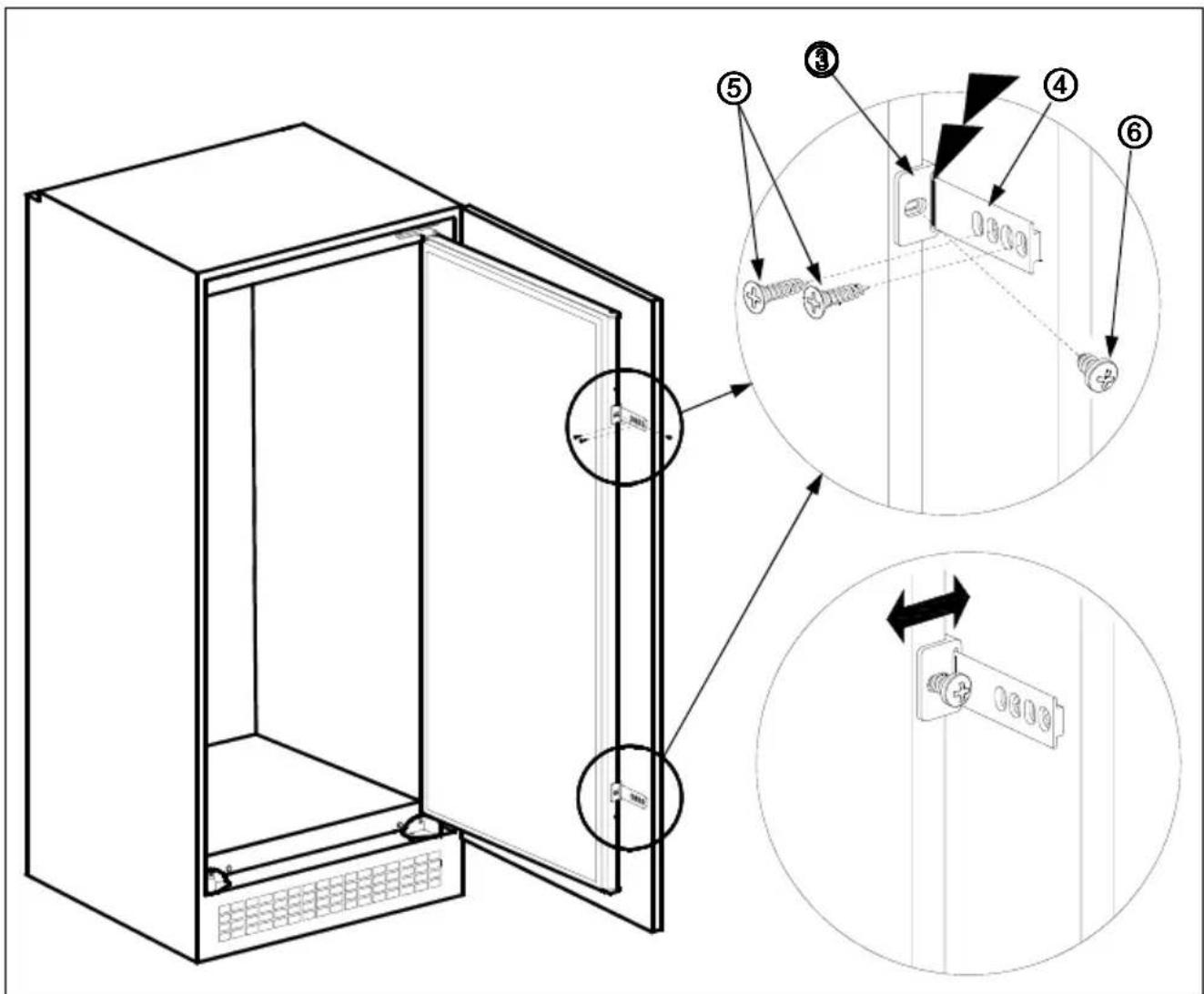

• Installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.
• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for assistance.
• Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.
• There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and food items nearby (no text or symbols)

PART 2.

HOW TO OPERATE THE APPLIANCE

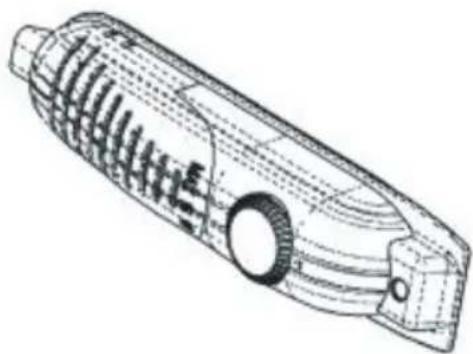

Thermostat Setting

Technical line drawing of a mechanical component with threaded body and circular end (no text or symbols)

- Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

- The “•” position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position (1-3).

- For long-term storage of food in the freezer compartment, you can set knob medium position.(3-4)

- Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

- When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put much food inside.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.

- Larders (coolers) have not any freezer compartment but can cool down to 4-6°C.

PART 3.

FOOD STORAGE IN THE APPLIANCE

Refrigerator Compartment

Refrigerator compartment is used for storing fresh food for few days.

- Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air.

- Do not place hot food or evaporating liquid in the refrigerator.

• Always store food in closed containers or wrapped.

- To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.

- Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf just above the vegetable bin, where the air is colder.

- You can put the fruits and vegetables into crisper without packing.

- To avoid the cold air escaping, try not to open the door too often, and not leave the door open for a long time.

PART 4. CLEANING AND MAINTENANCE

- Disconnect the appliance from the power supply before cleaning.

- Do not pour water over the appliance.

Simple line drawing of a hand reaching toward a box with a small animal inside (no text or symbols)

Illustration of a smiling face, hand gesture, and cartoon clothes (no text or symbols)

- The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not put them in the dishwasher.

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar (no text or symbols)

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dry hands.

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two smaller bottles (no text or symbols)

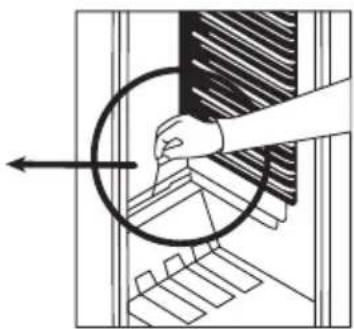

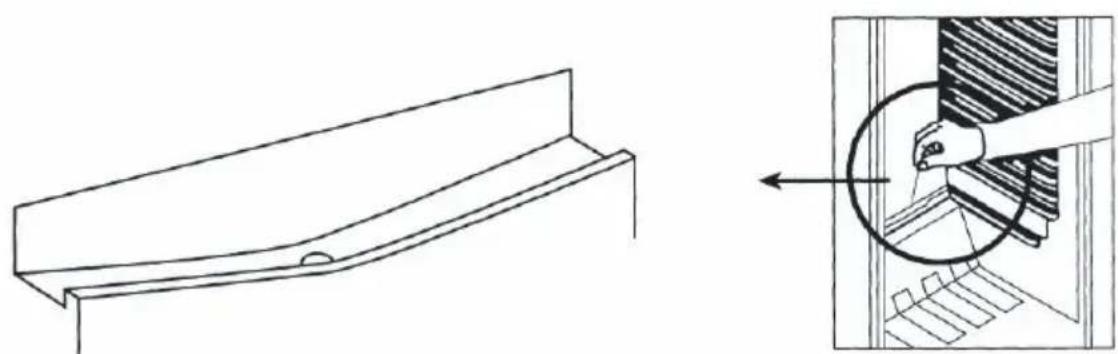

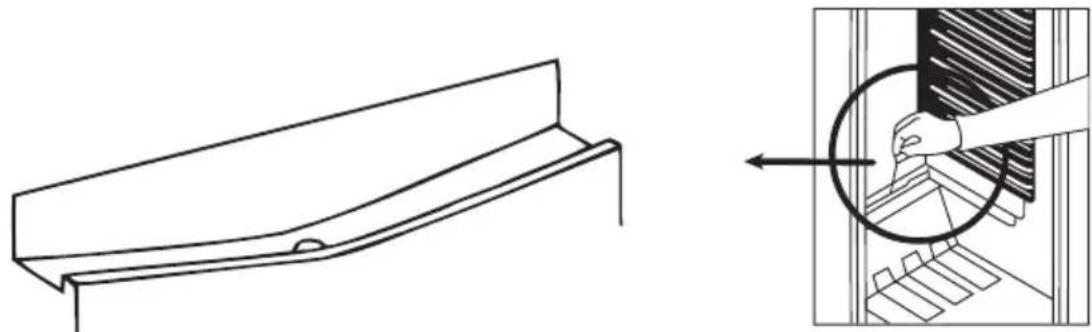

Defrosting the Refrigerator Compartment:

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

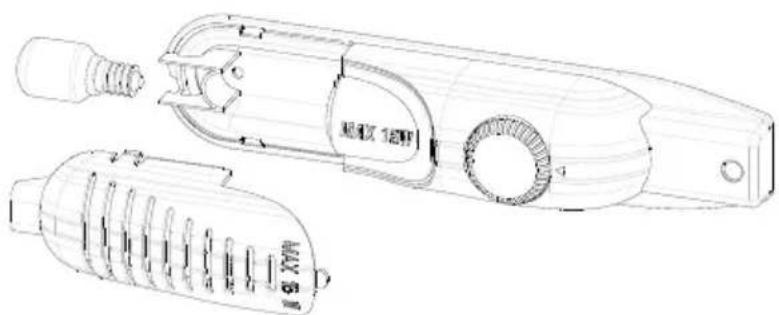

Replacing the Light Bulb

When replacing the bulb of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART 5.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
- The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position “•”,
- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
  • The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the Installation Manual.
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check if;

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the “cooling section” of refrigerators is positioned inside the back wall of the refrigerator compartment. When the compressor is working, this wall is covered with frost or water drops. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.
• If the appliance is not used for a long time (for example during the summer holidays), set the thermostat knob to position “•”. Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc.). Otherwise use an insulating plate.
2- Allow warm food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it reduces the energy requirements.
4- When placing, drinks and liquids they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and liquids helps preserve the smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep the covers closed of any different temperature compartment in the appliance (crisper, chiller ...etc.).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

Conformity Information

• This appliance is designed for use at an ambient temperature within the 16°C - 43°C range.
• The appliance is designed in compliance with the EN62552, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

PART 6.

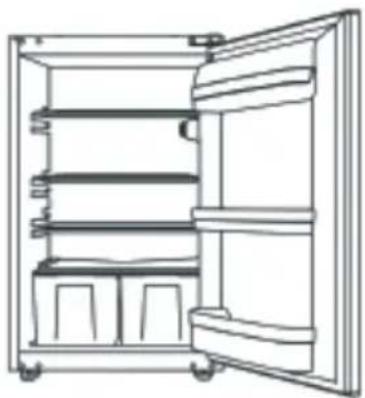

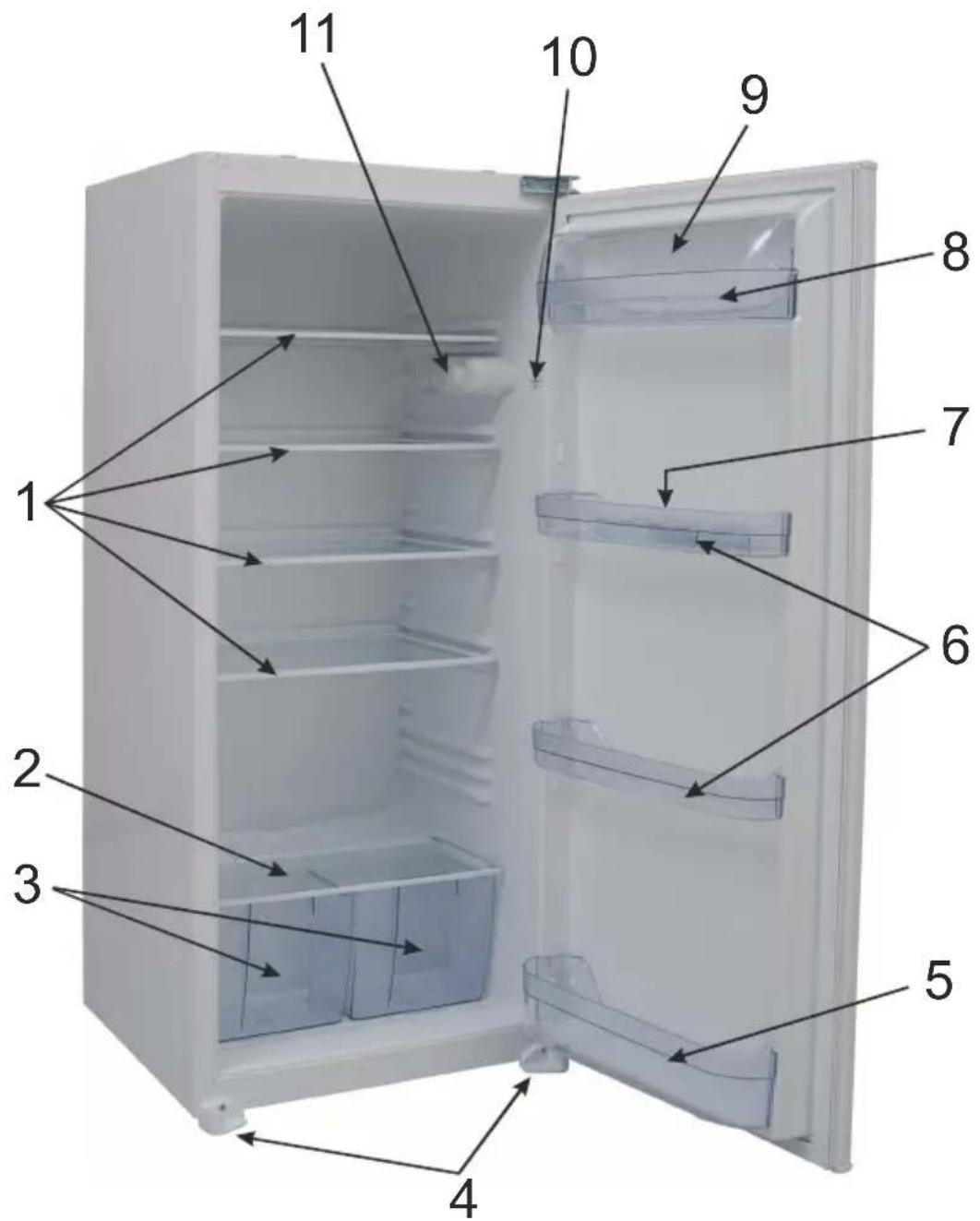

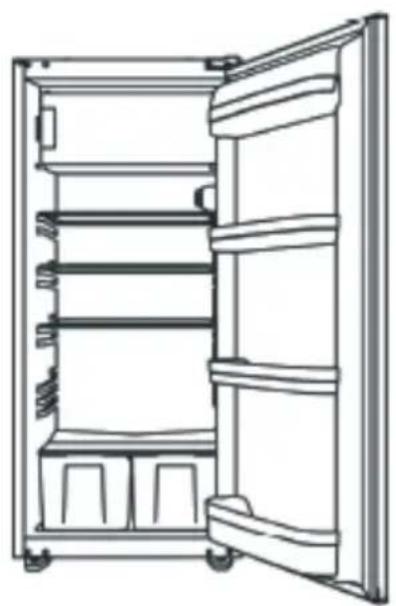

PARTS OF THE APPLIANCE AND THE COMPARTMENTS

1 2 3 4 5 6 7 8 9 10 11

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

TRANSPORT ET DEPLACEMENT 20

Illustration showing three different techniques for using a tool, with no visible text or symbols.

Illustration showing various behaviors of cleaning and anti-smoking, including a door, photo, spray bottle, and hand tools.

Cartoon illustration of two anthropomorphic containers: one with a 'KG' on top, the other with a smiling open door and a mortar (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Solid black circular shape with no text, symbols, or patterns

OK

Warning symbol with exclamation mark inside a shield shape (no text or numbers)

Line drawing of a cabinet interior with shelves and door (no text or symbols)

Illustration of four cartoon household items: a hand holding a smiling phone, a sad refrigerator with wheels, a bottle with cleaning, and a refrigerator with hands giving thumbs up (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a magnified view of a circular feature (no text or symbols)

Technical line drawing of a handheld device with internal components and ports (no text or symbols)

TRANSPORT ET DEPLACEMENT

Simple line drawing of two children holding a large rectangular object (no text or symbols)

PARTIE 6. AVANT D'APPELER LE SERVICE APRÈS-VENTE

Illustration showing three different techniques for using a tool to interact with a wire, no text or symbols present.

Cartoon illustration of an electric plug with a sad face and warning symbol (no text or labels)

Cartoon illustration of a person peeking out of a book (no text or symbols)

of tinnon

Simple line drawing of two bottles with cracks and a funnel, no text or symbols present

Simple line drawing of a hand holding a smiling square emoji (no text or symbols)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and facial expressions (no text beyond label)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting features (no text or symbols)

Cartoon illustration of a hand using a tool to interact with a box, showing a smiling face and whisker (no text or symbols)

Cartoon illustration of a smiling book character waving, with two baby silhouettes nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a spoon, accompanied by a small bottle and a cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a mortar and pestle (no text or symbols)

Ontdooien

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or workpiece (no text or symbols present)

Technical line drawing of a handheld device with internal components and ports (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

DEEL 6. VOORDAT U EEN BEROEP DOET OP DE KLANTENSERVICE

Symbolic illustration of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration showing three different techniques for using a tool to lift or break a wire (no text or symbols present)

Cartoon illustration of a character emerging from a door, with arms and legs bent (no text or symbols)

Illustration of a hand holding a smiling face, a crossed-out prohibition symbol, and a small figure (no text or numbers present)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Cartoon illustration of a smiling refrigerator with sunglasses and thumbs up, next to a bowl of cleaning tools (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Hand holding a tool interacting with a device (no text or symbols visible)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a bottle and a cup (no text or symbols)

n lavaggio,

Cartoon illustration of a smiling book character with arms and legs, accompanied by two smaller smiling pills nearby (no text or symbols)

Sbrinamento

Scomparto frigo:

Simple line drawing of a metal beam or support structure (no text or symbols)

Diagram showing a hand holding a circular object over a grid-like structure, with no visible text or symbols.

Two cartoon characters holding a large rectangular object, no text or symbols present

PRIMA DI CHIAMARE IL SERVIZIO ASSISTENZA

Labeled diagram of a refrigerator interior with numbered compartments and storage areas

Pure mechanical diagram showing a bin with cross-bracing and no text or symbols

Illustration of three hands performing a knot break operation (no text or symbols present)

Cartoon illustration of an electric plug with a sad face and winding cable (no text or symbols)

Cartoon illustration of a character inside a door, holding hands with arms outstretched (no text or symbols)

Illustration of a hand holding a smiling face, a crossed-out hand gesture, and a prohibition symbol (no text or labels)

Simple line drawing of two bottles with splashes and a bottle pouring into a glass (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a paper labeled 'KG' (no text or symbols beyond the label)

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

Antes del Encendido

Simple line drawing of a hand holding a smiling square emoji (no text or symbols)

LAS DISTINTAS FUNCIONES Y POSIBILIDADES

Technical line drawing of a cylindrical device with internal components and ventilation slots (no text or symbols)

Cartoon illustration of a smiling rectangular character and two small figurines (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands holding a cup and a bottle nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar (no text or symbols)

LA CORRIENTE DEBE ESTAR DESCONECTADA.

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

ANTES DE LLAMAR A SU SERVICIO POSTVENTA

Labeled diagram of a refrigerator interior with numbered compartments and storage areas

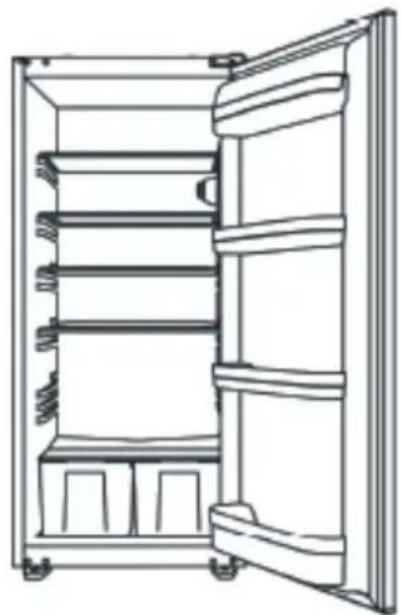

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

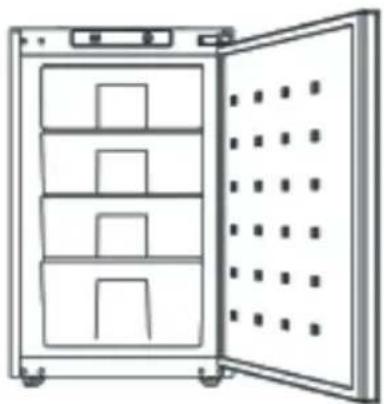

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

UK Installation instructions

Before installation, read the instructions carefully. !

! Fit the refrigerator/freezer in stable kitchen units only.
! If necessary, reverse the door according to instructions.

1. See fig.A for the necessary attachment components.

Insert trim 2. flapto slot and screw by screws ^6 . (fig.D)

1. Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)
2. Take gatsleet ^4 located on the side panel of the appliance and stick it on reverse side of the door hinges of the appliance. (fig.D - fig.E)
3. Raise the appliance and slide into the kitchen unit.

Push the appliance to the reverse side of the door hinges providing that the 6. trim gasket covers the space between the appliance and the kitchen unit.

1. Align the front feet with front surface of the kitchen unit. (fig.F)

Screw the front feet by using 8. screw(fig.F)

1. Stripflap ^1 to kitchen unit using screws ^5 . (fig.G)

Screw 10. ^3 to gap violence door with screws ^6 . (fig.H)

1. Lean appliance door to unit door as it is opened at right angle.
2. Slide rails ^4 into guides ^3 aligning the groove. (fig.H)
3. Screw the rails ^4 to the unit door with screws ^5 . (fig.H)
4. Set 1\~2 mm gap on handle side between unit itself and unit door by adjusting guides ^3 . That is vital for appliance performance. (fig.H)

① ② ④ ③ ⑤ Ø4x17 Ø4.2x9.5 ⑥

Figure.A

550 40 min min. 200 cm² 560-570 max. 2100 B 540 90° min. 200 cm² A [mm] A B 875 875-895 1020 1020-1040 1225 1225-1245

Figure.C

min. 200 cm² min. 200 cm²

Figure.B

Technical diagram of a refrigerator with numbered components and labeled parts

Figure.D

Diagram of a refrigerator with labeled parts and a magnified inset showing internal airflow or ventilation system.

Figure.E

Technical diagram showing installation of a cabinet with numbered components and a magnified detail view highlighting internal structure.

Figure.F
Figure.G

Technical diagram of a cabinet with numbered parts and exploded view, showing internal components and assembly steps.

Figure.H

⑬ ⑪ ⑫ Figure.J

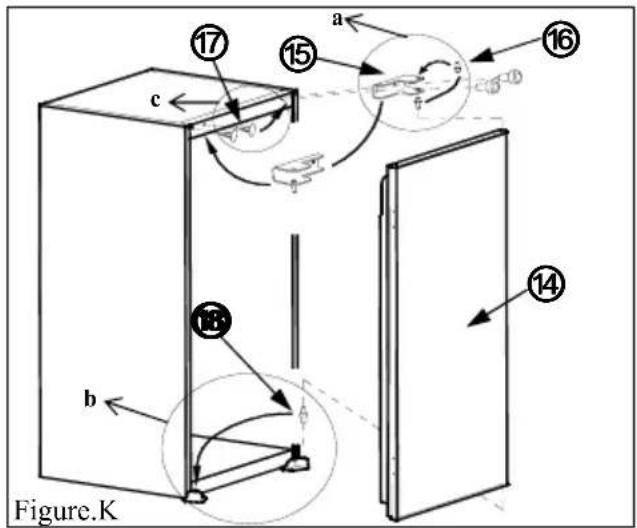

Figure.K a b c 17 15 16 14 18 13

UK Door reversing

1. Open appliance door ^14 and freezer door ^11 . (fig.J)
2. Disassemble freezer door hinge ^12 and take freezer door ^11 to safe place. (fig.J)
3. Disassemble freezer door lock ^15 and assemble it to opposite side.(fig.J)
4. Position freezer door ^11 to keep handle close to freezer door lock ^13 and insert its upper axes into cabinet hole / lower axes into freezer door hinge ^12 and then assemble freezer door hinge ^12 to opposite side of original position. (fig.J)
5. Disassemble door hinge ^15 and take appliance door ^14 to safe place. (fig.K)
6. Unscrew door hinge pin ^16 and screw it to opposite side firmly and take to safe place. (fig.K.a)
7. Take door lower pin ^18 to opposite side. (fig.K.b)
8. Take hole plugs ^17 to opposite side. (fig.K.c)
9. Place appliance door ^14 over door lower pin ^18 and insert door hinge pin ^16 into hinge hole on appliance door ^14 and then screw door hinge ^15 firmly onto opposite side of original position. (fig.K)

FR INVERSEMENT DU SENS D'OUVERTURE DES PORTES
