USER MANUAL CI 66V A S SCHOLTES

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. WARNINGWARNINGWARNING

WARNING: Danger of fire: do not

store items on the cooking surfaces.

WARNING: If the surface in glass-

ceramic is cracked, switch off the appliance to avoid the possibility of electric shock. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. The internal surfaces of the compartment (where present) may become hot. Never use steam cleaners or pressure cleaners on the appliance. Remove any liquid from the lid before opening it.

Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

WARNING: Ensure that the appliance is

switched off before replacing the lamp to avoid the possibility of electric shock

Description of the appliance Control panel

3. Indicator Preheating

The appliance is fitted with an automatic diagnostic system which detects any malfunctions. Malfunctions are displayed by messages of the following type: “F” followed by numbers. Call for technical assistance in the event of a malfunction. ! Never use the services of an unauthorised technician. Please have the following information to hand:

• The type of problem encountered.

• The appliance model (Mod.).

mm. without hood mm.

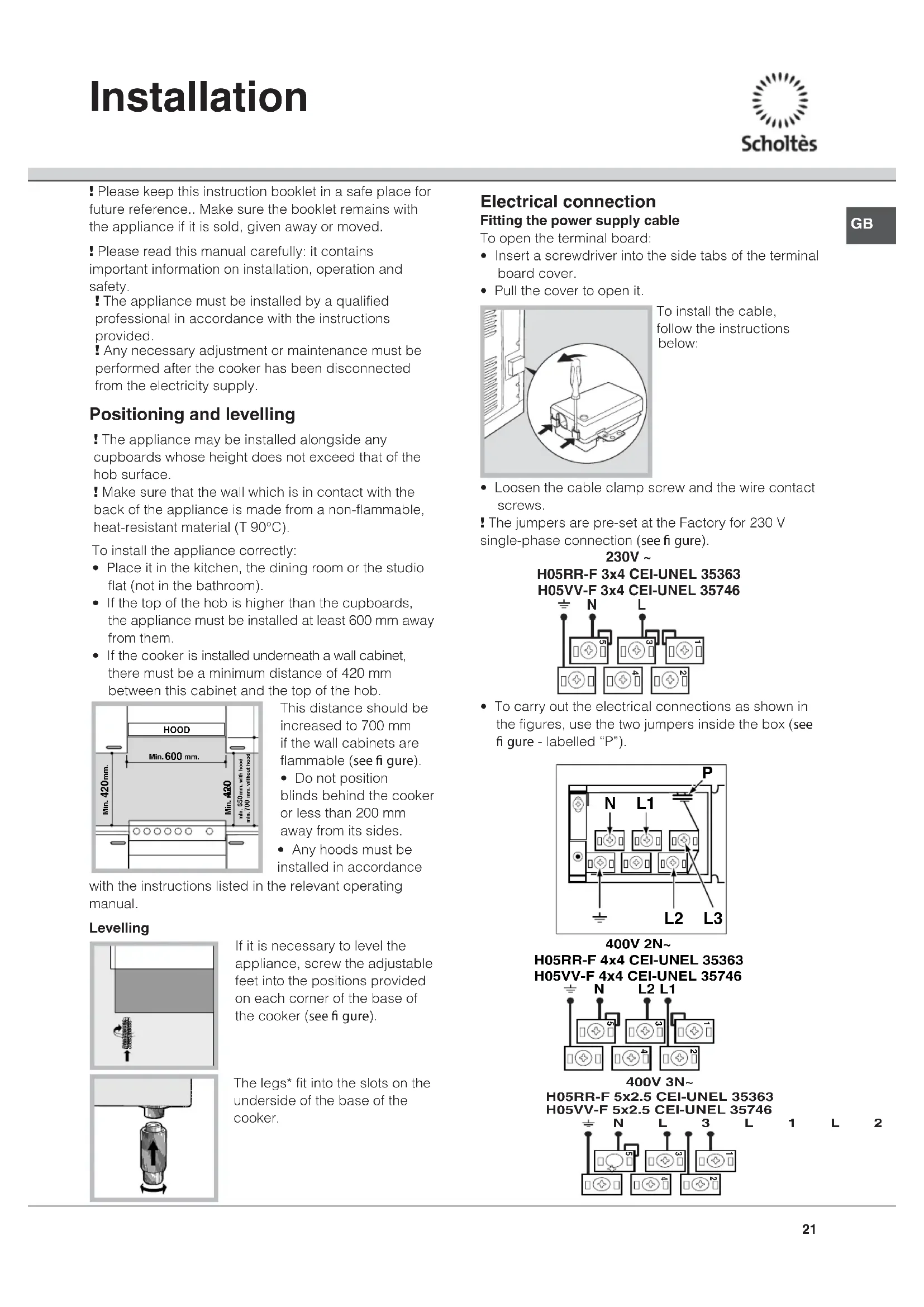

! Please keep this instruction booklet in a safe place for future reference.. Make sure the booklet remains with the appliance if it is sold, given away or moved. ! Please read this manual carefully: it contains important information on installation, operation and safety. ! The appliance must be installed by a qualified professional in accordance with the instructions provided. ! Any necessary adjustment or maintenance must be performed after the cooker has been disconnected from the electricity supply. Positioning and levelling ! The appliance may be installed alongside any cupboards whose height does not exceed that of the hob surface. ! Make sure that the wall which is in contact with the back of the appliance is made from a non-flammable, heat-resistant material (T 90°C). To install the appliance correctly:

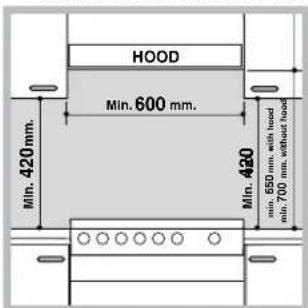

• Place it in the kitchen, the dining room or the studio flat (not in the bathroom).

• If the top of the hob is higher than the cupboards, the appliance must be installed at least 600 mm away from them.

• If the cooker is installed underneath a wall cabinet, there must be a minimum distance of 420 mm between this cabinet and the top of the hob. This distance should be increased to 700 mm if the wall cabinets are flammable (see gure).

• Do not position blinds behind the cooker or less than 200 mm away from its sides.

• Any hoods must be installed in accordance with the instructions listed in the relevant operating manual. Levelling If it is necessary to level the appliance, screw the adjustable feet into the positions provided on each corner of the base of the cooker (see gure). The legs* fit into the slots on the underside of the base of the cooker. Electrical connection Fitting the power supply cable To open the terminal board:

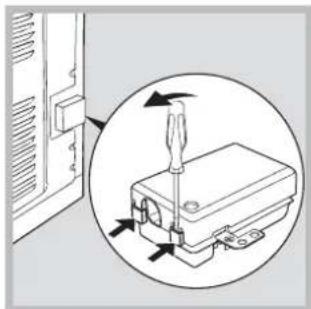

• Insert a screwdriver into the side tabs of the terminal board cover.

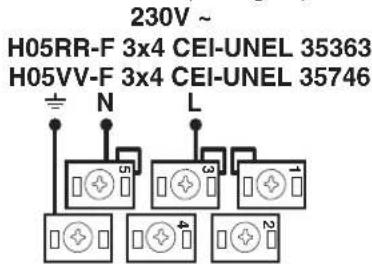

• Pull the cover to open it. To install the cable, follow the instructions below:

• Loosen the cable clamp screw and the wire contact screws. ! The jumpers are pre-set at the Factory for 230 V single-phase connection (see gure).

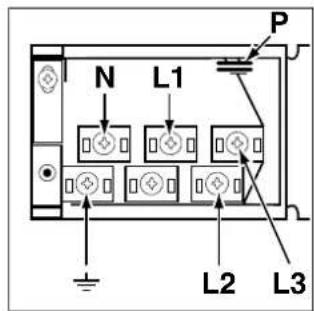

• To carry out the electrical connections as shown in the figures, use the two jumpers inside the box (see gure - labelled “P”). Installation HOOD

mm. without hood mm.

• Secure the power supply cable by fastening the cable clamp screw then put the cover back on. Connecting the supply cable to the electricity mains Install a standardised plug corresponding to the load indicated on the appliance data plate (see Technical data table). The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point. Before connecting the appliance to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated by the data plate.

• The voltage falls between the values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only. ! The manufacturer declines any liability should these safety measures not be observed.

TABLE OF CHARACTERISTICS

Oven dimensions (HxWxD) 32,4x43.5x40,3 cm Volume 57 l Useful measurements relating to the oven compartment width 42 cm depth 44 cm height 8.5 cm Burners may be adapted for use with any type of gas shown on the data plate Voltage and frequency see data plate Glass Ceramic Hob Front Left Back Left Back Right Front Right Max. Ceramic Hob Consumption 1700W 1200W 2300W 1200W 6400W ENERGY LABEL Energy con su mptio n for N atural convection – heating mode: Convection mode Declared energy consumption for Forced convection Class – heating mode: Roasting

EC Directives: 2006/95/EC dated

12.12.06 (Low Voltage) and

subsequent amendments - 04/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments - 2002/96/EC. 1275/2008 (Stand-by/Off mode) Data plate, is located inside the flap or, after the oven compartment has been opened, on the left-hand wall inside the oven. Safety Chain ! In order to prevent accidental tipping of the appliance, for example by a child clim- bing onto the oven door, the supplied safety chain MUST be installed! The cooker is fitted with a safety chain to be fixed by means of a screw (not supplied with the cooker) to the wall behind the appliance, at the same height as the chain is attached to the appliance. Choose the screw and the screw anchor according to the type of material of the wall behind the applian- ce. If the head of the screw has a diameter smaller than 9mm, a washer should be used. Concrete wall requires the screw of at least 8mm of diameter, and 60mm of length. Ensure that the chain is fixed to the rear wall of the cooker and to the wall, as shown in figure, so that after installation it is tensioned and parallel to the ground level. Regulation (EU) No 65/2014 supplemen-ting Directive 2010/30/EU. Regulation (EU) No 66/2014 implementing Directive 2009/125/EC. Standard EN 60350-1Standard EN 50564.Regulation (EU) No 65/2014 supplemen-ting Directive 2010/30/EU. Regulation (EU) No 66/2014 implementing Directive 2009/125/EC. Standard EN 60350-1Standard EN 50564.and ECODESIGNStandard EN 30-2-1GB

Start-up and use Setting the clock ! The clock may be set when the oven is switched off or when it is switched on, provided that the end time of a cooking cycle has not been programmed previously.

button several times until the icon and the first two numerical digits on the display start to flash.

2. Turn the TIMER KNOB towards “+” and “-” to adjust

button again until the other two digits on the DISPLAY begin to flash.

4. Turn the TIMER KNOB towards “+” and “-” to adjust

button again to confirm. Setting the timer ! This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.

1. Press the button several times until the icon

and the three numerical digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards “+” and “-” to adjust

button again to confirm. The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated. Using the oven ! Before operating the product, remove all plastic film from the sides of the appliance. ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Make sure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.

1. Select the desired cooking mode by turning the

2. The oven begins its preheating stage and the

preheating indicator lights up. The temperature may be changed by turning the THERMOSTAT knob

3. When the preheating indicator

switches off and a buzzer sounds the preheating process is complete: you may now place the food in the oven.

4. During cooking it is always possible to:

- Change the cooking mode by turning the SELECTOR knob. - Change the temperature by turning the THERMOSTAT knob. - Set the cooking duration and the cooking end time (see Cooking modes). - Stop cooking by turning the SELECTOR knob to the “0” position.

5. The cooking time may be modified (see Cooking

6. If a blackout occurs while the oven is already in

operation, an automatic system within the appliance will reactivate the cooking mode from the point at which it was interrupted, provided that the temperature has not dropped below a certain level. Programmed cooking modes which have not started will not be restored and must be reprogrammed. ! There is no preheating stage for the ROASTING modes. ! Never put objects directly on the bottom of the oven; this will prevent the enamel coating from being damaged. ! Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, a cooling fan blows a stream of air between the control panel and the oven door. At the beginning of the PYROLYTIC cycle, the cooling fan operates at low speed. ! Once cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently. Oven light When the oven is not in operation, the lamp can be switched on at any time by opening the oven door.

Only available in certain models. WARNING! The oven is provided with a stop sys- tem to extract the racks and prevent them from coming out of the oven.(1) As shown in the drawing, to extract them comple- tely, simply lift the racks, holding them on the front part, and pull (2).24

Manual cooking modes ! All cooking modes have a default cooking temperature which may be adjusted manually to a value between 40°C and 250°C as desired. In the SPIT ROAST mode, the default power level value is 270°C. TRADITIONAL OVEN mode When using this traditional cooking mode, it is best to use one cooking rack only. MULTILEVEL mode Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time. ROASTING mode This combination of features increases the effectiveness of the unidirectional thermal radiation provided by the heating elements through the forced circulation of the air throughout the oven. This helps prevent food from burning on the surface and allows the heat to penetrate right into the food. Always cook in this mode with the oven door closed. SPIT ROAST mode The function is ideal for rotisserie spit cooking. Always cook in this mode with the oven door closed. LOW TEMPERATURE modes This type of cooking can be used for proving, defrosting, preparing yoghurt, heating dishes at the required speed and slow cooking at low temperatures. The temperature options are: 40, 65, 90 °C. Spit roast To operate the spit roast function (see diagram) proceed as follows:

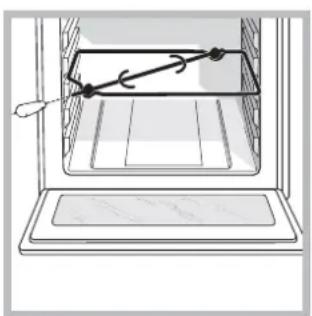

1. Place the dripping

support in position 3 and insert the spit in the hole provided on the back panel of the oven.

3. Start the spit roast

function by selecting the symbols. ! When this mode is enabled, the rotisserie spit will stop if the door is opened. Automatic cooking modes ! The temperature and cooking duration are pre- set values, guaranteeing a perfect result every time - automatically. These values are set using the C.O.P.® (Programmed Optimal Cooking) system. The cooking cycle stops automatically and the oven indicates when the dish is cooked. The cooking duration may be modified by a period of several minutes, as specified in the description of the individual functions below. PIZZA mode Use this function to make pizza. Please see the following chapter for further details. It will only be possible to adjust the duration by -5/+5 minutes. To achieve the best possible results, we recommend that you carefully observe the instructions below:

• The weight of the dough should be between 500 g and 700 g.

• Lightly grease the dripping pan and the baking trays. Place the food inside the oven while it is still cold. If you wish to place the food in the oven after it has been preheated, immediately following a high-temperature cooking programme, the text “Hot” will appear on the display until the temperature of the oven has fallen to 120°. At this point it will be possible to place the pizza in the oven. Recipe for PIZZA: 1 Dripping pan on a low shelf level, hot or cold oven Recipe for 3 pizzas weighing approximately 550 g: 1000 g flour, 500 ml water, 20 g salt, 20 g sugar, 100 ml olive oil, 20 g fresh yeast (or 2 sachets of powder yeast)

• Leavening at room temperature: 1 hour, or LOW TEMPERATURE manual function set to 40°. Leave to rise for approximately 30-45 minutes.

• Place the food inside the oven while it is still cold.

• Start the PIZZA cooking mode. BREAD mode To obtain the best results, we recommend that you carefully observe the instructions below:

• Do not exceed the maximum weight of the dripping pan.

• Remember to pour 100 ml of cold water into the baking tray in position 5. Place the food inside the oven while it is still cold. If you wish to place the food in the oven after it has been preheated, immediately following a high-temperature cooking programme, the text “Hot” will appear on theGB

display until the temperature of the oven has fallen to 40°. At this point it will be possible to place the bread in the oven. Recipe for BREAD: 1 Dripping pan weighing 1000 g max placed on a low shelf level Recipe for 1000 g of dough: 600 g flour, 360 g water, 11g salt, 25 g fresh yeast (or 2 sachets of powder yeast) Method:

• Mix flour and salt in a large bowl.

• Dilute yeast in lukewarm water (approximately 35 degrees).

• Make a small well in the mound of flour.

• Pour in water and yeast mixture.

• Knead dough by stretching and folding it over itself with the palm of your hand for 10 minutes until it has a uniform consistency and is not too sticky.

• Form the dough into a ball shape, place it in a large bowl and cover it with transparent plastic wrap to prevent the surface of the dough from drying out. Select the manual LOW TEMPERATURE function on the oven and set the temperature to 40°C. Place the bowl inside and leave the dough to rise for approximately 1 hour (the dough should double in volume).

• Cut the dough into equal sized loaves.

• Place them in the dripping pan on oven paper.

• Cover the loaves with flour.

• Make incisions on the loaves.

• Remember to pour 100 ml of cold water into the baking tray in position 5. For cleaning purposes, we recommend the use of water and vinegar.

• Place the loaves inside the oven while it is still cold.

• Start the BREAD cooking mode.

• Once baked, leave the loaves on one of the grill racks until they have cooled completely. BAKED CAKES mode This function is ideal for baking cakes. Place the food inside the oven while it is still cold. The dish may also be placed in a preheated oven. It will only be possible to adjust the duration by -10/+10 minutes. Programming cooking ! A cooking mode must be selected before programming can take place. Programming the cooking duration

button several times until the icon and the three digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards “+” and “-” to adjust

button again to confirm;

4. When the set time has elapsed, the text END

appears on the DISPLAY, the oven will stop cooking and a buzzer sounds.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Setting the end time for a cooking mode ! A cooking duration must be set before the cooking end time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed

button until the icon and the two digits on the DISPLAY begin to flash.

3. Turn the TIMER KNOB towards “+” and “-” to adjust

button again until the other two digits on the DISPLAY begin to flash.

5. Turn the TIMER KNOB towards “+” and “-” to adjust

button again to confirm.

7. When the set time has elapsed, the text END

appears on the DISPLAY, the oven will stop cooking and a buzzer sounds.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed, while the end time is set to 12:30. The programme will start automatically at 11:15 a.m. Programming has been set when the and buttons are illuminated. The DISPLAY shows the cooking end time and the cooking duration alternately. To cancel programming, turn the SELECTOR knob to the “0” position. Practical cooking advice ! Do not place racks in position 1 and 5 during fan- assisted cooking. This is because excessive direct heat can burn temperature sensitive foods. ! In the SPIT ROAST and ROASTING cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTILEVEL

• Use positions 2 and 4, placing the food which requires more heat on 2.

• Place the dripping pan on the bottom and the rack on top. After selecting any of the oven programs, the parame- ter setting of the product is activated. It optimizes the performance of cooking, but could result in a delayed ignition of fan and heating elements. !26

Oven cooking advice table

DISHES EXAMPLES FUNCTION TEMPERATURE SUPPORT

Savoury sponge cake made with yoghurt savoury sponge cake with olives, tuna, etc. Baked cakes or Multilevel 160 °C cake tin on dripping pan Country-style pie cheese country-style pie, salmon pastry, … Baked cakes or Multilevel 200 °C on dripping pan Terrines fish, meat, vegetable, foie gras terrines, etc. Traditional oven 160 °C terrine mould on dripping pan (bain-marie filled with hot water) “En cocotte” dishes poultry liver pie, salmon mousse, eggs en cocotte, etc. Traditional oven 160 °C baking dish on dripping pan (bain-marie filled with hot water) CANAPES AND STARTERS Soufflé cheese soufflé, vegetable soufflé, fish soufflé, etc. Multilevel 200 °C cake tin on dripping pan Gratin dishes potato gratin, parmentier, lasagne, etc. Gratin (or Roasting) 200-210 °C tray on dripping pan Stuffed vegetables potatoes, tomatoes, courgettes, cabbages, etc. Multilevel 200 °C on dripping pan or cake tin on dripping pan Braised vegetables en cocotte lettuce, saffron carrots, salsify, etc. Traditional oven 200 °C baking dish on dripping pan Flan mushroom flan, vegetable pancake, etc. Traditional oven 160 °C baking dish or cake tin on dripping pan (bain-marie filled with hot water) Terrines vegetable terrines Traditional oven 160 °C cake tin on dripping pan (bain-marie filled with hot water) Soufflé asparagus soufflé , tomato soufflé, etc. Multilevel 200 °C cake tin on dripping pan Dishes with a crust vegetable pie, etc. Multilevel 200 °C on dripping pan Baking in foil (“en papillote”) truffles, etc. Multilevel 200 °C foil pouch on dripping pan I LEGUMI Rice Pilaff Traditional oven 180 °C tray on plate

Roast poultry chicken, duck, cockerel, capon. Roasting 200 °C poultry on the grid Poultry on the spit chicken, cockerel Turnspit 250 °C turnspit support Roasts roast pork, veal, turkey, beef, leg of lamb, haunch of venison, stuffed veal breast, etc. Roasting 200 °C meat directly on the grid large pieces of braised meat whole ham on the bone, large capon or turkey, etc. Multi-level 180 °C (one third into cooking, lower the temperature to 160°C) meat on the oven tray baste regularly with the juice Meat casseroles and traditional dishes beef bourguignon, rabbit chasseur, veal Marengo, lamb stew, Basquaise chicken, etc. hotpots, cassoulet, etc. Convection mode 190 °C casserole dish on the oven tray Grilled meat ribs, cutlets, sausages, kebabs, chicken thighs, etc. Multi-level 270 °C on the grid (the rack depends on the size) Meat pies Beef Wellington, steak and kidney pie, etc. Multi-level 200 °C on the tray (for large pieces of meat, lower the temperature to 160°C when the pastry crust is baked) MEAT Salt-baking salt-baked poultry, etc. Multi-level 240 °C meat on the oven tray or in a dish on the oven tray Grilled fish and fish kebabs bass, mackerel, sardines, mullet, tuna, etc. Multi-level 250 °C on the grid (the rack depends on the size) Whole fish (stuffed) sea bream, carp, etc. Multi-level 200 °C on the oven tray Fish fillets (with basting) salmon, scorpion fish, cod, bass, etc. Convection mode 200 °C on the oven tray Foil parcels sole, dab, scallops, etc. Multi-level 200 °C on the oven tray Fish pies (flaky or shortcrust pastry) salmon, pike, etc. Multi-level 200 °C on the oven tray Fish au gratin brandade gratin, etc. gratin (or roasting) 200-210 °C 260 °C dish on the oven tray Soufflés scallop soufflé, etc. Multi-level 200 °C soufflé dish on the oven tray FISH Salt-baked fish bass, carp, etc. Multi-level 240 °C fish on the oven tray or in a dish on the oven trayGB

Oven cooking advice table

DISHES EXAMPLES FUNCTION TEMPERATURE SUPPORT

Biscuit cakes (without yeast) sponge cake, sponge fingers, swirled biscuits, brownies, etc. 200 °C cake tin on dripping pan White cheese tart 200 °C cake tin on dripping pan Tarts made using leavened dough sugar pie, fruit brioche loaf, etc. 180 °C cake tin on dripping pan Tart cases (crumbly sweet pastry) fresh fruit tarts (strawberry, raspberry, etc.) 180 °C cake tin on dripping pan (with baking beans weighing the pastry down ) Pies (shortcrust or puff pastry) pear pie, etc. 220 °C cake tin on dripping pan Cream puffs profiteroles, mini cream puffs, cream puffs, Paris-Brest pastry dessert, Saint Honoré cake, etc. 190 °C on dripping pan Mini sweet pastries (natural yeast) croissants, sugar pie, plain brioche (no filling), mini savarin cakes, etc. 180 °C on dripping pan BAKED DESSERTS Large sweet pastries (natural yeast) Kugelhopf, brioche, panettone, sweet bread, etc. Baked cakes or Multilevel 160 °C on dripping pan or cake tin on dripping pan Biscuit dough biscuits in paper trays, scooping biscuits, etc. 180 °C on dripping pan Crumbly sweet pastry shortbread, spritz cookies, plain biscuits, etc. 200 °C on dripping pan Puff pastry various types of puff pastry dessert, etc. 200 °C on dripping pan Amaretti, coconut balls coconut or almond amaretti 180 °C on dripping pan Leavened dough mini-brioches, mini-croissants, etc. 180 °C on dripping pan White meringues 70 °C on dripping pan PASTRIES Golden meringues Baked cakes or Multilevel 110 °C on dripping pan Pudding pudding made with bread or brioche, rice pudding 190 °C cake tin on dripping pan Cream desserts and flans, semolina crème caramel, crème brûlée, chocolate flan, etc. 160 °C moulds or baking dish on dripping pan (bain-marie on dripping pan) Rice desserts riz condé rice pudding, Imperial rice pudding, etc. 180 °C cake tin on dripping pan DESSERTS Soufflé liqueur soufflé, fruit soufflé, etc. Baked cakes or Multilevel 200 °C cake tin on dripping pan FRUIT Stuffed or foil-baked fruit baked apples, etc. Multilevel 200 °C cake tin or foil pouch on dripping pan

Yoghurt Low temperature 40 °C baking dish on dripping pan VARIOUS Dried foods mushrooms, herbs, sliced fruit or vegetables, etc. Low temperature 65 °C on grille Automatic cooking modes Mode Cooking programme recommended for … EXAMPLES SUPPORT Dripping pan level Cooking time (minutes) Oven at start Sponge cake with yoghurt and pound cake (with baking powder) fruit cake, marble cake, pound cake, etc. cake tin on dripping pan Fruit tarts (short crust pastry or puff pastry, with or without flan filling) apple tart, Mirabelle plum tart, pear tart, etc. cake tin on dripping pan Puff pastry apple puffs, country-style tarts, pastries, etc. on dripping pan 2 Baked cakes Desserts without yeast (clafoutis, almond pithivier, country-style cake, etc.) on dripping pan 2 45** Cold Pizzas Deep-pan pizza, focaccia (bread dough) 2 28** Hot or cold Bread *** 2 55 Cold

• The cooking times listed above are intended as guidelines only and may be modified to suit personal tastes. Oven preheating times are set by default and cannot be modified manually. ** The duration of the automatic cooking functions are set by default. The values in the table refer to the minimum and maximum duration, which may be modified by the user, taking the default value as a starting point. *** As stated in the recipe, pour 100 g water into the dripping pan.28

! The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special non- abrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly. Switching the cooking zones on and off To switch on a cooking zone, turn the corresponding knob in a clockwise direction. To switch it off again, turn the knob in an anticlockwise direction until it is in the “0” position. If the COOKING ZONE ON indicator light is lit, this shows that at least one pf the cooking zones on the hob is switched on. Cooking zones The hob is equipped with electric heating elements. When they are in use the following items on the hob become red. The hob is equipped with electric hilite heating elements. When they are in use the following items on the hob become red. A. The cooking zone with radiant heating elements. B.The cooking zone with a hilite heating element. C. The residual heat indicator light: this indicates that the temperature of the corresponding cooking zone is greater than 60°C, even when the heating element has been switched off but is still hot. Cooking zones with hilite heating elements These emit heat via radiation from the hilite lamps they contain. They have similar properties to gas burners: they are easy to control and reach set temperatures quickly, allowing you to actually see the power they are providing. Description of the heating elements The circular radiant heating elements become red 10 - 20 seconds after they have been switched on. The circular hilite heating elements guarantee even heat distribution in addition to the usual advantages that hilite heating elements bring. Hilite lamps emit high levels of heat and light as soon as they are switched on, offering the following practical advantages:

• rapid heating (in relation to a gas burner)

• even temperature across the whole surface (due to the circular heating elements). They are similar to the other cooking zones on the hob and are therefore easy to use. To ensure you use the hob correctly, all you need to do is consult the cooking tables in the instruction booklet. Practical advice on using the hob

• Use pans with a thick, flat base to ensure that they adhere perfectly to the cooking zone.

• Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the heat produced.

• Always make sure that the base of the pan is completely clean and dry: this ensures that the pans adhere perfectly to the cooking zones and that both the pans and the hob remain effective for a longer period of time.

• Avoid using the same cookware that is used on gas burners: the heat concentration on gas burners may have warped the base of the pan, causing it not to adhere to the surface correctly.

• Never leave a cooking zone switched on without a pan on top of it, as doing so may cause the zone to become damaged.

Using the glass ceramic hob Pos. Radiant Ceramic Hot PlateNormal or Fast Hot PlateCeramic Halogen Hot PlateAutomatic Hot Plate Off Off To cook fish To melt butter or chocolate To cook potatoes (steam),soup, chickpeas, beansTo reheat liquids To continue cooking largequantities of food, vegetable soup

To roast (medium)For sauces (including creamsauces) To roast (well done) To brown or quickly bring to a boil To cook at boiling point

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate located on the appliance.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or damp hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

• The instruction booklet accompanies a class 1 (insulated) or class 2 - subclass 1 (recessed between 2 cupboards) appliance.

• Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance.

• Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

• The openings used for the ventilation and dispersion of heat must never be covered.

• Do not use unstable or misshapen pans on the cooking zones; this will help to avoid accidental spills. Make sure pan handles are turned towards the centre of the hob in order to avoid accidental burns.

• Always use oven gloves when placing cookware in the oven or when removing it.

• Do not use flammable liquids (alcohol, petrol, etc...) near the appliance while it is in use.

• Do not place flammable material in the lower storage compartment or in the oven itself. If the appliance is switched on accidentally, it could catch fire.

• Always make sure the knobs are in the • position when the appliance is not in use.

• When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains.

• If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact Assistance.

• Do not rest heavy objects on the open oven door.

• The internal surfaces of the compartment (where present) may become hot.

• The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre.

• If the surface of the hob is cracked, switch off the appliance to prevent electric shocks from occurring.

• Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off.

• Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or packaging: if placed on surfaces that are still hot, they may cause serious damage to the hob.

• Do not place metal objects (knives, spoons, pan lids, etc.) on the hob as they may become hot.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer. Respecting and conserving the environment

• Always keep the oven door closed when using the SPIT ROAST and ROASTING modes. this will achieve improved results while saving energy (approximately 10%).

• Whenever possible, avoid pre-heating the oven and always try to fill it. Open the oven door as little as possible because heat is lost every time it is opened. To save a substantial amount of energy, simply switch off the oven 5 to 10 minutes before the end of your planned cooking time and use the heat the oven continues to generate.

• Automatic programmes are based on standard food product.

• Keep gaskets clean and tidy to prevent any door energy losses

• If you have a timed tariff electricity contract, the “delay cooking” option will make it easier to save money by moving operation to cheaper time periods.30

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the oven ! Never use steam cleaners or pressure cleaners on the appliance.

• Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack.

• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge which has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances.

• The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.

• The accessories can be washed like everyday crockery, and are even dishwasher safe.
• Dirt and grease should be removed from the control panel using a non-abrasive sponge or a soft cloth.

Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents that contain phosphorus. We recommend that the steel surfaces are rinsed well then dried thoroughly. Inspecting the oven seals Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest After-sales Service Centre. We recommend that the oven is not used until the seals have been replaced. Replacing the oven light bulb To replace the oven light bulb:

1. Remove the glass cover using a screwdriver.

2. Unscrew the light bulb and replace it with a similar

one: Wattage 15 W, cap E 14. Replace the glass cover, making sure the seal is positioned correctly (see diagram). Cleaning the glass ceramic hob ! Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.• It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen roll.• If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly.• To remove more stubborn dirt, use a suitable scraper (this is not supplied with the appliance). Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rustproof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water.• If plastic or sugary substances have accidentally been melted on the hob, remove them immediately with the scraper, while the surface is still hot.• Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance should be carried out while the appliance is warm (not hot) or cold.• Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes. Care and maintenance

Only available in certain models. Cover Seal Light bulbCavity Glass ceramic hobcleanersAvailable fromWindow scraper Razor bladescrapersDIY StoresReplacement blades DIY Stores,supermarkets,chemistsCOLLO lunetaHOB BRITEHob CleanSWISSCLEANERBoots, Co-op stores,department stores, RegionalElectricity Company shops,supermarkets ! Do not use the oven lamp as/for ambient lighting.

• Make the most of your hot plate's residual heat by switching off cast iron hot plates 10 minutes before the end of your cooking time and glass ceramic hot plates 5 minutes before the end of cooking time.

• The base of your pot or pan should cover the hot plate. If it is smaller, precious energy will be wasted and pots that boil over leave encrusted remains that can be difficult to remove.

• Cook your food in closed pots or pans with well-fitting lids and use as little water as possible. Cooking with the lid off will greatly increase energy consumption

• Use purely flat pots and pans

• If you are cooking something that takes a long time, it's worth using a pressure cooker, which is twice as fast and saves a third of the energy.GB

Automatic cleaning using the PYROLYTIC cycle During the PYROLYTIC cycle, the internal temperature of the oven reaches 500°C. The pyrolytic cycle is activated and burns away food and grime residues. Dirt is literally incinerated. Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven as a result of the combustion process. There is no cause for concern: this process is both normal and hazard-free. Before initiating the PYROLYTIC CYCLE:

• Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents.

• Remove all accessories.

• Do not place tea towels or pot holders over the oven handle.

• Turn the SELECTOR knob to the “0” position. ! If the oven is too hot, the pyrolytic cycle may not start. Wait for the oven to cool down. ! The programme may only be started once the oven door has been closed. To activate the PYROLITIC CYCLE cleaning procedure, press and hold the button for approximately 4 seconds. The TIMER KNOB may be used to select the desired cleaning level; there are three default time settings which cannot be modified.

1. Economy (ECO): turn the knob towards “-”. Duration

2. Normal (NOR): initial level. Duration 1 hour and 30

3. Intensive (INT): turn the knob towards “+”. Duration

button to confirm. An end time for the PYROLITIC CYCLE (as for a normal cooking cycle) may be programmed (see Programming the automatic cleaning end time). Safety devices

• The icon on the display, when lit, indicates that the oven door was automatically locked as soon as the temperature reached a high value.

• The icon indicates that the cleaning cycle may be cancelled at any time by pressing the button.

• If a malfunction occurs, the heating elements will be switched off.

• Once the oven door has been locked, you cannot change the duration and cycle end time settings. Programming the automatic cleaning end time

button until the icon and the two digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards “+” and “-” to adjust

button again until the other two digits on the DISPLAY begin to flash.

4. Turn the TIMER KNOB towards “+” and “-” to adjust

button again to confirm;

6. When the set time has elapsed, the text END

appears on the display and a buzzer sounds.

• For example: it is 9:00 a.m. and the Economy PYROLYTIC cycle has been selected: default set time 1 hour. 12:30 is scheduled as the end time. The programme will start automatically at 11:30 a.m. Programming has been set when the and buttons are illuminated. The DISPLAY shows the PYROLITIC CYCLE end time and duration alternately. Once the automatic cleaning cycle is over You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door. You will notice some white dust deposits on the bottom and the sides of your oven; remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way.32

mm. without hood mm.

mm. without hood mm.

• Doe de gist in lauw water (circa 35 graden).
