Product type	Ceramic hob cooker
Brand	Progress
Model	PES6060E
Power supply	220-240 V, 50-60 Hz
Total power	7.6 kW
Number of cooking zones	4
Cooking zones and power	Rear right 170/265 mm: 1500/2400 W; Front right 180 mm: 1800 W; Rear left 145 mm: 1200 W; Front left 120/210 mm: 750/2200 W
Surface type	Ceramic glass
Residual heat indicator	Yes
Child safety device	Recommended, can be activated
Maintenance and cleaning	Soft damp cloth, mild detergent. Use a scraper for stubborn dirt (plastic, sugar). Do not use a steam cleaner.
Installation	By a qualified professional. Respect minimum clearances.
Repairability	Original spare parts available via after-sales service.
Safety instructions	Do not leave unattended, do not use metal objects on the surface, turn off after use.
Installation type	Built-in
Country of manufacture	Germany (indicated on rating plate)
Serial number	Indicated on the rating plate
Environmental protection	Recycle according to local regulations, do not dispose of with household waste

Frequently Asked Questions - PES6060E PROGRESS

How to turn on the Progress PES6060E cooker?

Use the control knobs to turn on the cooking zones. Turn the corresponding knob to the desired cooking level. The appliance must be turned on within 10 seconds after turning the knob.

What to do if the residual heat indicator does not light up?

If the cooking zone has only been used for a short time, it may not be hot enough. If it has been used long enough, contact after-sales service.

How to clean the ceramic glass hob?

Clean after each use with a soft damp cloth and mild detergent. For stubborn dirt such as melted plastic or sugar, use a special glass scraper holding it at an angle. Never use a steam cleaner.

What to do in case of a crack in the ceramic glass surface?

Immediately disconnect the appliance from the power supply to avoid any risk of electric shock and contact after-sales service.

Can I use aluminum utensils on the hob?

It is not recommended to use aluminum, cast iron or rough-bottomed containers as they may scratch the ceramic glass surface. Prefer utensils with a flat and smooth base.

How to save energy while cooking?

Always cover containers with a lid, place the container on the zone before turning it on, and turn off the zone before the end of cooking to use the residual heat. Choose a zone suitable for the container size.

What to do if the appliance does not turn on?

Check the fuse of the domestic electrical system in the fuse box. If the fuses blow regularly, call a qualified electrician. Make sure to turn the knob within 10 seconds.

How to install the Progress PES6060E cooker?

Installation must be carried out by a qualified professional. Remove the packaging, respect minimum clearances from other appliances, and ensure that the electrical installation has an all-pole disconnection device.

Can I use a steam cleaner to clean the appliance?

No, the use of a steam cleaner is prohibited as it can damage the appliance. Only use a soft damp cloth and neutral products.

How to obtain spare parts for my cooker?

Contact Progress after-sales service. Only use original spare parts. The necessary information (model, PNC, serial number) can be found on the rating plate located at the bottom of the appliance.

USER MANUAL PES6060E PROGRESS

INFORMACije O SIGURNOSTI

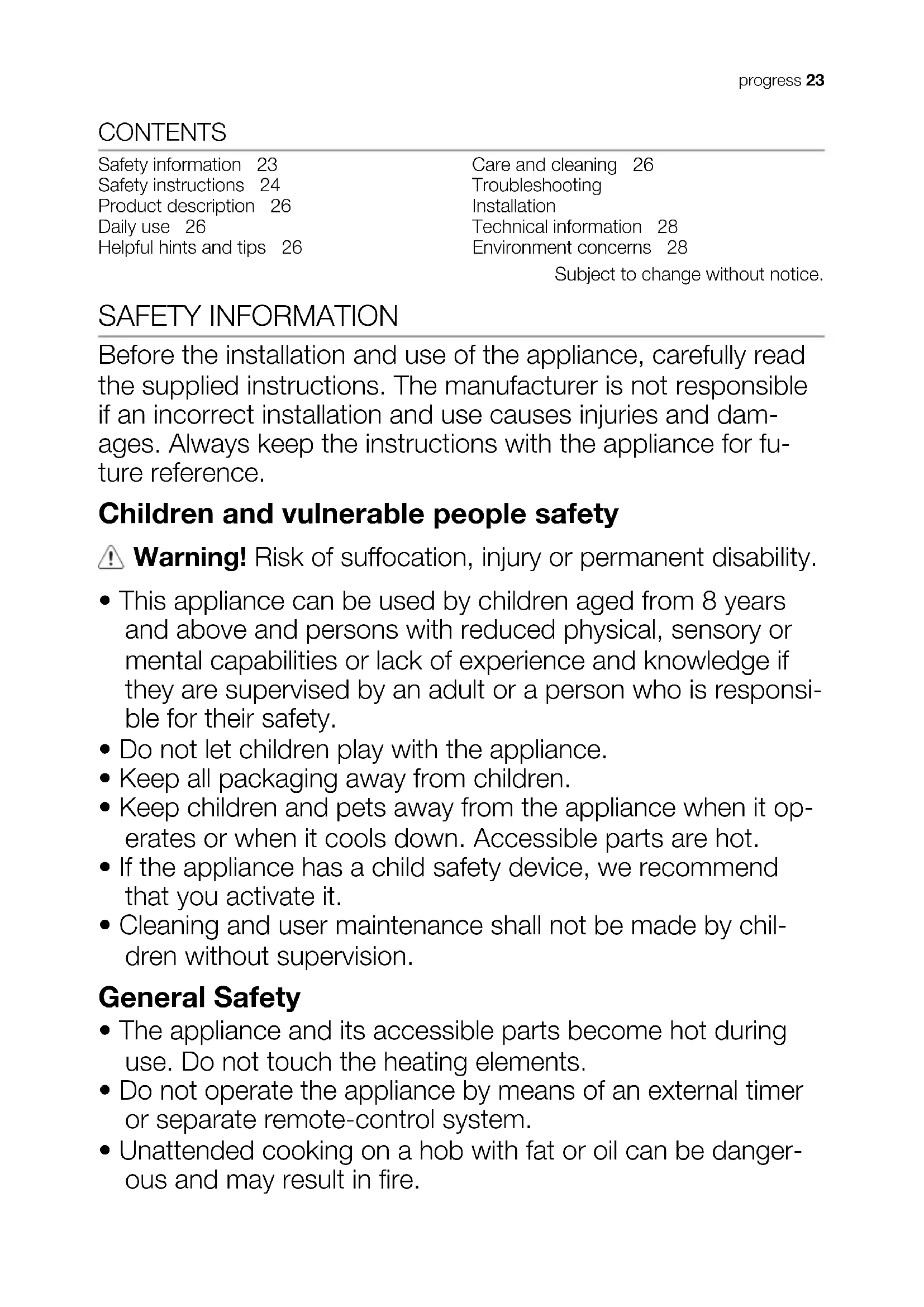

Safety instructions 24

Product description 26

Daily use 26

Helpful hints and tips 26

Care and cleaning 26

Troubleshooting

Installation

Technical information 28

Environment concerns 28

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• If the glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock.

SAFETY INSTRUCTIONS

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Keep the minimum distance from the other appliances and units.
  Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Seal the cut surfaces with a sealant to prevent moisture to cause swelling.
• Protect the bottom of the appliance from steam and moisture.
• Do not install the appliance adjacent to a door or under a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.
• If the appliance is installed above drawers, make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation.
• The bottom of the appliance can get hot. We recommend to install a non-combustile separation panel under the appliance to prevent access to the bottom.

Electrical connection

Warning! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.

• Before connecting the hob to an oven and before every wiring make sure the main terminals of both appliances are not live.

• Make sure the appliance is installed correctly. Loose and incorrect plug and socket can make the terminal become too hot.
• Make sure that a shock protection is installed.
• Do not let the electricity bonds touch the appliance or hot cookware, when you connect the appliance to the near sockets.
• Do not let the electricity bonds tangle.
• Use a strain relief clamp on cable.
• Use the correct mains cable.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

Use

Warning! Risk of injury, burns or electric shock.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Do not let the appliance stay unattended during operation.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not put cutlery or saucepan lids on the cooking zones. They become hot.
• Set the cooking zone to "off" after use.
• Do not use the appliance as a work surface or as a storage surface.
• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock.

Warning! Risk of fire or explosion.

• Fats and oil when heated can release flammable vapours. Keep flames or heated objects away from fats and oils when you cook with them.
• The vapours that very hot oil releases can cause spontaneous combustion.
• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.
• Do not let cookware to boil dry.

• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty cookware or without cookware.

• Do not put aluminium foil on the appliance.
• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface.

Care and Cleaning

Warning! Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterioration of the surface material.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

Warning! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

Service

• Contact the Service to repair the appliance. We recommend only the use of original spare parts.

PRODUCT DESCRIPTION

General overview

Residual heat indicator

The residual heat indicator comes on when a cooking zone is hot.

1 Cooking zone
2 Cooking zone
3 Cooking zone
4 Residual heat indicator
5 Cooking zone

Warning! The risk of burns from residual heat!

DAILYUSE

You operate the hob with the knobs of the oven. The Daily Use chapter for the oven tells how to operate the hob.

When a cooking zone operates, it hums for a short time. This is typical of

all ceramic glass cooking zones and does not show that the appliance operates incorrectly.

HELPFUL HINTS AND TIPS

Cookware

Information about the cookware

• The bottom of the cookware must be as thick and flat as possible.
• Cookware made of enamelled steel and with aluminium or copper bottoms can cause the colour change on the glass-ceramic surface.

Energy saving

How to save energy

CARE AND CLEANING

Clean the appliance after each use. Always use cookware with clean bottom.

• If it is possible, always put the lids on the cookware.
• Put cookware on a cooking zone before you start it.
• Stop the cooking zones before the end of the cooking time to use residual heat.
• The bottom of pans and cooking zones must have the same dimension.

i Scatches or dark stains on the glassceramic cause no effect on how the appliance operates.

To remove the dirt:

1. • Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance. Use a special scraper for the glass. Put the scraper on the glass surface at an acute angle and move the blade on the surface.

2. Remove after the appliance is sufficiently cool: limescale rings ,

TROUBLESHOOTING

water rings, fat stains, shiny metallic discolorations. Use a special cleaning agent for glass ceramic or stainless steel.

1. Clean the appliance with a moist cloth and some detergent.

2. At the end rub the appliance dry with a clean cloth.

Problem Possible cause Remedy
You cannot activate the appli- ance or operate it.	Activate the appliance again	and set the heat setting in less than 10 seconds.
Problem with the house electri- cal system.	Examine the fuse in the electri- cal system of the house in the fuse box. If the fuses blow again and again, speak to qualified electrician.
The residual heat indicator does not come on.	The cooking zone is not hot because it operated only for a short time.	If the cooking zone operated sufficiently long to be hot, speak to the service centre.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the customer service. Give the data from the rating plate, three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on.

Make sure, you operated the appliance correctly. If not the servicing by a customer service technician or dealer will not be free of charge, also during the warranty period. The instructions about the customer service and conditions of guarantee are in the guarantee booklet.

INSTALLATION

Warning! Refer to the Safety chapters.

i Before the installation

Before the installation of the appliance, record the information below from the rating plate. The rating plate is on the bottom of the appliance casing.

Model

• PNC
• Serial number

Built-in appliances

• Only use the built-in appliances after you assemble the appliance into correct built-in units and work surfaces that align to the standards.

Assembly

TECHNICAL INFORMATION

The symbol on the product or on its packaging indicates that this product may

not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical

and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic components are identified by marking: >PE<, >PS< , etc. Discard the packaging materials as household waste at the waste disposal facilities in your municipality.
