USER MANUAL TDP2700K TOKAI

Please fill in the following information.
1. Your name or business name.
2. Your address or postal code.
3. Please read this User Manual carefully to ensure proper use of this product and any errors or damages that may be caused by the use of this product.

Interface COMPATIBLE USB

Selection of mode of insertion 10.3.84 Selection of the affixation of information

Type depile:1 pile CR2025,3V

Language	Aspect Ratio TV System Smart Picture
Video
Rating
Misc

Le mode d'affichage

Language	Parental Control Set Password
Video
Rating
Misc

Contrôle parentale

Language	Use Default Settings
Video
Rating
Misc

11

Dépannage

SON PRESENT, MAIS AUCUNE IMAGE

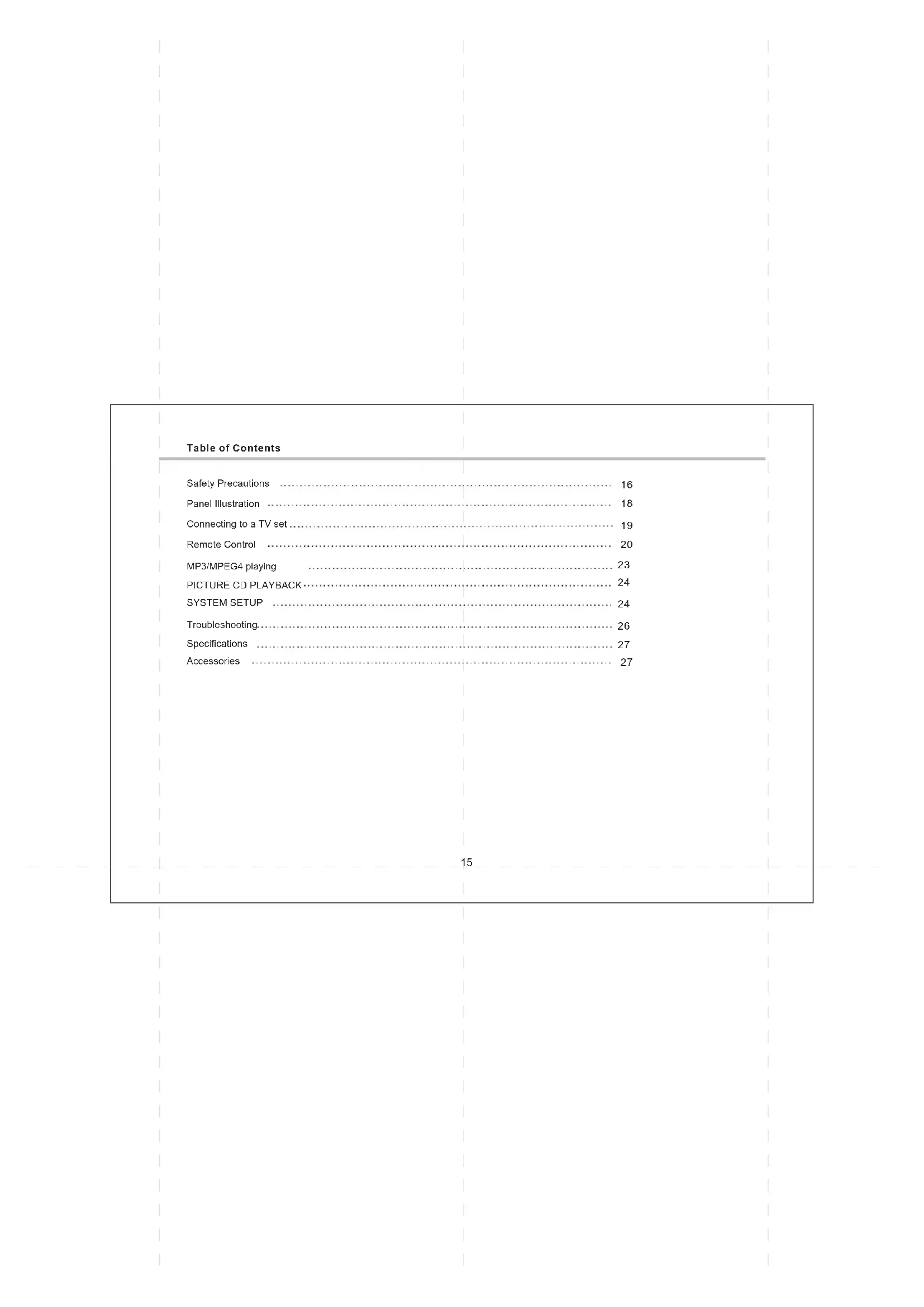

Safety Precautions 16
Panel Illustration 18
Connecting to a TV set. 19
Remote Control 20
MP3/MPEG4 playing 23
PICTURE CD PLAYBACK 24
SYSTEMSETUP 24
Troubleshooting 26
Specifications 27
Accessories 27

Safety Instructions

Safety is Important

To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this product.

Keep this information in a safe place for future reference. Please read all the safety information before using the product. Safety Considerations.

• Position the cables so that they cannot be walked on or pinched by items placed on or against them.
• Do not use the set top box in humid or damp conditions
• Do not allow the set top box to get wet.
• Do not expose the set top box to dripping or splashing.
• Do not place water filled objects such as vases on top of the set top box.
• Do not place naked flame sources, such as candles, on the top of the set top box.

Cleaning

ALWAYS unplug the set top box before you clean it.
- Do not use liquid or aerosol cleaners
- Clean the set top box with a soft, damp (not wet) cloth.

Ventilation

• The slots and openings on the set top box are for ventilation. Do not cover or block them as it may cause overheating.
  NEVER let children push anything into the holes or slots on the case.

Servicing

• There are no user serviceable parts in this set top box.
• When servicing, refer to qualified service personnel.
• Consult your dealer if you are ever in doubt about the installation, operation or safety of this unit.

Special notice

A few highlights or dark spots may occur on the LCD screen. It is a very common phenomenon of the actuator display technology, and does not mean any defects or faults. Never try to repair this machine by yourself. In case of any faults. Please turn off the unit at once, and notify our Company or the corresponding dealer. The display is made up of many precision electronic components. Any disassembly or modification may lead to further damage.

Safety Instructions

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUCT
CLASS 2 LASER PRODUCT
LASER DI PRIMA CLASSE
KLASSE 1 LASER
CLASS 2 LASER
LASER CLASS
LASER CLASS
CLASS 1 LASER PRODUCT

This Digital Video Disk player employs a Laser System. To ensure proper use of this product, please read this owner manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location see service procedure.

Use of controls, adjustment or the performance of procedures other than those specified may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible and invisible laser radiation when open and interlocks defeated.

DO NOT STARE INTO BEAM

LISTENING WITH HEADPHONE (EARPHONE) (Not Included)

Connect the plug of the stereo headphones (earphone) into the EARPHONE jack (marked phones) before use the unit.

CAUTION: Hearing experts advice against exposure to continuous extended play at loud volume levels while using headphones (earphone), possible hearing loss may result. If you experience a ringing in the ears, reduce volume or discontinue use. We want you listening for a life time.

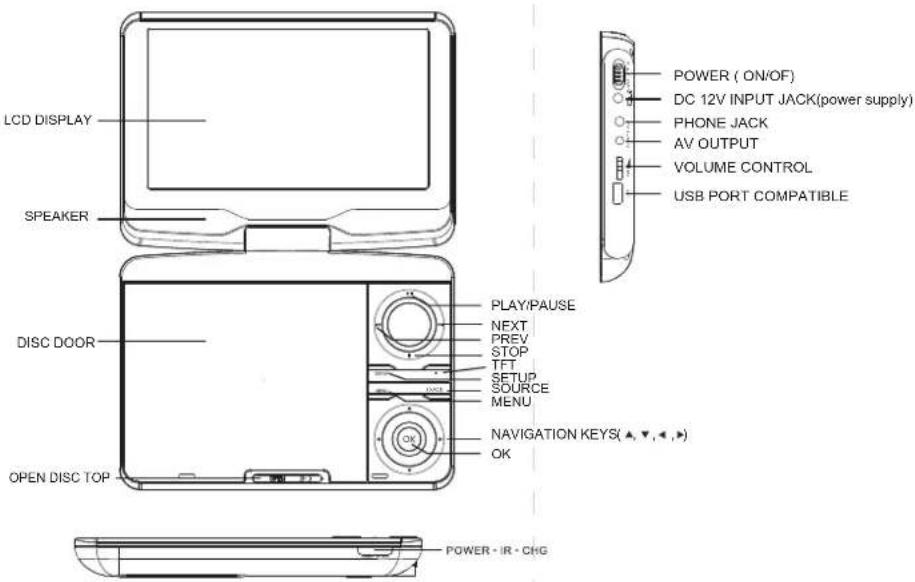

Panel Illustration
Introduction

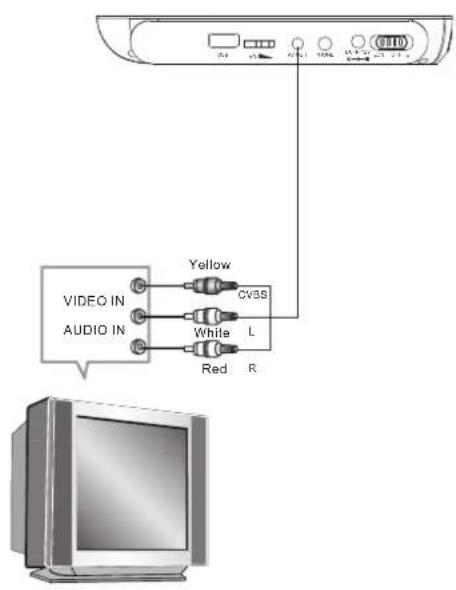

Connecting to a TV Set

Connections

Phone Jack Function

Insert the earphone into the earphone jack, to listen the music or movie privately.

Battery charging

When the unit battery is powered out, connect the AC adapter onto the unit. The battery will charge automatically.

Volume adjust

Use VOLUME CONTROL in the side of the unit to adjust the volume.

Connect to the USB PORT COMPATIBLE

Press the SOURCE key on the remote control until you switched into USB COMPATIBLE work mode

USB COMPATIBLE interface

This unit has a USB COMPATIBLE IN jack to play the MP3 music or and JPEG files or other files. Press the < SOURCE > button to choose USB COMPATIBLE IN mode. All the function is the same to play a disc.

Note: the USB COMPATIBLE IN port is compatible with flash memories, it is not warranted the

NOTE:

When using USB COMPATIBLE function. Please do not insert in the wrong direction, or I will be corrupted.

Warning:

The USB drive must be connected directly to the unit.

To prevent data loss by interference and transfer, do not use USB extension cords.

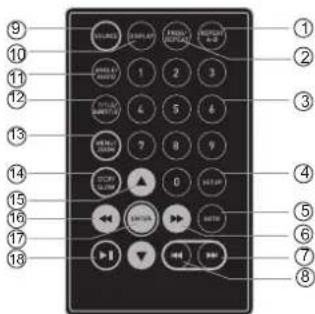

Remote Control

Introduction

Remote Control

1.A-BRepeat

press 1x: set A, prss 2x: set B

press3x: disable the function

1. Prog/Repeat

Short press:Repeat mode

Long press (2Sec.):

DVD program mode

1. 0-9 Number Keys

2. Setup

Open the setup menu

1. Goto

Goto a specific time index

1. Fast Forward

2. Nex

Next chapter or file

8.Previous

Previous chapter or file

1. SOURCE

Input mode selection,

1. Display

Display detailed informations

of the current file or disc.

11. Angle / Audio

Short press

Changes the audio mode (if different modes

are available)

Long press (2Sec.): Changes the angle mark

(if different modes are available)

1. Title/ Subtitle

Short press: Change subtitle mode

(if subti1les are available)

Long press (2Sec): DVD Title menu

13.MENU/ZOOM

Short press:Zoom in

Long press (2Sec.): Menu key for DVD Menu

1. STOP / SLOW

Short press: Spp

Long press (2Sec.) Slow motion

1. Navigation keys

2. East Rewind

3. ENTER

To confirm and enter options or to play files.

1. Play / Pause

Preparation of the Remote Control

Place the remote control on an even surface and insert the supplied

button cell into the

remote control as follows.

1. Push the button towards left

2. Pull the battery loader out

3. Pull the battery loader out 3. Load the battery loader to the same position

3.Insert the battery into the receptacle

Make sure the polarity matches the marks

inside the component.

4.Insert the receptacle into the remote control.

Cell data

Battery type: 1x CR2025,3V

Service life: approximately 1 year

(for normal use and roomtemperature)

Using Of Remote Control

Point the remote control towards the main unit when operating.

The remote control works best at a distance less than 5m and at an angle of up to 30^ to the front of the unit. No obstacles may stand in the way between remote control and infrared sensor and do not place the remote control in direct sunlight. If the remote control unit fails to work even when it is operated near the player, replace the battery.

Notes on batteries

If the remote control is not used for a long period of time, please re

move the battery from the compartment.

Do not heat batteries or dispose of them in fires. Do not

dismantle, deform or modify batteries.

Remote Control

Introduction

Using Of Remote Control

Point the remote control towards the main unit when operating. The remote control works best at a distance less than 5 m and at an angle of up to 30^ to the front of the unit. No obstacles may stand in the way between remote control and infrared sensor and do not place the remote control in direct sunlight. If the remote control unit fails to work even when it is operated near the player, replace the battery.

Notes on batteries

If the remote control is not used for a long period of time, please remove the battery from the compartment. Do not heat batteries or dispose of them in fires. Do not dismantle, deform or modify batteries.

About Built-in Rechargeable Battery

Precautions related to battery recharge

1. Once the battery is fully discharged, immediately recharge it (regardless of whether you plan to use the battery or not) in order to maximize the battery life. When the power is low, the battery icon will be shown on the upper left corner of the TFT for warning.
2. To charge the battery, please connect this player to AC mains via the AC adaptor and the charge indicator will turn on in red, and the indicator will turn into green when the battery is fully charged. This will take about 2-2.5 hours if the player is in off mode or 4.5-6 hours if the player is in working mode.

Using and maintaining your rechargeable batteries

1. Please make sure you always use only the AC adapter included with the player to recharge your batteries.
2. Recharge efficiency will degrade when the environmental temperature drops below 50oF (10) or exceed 95oF (35).
3. The lasting time of the fully charged battery when a headphone is connected to the player is approximately 1.5 hours

REMOTE CONTROL KEY FUNCTIONS

PLAY/PAUSE

Press this button once(during playback) to pause playback. Press this button a second time to resume playback.

STOP

Press this button once(during playback) to stop playback; to resume from the same position,

Press▶/PLAY

Press this button a second time to end playing back the disc altogether. Continue at the start of the disc using

MENU

Press this button (during playback) to display the menu on the screen. In menu mode, select the desired option using the▶▲▼ buttons. Then press OK.

Button

Press this button to jump to the beginning of the previous track or chapter

一 Button(Fast rewind)

Pressing this button repeatedly will increase the rewind speed successively to 2x, 4x, 8x, 16x

Continue playback at normal speed using

Button

To jump to the beginning of the next track or chapter.

Button(Fast forward)

Pressing this button once to display detailed information about the disc in the player.(Pressing this button repeatedly).

AUDIO button

During playback the available audio streams are enabled successively (DVDs can contain up to eight audio streams; e.G., for multiple languages.

Remote Control

Introduction

SUBTITLE button

During playback, allows you to select a language for subtitles or to turn subtitles on/off.DVDs can contain up to 32 subtitle tracks. By pressing this button repeatedly, you call up the following settings:

SUBTITLE 1/N: Subtitle 1 is displayed.

SUBTITLE 2/N:Subt1e 2 is displayed.

SUBTITLE 一 /N Subtitle * is displayed.

SUBTITLE: A. Subtitle 19 & 20 SUBTITLE OFF: No Subtitle

N represents the total number of subtitle traks included.

This function is only available for DVDs that contain multiple

subtitle tracks.

REPEAT button

Pres the key to repeat a chapter or a title.

GOTO button

Enables you to select a position(time, track or title) at which to start playback. Use the /

Buttons to select the desired option. Use the 0-9 number keys to enter the

time directly and then confirm using OK.

Press the GOTO button again to resume normal playback.

ANGLE button

Pressing this button for approx 2 Sec. cycles through the camera perspectives available for the particular scene(see illustration).

This function is only available for DVDs that contain recordings of

multiple camera perspectives

ZOOM button

For DVDs the image size is successively changed to the following values compared to the normal size: 1x, 2x, 3x off.

This function is not available for Cds.

MP3/MPEG4 PLAYING

ADVANCED FEANTURES

Insert the MP3/MPEG4 disc, use navigation keys to open the desired directory. Press ENTER to enter the subdirectory. Use the navigation keys to select the desired track and then ENTER to play the file. Press the PLAY/PAUSE key to pause the playback, press the stopkey to stop the play. To return to the upper menu, press navigation key to choose the icon and press ENTER to confirm. Open the option menu using the navigation keys

Filter: Allows selecting the categories of files displayed in the browserlist. Repeat: To switch differentrepeat playing mode

Select single option to enable one file repeat, select folder option to enable all the filesin the folder repeat.

Mode: Select differentplaying mode

Normal: Normal playback

Shuffle: Shuffle mode enabled. When playback reaches the end of the current chapter/track, playback jumps to a random chapter/track.
Music Intro: In this mode, the unit will play the first 10 seconds of the file and then skip to the next file.

Edit Mode: Usethis option to enable programmed playback mode. Select the mode, press LEFT Navigation key to directory and press ENTER to choose the desired track and press Add to program to program the playback list.

Program view: Displaydirectory/folder

Brower View: Displayplayback list directory.
Add to program: Use this in combination with EditMode to create a play list.
Clear program: Whenentered the BrowserView and incomplete stop state (press STOPbutton twice), usethis option in combination with EditMode to delete tracks from the playback list.

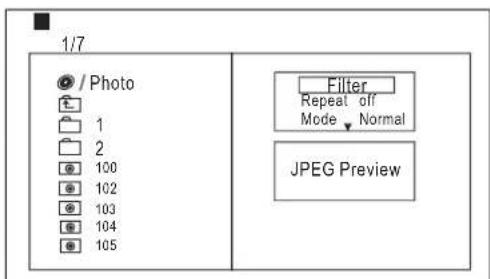

PICTURE CD PLAYBACK

Press Navigation key to choose the rootdirectory and then press ENTER button to enter into the sub directory. Press Navigation key to choose the desired picture and then press ENTER or PLAY to enjoy the picture. If you want to return tothe upper menu, press Navigation key to choose the icon and press ENTER button.

Image rotation

In picture play state, press Navigation key to rotation the picture, press ANGLE button to change the picture scanmode.

SYSTEM SETUP

MENU OPERATION

Press the SETUP button on the remote control and the SETUP MENU will be displayed. Use thenavigation buttons for upand down movement to select the desired item,then press the ENTER button to confirm. Press LEFT navigation button return to the main menu. To exitthe setup, press the SETUP button. Press right navigationkey to enter thesubmenu.

LANGUAGE SETUP

Select Language in the setup menu.

Language	Language Subtitle MPEG4 Subtitle Audio DVD Menu
Video
Rating
Misc

OSD Language

Use this item to select the language of the setup menu and screen display.

Subtitle

Set the default subtitle.

Note: not every disc supports this function.

MPEG4 Subtitle

Set default MPEG4 subtitle encoding option. Note: not every disc supports this function.

Audio

Set the default audio language

Note: not every disc supports this function.

SYSTEM SETUP

DVD Menu

Set the default DVD menu language.

Note: not every disc supports this function.

VIDEO SETUP

Select Video in the setup menu, and display the Video submenu:

Language	Aspect Ratio TV System Smart Picture
Video
Rating
Misc

Aspect Ratio

Select the aspect ratio.: 16:9, 4:3 PS, 4:3LB

Notes:

The image display ratio is related to the recorded disc format. Some disc can not display images in the aspect ratio you choose, if you play a disc recorded in 4:3 format on a wide screen TV, black bars will appear on the left and right side of the screen. You must adjust the screen setting depending on the type of the television you have.

TV System

This product supports output of various systems (NTSC, PAL). When connecting to a TV set make sure that both units have the same PAL / NTSC settings.

Smart picture

Adjust display effect:

Standard: default effect.

• Bright: internal setting for bright view effect. Soft: internal setting for soft view effect.

Dynamic: user adjusts brightness, contrast, color etc.

RATING SETUP

Select Rating in the setup menu, and display the Rating submenu:

Note: Not all DVD support ratings.

Language	Parental Control Set Password
Video
Rating
Misc

Parental Control

Sel Iba desired level

Note: not every disc supports this function.

Set Password

Use the 0-9 keys to input four digits password), then press ENTER to confirm.

Note: If you forget your password, please use the universal password 6666 to unlock.

MISC SETUP

Select MISC in the setup menu, and display the submenu:

*Use Default Settings

Reset data to factory default.

Language	Use Default Settings
Video
Rating
Misc

Troubleshooting

Others

If you have any questions, please consult the troubleshooting guide below.

NO PICTURE OR SOUND

• Ensure the power button is on.
• Ensure the power outlet is operational.
• Ensure the power cord is not damaged.
• Ensure the power plug is connected

PICTURE BUT NO SOUND

• Ensure the audio jacks are securely connected.
• Ensure the audio connector is not damaged.
• Ensure the volume is turned up in VOL/CH setup.
• Ensure you have set the player's AUDIOsettings correctly.
• Ensure you have ENTERed the correct AV input for your TV.
• Ensure the audio is not set to mute

SOUND BUT NO PICTURE

• Ensure the video jacks are securely connected.
• Ensure you have ENTERed the correct AV input for your TV.
• Ensure the video connector is not damaged.
• Ensure you have set the player's VIDEO settings correctly.

POOR PICTURE OR SOUND

• Ensure you have set the player's AUDIO settings correctly.
• Ensure the disc is not scratched or stained.
• Ensure the AV connector or the output terminal is not damaged.

Specifications
Others

Play mode	NTSC/PAL
Disc mode	DVD;VCD, CD, MP3, CD-R, CD-RW, JPEG, DVD+ -R/W, MPEG4.
Video characteristic
Video S/N ratio	≥65dB.
Resolution	≥500 lines.
Audio characteristic
Frequency response	fs 96KHz: 20Hz-20KHz:+/-1dBi
Audio S/N ratio	≥90dB
Dynamic range	≥80dB
Distortion	< 0.01%
D/A Converter	96KHz/24bit

Output characteristic
Display Device	Color TFT-LCD
Screen Size	7 inches
Video output	1Vp-p(75 w)
Audio output	2CH
Power Voltage	DC IN 12V
Power consumption	≤12W
Size	206x160x40mm
Weight	0.8kg

Specifications are subject to change without notice.

Accessories

AC adapter

Remote control Remote control

Bag & straps

Car adapter

User manual

End of Life Disposal

Warning! This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96CE of January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE).

This symbol means that used electrical and electronic products should be properly classified as household waste. There is a separate collection system for those products.

If you want to dispose of this equipment, please do not use the ordinary dust bin!

The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
Therefore, at the end of its lifetime, this product shall not be disposed with other nonrecycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
Local authorities and retailers have set special procedures for the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.
If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.
By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

This unit complies with European Council Directive 2006 / 95 CE (Electromagnetic Compatibility & Low Voltage Directives)

DVD Compatibility

This Product can only play REGION Code 2 DVD

INDICE

CLASS 11 LASER PRODUCT
KLASSE 1 LASER PRODUCT
CLASS 2 LASER PRODUCT
LASER DI PRIMA CLASSES
KLASSE 1 LASER
LASER DI PRIMA CLASSES
LASER CLASSES 1
KLASSE 11 LASER PRODUCT

1. Repeat A-B (Repetition A-B). Pulse 1x: Eijar A; Pulse 2x: Eijar B

Pulse 3x:Desactivar la functor.

1. Prog/Repeat

modos distintos dispounds)

Pulsacion larga (2 seg.): Cambia la
Tnose en aplica lawrynda

Marca de angulo (in shortistodosispounds)

1. Title/ Subtitle

Language	Aspect Ratio TV System Smart Picture
Video
Rating
Misc

Tamaño de Visión

Language	Parental Control Set Password
Video
Rating
Misc

Language	Use Default Settings
Video
Rating
Misc

USB KOMPATIBLE interface

Language	Aspect Ratio TV System Smart Picture
Video
Rating
Misc

Beeldverhouding

Standard: standard effect.

Language	Parental Control Set Password
Video
Rating
Misc

Ouderlijke controle

Language	Use Default Settings
Video
Rating
Misc

Problemen Oplossen

Language	Aspect Ratio TV System Smart Picture
Video
Rating
Misc

Aspecto Ratio

Seleciona relacao de aspecto.:16:9,4:3PS,4:3LB\~

Notas:

Language	Parental Control Set Password
Video
Rating
Misc

Control Paterno

Defina o nivel desejado

Language	Use Default Settings
Video
Rating
Misc

NENHUMA IMAGEM OU SOM
