USER MANUAL LET24T1000HF HAIER

Please read this manual carefully before using your television and keep this manual in a good place for future reference.

MODEL:

LET19T1000H

LET22T1000HF

LET24T1000HF

LET26T1000HF

Contents

01 Safety and warnings

Welcome P.02

Important information P.02

Safety notice P.03

Warnings and cautions P.04

02 Introduction

Main Parameter P.05

Base Stand Assembly Instruction P.07

Wall Mounting Installation Guidelines P.09

Control Panel P.11

Rear/Side Sockets P.11

Connecting your TV P.12

Common interface P.13

03 Remote Control

Remote Control P.14

04 Operation

Installation Guide P.16

05 Trouble shooting

Trouble shooting P.27

Specification P.28

01 Safety and Warnings

WELCOME

Thanks for buying this 19"/22"/24"/26" LED LCD TV. This guide will help you set up and begin using your TV.

First, check the contents of your box with the parts check list below:

19" HD Digital LED

LCD TV

Remote control

AAA battex2

Instruction Manual

Quick start guide

Scart cable x1

Stand

22" Full HD 1080P Digital

LED LCD TV

Remote control

AAA batterx2

Instruction Manual

Quick start guide

Scart cable x1

Stand

24" Full HD 1080P Digital

LED LCD TV

Remote control

AAA battery2

Instruction Manual

Quick start guide

Scart cable x1

Stand

26" Full HD 1080P Digital

LED LCD TV

Remote control

AAA battery

Instruction Manual

Quick start guide

Scart cable x1

Stand

Now you can get started!

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

SAFETY NOTICE

- Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

- Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

- Do not expose the Adaptor and product to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.

- Keep the product away from direct sunlight and heat source such as radiators or stoves.

- Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your product on a cushion, sofa or other similar surface.

- Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.

- Never place heavy or sharp objects on the panel or frame.

- Unplug the Power from the outlet when the unit is not in use.

- Attention should be drawn to the environmental aspects of battery disposal.

- WARNING: The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

- WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

- WARNING: Only use the attachments/accessories specified provided by the manufacturer.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNINGS AND CAUTIONS

Illustration of a computer monitor with a hand holding a device and a crossed-out black X (no text or symbols)

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Simple line drawing of a monitor with a cross mark and a cloth, no text or symbols present

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Simple line drawing of a monitor with a crossed-out X symbol and stars around (no text or symbols)

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Simple line drawing of a computer monitor with a stand and roof, emitting steam (no text or symbols)

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Caution

Do not trap the power supply cord under the television receiver.

Cartoon illustration of a person running away from a computer screen with a crossed-out X symbol (no text or symbols present)

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Illustration of a person running away from a computer monitor with a bomb icon nearby (no text or symbols)

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Minimum distances

Caution

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment.

When you clean dust or any water drops off the SCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket.

Wipe the TV with a soft, dry, dust free cloth. During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it.

All repairs to this TV should only be performed by qualified TV service personnel.

Main features

① Used as Television, display terminal, PC display;
② High luminance, wide viewing angle;
③ HDMI interface and SCART Interface;

Main parameter

Panel	19"	22"	24"	26"
TV System	PAL-B/G、I、D/KSECAM-B/G、D/K、L、L'
Video Signal System PAL/SECAM
Input Power Voltage	AC 100-240V 50/60Hz
Power consumption	30W	38W	40W	55W
Standby Power consumption	<0.5W
Audio Output Power (THD≤7%)	2x3W
Signal Input	Analog RGB(PC) x1; PC audio x1High-Definition Multimedia Interface (HDMI)x2Video Input x1Audio Input x1YPb Prx1SCARTx1CI x 1USB x 1RF Co-Ax x 1
Signal output	Headphone x 1S/PDIF x 1
Horizontal definition (TV line)	Composite Video input >=350YPbPr >=400

INSTALLATIONCAUTION

*Locate the TV in the room where light does not strike the screen directly.
*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
*Allow enough space between the TV and the wall to permit ventilation.
*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
*Do not cover the ventilation openings when using the TV.

④ NICAM;
⑤ T; ime-shift
④ NICAM;
⑤ T; ime-shift

PC

PRESET MODE

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	640x480	60	31.47
2	800x600	60	37.88
3	1024x768	60	48.36
4	1360x768	60	47.7
5	1280x1024	60	63.98
6	1920x1080(except for 19")	60	66.64

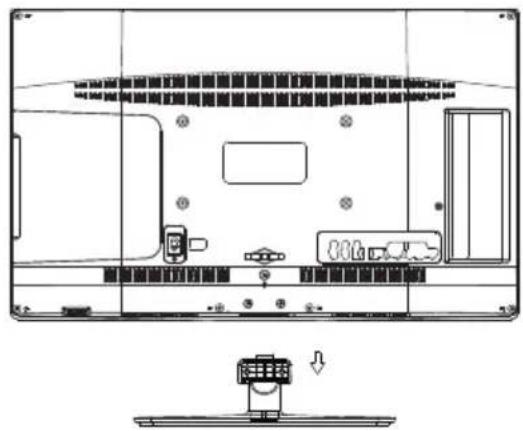

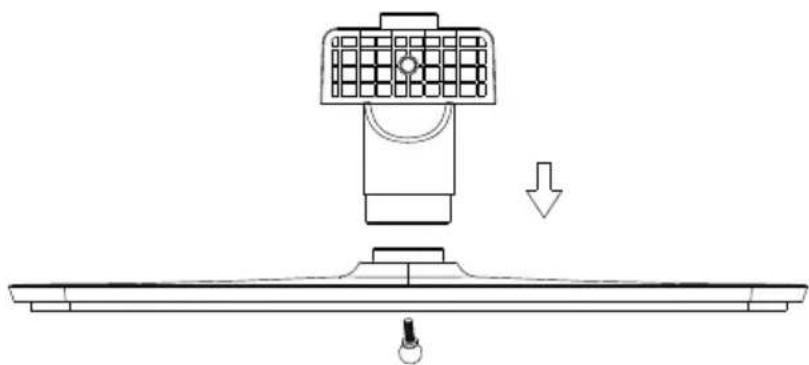

1. Insert the stand support pillar into the stand as the arrow indicated direction, and then fastened with one screw.

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

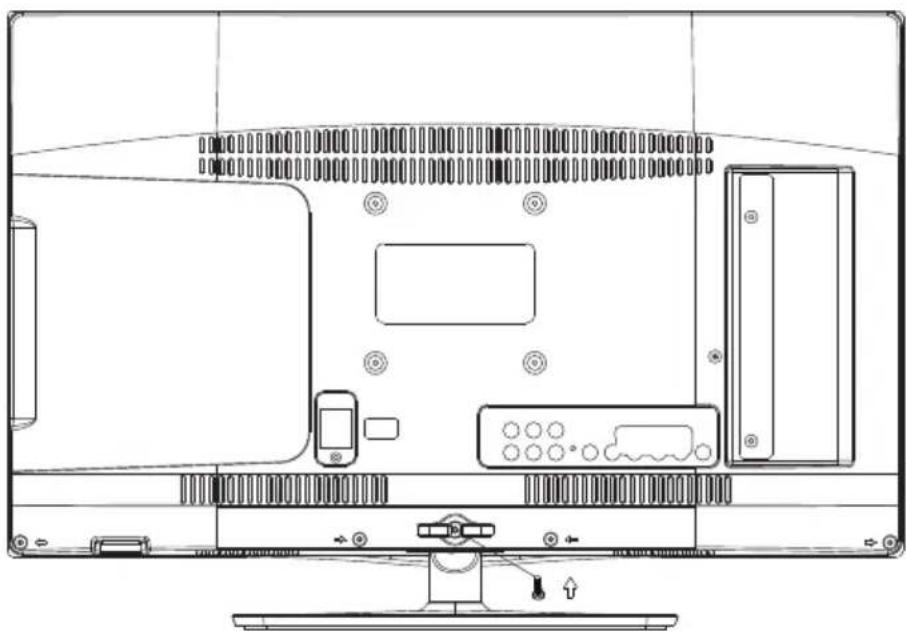

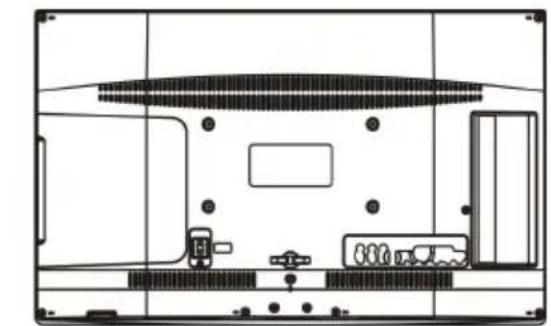

1. Insert the stand Ass'y into back cover as the arrow indicated direction, and then fastened with one screw.

Technical line drawing of a computer monitor rear panel with ventilation grilles, drive bays, and control buttons (no text or labels)

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

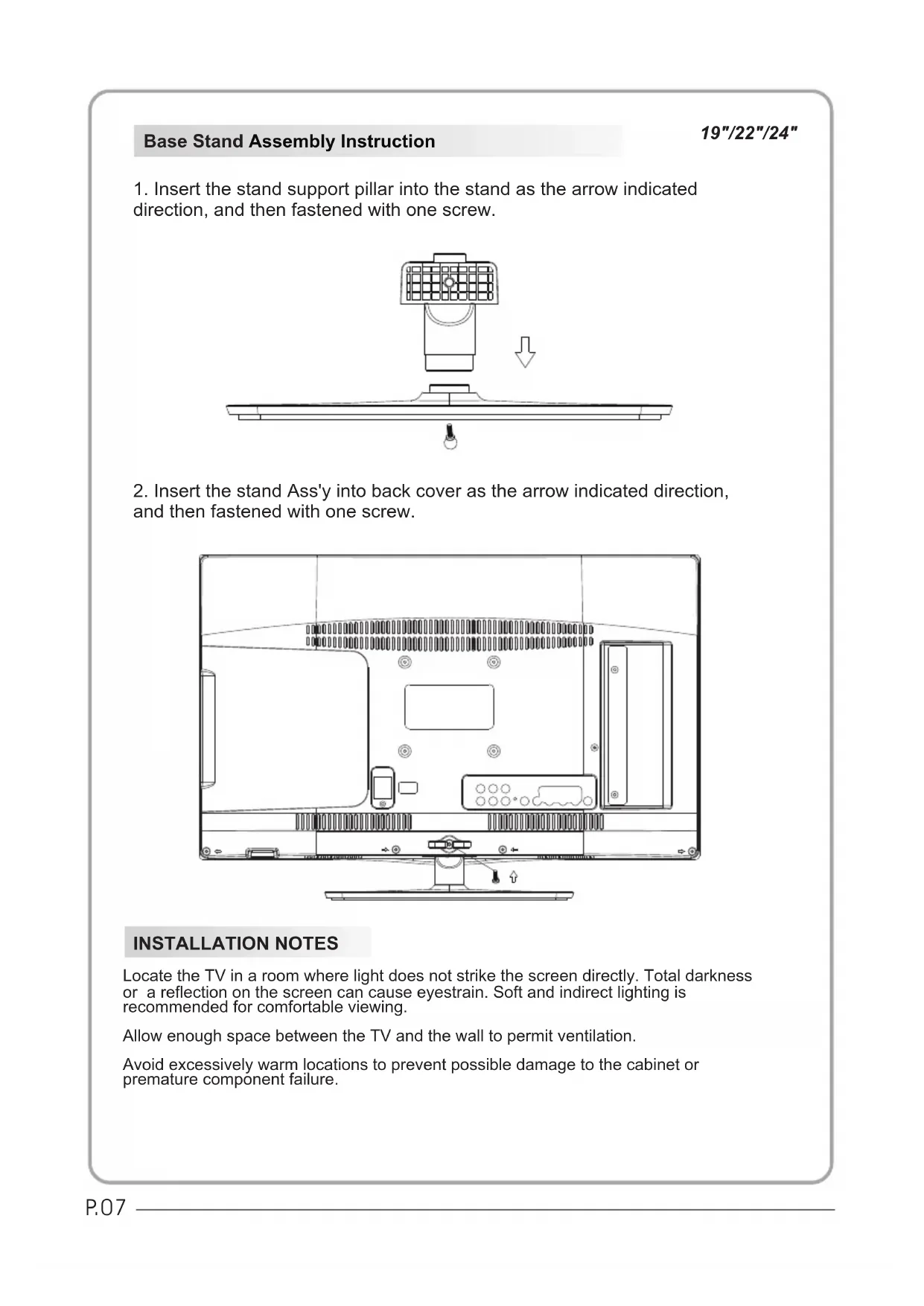

Base Stand Assembly Instruction

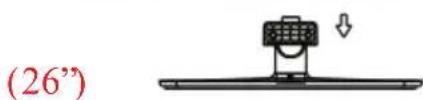

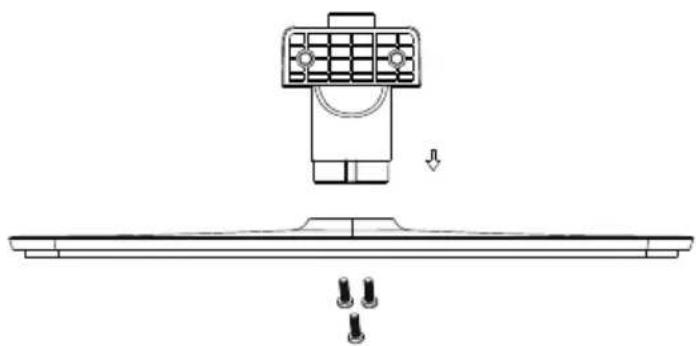

1. Insert the stand support pillar into the stand as the arrow indicated direction, and then fastened with three screws.

Technical line drawing of a mechanical assembly with a top component and base, showing no text or symbols.

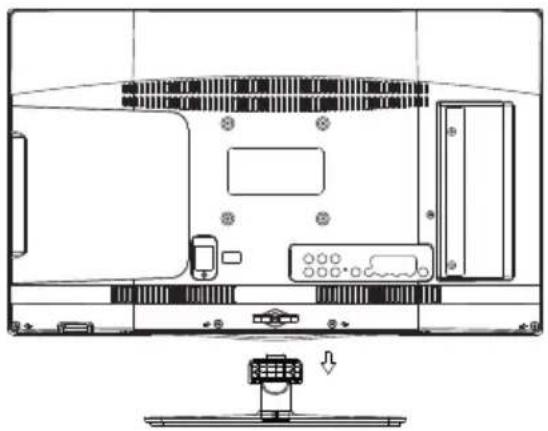

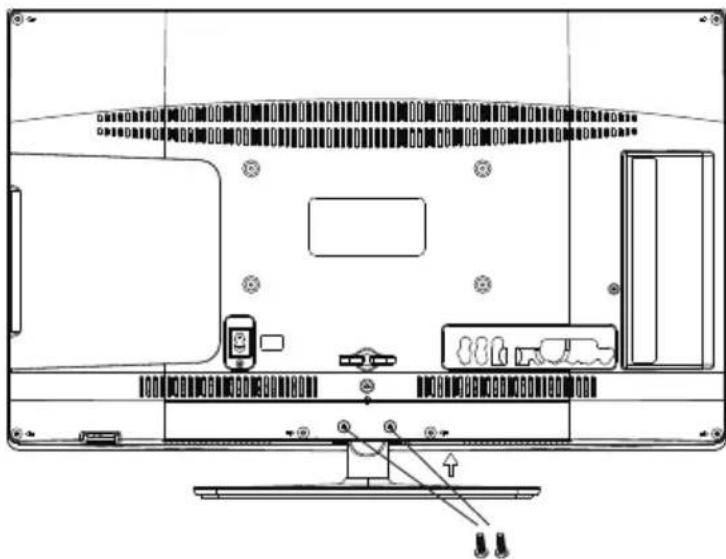

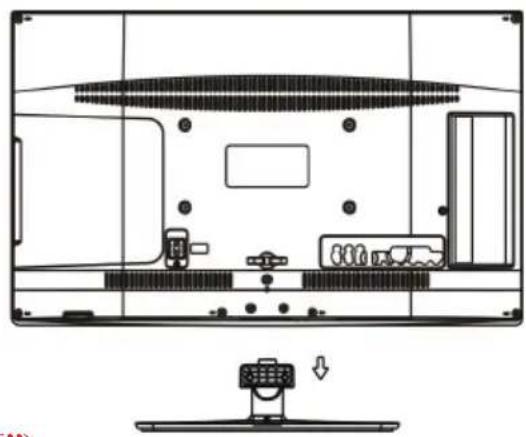

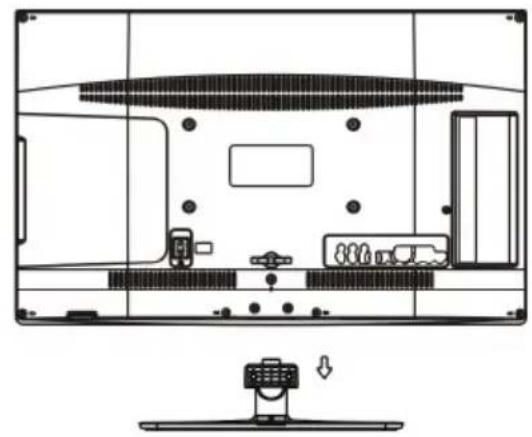

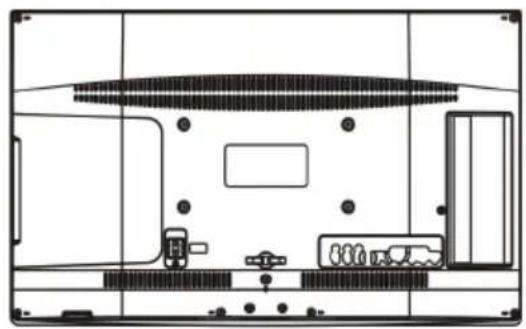

1. Insert the stand Ass'y into back cover as the arrow indicated direction, and then fastened with two screws.

Technical line drawing of a computer monitor rear panel with labeled ports and connectors (no text or symbols present)

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

WALL MOUNTING INSTALLATION GUIDELINES

19"/22"/24"

This television can be wall mounted as follows:

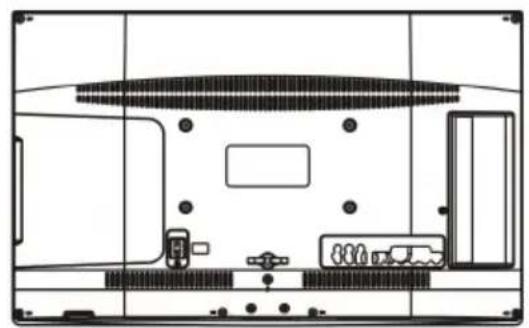

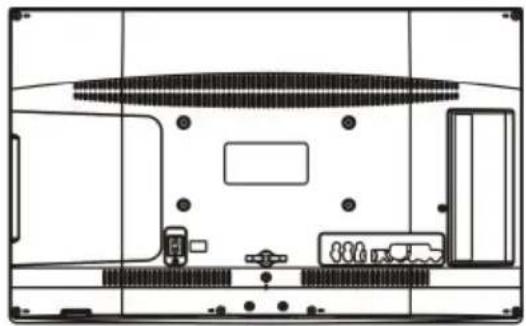

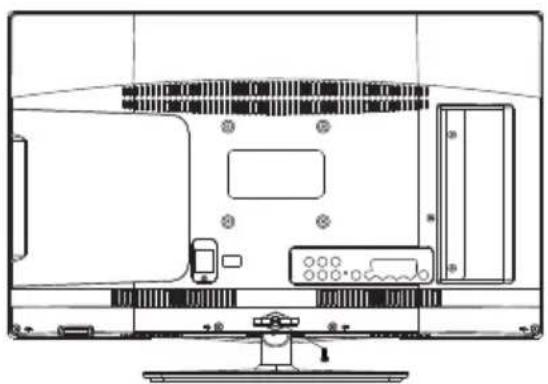

1. Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.

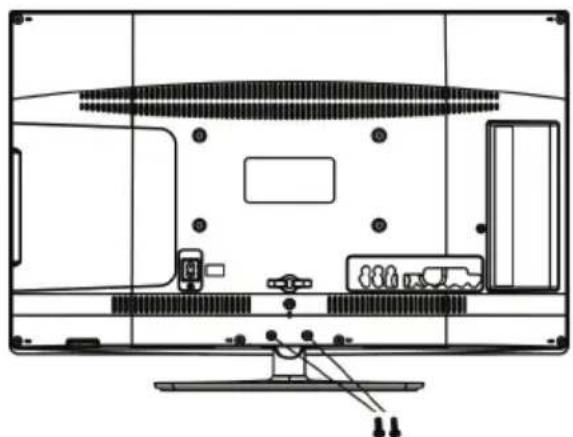

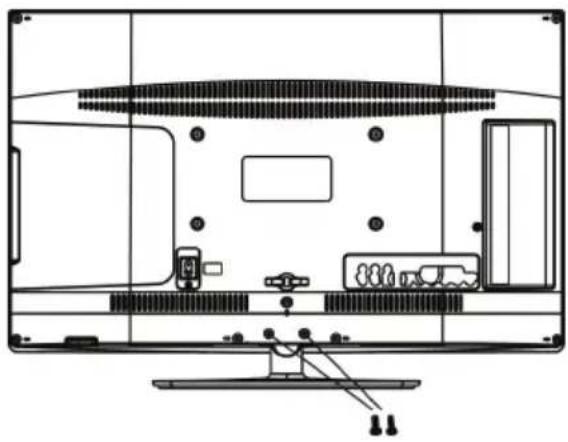

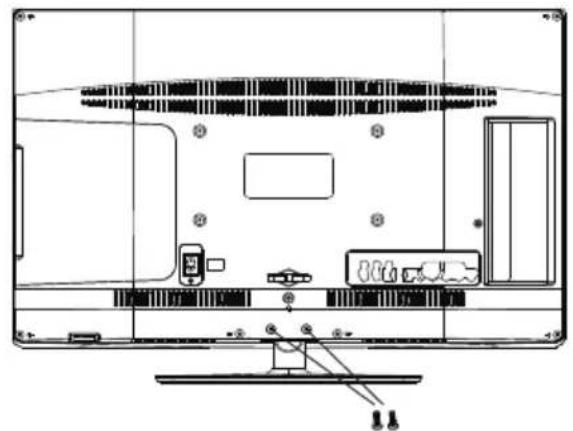

2. Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use).

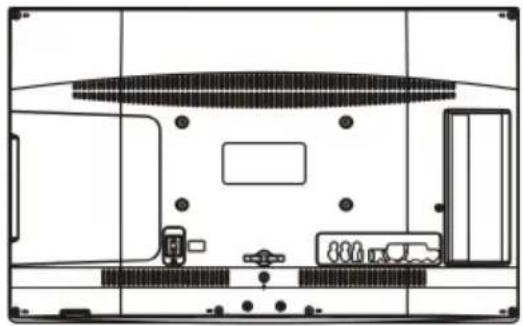

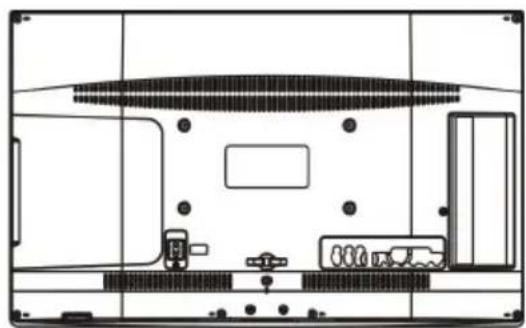

Line drawing of a computer monitor rear view showing front panel, screen, and control panel (no text or symbols)

Technical line drawing of a computer monitor rear panel with visible ports and buttons (no text or labels)

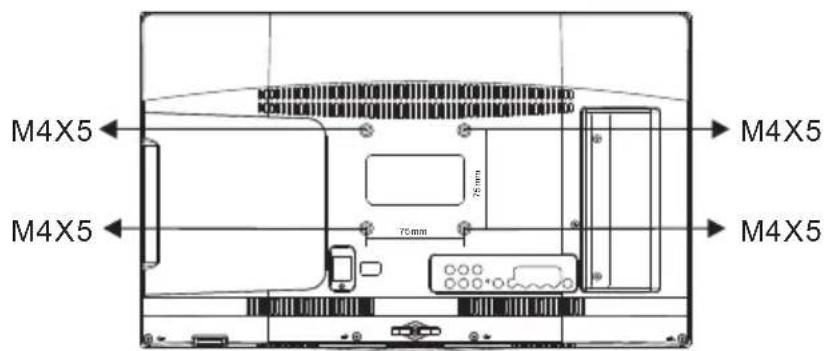

1. Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television.

M4X5 M4X5 75 mm M4X5 M4X5

(19")

M4X5 M4X5 100mm M4X5 M4X5

(22",24")

WALL MOUNTING INSTALLATION GUIDELINES

26"

This television can be wall mounted as follows:

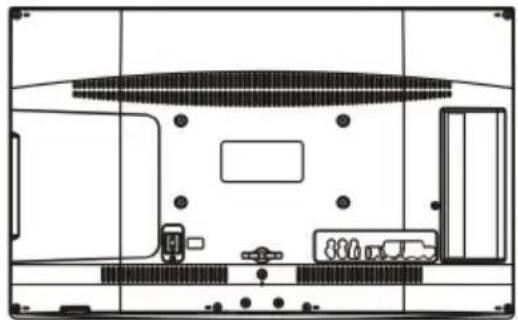

1. Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.
2. Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use).

Technical diagram of a computer monitor rear panel with labeled components and connectors

Technical line drawing of a computer monitor rear panel with labeled components and an icon indicating a device (no text or symbols present)

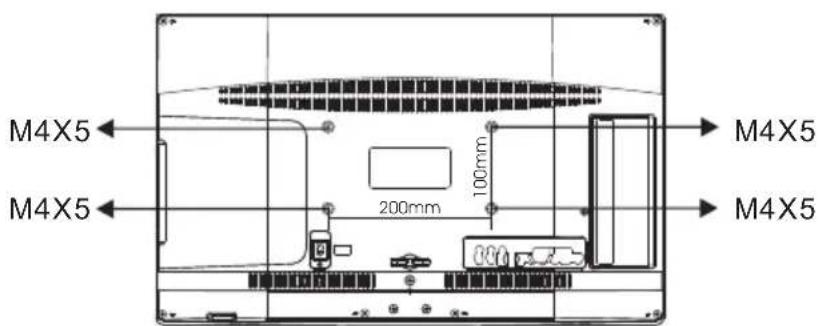

1. Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television.

M4X5 M4X5 200mm 100mm M4X5 M4X5

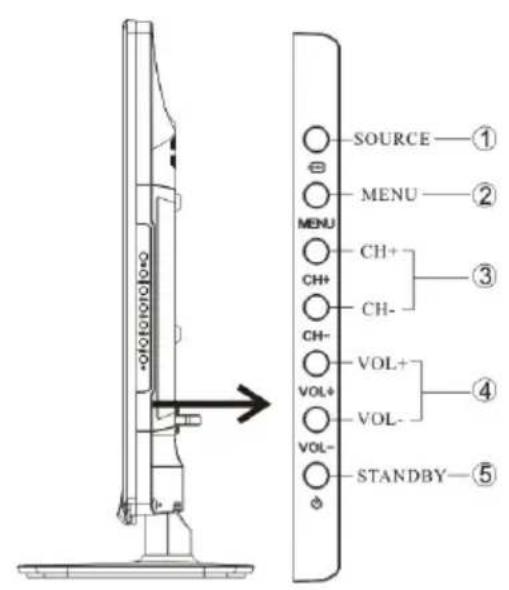

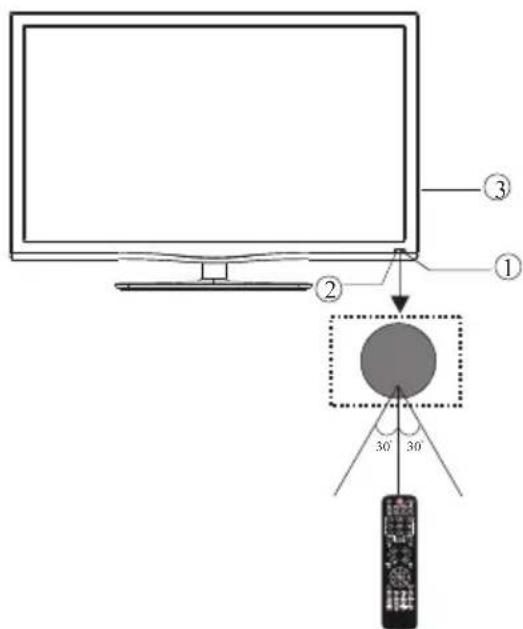

Front control panel

Diagram showing a monitor setup with labeled components and a circular button, including numbered parts 1, 2, 3 and a 30-degree pointer.

SO UR ME NL CH- CH- VO VO VO- STANDBY ① ② ③ ④ ⑤

1 Remote control sensor.

2 Indicator LED:

BLUE: POWER ON. RED: STAND BY.

3 Key board.

1 SOURCE Display the input source menu.

2 MENU Display main MENU.

3 CH+/CH- In TV mode, press CH+ or CH- to change the channel up and down.

In MENU, press CH+ or CH- to select items.

In standby mode, it can Turn on the TV.

4 VOL+/VOL- Adjust sound level.

In MENU, adjust the item that you Selected.

5 STANDBY

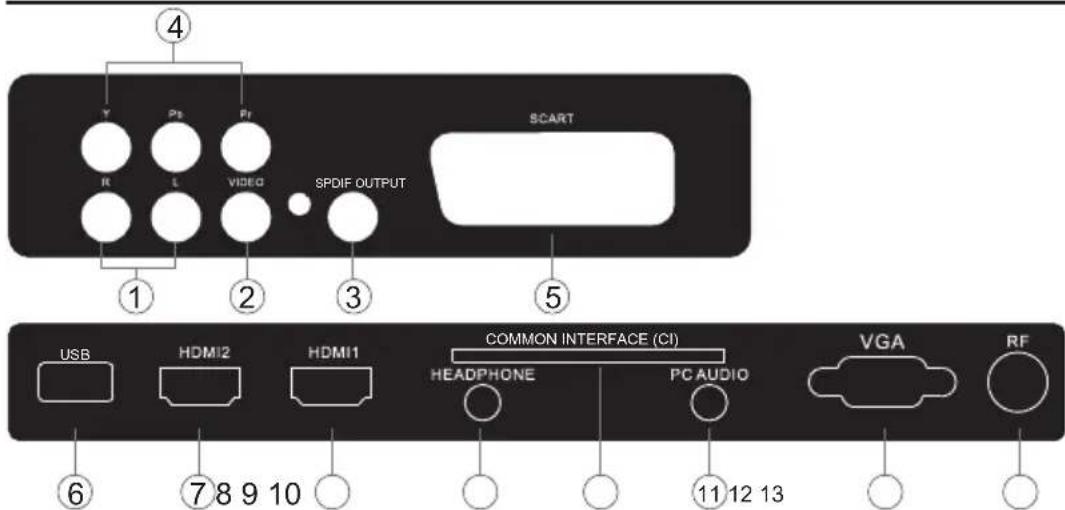

Rear/Side Sockets

4 Y Ps Fr R L VIDEO SPDI F OUTPUT SCART ① ② ③ ⑤ USB HDMI2 HDMI1 COMMON INTERFACE (CI) VGA RF 6 7 8 9 10 HEADPHONE PC AUDIO 11 12 13

1	L/R AUDIO	input
2	VIDEO	input
3	S/PDIF	digital audio output
4	YPbPr	input
5	SCART	input
6	USB	input
7	HDMI2	input

8	HDMI1 input
9	HEADPHONE	analogue audio output
10	COMMON INTERFACE(CI)	input
11	PC AUDIO	input
12	VGA	input
13	RF	input

CONNECTING YOUR Haier TV

ANTENNA CONNECTION

Connect your aerial to the back of the TV into the ANT IN socket.

IMPROVE YOUR SIGNAL

To improve picture quality in a poor signal area, use a signal amplifier (not supplied).

CONNECT YOUR PC TO THE TV

You can use your TV as a monitor for your personal computer by connecting it with a VGA cable (not supplied).

1 Read your computer user guide and check it has a VGA connector.
2 Turn the power off on your TV and PC.
3 Connect a D type 15-pin VGA interface cable to the VGA video interface connector on the PC. Connect the other end of the cable to the PC interface connector on the TV. Tighten the screws on the VGA connectors and connect the audio cable (not supplied) to the audio input socket on the back of the TV.
4 Turn on the power of the TV firstly and then the PC.
5 Press the button on the TV or TV remote control to set the video input mode to VGA.
6 Once the image shows, if there is noise present, change the VGA mode to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear.

CONNECT A DVD PLAYER OR VCR TO YOUR TV

There are two ways in which you can connect a DVD player or VCR to your TV. Make sure that both the TV and DVD player or VCR are switched off before you connect them.

1 Connect the AV DVD/VCR outputs to the AV IN socket on your TV.

2 Connect the AV audio L & R to the audio input (8) Press the SOURCE button on the TV to set the video input mode to AV.

SCART INPUT

1 Connect the scart lead from the external device (DVD player, Set-top box or games console) to the TV scart socket.
2 Press the SOURCE button to select SCART mode.
3 Press the PLAY button on the external device.

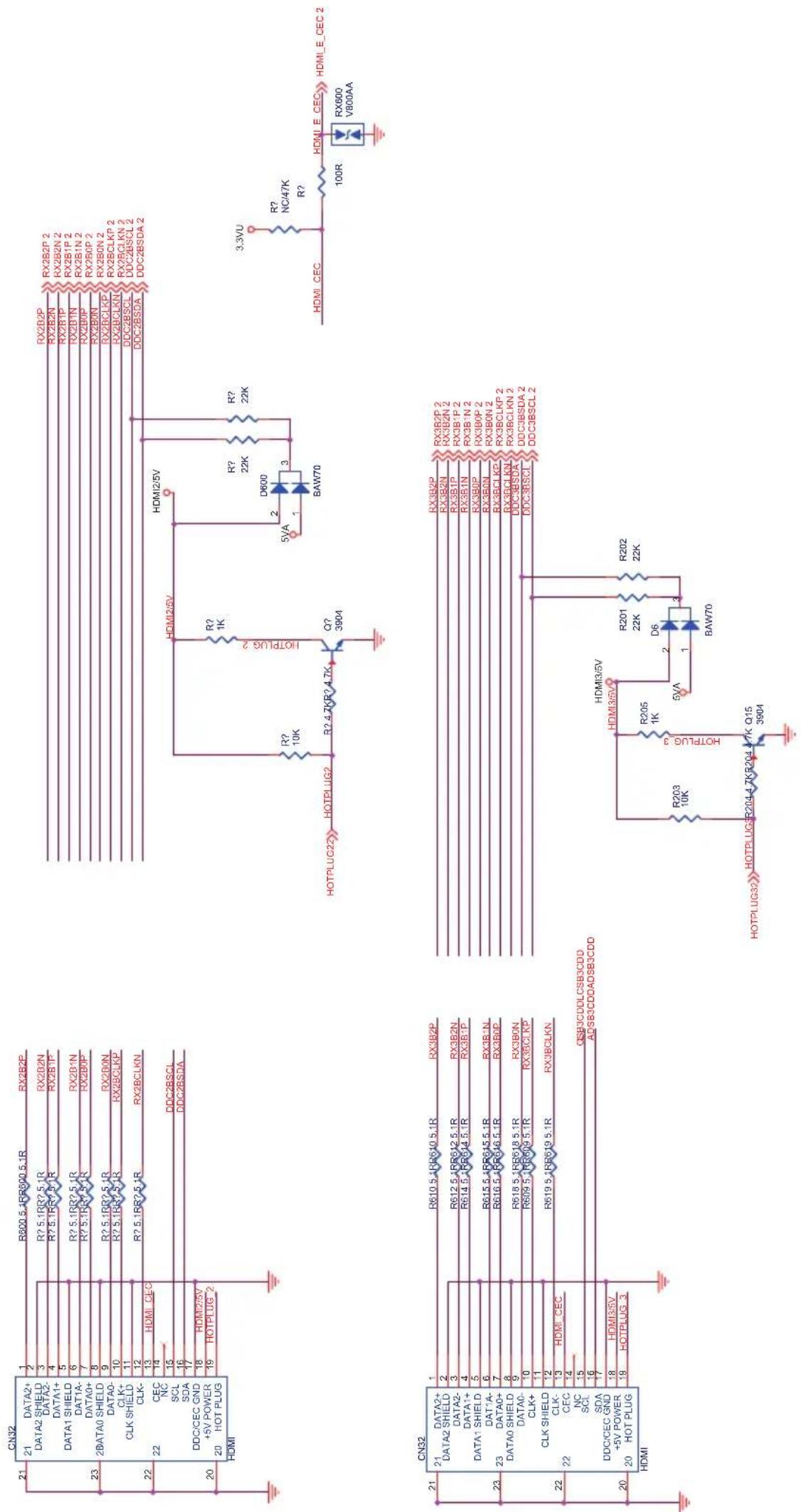

HDMI INPUT

1 Connect the cable from the HDMI device to the TV HDMI socket.
2 Press the SOURCE button to select HDMI mode.
3 Refer to the HDMI device user guide for how to operate.

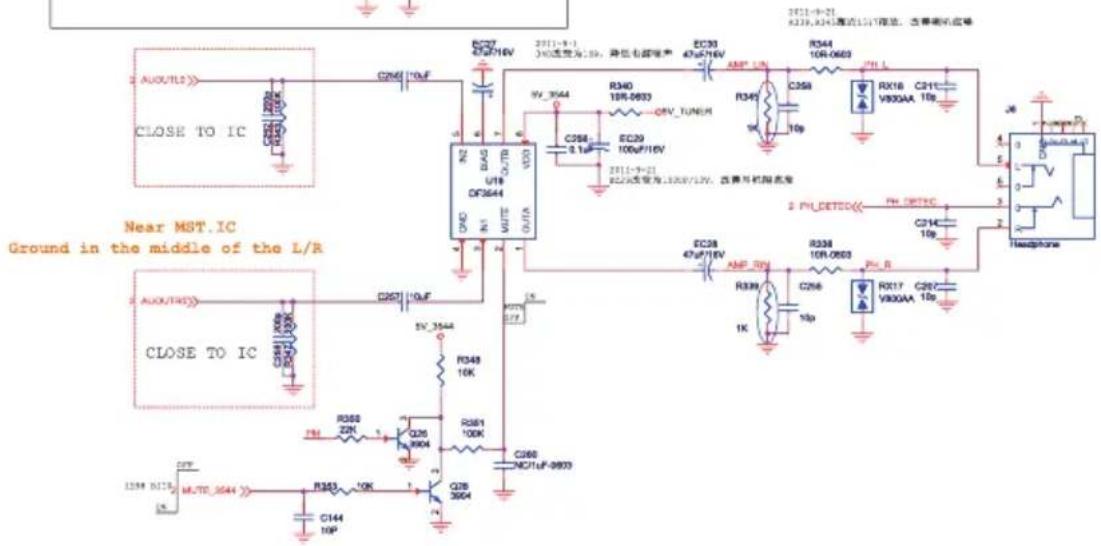

HEADPHONE OUTPUT

Insert the plug of the earphone into the earphone jack on the unit HEADPHONE. The speakers are now muted.

S/PDIF OUTPUT

S/PDIF is a digital audio connection used to connect audio equipment, for example home theatres and other digital HiFi systems over short distances. The signal is transmitted over either a coaxial cable with RCA connectors.

1 Make sure that both TV and the device are switched off before connecting.
Make sure that both TV and the device are switched off before connecting.
2 Connect the AV cables (not supplied) from the S/PDIF socket on the TV to the Home Theater sound system or digital HiFi system etc.

COMMON INTERFACE

The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription. Please noted that CA modules and smart cards are neither supplied nor optional accessories from us.

Warning

- Switch off your TV before any module is inserted in the Common Interface slot.

1 Insert the CAM correctly, then Smart Card to the CI slot that is located at the side of the TV.

CRTs CAM Smart Card

2 Turn on the TV and it will display the below message if the CI module is detected. Wait for few moments until the card is activated.

CI Module Inserted

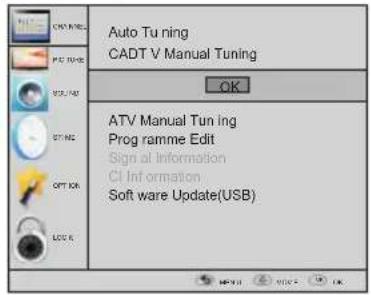

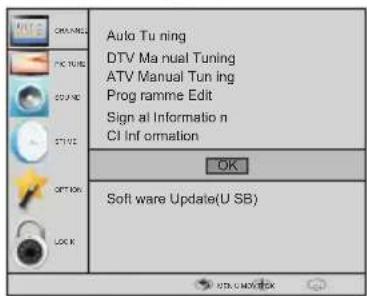

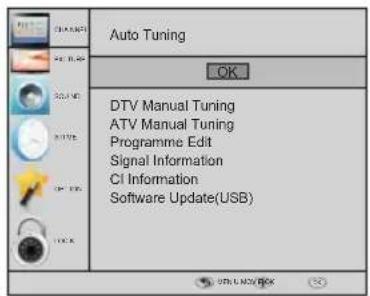

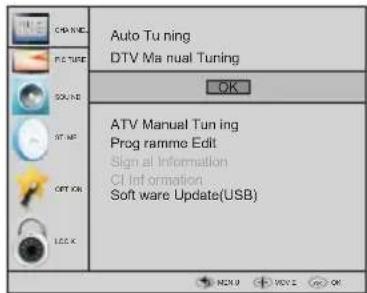

3 Press the MENU button then press ▲▼ button to select CI Information option.

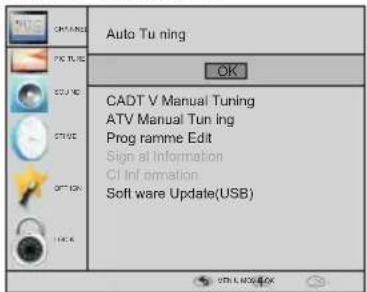

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Sign al Information CI Information OK Soft ware Update(U SB)

4 Detailed information on the CI card in use is displayed.
5 Press OK button to access the card menu. Refer to the module instruction manual for setting details.
6 When module is removed, the following message will appear on the screen.

CI Module Removed

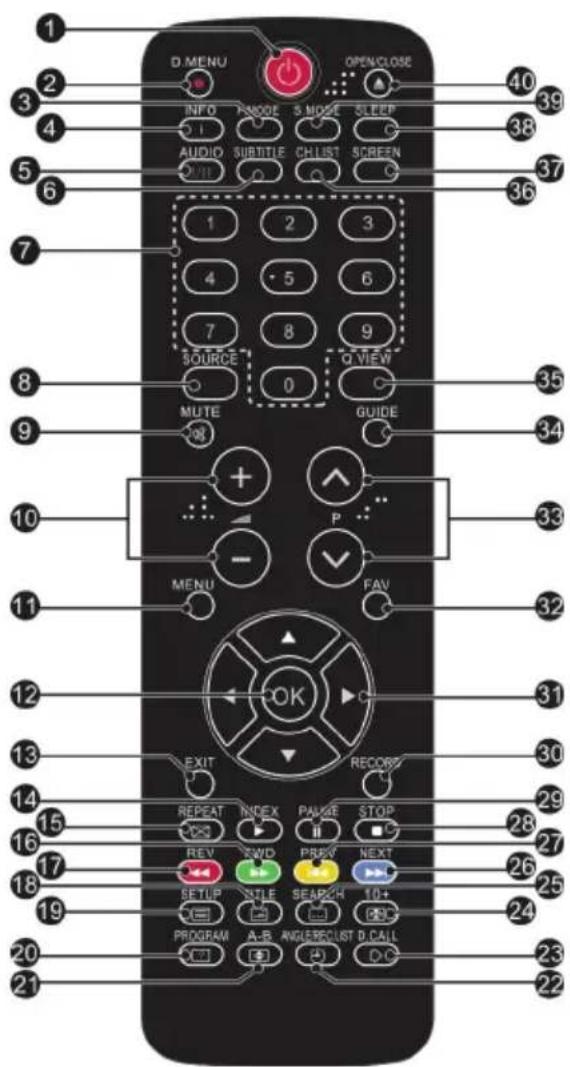

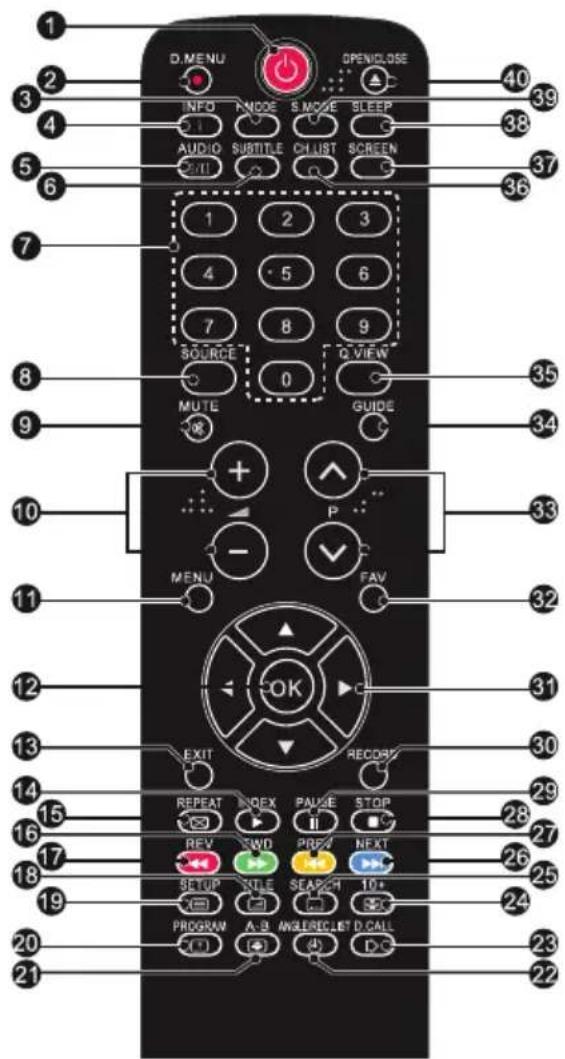

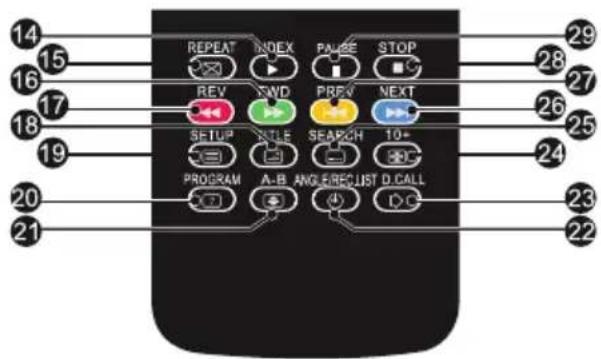

03 Remote control

D.MENU OPENCLOSE INFO MODE S.MODE SLEEP AUDIO SUBTITLE CH_UST SCREEN SOURCE 0 VIEW MUTE GUIDE P MENU FAV EXIT RECORD REPEAT INDEX PAUSE STOP REV SWID PREST NEXT SETUP TITLE SEARCH 10+ PROGRAM A-B ANGLERECLET D.CALL 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 36 37 38 39 40

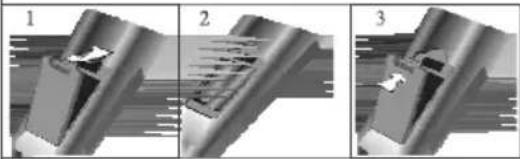

Insert Batteries Into the Remote Control

Three-step mechanical assembly diagram showing a component being cut, with no visible text or symbols

1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit.
3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit.

Remark:

1) Alkaline Battery Recommended.
2) Remove batteries when they are exhausted or if the remote control is not to be used for Long time.

1. POWER: Press to turn on the TV.

2.D.MENU:No function.

3.P.Mode:To switch picture mode.

4.INFO: Press to display the current signal status, including input source and channel audio mode.

1. AUDIO I/II: Press to select MONO, Nicam stereo for ATV channel. Select Audio language for DTV channel.

6.SUBTITLE:Press to turn the subtitle On or Off.

7.Number Buttons: For direct access to channels.

8.SOURCE:To select input source.

9.MUTE: To disable or enable the sound output.

1. Volume Control: To adjust sound level.

11.MENU:To display TV menu.

12.OK:To confirm selection.

1. EXIT: To return to the previous menu or exit menu.

14.Teletext Index/USB PLAY

15.REPEAT:No function

16.Teletext Green Button / USB Fast Forward

17.Teletext Red Button / USB Fast Rewind

18.Teletext Mix

19.Teletext Text

20.Teletext Reveal

21.Teletext Size

22.Teletext Time/ANGLE/REC.LIST(teletext time is no function)

23.Teletext Mode:No function

24.Teletext Hold

25.Teletext Subcode:Teletext Subpage

26.Teletext Blue Button / USB Next File

27.Teletext Yellow Button / USB Previous File

28.USB STOP

29.USB PAUSE

1. START RECORD

31.UP, DOWN, LEFT, RIGHT Cursor: Press to navigate your selection.
32.Fav: To access your favourite channels list in TV or DTV mode.
33. Select Programme: Press /^ Button to select the next or previous TV channel.
34.GUIDE:Press to display electronic programme guide in TV mode.
35.Q.View: To access the previously viewed channel.
36.CH.LIST: Press to display the channel list.
37.Screen:To change picture aspect ratio.
38.Sleep :Set timer to turn off the TV.
39.S.Mode:To switch sound mode.
40.OPEN/CLOSE:No Function

5 6 14 16 17 18 19 20 21 22 24 25

26 27 28 29 : No DVD function

REMOTE CONTROL

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)

Press:	You will obtain :
TEXT	This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number. If the channel selected does not broadcast teletext, theindication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
SELECTING A PAGE	Enter the number of the page required using the 0 to 9 up/down.Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEMS	Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages.The coloured areas flash when the item or the page is not yet available.
INDEX	This returns to the contents page (usually page 100).
SUB PAGE	Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page acquisition. The indication appears top left.
HOLD	To freeze the page.
REVEAL	To display or hide the concealed information (games solutions).
LIST	The user can set four favorite pages to be directly linked to the four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the colorkeys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.

04 OPERATION

Installation Guide

The installation guide only appear when the TV first time turn on or reset to factory set.

WELCOME! Thank you for choosing

Haier

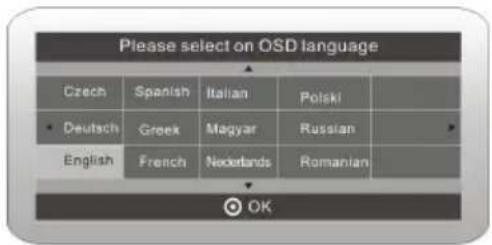

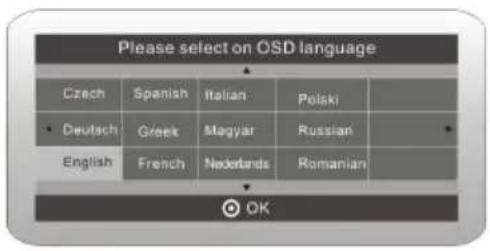

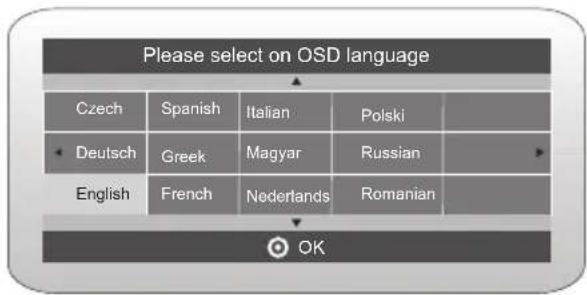

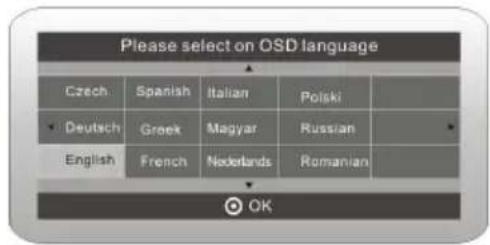

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

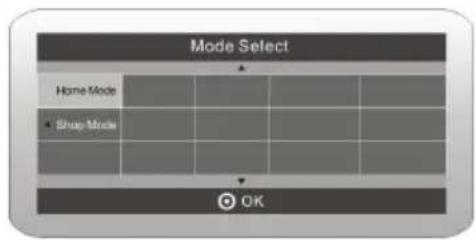

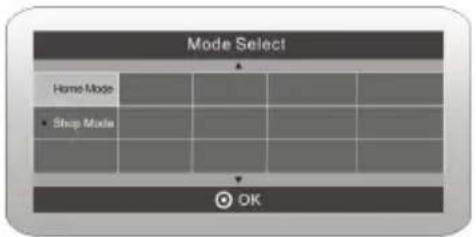

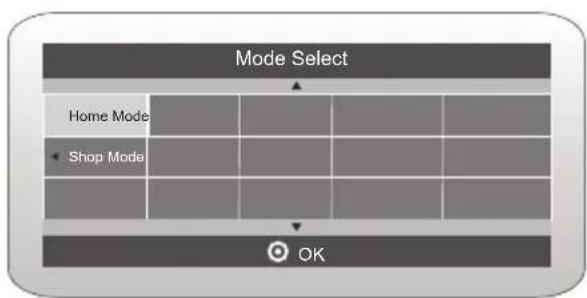

Mode Select Home Mode Shop Mode OK

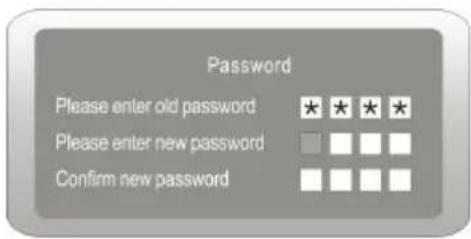

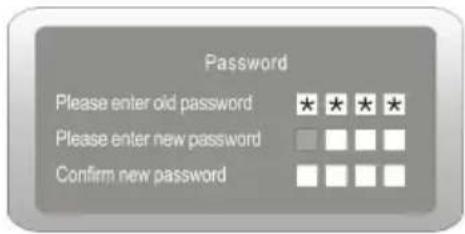

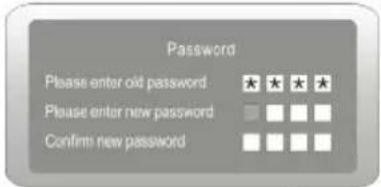

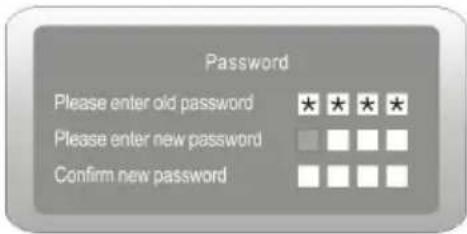

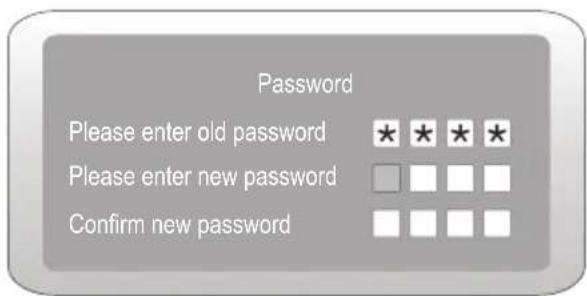

Password Please enter old password * * * * Please enter new password □ □ □ Confirm new password □ □ □

1). Press the ▼▲ buttons to navigate the menu and change the settings. Press the OK button to confirm.

Select your desired language, Home/Shop Mode to be displayed on the menu.

The default password is 6666.

HOME or SHOP modes

1. Home Mode is an energy-saving Mode. Home Mode is recommended for normal viewing setting and is set as default during manufacturer.
2. Shop Mode is an option for retailers for Advertising or product presentation.
   Shop Mode has a brighter image than Home Mode.
3. You may switch between Home or Shop Mode as you choose. If you choose Shop Mode, it will enter HDMI1 source automatically, and you will press Exit key to exit POP menu.

2). Press the buttons to select DVB-T/DVB-C and then press the OK button to confirm.

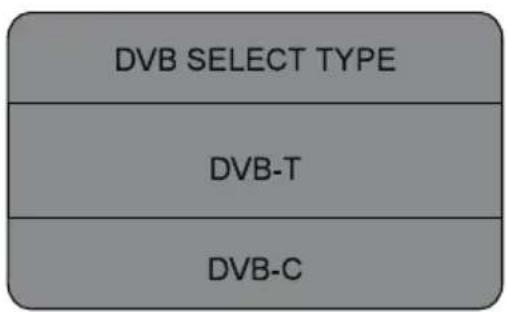

DVB SELECT TYPE DVB-T DVB-C

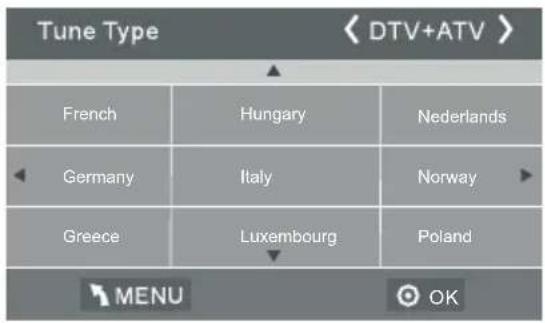

a. If you select DVB-T, the next step is to select the Tune type and country then press the OK button to start tuning.

Tune Type 〈 DTV+ATV > French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency/ Network ID/Sy mbol(KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T, select the tune type (DTV/ATV).

Choose the right country, press OK button to start tuning.

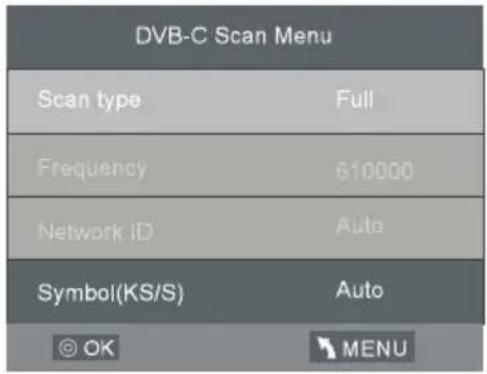

DVB-C Scan Menu Scan type Full Frequency 610000 Network ID Auto Symbol(KS/S) Auto OK MENU

3). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
4). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the < button to select YES to
confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
5). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

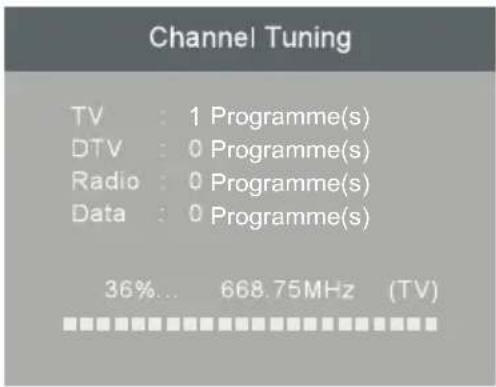

Channel Tuning TV : 1 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) 36%... 668.75MHz (TV)

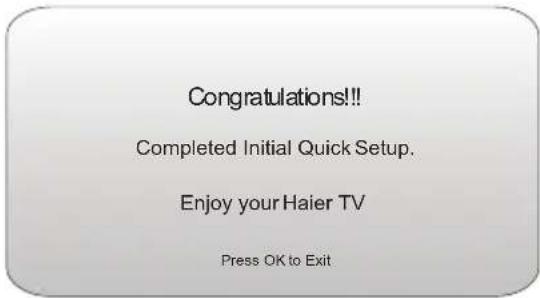

6) Congratulations

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1. CHANNEL MENU

1. 1 Auto Tuning (DVB-T)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.

2). Press the ▼▲ buttons to select Auto Tuning and then press the OK button.

Auto Tuning OK DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

3). Press the ▼▲buttons to select DVB-T/DVB-C Press select DVB-T and then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C

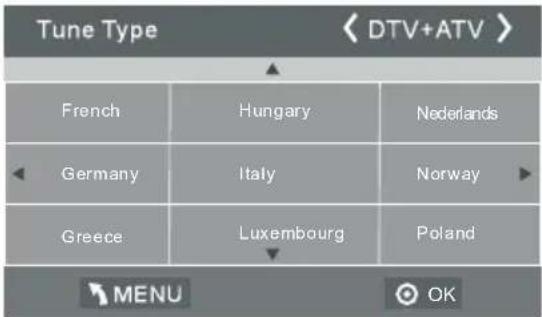

4). In the Tune Type menu, press the◀▶buttons to select ATV / DTV / DTV + ATV. Press the▼ button and then press the◀▶▼▲buttons to select the country where you will operate the TV. Press the OK button to confirm

Tune Type < DTV+ATV > French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

5). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
6). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

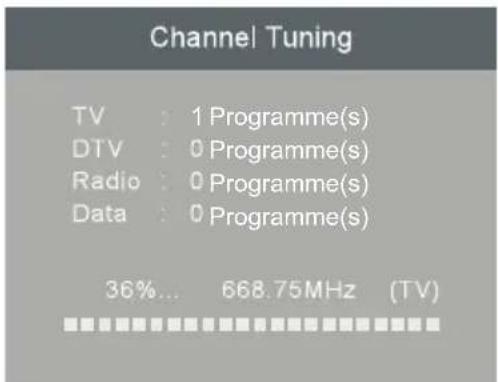

Channel Tuning TV : 1 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) 36%... 668.75MHz (TV)

1.2 Auto Tuning (DVB-C)

1). Press the MENU button and then press the <^> buttons to select the CHANNEL menu and then press the OK button.

2). Press the ▼▲buttons to select Auto Tuning and then press the OK button.

Auto Tuning OK CADT V Manual Tuning ATV Manual Tun ing Prog ramme Edit Sign at Information CI Information Soft ware Update(USB) 5th L 100% OK

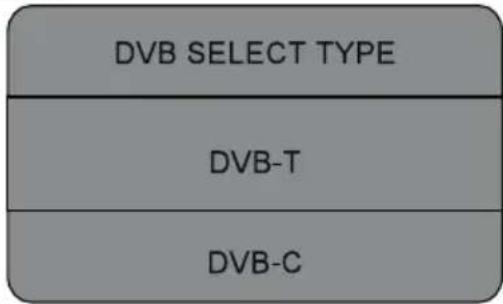

3). Press the ▼▲buttons to select DVB-T/DVB-C Press select DVB-C and then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C

4). Press ▼▲buttons to select Scan type/Symbol (Ks/S) press the OK button to confirm.

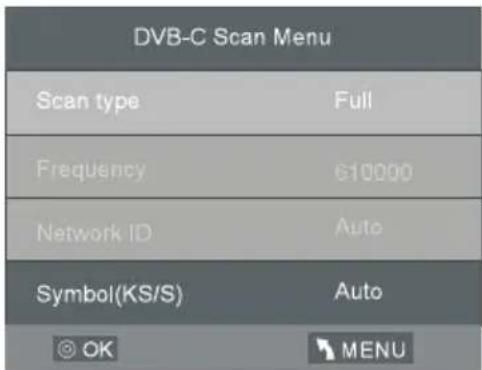

DVB-C Scan Menu Scan type Full Frequency €10000 Network ID Auto Symbol(KS/S) Auto OK MENU

5). In the Tune Type menu, press the ◀buttons to select ATV / DTV / DTV + ATV. Press the ▼button and then press the ◀▶▼▲buttons to select the country where you will operate the TV. Press the OK button to confirm.

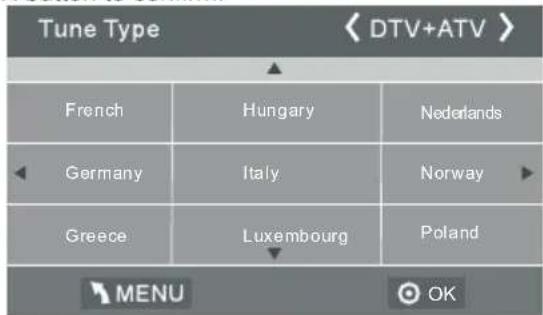

Tune Type French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

6). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.

7). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the <button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.

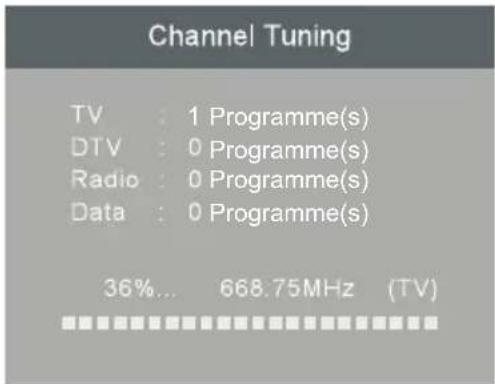

8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Channel Tuning TV : 1 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) 36%... 668.75MHz (TV)

NOTE:

All the channels including ATV, DTV and Radio can be tuning by one time, if the Tune Type is DTV+ATV.

All the stored channels will be disappear after auto tuning.

After auto tuning, the channel will skip to the first DTV channel.

2. 1 DTV Manual Tuning (DVB-T)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2). Press the ▼▲buttons to select DTV Manual Tuning and then press the OK button.

Auto Tuning DTV Manual Tuning OK ATV Manual Tuning Prog ramme Edit Signal Information CI Information Soft ware Update(USB)

3). The DTV Manual Tuning screen will pop up. Press the ◀▶buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

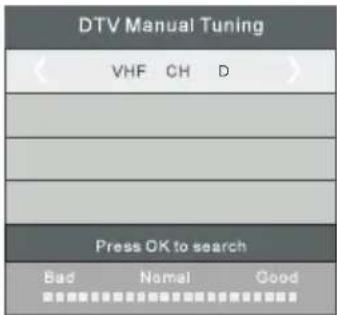

DTV Manual Tuning VHF CH D Press OK to search Bad Namal Good

2. 2 DTV Manual Tuning (DVB-C)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2). Press the ▼▲buttons to select CADTV Manual Tuning and then press the OK button.

Auto Tuning CADT V Manual Tuning OK ATV Manual Tuning Prog ramme Edit Sign at Information CI Information Soft ware Update(USB)

3). The CADTV Manual Tuning screen will pop up. Press the ▼▲buttons to select(Frequency /Symbol (ks/s/QAM Type QAM) press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

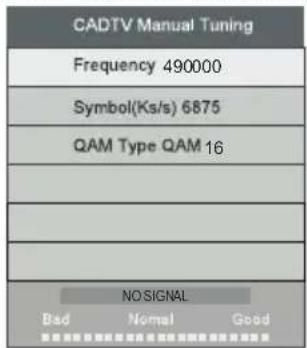

CADTV Manual Tuning Frequency 490000 Symbol(Ks/s) 6875 QAM Type QAM 16 NO SIGNAL Bad Normal Good

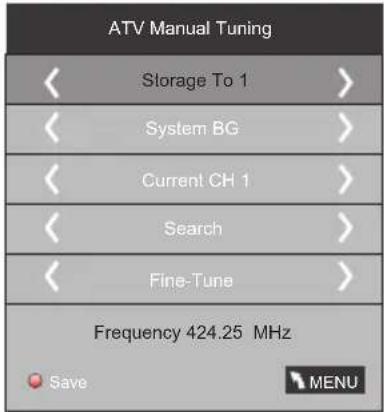

3.1 ATV Manual tuning :

You can change the sound system to search the analog TV channels and fine tune the channels, then storage the channels you selected.

ATV Manual Tuning Storage To 1 System BG Current CH 1 Search Fine-Tune Frequency 424.25 MHz Save MENU

NOTE:

Press teletext red button to storage to channels after manual tuning.

1). Program edit:

You can Delete ,Rename ,Move, Skip , FAV any programs.

Delete

Press teletext red button, the program in cursor will delete.

Rename:

Only can rename ATV programs

Move the cursor to the program, press teletext green button to rename the program.

Press ▼▲ to choose the character. Press ◀▶to move the cursor.

Press MENU button to exit edit, Press EXIT to exit the menu.

Note: ATV programs name only can be 5 character, DTV programs name can be 25 character.

Move

Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm.

Skip

Press ▼▲to choose the program, press teletext blue button to skip this program, The will show on the right side of the program. Choose the skipped program, press blue button again, you can cancel the skip, The will disappear.

Favourite

Press▼ to choose the program, press FAV button, it will show ♥ on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, the ♥ will disappear.

Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

2). CI information: (optional)

This menu can display the CI card's information.

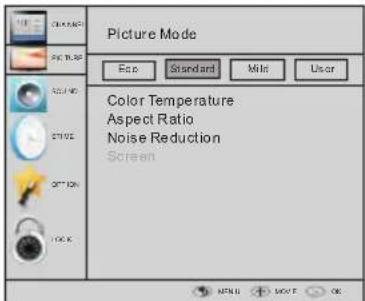

2. PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press OK to move, press OK to adjust.

Picture Mode Color Temperature Aspect Ratio Noise Reduction Screen

Picture Mode Standard < Contrast 50 > Brightness 50 Color 50 Sharpness 75 Tint 50 MENU

Color Tem pe ra ture Medium < Red 50 > Green 50 Blue 50 MENU

NOTE:

1).Tint is available in NTSC system only.
2). There are four colors temperature modes can be selected medium, warm, cool, user
3).Screen is available in PC mode only which can adjust Horizontal position, vertical position, size and phase.

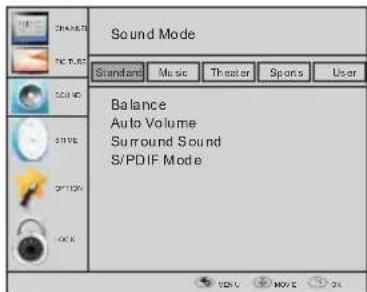

3.SOUND MENU

The third item of the MENU is the SOUND MENU.

You can adjust the sound effect here such as treble, bass, balance etc.

Press ▼▲ to move, press OK to adjust.

Sound Mode Standard Music Theater Sports User Balance Auto Volume Surround Sound S/PDIF Mode

Note:

Auto volume: only available when the input signal volume is too large or distortion.

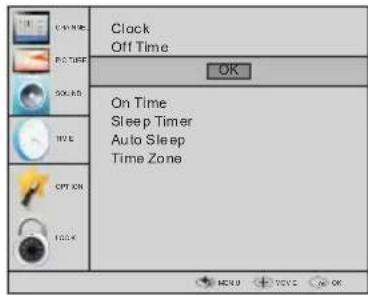

4.TIME MENU

The forth item of the menu is the TIME MENU You can adjust the clock, power on/off time, sleep time etc Press ◀▶to move, press OK to adjust.

Clock Off Time OK On Time Sleep Timer Auto Sleep Time Zone OFF ON OFF OK

NOTE:

Within 15 minutes there is no signal, the TV will auto sleep, if Auto Sleep is set ON. The clock time can get from the DTV system auto.

5. OPTION MENU

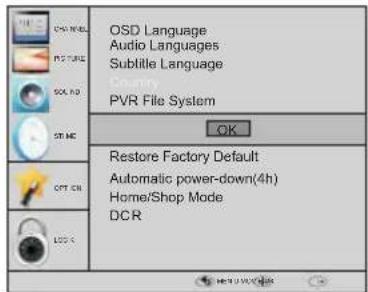

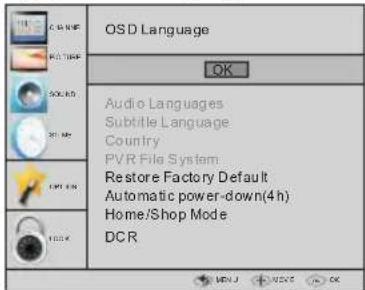

The fifth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language, Subtitle language etc.

OS D Language OK Audio Languages Subtitle Language Country PVR File System Restore Factory Default Automatic power-down(4 h) Home/Shop Mode DCR

Automatic Power-down

1. If after 4 hours from switch on and no changes have been made to the TV, for example no channel or volume changes, the TV will start the automatic power down sequence.

And pop-up window will appear on screen.

XXX's to automatic power-down Please press any Key to Cancel

After 150 seconds the TV will automatically switch to standby. To override the automatic shutdown press any button on the remote control.

1. To cancel the automatic power-down

On the Option Menu select Automatic power-down(4H)

Press OK. A pop-up message will appear

"Are you sure you want to enable automatic power-down?"

Use the right arrow key to select NO

The TV screen returns to the Option Menu and the Automatic

power-down(4H) option will display.

Automatic power-down(4H) OFF

To return to auto shutdown after 4 hours repeat the above except

use the left arrow key to select YES

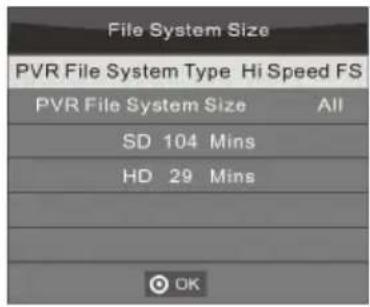

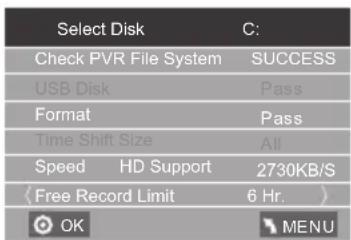

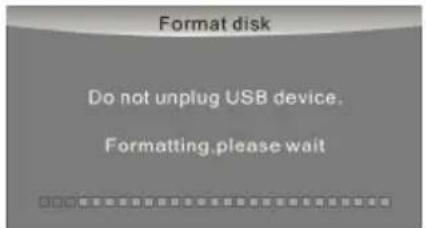

In PVR File system menu you can set up USB disk for PVR.

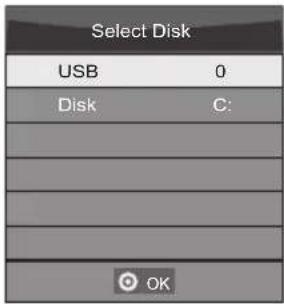

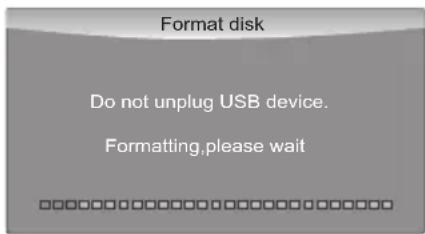

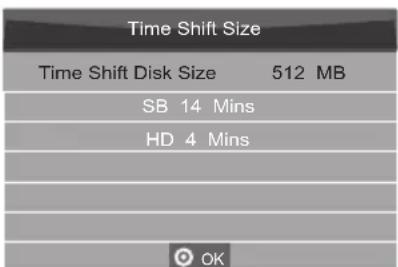

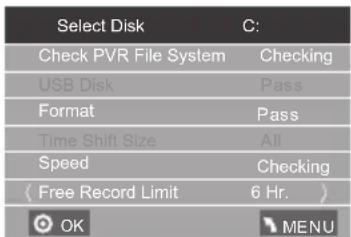

Select Disk C: Check PVR File System Start USB Disk Format Time Shift Size Speed (Free Record Limit 6 Hr, ) OK MENU

NOTE:

Restore factory default will clear all the programs and password.

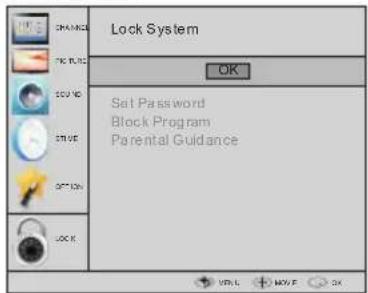

6. LOCK MENU

The sixth item of the menu is the LOCK MENU You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search the channels or change any programs.

CHANGE OK Set Password Block Program Parental Guidance

NOTE:

The default pass word is 0000, If you forget the password, you can use the super password:9443. Block program: Press ▼▲to choose the program ,press teletext green button to block the program. If you want unblock the program, pls enter the main menu , input the password, then press green button again.Parental guidance: Press ◀▶to choose rating.

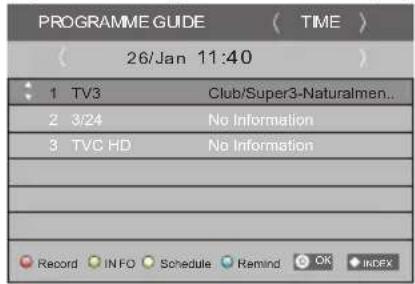

7.EPG Menu(Electronic Program Guide).

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG bottom, the following menu will be displayed:

PROGRAMME GUIDE ( TIME ) ( 26/Jan 11:40 ) 1 TV3 Club/Super3-Naturalmen... 2 3/24 No Information 3 TVC HD No Information Record INFO Schedule Remind OK IKOFX

INFO

Use ✦ to choose the programs, Press INFO key, you can display the highlight program's information.

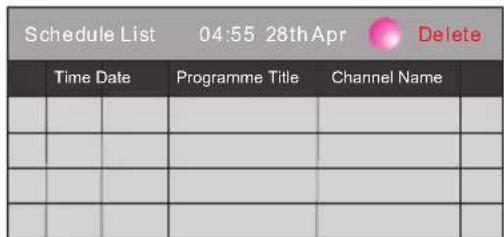

Schedule

Press the teletext yellow key, It can list all the reminder schedule, press ▼▲to choose the list, press red key ● DELETE to delete the schedule list.

Schedule List 04:55 28thApr Delete Time Date Programme Title Channel Name / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / / /

Record

Press the red key, It can set the program to be recorded.

Remind

Press the blue key to choose one program and set up one reminder time, the TV screen will skip to the chosen program in the reminder time automatically.

Reminder

1 TV3

37 Minute

11 Hour

Jan Month

26 Date

Once Mode

8.PVR function

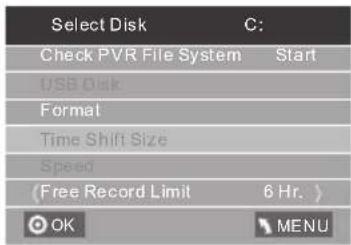

1. Prepare to record the program

PVR function only works in DTV.

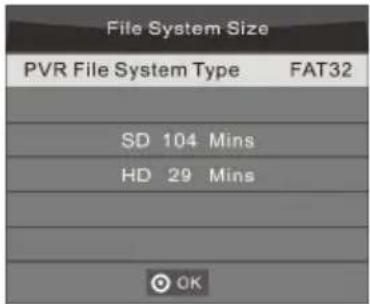

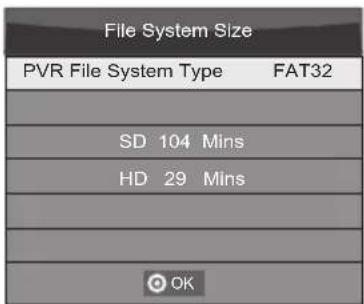

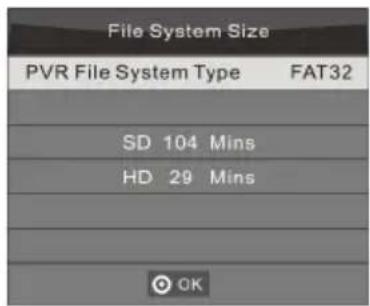

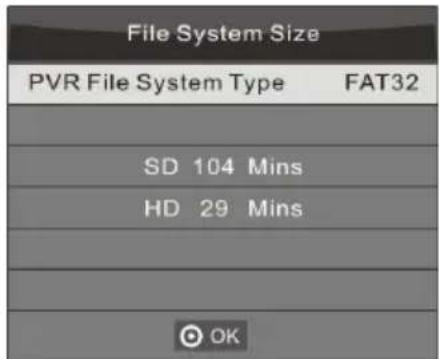

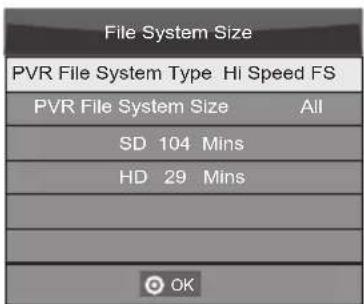

From OPTION MENU enter into PVR File System In "OPTION MENU", please choose "check PVR File System". Click "OK", until "checking" change into "Success".

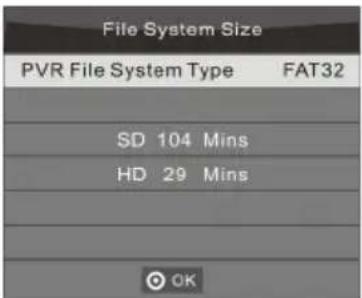

Note: please check the term “speed”. If it is “HD support”, that means the speed of USB device is available for time shift and record. If not, please format the device, to make sure the device available. The default “Free Record Limit” is 6 hour, if the space on the disk is big enough. If the space is not big enough, the record time should be shorter, depends on the room on the device. During the “check PVR File System” checking, please do not take any other operation until it finished.

The recordings must be done with the TV PVR system. It can only be played in the same TV, not in any other kind of device (computer, DVD, etc.) which is not compatible with . TS. file format.

Please note that in order to carry out any kind of recording, the TV will require you to format the connected USB device to store the recording.

WARNING. WHEN YOU FORMAT, THE EXTERNAL USB DEVICE YOU WILL LOSE ALL THE FILES AND INFORMATION YOU HAVE STORAGE ON THE DEVICE.

The USB file system will limit the size of the storage size.

File system: NTFS up to 2TB

FAT32 with up to 192GB

FAT16 with up to 2GB

From OPTION MENU enter into PVR File System as below:

OSD Language Audio Languages Subtile Language Country PVR File System OK Restore Factory Default Automatic power-down(4h) Home/Shop Mode DCR

Select Disk C: Check PVR File System Start USB Disk Format Time Shift Size Speed (Free Record Limit 6 Hr.) OK MENU

Select Disk:select which disc to save the record file.

Select Disk USB 0 Disk C: OK

Check PVR File System: check if the PVR File System set up in the USB device or not.

Format:

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

(Suggest to format the format the device by "High Speed Fs...", which can speed up the record.)

Format disk Format disk Warning! All data will be lost. < Start Exit >

Format disk Do not unplug USB device. Formatting,please wait

below menu appear after Format finish:

Select Disk C: Check PVR File System Checking USB Disk Pass Format Pass Time Shift Size All Speed Checking 〈 Free Record Limit 6 Hr. 〉 OK MENU

Select Disk C: Check PVR File System SUCCESS USB Disk Pass Format Pass Time Shift Size All Speed HD Support 2730KB/S 〈Free Record Limit 6 Hr.〉 OK MENU

If you select the “Hi Speed FS” format mode, then you can change the time shift size:

Time Shift Size Time Shift Disk Size 512 MB SB 14 Mins HD 4 Mins OK

2. Record the program

As playing the DTV source, choose the channel and click “record”, the record frame will pop up. Click “record” again, the record frame will disappear and the “REC” icon still on the left top. It will disappear until you click “stop”.

3.Play the record

The program recorded on the "USB" will be saved in the folder "_MSTPVR" on the device.

1. The USB storage size can be between 128MB and 500GB in size, but for practical use 2GB to 500GB is recommended.
2. Video may become pixelated when Video bit rate is too low. This can be caused by connecting a USB extension cable instead of plugging the USB directly into the TV
3. Not all USB devices are compatible. Below is a list of recommended USB drives. Models that are not listed may be compatible, but it is not guaranteed to work. The USB support list are the same as Timeshift function, see the following pages for details.

9. Timeshift function

1. Prepare to record the program

This TV allows you to pause and record the currently watched digital program to a USB storage device, and to resume to the point where it was paused.

NOTE:

- Formatting a USB 2.0 storage device will be needed. Save your original data before formatting. All the data stored in the USB device will be erased after formatting.

USB Drive Storage Format

Select to format the USB device and allocate the amount of space for the Time Shift function.

NOTE:

• The format process will take at least 2 minutes. Please do not turn off the power or remove the USB device during formatting.
• During formatting, a speed test will be done on the USB device. If it fails, it means the USB device may not support the Time Shift function.

Record a paused DTV program to USB storage device

1. While in the DTV input source, insert USB storage device to the USB port on the side of your TV.
2. Press PAUSE 29 to start Time Shift function. The TV program paused. The Time Shift OSD appears, and starts recording.
3. Press STOP 28 to stop Time Shift function and stop recording program.

14 15 16 17 18 19 20 21 REPEAT INDEX PANE STOP REV SND PREV NEXT SETUP STYLE SEARCH 10+ PROGRAM A-B ANG EXECUST D.CALL 29 28 27 26 25 24 23 22

play 00:04:22 00:04:22 Pause FF Prev. NextFB Stop Repeat ALL Set A

NOTE:

• Please do not unplug the USB storage device when the Time Shift function is activated.
• Approximately 4GB of memory buffers about offer 140 minutes.

Time Shift limitations:

1. When the Time Shift feature is activated, only the PLAY/PAUSE/STOP/FWD/REV/VOL+/VOL-/MUTE keys and some basic operation keys (ENTER/EXIT/navigation keys) are available.
2. Video playback may not be smooth and skip if USB recording speed does not meet the minimum requirements.
3. Do Not remove USB disk or switch off the power during Time Shift operations. It will abort once the signal is lost.
4. Do Not remove the signal source during Time Shift operations.
5. Do Not quickly and repeatedly change operations between PLAY/PAUSE/FWD/REV.
6. Video may become pixelated when Video bit rate is too low.
7. Not all USB devices are compatible, The USB hard disk drive electricity should be < 500MA.

Below is a list of recommended USB drivies. Models that are not listed may be compatible, but it is not guaranteed to work.

• SanDisk Extreme® Contour™ USB Flash Drive - 8GB SDCZ8-8192-E75

• SanDisk Extreme® Contour™ USB Flash Drive - 16GB SDCZ8-016G-A75
  • Kingston DataTraveler 410 USB 2.0 Flash Drive - 8GB DT410/8GB
  • Kingston DataTraveler 410 USB 2.0 Flash Drive - 16GB DT410/16GB
  • OCZ Technology Rally2 USB 2.0 Flash Drive - 4GB OCZUSBR2DC-4GB
  • OCZ Technology ATV USB 2.0 Flash Drive - 8GB OCZUSBATV-8GB
  • OCZ Technology Rally2 USB 2.0 Flash Drive - 8GB OCZUSBR2DC-8GB
  • SAMSUNG-HM500JI-500G

• This feature is not available for all digital TV, such as scrambled or audio only channels.

10.USB Player

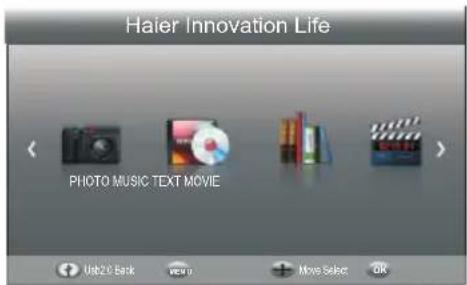

Press source key, and select USB in source list, press OK button to enter the USB menu.

Haier Innovation Life PHOTO MUSIC TEXT MOVIE Ub20 Back vou u Move Select OK

Please make sure that the USB device have plugged in the slot. There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing ◀▶, press OK button to enter the disk selection menu.

Haier Innovation Life Return C View Back Move Select OK

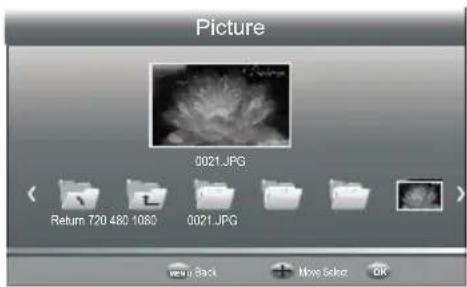

Press the ◀▶to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

Picture 0021.JPG < Return 720 480 1080 0021.JPG > View Back Move Sake OK

Select the media file by pressing ◀▶r ▼, then the preview frame will pop up. Press the button ▶ to play the media file in full screen. When the media file (photo, music, Movie, or text type) is playing, press the OK or Info button can display the control bar.

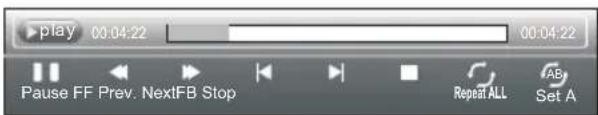

play 00:04:22 00:04:22 Pause FF Prev. NextFB Stop Repeat ALL Set A

Press ◀▶ to select the function icon, press OK button to confirm the function.

Press ▼ or EXIT button to exit the control bar. NOTE:

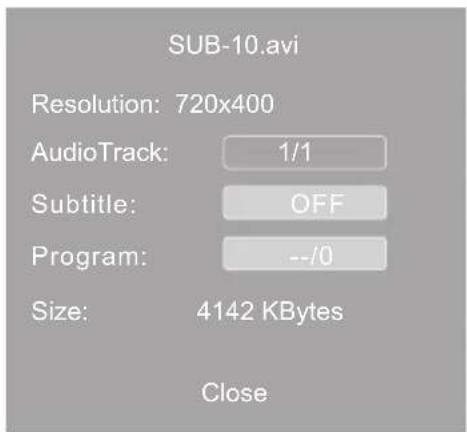

You can adjust the audio track, or program in the Info menu while Playing the video file. Choose the Info icon and press OK can display the Info MENU.

SUB-10.avi Resolution: 720x400 AudioTrack: 1/1 Subtitle: OFF Program: --/0 Size: 4142 KBytes Close

USB playback is supported for the following photo file formats:

-JPEG(JPEG format, files with the extension ".jpg")

-BMP (files with the extension ".bmp")

-PNG (files with the extension ".png")

USB playback is supported for the following music file formats:

-MP3 (files with the extension ".mp3")

-WAV (files with the extension ".wav")

USB playback is supported for the following text file formats:

-TXT (files with the extension ".txt")

USB playback is supported for the following movie file formats:

-AVI (file with the extension".avi")

-TS (MPEG2 & H.264)

05 Trouble shooting

Trouble phenomenon Symptom			Inspection Check
Picture Audio
	Snow Noise		antenna position, direction or connection
	Ghost	Normal audio	antenna position, direction or connection
	Interference	Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture	Mute	Volume(check if mute is activated or if the audio system connections are not correct)
	No picture Mute		Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting
	No colour Norma	ur control
	Picture breaking up	Normal audio or weak	retune channel
	No colour	Noise	TVsystem
	There is black bar on top and bottom	Normal audio	Change aspect to zoom

Specification

Colour system	PAL-B/G, I, D/KSECAM-B/G, D/K, L, L'
Sound system BG, DK, I, L,L'
Video input	SCART,YPbPr,AV,VGA, HDMI, USB.
Y/Pb/Pr	480i/p, 576i/p,720p, 1080i,1080p
HDMI	480i/p, 576i/p, 720p, 1080i, 1080p
Power requirements	100-240V~ 50/60Hz
Power consumption	30W(19")		40W(24")38W(22")	55W(26")
Audio output 2x3W
Standby Power Consumption	<0.5W
Environment conditions	Working temperature:+5°C - +35°CWorking humidity:20% - 80%Storage temperature:-15°C - +45°CStorage humidity:5% - 90%
Accessory	User manualRemote controlBattery (x2)Quick start guide

* The part specifications of this TV set provided here are for reference only. Differences may occur as product technology is updated. Design and specifications are subject to change without notice.

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.

2. When current source is DTV, scart output signal is DTV.

3. Other source have no scart output signal.

Haier

Haier

LCD-FERNSEHER

BEDIENUNGSANLEITUNG

Illustration of a computer monitor with a warning symbol and a crossed-out hand gesture (no text or labels)

Warning

Simple line drawing of a monitor with a cross mark and a hanging curtain, no text or symbols present

Warning

Simple line drawing of a computer monitor with a crossed X symbol and stars above (no text or symbols)

Warning

Simple line drawing of a computer monitor with steam rising from its side (no text or symbols)

Caution

Simple line drawing of a flat-screen monitor with a black X mark on the stand (no text or symbols)

Caution

Minimum distances 10cm 20cm 10cm 5cm Caution

Mindestabstände

(19",22",24")

Technical line drawing of a mechanical component with mounting base and two screws, labeled (26") (no text or symbols on the diagram itself)

(19",22",24")

Line drawing of a flat-screen TV with internal components and no visible text or symbols

Top-down schematic of a vehicle or electronic device layout with no visible text, numbers, or symbols.

(19",22",24")

Technical line drawing of a flat-screen TV rear panel with visible sound equipment and control buttons (no text or labels)

Technical line drawing of a device rear panel with labeled components (no text or symbols)

(26")

Diagram showing a monitor setup with labeled components and a circular button, including a remote control.

SOURCE MENU CH+ CH- VOL+ VOL- STANDBY ① ② ③ ④ ⑤

CI Module Removed

03 Fernbedienung

D MENU OPENCLOSE INFO MODE S MODE SLEEP 1 AUDIO SUBTITLE CH LIST SCREEN 1 2 3 4 5 6 7 8 9 SOURCE 0 Q VIEW MUTE GUIDE OK P - MENU FAV OK EXIT RECORDS REPEAT INDEX PAUSE STOP OK REV SWD PRUSH NEXT SETUP STYLE SEARCH 10+ PROGRAM A-B ANGLERECUST D CALL OK

Three-step mechanical assembly diagram showing a component being cut, with arrows indicating direction of movement (no text or symbols present)

WELCOME! Thank you for choosing Haier

Please select on OSD language Czech Spanish Italian Polski • Deutsch Greek Magyar Russian English French Netherlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password Please enter new password Confirm new password

Tune Type 〈DTV+ATV〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1. KANAL MENÜ

Tune Type 〈DTV+ATV〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning OK CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

Tune Type French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

DTV Manual Tuning VHF CH D Press OK to search Bad Nomal Good

2.2 DTV Manuelles Einregeln (DVB-C)

Auto Tuning CADTV Manual Tuning OK ATV Manual Tuning Programme Edit Signal Information EI Information Software Update(USB)

Sound Mode Standard Music Theater Sports User Balance Auto Volume Surround Sound S/PDIF Mode

Bitte beachten Sie:

XXX's to automatic power-down Please press any Key to Cancel

Lock System OK Set Password Block Program Parental Guidance

BITTE BEACHTEN SIE:

Select Disk USB 0 Disk C: OK

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Format disk Warning! All data will be lost. < Start Exit >

Format disk Do not unplug USB device. Formatting,please wait

play 06:04:22 Pause FB FF Prev. Next Stop Repeat ALL Set A

BITTE BEACHTEN SIE:

play 00:04:22 Pause FB FF Prev. Next Stop Repeat ALL Set A

Installation Murale P. 09

RISQUES D'ELECTROCUTION

NE PAS OUVRIR

(19",22",24")

Technical diagram of a mechanical assembly with a top component and two mounting holes, labeled (26") (no text or symbols on the diagram itself)

(19",22",24")

Line drawing of a flat-screen TV or monitor interior layout with no text or symbols

Technical line drawing of a device interior with labeled components (no text or symbols)

(19",22",24")

Technical line drawing of a flat-screen TV rear panel with visible sound equipment and connectors (no text or symbols)

Technical line drawing of a device rear panel with labeled components (no text or symbols)

(26")

Diagram showing TV setup with labeled components and a 30-degree angle indicator for viewing position.

SOURCE MENU MENU CH+ CH- CH- VOL+ VOL+ VOL- STANDBY ① ② ③ ④ ⑤

CK Slot CAM Smart Card

Close-up of a mechanical component with a cutaway view (no visible text or symbols)

WELCOME! Thank you for choosing Haier Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK Mode Select Home Mode Shop Mode OK

Password Please enter old password Please enter new password Confirm new password

Tune Type 〈 DTV+ATV 〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

Tune Type 〈DTV+ATV〉 French Hungary Nedetands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning OK CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information: CI Information Software Update(USB)

DTV Manual Tuning VHF CH D Press OK to search Bad Nomal Good

Auto Tuning CADTV Manual Tuning OK ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

Sound Mode Standard Music Theater Sports User Balance Auto Volume Surround Sound S/PDIF Mode

Remarque :

XXX's to automatic power-down Please press any Key to Cancel

CHANNEL CREATE SOUND STING OPTION LOCK OK Set Password Block Program Parental Guidance

Remarque :

Select Disk USB 0 Disk C: OK

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Format disk Warning! All data will be lost. ( Start Exit )

Format disk Do not unplug USB device. Formatting,please wait

play 0x4x2 Oct 2 Pause FB FF Prev. Next Stop Repeat ALL Set A

REMARQUE :

play 0:54:22 Pause FB FF Prev. Next Stop Repeat ALL Set A

Minimum distances 10mm 10mm 5mm 20mm Caution

Minimum afstanden

(19",22",24")

Technical line drawing of a mechanical assembly with a top component and a base plate, labeled (26") (no text or symbols on the diagram itself)

(19",22",24")

Technical line drawing of a computer monitor with labeled components and a 26-inch measurement indicator (no text or symbols beyond label)

INSTALLATIE-OPMERKINGEN

Line drawing of a flat-screen TV with internal components and no text or symbols

Top-down schematic of a device interior showing front, top, and side views with no text or symbols

(19",22",24")

Technical line drawing of a flat-screen TV rear panel showing internal components and mounting base (no text or symbols)

Technical line drawing of a device interior with labeled components (no text or symbols)

(26"

Diagram showing a monitor setup with labeled components and a circular button, including a remote control.

SOURCE MENU CH+ CH- VOL+ VOL- STANDBY ① ② ③ ④ ⑤

Three-step mechanical assembly diagram showing a component with internal features (no text or symbols)

WELCOME! Thank you for choosing Haier

Please select on OSD language Czech. Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password * * * * Please enter new password □ □ □ □ Confirm new password □ □ □ □

Tune Type 〈DTV+ATV〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1. KANAALMENU

1.2 Automatisch afstemmen (DVB-T)

Tune Type 〈 DTV+ATV 〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning OK CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

Tune Type 〈DTV+ATV〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

DTV Manual Tuning VHF CH D Press OK to search Bad Nomal Good

2. 2 DTV handmatig afstemmen (DVB-C)

CHAMPLE PICKING Sound Mode Standard Music Theater Sports User BALANCE Auto Volume Surround Sound S/PDIF Mode

Opmerking:

XXX's to automatic power-down Please press any Key to Cancel

CHANNEL PICTURE SOUND STIME OPTION LOCK Lock System OK Set Password Block Program Parental Guidance OK + NEW + INFO > OK

OPMERKING:

Schedule List 04:55 28th Apr Delete Time Date Programme Title Channel Name / / / / / / /

3. Opnemen

Select Disk USB 0 Disk C: OK

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Format disk Warning! All data will be lost. ( Start Exit ) OK Format disk Do not unplug USB device. Formatting,please wait

play 00:04:22 00:04:22 Pause FB FF Prev. Next Stop Repeat ALL Set A

OPMERKING:

play 06:04:22 Pause FB FF Prev. Next Stop Repeat ALL Set A

Illustration of a computer monitor with warning symbols and a crossed-out hand gesture (no text or labels)

Warning

Advertencia

Simple line drawing of a monitor with X marks and a hanging fabric item (no text or symbols)

Warning

Advertencia

Simple line drawing of a computer monitor with a crossed X symbol and stars (no text or labels)

Warning

Advertencia

Simple line drawing of a computer monitor with steam rising from its top (no text or symbols)

Caution

Cuidado

Technical line drawing of a mechanical device with a grid-patterned top component and a downward arrow indicating motion (no text or symbols)

(19",22",24")

Technical line drawing of a mechanical assembly with a top component and base components (no text or symbols)

(26")

Line drawing of a flat-screen monitor with visible internal components and mounting bracket (no text or symbols)

(19",22",24")

Technical line drawing of a computer monitor rear panel with visible internal components and mounting base (no text or labels)

(26")

Line drawing of a flat-screen TV rear panel with display and control panel (no text or symbols)

Top-down schematic of a vehicle interior layout with no text or symbols

(19",22",24")

Technical line drawing of a flat-screen TV rear panel with visible sound equipment and control buttons (no text or labels)

Technical line drawing of a device interior with labeled components (no text or symbols)

(26")

Diagram showing a monitor setup with labeled components and a circular button, including a remote control.

SOURCE MENU MENU CH+ CH- CH- VOL+ VOL+ VOL- STANDBY ① ② ③ ④ ⑤

CONECTE UN REPRODUCTOR DVD O VCR A SU TV

WELCOME! Thank you for choosing Haier

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password ★ ★ ★ ★ Please enter new password □ □ □ Confirm new password □ □ □

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1.MENÚ CHANNEL

Tune Type 〈DTV+ATV〉 French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning OK CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CT Inflammation Software Update(USB)

Tune Type < DTV+ATV > French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

Auto Tuning CADTV Manual Tuning OK ATV Manual Tuning Programme Edit Original Information □ Performance Software Update(USB)

Sound Mode Standard Music Theater Sports User Balance Auto Volume Surround Sound S/PDIF Mode

Nota:

XXX's to automatic power-down Please press any Key to Cancel

Lock System OK Set Password Block Program Parental Guidance LOCK

NOTA:

Schedule List 04:55 28th Apr Delete Time Date Programme Title Channel Name

3.

bar

Select Disk USB 0 Disk C: OK

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Format disk Warning! All data will be lost. < Start Exit >

Format disk Do not unplug USB device. Formatting,please wait

play 00:04:22 Pause FB FF Prev. Next Stop Repeat ALL Set A

NOTA:

play 09:04:22 Pause FB FF Prev. Next Stop RepeatALL Set A

Common interface P. 15

03 Telecomando

Telecomando P.16

04 Operatività

(19",22",24")

(19",22",24")

Technical line drawing of a flat-screen TV with labeled components and a 26-inch measurement indicator (no text or symbols beyond basic diagram)

Technical line drawing of a monitor interior layout with no visible text or symbols

Line drawing of a computer monitor interior showing front, rear, and side views with no text or symbols

(19",22",24")

Technical line drawing of a flat-screen TV rear panel with visible sound equipment and control buttons (no text or labels)

Technical line drawing of a computer monitor rear panel with visible internal components and a base mount (no text or labels)

(26")

Diagram showing a monitor setup with labeled components and a remote control, including 30° viewing angles.

SOURCE MENU MENU CH+ CH- CH- VOL+ VOL+ VOL- STANDBY ① ② ③ ④ ⑤

Three-step mechanical assembly diagram showing a component with internal slots and a slot, no text or symbols present.

WELCOME! Thank you for choosing Haier

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Megyer Russian English French Netherlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password Please enter new password Confirm new password

Tune Type 〈DTV+ATV〉 French Hungary Nedetands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit.

1. MENU CANALI

Tune Type 〈DTV+ATV〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Tune Type 〈DTV+ATV〉 French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

Auto Tuning CADTV Manual Tuning OK ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

Picture Mode Eco Standard MIN User Color Temperature Aspect Ratio Noise Reduction Schematic MOSO + HOURS - ON

Picture Mode Standard < Contrast 50 > Brightness 50 Color 50 Sharpness 75 Tint 50 MENU

Color Temperature Medium < Red 50 > Green 50 Blue 50 MENU

NOTA:

Sound Mode Standard Music Theater Sports User Balance Auto Volume Surround Sound S/PDIF Mode

Nota:

XXX's to automatic power-down Please press any Key to Cancel

LATCH CHANNEL FEATURES SOUND STARS OPTIONAL LOCK Lock System OK Set Password Block Program Parental Guidance

NOTA:

La password predefinita e' 0000. Se si dimentica la password si puo' usare la super password 9443.

Schedule List 04:55 28th Apr Delete
Time		Date	Programme Title	Channel Name

3. Record (Registrare)

Select Disk USB 0 Disk C: OK

Format (formattare):

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Format disk Warning! All data will be lost. 〈 Start Exit 〉

Format disk Do not unplug USB device. Formatting,please wait

play 01:04:22 Pause FB FF Prev. Next Stop Repeat ALL Set A

Electrical schematic diagram with labeled components, ICs, resistors, capacitors, and a multi-pin connector (FCR) inset showing pin connections.

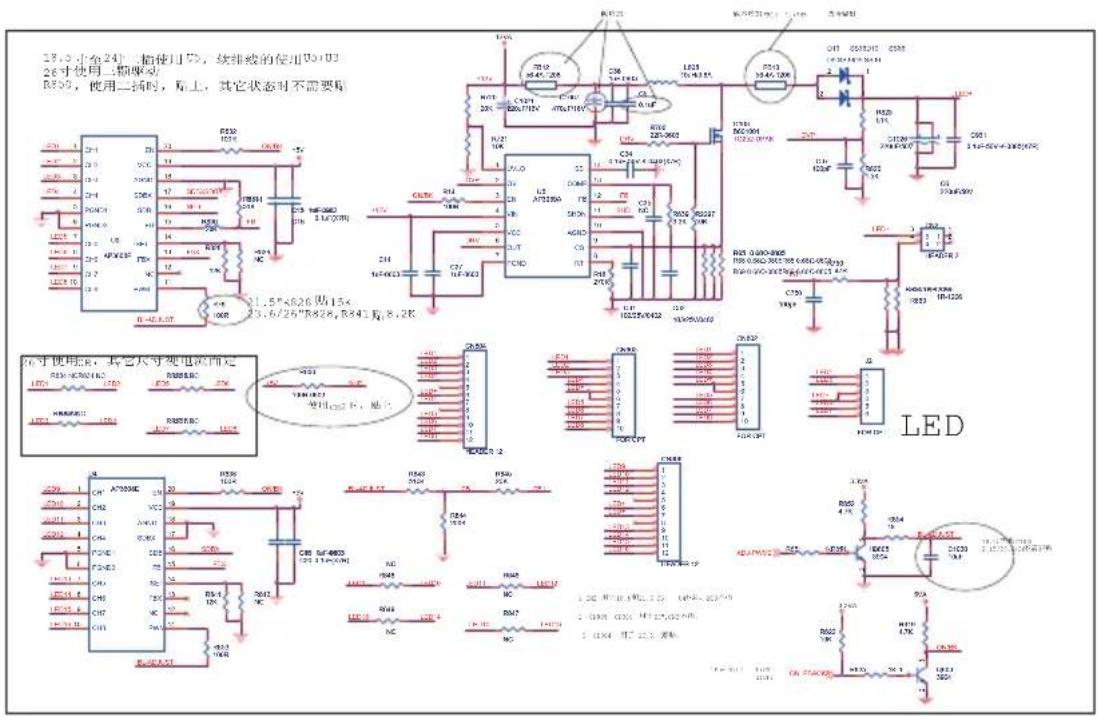

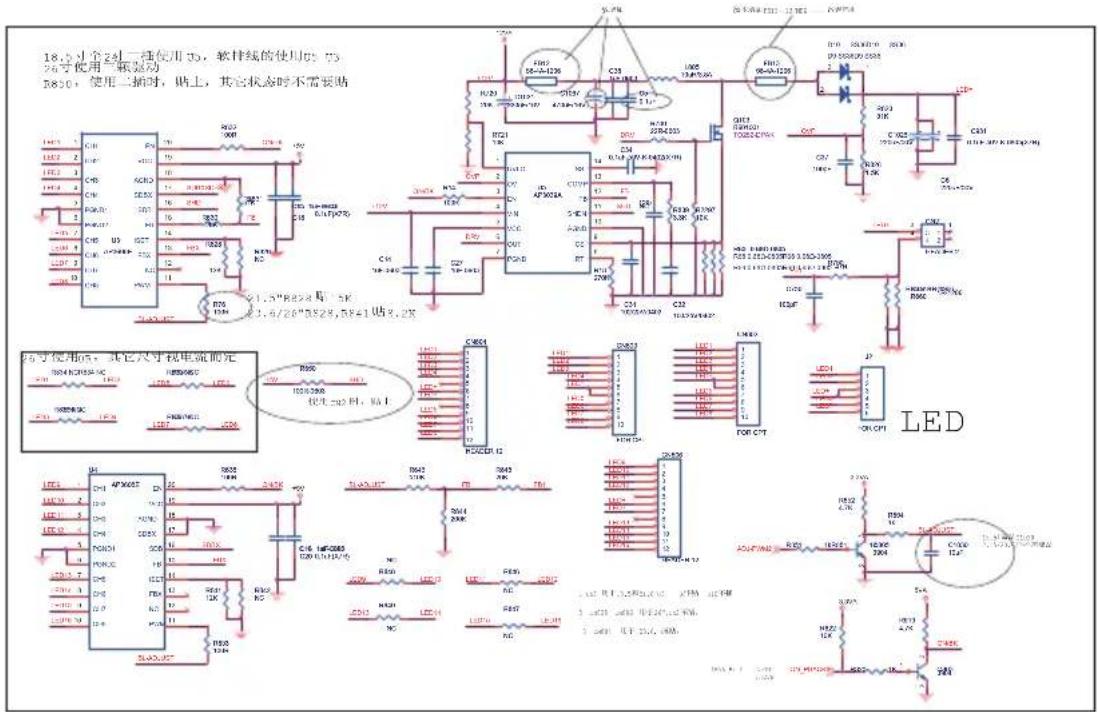

37.5寸至24寸，软接线的使用D01D02 26寸使用三相驱动 R299，使用三插时，贴上，其它状态时不需要用 21.5"/-626贴154 23.6/25"/R828, R841 电1 8.2K LED 1. 3. 5. 7. 9. 11. 13. 15. 17. 19. 21. 23. 25. 27. 29. 31. 33. 35. 37. 39. 41. 43. 45. 47. 49. 51. 53. 55. 57. 59. 61. 63. 65. 67. 69. 71. 73. 75. 77. 79. 81. 83. 85. 87. 89. 91. 93. 95. 97. 99. 101. 103. 105. 107. 109. 111. 113. 115. 117. 119. 121. 123. 125. 127. 129. 131. 133. 135. 137. 139. 141. 143. 145. 147. 149. 151. 153. 155. 157. 159. 161. 163. 165. 167. 169. 171. 173. 175. 177. 179. 181. 183. 185. 187. 189. 191. 193. 195. 197. 199. 201. 203. 205. 207. 209. 210. 212. 214. LED R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R00 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R02 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R04 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R06 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08 R08

Vout=0.6X(1-Rock/Relux) 120A 120B 16-4 15A 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200V 200A 200B 200C 200D 200E 200F 200G 200H 200I 200J 200K 200L 200M 200N 200O 200P 200Q 200R 200S 200T 200U 200V 200W 200X 200Y 200Z 200A 200B 200C 200D 200E 200F 200G 200H 200I 200J 200K 200L 200M 200T 200U 200V 200W 200X 200Y 200Z 200A 200B 200C 200D 200E 200F 200G 200H 200I 200J 200K 200L 200 M 200 N 200 O 200 P 200 Q 200 R 200 S 200 T 200 U 200 V 200 W 200 X 200 Y 200 Z

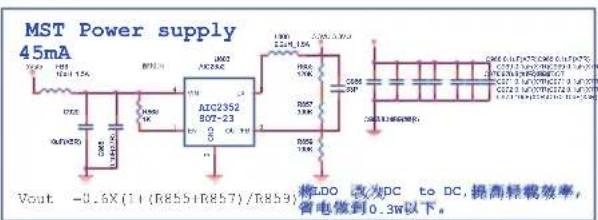

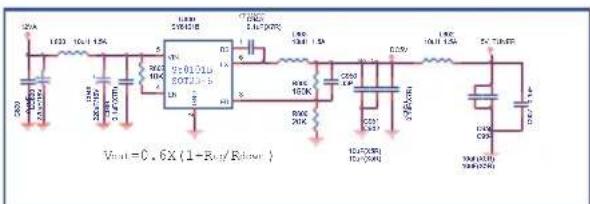

MST Power supply 45mA Vout -0.6X(11(R8551R857)/R859) 将LDO 改为DC to DC,提高轻载效率, 省电做到0.3W以下。

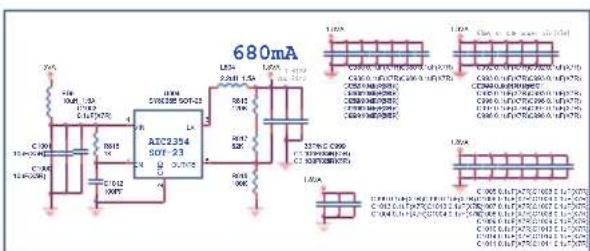

680mA AIC2354 SOF-23 1.0kA 2.0kA 3.0kA 4.0kA 5.0kA 6.0kA 7.0kA 8.0kA 9.0kA 10.0kA 11.0kA 12.0kA 13.0kA 14.0kA 15.0kA 16.0kA 17.0kA 18.0kA 19.0kA 20.0kA 21.0kA 22.0kA 23.0kA 24.0kA 25.0kA 26.0kA 27.0kA 28.0kA 29.0kA 30.0kA 31.0kA 32.0kA 33.0kA 34.0kA 35.0kA 36.0kA 37.0kA 38.0kA 39.0kA 40.0kA 41.0kA 42.0kA 43.0kA 44.0kA 45.0kA 46.0kA 47.0kA 48.0kA 49.0kA 50.0kA 51.0kA 52.0kA 53.0kA 54.0kA 55.0kA 56.0kA 57.0kA 58.0kA 59.0kA 60.0kA 61.0kA 62.0kA 63.0kA 64.0kA 65.0kA 66.0kA 67.0kA 68.0kA 69.0kA 70.0kA 71.0kA 72.0kA 73.0kA 74.0kA 75.0kA 76.0kA 77.0kA 78.0kA 79.0kA 80.0kA

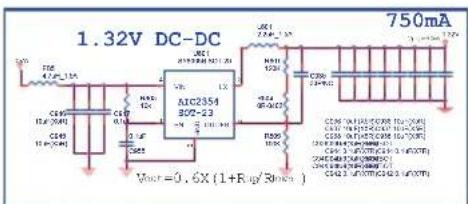

1.32V DC-DC 750mA Vcc=0.6X (1+Rug/Rfree) AIC2354 BCD-23 ACI 12.8 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 12.9 V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 10.0V 100mA

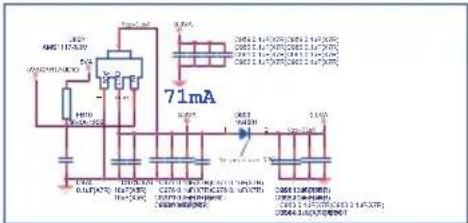

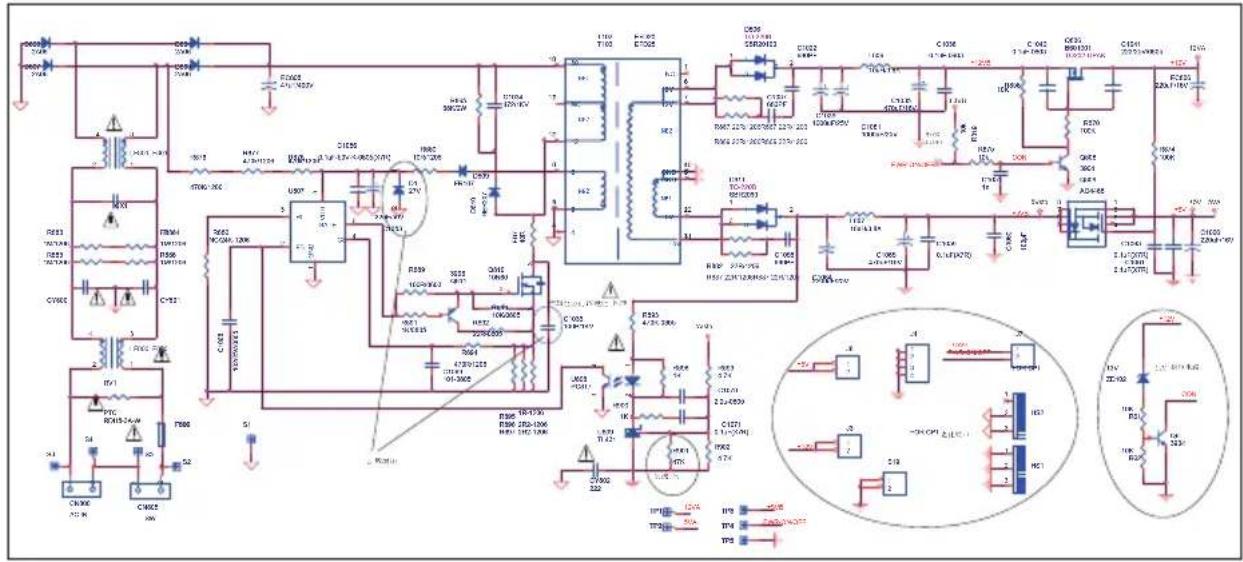

2023 AMG: 117-5.39 5kA 400V/100V/2023 71mA 1.5Ω 0.1μF(27) 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω 1.5Ω

MOTOR COLDING 500V AC/DC/AC/DC 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12kA 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12k 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12m 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n 12n

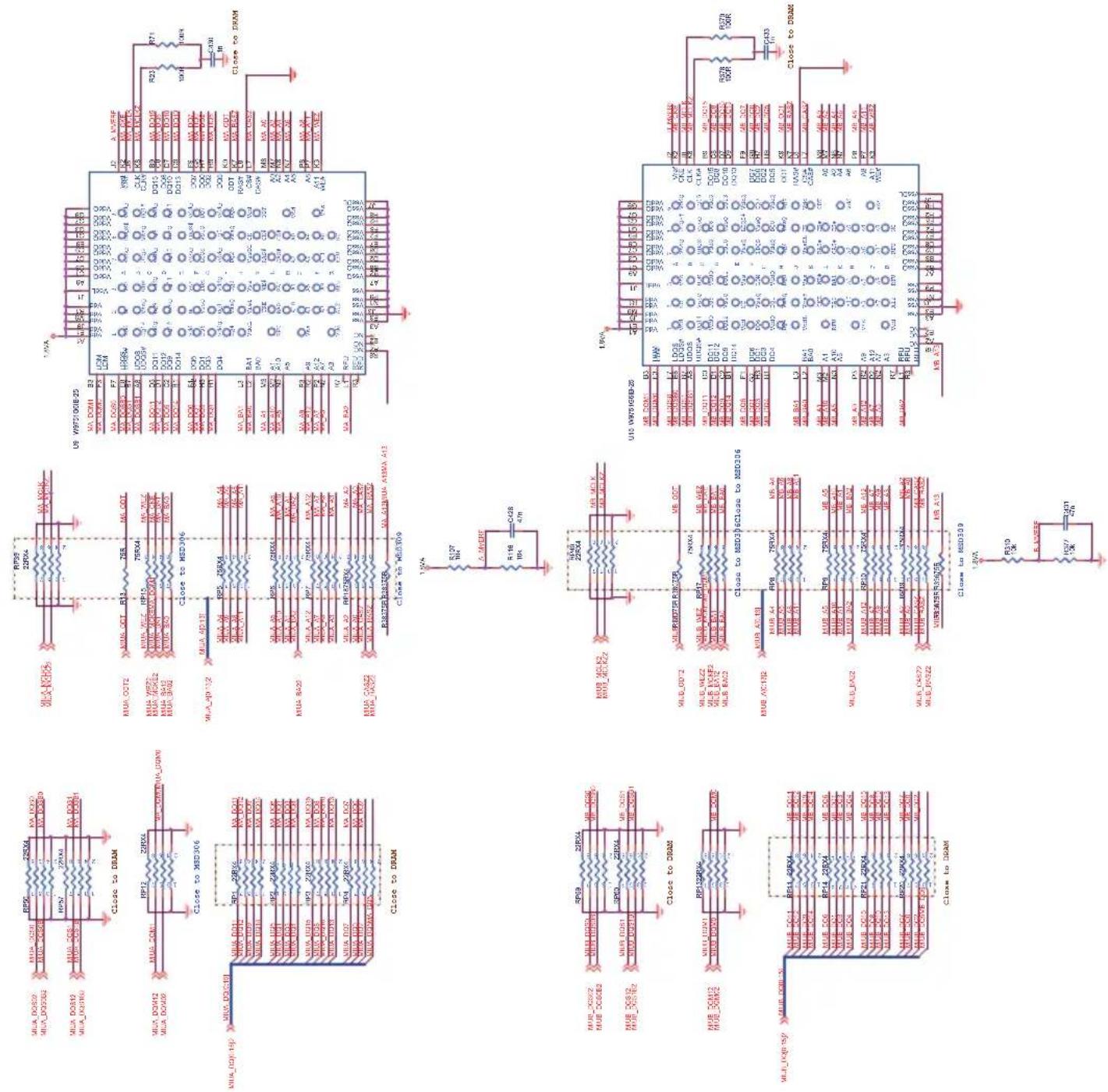

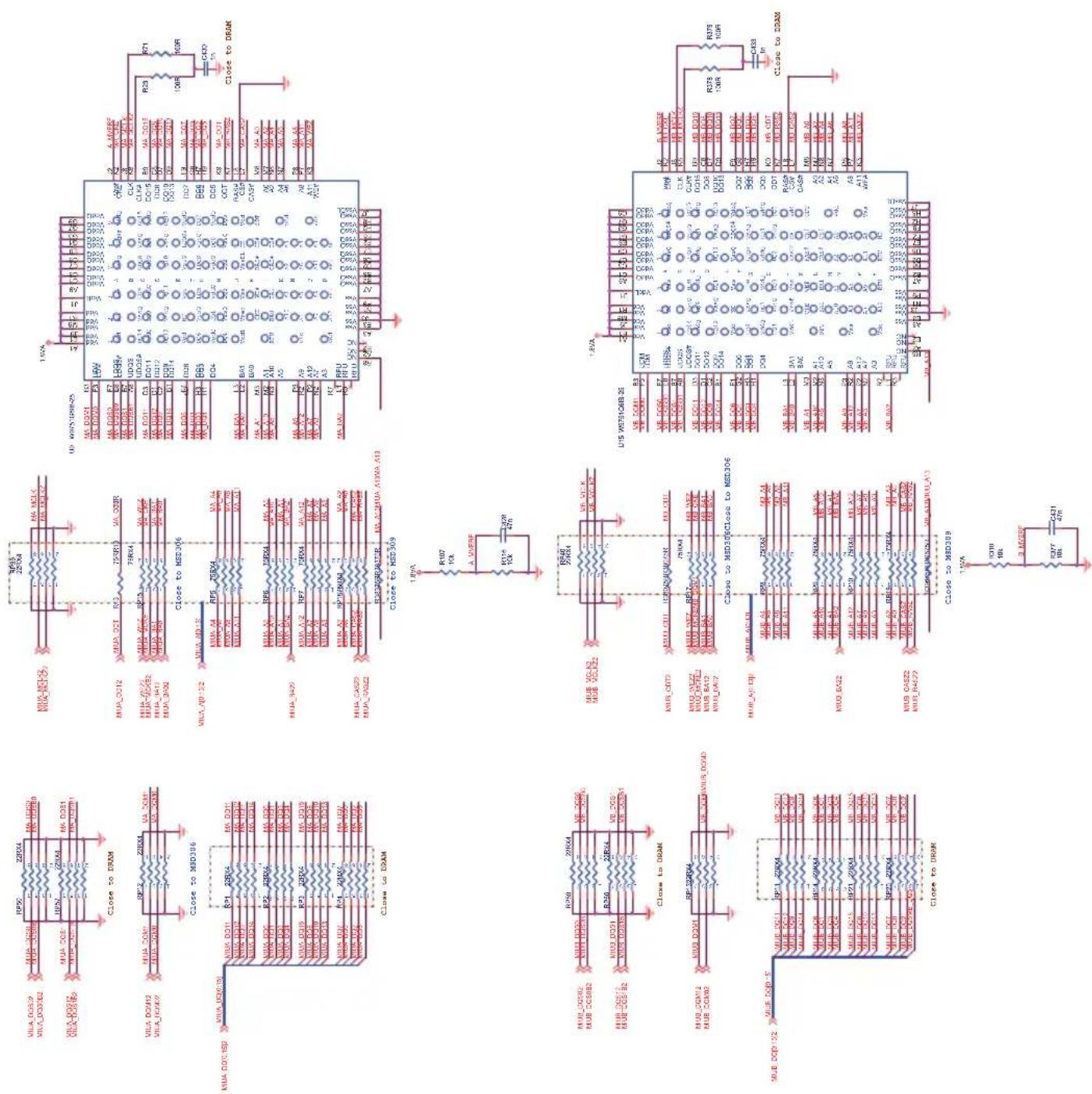

Electrical schematic diagram with labeled components, ICs, resistors, capacitors, and a microcontroller interface.

MST Power supply 45mA Vout =0.6X(1+(R855-R857)/R859) AIC2352 SOF-23 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352 LCK AC2352

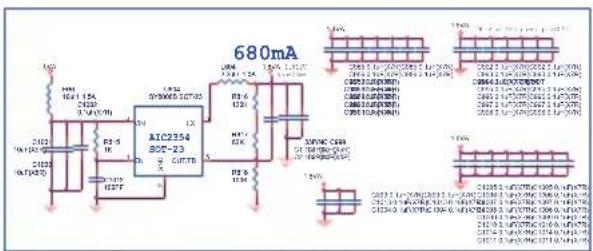

AIC2354 SOT-23 680mA 1.2kΩ 500V 1.2kΩ 1.2kΩ 500V 1.2kΩ 1.2kΩ 500V 1.2kΩ 1.2kΩ 500V 1.2kΩ 1.2kΩ 500V 1.2kΩ 1.2kΩ 500V 1.2kΩ 1.2kΩ 500V 1.4kΩ 1.2kΩ 500V 1.4kΩ 1.2kΩ 500V 1.4kΩ 1.2kΩ 500V 1.4kΩ 1.2kΩ 500V 1.4kΩ 1.2kΩ 500V 1.4kΩ 1.2kΩ 500V 2.4kΩ 1.2kΩ 500V 2.4kΩ 1.2kΩ 500V 2.4kΩ 1.2kΩ 500V 2.4kΩ 1.2kΩ 500V 2.4kΩ 1.2kΩ 500V 2.4kΩ 1.2kΩ 500W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50W COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M COUTS 50M CUTS 50M CUTS 50M CUTS 50M CUTS 50M CUTS 50M CUTS 50M CUTS 50M CUTS

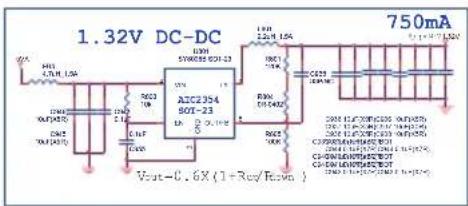

1.32V DC-DC 750mA AC2334 501-23 Vout=0.6X (1+Rev/Reson)

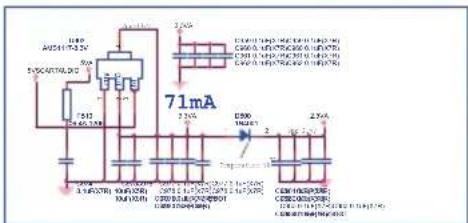

10Ω A2511-73.2V 5.25V 71mA 7.1V 1.4V(CTR) 10Ω(CTR) 10Ω(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.4V(CTR) 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V 1.6V

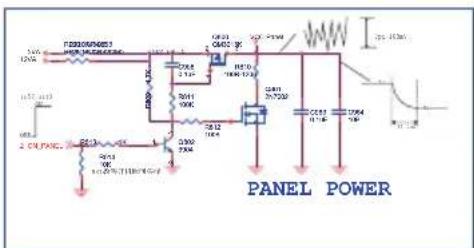

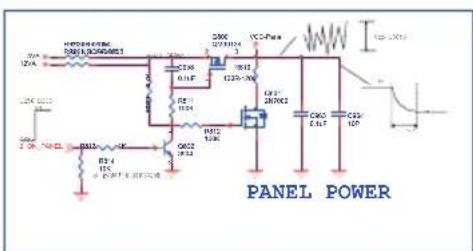

FEDER/PANER 10kV 120kV 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.0Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAE 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.5Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAe 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.0Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAo 2.5Ω/PAO 2.5Ω/PAO 2.5Ω/PAO 2.5Ω/PAO 2.5Ω/PAO 2.5Ω/PAO PANEL POWER

FOR EUROPE

VCC-PCMCIAVCC-PCMCIA CONN1 PCMCIA_CNT 35 PCM CD1 N 36 TS MDO3 37 TS MDO4 38 TS MDO5 39 TS MDO6 40 TS MDO7 41 PCM IORD N 42 PCM IOWR N 43 TS START4 44 TS MDI0 45 TS MDI1 46 TS MDI2 47 TS MDI3 48 TS MDI4 49 TS MDI5 50 TS MDI6 51 TS MDI7 52 TS MOCLK 53 PCM RESET 54 PCM WAIT N 55 PCM REG N 56 TS MOVAL 57 TS MOSTART 58 TS MDO0 59 TS MDO1 60 PCM CD2 N 61 DS_MDI[7:0]2,4 62 72 71 70 69 72 GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND CNT 1 2 PCM D3 3 PCM D4 4 PCM D5 5 PCM D6 6 PCM D7 7 PCM CE N 8 PCM A10 9 PCM OE N 10 PCM A11 11 PCM A9 12 PCM A8 13 PCM A13 14 PCM A14 15 PCM WE N 16 PCM IRQA N 17 VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC Vcc 5VA L43 60Ω-0603 TSVALID2.4 TSCLK2.4 C456 0.1uF 10uF(X5R) C166 10uF(X5R) 5VA R397 1K R393 1K DD40 BAW70 3 R659270RR659270R PCM CD N R658 2.2K

VGA INPUT

FB105 10U-0402 FB106 10U-0402 CCNTVGACON7VGA VGA-G VGA-R VGA-R FB103 18U-0402 VGA-HS VGA-VS FB104 10U-0402 C68 10p C67 10p R109 22K R108 22K R103 10R031XOR S105 10R051XOR VGA_HSYNC2 VGA_VSYNC2 PC Audio Input R13R031XOR C65 10p R108 12K R112R031XOR C68 10p R115 12K C63 10C3 1p VGA-Lin2 R67 GR-0402 C321R032n RGB3-SOQ2 RBC3RRB033R C564n C5647n RGB3_RIN-2 RB13RRB53OR C574n C5747n RGB3_RIN-2 RB23RRB522R C564n C5647n RGB3_RIN+2 R178RRH478BB304N C5047n RGB3_RIN-2 R174RRH4148BB314N C5947n RGB3_RIN-2 R116RRH116BB324N C5647n VGA-Ru2

FULL SCART Keep AGND trace with signal Keep spacing for L/R CON15 SC1_FSO 0-2v: TV Node 5-8v: 16.9 AV 9.5-12v: 4:3 AV CN24 AV-JACK-3 GND 1 CVBS 2 AWOUTV GNC 3 R 4 UNFO/ID CNC 5 R 6 UNFO/IR SPDIF Output CNE SPDIF/V 3SPDIFOUT R208 120R 13P R206 120R SPDIFO 2 SC1-11-24 20V 15V 35V 20V 150V 75V 35V 20V 150V SC1-10-24 AV1A AV1B AV1C AV1D AV1E AV1F AV1G AV1H AV1I AV1J AV1K AV1L AV1M AV1N AV1O AV1P AV1Q AV1R AV1S AV1T AV1U AV1V AV1W AV1X AV1Y AV1Z AV1A AV1B AV1C AV1D AV1E AV1F AV1G AV1H AV1I AV1J AV1K AV1L AV1M AV1N AV1O AV1P AV1Q AV1R AV1S AV1T AV1U AV1V AV1W AV1I AV1J AV1K AV1L AV1M AV1N AV1O AV1F AV1G AV1H AV1I AV1J AV1K AV1L AV1M AV1N AV1O AV1P AV1Q AV1R AV1S AV1T AV1U AV1V AV1W AV1I AV1J AV1K AV1L AV1M AV1N AV10 AV1F AV1G AV1H AV1I AV1J AV1K AV1L AV1M AV1N AV1O AV1P AV1Q AV1R AV1S AV1T AV1U AV1V AV1W AV1I AV1J AV1K AV1L AV1M AV1N AV1o AV1F AV1G AV1H AV1I AV1J AV1K AV1L AV1M AV1N AV1O AV1P AV1Q AV1R AV1S AV1T AV1U AV1V AV1W AV1I AV1J AV1K

USB Interface

FB10710Ω-0402FB10710Ω-0402 FB10810Ω-0402FB10810Ω-0402

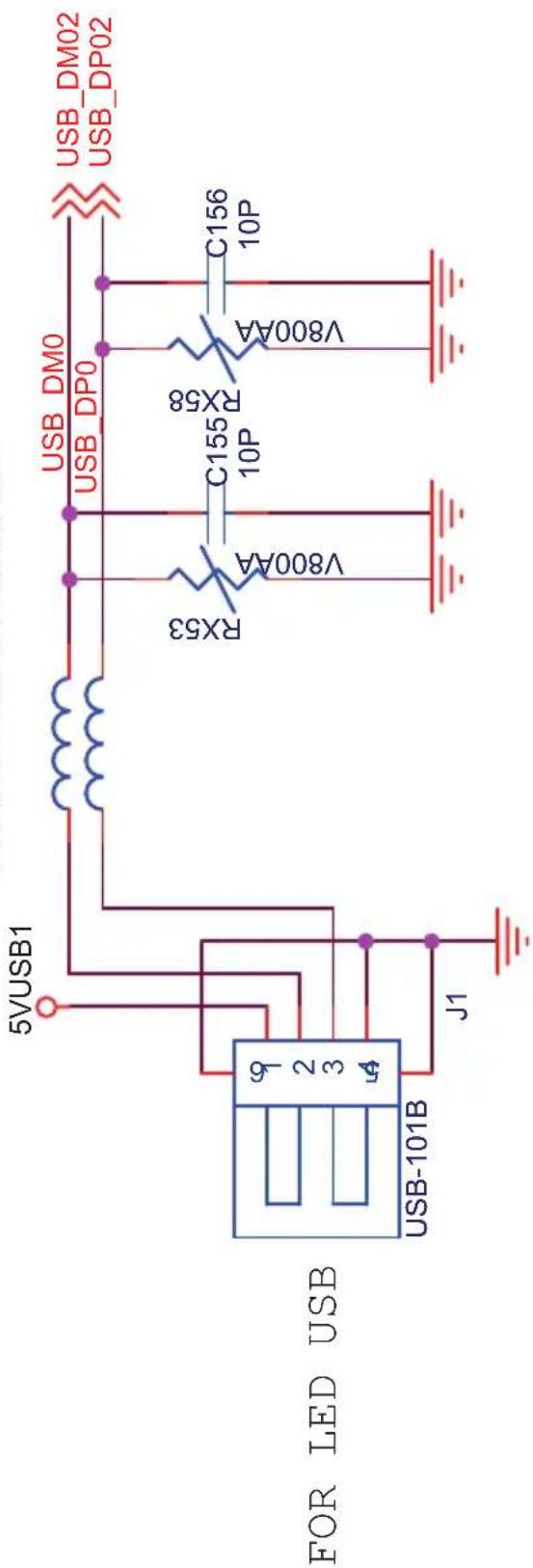

FOR LED USB USB-101B J1 5VUSB1 USB_DM0 USB_DP0 RX53 V800AA C155 10P RX58 V800AA C156 10P USB_DM02 USB_DP02

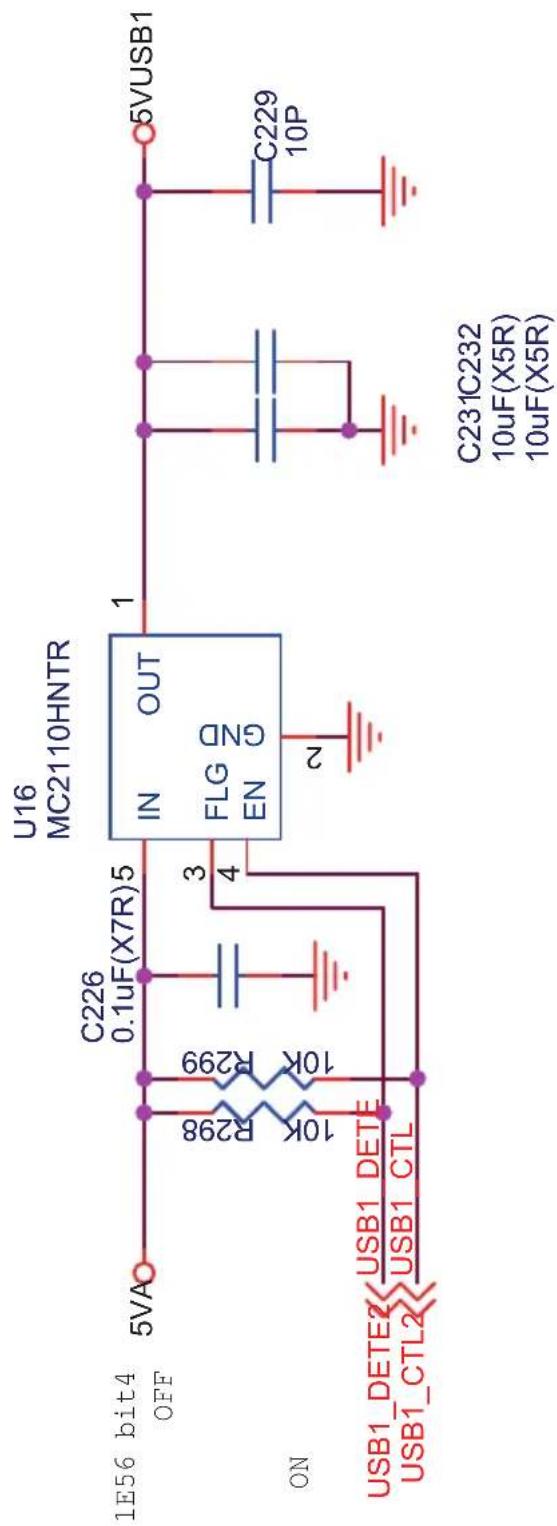

1E56 bit4 OFF ON USB1_DETE2 USB1_DETE USB1_CTL2 USB1_CTL C226 0.1uF(X7R)5 R298 R299 3 4 U16 MC2110HNTR IN OUT FLG GND EN GND 2 C231C232 10uF(X5R) 10uF(X5R) 5VUSB1

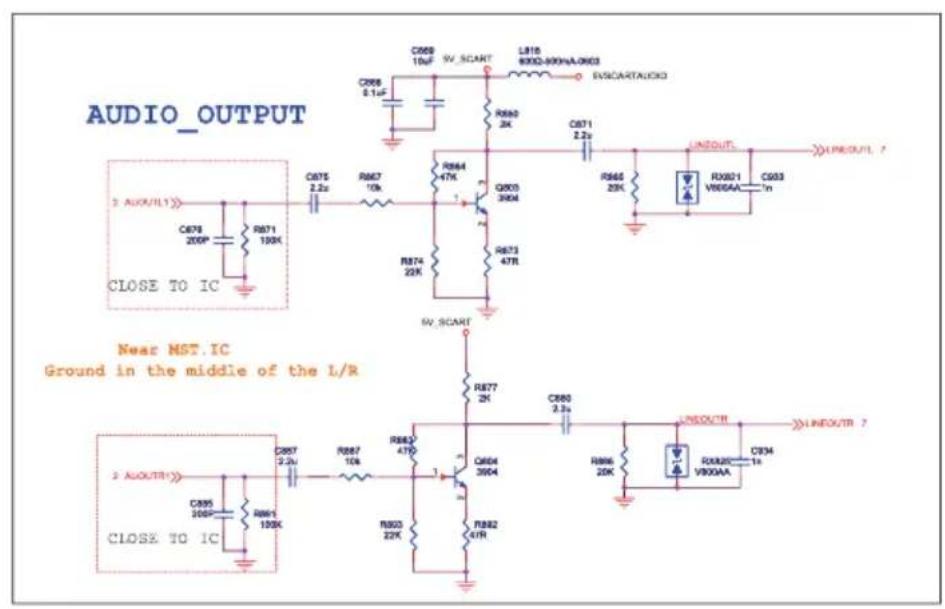

AUDIO_OUTPUT 3 AUX/IL1>> C878 200P R871 100K CLOSE TO IC Near MST.IC Ground in the middle of the L/R 3 AUX/UTR>> C895 200P R861 100K CLOSE TO IC C897 2.2u R887 10k R882 47D Q804 3004 R882 61R R863 22K R874 22K R873 47R Q803 3004 R864 47K R865 25K RX821 V86AA C893 1n C898 0.1uF C868 10uF 9V_SCART L816 8002-900HA-0903 EVCARTAUDIO C875 2.2u R867 10k R864 47K Q803 3004 R865 25K RX821 V86AA C893 1n C876 2.2u R874 22K R877 2k R864 47K Q804 3004 R865 2.3u C897 2.2u R887 10k R882 47D Q804 3004 RX825 V86AA C894 1n C895 200P R871 100K C895 200P R861 100K C895 200P R861 100K C895 200P R861 100K C895 200P R861 100K C895 200P R861 100K C895 200P R861 10

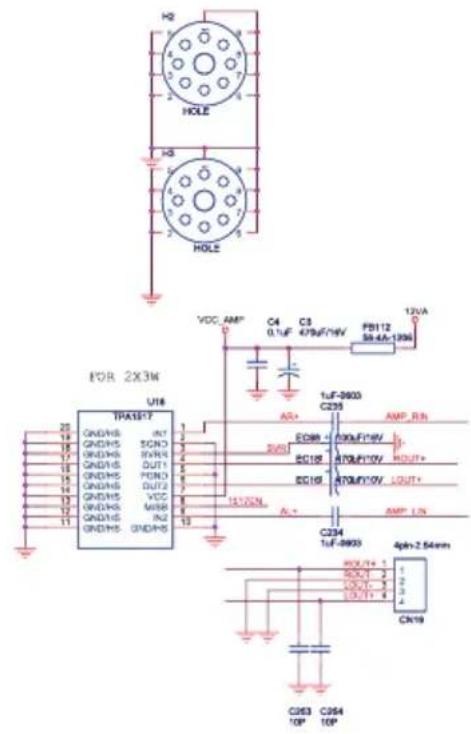

H2 HOLE H5 HOLE FOR 2X3M TPA1517 U18 GNDHS IN1 GNDHS SCD GNDHS RPN GNDHS OUT1 GNDHS PDU GNDHS OUT2 GNDHS VCC GNDHS MRR GNDHS IN2 GNDHS GNDHS VDC, AMP C4 C5 FB112 12VA 0.1uF 479uF/16V 59-4A-1396 1uF-9603 C235 AC+ ACR+ 0x0.5V C03LF/16V AT0LF/10V ACOUT+ AC10V AT0MF/10V LOUT+ AL- AMP LIN C234 1uF-9603 4pin-2.54mm ACOUT+ 1 ACOUT - 2 ACOUT - 3 ACOUT + 4 C263 C264 10P 10P CK19

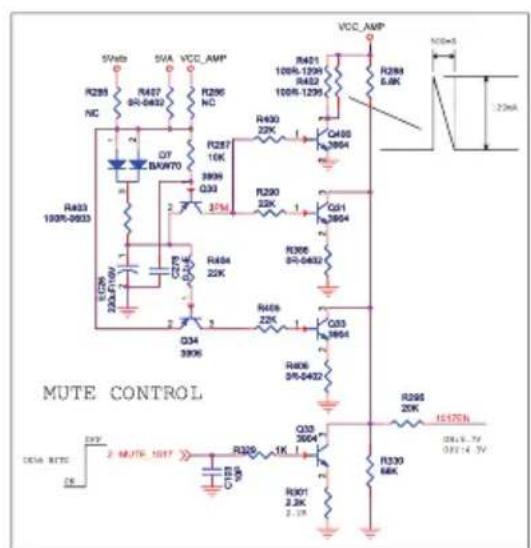

MUTE CONTROL VCC_AMP R285 NC S16Hz S1A VCC_AMP R407 30-0402 R295 NC Q7 BAW70 R257 10K 3909 Q33 375d R403 1908-0903 R290 22K R404 22K R406 22K R408 24-0432 Q33 3604 Q301 2.2K 2.1K R330 68K R295 20K 16170H ONL 7V OFF 14.7V CEA RATE EXP 2 MUTE 1017 R325 1K R301 2.2K 2.1K

2 AUOUTL5 CLOSE TO IC 2 AUOUTL5 2011-9-21 R338, R245 遷近 1.5V 隐藏，否则输出应答 U18 DF3644 C266 10uF C267 10uF C268 0.1uF C269 10uF/16V C270 10uF/16V C271 10uF/16V C272 10uF/16V C273 10uF/16V C274 10uF/16V C275 10uF/16V C276 10uF/16V C277 10uF/16V C278 10uF/16V C279 10uF/16V C280 10uF/16V C281 10uF/16V C282 10uF/16V C283 10uF/16V C284 10uF/16V C285 10uF/16V C286 10uF/16V C287 10uF/16V C288 10uF/16V C289 10uF/16V C290 10uF/16V C291 10uF/16V C292 10uF/16V C293 10uF/16V C294 10uF/16V C295 10uF/16V C296 10uF/16V C297 10uF/16V C298 10uF/16V C299 10uF/16V C300 10uF/16V C301 10uF/16V C302 10uF/16V C303 10uF/16V C304 10uF/16V C305 10uF/16V C306 10uF/16V C307 10uF/16V C308 10uF/16V C309 10uF/16V C310 10uF/16V C311 10uF/16V C312 10uF/16V C313 10uF/16V C314 10uF/16V C315 10uF/16V C316 10uF/16V C317 10uF/16V C318 10uF/16V C319 10uF/16V C320 10uF/16V C321 10uF/16V C322 10uF/16V C323 10uF/16V C324 10uF/16V C325 10uF/16V C326 10uF/16V C327 10uF/16V C328 10uF/16V C329 10uF/16V C330 10uF/16V C331 10uF/16V C332 10uF/16V C333 10uF/16V C334 10uF/16V C335 10uF/16V C336 10uF/16V C337 10uF/16V C338 10uF/16V C339 10uF/16V C340 47uF/7.5eV R345 47uF/7.5eV R346 47uF/7.5eV R347 47uF/7.5eV R348 47uF/7.5eV R349 47uF/7.5eV R350 47uF/7.5eV R352 47uF/7.5eV R353 47uF/7.5eV R354 47uF/7.5eV R355 47uF/7.5eV R356 47uF/7.5eV R357 47uF/7.5eV R358 47uF/7.5eV R359 47uF/7.5eV R360 47uF/7.5eV R361 47uF/7.5eV R362 47uF/7.5eV R363 47uF/7.5eV R364 47uF/7.5eV R365 47uF/7.5eV R366 47uF/7.5eV R367 47uF/7.5eV R368 47uF/7.5eV R369 47uF/7.5eV R370 47uF/7.5eV R371 47uF/7.5eV R372 47uF/7.5eV R373 47uF/7.5eV R374 47uF/7.5eV R375 47uF/7.5eV R376 47uF/7.5eV R377 47uF/7.5eV R378 47uF/7.5eV R379 47uF/7.5eV R380 47uF/7.5eV R381 47uF/7.5eV R382 47uF/7.5eV R383 47uF/7.5eV R384 47uF/7.5eV R385 47uF/7.5eV R386 47uF/7.5eV R387 47uF/7.5eV R388 47uF/7.5eV R389 47uF/7.5eV R390 47uF/7.5eV R391 47uF/7.5eV R392 47uF/7.5eV R393 47uF/7.5eV R394 47uF/7.5eV

Haier
