GPS GS170 - Browser DANEW - Free user manual and instructions

Product type	GPS navigator
Brand	Danew
Model	GS170
Dimensions (estimated)	135 x 85 x 15 mm
Weight (estimated)	180 g
Screen	Color TFT touch screen, 4.3 inches
Battery	Rechargeable Li-Polymer, 3.7 V, 166 mAh
Power supply	Charging via mini-USB or included 12V cigarette lighter charger
Main functions	GPS navigation, multimedia player (audio, video, photo), radar alert (optional at danew.com)
Mounting bracket	Car mount with suction cup and GPS cradle
Connectivity	Mini-USB port (sync and charge), 2.5mm headphone jack
Memory cards	micro-SD slot (card not included)
Headphone jack	2.5mm jack
Mini-USB port	Yes, for charging and data transfer
Power button	On top, long press to turn on/off
Reset button	On the back, to reset the system
Speaker	Built-in on the back
Radar detector	Activatable by purchasing a coupon at danew.com
Safety	Do not install the mount in front of an airbag or obstructing the driver's view
Maintenance	Clean with a soft, dry cloth. Avoid any liquid.
Customer service	Technical hotline France: 0899 782 728
Full manual	Downloadable at www.danew.com

Frequently Asked Questions - GPS GS170 DANEW

How to turn on the GPS?

Press the power button on the top for a few seconds. The screen turns on and the main menu appears.

How to charge the battery?

Use the included cigarette lighter charger or a USB cable connected to a computer. Connect it to the mini-USB port. It is recommended to fully charge the battery before first use.

The battery drains quickly, what to do?

Check that you are using the original charger. If the problem persists, the battery may be worn. Contact Danew customer service at 0899 782 728 for a replacement.

How to insert a micro-SD card?

Insert the micro-SD card into the slot located under the device (bottom view). It allows transferring audio, video, or photo files.

The GPS is not picking up satellites, why?

The first acquisition may take a few minutes. Make sure you are outdoors with a clear view of the sky. Avoid metallic or athermic windshields that can block the signal.

How to update the maps?

Map updates are not detailed in the manual. Visit www.danew.com for update information.

How to use the radar detector?

Turn your GPS into a radar detector by purchasing the update coupon at www.danew.com in the 'Radar Alert' section.

Can I use a headset?

Yes, plug a headset with a 2.5 mm jack into the socket on the side of the device.

How to reset the device?

Use a thin object (paperclip) to press the reset button on the back of the device. This will reset the system.

Where to find the full manual?

The full manual is available for free download in PDF format at www.danew.com. You can also consult it on sites like notice-facile.com.

USER MANUAL GPS GS170 DANEW

Pure diagram of a rectangular frame with an arrow pointing to the center, no text or symbols present.

① Ecran tactile

Simple line icon showing a car, a bicycle, and signal waves (no text or symbols)

Pure diagram of a rectangular frame with an arrow pointing to the center, no text or symbols present.

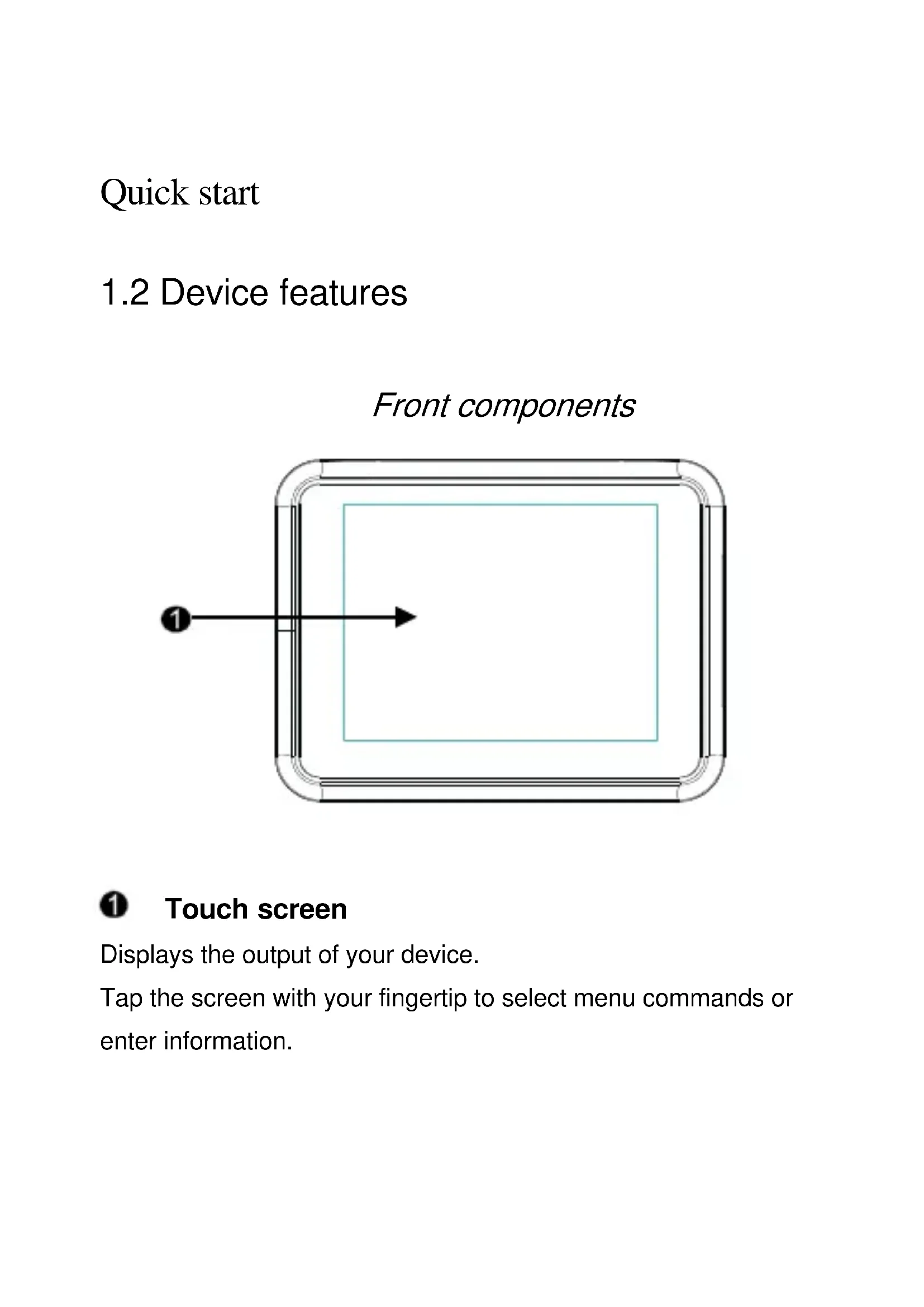

1 Touch screen

Displays the output of your device.

Tap the screen with your fingertip to select menu commands or enter information.

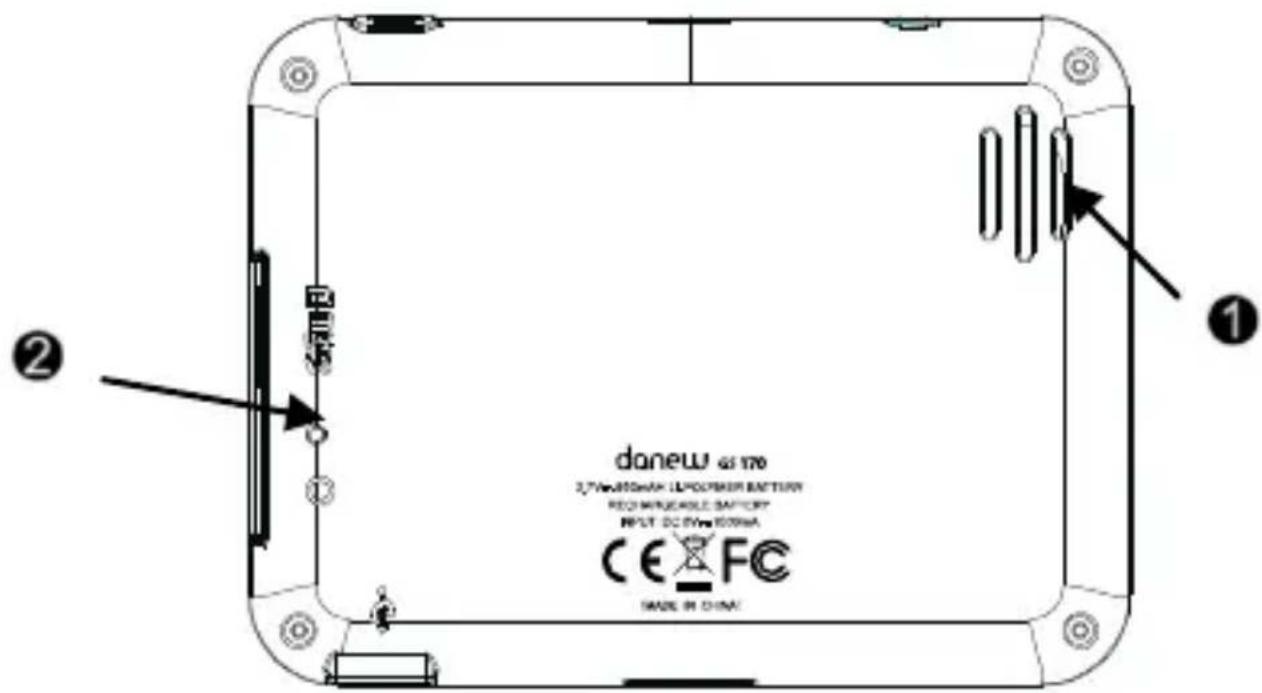

Back components

danew @170 2.7Vrms 450MHz LFPROMB BATTERY RED MINDABLE BATTERY INPUT DC BYrms 800MHz CE FC MADE IN CHINA

1 Speaker

Sends out music, sound and voices

② Reset button

Restart system.

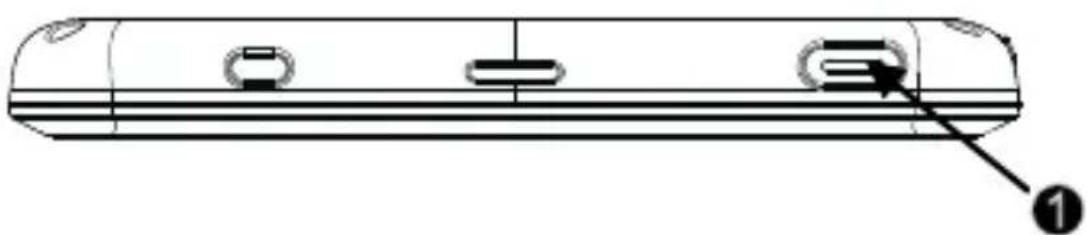

Top components

Technical line drawing of a cylindrical device with internal components and a labeled arrow pointing to a section (no text or symbols present)

① ON/OFF button

Turns on and off the device (standby, by pressing briefly)

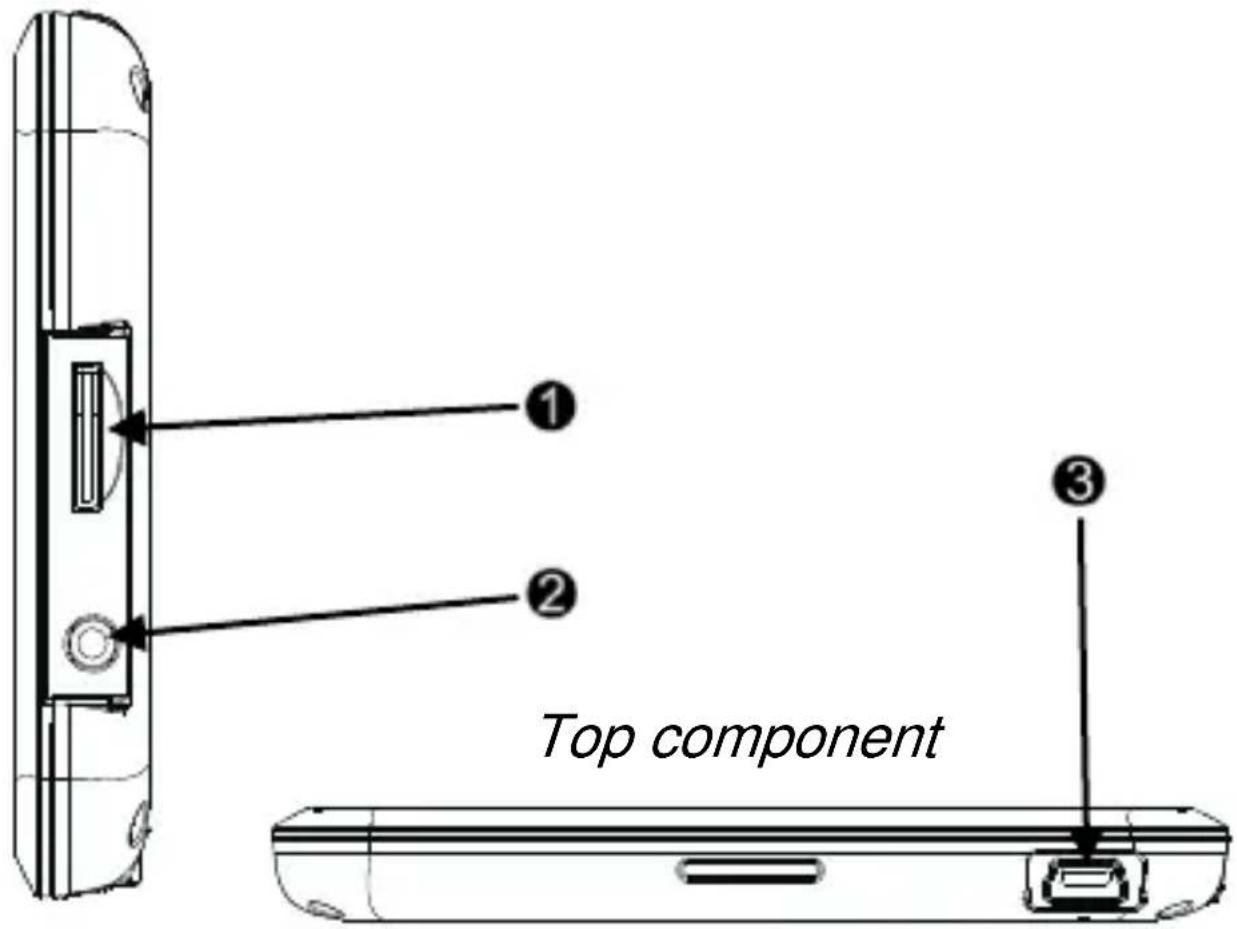

Side components

Top component

① MicroSD card Slot

Accepts a microSD card for accessing data such as MP3 music.

② Headphone connector (jack 2,5 mm)

Connects to stereo headphones

③ Mini-USB connector

Connects to the USB cable.

1.2 Performing the initial Start Up

1. Press the ON/OFF button for several seconds.
2. Your device will automatically turn on.

Connect the car charger.

1. The opening screen appears.

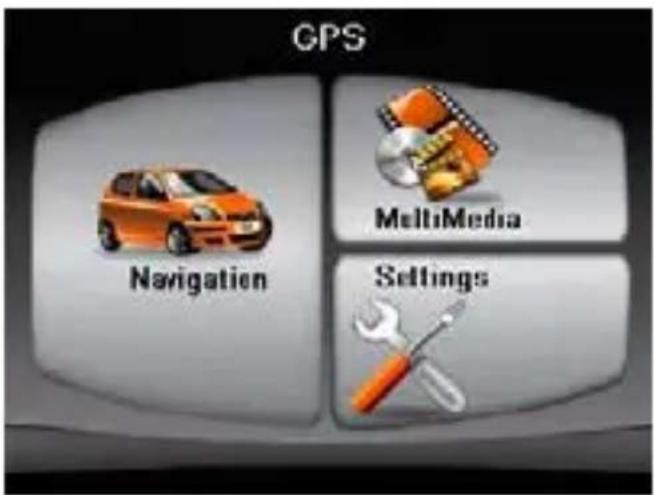

2. Then, the main menu appears as shown below.

You can now use your device

GPS Navigation MultiMedia Settings

1. Fully charge the battery before using your device the first time.

1.3 Using your device in a vehicle

A car holder and a car charger are supplied with your device.

The car holder consists of a bracket and a stand. The GPS may take a few minutes to find its current location initially.

Caution: Never place the holder where the driver's field of vision is blocked, or in front of airbags.

1.4 GPS Speedcamera locator

Turn your GPS into a speed camera locator. Please visit our website www.danew.com

Icon showing a car with a bicycle and signal waves, no text or symbols present

For full manual, please visit our website:

www.danew.com

For technical issues, please contact us on our hotline:

Tel: [phone] (In France)
