I. Getting Started

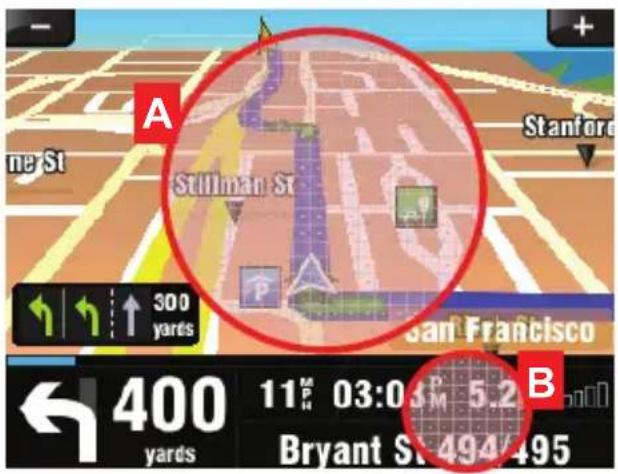

Using the "Main screen"

To enter the quick menu, touch the info panel (B).

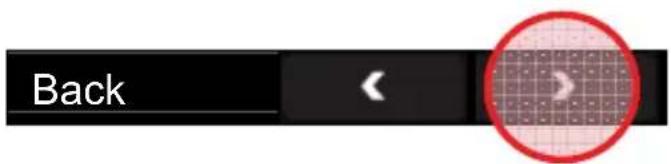

If the menu contains more pages, you can show the next page using buttons at the bottom of the screen.

To enter the main menu, touch the map area (A) on the main screen.

Sygic DRIVE

Entering an Address

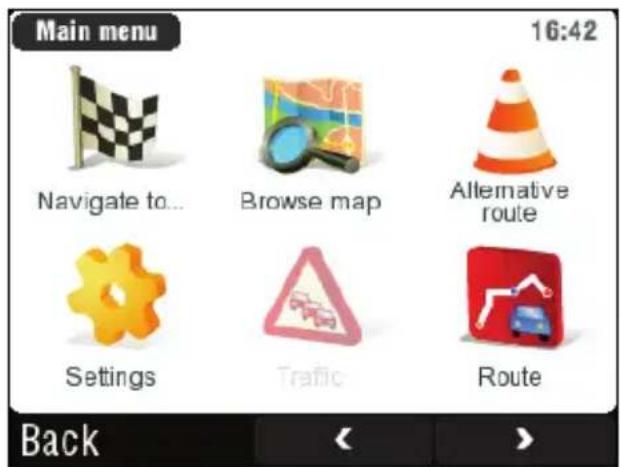

To navigate to your destination, enter Main menu, select

Navigate to... icon and then choose Address.

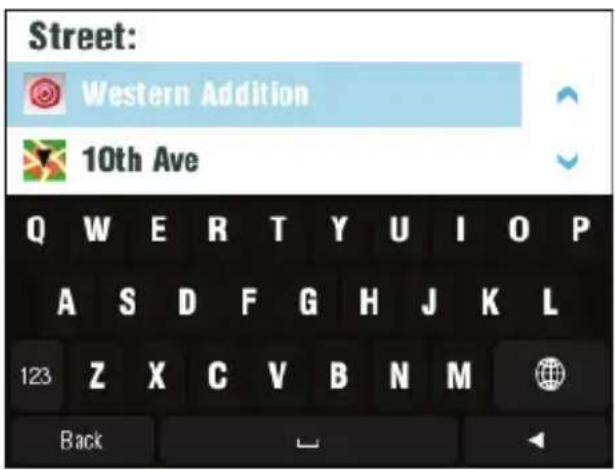

Next, you will be asked to select Country, City, Street and House number or Street crossing.

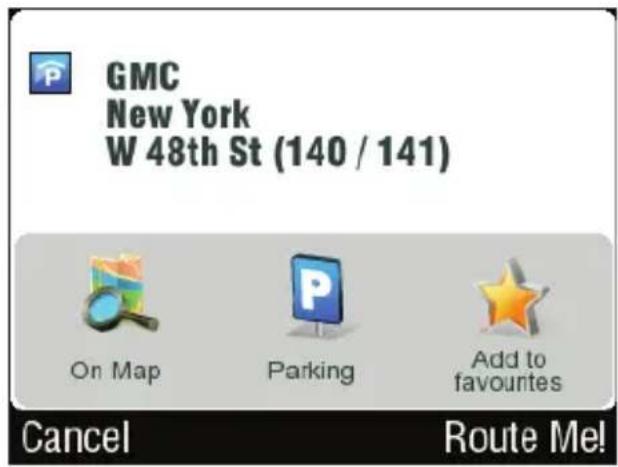

After the destination is entered, the confirmation screen is displayed:

Here you can view the exact position on the map, add it to your list of favorite locations, find nearby parking place.

To confirm the selected destination, push the Route Me! button.

If your device knows your current position, your route will be calculated immediately.If your device does not have accurate position, you will get options, how to determine the starting point of

the route:

Wait for valid signal (Recommended)

Your route will be calculated as soon as your current GPS position will be recognized. See the chapter Acquiring GPS Position.

Last valid position

The starting point of your route will be your last position located by GPS (e.g. when you entered the building).

Select from map (For advanced users only)

Allows you to select any starting point for your route.

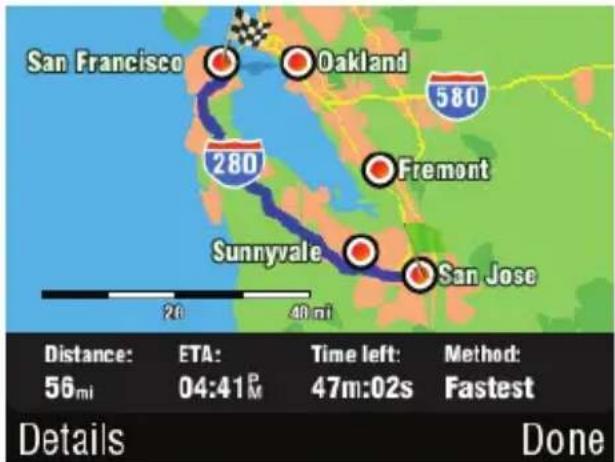

After the route is calculated, the route summary is displayed. It shows information about distance and time left to finish, estimated

Sygic DRIVE

3

time of arrival and the method used (Fastest, Economic, Shortest, Pedestrian, Bicycle).

IMPORTANT: By default, the method of calculation is set to "Fastest". To use a different method, see Advanced preferences.

Getting directions

The calculated route is displayed on the screen as a blue line.

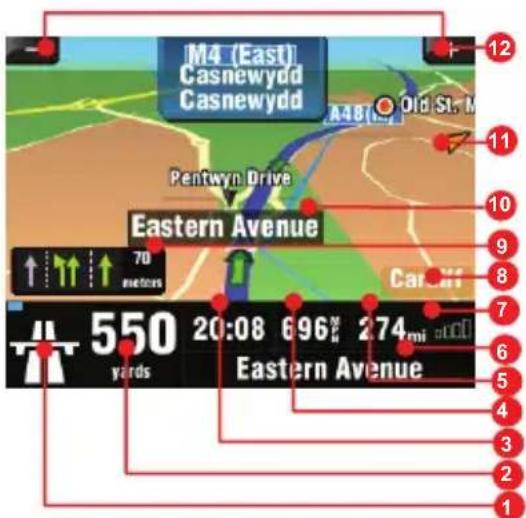

The main navigation screen is providing not only map preview, but also well arranged additional information:

1 Next change of direction at crossing
2 Distance to next change of direction
3 Estimated time of arrival at destination
4 Current velocity
5 Distance to destination
6 Current street
7 GPS signal strength
8 Current city
9 Lane Assistant
10 Next street to take
11 Direction to destination
12 Map zoom

Acquiring GPS Position

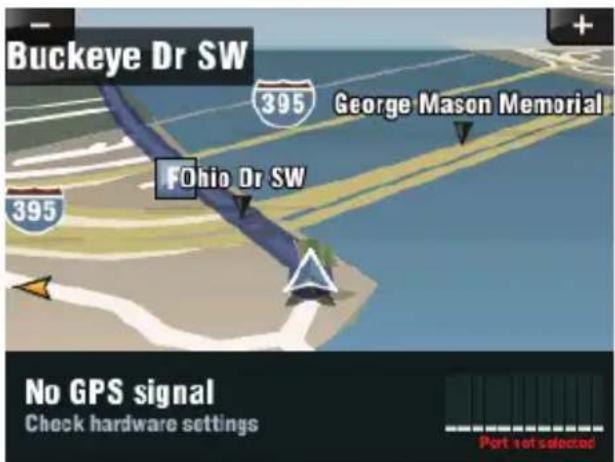

In case there is no GPS signal, the screen becomes grey. This can happen under following conditions:

the device is in a place, where the signal reception from satellites is obstructed by buildings, trees, cables or in a tunnel
Sygic DRIVE settings are set incorrectly
Device system settings are set incorrectly

Information about signal strength at the bottom of the screen provides extra information:

If the bars or port name is red, re-check the GPS settings (see Installation Manual).

If the bars are grey, stand outside with the good visibility of the sky until the signal is regained and the bars become green. Tap signal bars or select

Main menu > GPS Status to see more detailed GPS information.

After the GPS signal is regained, your driving instructions will be displayed.

II. Planning Your Route

Navigating to Points of Interest

If you need to drive to a gas station, restaurant, hotel, or any other point of interest, enter the Main menu, select Navigate to... and then Point of Interest.

Next, define the area of searching:

Near my position

Finds POI around you

Near address...

Finds POI near the address that you specify

Near destination

Finds POI near the destination of your current trip

In City...

Finds POI in the city you select

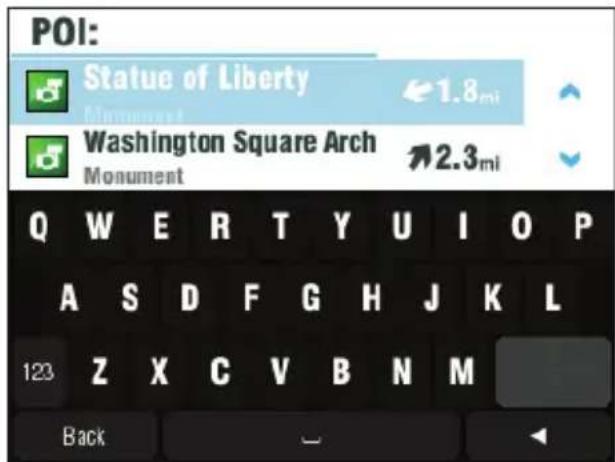

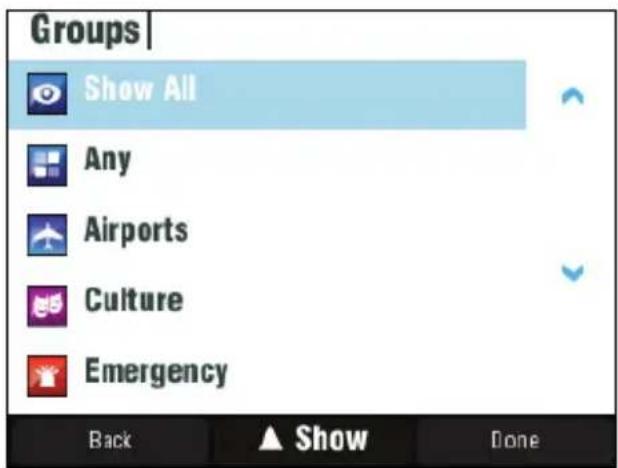

How to find a point of interest:

Select a Group (e.g. Sports) and then select the POI type (e.g. Golf Course).

If you don't know the group, use Show All button to get a list of all POI types.

If you don't know the POI type, use Any button and just enter the name.

You can refine the results by typing a name of the POI. It's not necessary to enter full name -- you can just enter a part of it.

NOTE: Distance shown in the list, is relative to the Area that you specified in previous step.

Navigating Home

First, set your home location:

Main menu > Settings >

Set home location, and enter your home address.

Once your home address is recorded, you can navigate home by simply selecting Main menu >

Navigate to... > Home.

Navigating to Your Most Recent Locations

Once you have navigated to a destination, Sygic DRIVE makes it easy to return to the same location. There are several ways of reusing the previously selected destinations.

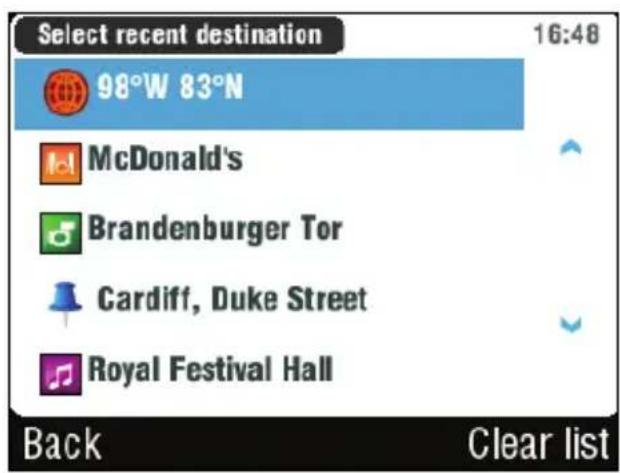

History

Sygic DRIVE keeps track of your most recent destinations. It is easy to reuse them again. Just enter the Main menu >

Navigate to...> History

and start the navigation by selecting your previous destination.

NOTE: Destinations are added automatically to the list, but if you want to quickly store your current position for future use, just select Memorize position from Main menu. Memorized position will appear in the list with icon.

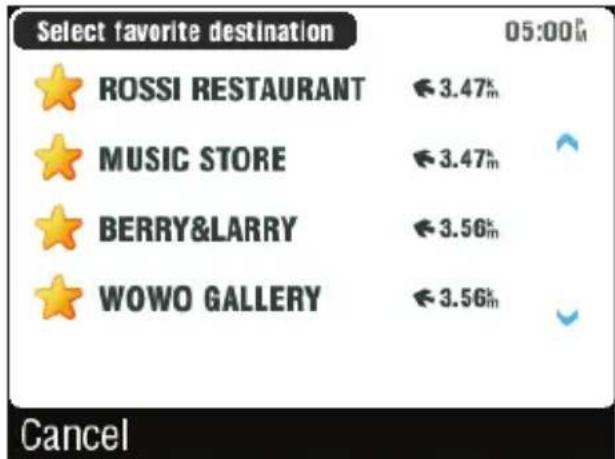

Stored favorite locations

To view a list of your favorite locations, select Main menu > Navigate to... > Favourite

How to add a favorite location

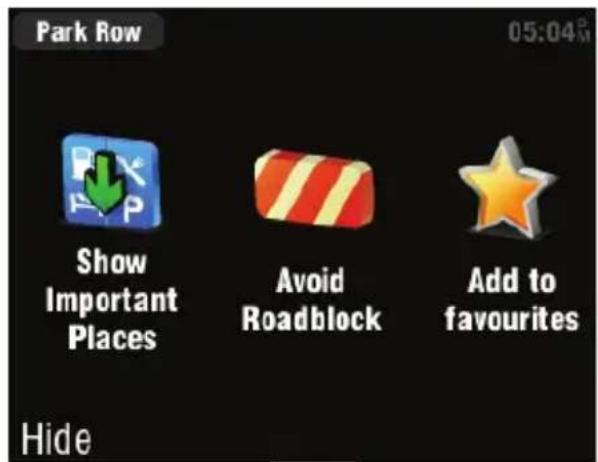

A Quick Menu (tap information panel on the main screen) > Add to favourites

B Main menu > Browse map > Select point on map > Add as POI > Favourites
C Store your position during navigation (Main menu > Memorize position). Then go to Main menu > Manage POI > Add POI > History

Sygic DRIVE

Select memorized position (marked with icon)

Previous addresses

When entering an address

through Main menu >

Navigate to...> Address,

the list of previously selected

Countries / Cities / Streets

appears, as you go through the

address details. They are marked

Other icons that you can see during address search:

City

Capital city

City center

Street

Street crossing

III. Changing the Route

Route Details

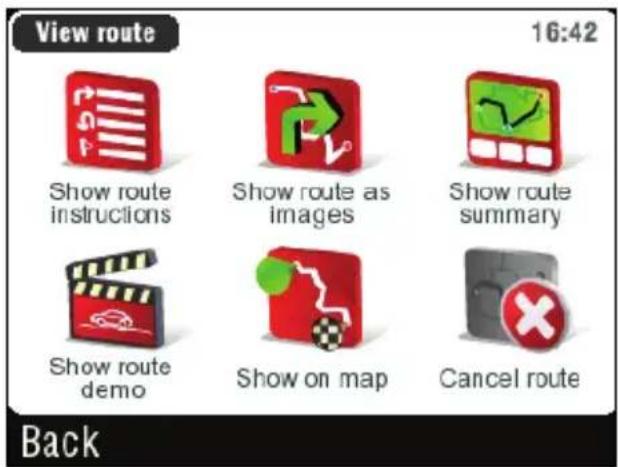

You can check the calculated route before you start driving. Enter Main menu > Route menu.

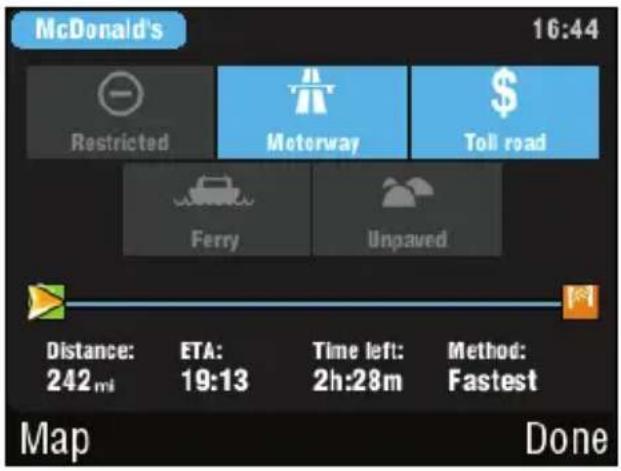

Choose Show route summary > Details to get a detailed overview about the route.

The blue highlighted buttons indicate that specific type of road was used.

To avoid it, tap the blue highlighted button.

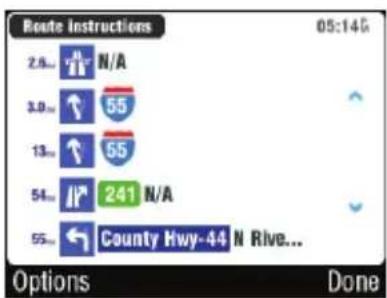

Show route instructions

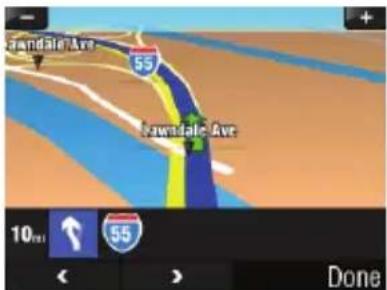

Show route as images

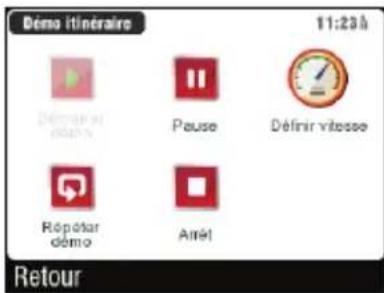

Show route demo

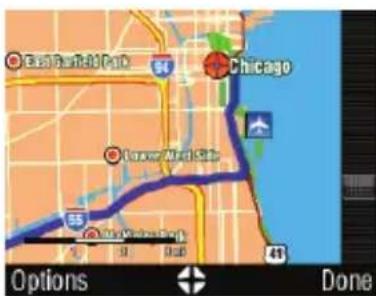

Show on map

Modifying the Route

If you need to make modifications to the existing route, enter the Main menu > Alternative route.

You can Compute alternative route in case you don't like the route calculated on the first time.

In case the road ahead of you is closed, you can Avoid next... few kilometers, to calculate a detour.

If you wish to travel through a certain place on your trip, you

User's Guide

can set the Travel via... and add a waypoint the same way, as setting the destination in previous chapters.

If you want to cancel your modifications of the route, use the Reset to original route.

If you wish to cancel the calculated route completely, and use the navigation system only as an indicator of your current position, choose Main menu > Route > Cancel route function.

You can find additional information about modification of calculated route in the next chapter.

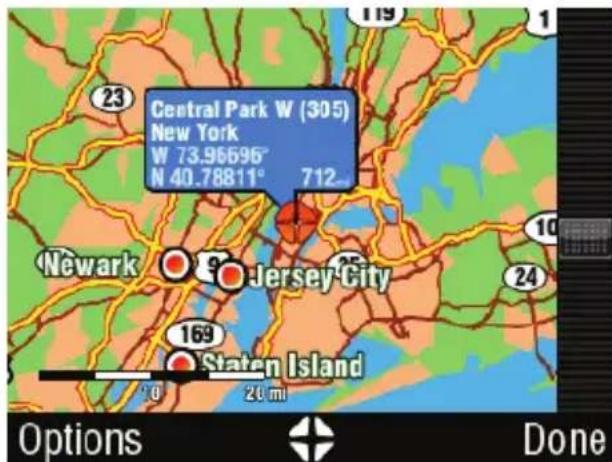

Map Browsing Mode

Checking the details directly in the map, or even planning the route can be done in map browsing mode. Select Main

menu > Browse map to start.

you can just drag the map to scroll it around.

Available options for the map:

Find...

You can find a position by defining it the standard ways

Show current position

Show entire route

Show city

Shows entire city on map screen

Show/Hide POIs...

You can select, which types of POI types are displayed when browsing the map

You can select a place on the map and then enter the context menu for that point by pressing the button. Following actions are available:

Navigate there Sets the new destination. Original route will be deleted.

Travel via Adds a new waypoint to your existing route between start and finish.

Continue Adds a new waypoint after the existing destination.

Add as POI Stores the selected point to Favourites or other POI category.

Find nearby POI Searches for POIs that are around the selected point.

Avoid... You can select a radius around the point, which will be avoided in the route calculation. Existing route will be recalculated.

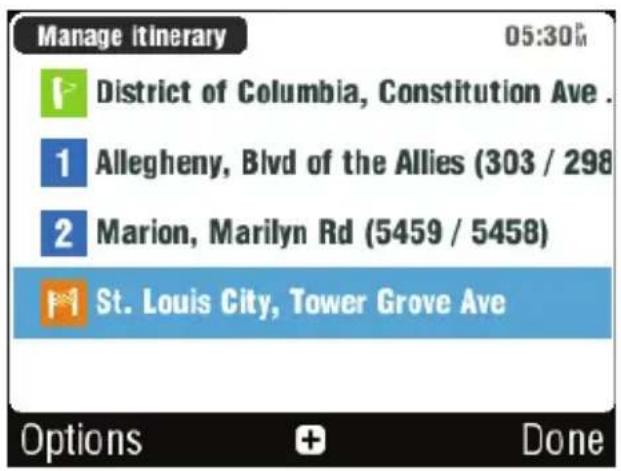

Itinerary planning

If you have added some waypoints to your route via Browse map or Alternative route, you can edit them in Itinerary. It is also possible to optimize waypoints within the route, plan a new route or store it for future use.

To edit the current route, open Main menu > Itinerary and select the [Current route] to see the list of waypoints.

You can see the starting point, the numbered waypoints and the finish. The places that you already visited are grayed out.

You can add a waypoint to the itinerary by clicking the + button.

Waypoint options

If you click any waypoint of the itinerary, you get the following options:

Set as visited Stops navigating to this waypoint and recalculates the route to

Sygic DRIVE

17

the following one

Set as finish point Puts the waypoint to the end and moves others upwards in the list

Set as via point Changes the finish point to a normal waypoint

Set as start Stores the waypoint as a start of the route.

Add nearby POI Use this option for example if you have entered a destination of your business trip, and you want to find a nearby hotel.

Move up the selected waypoint in the list.

Move down the selected waypoint in the list.

Delete the waypoint.

Itinerary options

The following actions can be performed with each itinerary (available through the Options menu):

Optimize itinerary Optimizes the waypoint sequence

Save itinerary for future use

Delete itinerary

IV. Settings

To change the factory settings, go to Main menu and select

Settings icon.

NOTE: Buttons are displaying the situation that will occur when you push them, not the current

status. E.g.: Button means that voice output and sounds are currently enabled. Pushing this button will disable the sounds.

Set to 2D (flat) view

Set 2D North Up

Set 3D view

Set automatic colours

Set night colours

Set daylight colours

Disable sounds

Sygic DRIVE

Enable sounds

Volume settings: Set the sound intensity separately for low driving speed and for high speeds.

Advanced settings: (for advanced users only) For more information, see the next chapter.

Planning preferences: Set the routing algorithm: Fastest, Economic, Shortest, Pedestrian, Bicycle)

Toll charge settings: Set the preference of paid road segments: avoid them, don't avoid them, or always ask.

GPS hardware: Detailed configuration of

19

GPS and TMC hardware.

Signpost settings:

Sets the number of signpost tables displayed at one time and and the level of detail (Full, Simplified, Single line).

Preferred

Other

Rotate display:

Change the display orientation (landscape / portrait).

Keyboard settings: *

You can switch between preferred keyboard layouts using button, that is available in every keyboard.

Regional settings:

Set kilometers / miles, time format and format of GPS coordinates.

Set language (user interface)

Set voice (language of voice instructions)

Switch map:

Load different map material from your device.

Set home location

Quick Guides

Learn more about major navigation features.

About Sygic:

Information about version, device code and available application memory. Please provide this information in communication with Sygic support.

IMPORTANT: Items marked with * might not be available in your device.

Advanced preferences

Main menu > Settings >

Advanced settings

1 Avoid U-Turns

Enable lane assistant

Enable Autozoom

Warn if Railway crossing

2 Backlight settings
3 Configuration of Information panel on the main screen

4 Notification settings of maximum speed limit
5 Safety camera settings (if your product includes this data)

Sygic DRIVE

Disclaimer

The information contained in this document is the property of Sygic s.r.o. and may be used only for the purposes of operating and supporting the relevant software created by Sygic s.r.o.

Sygic s.r.o. reserves all rights concerning the information contained herein. This document or any part of it may not be reproduced, distributed, or translated into other languages in any way or form except with written approval of Sygic s.r.o.

This document is provided to the user on a 'as is' basis. Although maximum care was taken during preparation of this manual to provide accurate information and to avoid errors, some technical inaccuracies or editorial errors may occur. Sygic s.r.o. accepts no responsibility for such errors.

In the interest of improving the content of the document, Sygic s.r.o. reserves the right to modify, amend or delete any part of the document at any time without prior notice.

For more information and updates, visit www.sygic.com

Sygic

Guide utiliseur

Show rout Afficher e as images
Show rou Afficher te demo

Guide utilisateur
