USER MANUAL Drive 10 Sygic

The Navigation Screen 1

Entering an Address....2

Turn by Turn Navigation 5

Acquiring GPS Position 6

II. Planning the Route 7

Navigating to a Point of Interest....7

Navigating to Contacts 9

Navigating Home 10

Navigating to Recent Destinations 10

Navigating to Favourite Destinations 11

III. Altering the Route ....13

Route Menu....13

Modifying the Route.... 15

Map Browsing Mode 16

Multi-stop route planning 18

IV. Online features ...... 21

Connection....21

Traffic alerts 22

Reporting speed cameras and incidents.... 23

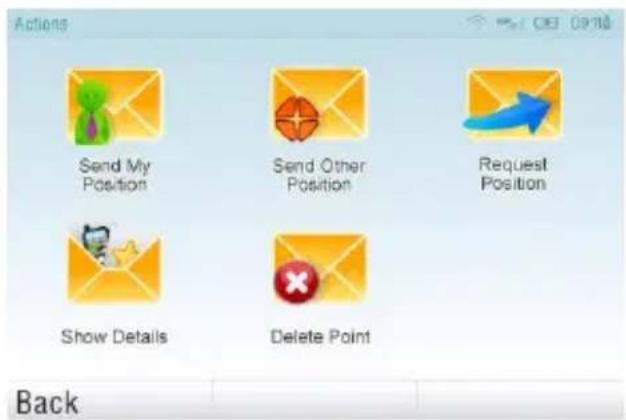

Sharing position via SMS.... 24

Weather Information.... 25

V. Settings 26

Advanced settings.... 28

I. Getting Started

The Navigation Screen

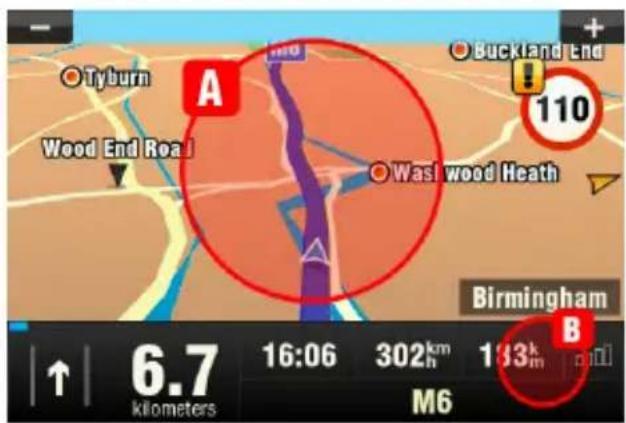

Tyburn Wood End Road A Buckland End 110 Wasl wood Heath Birmingham ↑ 6.7 16:06 302km 133km B kilometers M6

On startup, the application opens with the Navigation Screen, showing your position as a blue arrow. You can zoom in and out of the map by tapping the + and - buttons in the top corners of the screen.

For further functions, enter the Main menu by tapping the map area (A) on the Navigation Screen.

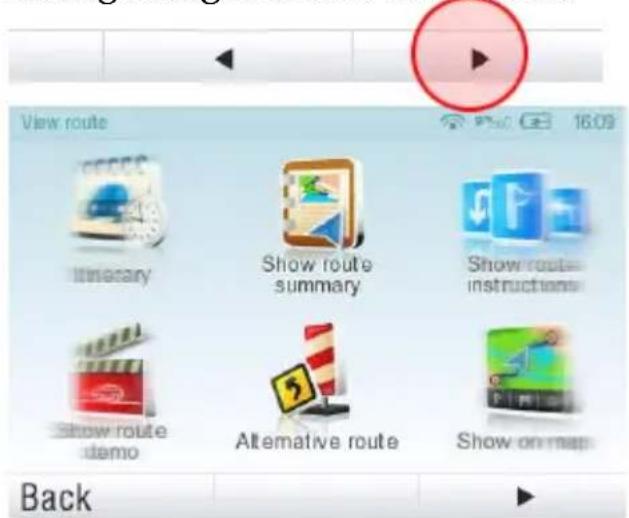

You can scroll between the menu pages by tapping the arrow buttons at the bottom of the screen or by sliding a finger across the screen.

View route 16:09 Itinerary Show route summary Show route instructions show route demo Alternative route Show on map Back

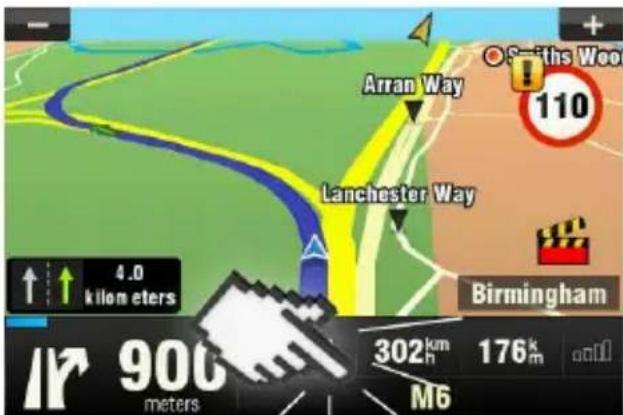

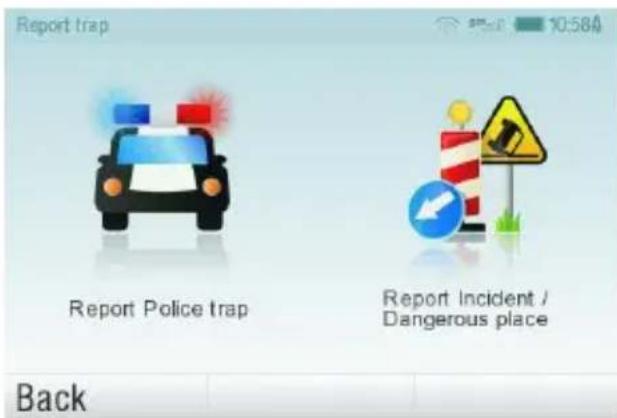

To report a speed camera or traffic incident, touch the bottom panel (B) on the main screen. For more information, (see Reporting speed cameras and incidents on page 23).

Speed Camera Reporting is only available in Sygic Mobile Maps 10.

Entering an Address

To set your destination by entering its address select

Main menu >

Navigate to... >

Address or Postal code.

Next, you will be asked to select a Country a City, Street and House number or Street crossing. Enter the required names and numbers.

Alternatively, just enter the first few letters of the city/street name to see a list of similar names.

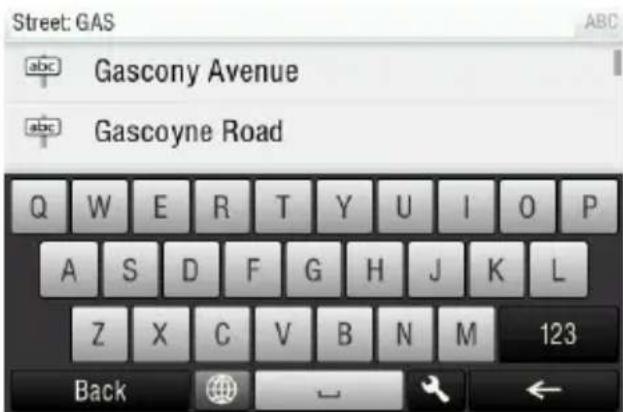

Street: GAS Gascony Avenue Gascoyne Road Q W E R T Y U I O P A S D F G H J K L Z X C V B N M 123 Back

The list also features explanatory icons left to the city/street name:

City

Capital city

City center

Street

Street crossing

Select the desired city/street from the list.

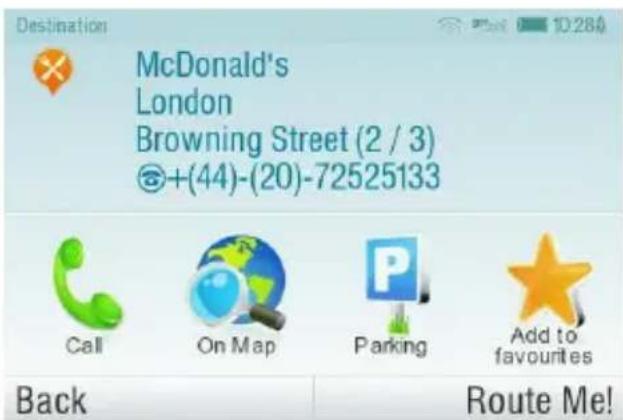

When finished, a Confirmation Screen pops up showing the address entered.

Destination McDonald's London Browning Street (2 / 3) +(44)-(20)-72525133 Back On Map Parking Add to favourites Route Me!

Tap "On Map" to see the exact location of the address, or tap "Add to favourites" to store it among your frequently used destinations (see

Navigating to Favourite Destinations" on page 11).

To set the address shown as your destination, tap the "Route Me!" button at the bottom of the screen.

If you would rather be directed to a parking lot nearby, tap "Parking" and select from the list shown.

To select a different address altogether, tap the "Back" button.

If your device can determine your current position, your route will be calculated immediately from that positon. If your current position cannot be determined, you will be offered the following options:

Wait for valid signal (Recommended)

Your route will be calculated from your current position as soon as a valid GPS signal is available (see “Acquiring GPS PositionAcquiring GPS Position” on page 5).

Last valid position

Your route will be calculated from your last known position (i.e. where you were just before the device lost GPS signal).

Select from map

Allows you to select any starting point for the route calculation.

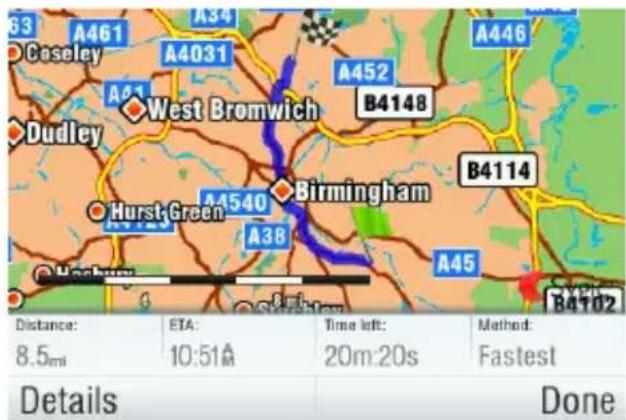

When route calculation is complete, the entire route is displayed on the map (in blue) with total distance, estimated time of arrival (ETA), time left to destination and route calculation method (Fastest, Economic, Shortest, Pedestrian, Bicycle) shown below the map.

63 A461 A34 Coseley A4031 A452 Dudley West Bromwich B4148 Hurst Green A4540 Birmingham B4114 A38 A45 Distance: ETA: Time left: Method: 8.5mi 10:51A 20m:20s Fastest Details Done

To accept the route and start turn by turn navigation, tap "Done".

For further information on the route, tap "Details".

NOTE: By default, the method of route calculation is set to "Fastest".

Turn by Turn Navigation

The Navigation Screen will show the map of your surrounding area with the calculated route highlighted in blue.

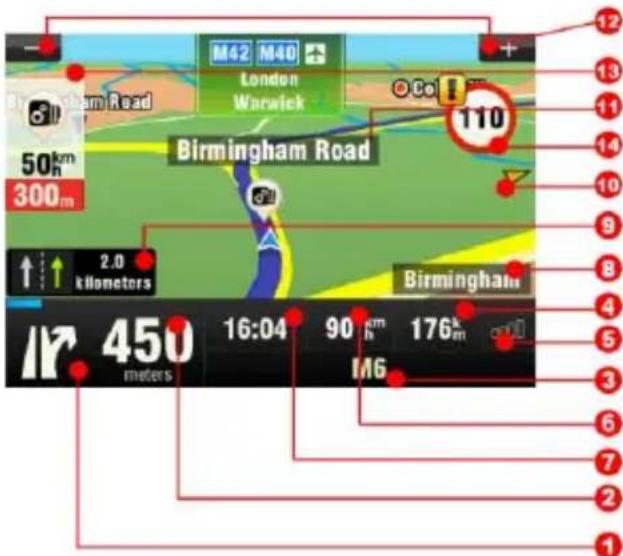

Birmingham Road 50km 300m M42 M40 London Warwick 110 2.0 kilometers Birmingham 450 16:04 90km 176km M6 12 13 14 10 9 8 4 5 3 6 7 2 1

As you approach a junction, further directions are displayed to indicate which road to take.

In addition to turn by turn directions, the Navigation Screen also provides a range of further useful information:

1 Next maneuver
2 Distance to next change of direction
3 Current road/street
4 Distance to destination
5 GPS signal strength
6 Current speed
7 Estimated time of arrival at destination
8 Current city
9 Lane Assistant
10 Heading to destination
11 Next road/street to take
12 Map zoom in/out
13 Speed camera warning
14 Current speed limit

Acquiring GPS Position

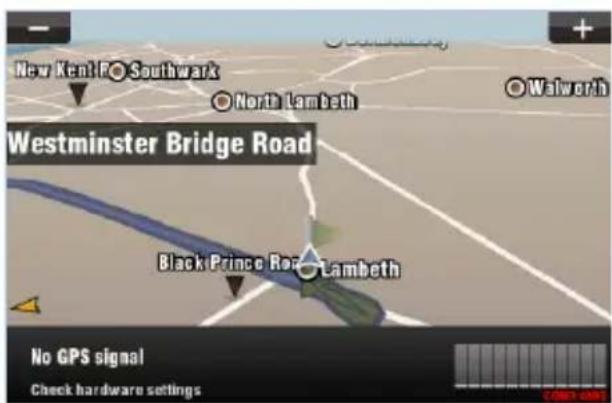

If there is no GPS signal, the screen becomes grey. This can happen under any of the following conditions:

The device is in a tunnel or at a location where signals from the GPS satellites are obstructed by buildings, trees, electric cables or other objects.
■ Device system settings or Product Settings are set incorrectly.

New Kent Road Southwark North Lambeth Westminster Bridge Road Black Prince Road Lambeth No GPS signal Check hardware settings

The information below is not available on iPhone, Android and Maemo devices.

The signal strength bars at the bottom of the screen provide additional information:

If the colour of the bars or the GPS port name/number turns red, re-check the GPS settings.

If the bars are grey, move the device to an outdoor location with good visibility of the sky until the signal is regained and the bars become green. Tap the signal bars or select

Main menu >

GPS

to see more detailed GPS information.

Once GPS signal is regained turn by turn navigation resumes automatically.

II. Planning the Route

Navigating to a Point of Interest

In addition to the road network, the map also stores the details of thousands of Points of Interest (POIs) such as gas stations, restaurants, hotels, tourist attractions and other facilities.

To set a POI as your destination, first select

Main menu >

Navigate to... >

Point of Interest

Next, define the area where you want to search for a POI. Select

Near my position

to search POIs around your current position;

Near address...

to search POIs near a particular address (to be entered in the next step);

Near destination

to search POIs near the current destination (if set);

In City...

to search POIs in a particular city (to be entered in the next step);

Searching POIs

POIs are arranged in groups (such as Food, Hotel or Motel etc.) to help find a facility even when you do not know its name or address.

Once the search area is selected, a list of the POI groups is displayed.

Financials, Business Food Frontier Crossing Health / Care Hotel or Motel Back Done

Tap on the POI group and you will see the list of all POIs that are nearby.

NOTE: The distances shown in the list are relative to the search location.

Scroll down the list and select your POI by tapping its name.

Important Tourist Attraction ABC Big Ben Building →134yd The Jewel Tower Unspecified, @+(44)-(20)-72222219 ↓185yd Q W E R T Y U I O P A S D F G H J K L Z X C V B N M 123 Back

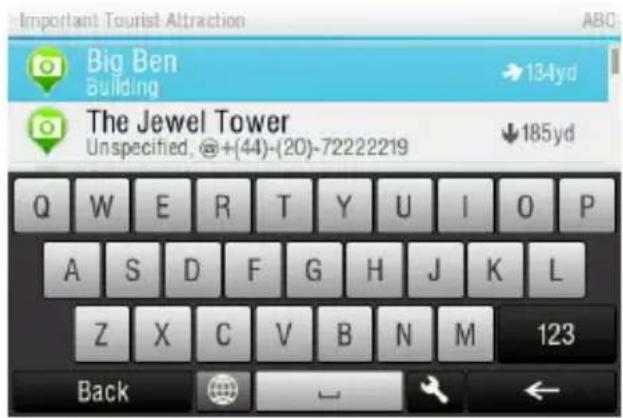

To refine your search results, tap the keyboard icon at the bottom of the screen and type the name of the POI you are looking for. You can also enter partial names.

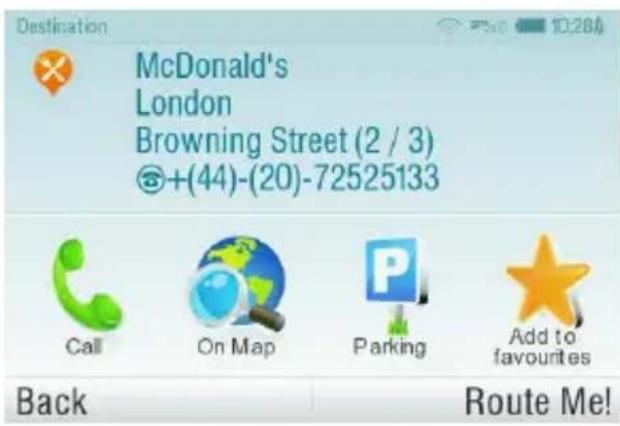

When finished, a Confirmation Screen pops up showing the POI selected.

Destination McDonald's London Browning Street (2 / 3) +(44)-(20)-72525133 Back On Map Parking Add to favourites Route Me!

The "Call" button makes it possible to contact the facility (e.g. to reserve a room or a table).

The Call feature is only available in Sygic Mobile Maps 10, and only if the POI details include a phone number.

To set the selected POI as your destination, tap the "Route Me!" button.

Navigating to Contacts

This feature is only available in Sygic Mobile Maps 10.

If you want to drive to your friend or business partner, you can select their name directly from your contact list. Select

Main menu>

Navigate to... >

Contacts

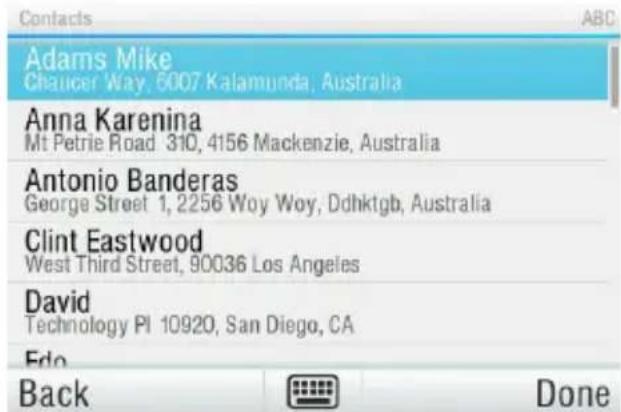

Contacts ABC Adams Mike Chaucer Way, 6007 Kalamunda, Australia Anna Karenina Mt Petrie Road 310, 4156 Mackenzie, Australia Antonio Banderas George Street 1, 2256 Woy Woy, Ddhktgb, Australia Clint Eastwood West Third Street, 90036 Los Angeles David Technology PI 10920, San Diego, CA Edo Back Done

In the list, scroll to the desired contact, or tap the keyboard icon and enter their name. You can also enter partial names.

When finished, tap "Done", and the Confirmation Screen appears.

NOTE: To set your destination from the contact list, the selected contact must be stored with a full address.

Navigating Home

To start using this feature, you need to set your home location first. Select

Main menu >

Settings >

Set home location

and enter your home address.

Once your home address is stored, you can navigate home by simply selecting

Main menu >

Navigate to... >

Home

10 User Guide

Navigating to Recent Destinations

Sygic Mobile Maps keeps track of your recent destinations, making it easy to return to a previously set location.

When entering an address through

Main menu >

Navigate to... >

Address or Postal code

the list of previously selected Countries/Cities/Streets appears, as you go through the address details.

They are marked with icon.

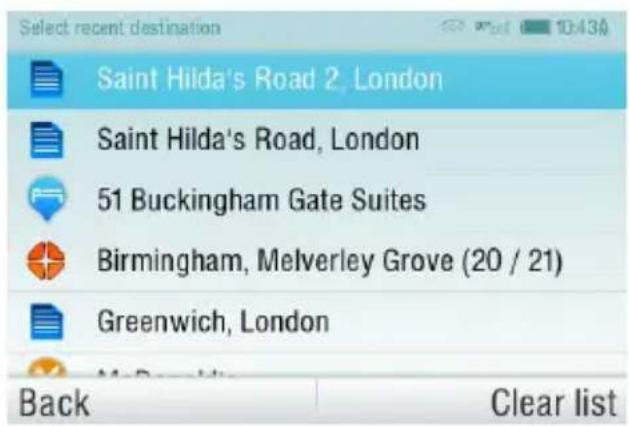

You can directly go to a list of recent destination by selecting

Main menu>

Navigate to... >

History

and start navigation by selecting a previous destination from the list shown.

Select recent destination Saint Hilda's Road 2, London Saint Hilda's Road, London 51 Buckingham Gate Suites Birmingham, Melverley Grove (20 / 21) Greenwich, London Back Clear list

Navigating to Favourite Destinations

To view a list of your favourite destinations, select

Main menu >

Navigate to... >

Favourite

and start navigation by selecting a Favourite destination from the list shown.

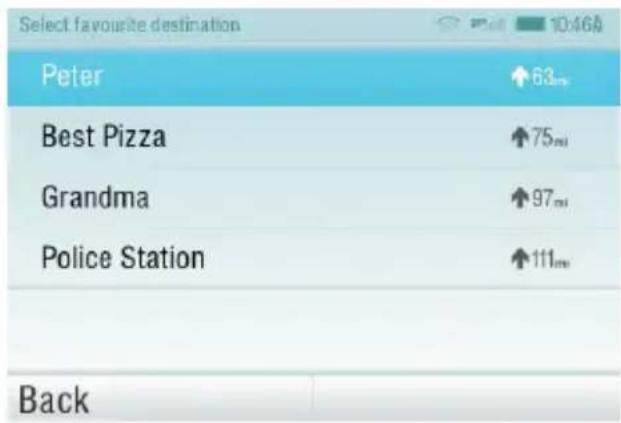

Select favourite destination Peter ↑63m Best Pizza ↑75m Grandma ↑97m Police Station ↑111m Back

Select the desired Favourite destination by tapping it and then select your next option from the Confirmation Screen.

Defining a new Favourite destination

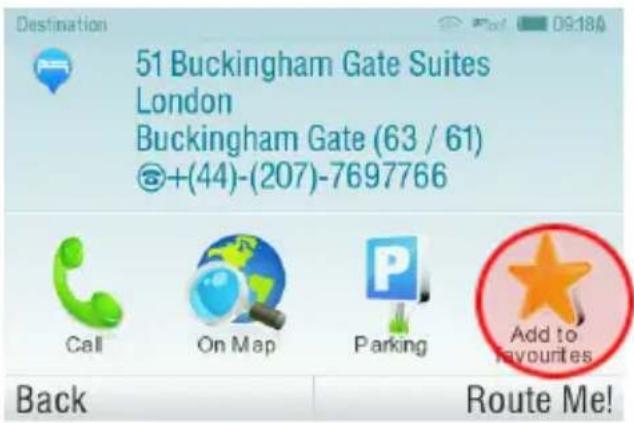

To add a new address to your favourites tap "Add to favourites" in the Confirmation Screen

Destination 51 Buckingham Gate Suites London Buckingham Gate (63 / 61) ⊕+(44)-(207)-7697766 Back On Map Parking Add to favourites Route Me!

or select

Main menu >

Map >

Select point on map >

Add as POI > Favourites

or select

Main menu >

Manage POI > Add POI

III. Altering the Route

Route Menu

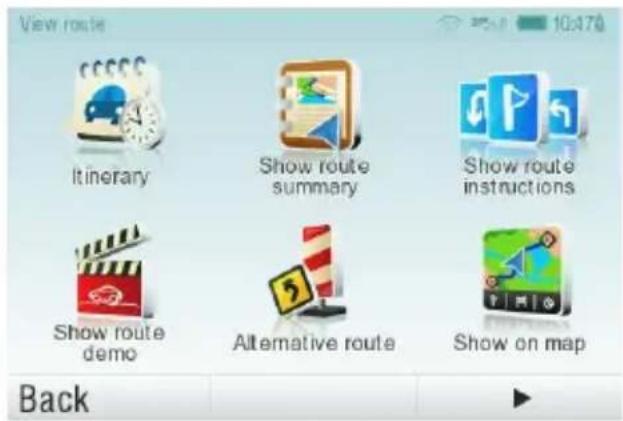

You can access detailed information about the calculated route from the Route menu. Select

Main menu >

Route

View route Itinerary Show route summary Show route instructions Show route demo Alternative route Show on map Back

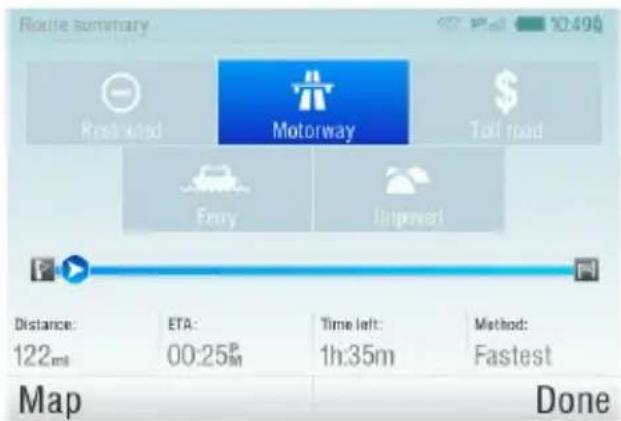

To get a schematic overview of the route, select

Show route summary > Details

Route summary Restricted Motorway Toll road Ferry Unpencil Distance: 122.0m ETA: 00:25P Time left: 1h:35m Method: Fastest Map Done

The icons highlighted in blue indicate specific types of roads included in the route.

To avoid a specific road type (e.g. Motorways), tap the blue highlighted button.

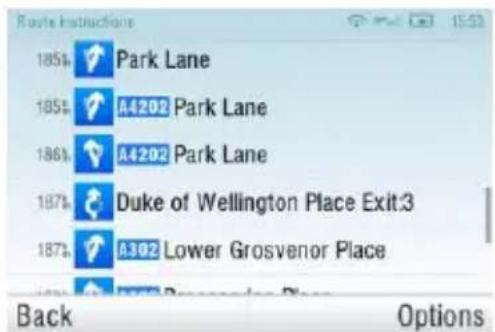

To get a detailed list of junctions and directions along the route, select

Show route instructions

185% Park Lane 185% A4202 Park Lane 186% A4202 Park Lane 187% Duke of Wellington Place Exit.3 187% A392 Lower Grosvenor Place Back Options

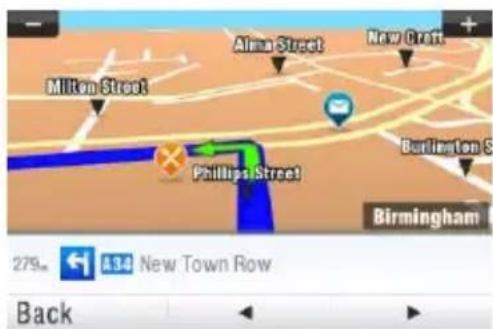

To see the same junctions as a series of images, select

Show route as images

Milken Street Alma Street New Crott Burlington S Phillips Street Birmingham 279m ← A34 New Town Row Back

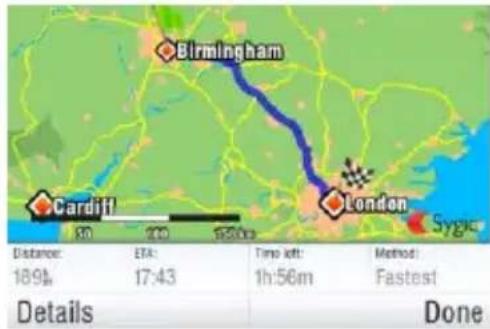

To see the entire route on the map, select

Show on map

Birmingham Cardiff London Sygic Distance: ETA: Time left: Method: 189% 17:43 1h:56m Fastest Details Done

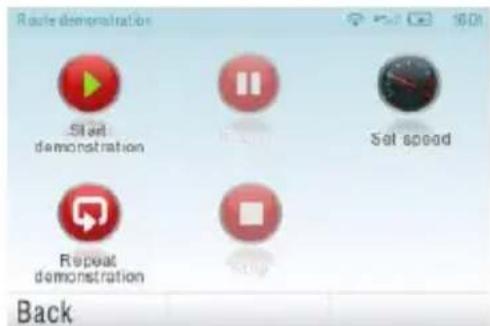

To see the calculated route as if you were driving along (fly over mode) select

Show route demo

Route demonstration Start demonstration Repeat demonstration Set speed Back

Modifying the Route

To modify an existing route, first open the Alternative route menu:

Main menu >

Route >

Alternative route

If you do not like the calculated route and wish to calculate an alternative option, select

Compute alternative

To calculate a detour (e.g. because the road ahead is closed), select

Avoid next...

If you wish to travel through a certain place on your trip, select

Travel via...

and add a waypoint the same way, as setting the destination in chapter "II. Planning the Route" on page 7.

You can also

Avoid traffic delays

on your route. See Traffic alerts on page 22 for more details.

For more information about availability of Traffic service, see the chapter "Traffic alerts on page 22".

If you want to cancel your modifications to the route, select

Reset to original.

If you wish to cancel the calculated route entirely, and use the navigation system only as an indicator of your current position, select

Main menu >

Route >

Cancel route

NOTE: You can find additional information about modification of calculated route in chapters "Map Browsing Mode" and "Multi-stop route planning".

Map Browsing Mode

You can easily check and plan/modify your route in Map Browsing Mode. Select

Main menu >

Map

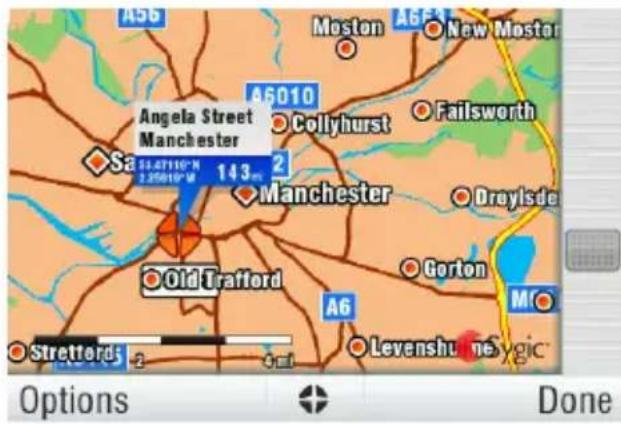

A56 Moston A64 New Moster A6010 Angela Street Manchester Failsworth S3 21.47110°N 2.25010°W Collyhurst Manchester Dreylsde Old Trafford Corton A6 Levenshu Sygic Stretters Options Done

Drag the map by sliding your finger across the screen. Tap the map to select specific location.

For map display options and additional functions tap the

"Options" button and select one of the following items.

Find...

You can find a position by using one of the options described in chapter II. Planning the Route.

Show current position

Show entire route

Show city

Shows entire city on map screen.

Show/Hide POIs...

You can select, which types of POI types are displayed when browsing the map.

To plan/modify your route, tap on a location on the map, then tap the button marked as “ ” to choose what you want to do with the selected point.

Navigate there

Sets the location as destination. The previously selected route will be deleted.

Travel via

Adds the location as a new waypoint to your existing route between start and finish.

Continue

Adds the location as a new waypoint after the existing destination.

Add as POI

Stores the location in Favourites or in other POI category.

Find nearby POI

Searches POIs around the location.

Avoid...

Recalculates the route avoiding a set radius around

the location. You will be asked to set the radius in the next step.

Multi-stop route planning

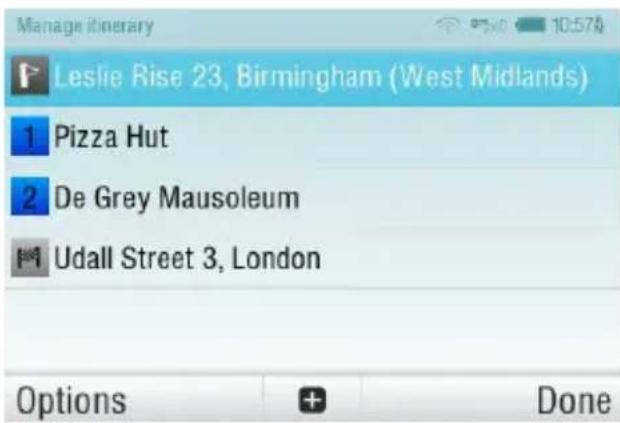

If you have added some waypoints to your route via Map or Alternative route, you can edit them in Itinerary. It is also possible to optimize waypoints along the route, plan a new route or store it for future use.

To edit the current route, select

Main menu >

Route >

Itinerary

and select the [Current route] to see the list of waypoints.

Manage itinerary Leslie Rise 23, Birmingham (West Midlands) 1 Pizza Hut 2 De Grey Mausoleum Udall Street 3, London Options + Done

The itinerary shows the starting point (marked with ), the numbered waypoints and the final destination (marked with ). The waypoints that you have already passed are greyed out.

You can add a waypoint to the itinerary by taping the button.

Waypoint options

Tapping on any waypoint in the itinerary brings up the following list of options:

Set as visited

Stops navigating to the selected waypoint and recalculates the route to the next waypoint in the itinerary.

Set as finish point

Puts the waypoint to the end and moves others upwards in the itinerary.

Set as via point

Changes the final destination to an intermediate waypoint.

Set as start

Stores the selected waypoint as the starting point of the route.

Add nearby POI

Use this option to search for a POI (e.g. a hotel) near the

selected waypoint, and then add it to the itinerary.

Move up

Moves the selected waypoint up in the itinerary.

Move down

Moves the selected waypoint down in the itinerary.

Delete

Deletes the selected waypoint from the itinerary.

Itinerary options

For additional itinerary functions tap the "Options" button at the bottom of the Itinerary Screen and select one of the following items.

Optimize itinerary

Optimizes the waypoint sequence in the itinerary.

Save itinerary

Saves the itinerary for future use.

Delete itinerary

Deletes the itinerary.

IV. Online features

The entire chapter Online features applies only to Sygic Mobile Maps 10 product.

Connection

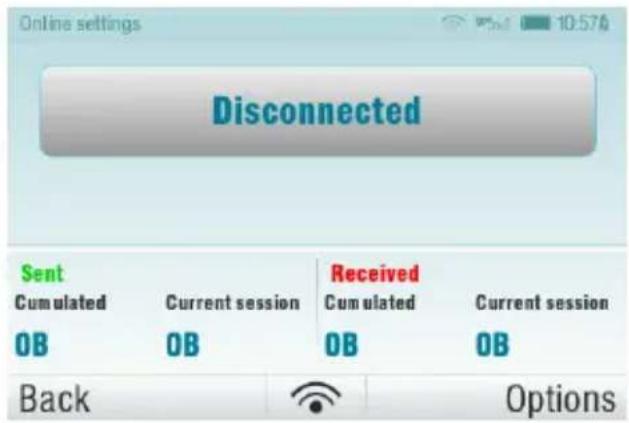

In order to use online services (e.g. real time traffic and safety camera alerts) you will need to connect your device to the internet. Select

Main menu >

Settings > Online settings

The button shows the actual status of the connection. If it shows

"Disconnected" tap the button to go online.

Online settings 10:57A Disconnected Sent Cumulated Current session Received Cumulated Current session OB OB OB OB Back Options

The window also shows the amount of data sent and received so that you can control data traffic.

NOTE: The cost of data transfer depends on your mobile phone tariff. Make sure you know the cost before you start using online features. The costs can be considerably higher when you are roaming abroad.

Traffic alerts

Availability of the traffic service depends on your product configuration.

Sygic Mobile Maps 10 users: Visit www.sygic.com/shop for more information about availability and pricing of traffic service in your region.

For more options, including roaming preferences, tap the "Options" button.

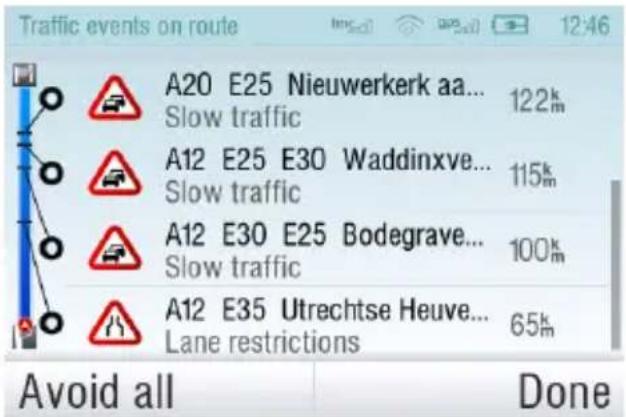

To view real time alerts of traffic incidents along your calculated route, select

Main menu >

Traffic > Incidents on route.

The screen will show the incidents ordered by their distance from your current position. You can select which of them you want to avoid.

Traffic events on route A20 E25 Nieuwerkerk aa... Slow traffic 122km A12 E25 E30 Waddinxve... Slow traffic 115km A12 E30 E25 Bodegrave... Slow traffic 100km A12 E35 Utrechtse Heuve... Lane restrictions 65km Avoid all Done

To select all the listed incidents, tap the "Avoid all" button.

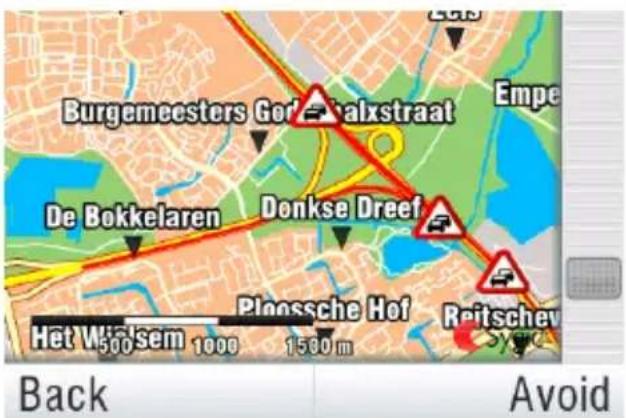

To select individual incidents, first tap the incident to show its extent on the map.

Tap "Avoid" to select it.

Incidents selected for avoidance are marked with a solid black circle.

To recalculate the route avoiding the selected traffic incidents, tap "Done" and from the Traffic menu select

Optimize route.

Traffic incidents are also shown on the map overview of your calculated route.

Reporting speed cameras and incidents

If you observe a speed camera or traffic incident on-route, tap the bottom bar of the Navigation Screen.

Arran Way Lancaster Way 4.0 kilometers Birmingham 900 meters 302km 176km M6

Select your option from the menu.

Report trap Report Police trap Report Incident / Dangerous place Back

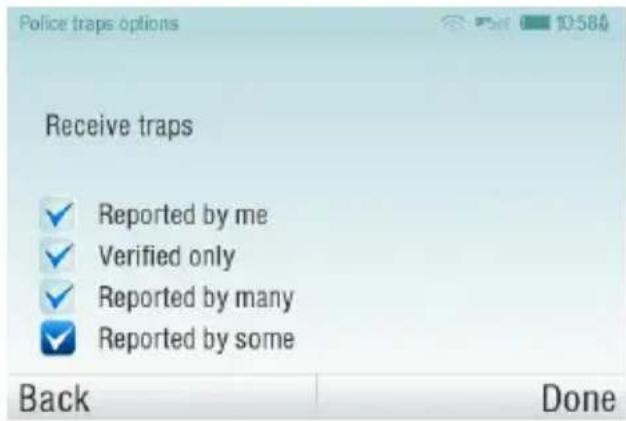

To change the way you receive reported camera and incident information, select

Main menu >

Settings >

Online services > Police traps

Police traps options Receive traps ✓ Reported by me ✓ Verified only ✓ Reported by many ✓ Reported by some Back Done

Join the growing Policetraps.com community, where other users meet to make further improvements to the database.

For more information, visit www.policetraps.com

Sharing position via SMS

This feature is not available on iPhone, Android and Maemo devices.

Sygic Mobile Maps enables you to share your current position or any other location with others via SMS text message.

To send your current position to your contacts or to receive their position, select

Main menu >

SMS share

and select the required action from the menu.

Actions Send My Position Send Other Position Request Position Show Details Delete Point Back

Weather Information

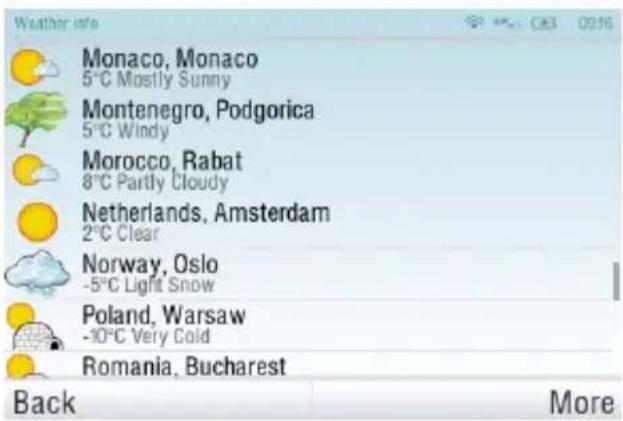

To check the weather information for a specific area, select

Main menu >

Extras >

Weather

Weather info Monaco, Monaco 5°C Mostly Sunny Montenegro, Podgorica 5°C Windy Morocco, Rabat 8°C Partly Cloudy Netherlands, Amsterdam 2°C Clear Norway, Oslo -5°C Light Snow Poland, Warsaw -10°C Very Cold Romania, Bucharest Back More

To change your weather settings (e.g. to show weather icons in Map view, to switch between ^ C/ ^ F or to set automatic weather updates) select:

Main menu >

Settings >

Online services > Weather.

V. Settings

IMPORTANT: Menu items marked with * are not available in all devices.

To change factory settings, select

Main menu

Settings

NOTE: Icons always display the setting that will be activated when they are tapped. E.g.

means that voice output and sounds are currently enabled, and tapping this button will disable the sounds.

Set 2D/3D

Change between 2D and 3D map view

Dynamic control

Set the preference how to scroll within lists and menus.

Set Day/Night colours

Disable sounds

Enable sounds

Volume settings \*

Set the sound intensity separately for low driving speed and for high speeds.

Online settings \*

Connect or Disconnect your device from internet, check data transfers and set roaming preference.

Online services \*

Activate / Deactivate Policetraps community service.

Advanced settings

(for advanced users only)

For more information, see page 28.

Planning preferences

Set the routing algorithm: Fastest, Economic, Shortest, Pedestrian, Bicycle.

Toll charge settings

Set the preference of paid road segments: avoid them, do not avoid them, or always ask.

GPS hardware \*

Detailed configuration of GPS and TMC hardware.

Signpost settings

Sets the number of signpost tables displayed at one time and the level of detail (Full, Simplified, Single line).

Preferred

Other

Rotate display \*

Change the display orientation (landscape / portrait).

Keyboard settings

You can switch between preferred keyboard layouts using 📄tton, that is available in every keyboard.

Regional settings

Set kilometers/miles, format of time and GPS coordinates.

Set language - language of user interface.

Set voice - language of voice instructions.

Switch map

Load a different map data from your device.

Backlight \*

Set backlight level for

Day/Night mode.

Set home location

About

Information about version, device code and available application memory. Please provide this information in communication with Sygic support.

Advanced settings

1 Avoid U-Turns

Enable Lane Assistant

Enable Autozoom

Warn if Railway Crossing

2 Backlight settings
3 Configuration of Information panel on the main screen

4 Notification settings of maximum speed limit

Disclaimer

The information contained in this document is the property of Sygic a.s. and may be used only for the purposes of operating and supporting the relevant software created by Sygic a.s.

Sygic a.s. reserves all rights concerning the information contained herein. This document or any part thereof may not be reproduced, distributed, or translated into other languages in any way or form except with the written approval of Sygic a.s.

This document is provided to the user on an ‘as is’ basis. Although maximum care was taken during preparation of this manual to provide accurate information and to avoid errors, some technical inaccuracies or editorial errors may occur, for which Sygic a.s. accepts no responsibility.

In the interest of improving the content of the document, Sygic a.s. reserves the right to modify, amend or delete any part of the document at any time without prior notice.

For more information and updates, visit www.sygic.com
