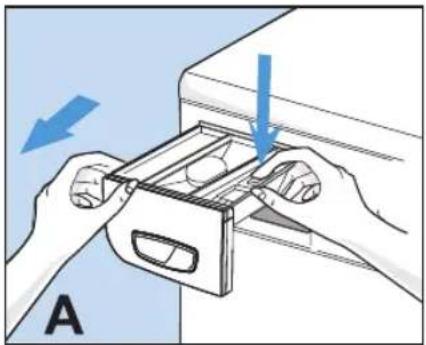

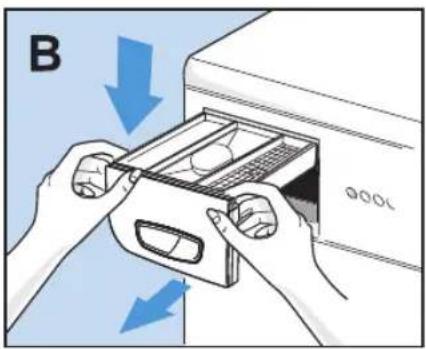

COME ESTRARRE LO SCOMPARTO DETERSIVI

Illustration of hands using a device to remove or transfer a tray (no text or symbols)

Illustration of a cleaning or cleaning device with a magnifying glass and a tray, no text or symbols present

Thank you for choosing our product.

Please read these instructions carefully before connecting and using the machine. An awareness of how the machine operates will help guarantee its correct and safe use. The instructions also contain some useful information on the machine's functions that will help you get the most out of its use.

If you decide to sell or give the washing machine to someone else, remember to give the instruction book to the new owner.

INDEX

NOTES AND ADVICE FOR THE USER 16-17

DESCRIPTION OF THE MACHINE 17

INSTALLING THE MACHINE 18-20

• Unpacking and unblocking the machine 18
• Positioning and levelling the machine 19
• Connecting to the water supply system 19
• Connecting to the power supply 20

USING THE WASHING MACHINE 20-22

• Using the machine 20
• Use of detergents 21
• How to eliminate stains 22
• International clothing care symbols 22

MAINTENANCE 2-24

• Cleaning the machine 23

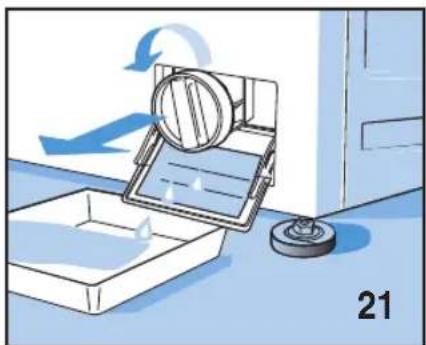

• Cleaning the fi Iter 23
• Troubleshooting 24

MODEL:

PRODUCTION CODE:

DATE OF PURCHASE:

NOTES AND USEFUL ADVICE FOR THE USER

The washing machine has been designed for domestic use only, and as such any other use is regarded as improper and therefore potentially dangerous.
■ Any modifications or attempts to alter the equipment in any way may be dangerous for the user and cause damage to the washing machine.
Due to the weight of the machine, special safety standards must be observed during handling.
The machine must not be used by unsupervised children.
■ Any modifi cations to the wa-ter or electrical system must be carried out by authorised specialists.
When positioning the ap-

pliance, make sure that the power supply cable is not bent or squashed and that it is accessible.

Before operating the machine remove all packing materials and the locking device used for protection during transport (protection screws). Failure to do this may result in serious damage to the machine and to your home.
If the machine is installed on a carpeted floor, make sure that air is free to circulate between the machine and the floor.
The washing machine must never be overloaded.
When the machine is in operation, avoid any contact with the water coming out of the drain hose, as this may be hot. Do not touch the door glass as this may

also heat up during the wash

Only wash clothes that are machine washable. In case of doubt, check the manufacturer's instructions found on the label attached to the clothes (see "Clothing cares symbols").
Before loading clothes into the washing machine, check that all the pockets are empty. Hard or pointed objects such as coins, pins, nails, screws or even stones can cause serious damage.
Clothes that have been dirtied with substances containing petroleum cannot be washed in the machine. If stains have been removed using vaporising products, before loading the clothes in the washing machine, wait until

Cartoon illustration of a distressed washing machine with steam rising, accompanied by a person holding a power outlet (no text or symbols)

Do not plug-in or unplug the machine with wet hands.

Cartoon illustration of a washing machine with a bandaged arm and electrical outlet symbols (no text or labels)

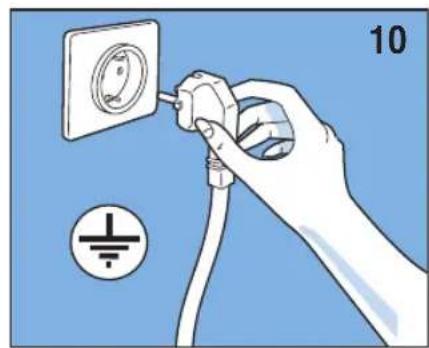

The power supply socket to which the machine is connected must be earthed and must comply with the safety requirements

Cartoon illustration of a distressed washing machine with steam rising, surrounded by industrial equipment (no text or symbols)

Extension leads or multiple adapters must not be used to connect the washing machine to the mains supply.

Cartoon illustration of a distressed character holding a large water bottle, with raindrops falling (no text or symbols)

Do not expose the appliance to atmospheric agents.

Cartoon character celebrating with a stopwatch and thumbs-up, next to a newspaper (no text or symbols on the main image)

The door can only be opened approximately three minutes after the end of each wash, as a safety device has been fitted to protect from accidental opening. N.B. for electronic models the door will open when the "end" indicator lights up

Cartoon illustration of a smiling washing machine with hands holding wrenches and a small inset showing a switch (no text or symbols)

Unplug the washing machine from the power supply before servicing and cleaning.

Cartoon illustration of a washing machine with steam rising, emitting exhaust smoke from a plug (no text or symbols)

To disconnect the machine from the power supply, pull the plug and not the cable.

Cartoon illustration of a washing machine with a blue faucet and a smiling face (no text or symbols)

After the end of each washing cycle it is advisable to unplug the machine and shut-off the water supply.

NOTES AND USEFUL ADVICE FOR THE USER

the substances have completely evaporated from the material.

Do not use detergents formulated for hand washing, in that the excessive lather produced could damage the internal components.
After washing rugs, blankets or any other long fi bre fabrics, remember to check the fi Iter and, if necessary, clean it.
It is advisable to leave the door open at the end of the wash cycle.
Under no circumstances should any repairs to the machine be attempted by unqualified persons as this could result in serious damage and will invalidate the guarantee.
- Repairs to the washing ma-

chine must only be carried out by persons authorised to do so by the service centres. Only original spare parts may be used for repairs.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol ☒ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city offi ce, your household waste disposal service or the shop where you purchased the product.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY ACCIDENTS THAT MAY RESULT FROM NON-COMPLIANCE WITH THE REQUIREMENTS OF SAFETY STANDARDS OR THIS INSTRUCTION MANUAL

DESCRIPTION OF THE MACHINE

The washing machine is a household appliance that can wash any type of fabric whenever you want.

The structure of the machine is fabricated in steel sheet, which has been worked using a special process and then enamelled in order to maintain its external appearance and protect it against corrosion.
The motor and all the other moving parts are built to ensure noiseless machine operation.
The large stainless steel drum is well placed to guarantee a good wash quality and prolong the life of the washing.
The easy to use control panel makes the selection of any

wash or dry programme quick and simple (see control panel and table of programmes).

The ample glass door makes loading and unloading easier.

The perfect machine balance is the result of many years of research aimed at fi nding the correct balance between the various moving parts.

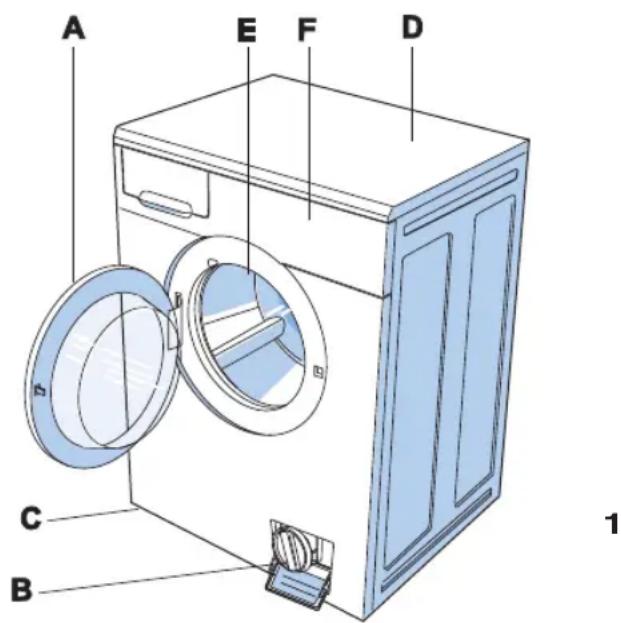

A E F D C B 1

A - Glass door
B - Filter
C - Adjustable feet
D - Top cover
E - Drum
F - Control panel

INSTALLING THE MACHINE

The machine must be installed by professionally qualified technicians, according to the manufacturer's indications. Incorrect installation may result in damage to persons and property.

The machine can be installed anywhere, provided the temperature in the place of installation is not below 3^ C and the cables and hoses at the rear of the machine are not crushed in any way.

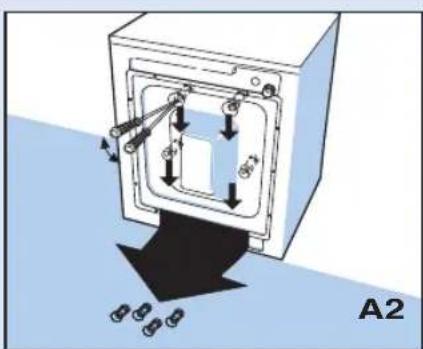

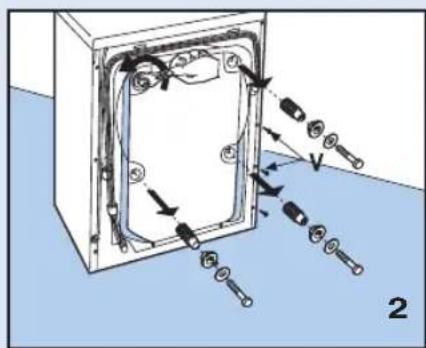

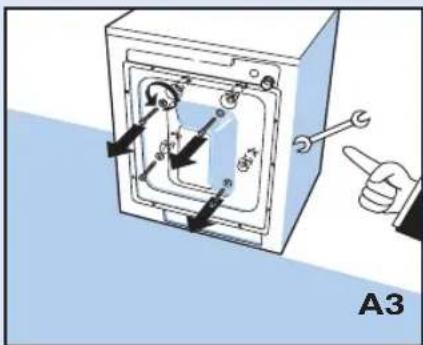

For transport purposes the swinging unit in the machine is blocked using 4 spacers with screws. Before starting the machine these spacers and lock screws must be removed, and stored for use in the event of a possible change of location.

Diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

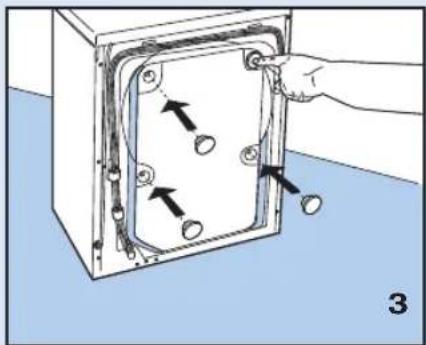

Block off the holes with the plugs provided, which can be found in the bag containing the documents.

Diagram of a hand pressing a component into a rectangular housing with arrows indicating movement (no text or symbols present)

For transport purposes the swinging unit in the machine is blocked using 4 spacers with screws. Before starting the machine these screws must be removed using a screwdriver.

Diagram of a mechanical device with directional arrows indicating movement, labeled A2 (no text or symbols on the diagram itself)

Insert a screwdriver in the holes and proceed as shown in the figure to recover the 4 plastic spacers.

Diagram of a mechanical assembly with a wrench and tool, no text or symbols present

INSTALLING THE MACHINE

SETTING THE MACHINE LEVEL

Illustration of hands using a tool to adjust or install a small component near a window (no text or symbols visible)

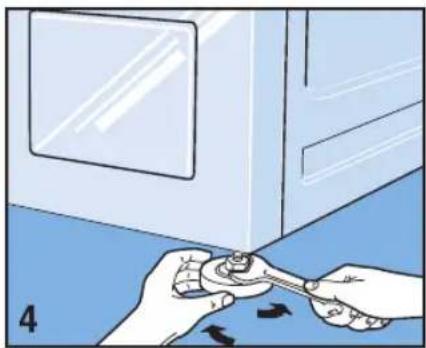

After selecting a suitable position, level the machine carefully using the adjustable feet (Fig. 4).

Particular care must be taken when selecting the position, levelling the washing machine and ensuring the safety of lock nuts.

If levelling is not carried out correctly, the washing machine will be unstable and noisy during operation, which may result in damage.

If the machine stands on a carpet floor, make sure that air can circulate freely between the washing machine and the floor itself.

It is not recommended that the machine be installed in locations where the temperature is liable to drop below freezing.

CONNECTION TO THE WATER SUPPLY SYSTEM

The mains water pressure must be between 0.05 and 1.00 MPa (0.5 - 10 bar.)
Before connecting the water fi ll hose, open the valve and allow a quantity of water to flow. This will censure that the supply pipes are free from impurities, such as sand or rust (this operation is very important when the washing machine is being connected to a new supply system or if the system has not been used for a long period of time).

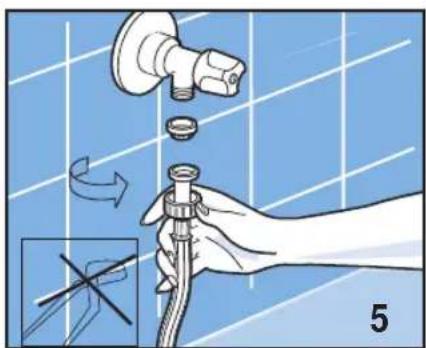

Connect the water fill hose to a 3/4 threaded cold water outlet.
Place the fi Iter washer supplied between the hose and the valve and hand tighten the connection as much as possible (fi g. 5).

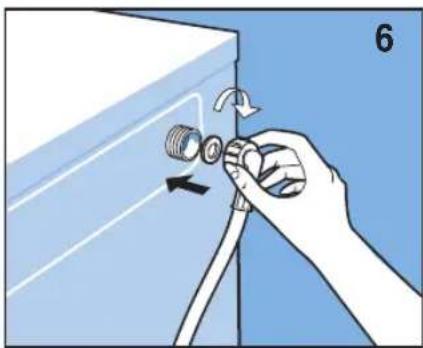

Fit the washer on the other end of the supply hose, and screw it onto the washing machine (fi g. 6).

N.B.: Use the new pipe supplied with the machine and do not re-use the old one.

Illustration of a hand holding a pipe fitting with a valve, showing rotational motion (no text or symbols)

The water supply tap must be fully open when washing.

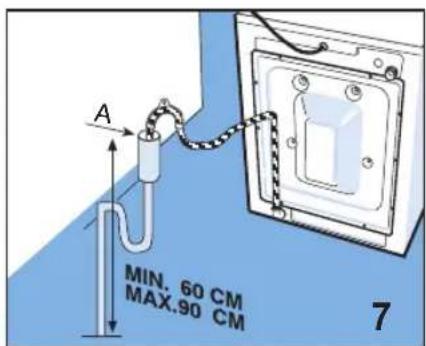

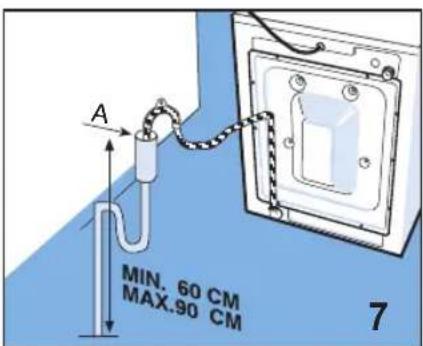

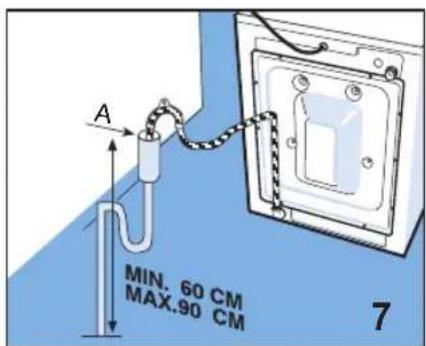

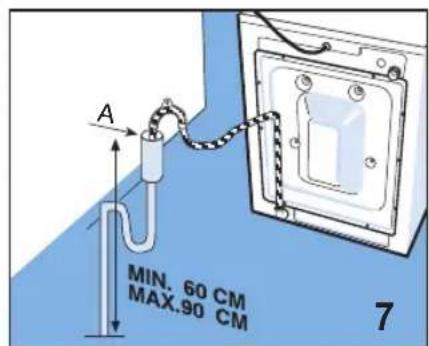

The water drain hose must be placed at least 60 cm and not more than 90 cm from the floor (fi g. 7).

If the drain hose is connected to a fixed drainage system, the free end must be inserted in a pipe of minimum internal diameter 40 mm.
The drain hose water connection to the drainage system must not be hermetically sealed, as this would cause air to accumulate and the water to siphon out.

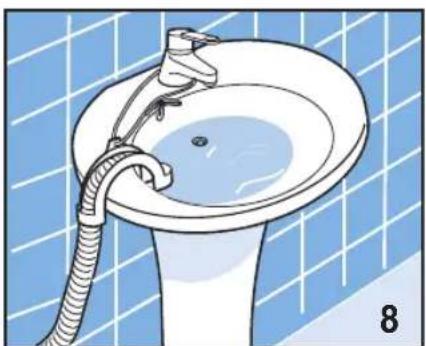

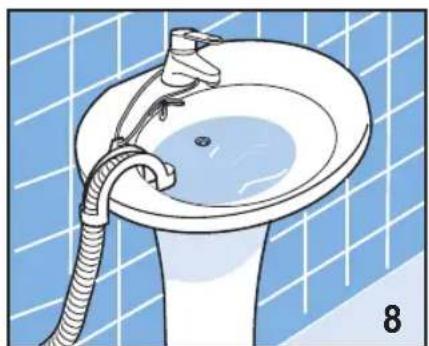

If the waste water is to be discharged into a sink or washbasin, insert the hose in the special bracket supplied and hook it over the edge of the sink or washbasin. Then tie the hose and bracket to a tap or similar (fi g. 8). To avoid overflowing, the sink drain must be clear of obstructions and must be able to empty quickly.

Illustration of a hand holding a pipe with a valve, showing a mechanical assembly and a magnified inset of the valve mechanism (no text or symbols)

A MIN. 60 CM MAX.90 CM 7

Illustration of a bathtub with a hose and drain, against a tiled wall background (no text or symbols)

INSTALLING THE MACHINE

CONNECTING TO THE POWER SUPPLY

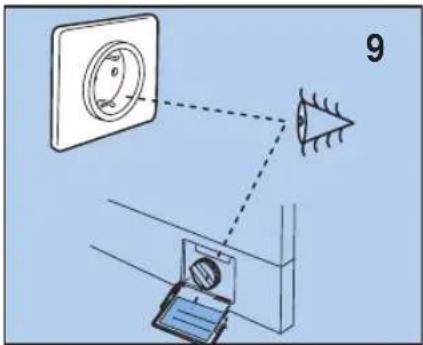

Check that the ed on the technical data plate on the back of the washing machine is the same as that of the mains power supply (fig. 9).
The fuses, ele wall socket must be rated to withstand the maximum power load indicated on the data plate.
On completion of the installation, the appliance must be

9

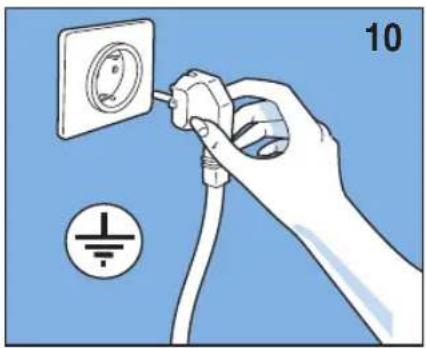

v connected to the mains supply through a two-pole switch. The power supply socket into which the washing machine will be plugged must be earthed. Otherwise, the manufacturer will not be held responsible for any accidents (fi g. 10).

Hand inserting a plug into an electrical outlet, with a symbol indicating the power source (no text or labels present)

If the socket to which the machine will be connected is faulty or does not comply with

• the requirements, it must be replaced by a qualified electrician.
  The washing machine must not be connected to the electricity supply using extension leads or multi-plug adapters.
  During maintenance the washing machine must be unplugged from the power supply socket.
  Do not plug-in or unplug the machine with wet hands.
  If the power cable is damaged in any way, contact the specialised technical service centre.

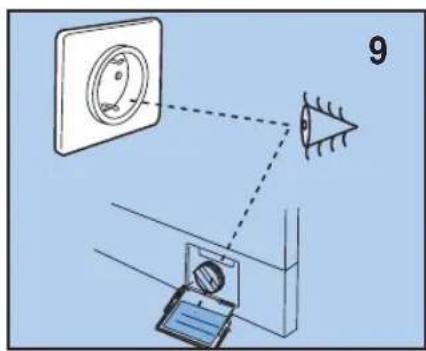

  ■ Position the appliance so that the power supply cable can be accessed with ease, enabling it to be disconnected when required.

USING THE MACHINE

ADVICE BEFORE USING

Attention: Before running the machine loaded for the first time, we re-commend that you run a short washing cycle with the machine empty.

This makes it possible to check operation of the machine and clean the drum.

Each time you use the machine:

check that all water connections are tight, the drain hose is positioned correctly

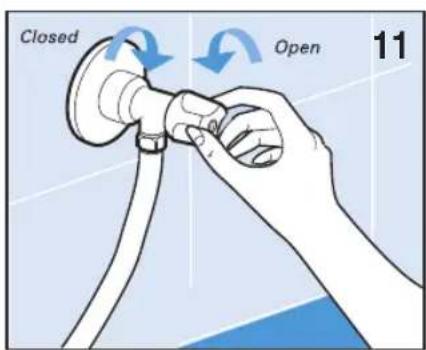

Closed Open 11

(see connection to the water supply) and the supply tap is open.

■ make sure that your hands are dry, then insert the plug into the power socket.
■ divide the washing according to fabric type (check the labels on the clothes).
check that the clothes to be washed have nothing in their pockets that might damage

the washing, the washing machine or the fi Iter

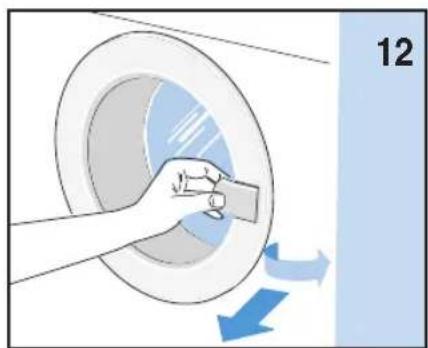

Illustration of a hand holding a rectangular object over a circular ring, with blue arrows indicating motion or flow (no text or symbols)

USING THE MACHINE

USE OF DETERGENTS

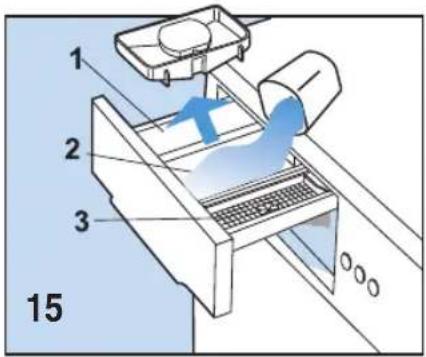

The washing machine has a three-compartment detergent drawer.

1 compartment for pre-wash or soak powder detergent (1)

2 compartment for normal wash powder detergent (2)

compartment for fabric softener, perfume, starching or bleaching agents (3)

use a low-foam detergent and softener (if necessary), of the type indicated for automatic washing machines. Use the doses recommended on the package.

1 2 3 15

YES NO 16

N.B. Excessive amounts of detergent may result in too much foam, and give a poor quality wash.

Insufficient amounts of detergent may mean that the washing does not come properly clean.

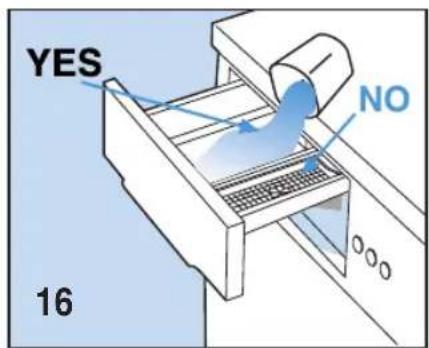

N.B. When filling the detergent compartment it is important that the detergent does not overflow into the compartment used for fabric softener, as this would result in a rinse cycle containing soap, which might leave the washing with white stains. Equally, do not allow the fabric softener to overflow into the detergent compartment, as this would reduce the cleaning capacity.

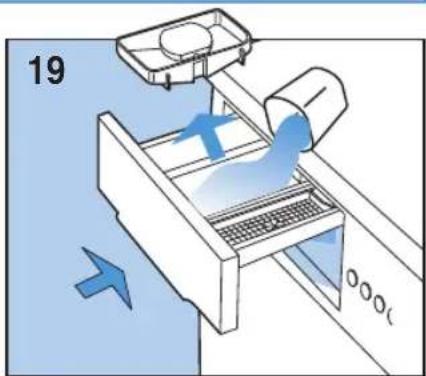

WHEN THE MODEL REQUIRES THE USE OF A TRAY OR DIVIDING WALL FOR LIQUID DETERGENT

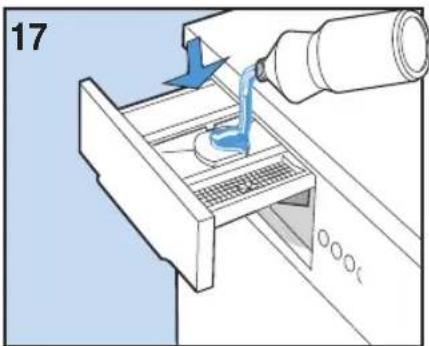

N.B. When using liquid detergent (recommended for programs without pre-wash), insert the special tray (if supplied) or the dividing wall inside the middle compartment “2” (as shown alongside), fig. 17/18, then pour the liquid detergent up to the maximum level indicated

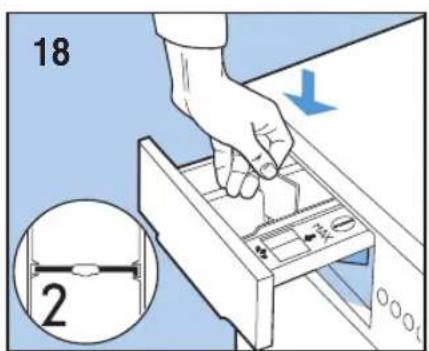

Correctly insert the dividing wall in the guides (fig. 18)

Remember to remove the liquid detergent tray or the dividing wall when using powder soap.

- Close the detergent drawer before starting the wash cycle.

WARNING!! Do not open the detergent drawer when the machine is working as this may cause water to spill out.

17 0.001

18 2

Diagram of a printer printing process with blue arrows indicating flow direction (no text or symbols)

USING THE MACHINE

HOW TO REMOVE STAINS

Some stains cannot be removed by just washing in a washing machine. Before trying to remove any type of stain by hand, first try the removal procedure on a small area of hidden fabric starting from the edge of the stain and working inwards, this will prevent a dark ring from forming around the site of the stain. A few methods for removing stains are reported below.

● WAX: scrape the wax using a blunt point in order not to damage the fabric. Then, with the fabric placed between two pieces of absorbent paper, run a hot iron over the stain.
- BALL-POINT PENS AND FELT-TIP PENS: clean using a soft cloth soaked in ethyl alcohol. Take care not to spread the mark.
● DAMP AND MOULD: if the fabric supports the use of bleach, perform a wash cycle adding bleach to the appropriate compartment in the dispenser (see table of programmes). Other-wise, soak the soiled part in hydrogen peroxide (10 volumes) and leave for 10 to 15 minutes.
● LIGHT SCORCH MARKS CAUSED BY IRONING: follow the instructions

for mould and damp.

• Rust: use products specially designed for rust stains, following the manufacturer's instructions written on the packet.
• CHEWING GUM: rub ice over the mark, scrape away as much as possible and then rub with a cotton cloth soaked in acetone (alternatively, use nail varnish remover).
  ● PAINT: do not allow the paint to dry. Rub the area with the solvent recommended by the paint manufacturer (e.g. water, turps, trichloroethylene), apply soap and then rinse.
  ● LIPSTICK: stains on cotton or wool can be eliminated using a cloth soaked in ether. Stains on silk require the use

of trichloroethylene.

● NAIL VARNISH: place a sheet of absorbent paper on the stained material, then dampen the back of the fabric with acetone, frequently changing the paper placed over the stain. Continue like this until the stain has disappeared.
● TAR OR DIRT: spread some fresh butter over the stain, allow to stand and then wash with oil of turpentine.
● GRASS: delicately soap the stain, use diluted bleach. Good results can be obtained on woollen fabrics using 90% alcohol.
● B LOOD: put into soak in cold water with added salt, then wash with washing soap.

INTERNATIONAL CLOTHING CARE SYMBOLS

Before placing the clothes in the washing machine and selecting the wash programme, examine the symbols on the manufacturer's label. The table reported below will provide a useful guide to reading the symbols.

	Normal wash	Iron at up to max 200°	Dry flat
	Delicate wash	Iron at up to max 150°	Dry hanging
	Wash at max 95°C	Iron at up to max 100°	Dry on hanger
	Wash at max 60°C	Do not iron	Dry in tumble dryer at normal temperature
	Wash at max 40°C	Dry-clean using solvent
	Wash at max 30°C		Dry in tumble dryer at low temperature
	Hand wash	Dry-clean using benzine, pure alcohol and R113 only
	Dry-clean only	Dry-clean using ethyl perchlorate, benzine, pure alcohol, R111 and R113.	Do not tumble-dry
	Bleach in cold water
	Do not bleach	Do not dry-clean

MAINTENANCE

The washing machine has been designed to reduce maintenance to a minimum. However, it is important that you remember to clean it regularly. Before cleaning, make sure that the appliance has been disconnected from the power supply and that the water supply tap has been turned off.

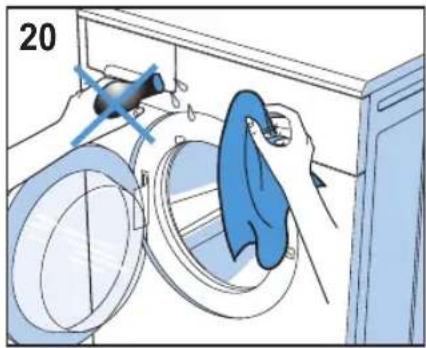

CLEANING THE WASHING MACHINE

The external structure and the parts of the washing machine in plastic must be cleaned with a soft damp cloth only.

Illustration of a washing machine with a blue cloth cleaning the rim (no text or symbols)

WARNING!! Never use chemicals, abrasive products, alcohol, soap, petrol or other solvents to clean the appliance as these may cause damage. (fi g.20)

After washing, leave the door open for a little while to allow rubber parts to dry.

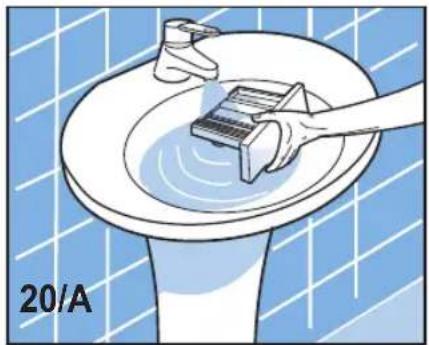

Wash out the detergent compartments from time to time. To do this, extract the detergent compartment and rinse it under running water, (fig. 20/A) then

Illustration of a hand cleaning a circular basin with a brush (no text or symbols)

REMOVING THE DETERGENT DRAWER

(fi g. A or B, according to the model)

- If the softener compartment "3" has the word "PUSH" written on it:

Illustration of hands installing or removing a drawer into a drawer holder (no text or symbols present)

• open the detergent drawer;
• press on the word "PUSH" with the right hand and pull out the drawer with the left hand (fi g. A)
• If the softener compartment "3" does not have the word "PUSH" written on it:

B 000L

• open the detergent drawer;
• grasp it with both hands, push down slightly and pull the drawer outwards (fig. B).

CLEANING THE FILTER

ATTENTION!! Before starting the operations described below, make sure that the washing machine is empty. Do not remove the filter while the machine is running, or when full of water.

Illustration of a cleaning or cleaning device with a magnifying glass and tray, no text or symbols present

Place a cloth or fl at plate under the fi lter to collect any water that may still be inside it.

Open the fi Iter door, unscrew the fi Iter and remove it, turning in an anticlockwise direction (fi g.21).

The fi Iter must be cleaned periodically.

Rinse the filter under running water to eliminate all waste. Replace the filter, screwing in a clockwise direction and making sure it is hermetically sealed.

MAINTENANCE

TROUBLESHOOTING

If the appliance is not working properly, check through the following troubleshooting list before calling for technical assistance.

The washing machine does not work (warning lights are off)

- check that:

1) The mains power supply is working
2) The plug is inserted correctly in the socket
3) The On/Off button is pressed or, if there is no On/Off button, the programmer knob is pulled outwards.

The washing machine does not work (warning lights are off)

- check that:

1) The programmer knob is set to the selected program
2) The glass door is properly closed
3) The "Start pressed (electronic models only)
4) check the indications provided under "The washing machine does not fill with water"

The washing machine does not fi ll with water

- check that:

1) There is water in the water supply system
2) The water supply hose is connected to the washing machine
3) The water supply tap is open
4) The fi liter is not blocked. If it is, clean the fi liter after unplugging the appliance from the power supply

The washing machine continuously fills and drains the water:

- check that:

1) The drain hose has been

installed at the proper height (60-90 cm)

2) The end of the drain hose is not under water

The washing machine does not drain or spin

- check that:

1) The drain hose is properly connected
2) The drain hose is not bent
3) The drainage filter is not blocked
4) The no-spin function has not been selected

The washing machine vibrates and is noisy

- check that:

1) All the blocking elements used for transportation have been removed.
2) the washing machine is level
3) Bulky item tablecloths etc. are not all in one part of the drum

The glass door does not open

1) Wait for 3 minutes after the end of the cycle or, in the case of electronic machines, until the "End" indicator lights up

The washing has not been properly spun

- check that:

1) The washing is evenly distributed in the drum
2) The correct spin speed has been selected

The washing machine stops during the wash

- check that:

1) The mains power supply is working

There is still a lot of detergent in the compartment

- check that:

1) The water supply tap is open
2) The filter between the tap and the supply hose is clean

The washing is not clean at the end of the wash cycle

- check that:

1) The drum is not overloaded
2) The correct amount of detergent has been used
3) The correct point been selected

e,e n

The washing has shrunk or faded

- check that:

s 1) The correct washing pro- gramme has been selected
2) The correct washing temperature has been selected

The washing machine does not dry (washer-dryer models only)

• Make sure that:

1) The water supply tap is open
2) The drainage filter is clean
3) The washing machine is turned on (control light on)
4) The program dial is positioned on one of the stop points with the dryer symbol.
5) The drying time regulator dial is not set to "0"
6) The "Half Load" button is pressed.
7) The "No Spin" button is not pressed

If, after trying the above remedies, the machine still does not work, refer the fault to the nearest authorised service centre.

When calling the service centre, inform them of the machine model, the serial number and the type of fault. The data relating the appliance can be found on the rating plate affi xed to the fi lter door.

This information will allow the technical service staff to select the appropriate spare parts, thus making the repair service quicker and more efficient.

DEUTSCH

Werter Kunde,

Cartoon illustration of a steaming washing machine with a blue background, showing steam rising and a person holding a phone (no text or symbols)

Cartoon illustration of a washing machine with a hand holding a power outlet (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, surrounded by steam from its side (no text or symbols)

Cartoon illustration of a distressed garment being hit by a large water droplet (no text or symbols)

Cartoon illustration of a smiling character holding a large document with a stopwatch, no text or symbols present

Cartoon illustration of a smiling washing machine with hands holding wrench and screwdriver, next to a small device (no text or symbols)

Cartoon illustration of a washing machine with steam rising, being connected to a plug (no text or symbols)

Cartoon illustration of a water tap with a large pipe and a smiling face, no text or symbols present

Diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Diagram showing a hand pressing a component into a box with directional arrows indicating movement or force, labeled with number 3.

Diagram of a mechanical device with arrows indicating force or movement, labeled A2 (no text or symbols on the diagram itself)

Diagram of a mechanical assembly with tool and wrench, no text or symbols present

Illustration of hands using a tool to adjust or install a small component near a window (no text or symbols visible)

Illustration of a hand holding a pipe with a valve, showing a mechanical assembly and a magnified inset of the valve mechanism (no text or symbols)

schmaschine anflanschen (fi g. 6).

Illustration of a hand adjusting a component with a curved arrow indicating rotation (no text or symbols)

Illustration of a bathtub with a hose and drain, against a tiled wall background (no text or symbols)

Illustration of a hand inserting a plug into an electrical outlet, with a ground symbol and number 10 (no text or labels)

Illustration of a hand holding a small object through a circular pipe with blue arrows indicating flow direction (no text or symbols)

JA 16 NEIN

FÜR MODELLE MIT BEHÄLTER ODER TRENNWAND FÜR FLÜSSIGWASCHMITTEL

Diagram of a printer printing process with blue arrows indicating flow direction (no text or symbols)

Illustration of a washing machine with a blue cloth cleaning the rim (no text or symbols)

Illustration of a hand cleaning a circular basin with a brush (no text or symbols)

WIE WIRD DIE WASCHMITTEL- SCHUBLADE ENTNOMMEN

(ABB. A ODER B, MODELLABHÄNGIG)

Illustration of hands installing or removing a drawer into a drawer holder, with arrows indicating direction (no text or symbols)

sehen:

Illustration of a cleaning or cleaning device with a magnifying glass and a tray, no text or symbols present

Cartoon illustration of a distressed washing machine with steam rising, accompanied by a person holding a power outlet (no text or symbols)

Cartoon illustration of a washing machine with hands and electrical circuit symbols (no text or labels)

Cartoon illustration of a distressed washing machine with steam rising, surrounded by industrial equipment (no text or symbols)

Cartoon illustration of a distressed character holding a large water bottle, with raindrops falling (no text or symbols)

Cartoon character celebrating with a large '000' sign and stopwatch, no text or symbols present

Cartoon illustration of a washing machine with hands holding wrenches and a close-up of its body, no text or symbols present.

Cartoon illustration of a distressed washing machine with steam rising, being charged by a blue hand holding a power plug (no text or symbols)

Cartoon illustration of a washing machine with a blue faucet and a smiling face (no text or symbols)

Diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Diagram showing a hand inserting or adjusting a component with arrows indicating direction, labeled with number 3.

Diagram of a mechanical device with directional arrows indicating movement, labeled A2 (no text or symbols on the diagram itself)

Diagram of a mechanical assembly with tool and component, no visible text or symbols

INSTALLATION DE LA MACHINE

NIVELLEMENT DE LA MACHINE À LAVER LE LINGE

Illustration of hands using a tool to adjust or install a small component near a window (no text or symbols visible)

Illustration of a hand holding a tool with a coiled spring and directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding a pipe with a valve, showing a mechanical assembly and a magnified inset of the valve mechanism (no text or symbols)

A MIN. 60 CM MAX.90 CM 7

Illustration of a bathtub with a hose and drain, against a tiled wall background (no text or symbols)

INSTALLATION DE LA MACHINE

BRANCHEMENT ÉLECTRIQUE

Illustration of a hand inserting a plug into an electrical socket, with a power symbol below (no text or labels)

Illustration of a hand holding a circular object with blue shading, surrounded by directional arrows (no text or symbols)

EMPLOI DE LA MACHINE À LAVER LE LINGE UTILISATION DES DÉTERGENTS

OUI NON 16

Diagram of a printer printing process with blue arrows indicating flow direction (no text or symbols)

EMPLOI DE LA MACHINE À LAVER LE LINGE COMMENT ÉLIMINER CERTAINES TACHES

Illustration of a washing machine with a blue cloth cleaning the rim (no text or symbols)

Illustration of a hand cleaning a circular object with a brush, labeled '20/A' (no text or symbols on the diagram itself)

COMMENT SORTIR LE COM- PARTIMENT DÉTERGENTS

Illustration of hands using a device to remove or transfer a tray (no text or symbols)

Illustration of a cleaning machine with a lid and base, showing a circular component being cleaned (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, accompanied by a person holding a power cord and a phone (no text or symbols)

Cartoon illustration of a washing machine with hands holding a plug and a power outlet symbol (no text or labels)

Cartoon illustration of a distressed washing machine with steam rising, surrounded by industrial equipment (no text or symbols)

Cartoon illustration of a distressed character struggling under falling water, with no text or symbols present.

Cartoon character celebrating next to a large document with a stopwatch (no text or symbols)

Cartoon illustration of a smiling washing machine with hands holding wrenches and a small electrical outlet (no text or symbols)

Cartoon illustration of a washing machine with steam rising, connected to a plug and lightning bolts (no text or symbols)

Cartoon illustration of a smiling hand holding a water tap while looking through a washing machine (no text or symbols)

Diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Diagram of a mechanical assembly with arrows indicating movement or force direction (no text or symbols present)

Diagram of a mechanical device with directional arrows indicating movement, labeled A2 (no text or symbols on the diagram itself)

Diagram of a mechanical assembly with tool and component, no visible text or symbols

Illustration of hands using a wrench to adjust or install a component near a window (no text or symbols present)

Illustration of a hand holding a coiled cable with a knob, no text or symbols present

Illustration of a hand holding a pipe with a valve, showing mechanical components and a magnified inset (no text or symbols)

A MIN. 60 CM MAX.90 CM 7

Illustration of a bathtub with a hose and drain, against a tiled wall background (no text or symbols)

Illustration of a hand inserting a plug into an electrical socket, with a ground symbol below (no text or labels)

Illustration of a hand cleaning a circular object with blue arrows indicating direction (no text or symbols)

Illustration of a washing machine with a blue cloth cleaning the rim (no text or symbols)

ΠΡΟΣΟΧΗ!!

Illustration of a hand cleaning a circular object with a brush, labeled '20/A' (no text or symbols on the diagram itself)

Illustration of hands using a drawer to remove or displace a device, with arrows indicating process direction (no text or symbols)

Illustration of a cleaning or cleaning device with a magnifying glass and a base, no text or symbols present

L C I P S Bompani

Simple diagram with a circle, an arrow, and a diamond shape (no text or symbols)

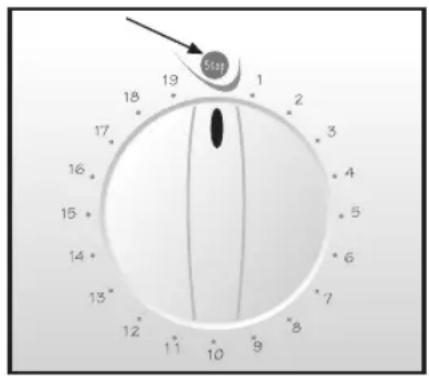

"STOP" SUL PROGRAMMATORE:

Stop 1 2 3 4 5 6 7 8 9 10 11 12 13* 14* 15* 16* 17* 18* 19*

Simple grayscale icon of a sphere with a curved arrow below it, no text or symbols present.

Simple grayscale icon of a light bulb with a plus sign below it (no text or symbols)

Simple illustration of a light bulb with a curved base (no text or symbols)

Simple grayscale illustration of a sphere above a stylized circular symbol (no text or symbols present)

L C I P S Bompani

Simple diagram with a circle, an arrow, and a diamond shape (no text or symbols)

Simple grayscale icon of a light bulb with a downward arrow below it (no text or symbols)

Simple grayscale icon of a light bulb with a plus sign below it (no text or symbols)

Simple illustration of a light bulb with a small grid-like element at the bottom (no text or symbols)

Simple grayscale illustration of a sphere above a circular symbol with a spiral (no text or symbols)

L C I P S Bompani

Simple diagram with a circle, an arrow pointing right, and a diamond symbol (no text or labels)

"STOPP" AM PROGRAMMWÄHLER:

Step 1 2 3 4 5 6 7 8 9 10 11 12 13* 14* 15* 16* 17* 18* 19 Step

Simple grayscale icon of a white sphere with a curved arrow below it, no text or symbols present.

Simple grayscale icon of a light bulb with a plus sign below it (no text or symbols)

Simple illustration of a light bulb with a curved base and grid pattern (no text or symbols)

Simple grayscale illustration of a sphere above a stylized circular symbol (no text or symbols present)

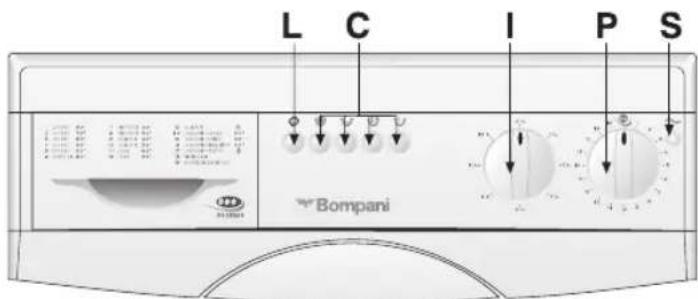

MAIN FUNCTIONS OF THE WASHING MACHINE

MODEL: BO05208 E - BO05209 E

L C I P S Bompani

C Optional function buttons

I Delayed start knob

L Start button

P Programme and temperature knob

S Indicator light

USING THE WASHING MACHINE

WASH CYCLE:

(follow these instructions and the washing machine will run the selected wash cycle)

1. Open the door
2. Load the washing in the drum and close the door.

Warning:

Do not overload the washing machine.

It is not advisable to wash items that absorb large quantities of water such as carpets.

1. Add a low-s detergent and softener designed for automatic washing machines in the respective compartments (see

chapter "USE OF DETERGENTS).

1. Close the d Do not open the drawer while the machine is working as this may cause water to spill out.
2. Rotate the (P) to select the programme and required temperature according to the type of fabric to wash (see: "PROGRAMME TABLES")
3. Select the (C) buttons with the required functions (see u d s n o w d e r "OPTIONAL FUNCTIONS").
4. If required, rotate knob (I) (see "DELAYED START")
5. Press button (L) to start the

wash cycle (see "START BUTTON")

e9.1 On completion of the wash, w e r . rotate the programmer knob (P) to the "STOP" position,
10. Open the door and remove or the washing mer knob
11. With dry hands, unplug the washing machine from the mains supply.
12. Close the water feed valve.

DELAYED START

0 h. 10 h. 8 h. 6 h. 4 h. 3 h. 2 h.

The machine is fitted with a delayed start function. This allows the washing machine to be programmed to start the wash cycle up to 10 hours later. The number of hours delay can be selected by rotating the knob until the index mark is positioned on the required delay.

Press the Start button. The indicator light with flash to indicate that the function has been enabled.

The indicator light will stop flashing and stay lit when the washing machine has waited the number of hours set for the "DELAYED START". At this point, the wash cycle will start automatically.

Load imbalance check during spinning:

This washing machine is fitted

with a special electronic load balancing control system. Before each spin, the system makes sure that the clothes are distributed as uniformly as possible in the drum.

If the washing is not distributed evenly, the final spin speed is reduced for safety reasons, while if the load is drastically out of balance, the spin is not effected.

USING THE WASHING MACHINE

START BUTTON:

Simple diagram with a circle, an arrow, and a diamond shape (no text or symbols)

After all the operations described in points 1 to 8 of paragraph "WASH CYCLE" have been carried out, pressing this button will start the wash cycle.

The relative indicator light will light up after approximately 2 -3 seconds to indicate that the door is locked and the wash programme has started.

INDICATOR LIGHT:

The indicator light is off when the programmer knob is in the STOP position.

The indicator light is permanently lit during the execution of the programme.

The indicator light will flash slowly when the programme has finished or during a DELAYED START.

PROGRAMMER KNOB "STOP":

Stop 1 2 3 4 5 6 7 8 9 10 11 12 13* 14* 15+ 16+ 17+ 18+ 19+

The stop function resets the washing machine. If, for any reason, you want to change the wash programme or add more washing to the load during the wash cycle, simply place the programmer knob in position "STOP". Then re-position the knob on the new programme and press the "START" button.

Warning!! Only use this function if strictly necessary and then only if the programme to reset has been running for less than 3 minutes. Before opening the door after a reset, wait 2 minutes for the locking mechanism to release.

OPTIONAL FUNCTIONS

PRE-WASH:

Simple grayscale icon of a sphere with a curved arrow below it, no text or symbols present.

Press this button to execute a short wash of maximum temperature 40°C and approximately 10 minutes' duration. This function can only be used on the "COTTON", "SYNTHETICS" and "DAILY" programmes.

N.B. When this option is used, detergent must also be added to the appropriate pre-wash compartment.

ENERGETIC WASH:

Simple grayscale icon of a light bulb with a plus sign below it (no text or symbols)

When this button is pressed, the washing machine will run a wash cycle at the set temperature, though with a longer duration. The button is enabled for "COTTON" and "SYNTHETIC" programmes.

EXTRA RINSE:

Simple illustration of a light bulb with a curved base (no text or symbols)

The washing machine has been designed and built to reduce water consumption to a minimum.

In very soft water areas, or in the case where detergent residues are noticed at the end of the wash cycle, pressing this button will add one more rinse to the wash programme.

NO SPIN

Simple grayscale illustration of a sphere above a stylized circular symbol (no text or symbols present)

When this button is pressed, the washing machine will effect a wash cycle without spinning.

N.B. The use of this function depends on the type of programme selected. Consequently, if the wash programme does not include this function, the button cannot be enabled (see PROGRAMME TABLE).

PROGRAMME TABLES

PROGRAMMER KNOB		WASH TEMPERATURE	LABELS	FABRIC TYPE	Detergent compartments	BUTTONS ENABLED
1	COTTON	90°		Heavily soiled white cotton fabrics with organic stains.
2	COTTON	75°		Sheets, shirts, tablecloths and towels that are resistant and heavily soiled.
3	COTTON*	60°		For shirts, tablecloths and towels that are resistant and normally soiled.
4	COTTON	40°		White and coloured fabrics that are resistant and heavily soiled.
5	COTTON	30°		Delicate coloured fabrics that are lightly soiled.
6	SYNTHETICS	60°		Colourfast synthetic fabrics that are heavily soiled.
7	SYNTHETICS	40°		Delicate coloured synthetic fabrics that are lightly soiled
8	SYNTHETICS	30°		Delicate coloured synthetic fabrics that are lightly soiled
9	DELICATES	40°		Delicate cotton, viscous and mixed delicate fabrics.
10	DELICATES	30°		Delicate cotton, viscous and mixed delicate fabrics.
11	WOOL***	40°		Machine washable wool.
12	WOOL	30°		Machine washable wool.
13	WOOL DELICATES	COLD		Machine washable wool and silk
14	HAND WASH	30°		Hand washable fabrics
15	QUICK WASH	35°		Delicate cotton, viscous and mixed delicate fabrics lightly soiled of approximately 35/40 mins duration.
16	DAILY WASH	40°		Delicate cotton, delicate coloured fabrics lightly soiled by daily use

FUNCTION ENABLED

FUNCTION DISABLED

OPTIONAL WITH THE PREWASH BUTTON PRESSED.

* Reference programme for energy classification purposes in accordance with standard EN 60456

With Energetic Wash button selected

*** The “wool cycle” PROGRAMME of this washing machine has been approved by Woolmark for washing items labelled “machine washable wool” and bearing The Woolmark Company symbols. Follow the instructions reported on the label sewn into the clothing item and those supplied by the washing machine manufacturer. M0402-M0403-M0404-M0405.

GB

PROGRAMME TABLES

PROGRAMMER KNOB		WASH TEMPERATURE	LABELS	FABRIC TYPE	Detergent compartments	BUTTONS ENABLED
17	COLD WASH	COLD	——	Delicate fabrics		○	○	●	●
18	RINSES	——	——	To rinse and refresh the washing.		○	○	●	●
19	DRAIN AND SPIN	——	——	Drain and final spin.		○	○	○	●

FUNCTION ENABLED ○ FUNCTION DISABLED

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is equipped with an "EASY LOGIC" system that automatically recognises the quantity of washing loaded. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving

water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing.

In the case of a half-load or less, the machine will automatically carry out one rinse less than that programmed.

N.B. The "EASY LOGIC" function is only active for cotton programmes.

TECHNICAL CHARACTERISTICS

MODEL →		BO05208 E - BO05209 E
Dimensions:	Width cm:	59.5
	Height cm:	85.0
	Depth cm:	55.0
Maximum recommended load during washing:		5,0 Kg
		2,5 Kg
		1,0 Kg
Max. spin: (rpm)		600
Water pressure		min. 0,05 MPa - max. 1 MPa
Max. absorbed power / Electrical connection		see characteristics plate

NOTES

L C I P S Bompani

Simple diagram with a circle, an arrow pointing upward, and a diamond symbol (no text or labels)

Simple grayscale icon of a light bulb with a curved arrow below it, no text or symbols present.

Simple grayscale icon of a light bulb with a smiley face and plus sign, no text or symbols present.

Simple illustration of a light bulb with a curved base (no text or symbols)

Simple grayscale illustration of a sphere above a stylized circular symbol (no text or symbols present)

Illustration of a cleaning machine with a magnifying glass and blue airflow arrows, placed on a surface with a tray and base (no text or symbols)

Illustration of a washing machine with a blue cloth cleaning the rim (no text or symbols)

Illustration of a hand cleaning a circular object with a brush, labeled '20/A' (no text or symbols on the object itself)

Illustration of hands installing or removing a device into a drawer (no text or symbols present)

Illustration of a machine processing fluid with blue arrows indicating flow direction (no text or symbols)

9

Hand inserting a plug into an electrical outlet, with a ground symbol and number 10 (no text or labels)

closed open 11

Illustration of a hand holding a small object through a circular pipe with blue arrows indicating flow direction (no text or symbols)

Illustration of a hand holding a pipe with a valve, showing a mechanical assembly and a magnified inset (no text or symbols)

Illustration of a hand holding a cable with a knob, showing mechanical adjustment (no text or symbols)

Illustration of a bathtub with a hose and drain, against a tiled wall background (no text or symbols)

Diagram of a hand using a wrench to adjust internal components inside a washing machine (no text or symbols visible)

Illustration of hands using a tool to switch a key near a window (no text or symbols present)

Diagram showing mechanical assembly with labeled parts and directional arrows indicating movement or force

Diagram of a mechanical switch or panel assembly with arrows indicating direction, no text or symbols present

Cartoon illustration of a car washing machine with a blue faucet and a smiling face (no text or symbols)

Cartoon illustration of a washing machine with steam rising, connected to a plug and lightning bolts (no text or symbols)

Cartoon illustration of a smiling washing machine with wrenches and a small phone, no text or symbols present

Cartoon character celebrating next to a newspaper with a stopwatch (no text or symbols)

Cartoon illustration of a distressed paper airplane with a falling snow and raindrops (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, surrounded by industrial equipment (no text or symbols)

Cartoon illustration of a washing machine with a bandaged arm and a plus/minus symbol (no text or symbols present)

Cartoon illustration of a steaming machine with steam rising, surrounded by a person holding a power cord (no text or symbols)
