Product Type	Danby Portable Air Conditioner
Model	DPA085B1GB
Functions	Cooling, heating (heat pump), dehumidification, ventilation, automatic
Temperature Range - Cooling	17°C to 35°C (62°F to 95°F)
Temperature Range - Heating	5°C to 30°C (41°F to 86°F)
Temperature Range - Dehumidification	13°C to 35°C (55°F to 95°F)
Temperature Setting	From 17°C to 30°C (62°F to 86°F) in increments of 1°C/2°F
Fan Speed	Low, High, Auto

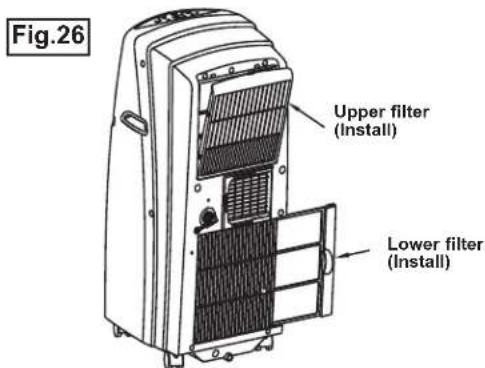

Air Filter	Two removable filters (upper and lower); cleaning recommended every 2 weeks
Power Supply	Grounded outlet (see rating plate for voltage and frequency)
Water Management	Drainage collection pan: manual drain or hose (code P1 if full)
Included Accessories	Exhaust hose with adapter, window slider kit, foam seal, remote control with battery

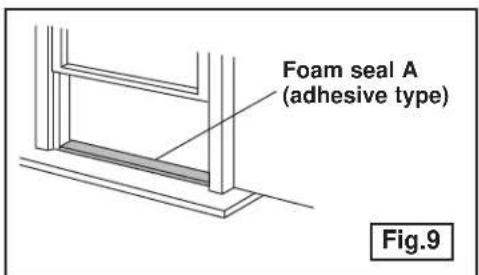

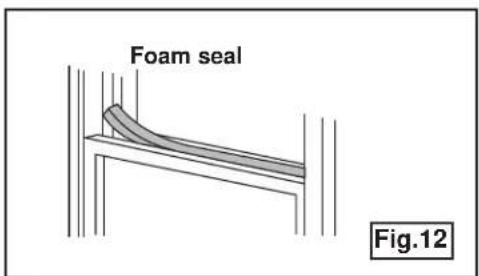

Installation	Double-hung or sliding window; minimum 30 cm clearance around the unit
Safety	Grounding mandatory; do not use extension cord; do not block vents; do not touch with wet hands
Warranty	12 months on functional parts (excluding plastic parts: 30 days)
Long-Term Maintenance	Clean filter, empty pan, dry in fan mode before storage
Weight	See rating plate
Dimensions	See rating plate

Frequently Asked Questions - DPA085B1GB DANBY

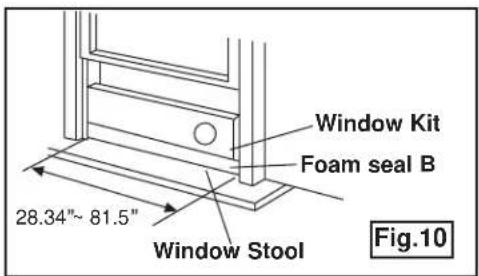

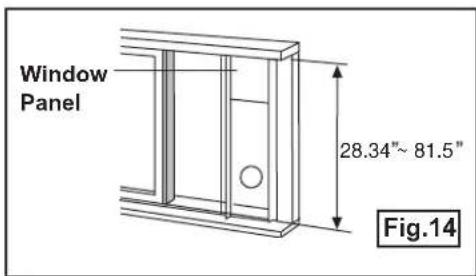

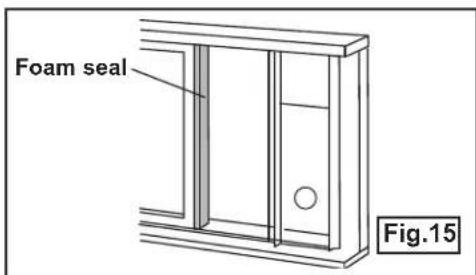

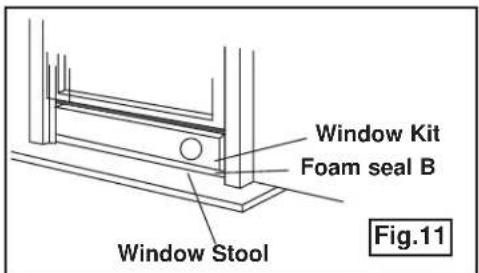

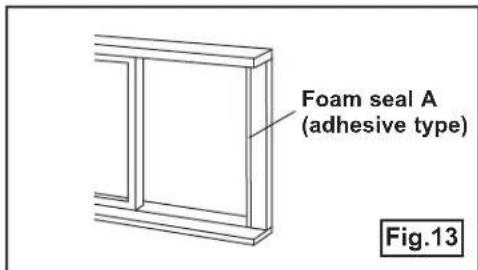

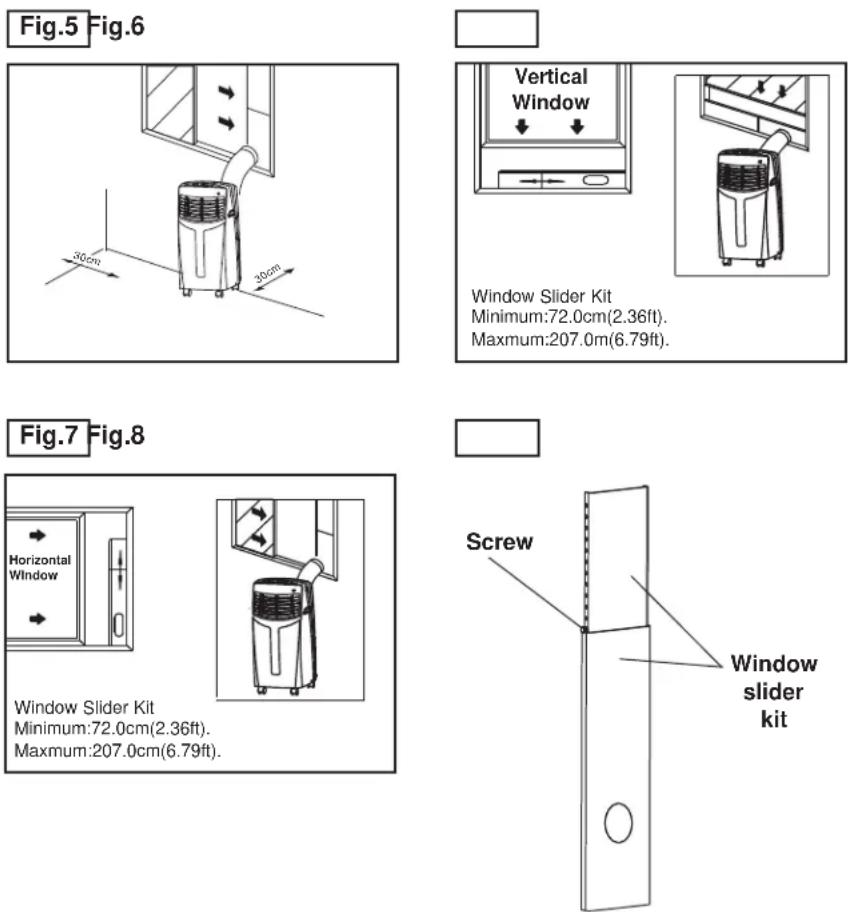

How to install the air conditioner in a window?

Use the provided window slider kit. Measure the window opening (min. 72 cm). Attach the foam seal to the sill, place the window panel, close the sash and seal gaps with the gasket. Then connect the exhaust hose to the back of the unit.

What to do if the screen displays 'P1'?

The code P1 means the water collection pan is full. Turn off the unit, unplug it, then drain the water through the lower drain plug or connect a hose for continuous drainage.

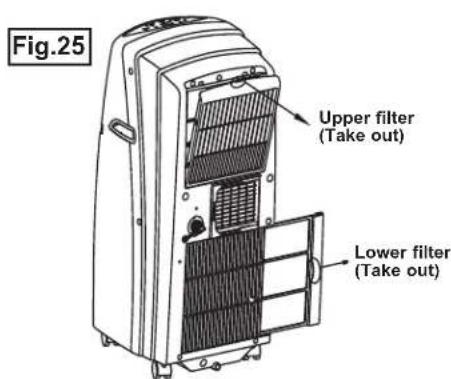

How to clean the air filter?

Remove the upper and lower filters by pulling the tabs. Wash them in warm water (max. 40°C) with a mild detergent. Rinse, dry in the shade, then reinstall. Clean every two weeks.

The air conditioner does not turn on, what to check?

First check if code P1 is displayed (pan full). Ensure the set temperature is lower than the room temperature in cooling mode. Check the power supply and grounding.

What is the operating temperature range?

In cooling mode: 17°C to 35°C. In heating mode: 5°C to 30°C. In dehumidification mode: 13°C to 35°C. Temperatures outside these ranges may reduce performance.

Can I use an extension cord?

No, it is prohibited to use an extension cord or adapter. Always plug the unit directly into a grounded wall outlet that meets electrical standards.

How to switch the display from °C to °F?

Press and hold the Plus (+) and Minus (-) buttons simultaneously for 3 seconds. The display toggles between Celsius and Fahrenheit.

What to do in case of a power outage?

The unit automatically resumes with the last settings after power is restored. Wait 3 minutes before restarting; an internal protection prevents immediate restart.

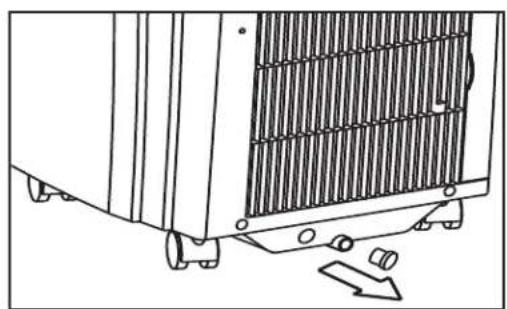

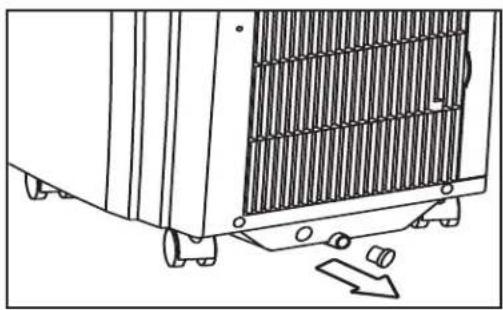

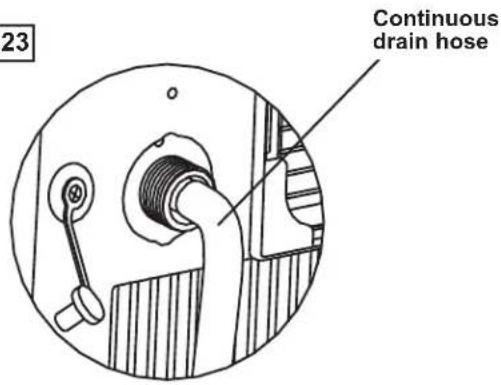

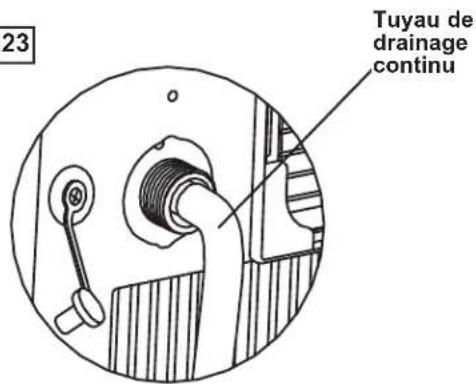

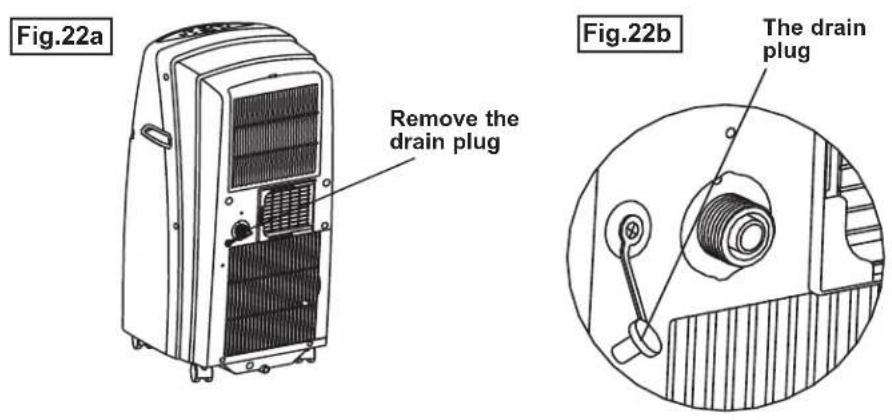

How to drain the water from the lower pan?

Unplug the unit. Remove the drain plug at the back (bottom) or connect a 5/8-inch hose to the drain port. Place the end of the hose above a drain. See fig. 22-24 in the manual.

How to use the timer function?

Press the TIMER button. When the unit is running, the shut-off timer (TIMER OFF) activates; when it is off, the start timer (TIMER ON) activates. Use the + or - arrows to set from 0 to 24 hours (in 0.5 h steps up to 10 h, then in 1 h steps).

USER MANUAL DPA085B1GB DANBY

This product is factory equipped with a power supply cord that has a three-pronged grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to exchange the existing receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. The third ground prong should not, under any circumstances, be cut or removed. Never use the cord, the plug or the appliance when they show any sign of damage. Do not use your appliance with an extension cord unless it has been checked and tested by a qualified electrician or electrical supplier.

IMPORTANT - MÉTHODE POUR LA MISE À LA TERRE

Owner's Use and Care Guide

• Welcome 2
  • Safety Instructions 3-4
• Identifying Parts 4-6
• Features 6-7
• Operating Instructions 8-9
  • Installation Instructions 10-14
  • Care and maintenance .....15
• Troubleshooting ....16
• Warranty ....17

CLIMATISEUR PORTATIF

Read and follow all safety rules and operating instructions before first use of this product.

PRECAUTION:

Line drawing of a portable air conditioner unit with cooling fins and wheels (no text or symbols)

Welcome to the Danby family. We are proud of our quality products, and we believe in dependable service, like you will find in this Owner's Use and Care Guide, and like you will receive from our friendly customer service department. Best of all, you will experience these values each and every time you use your Danby appliance. That is important, because your new appliance will be a part of your family for a long time.

Note the information below; you will need this information to obtain service under warranty. To receive service, you must provide the original receipt.

Model No:

Serial No:

Date Purchased:

NEED HELP?

Before you call for service, here are a few things you can do to help us serve you better:

Read this Owner's Use and Care Guide:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the retailer (or builder) that sold you the appliance.

Save time and money:

Check the Troubleshooting section at the end of the guide before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax, knowing help is only a phone call away.

Tel: 1-800-26-Danby (1-800-263-2629)

WARNING

Improper connection of the grounding plug can result in risk of fire, electric shock and/or injury to persons associated with the appliance. Check with a qualified service representative if in doubt that the appliance is properly grounded.

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation resulting from to ignoring these instructions may cause harm or damage.

SAFETY PRECAUTIONS

ALWAYS DO THIS

√ Your air conditioner should be used in such a way that it is protected from moisture. e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug unit immediately if this occurs.
√ Always transport your air conditioner in a vertical position and place on a stable, level surface during use. If the unit is transported laying on it's side it should be stood up and left unplugged for 4 hrs.
√ Turn off the unit when not in use.
√ Always contact a qualified person to perform repairs. If the power cord is damaged it must be repaired by a qualified technician.
√ Keep clearance of at least 30cm (1 foot) all around the unit from walls, furniture and curtains, to allow for adequate air flow.
If the air conditioner is knocked over during use, turn off the unit and unplug it immediately.
√ Always use the switch on the control panel to turn the unit on or off.
√ Portable air conditioners exhaust large amounts of room air. Always ensure an adequate supply of make-up air to operate efficiently.

NEVER DO THIS

Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
Do not touch the unit with wet or damp hands.
Do not press the buttons on the control panel with anything other than your fingers.
Do not remove any fixed components. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
☑ Never use the plug to start and stop the unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol, etc.
Do not allow children to operate the unit unsupervised.
Do not use this product for functions other than those described in this instruction manual.

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation resulting from to ignoring these instructions may cause harm or damage.

ENERGY SAVING TIPS

• Use the unit in the recommended room size.
• Locate the unit where furniture cannot obstruct the air flow.
• Keep blinds/curtains closed during the sunniest part of the day.
• Keep the filters clean.
• Keep doors and windows closed to keep cool air in and warm air out (cooling mode).

OPERATING CONDITION

The air conditioner must be operated within the temperature range indicated below:

MODE	ROOM TEMPERATURE
COOL	17°C (62°F) ~ 35°C (95°F)
DRY	13°C (55°F) ~ 35°C (95°F)
*HEAT (heat pump type)	5°C (41°F) ~ 30°C (86°F)
*HEAT (electrical or heat pump)	<30°C / 86°F

(*) Optional feature, some models may not have this feature.
Note: Performance may be reduced outside of these operating temperatures.

TOOLS FOR WINDOW KIT INSTALLATION

1. Screwdriver (medium size, Phillips)
2. Tape measure or ruler
3. Knife or scissors
4. Saw (In the event that the window kit needs to be cut down in size because the window is too narrow for direct installation).
   See www.danby.com for general instruction guide.

Identifying Parts

WARNING

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord.

ELECTRICAL INFORMATION

WARNING

• Be sure the electrical supply is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille.
• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important. The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper receptacle.
• Ensure the receptacle remains accessible after the unit is installed.

ACCESSORIES

PARTS	PART NAME	QUANTITY

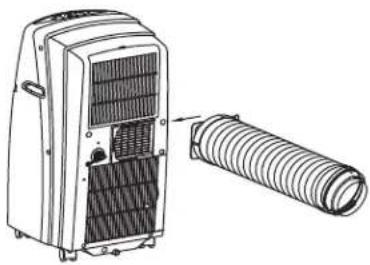

	Exhaust hose and Adaptor B (round mouth)	1 set
	Window Slider Kit and screw	1 set
	Foam seal	6 pc
	Remote Controller and Battery (For remote control models only)	1set
	Drain hose	1pc

- Ensure that all the accessories are included in the package and refer to the installation instructions for their usage.

NOTE: All the illustrations in this manual are for explanatory purposes only. Your air conditioner may be slightly different.

UNIT STRUCTURE

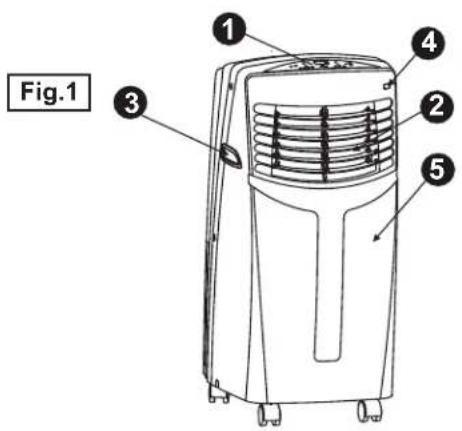

Fig.1 ① ② ③ ④ ⑤

FRONT

① Control Panel
② Horizontal Louver Blade (adjusts manually)
③ Carrying Handle (both sides)
4 Remote Signal Receptor
5 Front Panel

Identifying Parts

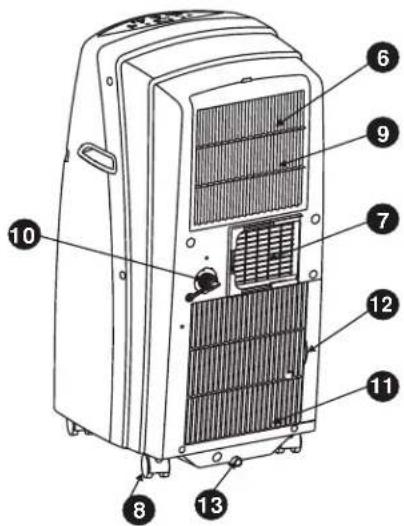

REAR

Fig.2

Labeled diagram of a portable air conditioner unit with numbered parts for identification

6 Upper Air Filter (behind the grille)
7 Air Outlet
8 Castor
9 Air Intake
10 Drain Outlet
11 Air Intake
12 Lower Air Filter (behind the grill)
13 Bottom tray drain outlet

Features

ELECTRONIC CONTROL INSTRUCTIONS

Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions. Select the functions you desire based on the associated symbol.

The unit can be controlled by the control panel alone or with the remote controller.

NOTE: This manual does not include Remote Controller Operation. Refer to the <> packed with the unit for this information.

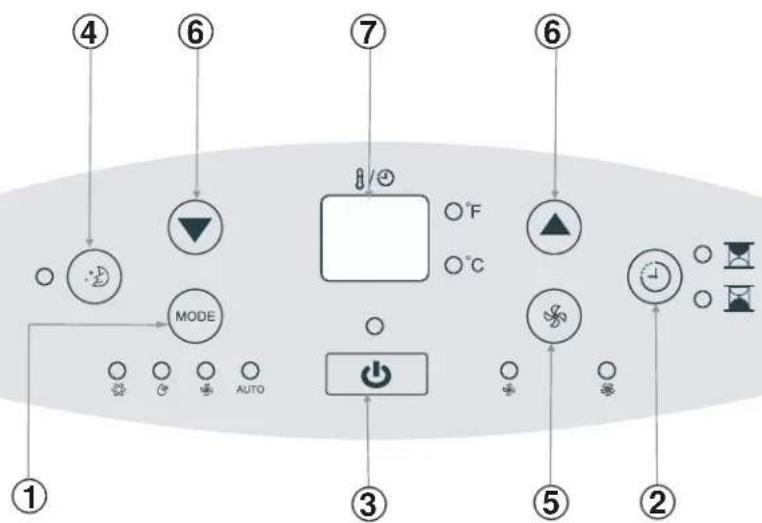

Fig.3
    ② ⑤ ②
    ⑦ ⑥ ⑥
    ③ ③ ③
    ④ ⑥ ⑥

ELECTRONIC CONTROL INSTRUCTIONS

① MODE select button

Selects the appropriate operating mode. Each time you press the button, a mode is selected in a sequence that goes from AUTO, COOL, DRY, FAN and HEAT (not available on cooling only models). The mode indicator light corresponding to the chosen setting lights up.

② TIMER button

Used to initiate the AUTO ON start time and AUTO OFF stop time program, in conjunction with the up arrow & down arrow buttons.

③ POWER button

Turns power on/off.

4 SLEEP button

Used to initiate the SLEEP operation.

⑤ FAN button

Controls the fan speed. Press to toggle between two fan speeds: LOW (press 1 time) and HIGH (press 2 times). The fan speed indicator light indicates the corresponding fan setting. Press the button a third time to initiate AUTO-FAN mode. In this mode, both indicator lights will light up.

6 UP and DOWN buttons

Used to adjust (increase /decrease) temperature settings (1°C/2°F increments) in a range of 17°C(62°F) to 30°C(86°F) or the TIMER setting in a range of 0\~24hrs. The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other, press and hold the Up and Down buttons at the same time for 3 seconds.

⑦ LED Display

Shows the set temperature in °C or °F and the Auto-timer settings. While on DRY and FAN modes, it shows the room temperature.

Also displays the following error codes:

E1 - Room temperature sensor error-Unplug the unit and plug it back in. If error repeats, call for service.
E2 - Evaporator temperature sensor error- Unplug the unit and plug it back in. If error repeats, call for service.
E3 - Condenser temperature error - Unplug the unit and plug it back in. If error repeats call for service.
E4 - Display panel communication error - Unplug the unit and plug it back in. If error repeats call for service.
P1 - Bottom tray is full - Connect the drain hose and drain the collected water away. If error repeats, call for service.

OPERATING MODES

COOL mode

• Press the "MODE" button until the "COOL" indicator light comes on.
• Press the up / down arrows to select your desired room temperature. The temperature can be set within a range of 17°C-30°C / 62°F-86°F.
• Press the "FAN SPEED" button to choose the fan speed.

HEAT mode (select models only)

• Press the "MODE" button until the "HEAT" indicator light comes on.
• Press the ADJUST buttons "up" or "down" to select your desired room temperature. The temperature can be set within a range of 17°C-30°C / 62°F-86°F.
• Press the "FAN SPEED" button to choose the fan speed. For some models, the fan speed can not be adjusted under HEAT mode.

DRY mode

• Press the "MODE" button until the "DRY" indicator light comes on.
• Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor operates at LOW speed.
• Keep windows and doors closed for the best dehumidifying effect.
• Do not use the window hose under this mode.

AUTO mode

• When you set the air conditioner in AUTO mode, it will automatically select cooling, heating (applicable models only) or fan only operation depending on what temperature you have selected and the room temperature.
• The air conditioner will adjust the room temperature automatically to the temperature point set by you.
• Under AUTO mode, you can not select the fan speed.

FAN mode

• Press the "MODE" button until the "FAN" indicator light comes on.
• Press the "FAN SPEED" button to choose the fan speed (1 time for LOW, 2 times for HIGH, 3 times for AUTO-FAN).
• The corresponding fan speed indicator light for each speed lights up. Both indicators are lit up when AUTO-FAN is selected.
• The temperature cannot be adjusted.
• Do not use the window hose in this mode.

TIMER mode

• To initiate the TIMER OFF function, press the timer button when the unit is on. It indicates the Auto Stop program is initiated.
• To initiate the TIMER ON function, press the timer button when the unit is off. It indicates the Auto Start program is initiated.
• Press and hold the UP or DOWN button to change the Auto-time by half hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until the unit starts or stops.
• The selected time will program in 5 seconds and the system will automatically revert back to display the previous temperature setting.
• Turning the unit ON or OFF at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop timed program.
• When a malfunction (E1, E2, E3, E4, P1) occurs, the Auto Start/ Stop program will be cancelled.

OPERATING MODES

SLEEP cycle

This unit features an operation mode that is designed to keep you comfortable while sleeping, and save you money on your energy bill. Simply press the sleep button. Depending on whether the unit is in heating or cooling mode, the temperature will either increase (cooling mode) or decrease (heating mode) by 1^ C / 2^ F every half hour for 1 hour. It will then hold this new temperature for 7 hours before returning to the original temperature setting and resuming normal operation.

NOTE: This feature is unavailable in FAN and DRY mode.

POWER OUTAGE

In the case of a power outage or interruption, the unit will automatically re-start with the default settings after the power is restored.

Wait 3 minutes before resuming operation

After the unit has stopped, it can not operate for the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes.

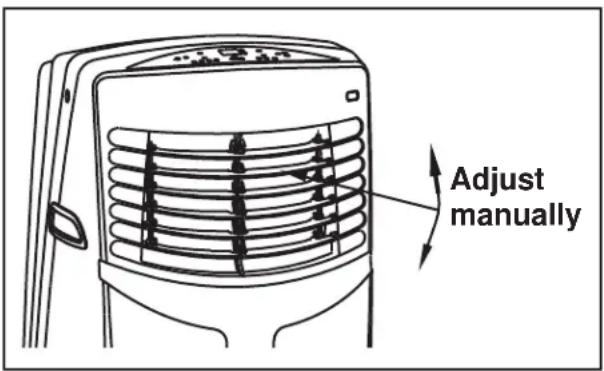

AIR FLOW DIRECTION ADJUSTMENT

Adjust the air flow direction manually (Fig. 4):

• The louver can be set to the desired position manually.
• Do not place any heavy objects or other loads on the louver, doing so will cause damage to the unit.
• Ensure the louver is fully opened under heating operation.

Adjust manually

Fig.4

LOCATION

• The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit.
• The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpeted surfaces. Use caution and protect floors when rolling over wood floors. Do not attempt to roll the unit over objects.
• The unit must be placed within reach of a properly rated grounded socket.
• Never place any obstacles around the air inlet or outlet of the unit.
• Allow at least 30cm of space away from the wall for efficient air conditioning.

WINDOW SLIDER KIT INSTALLATION

Your window slider kit has been designed to fit most standard vertical and horizontal window applications. However, it may be necessary for you to modify some aspects of the installation procedures for certain types of windows. Please refer to Fig. 6& Fig.7 for minimum and maximum window openings. The window slider kit can be fastened with a screw (see Fig.8).

NOTE: If the window opening is less than the mentioned minimum length of the window slider kit, cut the end without the whole in it short enough to fit in the window opening. Never cut out the hole in window slider kit. (visit www.danby.com for general instruction videos.)

INSTALLATION IN A DOUBLE- HUNG SASH WINDOW

1. Measure the adhesive foam seal to fit the window stool. Then cut the foam seal to the proper length and attach it to the window stool. Fig.9

2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window. Shorten the adjustable window kit if the width of window is less than 28. 3 inches. Open the window sash and place the window slider kit on the window stool. Fig.10

3. Cut the foam seal (adhesive type) to the proper length and attach it on the top of the window. Shown in Fig.11

4. Close the window sash securely against the window.

5. Cut the foam seal to an appropriate length and seal the open gap between the top window sash and outer window sash. Shown in Fig.12.

Foam seal A (adhesive type) Fig.9

Window Kit Foam seal B 28.34"~ 81.5" Window Stool Fig.10

Window Kit Foam seal B Window Stool Fig.11

Foam seal Fig.12

INSTALLATION IN A SLIDING SASH WINDOW

1. Measure the adhesive foam seal to fit the window stool. Cut the foam seal (adhesive type) to the proper length and attach it to the window frame. See Fig.13.

2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the height of window. Shorten the adjustable window kit if the height of window is less than 28.3 inches. Open the window sash and place the window slider kit on the window stool. See Fig.14.

3. Cut the foam seal(adhesive type) to the proper length and attach it on the top of the window. Shown in Fig.15.

4. Close the sliding sash securely against the window.

5. Cut the foam seal to the appropriate length and seal the open gap between the top window sash and outer window sash. Shown in Fig.16.

Foam seal A (adhesive type) Fig.13

Window Panel 28.34"~ 81.5" Fig.14

Foam seal Fig.15

Foam Seal Fig.16

EXHAUST HOSE INSTALLATION:

The exhaust hose and adaptor must be installed or removed in accordance with the usage mode.

COOL, HEAT(heat pump type) or AUTO mode	Install
FAN, DEHUMIDIFY mode	Remove

1. Install the window exhaust adaptor B onto the exhaust hose as shown in Fig.17. or Fig.18. Refer to the previous pages for window kit installation.
2. Push the exhaust hose into the air outlet opening along the arrow direction (See Fig.19).
3. The hose can be compressed or extended moderately according to the installation requirement, but it is desirable to keep the hose length to a minimum.

IMPORTANT

DO NOT OVER BEND THE HOSE. (see Fig.21)

Fig.17

Fig.18

Fig.19

Technical line drawing of an air conditioner unit with a coiled tube attached (no text or symbols)

WATER DRAINAGE

• During dehumidifying modes, remove the drain plug from the back of the unit, install the drain connector (5/8" universal female connector) with 3/4" hose (not included). For the models without a drain connector, just attach the drain hose to the hole. Place the open end of the hose directly over the drain area in your basement floor. Please refer to Fig.22a, b & 23.
• When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows P1. At this time the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate (this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away (Fig.24). Restart the machine until the P1 symbol disappears. If the error repeats, call for service.

NOTE: When operating or draining water always protect carpeting or floors from possible water spillage.

Fig.23

23 Continuous drain hose

Fig.24

Line drawing of a vehicle chassis with a side panel and directional arrow (no text or symbols)

IMPORTANT

1) Be sure to unplug the unit before cleaning or servicing.
2) Do not use gasoline, paint thinner or other chemicals to clean the unit.
3) Do not wash the unit directly under a tap or using a hose. It may cause electrical damage.
4) If the power cord is damaged, contact the service depot immediately.

AIR FILTER

Clean the air filter at least once every two weeks. Accumulation of dust will hinder fan operation.

REMOVAL

This unit has two filters. Grasp the upper filter tab and take it out in the direction of the arrow as shown in Fig.25. Remove the lower filter by grasping the filter tab and removing it in the direction of the arrow as shown in Fig.25.

CLEANING

Wash the air filter by submerging it gently in warm water (about 40^ C / 104 °F) with a neutral detergent. Rinse the filter and dry it in a shady place.

REPLACING

Install the upper and lower air filters after cleaning. Reinsert them in the direction of the arrow. (see Fig.26). *Filters should be dry before installing.

NOTE: The upper (lower) grills and the upper (lower) air filters are connected and can be separated.

UNIT ENCLOSURE

Use a lint-free cloth soaked with neutral detergent to clean the unit enclosure. Finish by wiping with a dry clean cloth.

LONG TERM STORAGE

• Remove the rubber plug at the back of the unit and attach a hose to the drain outlet. Place the open end of the hose directly over the drain area in your basement floor (See page 14).
• Remove the plug from the bottom drain outlet, all the water in the bottom tray will drain out (See page 14).
• Keep the appliance running on FAN mode for half a day in a warm room to dry the appliance inside and prevent mold formation.
• Turn off the appliance and unplug it, wrap the cord and bundle it with tape.
• Remove the batteries from the remote controller.
• Clean the air filter and reinstall it.

Fig.25 Upper filter (Take out) Lower filter (Take out)

Fig.26 Upper filter (Install) Lower filter (Install)

Occasionally, a problem may arise that is minor in nature, and a service call may not be necessary. Use this troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized service depot or Danby's Toll Free Number 1-800-263-2629 for assistance.

PROBLEM	POSSIBLE CAUSE	SOLUTION
Unit does not start when pressing on/off button	• P1 appears in the display window	• Drain the water in the bottom tray.
	• Room temperature is lower than the set temperature. (Cooling mode)	• Reset the temperature.
Not cool enough	• The windows or doors in the room are not closed.	• Make sure all the windows and doors are closed.
	• There are heat sources inside the room.	• Remove the heat sources if possible.
	• Exhaust air hose is not connected or blocked.	• Connect the hose and make sure it can function properly.
	• Temperature setting is too high.	• Decrease the set temperature.
	• Air filter is blocked by dust.	• Clean the air filter.
Noisy or vibration	• The ground is not level or not flat enough.	• Place the unit on a flat, level ground if possible.
Gurgling sound	• The sound comes from the flowing of the refrigerant inside the air conditioner	• It is normal
Power shuts off in heating mode	• The automatic overheat protection function. When the temperature at the air outlet exceeds 70°C/158°F, the device will stop.	• Turn on again after the unit has cooled down. Reduce temperature setting.

LIMITED IN-HOME APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First Year	During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.
To obtain Service	Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot. Any appliance requiring service outside the limited boundaries of “In Home Service”, it will be the consumer's responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In Home Service” below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.
Boundaries of In Home Service	If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certified for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application). Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Warranty Service

In-home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

07/13

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Bienvenue

Fig.1 ① ② ③ ④ ⑤

AVANT

Labeled diagram of a portable air conditioner unit with numbered parts for identification

Technical line drawing of a portable air conditioner unit with a coiled tube attached (no text or symbols)

DRAINAGE DE L'EAU

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.23

23 Tuyau de drainage continu

Fig.24

Diagram of a vehicle chassis with a side-mounted panel and directional arrow indicating motion (no text or symbols)

! AVERTISSEMENT

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

All repair parts are available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call the TOLL FREE number.

When requesting service or ordering parts, always provide the following information:

• Product Type
• Model Number
• Part Number
• Part Description

CLIMATISEUR PORTATIF

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

1-800-26 Danby

(1-800-263-2629)

Model • Modèle

DPA085B1GB
