Brand	Danby
Model	DPSL120B1W
Product type	Wall air conditioner with sleeve
Cooling capacity	12,000 BTU/h (estimated)
Power supply	115 V / 60 Hz (estimated for North American model)
Sleeve dimensions (approx.)	Height: 38.1 cm, Width: 60.9 cm, Depth: 58.4 cm (estimates for 12,000 BTU)
Weight (approx.)	40 kg (estimated)
Noise level	Approximately 50-55 dB (estimated)
Main functions	Cooling, ventilation, dehumidification, adjustable thermostat
Air filter	Washable and reusable
Optional drain kit	Included in packaging: cover plates, gaskets, tubes
Installation	Requires a wall sleeve (included) and fixing with long screws
Warranty	2 years functional parts, 30 days plastic parts, in-home service under conditions
Maintenance and cleaning	Clean the filter regularly, check the drain, do not use abrasive products
Safety instructions	Unplug before maintenance, do not obstruct grilles, use a grounded outlet
Spare parts and repairability	Parts available through Danby authorized service, repair by qualified technician
General information	Manual available in French, online registration for 2-month warranty extension

Frequently Asked Questions - DPSL120B1W DANBY

How to install the air conditioner in the wall?

Follow the assembly instructions: open the left and right panels, secure them with 6 short screws, then the bottom panel with 8 screws. Apply the foam gaskets, attach the rear grille with the center screws and two extra screws. Insert the sleeve into the wall, then install the air conditioner and secure it with the 4 long screws.

Is the drain kit mandatory?

No, the drain kit is optional. If you plan to use it, assemble and install it on the sleeve before installing the rear grille and the air conditioner. Make sure the drain directs water outside.

How to clean the air filter?

Unplug the unit, remove the filter (usually accessible at the front), wash it with warm water and mild detergent, rinse and dry completely before reinstalling. Do not use harsh chemicals.

What is the cooling capacity of this model?

The DPSL120B1W model has an estimated cooling capacity of 12,000 BTU/h, suitable for cooling a room of about 30 to 40 m² (depending on insulation).

What to do if the unit does not cool properly?

Check that the filter is clean, the grilles are not obstructed, the thermostat is set correctly, and the power supply voltage is adequate. If the problem persists, contact Danby after-sales service.

How to benefit from the warranty?

Keep the original proof of purchase. For any claim, contact the retailer or an authorized service center. The warranty covers functional parts for 24 months (plastic parts: 30 days). Online registration at danby.com may offer a 2-month warranty extension.

Can I use the air conditioner in a room without a window?

This model is designed for wall installation with a sleeve. It requires an opening in the exterior wall for hot air exhaust. Installation without a window is possible if a suitable sleeve is installed.

How to get a maintenance manual or spare parts?

Visit Danby.com and search for your model number. You can also contact customer service via online form or by phone at 1-800-263-2629. Parts are available through authorized service centers.

Is the noise level high?

The noise level is estimated between 50 and 55 dB, comparable to a normal conversation. Ensure the unit is properly installed to minimize vibrations.

Can I install the air conditioner myself?

Installation can be done by an experienced DIYer, but it is recommended to hire a professional to ensure safe and compliant setup. Improper installation may void the warranty.

USER MANUAL DPSL120B1W DANBY

OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO

THROUGH-THE-WALL AIR CONDITIONER SLEEVE

Owner's Manual....1 - 4

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9 Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com

f in x p

Printed in China | Imprimé en Chine | Impreso en China

2025.09.30

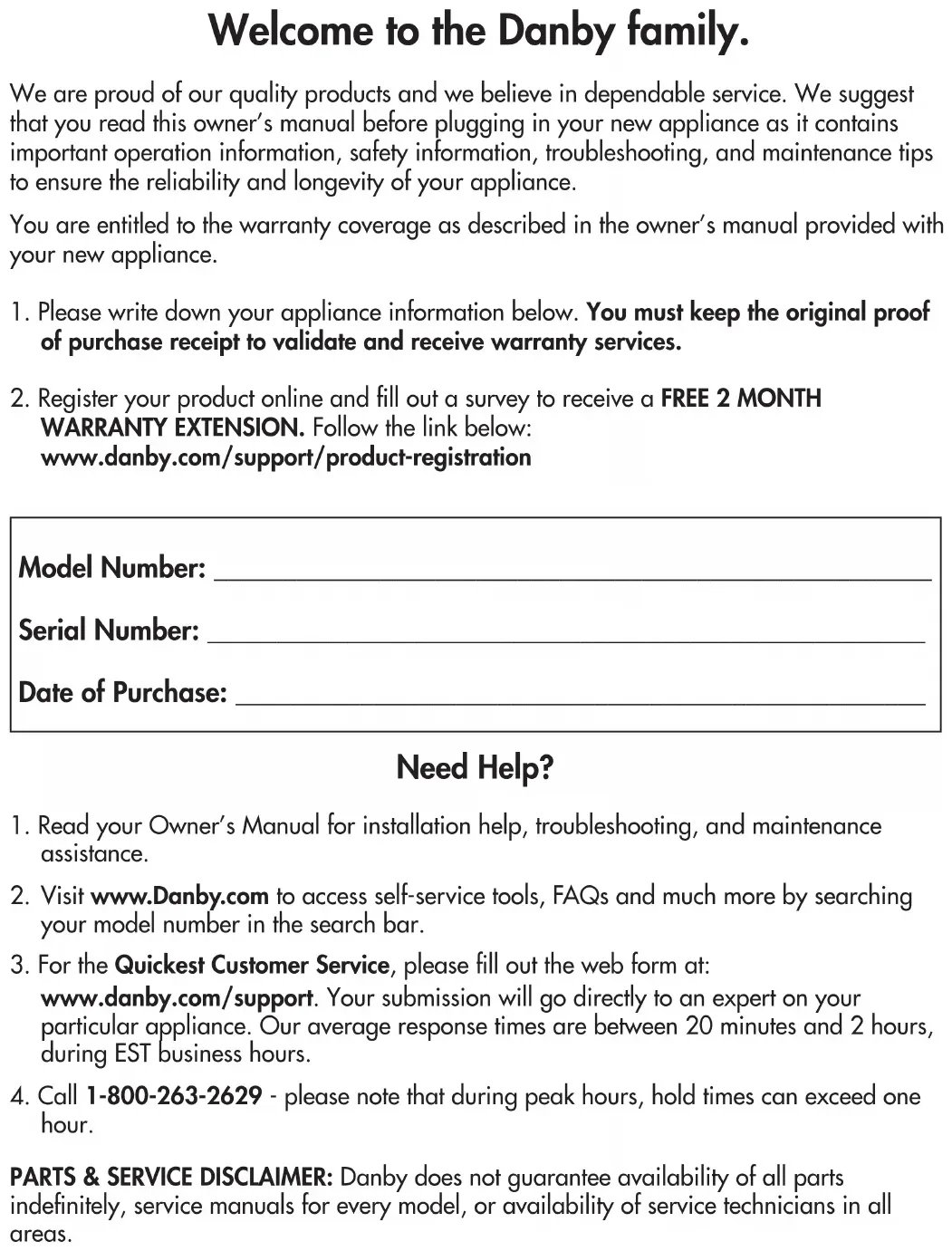

Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.

You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and fill out a survey to receive a FREE 2 MONTH WARRANTY EXTENSION. Follow the link below: www.danby.com/support/product-registration

Model Number:

Serial Number:

Date of Purchase:

Need Help?

1. Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at: www.danby.com/support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.

PARTS & SERVICE DISCLAIMER: Danby does not guarantee availability of all parts indefinitely, service manuals for every model, or availability of service technicians in all areas.

INSTALLATION INSTRUCTIONS

INCLUDED PARTS - SLEEVE

1. Bottom panel
2. Top, left and right panel assembly
3. Seal A [26.4" long]
4. Seal B [1.6" long] (x2)
5. Long screws (x4)
6. Short screws (x14)

INCLUDED PARTS - DRAIN KIT

1. Cover plate (x2)
2. Cover plate with drain outlet
3. Foam gasket (x6)
4. Bent tube (x1)
5. Screws ST3.9*14 (x6)
6. Straight tube (x1)

Note: The drain kit is optional. If you plan to use the drain kit, make sure to assemble and install it before installing the rear grille and the air conditioner.

INCLUDED PARTS - REAR GRILLE

1. Insulation strips [13.4" long] (x2)
2. Short screws (x2)

NOTE: There are 4 extra short screws as spare parts

1. Middle screws (x4)
2. Rear grille

INSTALLATION INSTRUCTIONS

ASSEMBLY

1. Open the left and right panels and secure with 6 short screws.
2. Use 8 short screws to secure the bottom panel.

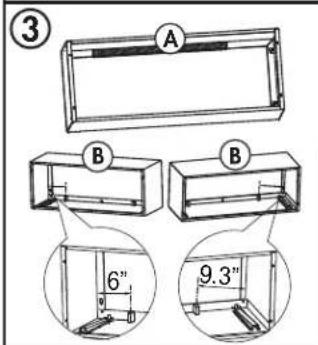

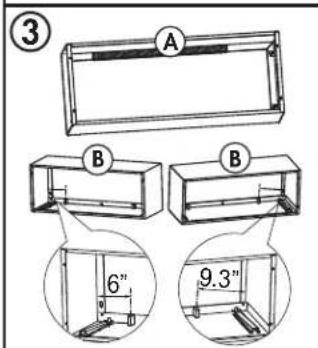

3. Attach foam seal A and B.

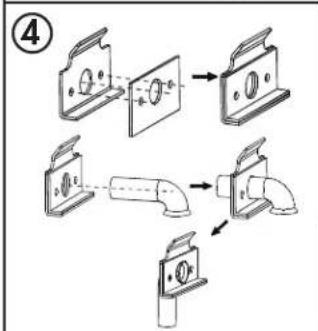

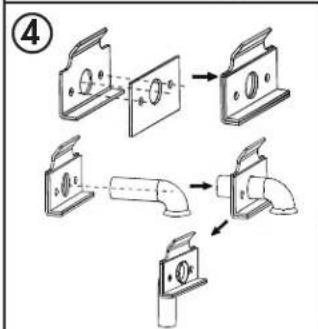

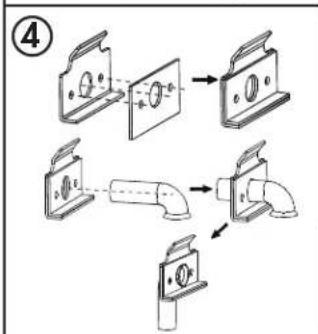

4. If you are using the drain kit, assemble and install it on the sleeve before installing the rear grille. Attach the foam gaskets to the cover plates and insert the bent hose into the cover plate that has a hole in it.

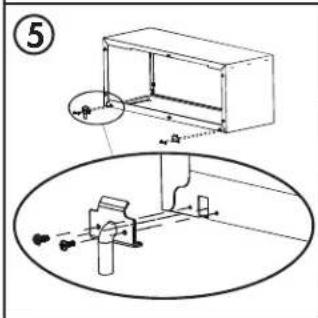

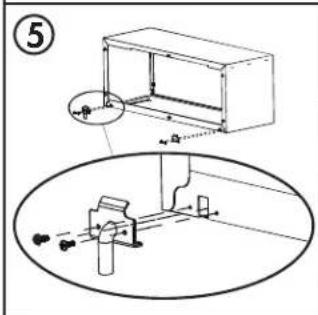

5. Install the cover plate with the tube on the outlet at the back of the sleeve. It can be placed on either the left or right side. Install the other cover plate on the other side. Make sure the tube's position will allow the sleeve to fit in the wall and that the drain is positioned so that water will drain outside of the house and not into the interior of the wall.

NOTE: Straight tube for use in special circumstances, such as drain bottom side

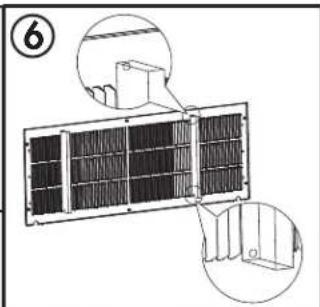

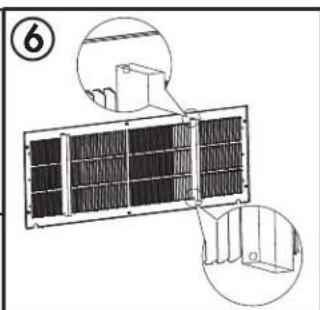

1. Attach insulation strips to the rear grille in the positions shown.
2. Insert the four middle screws into the pre-drilled holes in the rear grille so that they protrude on the same side as the foam. Attach the rear grille to the sleeve by sliding the holes in the rear grille over the protruding screws on the sleeve as shown.

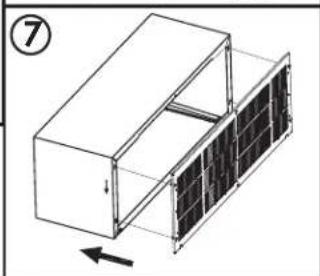

3. Once the holes in the rear grille clear the head of the screws in the sleeve, pull down on the rear grille so that the screws slide into the "U" holes as shown.
4. The rear grille is properly installed when the screws in the sleeve slide into the bottom of the "U" holes on the rear grille.
5. Add two additional screws through the rear grille into the sleeve as shown.
6. Insert the sleeve into the wall. Install the air conditioner and secure it with the four long screws.

Simple line drawing of a mechanical device with arrows indicating motion, no text or symbols present

Line drawing of a rectangular box with internal structure and mounting holes, no text or symbols present

③ A B B 6" 9.3"

Diagram showing mechanical assembly steps with labeled components and directional arrows

Technical diagram showing a mechanical assembly with labeled components and a magnified view of the main frame.

Diagram of a solar panel with internal grid structure and two magnified views (no text or symbols)

Technical line drawing of a rectangular structure with internal panels and an arrow indicating direction (no text or symbols)

Diagram of a door with a heat exchanger and a downward arrow indicating cooling (no text or symbols)

Diagram of a door with striped pattern and labeled number 9 (no text or symbols on the door itself)

Technical line drawing of a rectangular enclosure with internal compartments and a numbered marker (10), no text or symbols present.

Technical line drawing of an internal air conditioner unit with labeled components (no text or symbols present)

Danby.

Limited "In-Home" Warranty

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

Terms of Warranty

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 24 months

During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service

Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Exclusions

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

General Provisions

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4. Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5. Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7. Service calls resulting in customer education.
8. Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Simple line drawing of a mechanical device with arrows indicating motion, no text or symbols present

Line drawing of a rectangular box with internal structure and mounting holes, no text or symbols present

③ A B B 6" 9.3"

Diagram showing mechanical assembly steps with labeled components and directional arrows

Technical diagram showing a mechanical assembly with labeled components and a magnified view of the main frame.

Diagram of a solar panel with internal grid structure and two magnified views (no text or symbols)

Technical line drawing of a modular device with internal grid structure and directional arrow (no text or symbols)

Diagram of a door with a vertical panel and a downward arrow, no text or symbols present

Diagram of a door with striped pattern and labeled number 9 (no text or symbols on the door itself)

Technical line drawing of a rectangular enclosure with internal compartments and dashed lines indicating hidden edges (no text or symbols)

Technical line drawing of an internal air conditioner unit with labeled components (no text or symbols present)

Diagram showing six numbered mechanical parts with corresponding labels: rectangular, rectangular block, square, cross, and bolt.

PIEZAS INCLUIDAS - KIT DE DRENAJE

Simple line drawing of a folding table with arrows indicating motion (no text or symbols)

Line drawing of a rectangular container with internal structure and labeled parts (no text or symbols)

③ A B B 6" 9.3"

Diagram showing installation steps of a pipe fitting with labeled components and directional arrows

Technical diagram showing a mechanical assembly with labeled components and a magnified view of the main frame.

Diagram of a solar panel with internal grid structure and two magnified views (no text or symbols)

Technical line drawing of a modular device with internal grid structure and directional arrow (no text or symbols)

Diagram of a door with a heat exchanger and a downward arrow indicating cooling (no text or symbols)

Diagram of a door with vertical stripes and a numbered label (9) in the corner, no readable text or symbols present.

Technical line drawing of a rectangular enclosure with internal compartments and structural elements (no text or symbols)

Technical line drawing of an internal air conditioner unit with labeled components (no text or symbols present)
