FS 20 WH - Microwave Oven CATA - Free user manual and instructions

Product Type	Microwave Oven
Brand	CATA
Model	FS 20 WH
Capacity	20 L
Microwave Output Power	700 W
Microwave Input Power	1 050 W
Grill Power	1 000 W
Rated Voltage	230 V ~ 50 Hz
External Dimensions (W x D x H)	439.5 x 345.3 x 258.2 mm
Net Weight	Approx. 11 kg
Turntable Diameter	255 mm
Installation Type	Countertop (Freestanding)
Color	White
Main Functions	Microwave, grill, combination (2 modes), defrost (weight/time), quick cook, 8 auto menus
Built-in Clock	Yes, with digital display
Delayed Start	Yes, up to 23h59
Child Lock	Yes
Accessories Included	Glass tray, mounting ring, metal grill rack
Cleaning	Interior: damp cloth; lemon tip (300 ml water + 1/2 lemon, 10 min at max power)
Safety	Door locks, grounding, auto stop, overheat protection
Repairability	Authorized service center; spare parts not listed
Important Instructions	Read the manual carefully before use; do not use airtight containers

Frequently Asked Questions - FS 20 WH CATA

How do I set the clock on the CATA FS 20 WH oven?

After plugging in the oven, press △ I Ⓤ to make the hours flash. Turn the knob to set the hour (0-23). Press ♠ | Ⓤ again for minutes, turn to set (0-59). Finally, press ⚠️ I Ⓗ to confirm. The clock then flashes.

How do I use the grill function?

Press the Grill button once (the appropriate icon). Select the grill power by turning the knob. Confirm with ok (the display shows 'G'). Set the cooking time (max 95 min) and press Ⓑ | ok to start. Halfway through, the oven beeps twice: open the door, turn the food over, and close to continue.

How do I defrost food with this microwave?

Two modes:
- Defrost by weight: press the dedicated button once (display 'dEF1'), turn the knob to select the weight (100 to 2000 g) and press ok.
- Defrost by time: press twice (display 'dEF2'), set the time and press ok. Power is fixed at 30%.

What utensils can I use in the microwave oven?

Use only suitable utensils: heat-resistant glass, microwave-safe plastic, parchment paper, cling film (without touching food). Avoid metal, aluminum foil (except small strips 2.5 cm from walls), wood, polystyrene foam, and paper bags. When in doubt, do the test: place a glass of water next to the utensil, heat for 1 min at max power. If the utensil gets hot, do not use it.

How do I clean the interior of the oven?

Unplug the appliance. Clean the interior with a slightly damp cloth. For stubborn stains, place a bowl with 300 ml water and half a lemon, heat for 10 minutes at maximum power, then wipe with a soft dry cloth. Never use abrasive cleaners or metal scrapers on the door.

How do I activate the child lock?

In standby mode, press the stop button (or indicated key) for 3 seconds. A long beep sounds and the display shows a padlock. To deactivate, press the same button again for 3 seconds.

Why does steam accumulate on the door during cooking?

This is normal. Steam from food is mostly vented through the ventilation slots, but some may condense on cold parts like the door. Simply wipe it off after use.

The oven makes a rotating noise, is this normal?

Yes, the turntable may produce a slight noise when rotating. If the noise becomes loud, check that no food residue is blocking the mounting ring or tray. Clean these parts regularly.

How do I program a delayed start (preset)?

First set the clock. Then program a simple or combined cooking (not defrost). After setting the time, do not press ok. Press △ I Ⓤ to set the start time (hours then minutes). Confirm with ok. The oven will start automatically at the chosen time.

What should I do if the oven does not heat?

First check that the door is fully closed. Ensure the power cord is properly plugged in and the fuse has not blown. If the problem persists, contact an authorized repairer – never open the casing yourself.

USER MANUAL FS 20 WH CATA

Simple line drawing of a microwave oven with front and back panels (no text or symbols)

GB Microwave Oven Owner's Manual

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

FUNCIONAMIENTO

Line drawing of a plug with two leads and a wire (no text or symbols)

UTENSÍLIOS

CUIDADO

Perigo de lesões

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

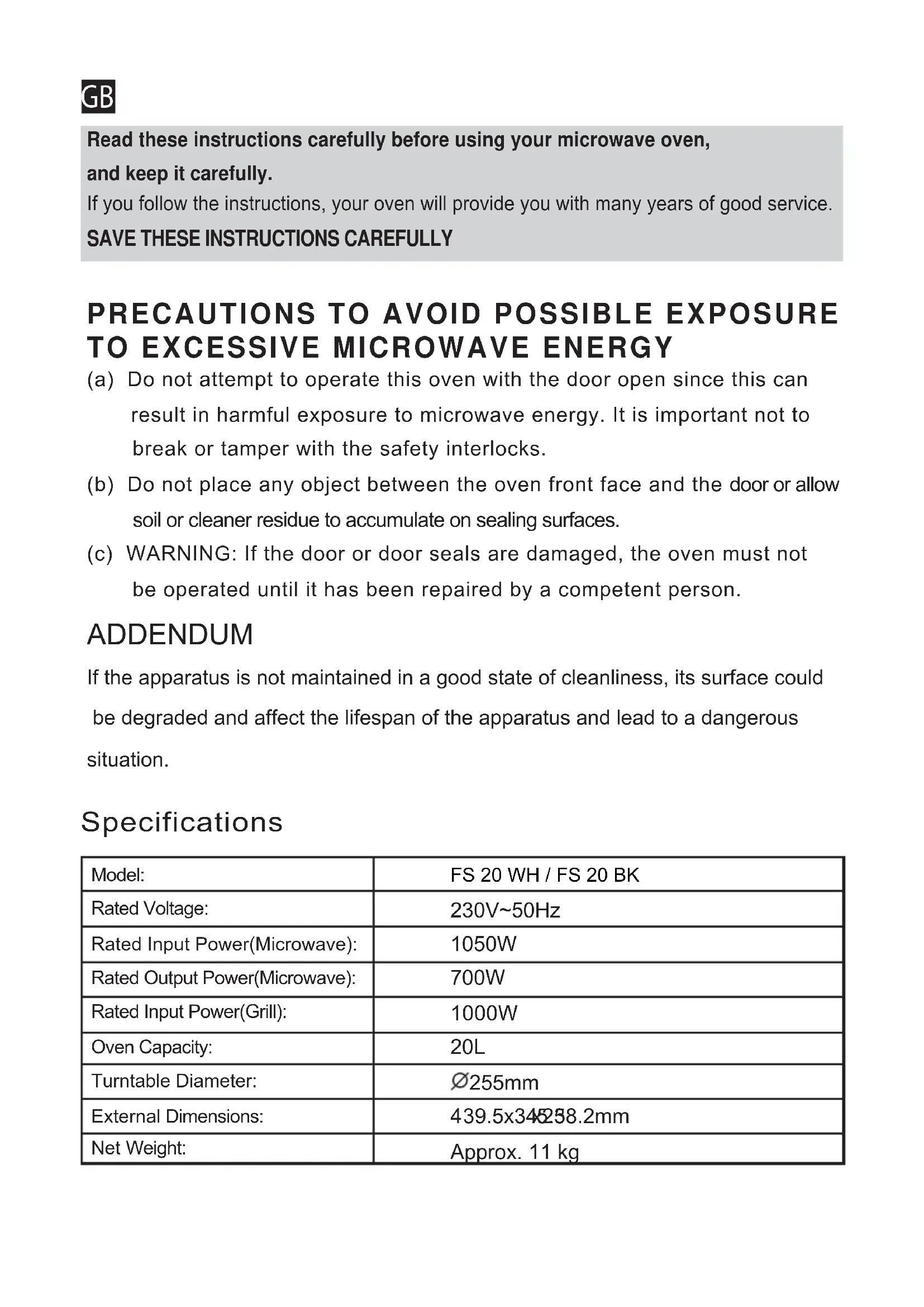

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	FS 20 WH / FS 20 BK
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1050W
Rated Output Power(Microwave):	700W
Rated Input Power(Grill):	1000W
Oven Capacity:	20L
Turntable Diameter:	∅255mm
External Dimensions:	439.5x34×258.2mm
Net Weight:	Approx. 11 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning : Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning : It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28. Steam cleaner is not to be used.
    29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
29. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
30. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
31. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
32. The rear surface of appliance shall be placed against a wall
    34The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death.

Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch:

Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.

Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil T est:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

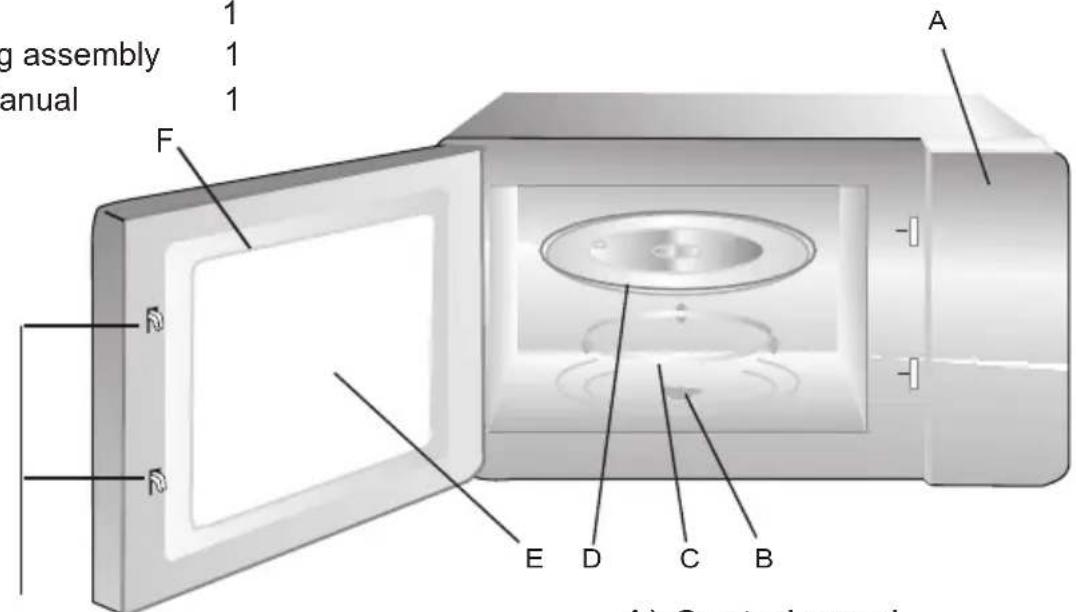

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

g assembly manual 1 1 1 A F D E D C B A) Control panel

G

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Grill Rack( Only be used in grill function and be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

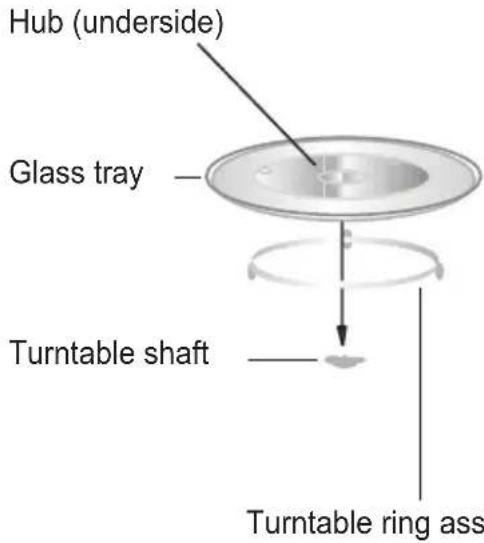

Turntable Installation

Hub (underside) Glass tray Turntable shaft Turntable ring ass

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

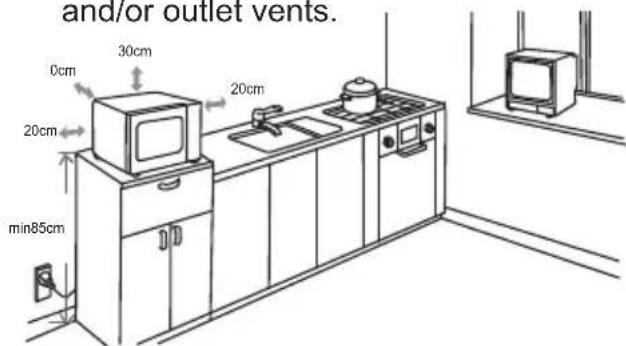

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

and/or outlet vents. 0cm 30cm 20cm 20cm min85cm

(1) The minimum installation height is 85cm.

(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press " △, the hour figure flash;
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
3) Press " △, th② minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press " △ to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if no oppression in 1 minute, the oven will go back to the previous status automatically.

2. Microwave Cooking

1) Press the "key once, and "P100" display.
2) Press " 🔊 " for times or turn " 🔔 " to select the microwave power "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press " " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05-95:00.)
5) Press " ① to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave Power		80% 50%		30%	10%100%
Display	P100	P80	P50	P30	P10

3. Grill Cooking

1) Press the "key once, and "P100" display.
2) Press " 🔊 " for times or turn " 🔊 " to select the grill power.
3) Press " " to confirm when the LED display "G".

4)Turn " 🔍 " to adjust the grill time. (The time setting should be 0:05- 95:00.)

5) Press " "to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press " ① I ok " to continue cooking. If no operation, it will continue working.

4. Combination Cooking

1) Press the " 🔊 " key once, and "P100" display.

2) Press " 🔍 " for times or turn " 🔍 " to select the combination power "C-1(55%microwave+45%grill)" and "C-2(36%microwave+64%grill)" will display in order.

3) Press " " to confirm.

4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " 'Iol start cooking.

5. Speedy Cooking

1) In waiting state, press " ①key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

2) During the microwave, grill and combination cooking and time defrost process, press " " #ol increase the cooking time.

3) In waiting states, turn " " left to choose the cooking time directly. After choosing the time, press " " to start cooking. The microwave power is 100%.

Note: Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing " "① | ok

6. Defrost By W eight

1) Press " * once, the screen will display "dEF1".

2) Turn " 🔍 " to select the food weight. The range of weight is 100-2000g.

3) Press " ① key to start defrosting.

7. Defrost By Time

1) Press " " twice, the screen will display "dEF2".

2) Turn " 🔍" to select the cooking time.

3) Press "Okay to start defrosting.

Note: The defrost power is P30. And it will not change.

8.Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press " twice, the screen will display "dEF2";
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press" "once;
4) Turn " 🔍 " to choose 80% microwave power till "P80" display;
5) Press " " to confirm;
6) Turn " 🔍 " to adjust the cooking time of 7 minutes;
7) Press " "to start cooking.

9. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example: if you want to cook with 80% microwave power for 7 minutes.

a. Press" "once;
b. Turn " " to choose 80% microwave power till "P80" display;
c. Press " "to|confirm;
d. Turn " " to adjust the cooking time of 7 minutes;

After the above steps, please do not press " Ⓞ Then

do as following:

3) Press " 🔊 The hour figures flash;
4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
5) Press " △ the minute figures will flash.

6) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.

7) Press " ① | ok " to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: clock must be set first. Otherwise, pre-set function will not work.

10. Auto Menu

1) In waiting states, turn " 🔍 " right to choose the menu from "A-1" to "A-8";
2) Press " ☉ to confirm the menu you choose;
3) Turn " 🔍 " to choose th food weight;
4) Press " ①td start cooking;
5) After cooking finish, the buzzer sounds five times.

Auto Menu

Menu	Weight(g)	Display	Power
A-1 REHEAT	200	200	100%
	400	400
	600	600
A-2 VEGETABLE	200	200	100%
	300	300
	400	400
A-3 FISH	250	250	80%
	350	350
	450	450
A-4 MEAT	250	250	100%
	350	350
	450	450
A-5 PASTA	50(with water 450 ml)	50	80%
	100(with water 800 ml)	100
A-6 POTATO	200	200	100%
	400	400
	600	600
A-7 PIZZA	200	200	100%
	400	400
A-8 SOUP	200	200	80%
	400	400

11. Lock-out Function for Children

Lock: In waiting state, press " " for 31 seconds, there will be a long "beep"

denoting entering the children-lock state and screen will display " [ : : ]".

Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released.

12. Inquiring Function

1) In cooking states of microwave, grill and combination, press " ", the current power will be displayed for 3 seconds.
2) In pre-set state, press " "to inquire the time for delay start cooking.

The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display.

3) During cooking state, press " " to check the current time. It will be displayed for 3 seconds.

13. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) " must be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, " " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.
(5) The buzzer will sound five times to remind you when cooking is finished.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Simple line drawing of a circular metal frame structure with three legs and supports (no text or symbols)

3mm 20mm 20mm 10mm 10mm

Simple line drawing of a circular metal frame structure with four legs (no text or symbols)

Simple line drawing of a circular metal frame structure with four legs and vertical supports (no text or symbols)

Simple line drawing of a circular metal frame structure with four legs and vertical supports (no text or symbols)

Simple line drawing of a circular metal frame structure with three legs and supports (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a circular metal frame structure with three legs and supports (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a circular metal frame structure with four legs and vertical supports (no text or symbols)
