USER MANUAL WG200E WORX

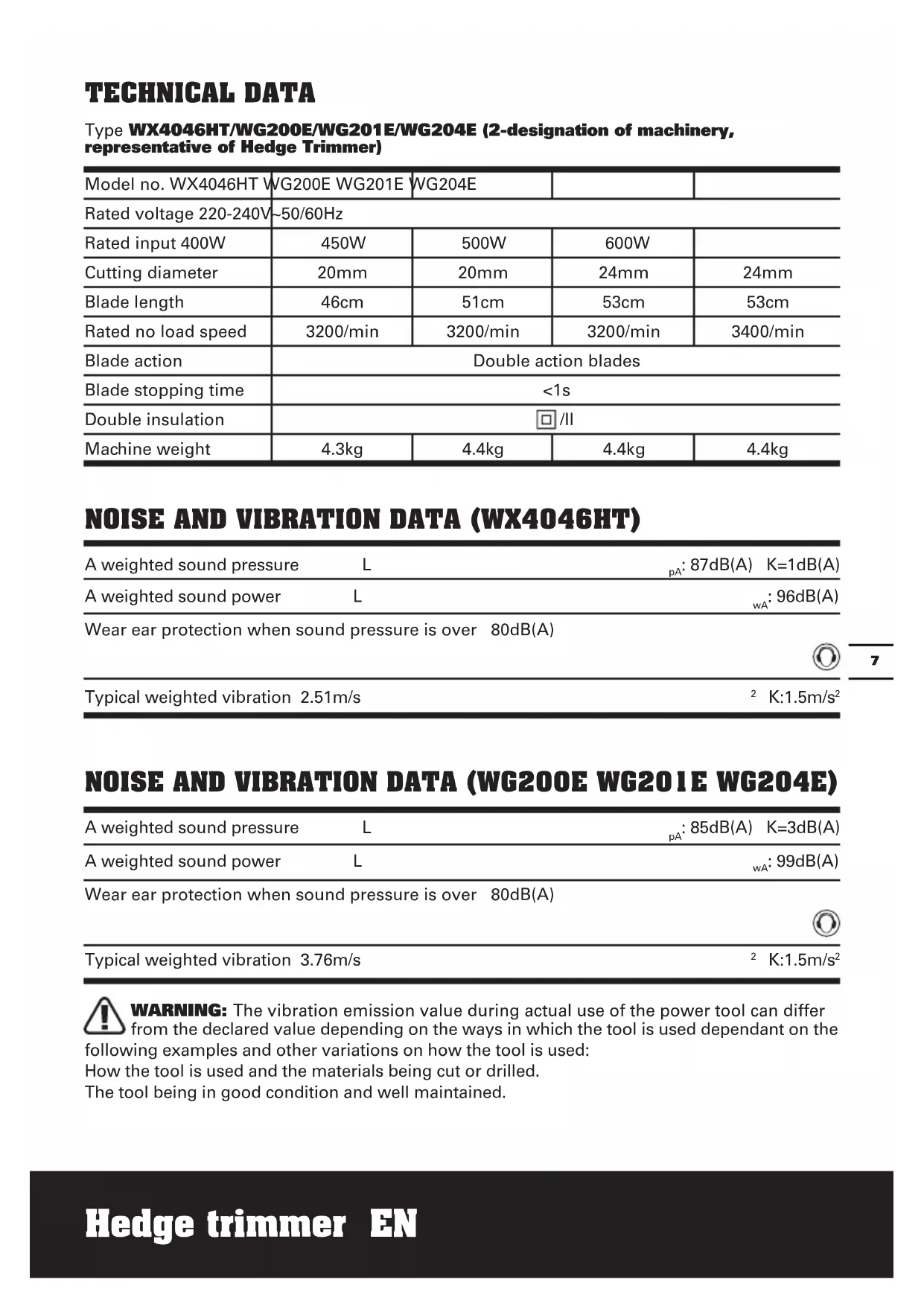

TECHnICAL DATA Type WX4046HT/WG200E/WG201E/WG204E (2-designation of machinery, representative of Hedge Trimmer) nOISE AnD VIBRATIOn DATA (WX4046HT) A weighted sound pressure L

: 99dB(A) Wear ear protection when sound pressure is over 80dB(A) Typical weighted vibration 3.76m/s

WARNING: The vibration emission value during actual use of the power tool can differ

from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled. The tool being in good condition and well maintained. Model no. WX4046HT WG200E WG201E WG204E Rated voltage 220-240V~50/60Hz Rated input 400W 450W 500W 600W Cutting diameter 20mm 20mm 24mm 24mm Blade length 46cm 51cm 53cm 53cm Rated no load speed 3200/min 3200/min 3200/min 3400/min Blade action Double action blades Blade stopping time <1s Double insulation /II Machine weight 4.3kg 4.4kg 4.4kg 4.4kgHedge trimmer En

The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use

should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10

C or less. Plan your work schedule to spread any high vibration tool use across a number of days. ACCESSORIES Safety guard 1 Blade sheath 1 We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.98 Hedge trimmer En

WARNING: Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.Hedge trimmer En

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ADDITIOnAL SAFETY POInTS FOR YOUR HEDGE TRIMMER

1. Keep all parts of the body away from

the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

2. Carry the hedge trimmer by the handle

with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

3. Keep cable away from cutting area.

During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

4. Hold the power tool by insulated

gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. ADDITIOnAL SAFETY RULES

1. Use the Hedge trimmer only in daylight or

good artificial light.

2. Know how to stop the Hedge trimmer

quickly in an emergency.

3. Never hold the Hedge trimmer by the

4. Never operate the Hedge trimmer with

damaged guards or without guard in place.

5. Remove the plug from mains before

passing the hedge trimmer to another person.

6. Avoid operating while people especially

children are nearby.

be sure of a safe and secure operating position.

8. Keep hands and feet away from the cutting

means at all times and especially when switching on the motor.

9. Do not use step ladders whilst operating

10. Remove the plug from the mains:

-Before leaving the Hedge trimmer unattended for any period, -Before cleaning a blockage, -Before checking, cleaning or working on the appliance, -If you hit an object. Do not use your Hedge trimmer until you are sure that the entire Hedge trimmer is in a safe operating condition, -If the Hedge trimmer starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury, -Before passing to another person.

11. Do not expose to rain. Do not operate your

is fitted before using the Hedge trimmer. Never attempt to use an incomplete machine or one fitted with an unauthorised modification.

13. Check cutting blades regularly for damage,

and if damaged repair immediately. 14.Keep cable away from the cutting area, check the cable for damage before starting work. 15.Do not start the Hedge trimmer with the blade cover fitted. 16.Take care not to overload the Hedge trimmer and do not use it on jobs for which it is not intended, i.e. you are allowed to use the Hedge trimmer only to cut hedges, shrubs and perennials.

17. Always be sure of your footing when using

steps and when using your hedge trimmer.

18. Never run when using your hedge trimmer.

19. Heavy duty gloves should always be worn

when using the Hedge trimmer.

20. Be careful during adjustment of placing

your fingers between moving blades and fixed parts of the machine.

21. During transportation and storage of the

Hedge trimmer, keep the blades covered at all times with the blade cover/storage. 22.The use of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA is recommended.

23. Do not try to grasp or remove hedge

clippings when the hedge trimmer is running. Only remove hedge clippings when the appliance is switched off and disconnected from the mains supply.

24. Carry the hedge trimmer at the handle

while the cutter blade is not running. Always ensure guard supplied is fitted when transporting or storing the hedge trimmer. Careful operation reduces the injury by the cuter blade.

25. Keep cable away from the cutting area. Be

aware that during operation the cable may be covered in hedge clippings and could be cut inadvertently.

26. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.Hedge trimmer En

SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear ear protection Wear dust mask To avoid possibility of electric shock, do not expose to rain Remove plug from the mains immediately if cable is damaged or cut Double insulation Keep hands away Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. OPERATInG InSTRUCTIOnS

WARNING: Do not use the product

without fitting the guard and front handle. INTENDED USE The machine is intended for cutting and trimming hedges and bushes in domestic use.

ASSEMBLY OF THE GUARD

Insert the guard into the slot as illustrated in Fig A, allow the two locking tabs to insert into the holes, ensure it is securely located. Then use two screws to fix the guard securely.

housing. (See Fig. B)

2) Pull to insert the other side of the front

handle to the other side of the housing. (See Fig. B)

3) Rotate each lock nut (7) as shown in Fig C.

Check and ensure the lock nuts are locked onto the main housing. STARTInG AnD STOPPInG

BEFORE STARTING YOUR HEDGE

TRIMMER Remove blade cover (10) as illustrated in D.

TO START YOUR HEDGE TRIMMER

There are two switch levers fitted in your Hedge trimmer (2&4). Both switch levers need to be depressed for the product to start. Depress and hold the front switch lever (4) and press the switch lever (2) (See Fig. E).

TO STOP YOUR HEDGE TRIMMER

Move Hedge trimmer away from cutting area before stopping. To stop, release one of the switch levers (See Fig. G).

WARNING: If any parts are missing,

hands and with the blade away from you before turning it on. Always keep the power cord behind the Hedge trimmer when in use. Do not place it over the hedge that you are trimming where it may be cut by the blade. When trimming new growth, use a wide sweeping action so that the stems are fed directly into the blade. Allow the cutting blades to reach full speed before entering the material to be cut. Always work going away from people and solid objects such as walls, large stones, trees, vehicles etc. If the blade stalls, immediately stop the Hedge trimmer. Disconnect the Hedge trimmer from the mains and clear the jammed debris from the cutting blades. Wear gloves when trimming thorny or prickly growth. Move the Hedge trimmer to feed the branches directly into the blade cutting edges. Do not try to cut stems that are too large to feed into the cutting blade. TOP CUTTING Use a wide sweeping motion (See I). A slight downward tilt of the cutting blades in the direction of motion gives the best cutting results. SIDE CUTTING When trimming the sides of the hedge, begin at the bottom and cut upwards (See Fig. J), tapering the hedge inward at the top. This shape will expose more of the hedge, resulting in a more uniformed growth. MAInTEnAnCE CLEANING Disconnect from mains electrics supply. Using a soft brush-remove debris from all air intakes and cutting blade. Wipe over surface of your Hedge trimmer with a dry cloth.

WARNING: Never use water for

cleaning your Hedge trimmer. Do not clean with chemicals, including petrol, or solvents as this can damage your hedge trimmer. your Hedge trimmer until all damaged parts have been replaced or repaired. Failure to do so could result in serious personal injury. OPERATInG THE HEDGE TRIMMER

REAR HANDLE EXTENSION

The rear handle of the Hedge trimmer can be extended to increase the reach of your hedge trimmer. To operate this feature you need to press and hold the extension button (5) with your thumb and pull the rear handle (1) away from the main housing. You can choose from 4 preset positions for the rear handle (See Fig. H).

ADJUSTING THE FRONT HANDLE

POSITION Press and hold the two buttons (6) and rotate the front handle to the most comfortable angle. The front handle will be locked after you release the buttons. You can choose from 4 preset positions for the front handle (See Fig. F). Caution: Ensure you support the weight of the hedge trimmer before you adjust the front handle.

HOW TO USE YOUR HEDGE TRIMMER

For normal horizontal or vertical (side) cutting it is recommended to not extend the rear handle and to use the front handle in the two most forward positions. When you require a longer reach you must extend the rear handle and use the front handle in the two most rear positions. This will increase your reach and maintain a balanced control (See Fig. H). The front handle has a switch lever which can be activated on three sides. If your hand grip is on the top or either side of the front handle you can activate the switch whilst maintaining the most comfortable hand grip position. Inspect the area to be cut before each use, remove objects which can be thrown or become entangled in the cutting blades. Always hold the Hedge trimmer with bothHedge trimmer En

For easier operation and longer life, lubricate the cutting blades before and after each use. Before lubricating, make sure your Hedge trimmer is disconnected from the mains electricity supply. Apply the oil so that it runs between the two blades (See Fig. K). Your trimmer should be stopped, disconnected and oiled occasionally during use. AT THE END OF THE CUTTING SEASON Clean your Hedge trimmer thoroughly. Check that all nuts and bolts are secure. Visually inspect the Hedge trimmer for any worn or damaged parts.

TO STORE YOUR HEDGE TRIMMER

The Hedge trimmer blade cover/storage holder is provided with 2 hanging slots for storing the Hedge trimmer on the wall (See Fig. L) Ensure the blade cover/storage holder is fitted before storage. Store in a dry place where your Hedge trimmer can be protected from damage. EnVIROnMEnTAL PROTECTIOn Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. PLUG REPLACEMEnT (UK & IRELAnD OnLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: Blue – Neutral Brown – Live As the colors of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.

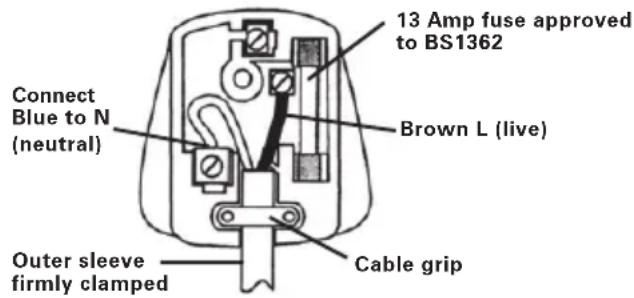

WARNING: Never connect live or

neutral wires to the earth terminal of the plug. Only fit an approved BS1363/A plug and the correct rated fuse. NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. Connect Blue to N (neutral) Outer sleeve firmly clamped Cable grip Brown L (live) 13 Amp fuse approved to BS13621514 Hedge trimmer En

EC DECLARATIOn OF COnFORMITY We, POSITEC Germany GmbH Theodor-Heuss-Ring 1-3 50668 Köln Declare that the product, Description WORX Hedge trimmer Type WX4046HT WG200E WG201E WG204E (2-designation of machinery, representative of Hedge Trimmer) Function Trimming hedges and bushes Complies with the following Directives, EC Machinery Directive 2006/42/EC EC Electromagnetic Compatibility Directive 2004/108/EC Noise Emission in the Environment by Equipment for Use Outdoors Directive 2000/14/EC amended by 2005/88/EC - Conformity Assessment Procedure as per Annex V - Measured Sound Power Level 96dB(A) - Declared Guaranteed Sound Power Level 96dB(A)(WX4046HT) 99dB(A)(WG200E WG201E WG204E) Standards conform to, EN 55014-1 EN 55014-2 EN 60745-1 EN 60745-2-15 EN 61000-3-2 EN 61000-3-3 EN ISO 3744 The person authorized to compile the technical file, Name: Russell Nicholson Address: Positec Power Tools (Europe) Ltd, PO Box 152,Leeds,LS10 9DS,UK 2011/11/28 Leo Yue POSITEC Quality ManagerHeckenschere D
