USER MANUAL Thermofan Duo BHC 175 STIEBEL ELTRON

BHC 175, BHC 175 L thermofan duo

Deutsch

Operating and installation instructions

Français

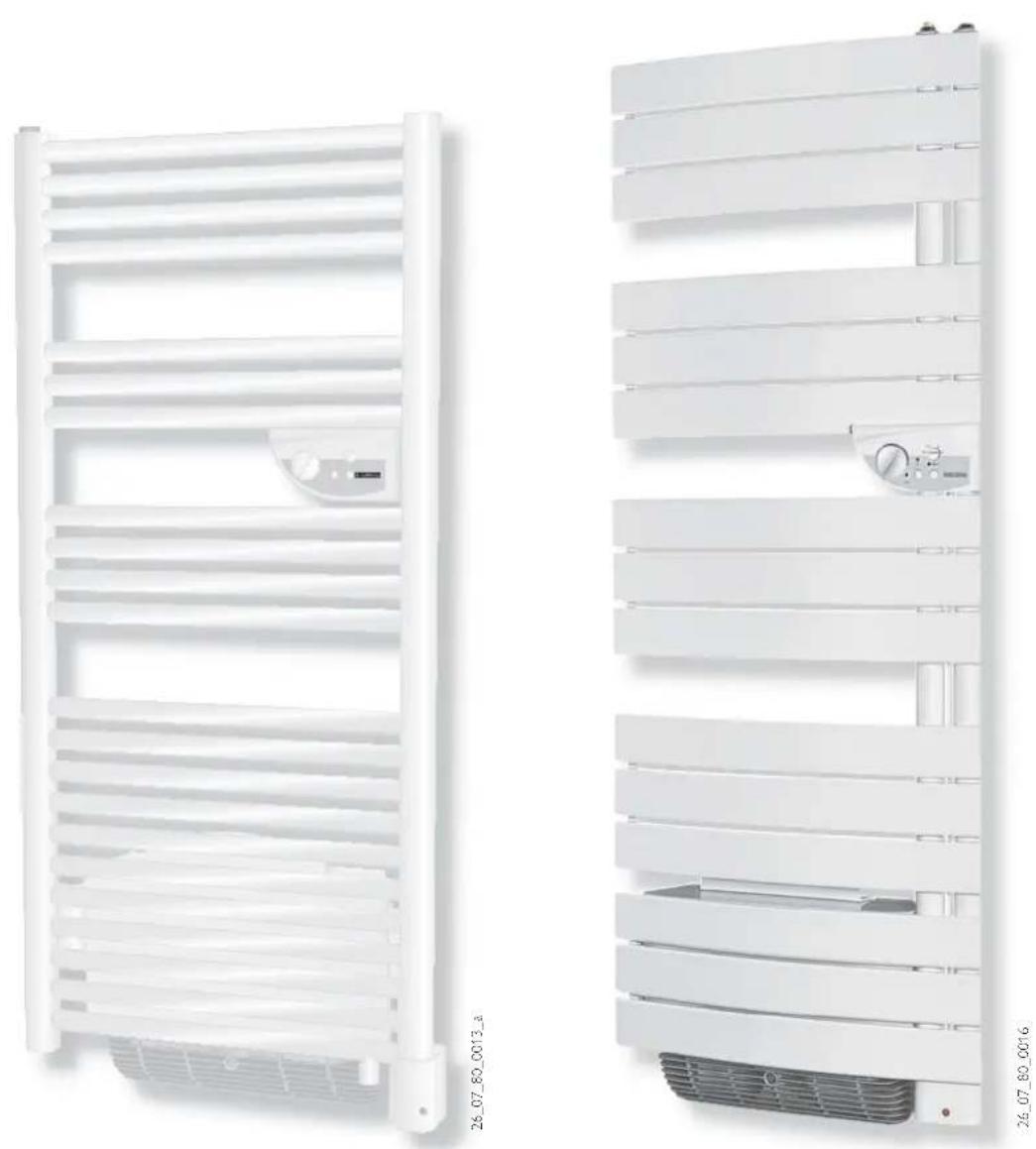

26_07_80_0013_a
26_07_80_0016

Inhaltsverzeichnis

Deutsch

Seite 4 - 9

1. Operating instructions 10

The most important points in brief

1.1 Unit description

1.2 Operation as an electric room

1.3 Operation in a central heating

1.4 Safety instructions

1.5 Care and maintenance

1.6 Protective dust filter

What to do if . . . ?

2. Installation instructions 12

2.1 Equipment description

2.2 Instructions and regulations

2.3 Use of the unit

2.4 Installation

2.5 Initial start-up

2.6 Hand-over

Technical data

3. Environment and recycling 14

4. Guarantee 14

Contenu

Français

page 15 - 19

Close-up of a ventilation grille with ventilation slots and a labeled component (V2), no readable text or symbols beyond the label.

1 C26-07-80-0003

11 C26_07_80_0015-a

The installation and use of electrical appliances must be carried out with due caution in order to avoid the risk of fire, electric shock or injury. The equipment must only be used as described in these instructions. Any use outside of the manufacturer recommendations could lead to damage, fire, shock or injury.

The heat requirement of the room should be matched to the heat output of the unit.

Before using the appliance the instructions should be read in their entirety and all appropriate handling of the equipment must be observed.

These instructions should be kept safely and passed on to any future owner.

In the event of any repair work, hand them to the qualified installer for his attention.

1.1 Unit description

The BHC thermofan duo towel rail radiator is suitable for use as full or supplementary heat-

The most important points in brief

2 5 6 3 4 1 7 C26.07 80.0003

1 ON/OFF button
2 LED indicator "appliance ON"
3 Room thermostat (electric operation)
4 LED indicator "appliance heating up"
5 LED indicator "rapid heating function"
6 Short-time timer for "rapid heating function"
7 ON/OFF button for "rapid heating function"

V1 S1 C76_07_80_0014

S1 ON/OFF switch for immersion heater
V1 LED indicator light "immersion heater operating"

ing as well as for drying and warming towels. There are several levels for hanging these.

The units can be operated either as electric room heaters or as heating elements within a hot water central heating system.

During operation, the room air over the surface of the heating element is heated and distributed through the room by natural convection.

The unit also has a time-limited electric rapid heater (1000 W) with fan that can be switched on when required.

The electrical connection is by means of mains plug.

Operation with a hot water central heating system

Even when the central heating is switched off, the heating element can be heated via the integral electric Direct immersion heater (750 W) fitted as standard (see 1.3.2 Summer operation).

Do not operate the immersion heater unless the radiator is full; otherwise radiator will be damaged.

1.2 Operation as an electric room heater

The BHC is fully controlled via the control panel on the front after the Direct immersion heater has been switched on using switch S1.

The heater is be switched on via the ON/OFF button (1). Set the room temperature to between approx. + 6 °C and + 30 °C on the room thermostat (3).

After the adjusted ambient temperature has been reached, it will remain constantly, until the appliance is switched off (the heating capacity of the appliance must correspond at least to the necessary heat requirement of the room).

Rapid heating function

With the rapid-heating-function the immersion heater (if switch on) and the rapid-heater (A2) will run for the preselected period for continuous operation, regardless of the temperature set on the room thermostat. The heating time can be set at 14 h, 12 h, 1 h or 2 h on the short-time timer (6) and is activated by the rapid-heating button (7).

If the heating time is to be ended before the end of the set period, the rapid heating button must be pressed again.

Frost protection

In the event of a lengthy absence, the room temperature should not fall below approx. +6 °C (frost protection) and the room thermostat should be turned to the * position and the appliance must remain switched on (observe the heating capacity of the appliance and heat requirement of the room).

1.3 Operation in a central heating system

1.3.1 Winter operation

The central hot-water heating system is operating.

The temperature of the BHC is controlled by means of the thermostatic valve installed site wise.

The electrical rapid heater can be switched on via the control panel.

Rapid heating function

Switch on the ON/OFF button (1).

In addition, the rapid heating function can be used to switch on the rapid heater (A2) for a pre-selected period.

The heating time can be set at 14 h, 12 h, 1 h or 2 h on the short-time timer (6) and is activated by the rapid-heating button (7).

If the heating time is to be ended before the end of the set period, the rapid heating button must be pressed again.

Frost protection

In the event of a lengthy absence, the room temperature should not fall below approx. +6 °C (frost protection) and the thermostatic valve should be turned to the * position (observe the heating capacity of the appliance and heat requirement of the room).

1.3.2 Summer operation

The BHC is fully controlled via the control panel on the front after the Direct immersion heater has been switched on using switch S1.

The heater is be switched on via the ON/OFF button (1). Set the room temperature to between approx. + 6 °C and + 30 °C on the room thermostat (3).

After the adjusted ambient temperature has been reached, it will remain constantly, until the appliance is switched off (the heating capacity of the appliance must correspond at least to the necessary heat requirement of the room).

Rapid heating function

With the rapid-heating-function the immersion heater (if switch on) and the rapid-heater (A2) will run for the preselected period for continuous operation, regardless of the temperature set on the room thermostat.

The heating time can be set at 14 h, 12 h, 1 h or 2 h on the short-time timer (6) and is activated by the rapid-heating button (7).

If the heating time is to be ended before the end of the set period, the rapid heating button must be pressed again.

Frost protection

In the event of a lengthy absence, the room temperature should not fall below approx. +6 °C (frost protection) and the room thermostat should be turned to the à position and the appliance must remain switched on (observe the heating capacity of the appliance and heat requirement of the room).

1.3.3 Changing between winter and summer operation

Carry out the following steps to change the operating mode:

From winter to summer operation

→turn the thermostatic valve on the appliance to 0 (close);

→if a return cock has been fitted, do not close this, otherwise the appliance may be destroyed;

→switch on the immersion heater by means of the switch at the bottom of the appliance (S1), the indicator light (V1) comes on.

From summer to winter operation

→switch off the immersion heater by means of the switch at the bottom of the appliance (S1), the indicator light (V1) goes out;

→set the thermostatic valve to the required temperature.

1.3.4 Taking the appliance out of operation

In order to take the equipment completely out of operation, switch it off, take the supply plug out and stop water supply (via thermo-static valve).

1.4 Safety instructions

Do not operate the appliance

- in rooms which present fire or explosion risks as a result of chemicals, dust, gases or fumes;

- in the immediate vicinity of pipes or containers which carry or contain combustible or potentially explosive substances;

- if the minimum distances from adjoining surfaces of objects are not met.

- The appliance must not under any circumstances be operated if work such as the laying of floor, polishing, sealing, cleaning with petrol and maintenance of floors (spray, wax) and similar is being carried out in the room where it is installed. Afterwards, the room must be sufficiently ventilated before the heater is operated.

- The surface of the appliance gets hot when it is in operating (approx. 80 °C). There is a risk of burns!

- If it is intended that children or persons with restricted physical, sensory, or mental capacity should operate the appliance, it must be ensured that this is only done after appropriate instruction has been provided by the person responsible for their safety. Children should be supervised to ensure that they do not play with the device.

- Do not cover the device!

Combustible or inflammable objects, such as containers of wax or petrol, aerosols and such like, must not be placed on or in the immediate vicinity of the appliance. Risk of their catching fire!

- For objects of all kinds, such as newspapers, furniture, curtains and drapes or other combustible materials, the following minimum distances from the heater must be observed:

Air exit grill on Hot-water heating element on all sides 150 mm

- The surface of the BHC may be hot even when it is switched off.

- This appliance is intended only for warming or drying textiles which have been made damp by water (not dry cleaning).

• Do not climb on the appliance (in particular, draw children's attention to this).
• No changes at the equipment must be made.
• Special caution is required, if the appliance is used in the presence of children, invalid persons or animals. Danger of injury!
• If a part of the appliance is damaged or has fallen down or it was already defect/malfanctioning, it may no be taken in to operation.

1.5 Care and maintenance

Clean the appliance regularly when it is cold, using standard care agents. Avoid the use of abrasive and corrosive agents.

As part of regular maintenance, we recommend that you have the control and regulating devices checked as well. Safety, control and regulating devices should be checked by a qualified installer not later than 10 years after first start-up.

1.6 Protective dust filter B

The rapid heater is fitted with a protective dust filter which may cause the rapid heater to shut down if it is heavily soiled (red indicator light (V2) on the air exit grill of the rapid heater lights up). Therefore, the filter must be cleaned at regular intervals.

To clean the filter sides 200 mm

→switch off the appliance by means of the ON/OFF button (1);

→press forward the filter (11) at the back of the appliance and remove upwards;

→clean the filter with a vacuum cleaner;

→put the filter back in the appliance.

The appliance can be restarted 10 minutes after the filter has been put back.

What to do if ...?

• the radiator does not get warm?

Check whether...

... the ON/OFF button1) is switched on.

... the appropriate fuse in your fuse box has been connected or the residual current circuit breaker has switched off.

... the thermostatic valve has been opened.

... there is too much air in the heater. Bleed the heater via the air bleed 25k (

Remove the cause!

If the heater still does not warm up, call a qualified installer.

Switch the radiator off and then on:

– the LED indicator "appliance heating up" flashes 3 times, the measuring probe is damaged.

Call a qualified installer.

— the LED indicator "appliance heating up" flashes 5 times, the mains voltage to the appliance is too high.

Switch the heating element off. Call a qualified installer.

• the rapid heater switches off too early?

Check whether the dust filter (11) and/or air exit grill on the rapid heater is obstructed.

If necessary, clean them. (see part 1.5)

If the room temperature is too high, the rapid heater automatically switches off early for safety reasons, in order to avoid damage. Above 1000 metres above mean sea level, this may occur repeatedly because of the thinner air, which means that the air heats up more quickly.

In each case, take the following steps to restart the appliance::

-switch off the appliance by means of the ON/OFF button;

—wait at least 10 minutes before switching on the appliance again.

- when the sevice technician has been called?

Inform the service technician about the type of unit (Typ) and it's number (Nr.) that is found on the rating plate (27)!

Typ: BH.....

STIEBEL ELTRON

2. Installation instructions for qualified installers

The installation (water and electrical work) and commissioning as well as maintenance of this appliance must be carried out only by an approved qualified installer in accordance with these instructions.

Only remove the packaging of the unit and accessories at the place of installation, taking note of the additional package.

When unpacking, take care to ensure that no accessories remain behind in the packaging material.

2.1 Equipment description

11 Protective dust filter
12 Wall distance pipe
13 Screw 5 × 40
14 Adjusting screw M4 × 10
15 Spacer
16 Clamp
17 Screw M5 x 30
18 Cap
19 Raw plug∅8mm
20 Mount-hook
21 Cap
22 Power supply cable with plug, 1000 mm long
23 Heating flow pipe connection G ½
24 Heating return pipe connection G ½
25 Air bleed cock
26 Fixing bolt
27 Rating plate
28 Extension 180 mm
29 Extension 130 mm
30 Extension 50 mm
31 90° -elbow union

The towel rail radiator is for wall mounting only.

In preparation for installation, the unit is filled with a heat carrier medium (water/glycol mixture) which is heated via an immersion heater. The electrical connection takes place via a mains plug.

If necessary, after draining the heat carrier medium the unit can also be connected to the hot water central heating system via the feed (23) and return connectors (24).

With splash protection class IP 24, the heater can also be used in protected zones 2 to VDE 0100T701 (follow the notes on protected zones in 2.2).

2.2 Instructions and regulations

The appliance must not:

• Be operated in areas which are subject to the risk of fire or explosion due to chemicals, dust, gases or vapours;
• Be operated in the immediate vicinity of pipes or containers which carry or contain combustible or potentially explosive substances;
• Be operated, at less as the minimum clearance distances advised.

In workshops or other areas in which the odour of waste gases, oil, petrol, etc. might occur, or in which work is carried out involving solvents and chemicals, there is a risk of sustained odour burdens being engendered, and possibly of dirt contamination occurring.

- The appliance should only be installed on a vertical wall resistant to temperatures above 90 °C

To avoid danger to very small children, the unit must be installed so that the lowest crossbar is at least 600 mm above the floor!

• The installation wall must have sufficient load-bearing capacity (appliance weight, see "Specifications").
• Observe the minimum distances from adjoining surfaces of objects.
• The appliance should not be installed immediately below a wall socket.
• All electrical connection and installation work must be carried out in accordance with the VDE regulations (0100), the regulations of the competent water and electricity supply companies as well as the appropriate national and regional regulations.
• Follow the rating plate. The stated voltage must be in accordance with the mains voltage.

• If the heating unit is installed in rooms with a bath and/or a shower, the range of protection according to the I.E.E. Regulations-in conformity with the information on the unit rating plate - must be taken into account.

• The unit is to be fitted in such a way that switching and control devices cannot be touched by anyone in the bath or under the shower.

• If it needs replacing, the power supply cable must only be replaced with an original Stiebel Eltron spare by a qualified installer:
• The appliance must in any case be filled with water. Operating the appliance electrically without filling it will destroy the appliance.
• The connection of the bath/towel heating elements to the central heating system may not allow the free expansion of the water content of the bath/towel heating element to the expansion vessel if the thermostatic valve is closed. If the valve is installed in the return flow, then it must be ensured that this can only be operated by means of a tool so that the unauthorised closure of the valve is prevented. When using the electrical direct heating element (summer operation) this valve may under no circumstances be closed.

2.3 Use of the Unit

If the bathroom heater is operated electrically only, it must be installed without connecting the feed and return connectors for the central heating system, depending on the unit type concerned.

If the bathroom heater is to be connected to the central heating system, before installation the factory-filled heat carrier medium (required for purely electrical operation) must be drained.

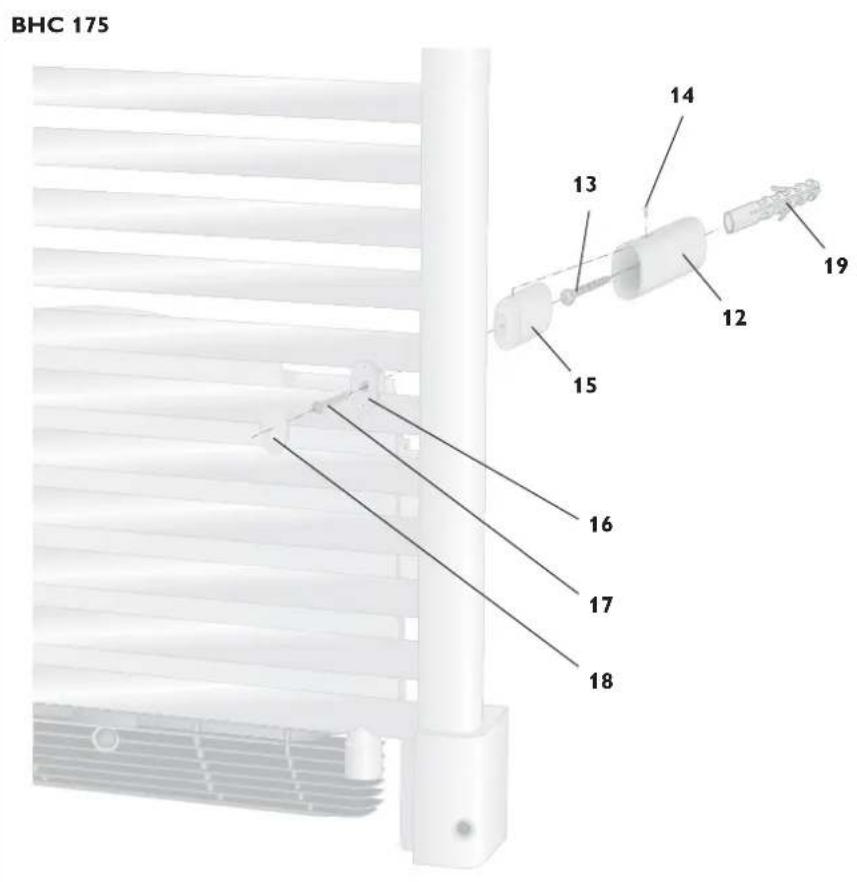

BHC 175 14 13 12 19 15 16 17 18

C26_07_80_0012

To do this, remove the sealing caps on the feed (23) and return connectors (24).

2.4 Installation

BHC 175

If connected to the central heating system, the heat carrier medium must be drained first as described before.
→ A Take the dimensions for drill holes from the illustration of the BHC, depending on the customer's existing water connections, and mark out on a wall with sufficient load-bearing capacity. Observe minimum distances!
→Install wall distance pipe (12) with enclosed raw plugs ∅8 mm (19) and screws 5 × 40 (13) depending on the construction of the wall.
→Push the spacers (15) into the wall distance pipe and screw into position with the adjusting screw M4 × 10 (14) (do not tighten).
→Position the radiator with the two upper cross-pipes on the upper spacers and secure in position on the spacers by means of the clamp (16) (M5 × 30 screw, 17). Then fix at the bottom in the same way as at the top.
→Line up the radiator (push spacers into wall bushes), tighten the adjusting screws in the wall bushes at the top and put caps (18) on the clamps.
→If connected to the central heating system, connect it to the feed- (23) and return connectors (24).

Connect a thermostatic valve to the flow pipe connection.

Bleed the radiator via valve (25) while filling.

→Plug in the mains plug (22).

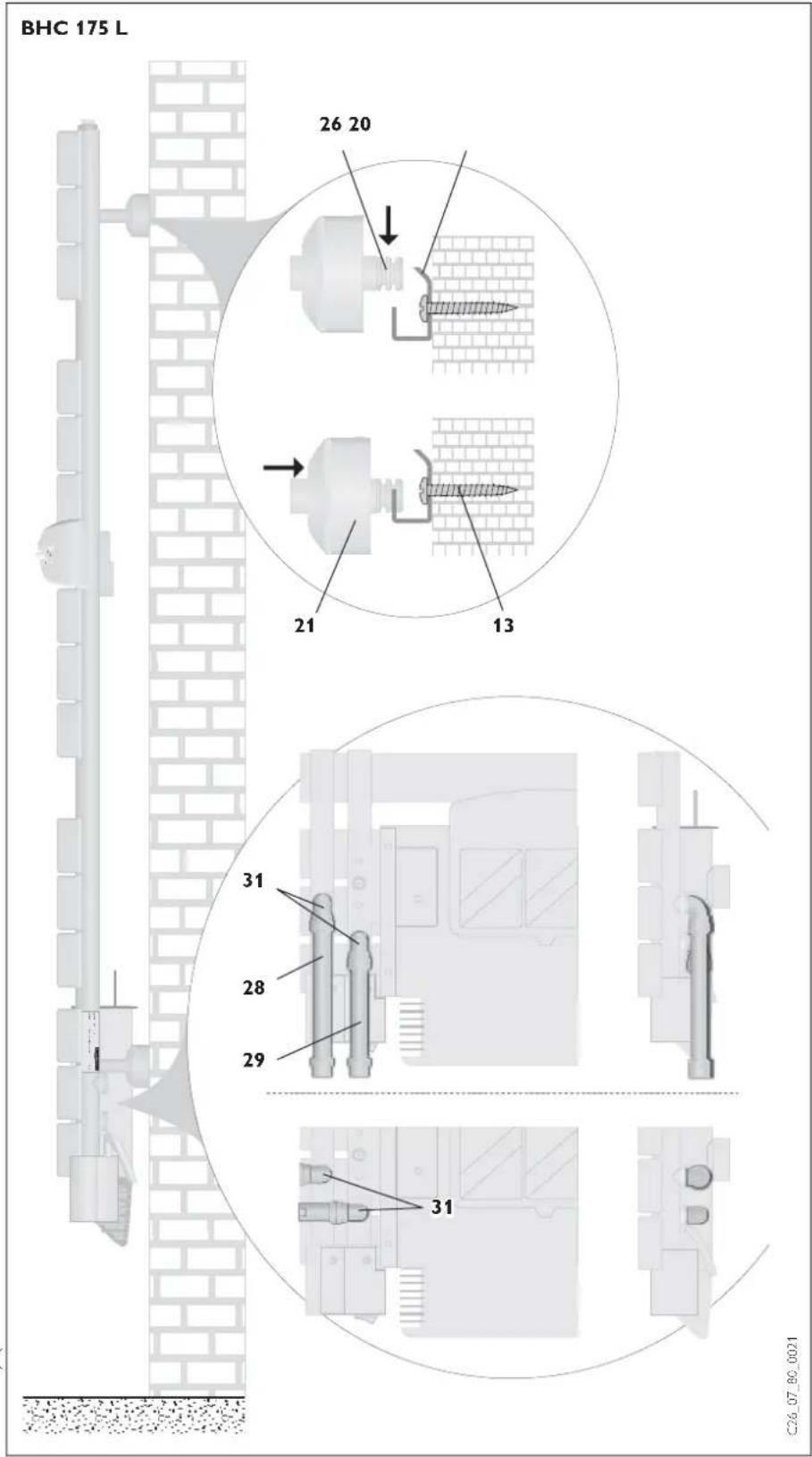

BHC 175 L

If connected to the central heating system, the heat carrier medium must be drained first as described before.
⇒ A Determine the dimensions of drill-holes according to the fixing bolts (26) or determine it from the dimensional drawing of the BHC-L and mark it on a sufficient load-carrying wall, depending to the existing water-connection-points. Beware the minimum distances!
→Install the mount-hook (20) depending to the wall construction with suitable mounting materials, e.g. with enclosed raw plugs ∅8 mm (19) of and screws 5 × 40 (13).
→Hang the radiator on the retaining hooks with the fixing bolts (26).
→Push caps (21) with "marking ridge upward" onto the fixing wall (appliance is fixed).
→If connected to the central heating system, connect it to the feed- (23) and return connectors (24).

Connect a thermostatic valve to the flow pipe connection.

For a water connection from below or the right side of the equipment accessories are attached, fitting to the unit :

two 90°-elbow union34) and

- two extensions, one of 1828)mm- and another of 130 mm-extension (29) for the connection from below or

- a 50 mm extension (30) for the connection from the right side of the unit. Bleed the radiator via valve (25) while filling. Plug in the mains plug (22).

Electrical connection

The appliance must be connected to AC 230 V \~ 50/60 Hz only.

A socket must be installed at a distance of at least 10 cm to the side of the heater for the purpose of the connection.

2.5 Initial start-up

When it is started up for the first time, you may notice a smell which is caused by any manufacture-related residues on the radiator.

2.6 Hand-over

Explain the functions of the appliance to the user. In particular, draw his or her attention to the safety instructions. Hand over the operating and installation instructions.

BHC 175 L 26 20 21 13 31 28 29 31 C26.07.80.0021

Technical data

Type BHC 175 BHC 175 L
Dimensions h / w / d		mm	1239 / 550 / 130	1467 / 550 / 152
Weight kg 19.0 29.5
Hot water:	connection G 1⁄2
	output V/R-T (70/55-22 °C)	W	435	585
	(50/40-22 °C)		230	325
	filling capacity	I	approx. 5,9	approx. 6,4
	max. inlet temperature	°C	110
	max. operating pressure	bar	4,0
Electrical:	connection		1/N ~ 230-240V 50 Hz
	rated output	W	750 (immersion heater)1000 (rapid heater)
	temperature setting range	°C	approx. + 6 to +30
	frost protection	°C	approx. +6
Protection mode			IP 24 (splash proof)
Protection class			II (double-insulated)
Licences			see type plate
    end

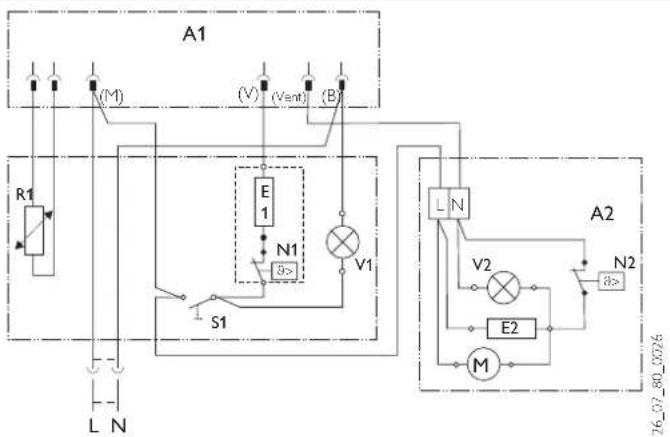

A1 Control panel PCB
A2 Rapid heater
E1 Immersion heater (summer operation)
E2 Radiator "rapid heating function"
M "Rapid heating function" fan
N1 Protective thermostat
N2 Protective thermostat
R1 Room temperature sensor
S1 ON/OFF switch for immersion heater
V1 LED indicator light "immersion heater operating"
V2 Dust filter indicator light

3. Environment and recycling

Recycling of obsolete appliances

Appliances with this label must not be disposed off with the general waste.

They must be collected separately and

disposed off according to local regulations.

4. Guarantee

For guarantees please refer to the respective terms and conditions of supply for your country.

The installation, electrical connection and first operation of this appliance d be carried out by a qualified installer.

The company does not accept liability for failure of any goods supplied which accordance with the manufacturer's instructions.

V1 S1 C26_07_80_0014

1.3.4 Mise horse service

Unit 12 Stadium Court

Stadium Road

Bromborough

Wirral CH62 3QP

Email: [e-mail]

www.stiebel-eltron.co.uk

Hungary

STIEBEL ELTRON Kft.

Nihon Stiebel Co. Ltd.

Ebara building 3F | 2-9-3 Hamamatsu-cho

Minato-ku | Tokyo 105-0013

Tel. [phone] | Fax [phone]

[e-mail]

Netherlands

STIEBEL ELTRON Nederland B.V.

Daviottenweg 36 | Postbus 2020

NL-5202 CA's-Hertogenbosch

Tel. [phone] | Fax [phone]

Email [e-mail]

www.stiebel-eltron.nl

Poland

STIEBEL ELTRON sp.z. 0.0

Urzhumskaya street, 4. | 129343 Moscow

Tel. [phone] | Fax [phone]

Email [e-mail]

www.stiebel-eltron.ru

Sweden

STIEBEL ELTRON AB

Friggagatan 5| SE-641 37 Katrineholm

Tel. [phone] | Fax [phone]

Email [e-mail]

www.stiebel-eltron.se

Switzerland

STIEBEL ELTRON AG

United States of America

STIEBEL ELTRON Inc.

17 West Street | West Hatfield MA 01088

Tel. [phone] | Fax [phone]

Email [e-mail]

www.stiebel-eltron-usa.com
