USER MANUAL Safeblade fan Eurom

Instruction manual (EN) (page 7)

Black industrial fan with four blades, mounted on a circular base (no text or symbols visible)

3D rendering of a four-blade propeller with three blades, enclosed in a circular frame (no text or symbols visible)

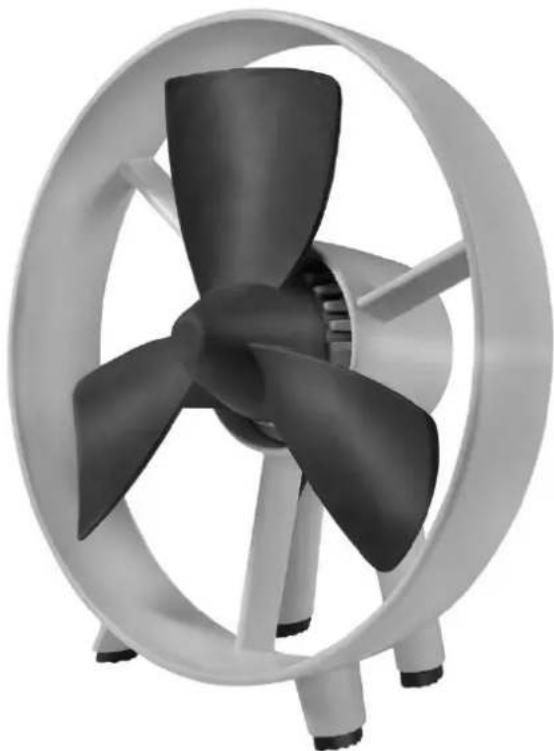

Safe-blade fan

Art.nr. 385052

Top-down view of a white propeller with black blades and 'UROM' branding, no visible text or symbols on the body itself.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

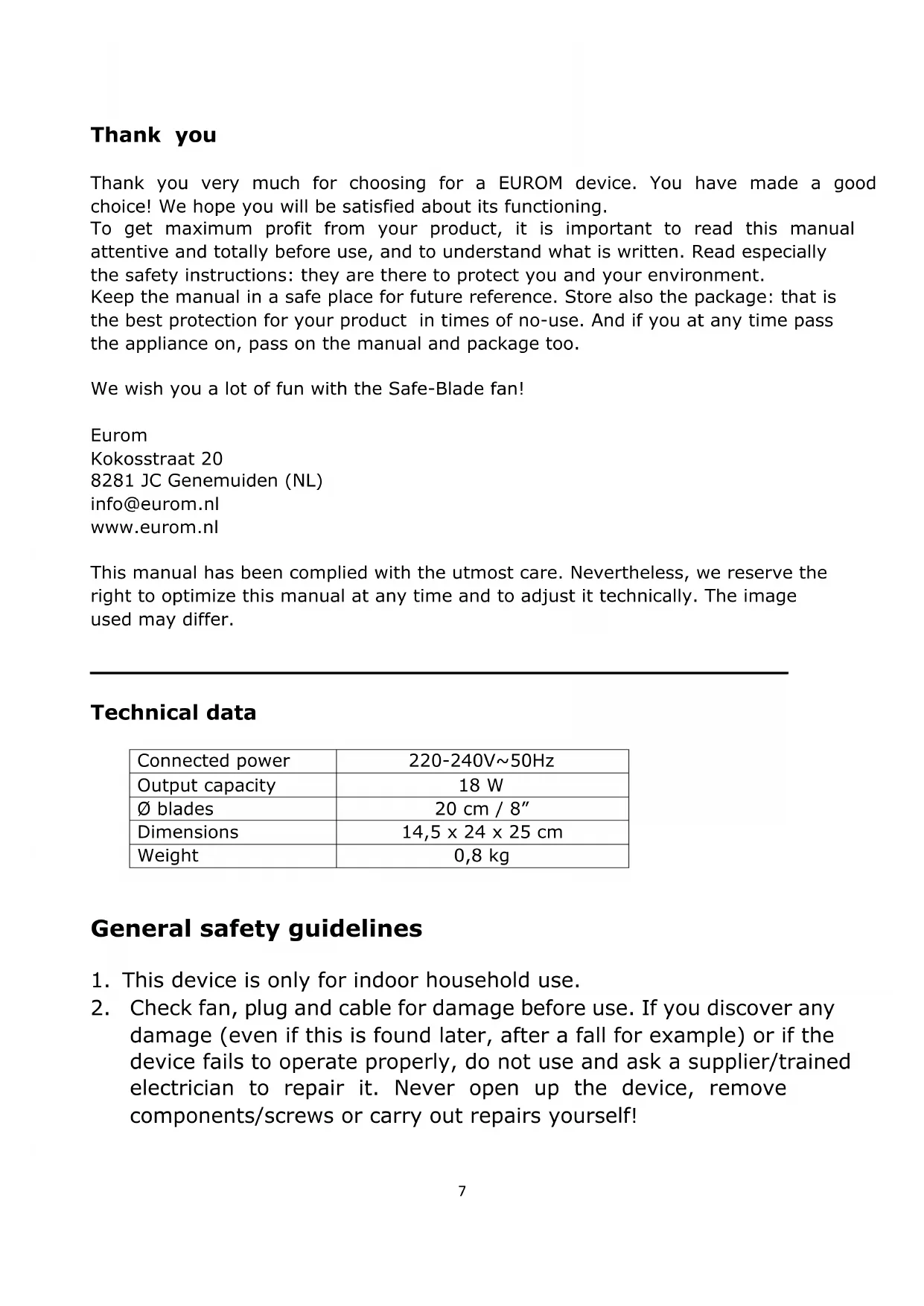

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Safe-Blade fan!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Technical data

Connected power	220-240V~50Hz
Output capacity	18 W
∅ blades	20 cm / 8"
Dimensions	14,5 x 24 x 25 cm
Weight	0,8 kg

General safety guidelines

1. This device is only for indoor household use.

2. Check fan, plug and cable for damage before use. If you discover any damage (even if this is found later, after a fall for example) or if the device fails to operate properly, do not use and ask a supplier/trained electrician to repair it. Never open up the device, remove components/screws or carry out repairs yourself!

3. If the power cable is damaged it must be replaced by the manufacturer, its after-sales service or an individual who holds an equivalent qualification, to avoid any danger.

4. Before every use, check that the voltage on the socket to be used matches the voltage indicated on the device's specification plate: 220-240V\~50Hz.
5. Avoid the use of extension cables. If unavoidable, use an approved cable with sufficient power. Completely unroll the cable.
6. The electrical cable may never come into contact with sharp, hot or moving objects, must not be wound around the fan and must not be bent or rolled up too tightly. Never cover the cable and ensure that it cannot become trapped or get hot.
7. Never remove the plug from the socket by pulling the cable.
8. Always ensure that the floor is sturdy, flat and horizontal.
9. Never touch the device with wet hands!
10. Never hang things over the device. Ensure that curtains, clothing etc. do not come into the vicinity of the fan.
11. Never put a finger, pen or any other object between the blades of the functioning fan!
12. Never expose the unit to extreme moisture or heat; this can damage the electrical components.
13. Never spray any products (anti-insect, cleaning agent etc.) on or in the fan.
14. Do not store or use the fan:

- in locations where it could become wet or fall into water;

- near flammable, explosive or gaseous substances;

- near acids, alkalis, oil or other corrosive substances.

1. Never connect the fan to a timer or dimmer.
2. Never immerse the device, cable or plug in liquid!
3. First turn off the fan and then remove the plug from the socket before moving, cleaning or carrying out maintenance.
4. Always remove the plug from the socket after use.
5. This device is not suitable to be used by children or persons with a physical, sensual or mental disability or those who lack experience and knowledge, irrespective of whether they are being supervised or there is a responsible person present. Keep these persons and household pets out of the vicinity of the fan.
6. This device should only be used for the purposes set out in the booklet. Any other usage may be dangerous (could cause fire, injury,

damage, electric shock etc), will invalidate the guarantee and no liability will be taken by the supplier.

21. WARNING: This is a fan, not a toy! Do not let small children play with the fan and place it out of their reach, in order to reduce the risk of personal injury and electric shock.

Operation

Before using the device, make sure all of the safety guidelines have been taken into account. Remove all packaging material and keep it out of reach of children. Always ensure that the floor is sturdy, flat and horizontal.

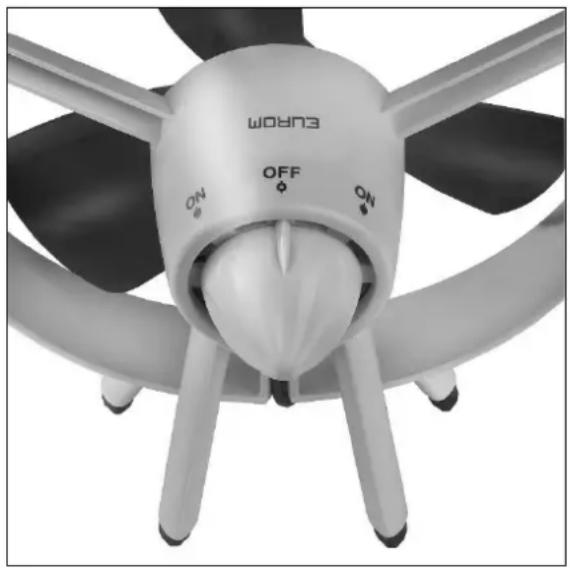

• Operation button (at back) to OFF.
• Insert the plug into the socket.
• Turn the operation button to ON – it doesn't matter to right or left.
• In order to switch off, always turn the button to OFF
  then take the plug out of the socket!

The Safe-blade fan is equipped with a 'smart' motor and soft, rubber blades. If a finger or other object is placed between the blades while the fan is on, the motor will slow down or stop completely. Once the object has been removed, the motor will resume regular speed. The rubber blades limit the risk of damage or injury.

Top-down view of a white propeller with black blades and 'UROM' branding, no visible text or symbols on the body itself.

Cleaning and maintenance

• Always turn the fan off and take plug out of socket before cleaning or carrying out maintenance work!
• Clean the fan with a damp cloth. Do not use any abrasive or corrosive cleaning products that could damage the material. Never immerse the fan, electrical cable or blades in liquid!
• Let the fan dry out thoroughly before using it again.
• Store the fan at the end of the season in a safe, dry place that is not subject to extremes of temperature, preferably in its original packaging.

Removal

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-statement

Hereby, Eurom - Kokosstraat 20 - 8281 JC - Genemuiden-NL declares that the Eurom fan type Safe-blade fan meets and is in accordance with the following standards:

LVD 2014/35/EU :

EN 60335-2-80:2003+A1:2004+A2:2009

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 62233:2008

EMC 2014/30/EU :

EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

RoHS 2011/65/EU&(EU)2015/863

Genemuiden, 07-10-2020

W.J. Bakker, alg. dir.

alaker.
