USER MANUAL SICM106048.1 Emerio

Soft ice cream maker (EN)

Soft Eismaschine (DE)

1. Read these instructions carefully and keep them in a safe place.
2. Only use the appliance as described in this manual.
3. In case of damage caused by failure of not living up to this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use or use not in accordance with the requirements of this manual.
4. Keep the appliance out of the reach of children.
5. This appliance is not intended for use by persons (including children) when reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Keep the appliance and its cord out of reach of children less than 8 years.
7. Children should be supervised to ensure that they do not play with the appliance.
8. Cleaning and user maintenance shall not be made by children without supervision.
9. Always remove the power cord and let it cool: Before moving the unit; Before the unit is stored; Before you go mounting or dismantle parts; Before cleaning or maintenance work; After use.
10. Only have the appliance repaired by a qualified service centre.
11. Qualified service center: after-sales service of the manufacturer/importer, which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

1. Before use, check that the mains power supply voltage is the same and the voltage is the same as the voltage indicated on the appliance.
2. Always plug the appliance into an earthed plug socket.
3. Regularly check the power cord for damage.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.
6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
7. Make sure the power cord does not come into contact with hot surfaces or steam.
8. Always remove the plug from the plug socket before you move the appliance.
9. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
10. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
11. To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.
12. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
13. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and do not use it again.
14. Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

1. This appliance is intended to be used in household and similar applications such as: Staff kitchen areas in shop, offices and other working environment; By clients in hotels, motels and other residential type environments; Bed and breakfast type environments.
2. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
3. Only use the appliance indoors, in dry areas away from water.
4. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
5. To reduce the risk of electric shock, do not use the appliance outdoors or on wet surfaces.
6. Place the appliance on a stable, level surface from which it cannot fall of.
7. Use the appliance on a flat, dry and heat resistance surface, not on varnished furniture.
8. Place the appliance at least 5cm of the wall or flammable objects (such as curtains, candles or towels).
9. Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
10. Disconnect the mains plug: after each time operating; if there is any interference with operation; before cleaning.
11. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
12. Do not use the appliance if the mains cable or plug show signs of damage, if the appliance has fallen on the floor or has other parts been damage. In such cases take the appliance to a specialist for checking and repair is necessary.
13. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
14. Close supervision is necessary for any appliance being used by or near children.
15. Never leave the appliance unattended during use.
16. It is necessary to keep this appliance clean because it is in direct contact with food.

IMPORTANT INFORMATION:

The texture of the ice cream is very important when using the machine. If the icecream runs too long time, it will be too hard in the texture. Be careful that you follow the recipies in the instruction manual. Use only powder gelatin.

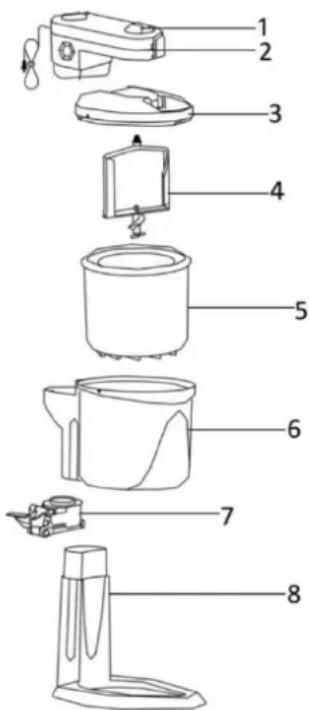

PARTS DESCRIPTION

1. Knob
2. Power unit
3. Lid
4. Paddle unit
5. Inner bowl
6. Outer bowl
7. Outlet pedestal unit
8. Supporter

INSTALLATION

1. Fit the outer bowl onto the supporter, it will click into place.

1. Remove the inner bowl from the freezer and put it into the outer bowl.

1. Fit the paddle unit into the inner bowl.

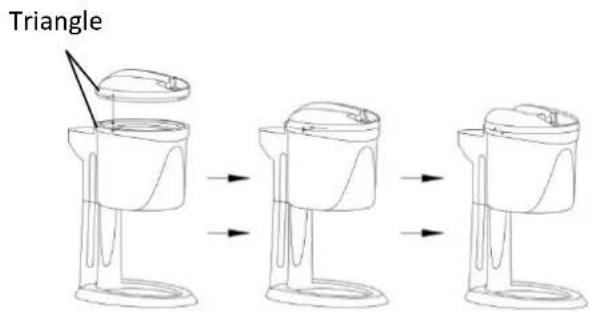

1. Lower the lid onto the outer bowl (Be sure of the triangle of the lid is opposite the triangle of the outer bowl) and turn clockwise to lock into position.

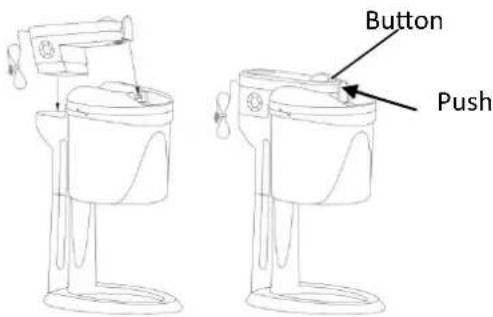

1. Fit the power unit into the lid and click it into place.

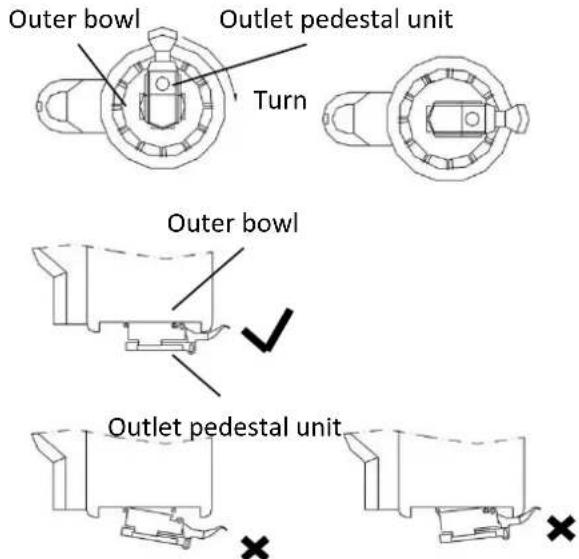

1. Fit the outlet pedestal unit under the outer bowl and click into place. Be sure of the outlet pedestal unit is in the correct position.

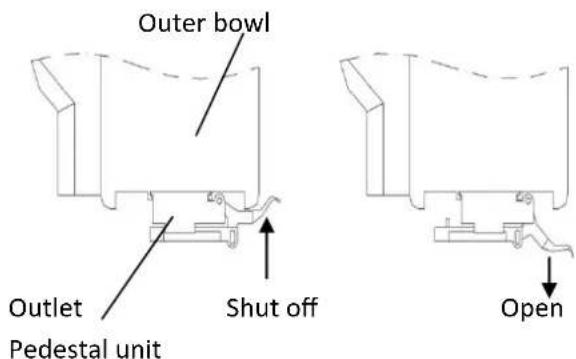

1. Before adding the ice cream or sorbet recipe, be sure of the outlet pedestal unit is shut off.

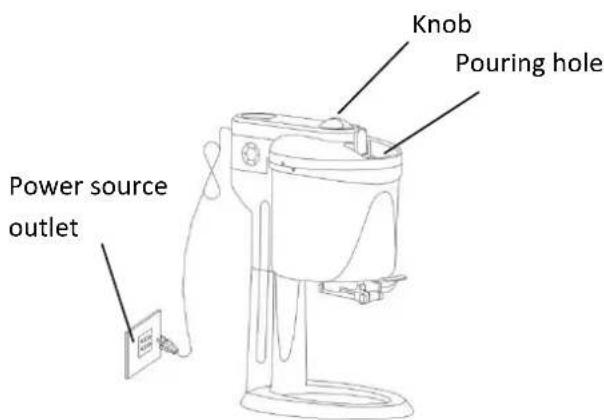

1. Plug in and switch the ice cream maker on by using the on/off knob.

Note: The machine must be switched on before adding the ice cream or sorbet recipe to prevent the mix from immediately freezing on the inside of the inner bowl.

1. Use the chute and pour the ice cream or sorbet mix into the inner bowl through the pouring hole. When pouring mixture into the inner bowl, always stop at least 4 cm (1.575 inch) from the top as the mixture will increase in volume during freezing.
2. Allow the mixture to churn until frozen or the desired consistency is reached. This can take up to 15 to 20 minutes, but most recipes will be ready in less time.

Important

• Do not stop and start the machine during the freezing process, as the mixture may freeze in contact with the bowl and prevent movement of the paddle.
• In the unlikely event of the motor overheating, a safety cut out will operate causing the motor to stop. If this happens, switch off, unplug the machine and allow the power unit to cool.
• For the best result of ice cream, the paddle will contact with the inside of the inner bowl when the paddle moves.

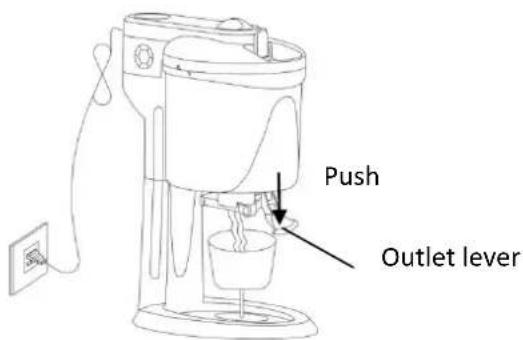

• When the ice cream is completed, put a cup under the outlet pedestal unit and push the outlet lever down, the outlet pedestal unit is opened and the ice cream is squeezed out.

In order to squeeze out the ice cream, the motor must be running. If the safety cut out operates and the motor is stopped, switch off and remove the power unit/lid. Using a rubber spatula or wooden spoon to remove the ice cream from the inner bowl.

The ice cream produced should be a soft spoon type. This can be transferred to a separate container for storage in the freezer or if you wish to firm the ice cream before eating.

Hints

• We suggest that you keep the inner bowl in the freezer so that it is ready for use. Place in a plastic bag before freezing. Freeze the inner bowl in the upright position.
  Always make sure the inner bowl is thoroughly dry before placing in the freezer.
• Do not puncture or heat the inner bowl.
• The inner bowl should be placed in a freezer that is operating at a temperature of -18^ Centigrade (-0.40^ Fahrenheit) or below for 8 hours before use.
• For best results always refrigerate the ingredients before making ice cream.
  The addition of alcohol to recipes inhibits the freezing process.

CLEANING

Always switch off, unplug and dismantle before cleaning.
- Never put the power unit in water or let the cord or plug get wet.
- Do not wash parts in the dishwasher.
- Do not clean with scouring powders, steel wool pads, or other abrasive materials.

Power unit

• Take out the power unit from the lid.
• Wipe with a damp cloth then dry.

Lid

• Wash the lid then dry thoroughly.

Paddle

• Take out the paddle from the inner bowl.

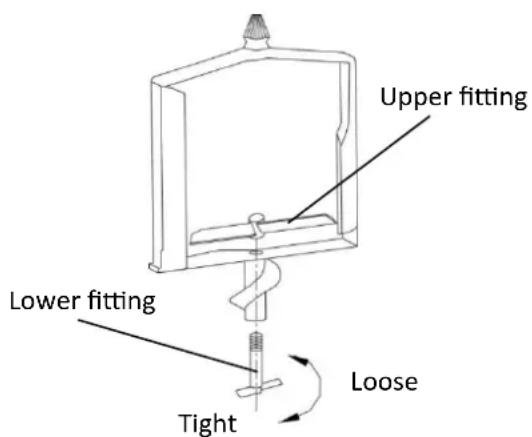

• Hold up the upper fitting and turn the lower fitting anticlockwise then dismantle the lower fitting from the paddle.
• Wash then dry thoroughly.
• Fit the upper fitting and the lower fitting into the paddle again.

Inner Bowl

• Allow the inner bowl to reach room temperature before attempting to clean.
  Take out the inner bowl and wash the inside of the bowl, then dry thoroughly.

Outer Bowl

• Pull out the outer bowl from the supporter.
• Wash then dry thoroughly.

Supporter

• Wash then dry thoroughly.

Preparation

• To prepare ice cream mixture, follow the recipes below.
• Important (if you use gelatin powder): Make sure that the gelatine has melted correctly, and there is no lump in it.
• Mix the milk, heavy cream, sugar and gelatine, stir and make it mixing well.
• Add the other ingredients: grated chocolate, juice, vanilla extract, etc, except alcoholic liquid.
• Keep the mixture in the refrigerator to cool it in 10 15^ C before making ice cream.
• Pour the mixture into inner bowl with the paddle running.
• Add alcoholic liquid when the ice cream is almost achieved.

Recipes

Vanilla ice cream

Ingredients

Vanilla extract 10g

20g quick cold gelatine mix or 5g gelatine

Milk 250ml

Heavy cream 150ml

Sugar 50g

Mix well the vanilla extract, milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

Coffee ice cream

Ingredients

Soluble coffee 3g

20g quick cold gelatine mix or 5g gelatine

Milk 250ml

Heavy cream 150ml

Sugar 50g

Mix well the soluble coffee, milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

Black tea ice cream

Ingredients

Black tea 50ml

20g quick cold gelatine mix or 5g gelatine

Milk 200ml

Heavy cream 150ml

Sugar 50g

Mix well the black tea, milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

Banana ice cream

Ingredients

Ripe banana 30g

20g quick cold gelatine mix or 5g gelatine

Milk 300ml

Heavy cream 150ml

Sugar 50g

Mash the banana until smooth. Mix well the banana, milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

Chocolate ice cream

Ingredients

Grated chocolate 50g

20g quick cold gelatine mix or 5g gelatine

Milk 250ml

Sugar 50g

Heavy cream 150ml

Mix well the milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. When the mixture starts to freeze add the grated chocolate down the chute. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

Strawberry ice cream

Ingredients

Strawberry/strawberry juice

50g

20g quick cold gelatine mix or 5g gelatine

Milk 200ml

Heavy cream 150ml

Sugar 50g

Mash the strawberry and filtrate, mix well the strawberry juice, milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

Lemon ice cream

Ingredients

Lemon /lemon juice 50ml

20g quick cold gelatine mix or 5g gelatine

Milk 200ml

Heavy cream 150ml

Sugar 50g

Mash the lemon and filtrate, mix well the lemon juice, milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

Grape ice cream

Ingredients

Grape/ grape juice 50g

20g quick cold gelatine mix or 5g gelatine

Milk 200ml

Heavy cream 150ml

Sugar 50g

Mash the grape and filtrate, mix well the grape juice, milk, heavy cream, sugar and gelatine. Pour the mixture into the inner bowl with the paddle running. Allow to freeze until the desired consistency is achieved (around 10-15minutes).

TECHNICAL SPECIFICATIONS

Power supply: 220-240V~50Hz

Power drain: 15W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

Emerio Holland B.V.

Kenaupark 9

2011 MP Haarlem

Nederland

Customer service:

T: [phone]

E: [e-mail]
