SIM108067.1 - Ice machine Emerio - Free user manual and instructions

Brand	Emerio
Model	SIM108067.1
Product type	Shaved ice machine (ice shaver)
Power supply voltage	220-240 V~, 50 Hz
Rated power	85 W
Outer bowl capacity	Approx. 1 L (estimate)
Portion selector	1 or 2 cones
Syrup dispenser	2 syrup bottles with integrated pump
Removable cup holder	Yes, for standard cups
Shaving blade	Stainless steel, removable and lockable
Max. continuous operation	5 minutes (to avoid overheating)
Usage	Household use only
Cleaning	Hand washable parts (except housing); do not immerse housing
Material	Plastic and steel
Safety	Stop by rotating the lid
Warranty	2 years

Frequently Asked Questions - SIM108067.1 Emerio

How to assemble the Emerio SIM108067.1 ice machine?

Push the removable cup holder into the front opening of the housing. Position the syrup bottles in the bottle holders on the side. Align the tabs of the outer bowl with the slots on the housing and push to lock. Place the shaving blade into the bowl and lock it with the fixing button by turning clockwise.

How to use the machine to make shaved ice?

Select 1 or 2 cones with the blade selector. Place ice cubes into the shaving blade. Plug in the appliance. Put the lid on and turn it counterclockwise to start. To stop, turn the lid clockwise.

How to dispense syrup with the machine?

Turn the pump spouts outward, over your cup filled with shaved ice. Press the pumps 5-7 times. After use, turn the spouts back toward the machine to prevent leaks.

What types of ice cubes can be used?

You can use regular or flavored ice cubes: freeze fruit juice, soda, yogurt, or milk. Never operate the machine without ice.

How long can I run the machine continuously?

Do not exceed 5 minutes of continuous use to avoid overheating. The appliance may emit normal clicking sounds due to material expansion.

How to clean the ice machine?

Always unplug before cleaning. Clean parts by hand in warm soapy water. The blades are very sharp, handle with care. Do not immerse the housing, wipe it with a damp cloth. The syrup bottles can be stored in the refrigerator.

What to do if the machine does not start?

Check that all components are properly assembled: outer bowl firmly locked, blade in place, lid closed. Make sure the appliance is plugged in and the outlet works.

Can I use the machine with an external timer?

No, using an external timer or remote control system is prohibited for safety reasons.

Where to find spare parts or support?

Contact Emerio after-sales service: T [phone], email [e-mail]. Broken parts (glass, plastic) are chargeable. The 2-year warranty does not cover damage due to improper use.

How to recycle this appliance at end of life?

Do not dispose of the appliance with household waste. Take it to a local collection point or retailer in accordance with the WEEE directive (2012/19/EU).

USER MANUAL SIM108067.1 Emerio

Slush ice maker (EN)

Slush-Maker (DE)

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
2. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
3. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
4. Keep the appliance and its cord out of reach of children aged less than 8 years.
5. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
6. Children shall not play with the appliance.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farmhouses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
9. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
10. Do not immerse in water.

11. Adult supervision is necessary when operating any appliance near children.

12. Do not operate the appliance if the cord has been damaged, or if the appliance malfunctions or is damaged in any way. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

13. Any use of accessory attachments not recommended by the manufacturer may cause hazards.
14. Do not use outdoors.
15. Do not let cord dangle or hang over the edge of table or counter tops, or allow it to touch hot surfaces.
16. Do not place appliance on or near gas or electric burners, on a stovetop or in an oven.
17. Do not use this appliance for any other purpose but its intended use.
18. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
19. Use the appliance on a flat, dry and heat resistance surface.
20. Never leave the appliance unattended during use.
21. Regarding the instructions for operating time & cleaning, please refer to the below paragraph of the manual.

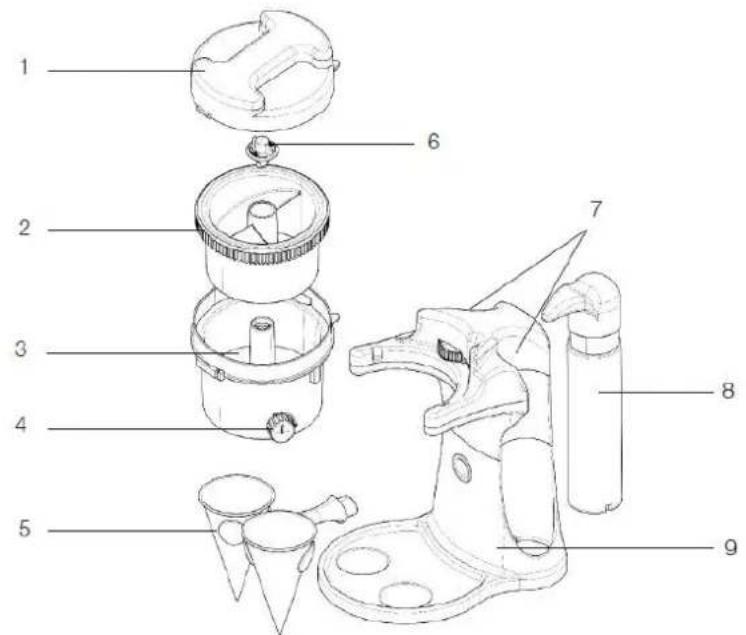

PARTS DESCRIPTION

1. Lid
2. Auger
3. Exterior bowl
4. Blade switch knob
5. Removable cup holder
6. Securing nut
7. Syrup bottle holders
8. Syrup bottle with pump lid
9. Housing

FIRST ASSEMBLING STEPS

1. Push the removable cup holder (5) into the opening on the front of the housing. If you are using any other cup, bowl or glass, do not attach the cup holder.
2. Place the syrup bottles (8) into the holders (7) on the side of the housing. Note: keep the pump spouts turned inwards toward the front of the housing when not in use to prevent accidental dispensing of syrup.
3. Line up the two tabs of the exterior bowl (3) with the matching grooves on the housing. Push them gently in place to secure.
4. Place the auger (2) inside the exterior bowl (3). Lock the auger in place with the securing nut (6) by turning it clockwise.

OPERATION

1. Select 1 or 2 snow cones by turning the blade switch knob (4) on the side of the exterior bowl.
2. Place the cups in the cup holder or place your other cup, bowl or glass on the plate under the cup holder.
3. Add ice cubes to the auger.
4. Plug in the appliance into a wall outlet.
5. Place the lid on top of the exterior bowl and turn the lid counter-clockwise until the large extended lid tab engages with the interlock.
6. Just turn the lid clockwise to stop the operation.

Dispensing the syrup:

1. Turn the pump spouts outwards away from the appliance and place your cup/ bowl/ glass filled with shaved ice under the syrup spout and press down 5-7 times.

Note: the sweetness of the finished shaved ice in your cup depends on the amount of ice you use and how much syrup you dispense.

1. When you are finished with dispensing the syrup, turn the pump spouts back towards the appliance again.

TASTY TREATS

• Super snow cones: use flavored ice cubes for a unique snow cone taste. Freeze fruit juice, soda, flavored yogurt, or milk into cubes and then place them in the auger.
• Soda: use your favorite soda and add a twist of lemon or lime.
• Fruit juices: natural flavorings that are both tasty and good for you. Try apples, grape, orange, grapefruit and cranberry or any combination for a special treat.
• Rainbow slush: place a layer of shaved ice in the bottom of a tall glass, add syrup flavor. Add a middle layer of ice; add a different syrup flavor. Add a top layer of ice and another syrup flavor. Garnish with fruit.

TIPS

• Unplug the power cord after use.
  If the unit does not start, it might be due to all parts not being correctly in place.
• Do not run the appliance for longer than 5 minutes continuously as overheating may occur.
  Some minor expansion / contraction sounds may occur during use, this is normal.
• Do not leave the appliance unattended while it is operating.
• Do not run the appliance without any ice in the auger.

CLEANING AND MAINTENANCE

1. Always unplug the appliance before cleaning.
2. Hand wash the parts in warm soapy water. Be careful when you are cleaning the shaving blades in the exterior bowl. These are very sharp.
3. Do not wash any parts of the appliance in a dishwasher.
4. Do not immerse the housing in any liquid. Simply clean its exterior with a damp soft cloth.
5. The syrup bottles can be removed from the appliance and stored in the refrigerator between uses.
6. There will always be a small amount of ice remaining in the exterior bowl after shaving the ice. Discard this ice.

TECHNICAL DATA

Operating voltage: 220 - 240V 50Hz

Power: 85W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Kenaupark 9

2011 MP Haarlem

Nederland

Customer service:

T: [phone]

E: [e-mail]
