| Product type | Cooler / Travel fridge |
| Brand | Rocktrail |
| Model | RABB 12 A1 |
| Dimensions (L x W x H) | Approx. 52 x 27 x 30 cm |
| Weight | Approx. 3.5 kg |
| Power supply | 12 V DC, 45 W |
| Capacity | 13 liters |
| Cooling performance | Approx. 15 to 20 °C below ambient temperature |
| Climate category | SN / N |
| Operating temperature | +10 to +32 °C |
| Permissible humidity | 5 to 90% (without condensation) |
| Included accessories | Connection cable with vehicle plug, transport strap, spare fuse |
| Controls | On/off switch, indicator light |
| Compartments | Refrigerated compartment (13 L) + 3 non-refrigerated storage compartments |
| Child safety | Lid lock |
| Vehicle attachment | Eyelets for seat belt |
| Maintenance | Clean with a damp cloth and mild detergent |
| Warranty | 3 years |
Frequently Asked Questions - RABB 12 A1 Rocktrail
User questions about RABB 12 A1 Rocktrail
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual RABB 12 A1 - Rocktrail and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RABB 12 A1 by Rocktrail.
USER MANUAL RABB 12 A1 Rocktrail
Operating instructions
CH
BAR MOBILE POUR VÉHICULE
Mode d'emploi
NL
AUTO-BAR
Gebruiksaanwijzing
DE AT CH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
Installation et raccordement
Information about these operating instructions 58
Copyright 58
Intended Use 58
Warning Notices 59
Safety. 60
Basic safety instructions 60
Operating Elements. 61
Setting up and connecting to the power supply 62
Safety instructions. 62
Items supplied and initial inspection 62
Unpacking 62
Disposal of packaging 62
Requirements for the set up location. 63
Electrical connection. 63
Setting the appliance up. 64
Providing electrical power 64
Handling and operation 65
Switching On and Off 65
Loading the cool box 65
Additional storage compartments. 65
Using the carrying strap. 66
Fuse exchange. 66
Cleaning/Storage/Disposal 67
Safety instructions. 67
Cleaning the device 67
Storage. 67
Disposing of the appliance. 67
Troubleshooting 68
Safety instructions. 68
Malfunction causes and remedies 68
Appendix 69
Notes on the EC Declaration of Conformity 69
Technical data 69
Warranty 70
Service 70
Importer 70

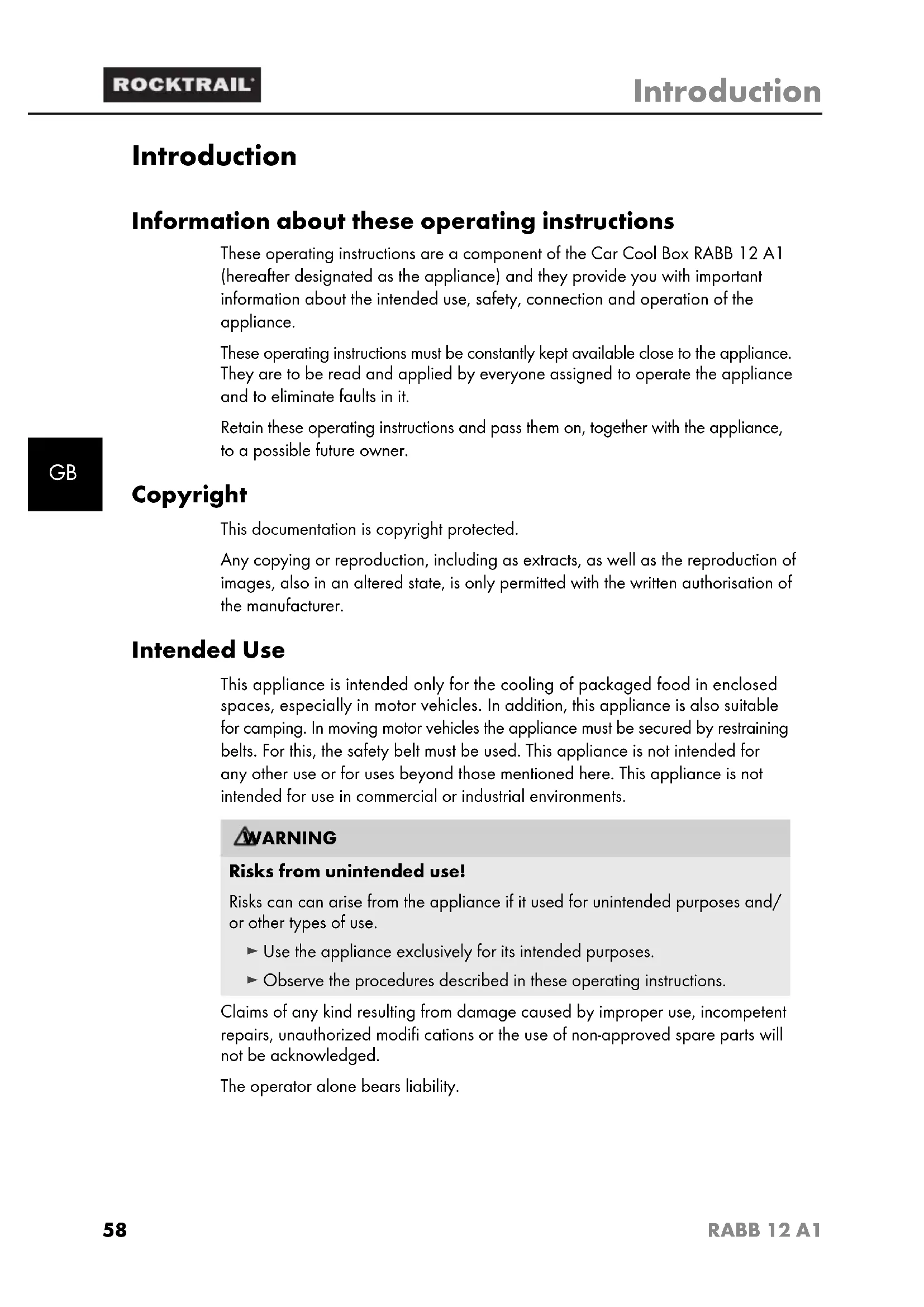

Introduction
Information about these operating instructions
These operating instructions are a component of the Car Cool Box RABB 12 A1 (hereafter designated as the appliance) and they provide you with important information about the intended use, safety, connection and operation of the appliance.
These operating instructions must be constantly kept available close to the appliance. They are to be read and applied by everyone assigned to operate the appliance and to eliminate faults in it.
Retain these operating instructions and pass them on, together with the appliance, to a possible future owner.
Copyright
This documentation is copyright protected.
Any copying or reproduction, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.
Intended Use
This appliance is intended only for the cooling of packaged food in enclosed spaces, especially in motor vehicles. In addition, this appliance is also suitable for camping. In moving motor vehicles the appliance must be secured by restraining belts. For this, the safety belt must be used. This appliance is not intended for any other use or for uses beyond those mentioned here. This appliance is not intended for use in commercial or industrial environments.
WARNING
Risks from unintended use!
Risks can can arise from the appliance if it used for unintended purposes and/or other types of use.
Use the appliance exclusively for its intended purposes.
Observe the procedures described in these operating instructions.
Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorized modifications or the use of non-approved spare parts will not be acknowledged.
The operator alone bears liability.
Warning Notices
In these operation instructions the following warning notices are used:
DANGER
A warning at this risk level signifies a threateningly dangerous situation.
If the dangerous situation is not avoided it could lead to death or serious physical injuries.
Observe the directives in this warning notice to avoid the risk of deaths or serious physical injuries.
WARNING
A warning notice at this risk level indicates a possibly dangerous situation.
If the dangerous situation is not avoided, this could lead to personal injury.
- Observe the directives in this warning notice to avoid the risk of injuries to persons.
IMPORTANT
A warning at this risk level signifies possible property damage.
If the situation is not avoided it could lead to property damage.
Observe the directives in this warning notice to avoid the risk of property damage.
NOTICE
A notice signifies additional information that assists in the handling of the appliance.
Safety
In this chapter you will receive important safety information regarding the handling of the appliance. This appliance complies with the statutory safety regulations. Incorrect usage can, however, lead to personal and property damage.
Basic safety instructions
For safe handling of the appliance observe the following safety information:
DANGER
- NEVER place children or animals in the Cool Box! The lack of fresh air would lead to suffocation.
In moving motor vehicles the appliance must be secured by restraining belts. For this, the safety belt must be used.
WARNING
- Do not store any potentially explosive substances in this appliance, such as aerosol container with infl ammable propellant gas.
Before use check the appliance for visible external damage. Do not put into operation an appliance that is damaged or has been dropped. There is also a risk of personal injury!
This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or defi ciencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
Children should be supervised to ensure that they do not play with the appliance.
Repairs should only be carried out by authorised specialist companies or by the Customer Service Department. Incompetent repairs can result in signifi cant risks for the user. In addition, warranty claims become void. - To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department.
IMPORTANT
-
This appliance may not be exposed to rain. Protect the appliance against high humidity and the penetration of liquids and objects into the housing. NEVER submerse this appliance in water and do not place objects flled with liquids (for example, vases) on the appliance. The appliance could be irreparably damaged!
-
Do not operate the appliance close to open fl ames (e.g. candles). The appliance could also be irreparably damaged!
Avoid direct sunlight. The appliance could be irreparably damaged!
Always disconnect the power cable from the socket by the connector plug, do not pull on the cable itself. If you do, the cable could be damaged.
Operating Elements
(See illustrations on the fold-out side)
Lock for the cooler compartment cover
Seal of the cooler compartment
3 Guide for the lap belt in the vehicle
Cooler compartment
Holder/Shelf compartments (not cooled)
Eyelets for the carrying strap
7 Ventilation openings
8 On/Off switch
9 Status control lamp
12V=DC: Connection socket for the 12V operating voltage
Storage compartment for connection cable
12 Connection cable with car plug
13 Carrying strap
14 Spare fuse
Setting up and connecting to the power supply
Safety instructions
WARNING
During the commissioning of the appliance personal injury and property damage could occur!
Observe the following safety notices to avoid these risks:
- To avoid damage to people and property, pay heed to the requirements for the installation site and the electrical connection of the appliance.
Items supplied and initial inspection
The appliance is supplied with the following components as standard:
- Car cool Box RABB 12 A1
- Connection cable with car plug
- Carrying strap
- Spare fuse for the car plug
- Operating Instructions
NOTICE
- Check the contents to ensure everything has been provided, and for signs of visible damage.
- If the contents are incomplete, or have been damaged due to defective packaging or transportation, contact the Service Hotline (see chapter Service).
Unpacking
Remove all parts of the appliance and these operating instructions from the box.
Remove all packaging material and pull the protective foil on the control panel off.
DANGER
- Packaging material should not be used as a play thing by children. There is a risk of suffocation.
Disposal of packaging
The packaging protects the appliance against transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.
The recirculation of packaging into the material circuit saves on raw materials and reduces the amount of waste generated. Dispose of packaging material that is no longer needed according to the regionally established regulations.
Requirements for the set up location
For the safe and trouble-free operation of the appliance, the following requirements must be fulfilled at the installation location:
DANGER
- Do not operate the appliance in hot, wet or very humid environments or close to combustible material, otherwise there will be a risk of a fire.
In cars, you must locate the appliance so that it cannot hinder or distract the driver, otherwise there is the risk of an accident.
If securement of the appliance by means of the seat belt is not possible, the appliance may not be transported in the passenger compartment, instead, it must be stowed in the boot. Secure the appliance against uncontrolled movements in the boot also, appropriate to the vehicle type. For this use suitable straps or netting, so that also in accident situations the appliance can present no risks to the occupants.
IMPORTANT
If the appliance is not to be used in a motor vehicle, place it on a firm, flat and level surface.
- Locate or mount the appliance such that the extant ventilation openings cannot be covered, otherwise the appliance could overheat.
- You may use the appliance ONLY in vehicles that provide 12V = to the cigar lighter. In passenger cars, the appliance can for example be centrally placed on the back seat, in so far as there a seat belt available to secure the appliance. Then, the appliance also serves as a comfortable armrest.
Electrical connection
IMPORTANT
Before you connect the appliance, compare the information about the required operating voltage on the typeplate with that for the operating voltage of the intended power source. This data must match, in order to avoid any damage to the appliance.
- Ensure that the connecting cable ⑫ of the appliance is not damaged and that it is not laid over hot surfaces and/or sharp edges, otherwise it could be damaged.
- Ensure that the connecting cable 12 is not over-taut or kinked. In cars, the cable must never be crushed by the vehicle doors, otherwise it will be damaged.
Setting the appliance up
Select a suitable location for the appliance (see also the chapter Requirements for the set up location).
In passenger cars you should place the appliance on the back seat or on the front passenger seat. The appliance must then be secured with the seat belt:
Flip open the freezer compartment lid up and loosen the chain.
Place the seat belt such that the diagonal belt runs behind the lid and the lap belt lies both at the front and in the guides for the seat belt 3Allow the seat belt to engage in the snap lock.
Hang the chain back on and close the freezer compartment lid. Thereby ensure that the chain is not trapped between the freezer compartment lid and the coolbox.
NOTICE
If you secure the cooler with a seat belt in the middle of the back seat, it is not necessary to remove the chain. Simply run the belt just under the chain, such that it is fitted into the guides for the seat belt and then allow the seat belt to engage in the snap lock.
DANGER
- If securement of the appliance by means of the seat belt is not possible, the appliance may not be transported in the passenger compartment, instead, it must be stowed in the boot. Secure the appliance against uncontrolled movements in the boot also, appropriate to the vehicle type. For this use suitable straps or netting, so that also in accident situations the appliance can present no risks to the occupants.
Providing electrical power
Remove the connecting cable 12 from the storage compartment 11 and insert the connector plug on the cable 11 to the connector socket for the 12V operating voltage 10
Insert the car plug of the connecting cable instead of the cigar lighter into its socket.
IMPORTANT
The cigar lighters of some car manufacturers supply electricity even when the ignition is switched off.
- Therefore, switch the appliance off or disconnect it from the power supply when you leave the vehicle. Otherwise, the car's battery could be drained to the extent that the vehicle cannot be started!
Handling and operation
In this chapter you will receive important information for the handling and operation of the appliance.
Switching On and Off
To switch the appliance on, move the On/Off switch 8 to the ON position. The Status control lamp then glows.
To switch the appliance off, move the On/Off switch 8 to the OFF position. The Status control lamp then extinguishes.
Loading the cool box
NOTICE
For hygienic reasons, before you take the new appliance into use you should clean it, inside and outside, with a damp cloth (see also the chapter Cleaning/Storage/Disposal).
The appliance cools the contents of the cooler compartment by approximately 15 - 20^ compared to the ambient temperature. When you place food in the cooler compartment it should already be pre-cooled, as the cooling of the foods in a loaded appliance could take longer than is good for the food.
To open the lid of the refrigerated compartment 4, slide the latch to the position UNLOCK and then lift the locking bolt 1
Now fill the cooler compartment. Foodstuffs must be packed, liquids must be in sealed containers. The compartment offers a volume of 13 l and holds, for example, 20 lying drink cans a 0,33 l.
Then reclose the lid. Ensure that the lock for the cooler compartment cover engages, otherwise the cooling performance will diminish.
Slide the latch to the LOCK position to close the lid of the refrigerated compartment 4
NOTICE
- Keep the seal if the cooler compartment is clean, so that the cooling performance will not fall.
Additional storage compartments
The appliance offers you 3 additional storage spaces. You can place drink cans in the holder/shelf compartments or put other items in them.
NOTICE
Take note that cooling does not take place in the holder/shelf compartments
Using the carrying strap
For simplifi ed transportation of the appliance you can attach the supplied carrying strap it..
For this, unwind the carrying strap 13 and pass it through the eyelets 6.
Then, thread the free end of the carrying strap through the loop on the opposite end of the carrying strap, such that the carrying strap is secure and can support the possibly loaded appliance (see illustration).
GB
Fuse exchange

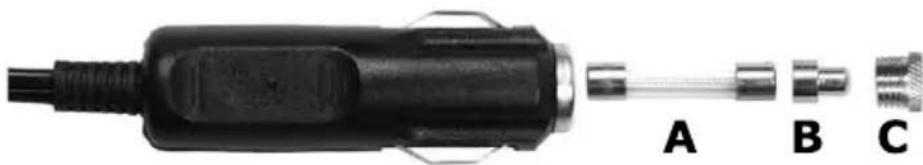

The car plug contains a fuse. If the appliance does not function, it could be that the fuse is defect. In such a case, replace it with the supplied spare fuse 14
Remove the car plug from the cigar lighter.
Open the car plug by turning the fluted screw insert (C) gently anticlockwise, if need be with pliers, and remove it.
Now, take the plug tip (B) from the fuse (A), remove the fuse (A) and place it to one side.
Now place the new fuse 14 into the car plug, place the plug tip (B) onto the slightly protruding end of the fuse and turn the previously removed screw insert (C) back on.
NOTICE
If the appliance still does not function, or the fuse blows again straight afterwards, there is a defect. Then make contact with the Service Hotline (see chapter Service).
Cleaning/Storage/Disposal
Safety instructions
DANGER
- To avoid the risk of electric shock, disconnect the appliance from the power supply before cleaning it and when it is not in use.
WARNING
Ensure that moisture cannot permeate into the appliance during cleaning.
IMPORTANT
- Do not use aggressive cleaners or scouring agents, they may damage the housing surface finish.
Cleaning the device
Clean the housing of the appliance with a lightly moistened cloth and a mild detergent.
Storage
If you decide not to use the appliance for an extended period, disconnect it from the power supply and store it in a clean and dry location away from direct sunlight.
Disposing of the appliance
Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment).
Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.
DANGER
Fire risk due to insulation material! The insulation contains cyclopentane.
The gas contained in the insulation material (cyclopentane) is highly fl ammable.
- Do NOT remove the sticker on the underside of the appliance, which provides information about the hazardous materials.
Dispose of the appliance in an environmentally responsible manner.
Troubleshooting
In this chapter you will receive important information for malfunction localization and remedies. Observe the instructions in order to avoid risks and damage.
Safety instructions
WARNING
Observe the following safety information to avoid risks and property damage:
Repairs to electronic appliances may only be carried out by specialists who have been trained by the manufacturer. Considerable risk to the consumer and damage to the appliance can occur as a result of incompetent repairs.
Malfunction causes and remedies
The following table will help with localising and remedying minor malfunctions:
| Defect Possible cause Solution | ||
| The appliance doesn't work. | The connecting cable 12 is not plugged in. | Connect the socket of the cigar lighter via the connecting cable 12 with the connection socket 10 of the appliance. |
| The fuse in the vehicle plug of the connecting cable 12 is defective. | Replace the fuse (See chapter Fuse exchange). | |
| The socket of the cigarette lighter does not supply voltage. | Check the electrical system of the vehicle. | |
| The appliance does not cool sufficiently. | The battery voltage of the vehicle is too low. | Charge the car battery. |
| Ambient temperature is too high. | Do not expose the appliance to direct sunlight. | |
NOTICE
If you cannot solve the problem with the aforementioned solutions, please make contact with the Service Hotline. (see chapter Service).
Appendix
Notes on the EC Declaration of Conformity
In regard to conformity with essential requirements and other relevant provisions, this appliance complies with European Directive 72/245/EEC, as amended by 2009/19/EC.
The complete original Declaration of Conformity can be obtained from the importer.
Technical data
| Operating voltage 12 V | = = | |
| Power consumption 45 W | ||
| Cooling temperature | approx. 15-20°C below ambient temperature | |
| Operating temperature +10 - +32 °C | ||
| Humidity (no condensation) 5 - 90 % | ||
| Climate class SN / N | ||
| Capacity 13 l | ||
| Dimensions (L x D x H) approx. 52 x 27 x 30 cm | ||
| Weight approx. 3.5 kg | ||
Warranty
The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured.
NOTICE
- The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.
GB
This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.
Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.
Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.
Repairs made after the lapse of the warranty period are subject to charge.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IAN61537
Importer
KOMPERNASS GMBH
BURGSTRASSE 21
44867 BOCHUM, GERMANY
www.kompernass.com
KOMPERNASS GMBH
BurgsstraBe 21
D-44867 Bochum
www.kompernass.com
