1 Operating Elements and Connections 24
1.1 Front side of recorder 24
1.2 Rear side of recorder 25
2 Safety Notes 25
3 Applications 25
4 Installing a Hard Disk 26
5 Connecting Units 26
5.1 Video connections 26
5.1.1 Selecting the video system 26
5.2 Audio connections 26
5.3 Alarm and control connections 26
5.3.1 Alarm inputs 26
5.3.2 Alarm output 26
5.3.3 Camera remote control (DOME) 26
5.4 Mouse 26
5.5 Computer network (LAN) 26
5.6 Mains connection 26
5.7 USB storage medium 26
6 Operation 27
6.1 Activating the OSD menu 27
6.1.1 Menu control with the mouse 27

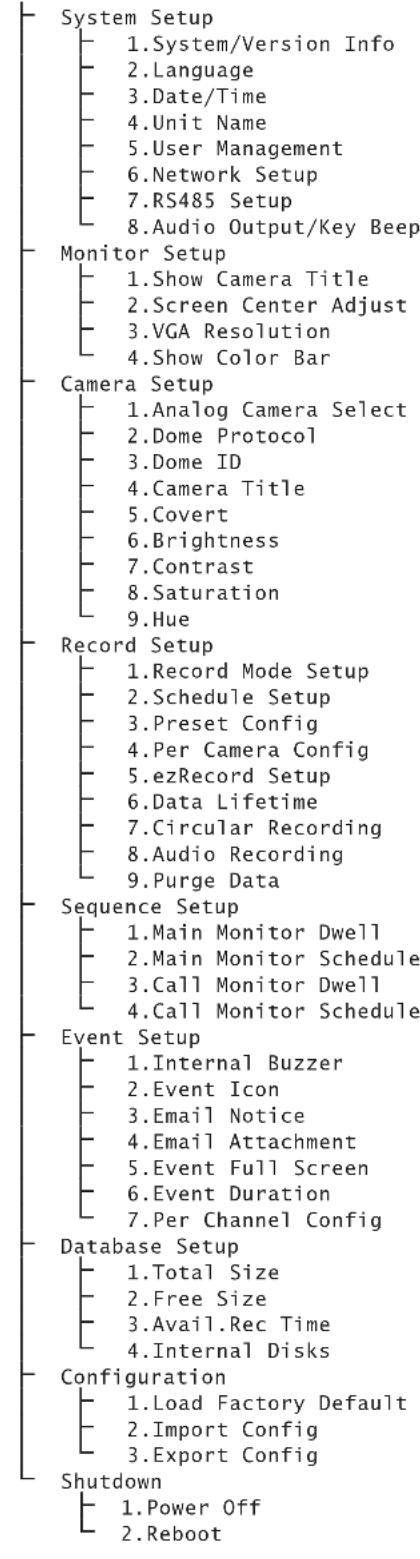

6.1.2 Menu overview 27
6.2 Basic settings 28
6.2.1 Changing the menu language 28
6.2.2 Key beep and audio output 28
6.2.3 Monitor settings 28

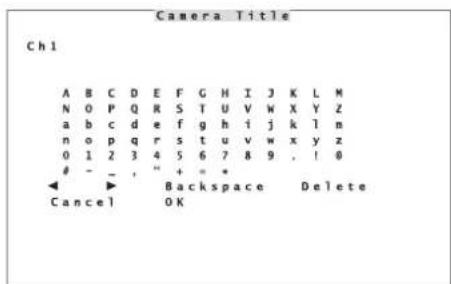

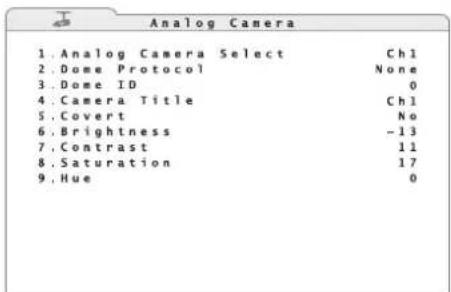

6.2.4 Camera titles 28
6.2.5 Correcting image properties 29
6.2.6 Visibility of camera images 29

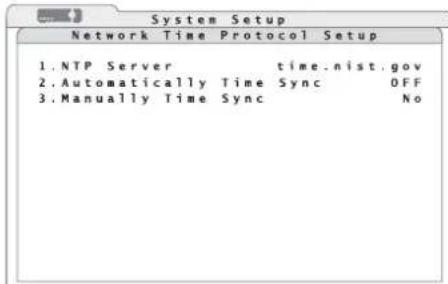

6.2.7 Date and time 29
6.2.8 Unit name 29
7 Live Surveillance 30
7.1 Configuring the sequence function 30
7.2 Activating the sequence function 30
7.3 Additional monitor (DMR-608 / DMR-616 only) 30
8 Recording 30

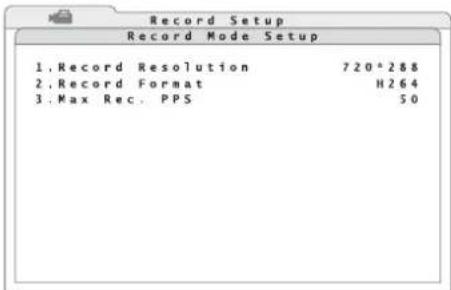

8.1 Settings for recording 30
8.1.1 Configuring "ezRecord" 31

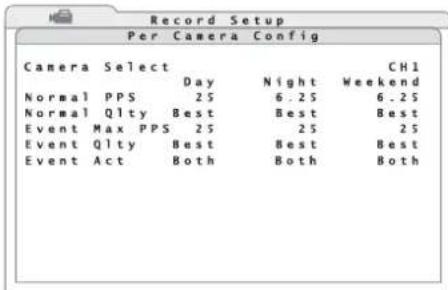

8.1.2 Configuring individual camera channels . 31
8.1.3 Defining the recording schedule 31
9 Replay 32

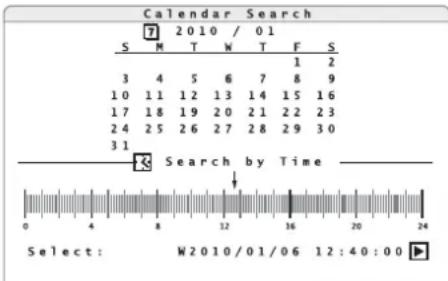

9.1 Searching for recordings 32
9.1.1 Event list 32
9.2 Exporting video files 32
9.2.1 Exporting from the event list 33

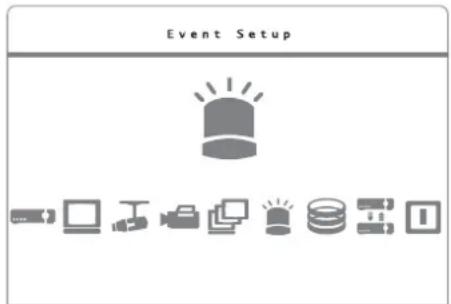

10 Alarm Functions 33

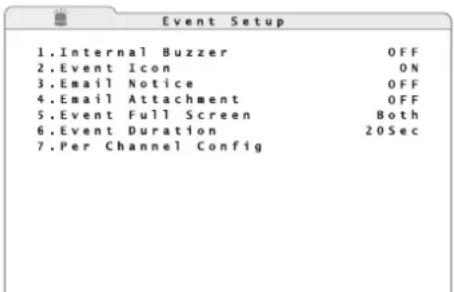

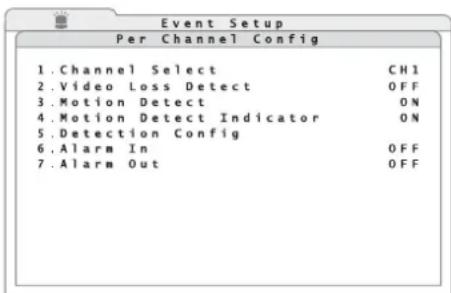

10.1 Alarm configuration 33
11 Data Management 33
11.1 Deleting recordings 33
11.2 Hard disk management 33
12 Camera Remote Control (DOME) 34
12.1 Configuring the control parameters 34
12.1.1 Configuring the RS-485 interface 34
12.1.2 Camera settings 34
12.2 Controlling a camera 34
12.2.1 Storing camera settings 34
12.2.2 Reactivating camera settings 34

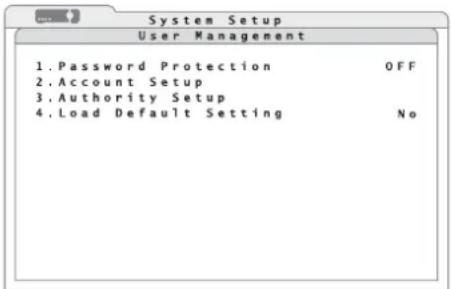

13 Password Protection 34
13.1 Configuring the password protection 35
13.2 Key lock 35
14 Managing the Recorder Settings 35
14.1 Storing settings 35
14.2 Loading settings 36
14.3 Resetting 36
15 Indication of System Information 36
16 Remote Access via Computer Network . 3 6

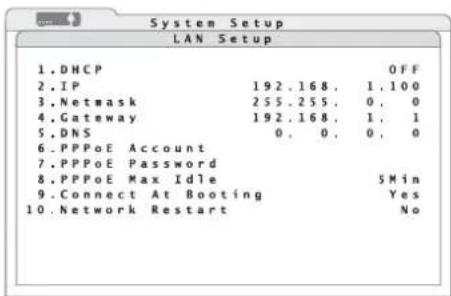

16.1 Setting up a network connection 36
16.1.1 Configuring notification via e-mail 36

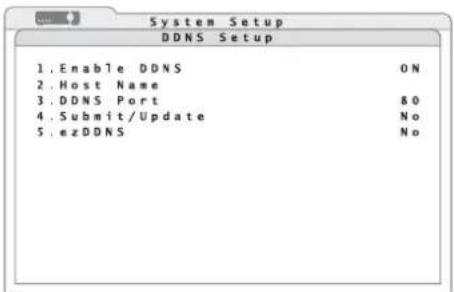

16.1.2 Configuring DDNS 36

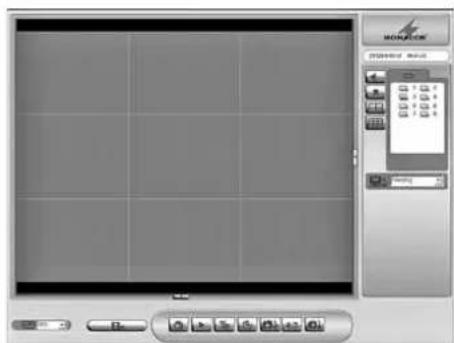

16.2 Remote control via the programs Windows Internet Explorer or CMS 37

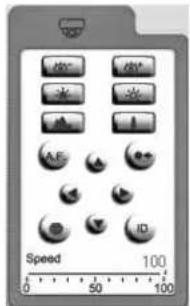

16.2.1 Camera remote control via IE 38
16.2.2 Disconnecting 38
17 Shutting Down or Restarting the System 38
18 Specifications 38
18.1 Recording capacity 39
18.1.1 Video system PAL 39
18.1.2 Video system NTSC 40

All operating elements and connections de - scribed can be found on the fold-out page 3.

1 Operating Elements and Connections

1.1 Front side of recorder

1 Buttons 1-16
during live surveillance and when replaying a recording: to select the camera channel for full image display
in the OSD menu: for direct input of the numbers 0-9 with the buttons 10/0 and 1-9
for camera remote control:
button 1 to activate the list of stored camera settings
button 2 to activate/deactivate the help window
buttons 11 - 16 for quick access to the stored camera settings 1 - 6
2 Power indication
3 Alarm indication
4 Indication for remote access
5 Recording indication REC
6 Button ENTER to zoom in an image (2×) and to return to the normal size again; in the OSD menu: to confirm a selection or to store settings for camera remote control: to activate autofocus and automatic iris control
7 Button ESC to exit the main menu, a submenu or an input field
8 Buttons ，，
in the OSD menu: to select a menu item or an input field and to change a value; during the replay: and to change the direction and the speed
for camera remote control:
to align a camera
with enlarged view:
to select the image section
9 USB port to connect an external storage medium (e.g. USB flash drive) for data storage or processing of video recordings or to connect a mouse
10 Button CALL to select the camera channel for display on an additional monitor (not for version DMR-604)
for camera remote control:
together with the button ENTER (6): to activate the OSD menu of a camera; together with the arrow buttons: to navigate through this menu with the on-screen keyboard inserted: for direct input of a full stop.
11 Button COPY to activate the export function during the replay
12 Button DOME to activate/deactivate the remote control mode for the camera currently shown in full image display
with the on-screen keyboard inserted: to delete the last character entered
13 Button SEQ to start and stop the sequence function during live surveillance and to activate/deactivate the deflicker function (to prevent flicker) during the replay
for camera remote control: for focus setting (near)
14 Button FREEZE to freeze the image (still image) during live surveillance and to stop and restart the replay (pause)

for camera remote control: for focus setting (far)

15 Button PLAY/STOP to start and stop the replay for camera remote control: to close the iris

16 Button MODE to switch between various split-screen arrangements (4, 9, 16 camera images) on the main monitor

for camera remote control:

to open the iris

when defining the coverage for automatic motion detection: to activate / deactivate all grid fields

17 Button SEARCH to search for particular recordings according to recording time or event

for camera remote control:

to zoom out

with the on-screen keyboard inserted: for quick input of the word "user"

18 Button MENU to activate the OSD menu

for camera remote control:

to zoom in

with the on-screen keyboard inserted:

for quick input of the word "admin"

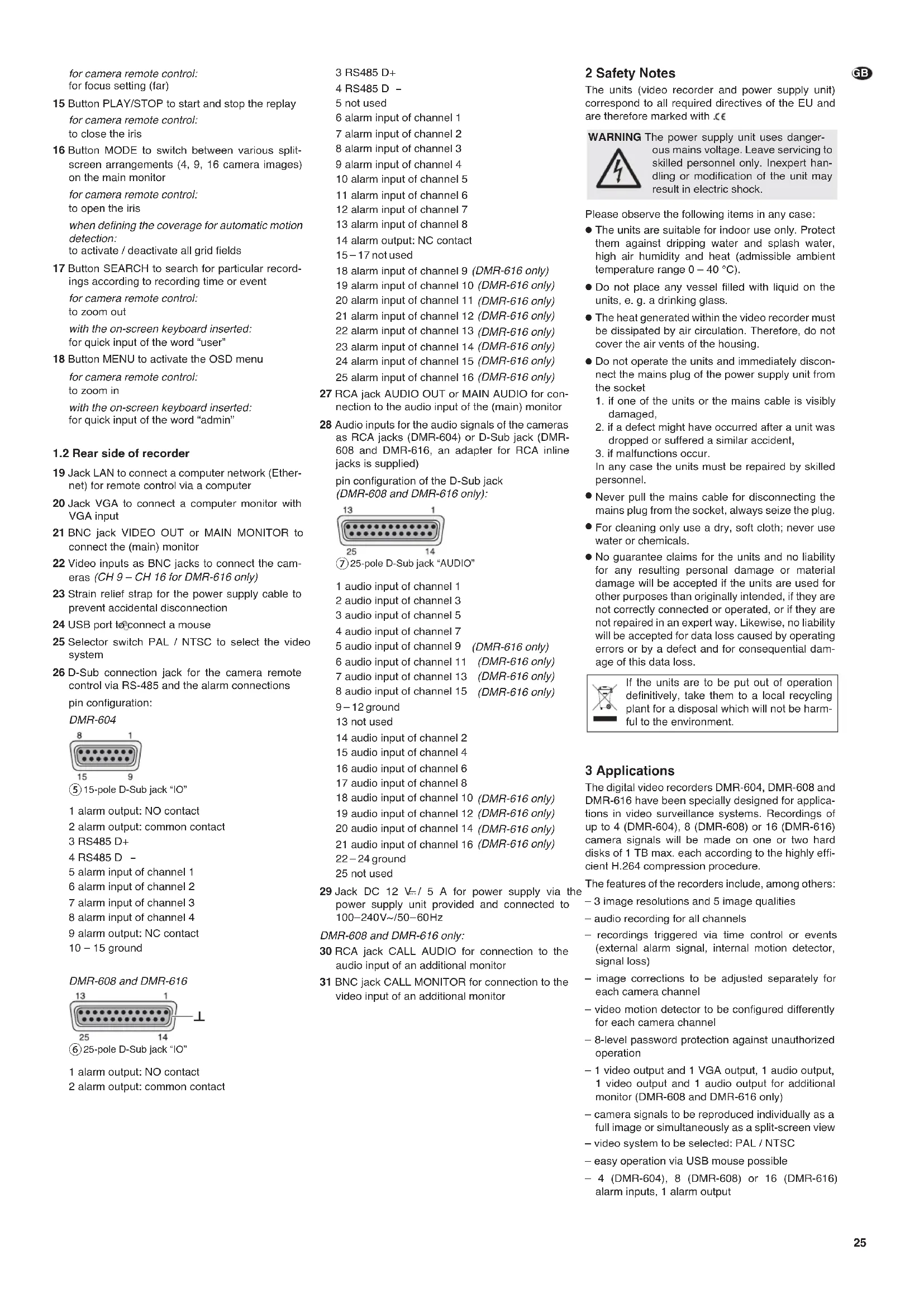

1.2 Rear side of recorder

19 Jack LAN to connect a computer network (Ethernet) for remote control via a computer

20 Jack VGA to connect a computer monitor with VGA input

21 BNC jack VIDEO OUT or MAIN MONITOR to connect the (main) monitor

22 Video inputs as BNC jacks to connect the cameras (CH 9 - CH 16 for DMR-616 only)

23 Strain relief strap for the power supply cable to prevent accidental disconnection

24 USB port le connect a mouse

25 Selector switch PAL / NTSC to select the video system

26 D-Sub connection jack for the camera remote control via RS-485 and the alarm connections pin configuration:

DMR-604

(5)15-pole D-Sub jack "IO"

1 alarm output: NO contact

2 alarm output: common contact

3 RS485 D+

4 RS485D -

5 alarm input of channel 1

6 alarm input of channel 2

7 alarm input of channel 3

8 alarm input of channel 4

9 alarm output: NC contact

10-15 ground

DMR-608 and DMR-616

625-pole D-Sub jack "IO"

1 alarm output: NO contact

2 alarm output: common contact

3 RS485 D+

4 RS485D -

5 not used

6 alarm input of channel 1

7 alarm input of channel 2

8 alarm input of channel 3

9 alarm input of channel 4

10 alarm input of channel 5

11 alarm input of channel 6

12 alarm input of channel 7

13 alarm input of channel 8

14 alarm output: NC contact

15-17 not used

18 alarm input of channel 9 (DMR-616 only)

19 alarm input of channel 10 (DMR-616 only)

20 alarm input of channel 11 (DMR-616 only)

21 alarm input of channel 12 (DMR-616 only)

22 alarm input of channel 13 (DMR-616 only)

23 alarm input of channel 14 (DMR-616 only)

24 alarm input of channel 15 (DMR-616 only)

25 alarm input of channel 16 (DMR-616 only)

27 RCA jack AUDIO OUT or MAIN AUDIO for connection to the audio input of the (main) monitor

28 Audio inputs for the audio signals of the cameras as RCA jacks (DMR-604) or D-Sub jack (DMR-608 and DMR-616, an adapter for RCA inline jacks is supplied)

pin configuration of the D-Sub jack (DMR-608 and DMR-616 only):

25 14

⑦25-pole D-Sub jack "AUDIO"

1 audio input of channel 1

2 audio input of channel 3

3 audio input of channel 5

4 audio input of channel 7

5 audio input of channel 9 (DMR-616 only)

6 audio input of channel 11 (DMR-616 only)

7 audio input of channel 13 (DMR-616 only)

8 audio input of channel 15 (DMR-616 only)

9-12 ground

13 not used

14 audio input of channel 2

15 audio input of channel 4

16 audio input of channel 6

17 audio input of channel 8

18 audio input of channel 10 (DMR-616 only)

19 audio input of channel 12 (DMR-616 only)

20 audio input of channel 14 (DMR-616 only)

21 audio input of channel 16 (DMR-616 only)

22-24 ground

25 not used

29 Jack DC 12 V-/5 A for power supply via the power supply unit provided and connected to 100-240V-/50-60Hz

DMR-608 and DMR-616 only:

30 RCA jack CALL AUDIO for connection to the audio input of an additional monitor

31 BNC jack CALL MONITOR for connection to the video input of an additional monitor

2 Safety Notes

The units (video recorder and power supply unit) correspond to all required directives of the EU and are therefore marked with

WARNING The power supply unit uses dangerous mains voltage. Leave servicing to skilled personnel only. Inexpert handling or modification of the unit may result in electric shock.

Please observe the following items in any case:

• The units are suitable for indoor use only. Protect them against dripping water and splash water, high air humidity and heat (admissible ambient temperature range 0 - 40^ ).
• Do not place any vessel filled with liquid on the units, e. g. a drinking glass.
  The heat generated within the video recorder must be dissipated by air circulation. Therefore, do not cover the air vents of the housing.
• Do not operate the units and immediately disconnect the mains plug of the power supply unit from the socket
• if one of the units or the mains cable is visibly damaged,
• if a defect might have occurred after a unit was dropped or suffered a similar accident,
• if malfunctions occur. In any case the units must be repaired by skilled personnel.
• Never pull the mains cable for disconnecting the mains plug from the socket, always seize the plug.
  For cleaning only use a dry, soft cloth; never use water or chemicals.
  No guarantee claims for the units and no liability for any resulting personal damage or material damage will be accepted if the units are used for other purposes than originally intended, if they are not correctly connected or operated, or if they are not repaired in an expert way. Likewise, no liability will be accepted for data loss caused by operating errors or by a defect and for consequential damage of this data loss.

If the units are to be put out of operation definitively, take them to a local recycling plant for a disposal which will not be harmful to the environment.

3 Applications

The digital video recorders DMR-604, DMR-608 and DMR-616 have been specially designed for applications in video surveillance systems. Recordings of up to 4 (DMR-604), 8 (DMR-608) or 16 (DMR-616) camera signals will be made on one or two hard disks of 1 TB max. each according to the highly efficient H.264 compression procedure.

The features of the recorders include, among others:

-3 image resolutions and 5 image qualities
audio recording for all channels
- recordings triggered via time control or events (external alarm signal, internal motion detector, signal loss)
image corrections to be adjusted separately for each camera channel
- video motion detector to be configured differently for each camera channel
- 8-level password protection against unauthorized operation
- 1 video output and 1 VGA output, 1 audio output, 1 video output and 1 audio output for additional monitor (DMR-608 and DMR-616 only)
camera signals to be reproduced individually as a full image or simultaneously as a split-screen view
- video system to be selected: PAL/NTSC
- easy operation via USB mouse possible
- 4 (DMR-604), 8 (DMR-608) or 16 (DMR-616) alarm inputs, 1 alarm output

• alarm triggering via motion detection, external alarm signal, video signal loss

• USB 2.0 interface for exporting video files

• RS-485 interface for remote control of suitable cameras (PTZ)
  LAN interface for connection to a computer network/totheInternet
  remote access for live surveillance, replay of recordings and configuration of the recorder via LAN/Internetbycomputer
• recording, live surveillance and remote access possible at the same time
• program to replay exported recordings will be exported by the recorder

4 Installing a Hard Disk

To make video recordings, install a hard disk (connection type SATA, 1 TB max.) first. If necessary, install a second hard disk (also connection type SATA, 1 TB max.). To install the hard disk(s):

1) Disconnect the recorder from the power supply. Important: If the recorder is already operated with a hard disk, shut down the system of the recorder via the OSD menu (E35 chapter 17) before disconnecting the power supply.
2) Release the screws fixing the cover of the housing, then remove the cover.
3) Connect the plugs of the power supply cable (b) to the contacts of the hard disk(s) according to figure 4. Connect the data output of the first hard disk (I) via one of the data cables provided to the connection "SATA MASTER" on the PCB; connect the data output of the second hard disk (II) to the connection "DATA SLAVE".
4) Fasten the first hard disk (I) via two screws on the right to the housing. Fasten the second hard disk (II) via two screws on the left to the mounting brackets. Additionally use two screws each to fasten the two hard disks on the bottom plate.
5) Replace the cover of the housing and retighten the screws.

Notes

• If the file system of the hard disk inserted is not compatible to the file system of the recorder, the recorder will reformat the hard disk without warning. All data on this hard disk will be deleted!
  Before removing a hard disk already operated in the recorder, deactivate it via the OSD menu (E35 chapter 11.2).

5 Connecting Units

Figures 74 and 75 on the last pages of this instruction manual show an example for connection each for DMR-604 and DMR-616; however, it will not be necessary to use all of the connection possibilities shown. The connection possibilities of the DMR-608 only differ from those of the DMR-616 in the number of channels.

Before connecting any units or changing any existing connections (except for USB connections), shut down the system of the recorder via the OSD menu (13 chapter 17) and disconnect the recorder from the power supply.

5.1 Video connections

1) Connect the video outputs of the cameras to the jacks CH1-CH4 or CH1-CH8/16 (22).
2) Connect the video input of a monitor to the jack VIDEO OUT or MAIN MONITOR (21). To connect an additional monitor allowing to view individual cameras in full image display, independently of the main monitor, use the jack CALL MONITOR (31) provided on the recorders DMR-608 and DMR-616.

3) To connect a computer monitor with VGA input, use the jack VGA (20). The video signal corresponds to that at the output for the main monitor (21).

5.1.1 Selecting the video system

Set the recorder to the video system of the cameras used with the selector switch PAL/NTSC (25). When switching over during operation, the system must be restarted so that the change will become effective (13 chapter 17).

5.2 Audio connections

1) For audio recordings and/or live surveillance, the RCA input jacks AUDIO IN CH1 - CH4 (28) allow to connect, for example, the audio outputs of cameras with integrated microphones or the pre-amplifiers of microphones set up separately. The recorders DMR-608 and DMR-616 each are supplied with an adapter with RCA inline jacks for connection to the 25-pole D-Sub jack AUDIO (28).

2) For audio reproduction, the audio signal of the channel currently displayed will be available at the RCA output jack AUDIO OUT (27) on the DMR-604. Correspondingly, on the DMR-608 and DMR-616, the audio signal will be available at the jack MAIN AUDIO (27) for the output MAIN MONITOR (21) and at the jack CALL AUDIO (30) the audio signal for the output CALL MONITOR (31). Define in the operating menu if live and replay sound, live sound only or no sound will be reproduced.

To reproduce the audio recording or the live sound via a monitor with integrated speaker or via an audio system, connect one of the outputs to the audio input of the monitor or to a line input of the audio system.

5.3 Alarm and control connections

Via the D-Sub jack IO (26), the recorder offers various inputs and outputs for control and alarm evaluation.

5.3.1 Alarm inputs

As alarm sensors, use e. g. motion detectors or light barriers equipped with NO (normally open) contacts or NC (normally closed) contacts. Connect the sensors to the following contacts of the D-Sub plug supplied:

DMR-604

sensor for channel 1 to contact 5 and ground sensor for channel 2 to contact 6 and ground sensor for channel 3 to contact 7 and ground sensor for channel 4 to contact 8 and ground ground = contacts 10 - 15

DMR-608 and DMR-616

sensor for channel 1 to contact 6 and ground sensor for channel 2 to contact 7 and ground sensor for channel 3 to contact 8 and ground sensor for channel 4 to contact 9 and ground sensor for channel 5 to contact 10 and ground sensor for channel 6 to contact 11 and ground sensor for channel 7 to contact 12 and ground sensor for channel 8 to contact 13 and ground

A contact pin for ground is not provided on the jack IO. For ground connection, use, for example, the body of the plug (shielding) or the GND contacts of the jack AUDIO (28).

DMR-616

sensor for channel 9 to contact 18 and ground sensor for channel 10 to contact 19 and ground sensor for channel 11 to contact 20 and ground sensor for channel 12 to contact 21 and ground sensor for channel 13 to contact 22 and ground sensor for channel 14 to contact 23 and ground sensor for channel 15 to contact 24 and ground sensor for channel 16 to contact 25 and ground

Adjust the contact type (NO or NC) separately for each channel in the OSD menu of the recorder (R chapter 10.1).

5.3.2 Alarm output

As a floating alarm output, a relay with normally open (NO) and normally closed (NC) contact (with a maximum load of 24V / 500mA ) is available. The alarm output allows to connect, for example, an audible or visible alarm device.

NO contact = contact 1

NC contact = contact 9 (DMR-604)

contact 14 (DMR-608 and

DMR-616)

common contact = contact 2

5.3.3 Camera remote control (DOME)

Via the RS-485 interface, remote control of suitable cameras will be possible. According to the features of the camera, movements such as pan and tilt, but also zoom, iris and automatic iris / autofocus will be controlled via the recorder.

Connect the plug contacts 3 (D+) and 4 (D-) to the corresponding contacts of the camera. It will be possible to connect another camera in parallel to the connections of the first one and a further camera to this one again, etc. until all cameras have been connected. To reduce interference, it is recommended to use twisted cables.

On the last camera, terminate the data bus by connecting the two cables via a 120 resistor (this will often be possible via a switch on the camera).

Assign an individual address to the cameras so that the recorder will be able to address them separately. This is usually made via an OSD menu or DIP switches on the camera. Make the corresponding settings on the recorder, i.e. the address to control the corresponding camera and the transmission parameters and protocol required (see chapter 12.1).

5.4 Mouse

For a more convenient operation of the recorder, connect a USB mouse with PS/2 protocol to USB port (24) or (9). This will also be possible during operation.

5.5 Computer network (LAN)

For remote control of the recorder via a computer, connect the two units via the RJ45 jack LAN (19) or link the recorder to a local computer network (e.g. via a router) or make a connection to the Internet.

Note: For direct connection to a computer, a crossover cable will be required.

5.6 Mains connection

Finally connect the power supply unit provided to the jack 12V÷ 5A (29) and connect the mains plug to a socket (100 - 240V / 47 - 63Hz)

To prevent accidental disconnection, clamp the cable leading to the recorder to the strain relief strap (23).

As a sudden power failure during operation may result in data loss and cause damage to the recorder, it is highly recommended to use an uninterruptible power supply (UPS).

5.7 USB storage medium

For external backup of the recordings or for transmission to a computer, it will be possible to connect, for example, a USB flash drive (flash EEPROM memory) to the USB port (9). For recognizing this external storage medium, it must be connected while the recorder is operated.

6 Operation

When the supply voltage has been applied, the recorder will be switched on. The power indication (2) will light up. The recorder will start a self-test. First, a test pattern and the results of the self-test will appear on the screen, then a split screen will be displayed showing all camera images selected for live surveillance (35 chapter 6.2.6).

To end the operation, shut down the system of the recorder via the operating menu first (F35 chapter 17) before disconnecting the recorder from its supply voltage; otherwise data loss or damage to the recorder may result.

6.1 Activating the OSD menu

The settings of the recorder are made via OSD menu. For this purpose, use the buttons on the recorder or a computer mouse. Various menu languages will be available (Selection of menu language 13 chapter 6.2.1). This instruction manual only refers to the English menus preset in the factory.

To activate the menu, press the button MENU (18). If the password protection has been activated, a request will appear to enter a valid user name (fig. 8).

⑧Input window for user name

To enter a character, select it with the buttons and 6) and confirm with the button ENTER (6).

To enter numbers directly, use the camera channel buttons 1 - 10/0 (1); to enter a full stop "." directly use the button CALL (10).

Move the cursor in the word via the icons and To correct it, use Delete to delete the character near the cursor; use Backspace or press the button DOME (12) to delete the character on the left of the cursor.

Two possible user names are factory-set: "admin" with full access permission and "user" with limited access permission (13). To enter "admin" quickly, press the button MENU (18); to enter "user", press the button SEARCH (17).

When the name is complete, store it with OK or exit the input with Cancel.

After the user name has been entered, the window for entering the password will appear (fig. 9).

9) Password input window

Enter the corresponding password via the buttons 1-10/0 (1). To delete an incorrect number, use the button ()

The preset password for "admin" is "1234"; for "user" it is "4321".

Terminate the input with the button ENTER (6).

Note: To prevent unauthorized access, it is highly recommended to change the preset passwords (19 chapter 13).

After the correct combination of user name and password has been entered, the main menu (fig. 10) will appear. In case of an input error, the message "You do not have proper authority to access this function" will appear.

To deactivate this message, press any button.

10) Main menu

Select the desired submenu with the button (8) and activate it with the button ENTER (6). If not all submenus are available, the access permission level for the user name entered is too low (13.1).

Select the desired line in the submenus with the buttons and (8). To change a setting, press the button ENTER in the marked line first. The current setting will flash; use the buttons and to change it. To store the changed setting, press the button ENTER. To exit an input field without changing the setting, press the button ESC (7).

If "Execute" is shown on the right of a line, the corresponding action will be executed when the button ENTER is pressed. For some menu lines, another submenu will be activated each time the button ENTER is pressed.

To exit a submenu and to exit the operating menu, press the button ESC. The menu will automatically disappear approx. 90 seconds after the last operation.

If the password protection has been activated, the access permission level (1 - 8) will be displayed in the upper right corner of the screen. After exiting the menu, the user is still logged in and will be able to reactivate the menu or other functions without having to enter the user name and the password again. If the button ESC is pressed once again or if no menu function has been activated for more than 5 minutes, the user will be logged out. Instead of the access permission level, "N" will appear.

6.1.1 Menu control with the mouse

If a USB mouse with wheel has been connected (chapter 5.4), use it to make the menu settings.

1) Press the right mouse button. The following window will appear:

11Mouse palette

2) Click the icon Menu with the left mouse button. If the password protection has been activated, a request to enter a valid user name will appear (fig. 8). Enter the user name as described in chapter 6.1, however, it will be possible to click the characters to be entered directly with the mouse. For entering the password subsequently, a number palette (fig. 12) will additionally appear when a mouse has been connected.

12 Input of numbers with the mouse

Click the numbers or click to delete the last input. To terminate the input, click next to the palette with the left mouse button.

After the correct combination of user name and password has been entered, the main menu (fig. 10) will appear. In case of an input error, the message "You do not have proper authority to access this function" will appear. To deactivate this message, press a mouse button.

3) Click the corresponding icon in the main menu to activate the desired submenu. The name of thesubmenu will be displayed at the top once the mouse pointer is moved over the icon.
4) Click the desired line in the submenu to change a setting, to activate anothersubmenu or to execute an action.
5) Use the mouse wheel to change a setting and click the left mouse button to store the input.
6) To exit an input field without changing the setting, press the right mouse button.
7) To exit a submenu and to deactivate the operating menu, press the right mouse button.

6.1.2 Menu overview

An overview of the menu structure with the most important submenus can be found in figure 13.

An overview of the menus:

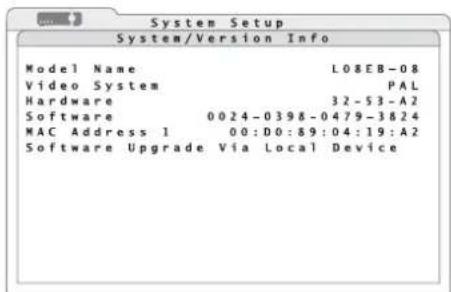

System/Version Info

Indication of recorder type, video system, recorder version, firmware version and MAC address

Language

Selection of menu language

Date/Time

Setting of date and time, indication format, time zone, automatic change to daylight saving time, time synchronization via network

Unit Name

Input of a recorder name

User Management

Definition of the access permission levels for the operating functions and of the access permission for users, definition and activation of the password protection

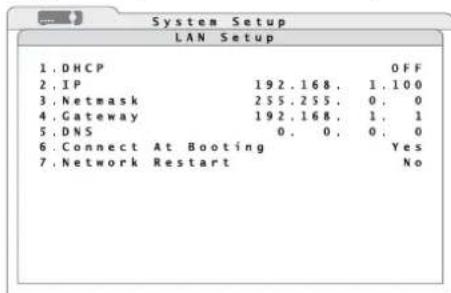

Network Setup

Parameters for network connection

RS485 Setup

Settings of RS-485 transmission parameters for the cameras to be controlled via data bus

Audio Output/Key Beep

Settings for audio output and activation / deactivation of key beep

Monitor Setup

Activation/deactivation of camera titles, image centring, resolution for the VGA output, test pattern (colour bars)

Camera Setup

Settings for camera inputs: remote control protocol, camera title, visibility, image corrections (brightness, contrast, saturation, hue)

Record Setup

Recording presets (resolution, quality, recording schedule, storage time, overwrite mode, audio recording), deletion of recordings

Sequence Setup

Settings for sequence function (order of cameras and dwell time) on the main monitor and additional monitor

Event Setup

Settings for evaluating events such as signal loss, automatic motion detection via camera images, signals at the alarm inputs

Database Setup

Indication of information concerning the internal hard disks and activation, deactivation and formatting of the hard disks

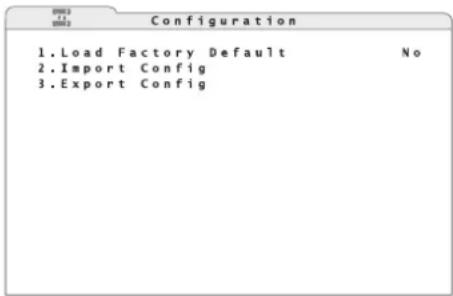

Configuration

Export or import of all settings of the recorder, reset to factory settings

Shutdown

Shutdown of the system (to switch off) or restart of the system

MENU

13Menu structure

6.2 Basic settings

6.2.1 Changing the menu language

The preset language for the settings and dialogues in the OSD menu is English. This instruction manual refers to this language. To change the language:

1) As described in chapter 6.1, activate the main menu (fig. 14) and then the submenu System Setup (fig. 15).

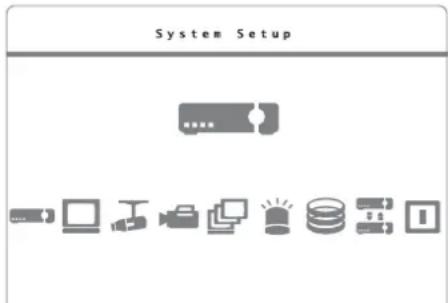

14 Main menu: "System Setup" selected

15 Submenu "System Setup"

2) Select the desired menu language in the line 2.Language.

6.2.2 Key beep and audio output

To deactivate the beep whenever a button is pressed:

1) Via the main menu (fig. 14), activate the submenu System Setup (fig. 15).
2) Via the line 8. Audio Output/Key Beep, activate the corresponding submenu (fig. 16).

16 Submenu "Audio Output / Key Beep"

3) In the line 2. Key Beep, define if a beep will sound whenever a button is pressed (ON) or not (OFF).
To define the audio signal at the audio output AUDIO OUT or MAIN AUDIO (27):
4) In the line 1. Audio Output, select live sound only (Always Live), change-over to the sound of the recording while replaying (Live/PB) or no sound (OFF).

6.2.3 Monitor settings

To set the main monitor:

1) Via the main menu (fig. 17), activate the submenu Monitor Setup (fig. 18).

17 Main menu: "Monitor Setup" selected

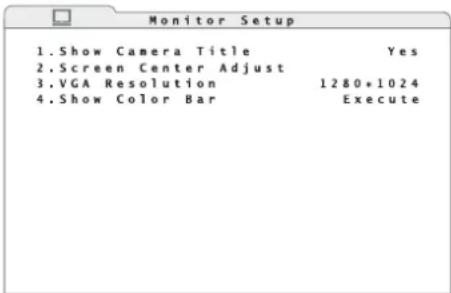

18 Submenu "Monitor Setup"

2) In the line 3.VGA Resolution, select the desired resolution for the VGA output (pixels horizontal × vertical).
Note: If you select a higher resolution than the monitor will be able to display, "No Signal" will appear on the screen. In this case, press the button ESC (7) to keep the previous setting.
3) To centre the image on the monitor, use the function 2. Screen Center Adjust. Move the image with the buttons and (8) in such a way that it will be displayed in the centre of the monitor.
If a mouse has been connected, click the cross inserted in the centre to move the image. Move the mouse to position the image in the centre. To store this setting, press the left mouse button.
4) To set the colours of a monitor, insert a test pattern of vertical colour bars via the function 4.Show Color Bar. To return to the menu, press the button ENTER (6) or ESC (7) or a mouse button.
5) In the line 1. Show Camera Title, it will also be possible to define if the camera titles will be displayed on the monitor (Yes) or not (No) [33] chapter 6.2.4]

6.2.4 Camera titles

For each camera channel, it will be possible to insert a title of up to 11 characters in the image. To assign titles to the cameras:
1) Via the main menu (fig. 19), activate the submenu Camera Setup (fig. 20).

19. Main menu: "Camera Setup" selected

(20)Submenu "Camera Setup /Analog Camera"

2) In the line 1. Analog Camera Select, select the channel for the camera to be tilted. The current camera title will be displayed on the right of the line 4. Camera Title.
3) To change the title, activate the input window for characters (fig. 21) via the line 4. Camera Title.

(21)Input window "Camera Title"

4) To enter a character, select it with the buttons , fund (8) and confirm with the button ENTER (6). Alternatively, click the character with the mouse. To enter numbers directly, use the camera channel buttons 1 - 10/0 (1); to enter a full stop " " directly, use the button CALL (10).

Via the icons and, move the cursor in the word. To correct it, use Delete to delete the character near the cursor; use Backspace or press the button DOME (12) to delete the character on the left of the cursor.

5) After entering, store the title with OK or exit the input window with Cancel without changing the title.

It depends on the setting 1. Show Camera Title in the submenu Monitor Setup (6.2.3) whether or not the camera titles will be displayed on the monitor.

6.2.5 Correcting image properties

If necessary, correct the properties of the camera images.

1) Via the man menu (fig. 19), activate the submenu Camera Setup (fig. 20).
2) In the line 1. Analog Camera Select, select the channel for the camera image to be corrected.
3) The following image properties may be corrected:

6.Brightness

7.Contrast

1. Saturation

9.Hue

Note: To view the changes, select the option No in the line 5. Covert.

6.2.6 Visibility of camera images

For recording the signals of a camera without displaying them on the main monitor in the normal mode, set the corresponding channel to "covert".

1) Via the main menu (fig. 19), activate the submenu Camera Setup (fig. 20).
2) In the line 5. Covert, define if the camera image will be covert (Yes) or if it will be visible on the monitor during live surveillance and during replay of recordings (No).

Note: This setting will not affect the display of a camera signal on an additional monitor connected to the output CALL MONITOR (31).

6.2.7 Date and time

The recorder is equipped with a clock. Due to a battery, this clock will keep running when the recorder is switched off or in case of power failure. To set the date and time:

1) Via the main menu (fig. 14), activate the submenu System Setup (fig. 15).
2) Via the line 3.Date/Time, activate the submenu Date/Time (fig.22).

3) In the line 5. Date Display Mode, select the date format to be displayed:

D/M/Y

M/D/Y

Y/M/D

Note: A change of date and time will affect future recordings only. The time indications of existing recordings will not be changed. To prevent any resulting data inconsistency, it is recommended to format the hard disk(s) after changing the date or the time (123 chapter 11.2).

After changing the settings described below, a warning will appear on the screen pointing out this problem. To confirm the change, press the button ENTER (6) or the left mouse button; to cancel the change, press the button ESC (7) or the right mouse button.

4) In the line 1. Date, enter the current date in the format selected.
5) In the line 6.Time Display Mode, define if the time will be indicated in 12-hour format (12 HR) or 24-hour format (24 HR).
6) Enter the current time accordingly in the line 2.Time.
7) In the line 7. Date/Time Order, define if the date will be indicated before the time (Date First) or if the time will be indicated before the date (Time First).
8) In the line 4. Date/Time Display, define if the date and the time will be indicated in two lines (2 Rows), in one line (1 Row) or not at all (OFF).
9) In the line 3. Time Zone, select the time zone for the place of application (e.g. 00:00 for UK).
10)For automatic change between daylight saving time and standard time, activate the corresponding menu (fig. 23) via the line 8.Daylight Saving Time Setup.

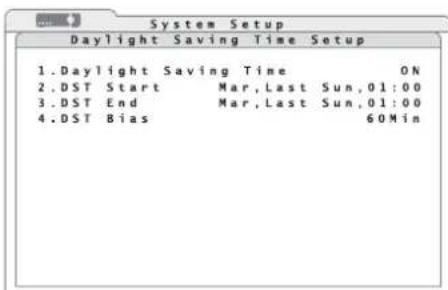

23 Submenu "Daylight Saving Time Setup"

11)In the line 1.Daylight Saving Time, activate (ON) or deactivate (OFF) the automatic

change between daylight saving time and standard time. With automatic change, an "S" (summer time) for daylight saving time or a "W" (winter time) for standard time will appear in front of the time indication.

12)In the line 2.DST Start, define the time for changing from standard time to daylight saving time (e.g. Mar, Last Sun, 02:00 for always switching over on the last Sunday in March at 2 a.m.).

In the line 3.DST End, define the time for changing from daylight saving time to standard time (e.g. 0ct, Last Sun, 03:00 for always switching back on the last Sunday in October at 3 a.m.).

In the line 3.DST Bias, define the time difference (60 minutes in most countries).

13)For automatic synchronization of time via a computer network / via the Internet, it is recommended to set up the network connection first (Ech chapter 16.1).

Via the line 9. Network Time Protocol Setup, activate the corresponding submenu (fig. 24). This menu item will not be available until the time zone has been defined (step 9).

24 Submenu "Network Time Protocol Setup"

14)Enter the network / Internet address (URL) of the desired NTP server via the line 1. NTP Server or keep the preset server. Enter it as described for the camera title (Chapter 6.2.4).

Further examples for IP addresses of NTP servers:

129.6.15.28, 129.6.15.29, 132.163.4.101

132.163.4.102, 132.163.4.103, 128.138.140.44

192.43.244.18, 131.107.1.10, 69.25.96.13

206.246.118.250, 208.184.49.9, 64.125.78.85

207.200.81.113,64.236.96.53,68.216.79.113

15)In the line 2. Automatically Time Sync, define if the clock of the recorder will be automatically synchronized every hour via the network (ON) or not (OFF).

16)To synchronize the clock of the recorder immediately via the network, enter "Yes" in the line 3. Manually Time Sync. The recorder will try to make a connection to the NTP server immediately. The message "Timeyncing/please stand by" will appear.

If the message "Fail to time sync/Press any key to return" appears, the synchronization has failed. In this case, check the network connection and the network settings (13 chapter 16.1). To return to the menu, press any button.

If the clock does not keep the time until the recorder is switched on again, the battery (button cell inside the recorder) may be exhausted und must be replaced.

6.2.8 Unit name

When operating several recorders at the same time, it will be possible to assign an individual name to each recorder (to distinguish them for remote access via a computer network).

1) Via the main menu (fig. 14), activate the submenu System Setup (fig. 15).
2) The name "DVR" is preset. To change the name, activate the window Unit Name (fig. 25) via the line 4. Unit Name.

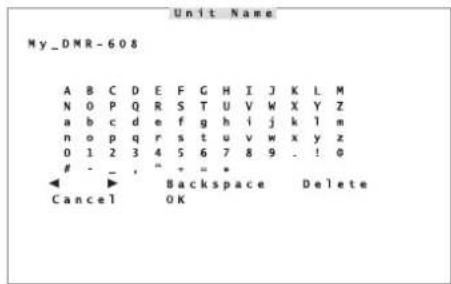

25 Input window "Unit Name"
3) Change the name of the recorder as described for the camera titles in chapter 6.2.4.

7 Live Surveillance

The display of the camera images for live surveillance is independent of the recording activity of the recorder.

To switch between full image display of a camera and simultaneous display of several camera images on the main monitor, press the button MODE (16). It depends on the number of inputs on the corresponding version which of the split-screen arrangements (2× 2,3× 3,4× 4) will be available.

To display a camera image as a full image, press the corresponding camera channel button (1). To return to the split-screen view, press the button MODE.

To "freeze" the display (still image), press the button FREEZE (14). In the lower left corner, Freeze will be inserted. To return to the live images, press the button once again.

To zoom in an image section by the factor 2 in the full image display, press the button ENTER (6). In the lower left corner, X2 Zoom will be inserted. To move the section, use the arrow buttons (8). To return to normal-size display, press the button ENTER once again.

If a mouse has been connected, click an image on the split-screen view with the left mouse button to display this camera channel as a full image. To return to a split-screen view, click the image once again. Alternatively, activate the mouse palette (fig. 11) with the right mouse button and click the icon "mode" with the left mouse button or directly select the desired split-screen arrangement 4 × 2 , "3" or "4 × 4". To freeze the display, click "freeze"; to zoom it in, click "Zoom". To move the section zoomed in, click the directional arrows inserted. Click the left mouse button to freeze the image zoomed in; click the right mouse button to return to the live image. Click the right mouse button again to return to normal-size display.

7.1 Configuring the sequence function

With the sequence function, the view will change automatically during live surveillance. To configure the sequence function:

1) Via the main menu (fig. 26), activate the submenu Sequence Setup (fig. 27).

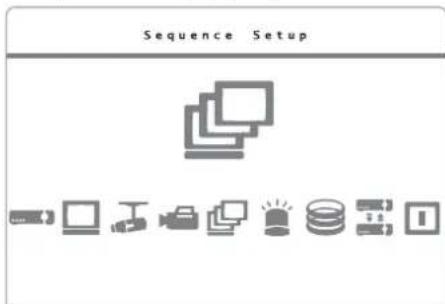

(26) Main menu: "Sequence Setup" selected

(27) Submenu "Sequence Setup"

2) In the line 1. Main Monitor Dwell, define the dwell time for each camera channel.
3) Activate the corresponding submenu (fig. 28) via the line 2. Main Monitor Schedule.

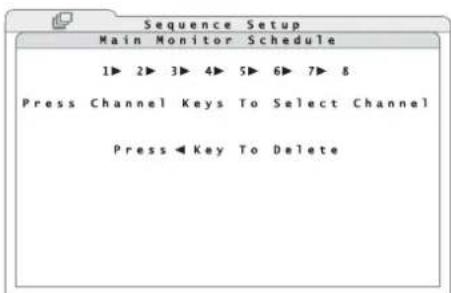

28 Submenu "Main Monitor Schedule"

4) To change the sequence of the camera channels displayed, delete the preset channels with the button (6) and enter the desired cameras with the channel buttons (1). Do not use a channel more than once in the sequence. To store the changes, exit the submenu with the button ENTER (6) or press the button ESC (7) to cancel the changes.
For operation with a mouse, icons will be inserted in the lower part of the window; click them for input. To store the changes and to exit the submenu, click the left mouse button at any other place; to cancel the changes, click the right mouse button.
5) For an additional monitor (DMR-608 / DMR-616 only), make the settings performed in steps 2) to 4) in the same way via the lines 3. Call Monitor Dwell and 4. Call Monitor Schedule.

7.2 Activating the sequence function

To activate the sequence function, press the button SEQ (13). The automatic change of camera channels will start and Sequence Mode will be inserted in the lower left corner.

Note: If the zoom has been activated (insertion X2 Zoom) or the display has been frozen (insertion Freeze), deactivate these functions first.

To deactivate the sequence function, press the button SEQ or the button ESC (7).

To start the sequence function with a mouse, activate the mouse palette (fig. 11) with the right mouse button and click the icon sequence". To deactivate the sequence function, click the right mouse button.

7.3 Additional monitor

(DMR-608/DMR-616only)

An additional monitor connected to the output CALL MONITOR (31) is used to display five images of a camera as a full image while a multiple camera display or the replay of a recording is shown on the main monitor. It will not be possible to replay a recording on the additional monitor.

To select the camera channel to be displayed:

1) Press the button CALL (10). In the lower left corner of the main monitor, Call Mode will be inserted.

When using a mouse, activate the mouse palette (fig. 11) with the right mouse button and then click the icon "Search" with the left mouse button.

2) Switch the desired camera channel to the additional monitor with the channel buttons (1) or start the sequence function for the additional monitor with the button SEQ (13) [Configuring the sequence function chapter 7.1]. To stop the sequence, also press the button SEQ.
For operation with a mouse, icons will be inserted in the lower part of the window; click them for input.
(3) To exit the Call mode, press the button CALL or the button ESC (7); when using a mouse, click the right mouse button.

8 Recording

The video signals will be recorded on the internal hard disks. These hard disks must be formatted before making the first recordings with the video recorder. To save storage space, the video signals will be compressed according to the highly efficient standard H.264 (MPEG-4 /AVC). The image quality of the recording (and thus the compression rate) will be adjustable.

It will be possible to record the camera signals permanently, according to a schedule or depending on events (automatic motion detection or signal at one of the alarm inputs). The recording status will be inserted in the lower left corner of the image displayed on the main monitor:

REC = permanent or time-controlled recording

EVENT ONLY = recording in case of events only

Additionally, the indication REc (5) on the recorder will flash to indicate recording.

8.1 Settings for recording

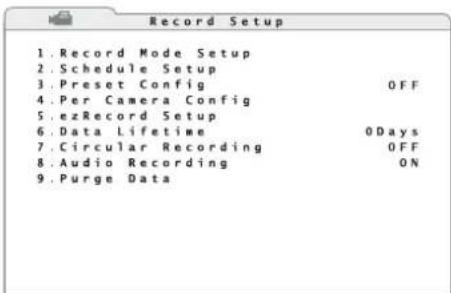

1) Via the main menu (fig. 29), activate the submenu Record Setup (fig. 30).

(29) Main menu: "Record Setup" selected

Submenu "Record Setup"

2) To facilitate the settings, presets for various requirements will be available via the line 3.Preset Config:

The presets 512/256/128Kbps DSL offer permanent recording of all camera channels at a constant data rate and corresponding memory requirements for each image with a fixed resolution:

PAL	720 × 288, 50 PPS
NTSC	720 × 240, 60 PPS
512Kbps DSL	4KB/image
256Kbps DSL	3KB/image
128Kbps DSL	2KB/image

For the presets Best Quality, Standard and Extended Record, the resolution will also be selectable:

PAL	720 × 576, 25 PPS	720 × 288, 50 PPS	360 × 288, 100 PPS
NTSC	720 × 480, 30 PPS	720 × 240, 60 PPS	360 × 240, 120 PPS
Best Quality	22 KB/ image	12 KB/ image	6 KB/ image
Standard	14 KB/ image	8 KB/ image	4 KB/ image
Extended Record	6 KB/ image	4 KB/ image	2 KB/ image

To select the resolution, activate the corresponding menu (fig. 31) via the line 1.Record Mode Setup.

31 Submenu "Record Mode Setup"

Define the desired resolution (pixels horizontal × vertical) in the line 1. Record Resolution.

In the line 3, Max Rec. PPS define a maximum picture rate (PPS = pictures per second) depending on the resolution. (For DMR-604, the maximum picture rate will be defined by the resolution selected.)

Note: If a change has been made in the submenu Record Mode Setup, a message requiring a system restart will appear when exiting the submenu.

For the presets mentioned above, the total picture rate will principally be divided among all input channels, regardless of whether or not there is a camera signal at an input. For the preset ezRecord, however, the memory will be used more effectively: Only the channels with a camera signal applied will be recorded. To configure this preset chapter 8.1.1.

For recording in case of alarm triggering only (by motion detection or via an alarm input), select the preset Event Only. Define the type of events and their evaluation under Alarm Functions (Chapter 10).

If no preset has been selected (OFF), it will be possible to set each camera channel individually for recording via the line 4. Per Camera Config now accessible (13 chapter 8.1.2).

3) In the line 6. Data Lifetime, define the number of days for which a recording will be available for replay. If no limit is desired for the replay time, set the value to 0Days.

Note: This setting will not affect the actual existence of a recording; it will limit the replay time intentionally. For replaying a recording made earlier, increase the value accordingly.
4) In the line 7. Circular Recording, define if the oldest data on the hard disk will be automatically overwritten (ON) and thus permanent recording will be possible. If the overwrite mode has been deactivated (OFF), the recording will stop once the hard disk(s) is (are) full and a signal will sound.
5) In the line 8. Audio Recording, define if audio signals will also be recorded (ON) or not (OFF).

8.1.1 Configuring "ezRecord"

The preset "ezRecord" allows a simple and effective setting for recording. To configure this preset:
1) Via the line 5.ezRecord Setup, activate the corresponding menu (fig. 32).

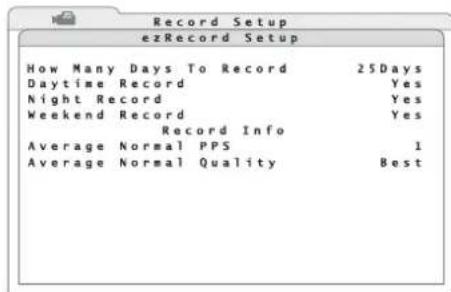

32 Submenu "ezRecord Setup"

2) In the line How Many Days To Record, define the minimum number of days for recording.
3) In the lines Daytime Record, Night Record and Weekend Record, define if normal recordings (i.e. without alarm triggering) will be made during these periods (Yes) or not (No). The periods will be defined in the recording schedule (13 chapter 8.1.3). If the option "Weekend Schedule" has been deactivated in the recording schedule, it will not be possible to set the line Weekend Record.

Depending on the capacity of the hard disk(s) installed and the preset values, the change of the other values will be calculated and displayed immediately when entering data, e.g. the average picture rate to be achieved with the presets will be displayed in the line Average Normal PPS and the corresponding quality will be displayed in the line Average Normal Quality.

Likewise, the possible recording time will be calculated immediately when the picture rate or the quality is changed.

Note: Only channels with a camera signal applied will be recorded. Calculations in this submenu will be based on the cameras currently connected. It is therefore recommended to repeat the setting in this submenu when the number of cameras connected is changed.

8.1.2 Configuring individual camera channels

If none of the presets for recording is the optimum solution for the application, it will be possible to configure the camera channels individually for recording. For this purpose, select the option OFF in the line 3.Preset Config.

1) Via the line 4. Per Camera Config, activate the corresponding submenu (fig. 33).

33) Submenu "Per Camera Config"

2) In the line Camera Select, select the channel of the camera to be adjusted.
3) In the line Normal PPS, define the picture rates (pictures per second) for the normal recording mode. The columns Day, Night and Weekend refer to the periods defined in the recording schedule (85 chapter 8.1.3). If the option "Weekend Schedule" has been deactivated in the recording schedule, the values in this column will be insignificant. Set the picture rate to 0 if a camera signal is not to be recorded in the normal mode (only in case of alarm).

In the line Normal Qlty, select the quality of the video signal in the normal mode. With increased quality (Low Fair Mid High Best), the required memory space will also increase.

4) In the line Event Max PPS, define the maximum picture rates for the recording mode in case of alarm. The actual picture rate for recording a channel will depend on the number of channels recorded simultaneously in case of alarm.

In the line Event Q1ty, select the quality for recording the video signal in case of alarm. With increased quality (Low Fair Mid High Best), the required memory space will also increase.

5) In the line Event Act, define the type of event triggering an alarm recording.

Motion motion detection

Alarm signal at an alarm input

Both motion detection or signal at an alarm input

None no alarm recording

The type of event triggering an alarm recording also depends on the settings in the submenu "Event Setup" (43 chapter 10).

Note: The total amount of picture rates for all channels may be the total picture rate as a maximum, i.e. before increasing the picture rate of a channel in normal mode, it may be necessary to decrease the picture rate of another channel. In case of alarm, the channel with the event triggering the alarm will take priority. The remaining picture rate will be divided among the channels recording normally.

8.1.3 Defining the recording schedule

For the recording preset "ezRecord" and for the individual recording configuration of the camera channels it will be necessary to define the recording times.

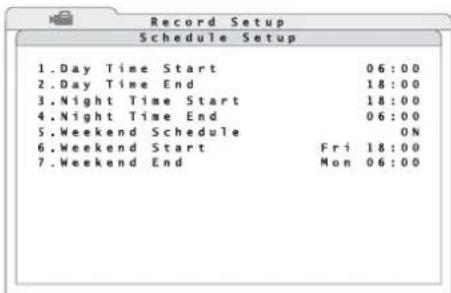

1) Via the line 2. Schedule Setup, activate the corresponding menu (fig. 34).

34.Submenu"Schedule Setup

2) In the line 1.Day Time Start, define the start of the recording period "day".
3) In the line 2.Day Time End, define the end of the recording period "day".
4) In the line 3. Night Time Start, define the start of the recording period "night".
5) In the line 4. Night Time End, define the end of the recording period "night".
6) In the line 5. Weekend Schedule, define if the recorder will distinguish between weekdays and weekend (ON) or not (OFF).

If ON has been selected, define the start of the weekend period in the line 6.Weekend Start and the end of the weekend period in the line 7.Weekend End.

Note: While recording, it will not yet be possible to replay a part of the latest recording as the data will still be in the buffer.

GB 9 Replay

1) To start the replay of a recording, press the button PLAY/ STOP (15). The replay will start where it ended the last time. When the button is pressed for the first time, the replay will start at the beginning of the recording. When searching for a specific recording, use the search function (B chapter 9.1).
The insertion "1" in the lower left corner of the image means that a recording is replayed forwards at single speed.
2) To modify the direction and the speed of the replay from "32" (32-fold speed, backwards) to "32" (32-fold speed, forwards), use the buttons and (8) At the end of the recording, END OF VIDEO will be inserted.
Note: While recording, it will not yet be possible to replay a part of the latest recording as the data will still be in the buffer.
3) The selection of the view is largely the same for the replay as for the live surveillance. The button MODE (16) is used to switch between the full image display of the recording of a camera channel and the simultaneous display of several channels on the main monitor. It depends on the number of inputs on the corresponding version which of the split-screen arrangements (2× 2,3× 4× 4) will be available.
To display a camera image as a full image, press the corresponding camera channel button (1). To return to the split-screen view, press the button MODE.
4) To pause the replay, press the button FREEZE (14). In the lower left corner, the icon will be inserted. To go backwards and forwards image by image, use the button (8) the pause mode. To replay individual images continuously, keep the button pressed. Press the button FREEZE once again to continue the replay.
5) To zoom in an image section by the factor 2 in the full image display during replay, press the button ENTER (6). In the lower left corner, X2 Zoom will be inserted. To move the section, use the arrow buttons (8). To stop and restart the replay with the image zoomed in, press the button FREEZE. To return to normal-size display during replay, press the button ENTER once again.
6) For replaying recordings with the highest resolution containing many movements, it will be possible to activate the deflicker function via the button SEQ (13) to prevent annoying flicker (insertion DEFLICKER ON). To deactivate the function, press the button SEQ once again (insertion DEFLICKER OFF).
7) To stop the replay and to return to the display of live images, press the button PLAY/ STOP once again.
8) For operation with a mouse, activate the mouse palette (fig. 11) with the right mouse button and then click the icon "Playback" with the left mouse button to start or stop the replay. Use the mouse wheel to modify the replay direction and the replay speed.

To display the recording of a camera channel as a full image, click an image on the split screen with the left mouse button. To return to a split-screen view, activate the mouse palette (fig. 11) with the right mouse button and click the icon "Mode" with the left mouse button or directly select the desired split-screen arrangement 2 × 2 , 3 × 3 or "4". To pause the display, click the icon "Freeze"; to zoom it in (during replay only), click "Zoom". To move the section zoomed in, click the arrow icons inserted. Click the image with the left mouse button to interrupt the replay with the image zoomed in; click the icon "Freeze" in the mouse palette to continue the replay. Click the right mouse button to return to normal-size display. To activate/ deactivate the deflicker function, click the icon "Deflicker" in the mouse palette.

9.1 Searching for recordings

The search function allows to replay specific recordings made within a particular period or triggered via a particular event.

1) To activate the search function during live surveillance or during replay of a recording, press the button SEARCH (17). When using a mouse, activate the mouse palette (fig. 11) with the right mouse button and then click the icon Q "Search" with the left mouse button. The window Search (fig. 35) will appear.

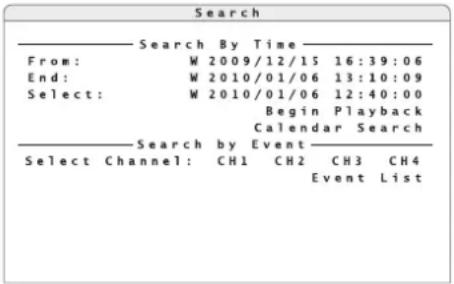

35 Window "Search"

2) The lines From and End show the start and the end of the period for which recordings are available. If automatic change of time has been selected in the system settings (6.2.7), an "S" (summer time) for daylight saving time or a "W" (winter time) for standard time will appear in front of the date.

To replay the start of all recordings, activate the line From.

To replay them shortly before the end, activate the line End.

To replay recordings made at a particular point of time, enter the date and the time in the line Select and activate Begin Playback.

If there is no recording available for the time entered, the next recording available will be replayed.

3) If you do not know the precise point of time, activate the function Calendar Search (fig. 36).

36 Window "Calendar Search"

In the top line, define the year and the month. When the month is entered, the numbers highlighted in the calendar will show the days for which recordings are available.

Select a day in the calendar. When the day is selected, the time bar at the bottom will show the periods for which recordings are available. Yellow blocks are time-controlled recordings and red blocks are recordings triggered by events (alarm recordings).

To define the desired point of time, move the arrow on the time bar or directly enter it in the line Select: Start the replay via the icon

9.1.1 Event list

In the window Search (fig. 35), it will be possible to create an event list under Search by Event.

1) In the line Select Channel:, select the camera channels to be used for creating the list.

Select the channels with the buttons and (8) and activate or deactivate each of the channels with the button ENTER (6) [or with the left mouse button]. Dark channel numbers mean that events of this channel will not be listed.

2) Start creating the list via the line Event List. Figure 37 shows an example of a list created. The entries are sorted by order of occurrence with the latest event listed at the top.

If the message "No available items!" appears instead of the submenu, no events have been stored for the camera channels selected. To

return to the search window, press the button ESC (7).

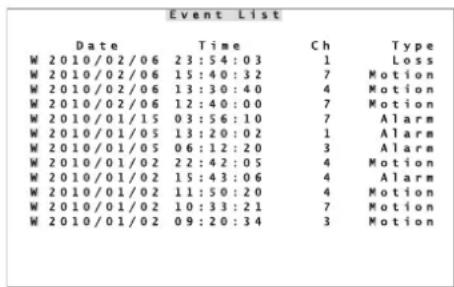

37 Window "Event List"

The columns Date and Time list the date and the time of the corresponding event. If automatic change of time has been selected in the system settings (W3 chapter 6.2.7), an "S" (summer time) for daylight saving time or a "W" (winter time) for standard time will appear in front of the date. The column Ch will indicate the number of the camera channel. The column Type will indicate the type of event:

Motion motion detection

Alarm signal at the alarm input

Loss loss of video signal

3) To start replaying the video recordings referring to this event, select the corresponding line in the list. In case of video signal loss, the last seconds before the loss will be recorded so that the cause of the video signal loss may possibly be identified.

9.2 Exporting video files

It will be possible to export a video recording, or just a part of it, to an external storage medium to replay the video file on a computer not connected to the recorder via network.

1) Connect the storage medium (e.g. USB flash drive) to the USB port (9) at the front of the recorder.
2) Start the replay of the recording.
3) At the start of the passage to be exported, press the button COPY (11). In the lower left corner of the image, "ezBurn TimeA" will appear.
4) At the end of the passage to be exported, press the button COPY again. In the lower left corner of the image, "ezBurn TimeB" will appear. The data export will start.

If the message "No exportable device detected. Please install the target device/media to the DVR." appears, no storage medium has been connected or has not correctly been recognized. It may be necessary to disconnect the USB connection and to reconnect the storage medium so that it will be recognized. Then press the button ENTER (6) or cancel with ESC (7).

To confirm recognition of the storage medium, the extent of the data to be exported will be indicated, e. g.:

ezBurn Confirmation

Selected Device:USB BAR

Exported Required Size = 15MB

Real Export Range:

From: 2010/01/13 09:51:34

To: 2010/01/13 09:52:54

The following information will be indicated: The storage medium (in this case: USB BAR), the storage space required (in this case: 15 MB) and the time when the recordings to be exported were made.

5) To start the storage process, press the button ENTER; to cancel, press the button ESC.

After successful storage, the message "Export ok!" will appear. The message will disappear when any button is pressed.

Notes

The video files will be stored in a special format (.DRV) and may only be reproduced with a special program. However, this program (DVR PLAYER) will also be stored on the storage

medium when exporting data and may be started directly from it.

Depending on the size of the video sequence to be exported, the storage process may take 10 minutes to 1 hour.

9.2.1 Exporting from the event list

If the replay of a recording was started by selecting an event from the list described in chapter 9.1.1, it will not be necessary to define the start and the end of the passage to be exported. To export the video data referring to this event, press the button COPY (11) once. To confirm, the storage medium selected for export, the storage space required, the time of the event, the camera channel concerned and the type of event will be indicated.

Proceed as described above.

10 Alarm Functions

It will be possible to trigger an alarm via the internal motion detector, via an alarm input for external sensors (e.g. light barrier or motion detector), via video signal loss or when the hard disk is full or missing. The symbol (3) will light up on the recorder in this

case. Depending on the configuration of the recorder, there are various responses to an alarm, e.g. start of a recording, activation of the alarm output, acoustic alarm signal, insertion of a message on the screen, switching to the full image display of the camera channel concerned, transmission of an e-mail with a short video sequence of the object triggering the alarm.

10.1 Alarm configuration

In the menu, define the events triggering an alarm and the resulting action.

1) Via the main menu (fig. 38), activate the submenu Event Setup (fig. 39).

38Main menu "Event Setup" selected

39 Submenu "Event Setup"

2) In the line 1. Internal Buzzer, define if in case of alarm a buzzer will sound (ON) or not (OFF).
3) In the line 2. Event Icon, define if in case of alarm an icon corresponding to the event triggering the alarm will be inserted on the screen (ON) or not (OFF):

M = motion detection

L = signal loss

A = alarm input

4) In the line 3.Email Notice, define if in case of alarm an e-mail message will be sent (ON) or not (OFF). In the line 4.Email Attachment, define if the e-mail message will have short video sequences in AVI format as an attachment (ON) or not (OFF). For each channel concerned, an AVI file will be attached (total size approx. 2 MB).

A free computer program for reproduction is available for download on the website www.divx.com.

Notification by e-mail will require a connection of the recorder to the Internet and the correct setting of network parameters in the submenu System Setup/ Network Setup (chapter 16.1). Also enter the access data for an existing e-mail account here (chapter 16.1.1).

5) In the line 5.Event Full Screen, define if in case of alarm the camera channel concerned will be displayed as a full image on the main monitor (Main), on the additional monitor (Call) or on both (Both) or if switching to full image display is not desired (None).
6) In the line 6.Event Duration, define the duration in seconds for the insertion of the icon, for the buzzer and for the activity of the alarm output after an event has triggered an alarm.
7) Via the line 7. Per Channel Config, activate the corresponding submenu (fig. 40) for the alarm configuration of the individual input channels.

40 Submenu "Per Channel Config"

8) In the line 1. Channel Select, select the channel for which the settings are to be made.
9) In the line 2. Video Loss Detect, define if in case of video signal loss an alarm will be triggered (ON) or not (OFF).
10)In the line 3.Motion Detect, define if in case of motion detection via the internal motion detector an alarm will be triggered (ON) or not (OFF).
11)In the line 4.Motion Detect Indicator, define if in case of active motion detection the grid fields where a motion was detected will be highlighted (ON) or not (OFF).
12)In the line 6. Alarm In, define if the alarm input of this channel is to be evaluated and define the contact type of the detector connected:

OFF the input will be ignored.

N/0 normally open contact

N/C normally closed contact

13)In the line 7. Alarm Out, define if an alarm triggering of this channel will activate the alarm output (ON) or not (OFF).
14)If motion detection for this channel has been activated in the line 3.Motion Detect (ON), activate the submenu to configure the motion detector (fig. 41) via the line 5.Detection Config

41) Submenu "Detection Config"

15) To define the coverage, activate the line 1.Detected Area Setup. The camera image will be displayed with a grid of 16× 12 fields over it (fig.42).The coloured fields will mark the coverage for motion detection.

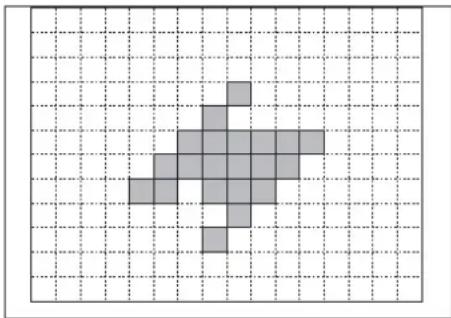

42 Motion detection grid

To change a field, select it with the arrow buttons (8) and press the button ENTER (6) or click it with the mouse pointer. To make the input easier, all fields will be activated or deactivated again with the button MODE (16).

To exit the area definition, press the button ESC (7) or the right mouse button.

16) In the line 2. Sensitivity, define the sensitivity for motion detection. The higher the value, the more sensitive the response of alarm triggering.
17)In the line 3. Block Threshold, define the minimum number of grid fields where a motion must be detected before an alarm will be triggered.

11 Data Management

11.1 Deleting recordings

1) Via the main menu (fig. 29), activate the submenu Record Setup (fig. 30).
2) Via the line 9. Purge Data, activate the submenu to delete recordings (fig. 43).

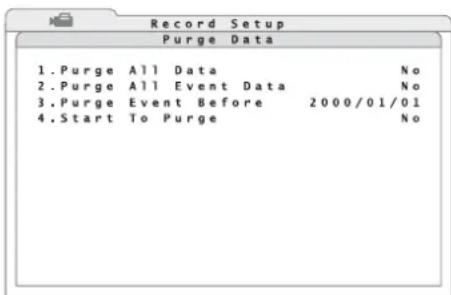

43 Submenu "Purge Data"

3) In the line 1.Purge All Data, define if all recordings on the active hard disks will be deleted (Yes) or not (No).
4) To delete only recordings triggered by an event (alarm), select the option Yes in the line 2.Purge A11 Event Data.
5) To delete only recordings triggered by an event (alarm) and made before a particular time, define the desired date in the line 3.Purge Event Before.
6) To start deleting, select the option Yes in the line 4.Start To Purge.

After successful deletion, the message "Purging ok" will appear. The message will disappear when any button is pressed.

11.2 Hard disk management

1) Via the main menu (fig. 44), activate the submenu Database Setup (fig. 45).

44 Main menu: "Database Setup" selected

45 Submenu "Database Setup"

2) The line 1.Total Size will indicate the size of the entire storage space on the internal hard disks.

The line 2.Free Size will indicate the size of the free storage space on the internal hard disks.

The line 3. Avail. Rec Time will indicate the resulting maximum recording time. This time also depends on the settings for recording (C3 chapter 8.1).
If the option "Circular Recording" for overwriting old recordings automatically has been activated in the submenu "Recording Setup" (ON), "(Circular)" will appear instead of the free storage space and the recording time available.
3) To list the internal hard disks, activate the corresponding submenu (fig. 46) via the line 4. Internal Disks.

The column Device Name will show the names of the internal hard disks. The column Active will indicate if the corresponding hard disk is active, i.e. if it is available for recording (Yes) or not (No).
4) In the column Action, one of the following functions will be activated:

Add activation of hard disk

Remove deactivation of hard disk

Format formatting of hard disk

After successful formatting, the message "Format ok" will appear. The message will disappear when any button is pressed.

None To exit the input field without activating one of the functions above.

Notes

• Before removing a hard disk, deactivate it via the function Remove.
• Once the function Format has been selected and confirmed with the button ENTER (6) [or the left mouse button], formatting of the hard disk selected will start without prior confirmation prompt. All data on this hard disk will be deleted!
• If no hard disk has been activated and the menu is not inserted, "NO DISK" will appear in the upper right corner of the screen.

12 Camera Remote Control (DOME)

It will be possible to remote-control suitable cameras from the recorder via an RS-485 data bus at the jack IO (26) [m33] chapter 5.3.3]. According to the features of the camera, remote control of movements such as pan and tilt, but also focus, zoom and iris will be possible. It will even be possible to store certain camera positions or settings and to reactivate them later.

12.1 Configuring the control parameters

12.1.1 Configuring the RS-485 interface

Proceed as described below to adjust the RS-485 interface to the requirements of the cameras connected to be controlled:

1) Via the main menu (fig. 14), activate the submenu System Setup (fig. 15).
2) Via the line 7. RS485 Setup, activate the corresponding menu (fig. 47).

47 Submenu "RS485 Setup"

3) In the line 1. Unit ID, enter the address of the recorder for the RS-485 data bus. Each of the units connected to one data bus must have an individual address.
4) In the other lines, define the transmission parameters of the interface:

Baud Rate data transmission rate

2400, ..., 57600 bauds

Bits number of data bits

6,7,8

Stop number of stop bits

1,2

Parity parity

NONE,ODD,EVEN

Note: The changes made will become effective after exiting the menu.

12.1.2 Camera settings

To set the control parameters for the individual cameras:

1) Via the main menu (fig. 19), activate the submenu Camera Setup (fig. 20).
2) In the line 1. Analog Camera Select, select the channel of the camera for which the settings will be made.
3) In the line 2. Dome Protocol, define the control protocol for the camera or select None if the camera is not to be controlled.
4) In the line 3.Dome ID, select the data bus address adjusted on the camera.
5) To set further cameras, repeat steps 2-4.

Note: The changes made will become effective after exiting the menu.

12.2 Controlling a camera

To control a camera during live surveillance:

1) Activate the full image display of the camera to be controlled [press the corresponding channel button (1) or click the image on the split screen with the left mouse button, chapter 7].
2) Press the button DOME (12). The insertion "Dome Control" in the lower left corner of the image shows that the camera control has been activated. In addition, a help text will be inserted showing the functions of the buttons differing in this mode. If required, deactivate or reactivate the text with the channel button 2 (1).

3) Control the camera via the following buttons:

(8) pan and tilt

MODE (16) open iris

PLAY/STOP (15) close iris

SEQ (13) focus near

FREEZE (14) focus far

MENU (18) zoom in

SEARCH (17) zoom out

ENTER (6) activation of autofocus and automatic iris control

channel button 1 (1) storage and reactivation

of camera settings

(13 following chapters)

Furthermore, the buttons CALL (10) and ENTER (6) will activate the OSD menu of the camera, activate submenus in it and confirm inputs. To navigate through the OSD menu of the camera and to change settings, use the button CALL and the arrow buttons , , , (8).
Note: It will depend on the features of the camera used which of the settings mentioned above can be remote-controlled.
4) To exit the camera control, press the button DOME or ESC.

12.2.1 Storing camera settings

Align and adjust the camera as described in chapter 12.2. To store this setting:
1) Press the button for the camera channel 1 (1). The list Dome Preset (fig. 48) will appear.

Dome Control

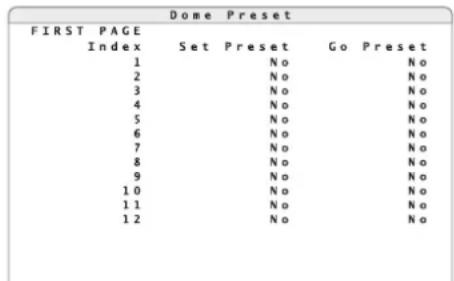

48 List "Dome Preset"

2) In the column Index, select the storage location number where the camera setting will be stored. Select the option Yes in the column Set Preset behind this number.

The setting will be stored to be reactivated again. The list will disappear.

Note: The list has 256 positions. The number of storage locations actually available will depend on the corresponding camera.

12.2.2 Reactivating camera settings

Activate the mode to control a camera as described in chapter 12.2. To reactivate a camera setting stored:

1) Press the button for the camera channel 1 (1). The list Dome Preset (fig.48) will appear.
2) In the column Index, select the storage location number where the camera setting has been stored. Select the option Yes in the column Go Preset behind this number.

The camera will be aligned according to the setting stored. The list will disappear.

In the mode "Dome Control", it will be possible to directly activate the storage positions 1-6 via the buttons 11-16 (1) without reactivating the list.

13 Password Protection

To protect the recorder against unauthorized operation, it is provided with an 8-level password protection of various configurations.

In addition to the preset user name "admin" with the highest access permission level, it will be possible to define seven user accounts with arbitrary user names, individual password and an access permission level. It will also be possible to define the

required access permission level for each of the various functions and menu areas.

To enter the user name and the password when the password protection has been activated see chapter 6.1.

13.1 Configuring the password protection

1) Activate the main menu (v3 chapter 6.1, fig. 14).
2) Activate the submenu System Setup (fig. 15).
3) Via the line 5. User Management, activate the corresponding menu (fig. 49).

49 Submenu "User Management"

4) In the line 1. Password Protection, define if the password protection will be activated (ON) or not (OFF).
5) To define the access permission levels required for the operating functions and menu areas, activate the corresponding submenu (fig. 50) via the line 3. Authority Setup.

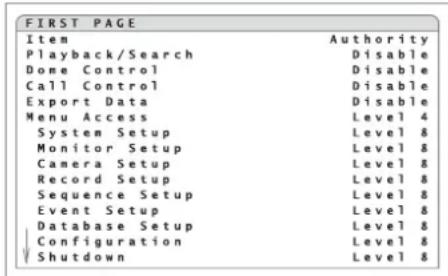

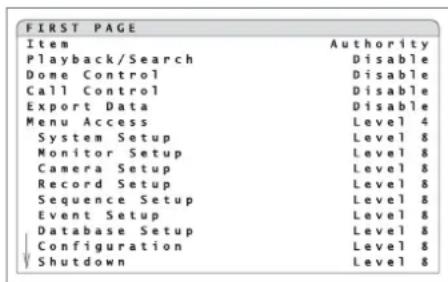

Submenu "Authority Setup"

For the functions Playback/Search, Dome Control, Call Control, Export Data, Menu Access and for the individual sub-menus, define in each case the minimum access permission level (Level 1 - Level 8) required of a user for activating this function. If you select Disable, no password protection will be activated for this function.

Note: The option Disable will not be available for Menu Access.
6) To define the user access permissions, exit the menu Authority Setup and activate the corresponding menu (fig. 51) in the menu User Management via the line 2.Account Setup.

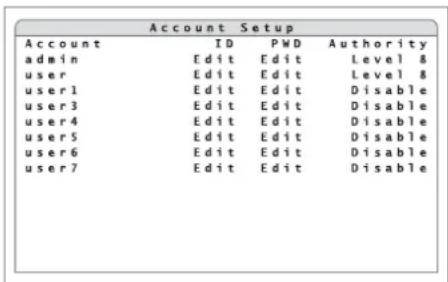

Submenu "Account Setup"

7) The user names are listed under Account. To change a user name, click Edit in the column ID next to the name. The input window EditUserName will appear which is similar to the input window for the user name when activating the menu with password protection (fig. 8). Enter a user name consisting of up to 14 characters in the same way as described in chapter 6.1.
8) In the column PWD of the user entered, activate the window to define the password for this user via Edit. Enter a password consisting of 4 - 8 numbers as described in chapter 6.1 and memorize it well! To confirm, enter the password a second time. If the second input is identical, the message "Passwd changing ok" will appear. If the message "Password mismatch!" appears, the input is incorrect; repeat the input of the password. The message will disappear when any button is pressed.
9) In the column Authority, enter the access permission level (Level 1 - Level 8) for this user. If Disable is selected, the user will have no access to the protected functions.

Note: It will not be possible to change the preset user name "admin" and its access permission level (Level 8); however, it is highly recommended to change the preset password "1234".

10)For resetting all settings concerning the users and the access permission levels for the operating functions to the factory settings, set the function 4.Load Default Setting in the submenu User Management to Yes. The message "Default setting loaded" will appear to confirm the reset. The message will disappear when any button is pressed.

13.2 Key lock

If the password protection has been deactivated (in the submenu "User Management", the option OFF has been selected for 1 PASSWORD Protection), it will be possible to easily protect some buttons against accidental operation.

To activate the key lock, press the button ESC (7) for more than 5 seconds in the live surveillance mode when the menu has been deactivated.

With the key lock activated, the icon will appear at the bottom of the image.

Those of the buttons CALL (10), DOME (12), PLAY/ STOP (15), SEARCH (17), MENU (18) will be locked for which the function in the submenu "Authority Setup" (33 chapter 13.1) has not been set to Disable.

To deactivate the key lock, press the button ESC for more than 5 seconds in the live surveillance mode.

The icon ^ will disappear.

14 Managing the Recorder Settings

It will be possible to store all system settings of the recorder made by the user on an external storage medium, to reload them or to reset them to the factory settings.

For managing the recorder settings, use the main menu (fig. 52) to activate the submenu Configuration (fig. 53).

2 Main menu: "Configuration" selected

(53) Submenu "Configuration"

14.1 Storing settings

The settings of the recorders will be stored on an external storage medium connected to the USB port (9) at the front of the recorder. For each storage process, it will be possible to assign an individual name to the settings so that different settings are easily distinguished.

1) Via the line 3. Export Config, activate the corresponding menu (fig. 54).

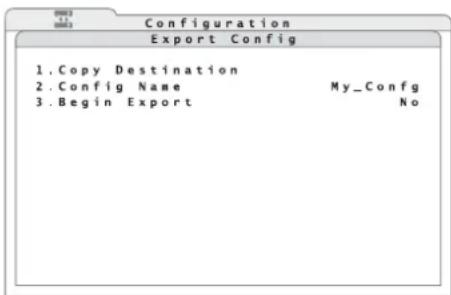

(54) Submenu "Export Config"

2) Via the line 1. Copy Destination, activate the corresponding submenu (fig. 55).

55 Submenu "Copy Destination"

3) In the column Device Name, the names of the storage media connected (e.g. USB flash drive) will be listed.

If the message "No available items!" appears instead of the submenu, check whether or not the storage medium has been correctly connected. It may be necessary to disconnect the USB connection and to reconnect the storage medium so that it will be recognized. Select Yes in the column Select for the storage medium to be used for storing the settings. Then return to the submenu Export Config [press the button ESC (7)].

4) In the line 2. Config Name, enter a name consisting of up to 15 characters for storing the settings. Enter the name as described for the camera title (v3 chapter 6.2.4).
5) To store it, select the option Yes in the line 3. Begin Export.

If the settings have been correctly stored, the message "Export ok." will appear. If the message "Please specify destination first!" appears instead, you failed to define the storage location (steps 2 and 3). If "Please specify config name first!" appears, no name for storing has yet been entered (step 4).

The message will disappear when any button is pressed.

14.2 Loading settings

To load settings stored previously:

1) Via the line 2. Import Config in the menu configuration, activate the corresponding menu (fig. 56).

(56) Submenu "Import Config"

2) In the column Config Name, the names of the available settings will be listed.

If the message "No available items!" appears instead of the submenu, no storage medium (e.g. USB flash drive) containing stored settings has been connected. If this is not the case, it may be necessary to disconnect the USB connection and to reconnect the storage medium so that it will be recognized.

In the column Select, select Yes for the name of the settings to be loaded.

A warning will appear pointing out that the system will be restarted if loading of stored settings results in different recording settings. Confirm the loading of settings with the button ENTER (6) or cancel with the button ESC (7).

If the settings have been loaded successfully, the message "Import ok" will appear. The message will disappear when any button is pressed.

14.3 Resetting

Resetting to the factory settings will also be possible. When resetting, all settings made by the user will be lost irretrievably unless a backup has been made earlier on an external storage medium (14.1).

To start resetting, select Yes in the line 1.Load Factory Default of the submenu Configuration (fig.53).

If the factory settings have been loaded successfully, the message "Loading factory default ok" will appear. The message will disappear when any button is pressed.

15 Indication of System Information

To indicate the system information of the recorder:

1) Via the main menu (fig. 14); activate the submenu System Setup (fig. 15).

2) Via the line 1. System/Version Info, activate the corresponding submenu (fig. 57).

57 Submenu"System/VersionInfo"

The following information will be indicated:

Model Name internal model name

Video System video system currently selected with selector switch PAL/NTSC(25)

Hardware version number of recorder hardware

Software version number of recorder firmware

MAC Address hardware address of recorder (Media Access Control Address) for clear identifica tion of the recorder in a computer network (Ethernet)

3) The line Software Upgrade via Local Device is used to update the software (firmware) of the recorder by means of a storage medium connected via USB.

Note: A firmware update is made at your own risk. If the update is not correctly installed or if it is interrupted (e.g. due to power failure), the recorder may not operate correctly any more.

16 Remote Access via Computer Network

Via its connection jack LAN (19), it will be possible to connect the video recorder to an individual computer, to a local computer network or, e. g. via a router, to the Internet. For correct configuration, knowledge of computer network technology will be essential.

16.1 Setting up a network connection

To set up a connection to a computer network:

1) Via the main menu (fig. 14), activate the submenu System Setup (fig. 15).
2) Via the line 6. Network Setup, activate the corresponding menu (fig. 58).

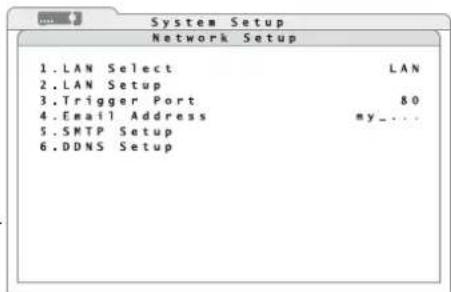

(58) Submenu "Network Setup"

3) In the line LAN Select, select the type of network connection:

LAN Local Area Network

PPPoE Point-to-Point Protocol over Ethernet, e. g. for a direct Internet connection via DSL modem

None

4) If required, change the port number 80 (usual port number for web servers) preset in the line 3 Trigger Port.
5) To set up the parameters required for the type of network, activate the corresponding submenu (fig. 59 or 60) via the line 2. LAN Setup.

59 Submenu "LAN Setup"

60: Submenu "LAN Setup (PPPoE)"

6) To assign the network configuration to the recorder by a DHCP server (e.g. the router), select ON in the line 1.DHCP (Dynamic Host Configuration Protocol). For manual input of the parameters 2.IP, 3.Netmask, 4.Gateway and 5.DNS, select the option OFF.
7) If PPPoE has been selected as the type of network connection, additional lines will appear in the menu LAN Setup. In the lines 6. PPPoE Account and 7. PPPoE Password, enter the access data made available by the Internet service provider. Enter the data as described for the camera title (13 chapter 6.2.4).

In the line 8.PPPOe Max Idle, enter the maximum idle time after which the modem will disconnect when the computer connected does not respond.

8) In the line 6, or 9. Connect At Booting, select automatic network connection when starting the recorder (Yes) or not (No).
(9) For manual, immediate restart of the network connection, select the option Yes in the line 7. or 10. Network Restart.

16.1.1 Configuring notification via e-mail

To send an e-mail message in case of alarm to an address defined previously, make the following settings:

1) Enter the e-mail address for the message in the line 4. Email Address of the submenu Network Setup (fig. 58). Enter the address as described for the camera title (F-3) chapter 6.2.4).
2) Via the line 5. SMTP Setup, activate the corresponding submenu (fig. 61).

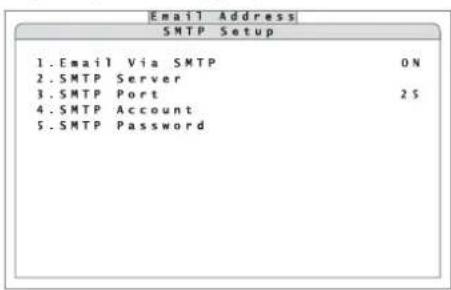

⑥ Submenu "SMTP Setup"

3) In the line 1.Email via SMTP, define if e-mail transmission via the recorder will be possible (ON) or not (OFF).
4) In the line 2. SMTP Server, enter the mail server to be used for sending the message. Enter the server name as described for the camera title (133 chapter 6.2.4).
5) In the line 3. SMTP Port, define the port number for transmission. For SMTP servers the usual port number is the preset Port 25.
6) In the line 4. SMTP Account, enter the user name for the e-mail account used.
7) In the line 5. SMTP Password, enter the password for access to the e-mail account.

16.1.2 Configuring DDNS

For remote access, the IP address of the recorder must be known. However, many Internet service providers change it each time a connection is made (dynamic IP address). To solve this problem, use a DDNS server, i.e. a network service offered by several service providers. The recorder will be addressed via a subdomain of the DDNS server.

The use of a DDNS server will usually be configured in the router connecting the recorder to the Internet, but will also be possible with the recorder. For this recorder, the manufacturer's own DDNS server will be available.

Each time a connection is made, the router or recorder will send its current IP address to the DDNS server which will store it and accordingly route any queries made to the subdomain to the recorder.

To configure the recorder for using the manufacturer's own DDNS server:

1) In the submenu Network Setup (fig. 58), activate the corresponding submenu (fig. 62) via the line 6.DDNS Setup.

Submenu "DDNS Setup"

2) In the line 1. Enable DDNS, define if the recorder will use DDNS (ON) or not (OFF).
3) In the line 2. Host Name, enter the desired name for the recorder.

The name of the subdomain to address the recorder will be:

"http://[Host Name].ddns.iviaew-ddns.com"

When using several recorders, each recorder will require its own subdomain.

4) To make a connection to the DDNS server, select the option Yes in the line 4. Submit/Update.
5) To make it easier to log in to the DDNS server of the manufacturer, use the function ezDDNS. The "Host Name" will be assigned automatically. To start this function, select the option Yes in the line 5.ezDDNS.

Note: To execute this function, connect the recorder to the Internet via a "real" (public) IP address entered manually or assigned by a DHCP server or by port forwarding via a router.

16.2 Remote control via the programs Windows Internet Explorer or CMS

Via the network, the programs Windows Internet Explorer(IE) or the CMS (Central Management System) provided will be able to access the recorder in order to display live images of the cameras or to replay recordings, regardless of the view selected on the recorder. Furthermore, it will be possible to change settings of the recorder.

The computer used should meet the following minimum requirements:

Processor / Memory:

Intel Pentium® M, 1.40 GHz, 512 MB RAM recommended: Intel® Core™2 Quad CPU Q6600 2.4 GHz, 2 GB RAM

Hard disk memory: 20 MB required for pro- gram installation

Operating system:	Windows XP, Windows Vista
Web browser:	Windows Internet Explorer, version 6 or higher

Monitor resolution:	1024 x 768 pixels with
16-bit colour display

Network card: 10BASE-T (10 Mbps) or 100BASE-TX (100 Mbps)

Windows is a registered trademark of Microsoft Corporation in the U.S.A. and other countries.

This instruction manual is restricted to operation via IE. The operation of the program CMS is similar, but offers various additional functions. The comprehensive instruction manual in English is supplied on the CD together with the program.

To set up a connection from the computer to the recorder, enter the IP address of the recorder (or the public IP address of the router to which the recorder has been connected) in the address bar of the IE.

Notes

• Do not enter any leading zeroes in the individual sections of the address (e.g. enter "192.068.080.006" as "192.68.80.6").
  If the preset trigger Port 80 has been changed, e.g. to Port 81, enter the IP address as "192.68.80.6:81".

When the first connection is made via IE, the IE will download an extension required (ActiveX control element) from the recorder and will install it on the computer. If necessary, relax the security settings of the IE to permit this process:

1) Start the IE. Select the menu item "Tools" from the main menu of the browser, select "Internet Options" and click the tab "Security".
2) To define the security settings, select the menu item "Trusted Sites" and click "Sites".
3) Uncheck "Require server verification (https:)' for all sites in this zone". Enter the IP address of the recorder in the field and click "Add" to add this website to the zone.
4) In the security level area, click "Custom Level". Under "ActiveX controls and plug-ins", set all menu items to "Enable" or "Prompt".
5) Click "OK" to accept the settings and close the window "Security Settings".

For making a connection, it is also necessary to enter a user name and the corresponding password from the user accounts created in the recorder (13.1), even if the password protection in the recorder has been deactivated.

A user logged in as "admin" and two other users may access the recorder at the same time. If a user activates the setting menu locally on the recorder as "admin" at the same time, this user will take priority over a remote access. A message stating that the recorder is being operated locally will appear on the computer.

If access is granted, the following window will appear:

Remote control window in the IE

At the beginning, in the split-screen area, all camera images will be displayed which have not been set to "covert" in the recorder (13 chapter 6.2.6). The camera channels will be listed on the right. Cameras to be remote-controlled via the recorder will be marked with the icon static cameras with the icon.

To view a camera as a full image, click the corresponding icon or double-click the image in the split-screen view.

To return to a split-screen arrangement, click the corresponding button:

It depends on the number of input channels of the recorder connected if these display arrangements will be available.

Button to activate the transmission of the camera sound. When the sound has been activated, the icon will change to:
To deactivate the sound, click the button once again.
Button to record the video signals of the cameras currently displayed as video files on the computer, independently of recordings made by the recorder. The file format will correspond to the recording format of the recorder (file extension.drv). First, a dialog box will open for defining the file name and the storage location. Then recording will start. The button will look as if it has been pressed. To stop the recording, click the button once again.
In the list field "Bandwidth", the update rate of the camera images will be matched to the transmission bandwidth that is available.
In the list field "Picture size", the display size of the camera images will be defined.
Button "4:3" to switch the display in the image area between a fixed aspect ratio (width: height = 4:3) and proportions depending on the size of the program window.
Button "Playback" to reproduce recordings from the recorder or to download them to the computer, provided that the user logged in is authorized. When downloading recordings, it will be possible to define the recording time and to select particular camera channels. It will also be possible to reproduce recordings from the computer and to check the authenticity of files exported from the video recorder. (To prevent manipulation, the recorder will provide the data with a digital signature. Therefore, in addition to .drv/.avi video files, also files of the type .sig and .gpg will be stored.) While a recording is reproduced, the following buttons to control the replay will be indicated in the lower right corner:

64 Replay control

The button is used to pause and continue the replay. The other two buttons will change the direction and the speed (1× ,2× ,4× ,8× ,16× ,32×) of the replay; when the replay is paused and one of the buttons is pressed, the replay will go forwards or backwards image by image.

Button "Live" to exit the replay mode and to return to live camera images.
Button "Configuration" to change the menu settings of the recorder, provided that the user logged in is authorized.
Button "Search" to indicate the event list of the recorder (see chapter 9.1.1). Download the video file for a marked list entry to the computer via the button "Download" or double-click the list entry to reproduce it immediately, provided that the user logged in is authorized.
Click "Snapshot" to store a screenshot of the current program window in the desktop directory as a "Snapshot-x.jpg" with "x" as a consecutive number.
Button "Health" to indicate status information concerning the internal hard disks and the storage media of the recorder connected via USB.
Button "Download DVRPlayer" to download a program from the

recorder to the computer which will reproduce the *.drv video files even on computers not connected to the recorder.

With a click on the corresponding buttons operating elements on the right and below the image area will disappear and a larger image area will be available.

GB 16.2.1 Camera remote control via IE

If a camera with remote control has been selected as a full-image display while live camera images are displayed, the field for camera control (fig. 65) will appear on the right.

65) Camera control

direction control of the camera

focus setting

iris setting

zoom setting

activation of the automatic iris control / auto focus function

activation of a camera setting stored "Go preset"
Select the storage location number from the list inserted.

storage of a camera setting "Set preset" Select the storage location number from the list inserted. The number of available storage locations will depend on the features of the camera used.

selection of the camera to be controlled "Dome ID In the field "ID", select the data bus address of the desired camera; select the required control protocol in the field below it. When the parameters are changed here, it will not affect the menu setting of the recorder.

The sliding control "Dome speed" will affect the motion speed of the camera.

Note: It will depend on the features of the camera used which of the settings mentioned above can actually be remote-controlled.

16.2.2 Disconnecting

When the program window of the IE is closed, the user will be logged off and disconnected automatically.

17 Shutdown or Restart of the System

To prevent data loss or damage to the recorder, down the system before disconnecting the recorder from its power supply.

1) Activate the main menu (fig. 66) as described in chapter 6.1.

66) Main menu: "Shutdown" selected

2) Activate the menu Shutdown (fig. 67).

67) Submenu "Shutdown"

3) To shut down the system, select the line 1.Power Off and confirm with the button ENTER (6).

When shutting down the system, the message "System shutting down..." will flash on the screen. When the message "You can safely turn off DVR now!" appears, the process is terminated and the recorder may be disconnected from the power supply.

4) For simply restarting the recorder [e. g. after selecting the video system with the selector switch PAL/NTSC (25)], select the line 2. Reboot and confirm with the button ENTER (6). The system will be restarted.

18 Specifications

Video standard: PAL/NTSC selectable

Video inputs

DMR-604: 4 BNC

DMR-608: 8 BNC

DMR-616: 16 BNC

Video outputs

DMR-604: 1 BNC, 1 VGA

DMR-608 / DMR-616: .2 BNC, 1 VGA

Audio inputs

DMR-604: 4 RCA

DMR-608: 8 via 25-pole D-Sub jack,adapter to RCA supplied

DMR-616: 16 via 25-pole D-Sub jack,adapter to RCA supplied

Audio outputs

DMR-604: 1 RCA

DMR-608 / DMR-616: .2 RCA

Video compression: .H.264

Maximum recording rate with resolution selected (pixels, horizontal × vertical)

DMR-604

PAL
352 × 288	100images/s
720 × 288	50images/s
720 × 576	25images/s

NTSC
352 × 240	120images/s
720 × 240	60images/s
720 × 480	30images/s

DMR-608, DMR-616:

PAL
352 × 288	200images/s
720 × 288	100images/s
720 × 576	50images/s

NTSC
352 × 240	240images/s
720 × 240	120images/s
720 × 480	60images/s

Alarm inputs

DMR-604: 4, NO / NC contact, selectable

DMR-608: 8, NO / NC contact, selectable

DMR-616: 16, NO / NC contact, selectable

Alarm output: 1 change-over contact, 24V/500mA max.

Camera remote control: .. via RS-485

Protocols: PELCO-D, PELCO-P, Panasonic_N, Panasonic_C, JVC, Fastrax 2, AD422, DynaColor

Interfaces: 2 USB 2.0 ports for storage medium and mouse, 1 RJ45 Ethernet for computer network

Power supply: 12 V ±5 A max. via power supply unit provided

Dimensions: 300 × 62 × 375 mm

Weight

DMR-604: 4.5 kg

DMR-608: 5 kg

DMR-616: 6 kg

Subject to technical modification.

18.1 Recording capacity

The tables below list the maximum recording times depending on the video system selected, the resolution selected, the storage capacity of the integrated hard disks, the picture rate and quality selected. They are based on permanent video recording without audio recording.

The values in the tables are based on tests and are guideline values. The actual recording capacity may vary since the compression rate of the data will depend, among other things, on the image contents of the video signals.

When recording the audio signals, e. g. for 8 channels, an additional storage capacity of approx. 8 Kbps (corresponding to 0.7 GB per day) will be required.

18.1.1 Video system PAL

68

Recording time (days) for permanent recording Video system PAL, resolution 720 x 576, no audio recording
Hard disk capacity	Total picture rate (PPS) of all channels	Image quality selected (storage space required per image)
		Low (6 KB/ image)	Fair (10 KB/ image)	Mid (14 KB/ image)	High (18 KB/ image)	Best (22 KB/ image)
320 GB	25 23.6 14.1 10.1 7.85 6.42
	12.5 47.1 28.3	20.2 15.7 12.8
	6.25 94.2 56.5	40.4 31.4 25.7
500 GB	25 37.1 22.3 15.9 12.4 10.1
	12.5 74.2 44.5	31.8 24.7 20.2
	6.25 148 89.1	63.6 49.5 40.5
750 GB	25 56 33.6 24	8.7 15.3
	12.5 112 67.1	48 37.3 30.5
	6.25 224 134	95.9 74.6 61
1 TB	25 76.6 46 32.8	25.5 20.9
	12.5 153 91.9	65.7 51.1 41.8
	6.25 306 184	131 102 83.6

69

Recording time (days) for permanent recording Video system PAL, resolution 720 x 288, no audio recording
Hard disk capacity	Total picture rate (PPS) of all channels	Image quality selected (storage space required per image)
		Low (4 KB/image)	Fair (6 KB/image)	Mid (8 KB/image)	High (10 KB/image)	Best (12 KB/image)
320 GB	50 17.7 11.8 8	83 7.06 5.89
	25 35.3 23.6 17	7.7 14.1 11.8
	12.5 70.6 47.1	35.3 28.3 23.6
	6.25 141 94.2	70.6 56.5 47.1
500 GB	50 27.8 18.6 13	3.9 11.1 9.28
	25 55.7 37.1 27	7.8 22.3 18.6
	12.5 111 74.2	55.7 44.5 37.1
	6.25 223 148	111 89.1 74.2
750 GB	50 42 28 21 16	8 14
	25 83.9 56 42	33.6 28
	12.5 168 112 8	3.9 67.1 56
	6.25 336 224	168 134 112
1 TB	50 57.5 38.3 28	8.7 23 19.2
	25 115 76.6 57	5 46 38.3
	12.5 230 153 1	15 91.9 76.6
	6.25 460 306	230 184 153

70

Recording time (days) for permanent recording Video system PAL, resolution 352 x 288, no audio recording
Hard disk capacity	Total picture rate (PPS) of all channels	Image quality selected (storage space required per image)
		Low (2 KB/image)	Fair (3 KB/image)	Mid (4 KB/image)	High (5 KB/image)	Best (6 KB/image)
320 GB	100 17.7 11.8 8.83 7.06 5.89
	50 35.3 23.6 17.7 14.1 11.8
	25 70.6 47.1 35.3 28.3 23.6
	12.5 141 94.2 70.6 56.5 47.1
	6.25 283 188 141 113 94.2
500 GB	100 27.8 18.6 13.9 11.1 9.28
	50 55.7 37.1 27.8 22.3 18.6
	25 111 74.2 55.7 44.5 37.1
	12.5 223 148 111 89.1 74.2
	6.25 445 297 223 178 148.4
750 GB	100 42 28	21 16.8	14
	50 83.9 56	42 33	6 28
	25 168 112 83.9 67.1 56
	12.5 336 224 168 134 112
	6.25 671 448 336 269 224
1 TB	100 57.5 38.3 28.7 23	19.2
	50 115 76.6 57.5 46	38.3
	25 230 153 15 91.9 76.6
	12.5 460 306 230 184 153
	6.25 919 613 460 368 306

18.1.2 Video system NTSC

71

Recording time (days) for permanent recording Video system NTSC, resolution 720 x 480, no audio recording
Hard disk capacity	Total picture rate (PPS) of all channels	Image quality selected (storage space required per image)
		Low (6 KB/image)	Fair (10 KB/image)	Mid (14 KB/image)	High (18 KB/image)	Best (22 KB/image)
320 GB	30	19.6 11.8 8.41	6.54 5.35
	15	39.2 23.6	16.8	13.1 10.7
	7.5 78.5	47.1 33.6	26.2	21.4
500 GB	30	30.9	18.6	13.3	10.3	8.43
	15	61.9	37.1 26.5	20.6 16.9
	7.5	124	74.2	53	41.2	33.7
750 GB	30	46.6	28	20	15.5	12.7
	15	93.3	56	40	31.1	25.4
	7.5	186	112	79.9	62.2	50.9
1 TB	30	63.8	38.3 27.4	21.3 17.4
	15	128	76.6	54.7	42.6	34.8
	7.5	255	153	109	85.1	69.6

72

Recording time (days) for permanent recording Video system NTSC, resolution 720 x 240, no audio recording
Hard disk capacity	Total picture rate (PPS) of all channels	Image quality selected (storage space required per image)
		Low (4 KB/image)	Fair (6 KB/image)	Mid (8 KB/image)	High (10 KB/image)	Best (12 KB/image)
320 GB	60	14.7	9.81	7.36	5.89	4.91
	30	29.4	19.6	14.7	11.8	9.81
	15	58.9	39.2	29.4	23.6	19.6
	7.5	118	78.5	58.9	47.1	39.2
500 GB	60	23.2	15.5	11.6	9.28	7.73
	30	46.4	30.9	23.2	18.6	15.5
	15	92.8	61.9	46.4	37.1	30.9
	7.5	186 124	92.8 74.2	61.9
750 GB	60	35	23.3	17.5	14	11.7
	30	69.9	46.6	35	28	23.3
	15	140	93.3	69.9	56	46.6
	7.5	280 186 140 112	93.3
1 TB	60	47.9	31.9	23.9	19.2	16
	30	95.7	63.8	47.9	38.3	31.9
	15	191 128	95.7 76.6	63.8
	7.5	383 255 191 153	128

73

Recording time (days) for permanent recording Video system NTSC, resolution 352 x 240, no audio recording
Hard disk capacity	Total picture rate (PPS) of all channels	Image quality selected (storage space required per image)
		Low (2 KB/image)	Fair (3 KB/image)	Mid (4 KB/image)	High (5 KB/image)	Best (6 KB/image)
320 GB	120 14.7 9.81 7.36 5.89 4.91
	60 29.4 19.6 4.7 11.8 9.81
	30 58.9 39.2 29.4 23.6 19.6
	15 118 78.5 58.9 47.1 39.2
	7.5 235 157 118 94.2 78.5
500 GB	120 23.2 15.5 1.6 9.28 7.73
	60 46.4 30.9 23.2 18.6 15.5
	30 92.8 61.9 46.4 37.1 30.9
	15 186 124 92.8 74.2 61.9
	7.5 371 247 186 148 124
750 GB	120 35 23.3 17 5 14 11.7
	60 69.9 46.6 35 28 23.3
	30 140 93.3 69.9 56 46.6
	15 280 186 140 112 93.3
	7.5 559 373 280 224 186
1 TB	120 47.9 31.9 23.9 19.2 16
	60 95.7 63.8 47.9 38.3 31.9
	30 191 128 95.7 76.6 63.8
	15 383 255 191 153 128
	7.5 766 511 383 306 255

F Table des matieres

(5)prise Sub-D 15 pôles, "IO"

1 sortiealarmefermeture(NO)
2 sortie alarmé : contact commun
3 RS485 D+
4 RS485D -
5 entree alarmc canal 1
6 entree alarmc canal 2
7 entrée alarme canal 3
8 entree alarmc canal 4
9 sortie alarmé: ouverture (NC)
10-15 masse

DMR-608 et DMR-616

⑥prise Sub-D 25poles,“IO”

1 sortiealarmefermeture(NO)
2 sortiealarme:contact commun
3 RS485 D+
4 RS485D -
5 non utilisé
6 entree alarmc canal 1
7 entree alarmc canal 2

8 entrée alme canal 3
9 entrée alarme canal 4
10 entree alarmc canal 5
11 entrée alarmé canal 6
12 entree alarmc canal 7
13 entree alarmc canal 8
14 sortie alarme: ouverture (NC)
15-17 non utilise
18 entree alarmc anal 9 (uniquement DMR-616)
19 entree alarmc canal 10 (uniquement DMR-616)
20 entree alarmc canal 11 (uniquement DMR-616)
21 entree alarmc canal 12 (uniquement DMR-616)
22 entree alarmc canal 13 (uniquement DMR-616)
23 entree alarmcane 14 (uniquement DMR-616)
24 entree alarmc anal 15 (uniquement DMR-616)
25 entree alarmc anal 16 (uniquement DMR-616)

1.Show Camera Title
2.Screen Center Adjust
3.VGA Resolution
4.Show Color Bar

Camera Setup

1.Analog Camera Select
2.Dome Protocol
3.Dome ID
4.Camera Title
5.Covert
6.Brightness
7.Contrast
8. Saturation
9.Hue

Record Setup

1.Record Mode Setup
2. Schedule Setup
3.Preset Config
4. Per Camera Config
5.ezRecord Setup
6.Data Lifetime
7.Circular Recording
8. Audio Recording
9.Purge Data

Sequence Setup

1. Main Monitor Dwell
2. Main Monitor Schedule
   3.Call Monitor Dwell
   4.Call Monitor Schedule

Event Setup

1. Internal Buzzer
   2.Event Icon
   3.Email Notice
   4.Email Attachment
   5.Event Full Screen
   6.Event Duration
2. Per Channel Config

Database Setup

1.Total Size
2.Free Size
3.Avail.Rec Time
4. Internal Disks

Configuration

1.Load Factory Default
2.Import Config
3.Import Config

Shutdown

1.Power Off
2.Reboot

13 structure du menu

6.2 Reglages de base

Motion detection of movements

N/0 contactfermeture (normally open)

N/C contact ouverture (normally closed)

distance camera: via RS-485

Protocoles: PELCO-D, PELCO-P, Panasonic_N, Panasonic_C, JVC, Fastrax 2, AD422, DynaColor

1 Ingrasso audio can

• commande simplicate tramite mouse USB

5.5 Reted computer (LAN)

luminosita (6.Brightness)

contrasto (7. Contrast)

Selected Device:USB BAR

Exported Required Size = 15MB

Real Export Range:

From: 2010/01/13 09:51:34

To: 2010/01/13 09:52:54

N/C contatto di riposo NC (normally closed)

Sottomenù “Authority Setup”

67Sottomenu "Shutdown"

3) Per arrestare ilsystema scegliere la riga 1.Power Off e confirmare con il tasto ENTER (6).

Panasonic_N,
Panasonic_C,

JVC, Fastrax 2, AD422, DynaCo
