USER MANUAL Fred PL044MMT Lelit

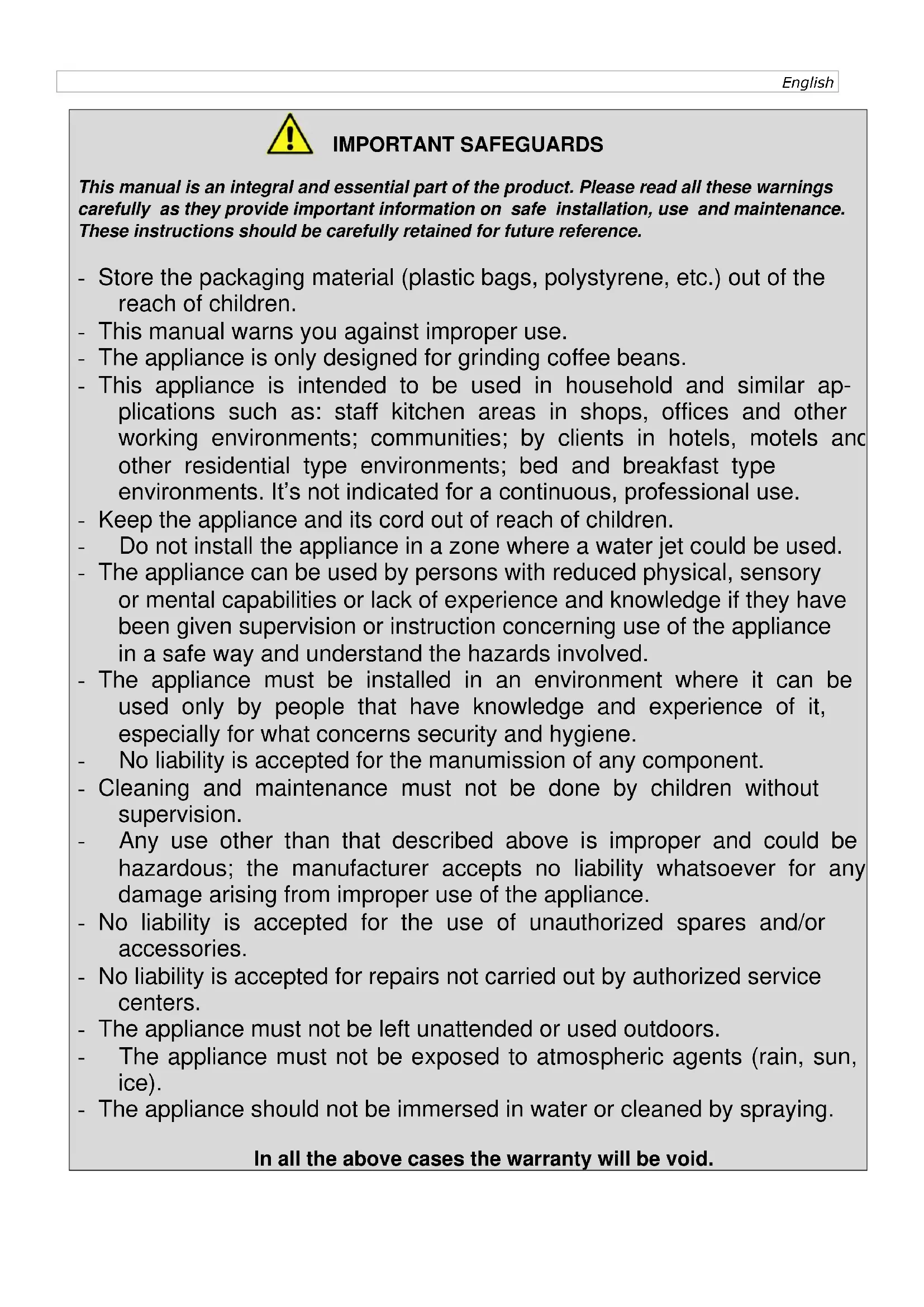

IMPORTANT SAFEGUARDS This manual is an integral and essential part of the product. Please read all these warnings carefully as they provide important information on safe installation, use and maintenance. These instructions should be carefully retained for future reference. - Store the packaging material (plastic bags, polystyrene, etc.) out of the reach of children. - This manual warns you against improper use. - The appliance is only designed for grinding coffee beans. - This appliance is intended to be used in household and similar ap- plications such as: staff kitchen areas in shops, offices and other working environments; communities; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. It’s not indicated for a continuous, professional use. - Keep the appliance and its cord out of reach of children. - Do not install the appliance in a zone where a water jet could be used. - The appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - The appliance must be installed in an environment where it can be used only by people that have knowledge and experience of it, especially for what concerns security and hygiene. - No liability is accepted for the manumission of any component. - Cleaning and maintenance must not be done by children without supervision. - Any use other than that described above is improper and could be hazardous; the manufacturer accepts no liability whatsoever for any damage arising from improper use of the appliance. - No liability is accepted for the use of unauthorized spares and/or accessories. - No liability is accepted for repairs not carried out by authorized service centers. - The appliance must not be left unattended or used outdoors. - The appliance must not be exposed to atmospheric agents (rain, sun, ice). - The appliance should not be immersed in water or cleaned by spraying. In all the above cases the warranty will be void.English

As with all the electrical appliances, the risk of electric shock cannot be excluded, therefore, the following safety warnings should be carefully observed. - Before switching on, ensure that the power supply voltage corresponds to that indicated on the plate on the base of the appliance and that the power supply is properly earthed. - Do not tamper with the appliance. Contact an authorized technician or the nearest service centre for any problem. - Do not touch the appliance if your hands or feet are wet. - Do not touch the plug with wet hands. - Ensure that the electrical outlet is always freely accessible so that the plug can be easily removed when necessary. - When removing the plug, always hold it directly. It should never be re- moved by pulling on the power cord, as this can cause damage. - To disconnect the appliance, remove plug from wall outlet - In the event of any fault or malfunction, do not attempt to carry out repairs. Switch the appliance off, remove the plug and contact the Ser- vice Centre. - In the event of damage to the plug or the power cord, do not operate the appliance, these should be replaced only and exclusively by the Service Centre. - Do not use adapters, multiple sockets or extension cords. If their use is unavoidable, use simple adapters or multiple sockets and extension cords that conform to current safety standards, taking care not to exceed the current limit marked on the simple adapter or extension cord, or the maximum capacity of the multiple socket. - Unplug from outlet when unattended, before assembling, disassembling, cleaning. - To avoid injury risks, do not leave the power cord dangling from the table or next to hot surfaces, edges, sharp objects.

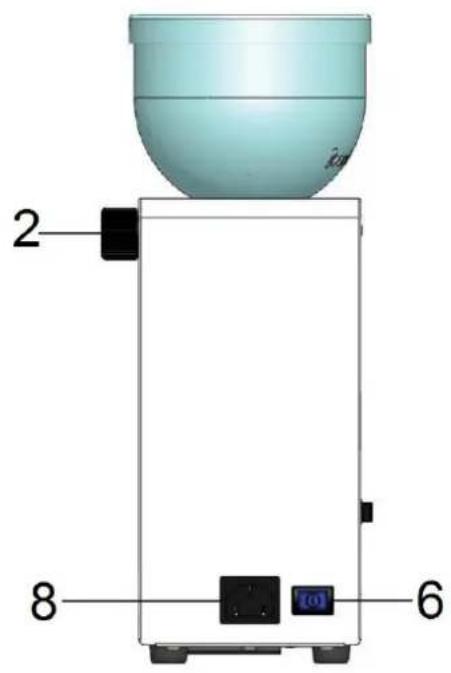

TECHNICAL DATAS: Voltage: 220-230V 50/60Hz Power: 150 W Weight: 3 kg; Capacity: 250 g Maximum continuous functioning: 20 seconds ON – 60 seconds OFFEnglish COMPONENTI: 1 – Beans hopper 5 – Support for the positioning of the filterholder 2 – Grinding knob 6 – ON/OFF switch 3 – Programming switch 7 – Pilot lamp : grinder is on/programming 4 – Grinding switch 8 – Socket for power cord USER INSTRUCTIONS: Remove the grinder from its box and make sure that all packing parts have been taken off (including the protection bags). Lay the grinder on a flat surface to grant an optimal steadiness. Before using the machine please check: that the voltage corresponds to the voltage required as stated on the technical data label, on the bottom of the appliance. that the power cord has been plugged in the grinder’s socket (8) and in the wall socket and that the switch (6) is on. The confirmation that the switch is on is that the blue pilot lamp (7) is on. that the beans hopper (1) contains coffee beans. Starting the machine: Before switching the grinder on, make sure that the hopper is covered with the relative lid. Press the grinding switch (4) with the filterholder in order to start the grinding and obtain the freshly ground coffee directly in the filterholder. Release the switch and verify the grinding and the quantity of the ground coffee. During this phase the pilot lamp (7) is on. Regulation of the micrometric grinding: Rotate the grinding knob (2) to change the granulometry of the beans. Micrometric regulation does not require any blockage. Regulate the grinding with the grinder on if you have beans in the mills, with the grinder off if there are no beans. To regulate the grinding, rotate the grinding knob slightly (2) clockwise (to the right) to obtain a fine grinding, anti-clockwise (to the left) to obtain a gross grinding. Regulation of the ground coffee dose:

1. The grinder has an electronic programmable card, where you can program the grinding time for one dose.

The grinding time can vary from 2 seconds to 20 seconds. To set the grinding dose, press the switch (3) for at least 2 seconds.

2. The pilot lamp (7) goes off because you are in the programming phase.

3. If you want to increase the grinding time, press the switch (3), each time you press it, you add half second

to the time and the pilot lamp (7) blinks one time each half second that you have added.

4. If you want to diminish the grinding time, once you are in the programming phase, keep the switch (3)

ALWAYS pressed and, after 2 seconds, the pilot lamp (7) will blink once for every half second you are diminishing. Once you’ve diminished the time you wanted, release the switch.

5. To exit from the programming modality, wait 5 seconds or, if you want to grind your coffee immediately,

press the grinding switch (4). After 5 seconds the pilot lamp will blink showing you the seconds that have been set: one standard blink for each second and two quick blinks for each half second. How to set the single /double dose: If you set the time to get 7g (what we advise for 1 dose), wait till the grinder has finished grinding and press the switch (4) another time to get the double dose (14 g). Memory of the grinding time: If, during grinding, you release the switch (4) before the grinding is over (to adjust the coffee in the portafilter or by mistake), the grinder keeps in memory the remaining grinding time for three seconds. The pilot lamp (7) blinks to warn you that the set dose has not been totally released. Within three seconds, if you press the switch (4) again, the grinder will finish grinding the set dose. If you do not press it within three seconds, the grinder will not keep the remaining time in memory and the next time you press the switch (4), it will grind the set dose from the start. Reset the set factory values: With the grinder off, keep pressed the switches (3) and (4) contemporarily and then switch it on by pressing the switch (6). The pilot lamp (7) will confirm the reset blinking quickly. Release the switches (3) and (4). With the switch (6) turn the grinder off and then on again. The set factory values are 6 seconds for 1 dose and 10 seconds for 2 doses. Routine maintenance and precautions: - The grinding degree is the most important thing in order to obtain a creamy coffee. This degree changes according to the coffee blend. - Please replace, once worn out, the conical mills. - In order to change the conic mills, please contact an authorised service center.Deutsch

1. Recipient cafea boabe

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differential waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal of enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the products is marked with a crossed-out wheeled dustbin.

EC DECLARATION OF CONFORMITY

Gemme Italian Producers srl declares under its own responsibility that the product PL044MMT, to which this declaration relates, is in accordance with the provisions of the specific directives: IEC 60335-2-14:2006(ed.5)+A1:2008+A2:2012+IEC 60335-1:2010(ed.5) EN55014-1:2006+A1:2009+A2:2011 - EN55014-2:1997+A1:2001+A2:2008 EN61000-3-2:2014+EN61000-3-3:2013 NB: The present declaration voids should the machine be modified without our specific authorization.

This product is covered by the warranty laws valid in the country where the product has been sold; specific information about the warranty terms can be given by the seller or by the importer in the country where the product has been purchased. The seller or importer is completely responsible for the product. The importer is completely responsible also for the fulfilment of the laws in force in the country where the importer distributes the product, including the correct disposal of the product at the end of its working life. Inside the European countries the laws in force are the national laws implementing the EC Directive 44/99/CE.
