IH 1 - Heating TEAM - Free user manual and instructions

Product type	Radiant halogen heater
Brand	TEAM
Model	IH 1
Total power	1200 W (3 lamps of 400 W each)
Power supply / Voltage	230 V ~ 50 Hz
Main functions	3 heat levels (independent), automatic oscillation, safety shut-off in case of tipping
Dimensions (approx.)	Height 45 cm, Width 30 cm, Depth 25 cm (estimated)
Weight (approx.)	2.5 kg (estimated)
Materials	Metal, glass (halogen lamps), metal grille
Safety	Automatic shut-off in case of tipping, protective grille against direct contact, must not be covered
Maintenance and cleaning	Unplug before cleaning; use a dry non-lint cloth; vacuum the grilles carefully
Spare parts and repairability	Replaceable halogen lamps (standard 400W model), other parts: contact a qualified service
General information	Household use only; do not use outdoors; keep a minimum distance of 1 m from combustible materials

Frequently Asked Questions - IH 1 TEAM

How to turn on the lamps of the TEAM IH 1 heater?

Plug in the device, then set the main switch to the 'ON' position. Lamps 1, 2 and 3 turn on individually using their respective switches.

How to make the heater oscillate?

Press the oscillation switch marked 'TURN' to activate the left-right movement. To stop, press again.

What to do if the device does not turn on?

Check that the device is properly placed on the floor and that nothing is blocking the safety device underneath. If the problem persists, unplug and contact a qualified service.

How to clean the TEAM IH 1 heater?

Always unplug before cleaning. Use a dry non-lint cloth for the exterior. For the grilles, you can gently vacuum them.

Can I use this heater in a bathroom?

No, never use it near a bathtub, shower, sink, or swimming pool. It must be placed away from any water source.

What is the power of each lamp?

Each halogen lamp has a power of 400 W, giving a maximum total power of 1200 W.

The heater has tipped over, what to do?

Turn off the device, unplug it, return it to an upright position and plug it back in. The safety device resets automatically.

Can I cover the heater with clothing?

No, never cover the device. This poses a fire risk. Keep the air vents clear.

How to replace a halogen lamp?

Unplug the device, wait for complete cooling. Remove the grille and reflector, then replace the lamp with a halogen bulb of the same type (400W). If necessary, call a professional.

Where can I download the full manual?

The full manual is available free in PDF on notice-facile.com. You can also request a translation in your language.

USER MANUAL IH 1 TEAM

team International

Halogenheizgerät

Halogen heater

Chauffage halogène

Halogeenradiator

Radiador halógeno

Aquecedor halogéneo

Stufa alogena

Radiator cu halogen

I/B Version

090508

TEAM IH 1

230V\~50Hz 1200W

DE

Vorderseite

1. Main switch and switch for lamp 1 (400W)

2. Switch for lamp 2 (400W)

3. Switch for lamp 3 (400W)

4. Oscillation switch

5. Top lid

6. Lock for the cellular grid

7. Halogen lamp

8. Reflector

9. Cellular grid

10. Protection grid

11. Housing

12. Support

Rear part

1. Handle

2. Cord

Base

1. 2 screws

2. Tilt switch

3. Cord shaft

F

Face avant

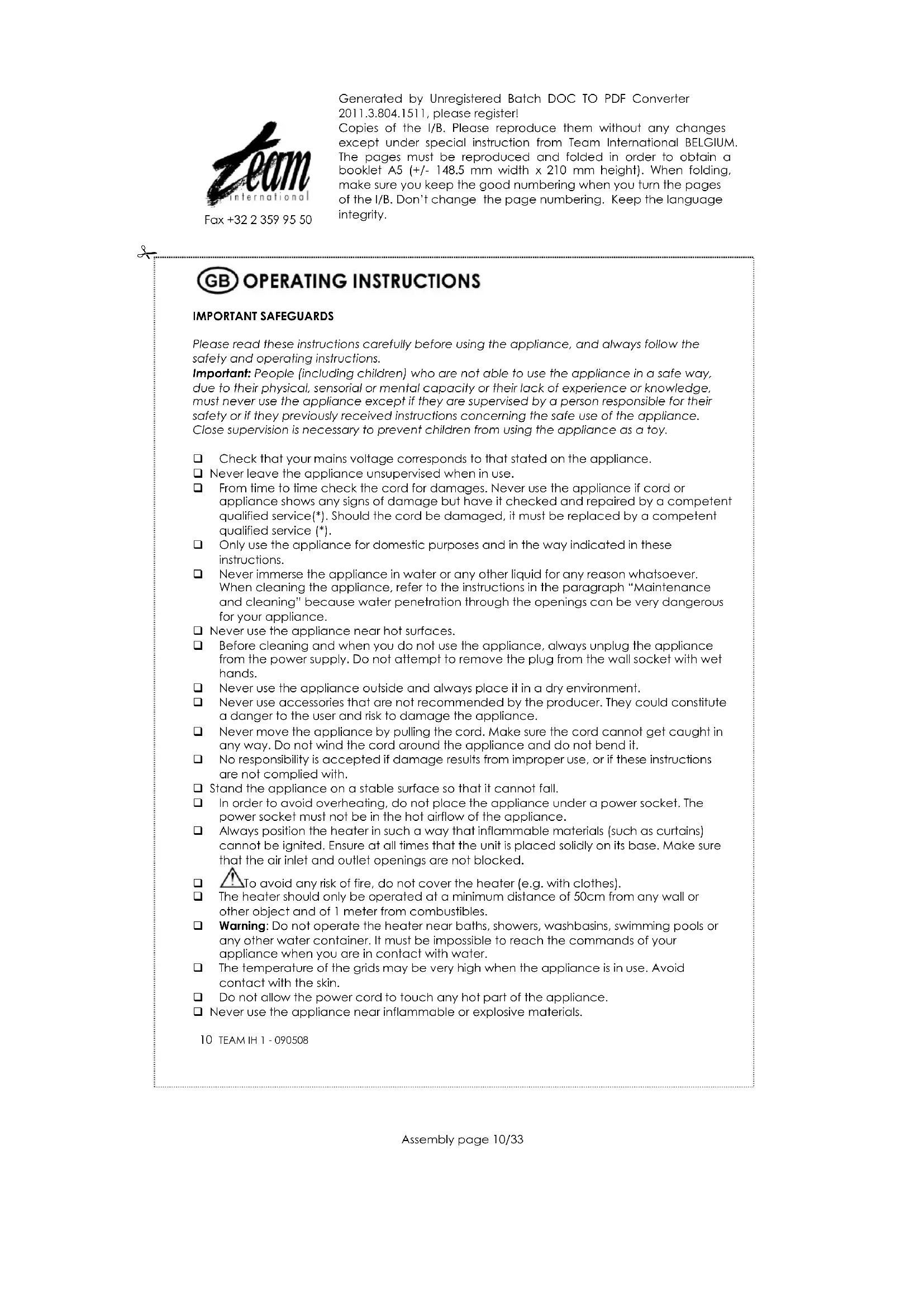

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service(*). Should the cord be damaged, it must be replaced by a competent qualified service (*).
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph "Maintenance and cleaning" because water penetration through the openings can be very dangerous for your appliance.
☐ Never use the appliance near hot surfaces.
Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
☐ Stand the appliance on a stable surface so that it cannot fall.
☐ In order to avoid overheating, do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance.
□ Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are not blocked.
To avoid any risk of fire, do not cover the heater (e.g. with clothes).
☐ The heater should only be operated at a minimum distance of 50cm from any wall or other object and of 1 meter from combustibles.
☐ Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water.
☐ The temperature of the grids may be very high when the appliance is in use. Avoid contact with the skin.
☐ Do not allow the power cord to touch any hot part of the appliance.
☐ Never use the appliance near inflammable or explosive materials.

☐ Do not insert any objects through the grille or into the interior of the appliance.
☐ Do not use double adapters, timers, programmers or other devices that connect the heater automatically.

1) Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service.

ASSEMBLY

• To operate more easily, lay the heater horizontally.
- Unscrew both screws located on the lower part of the appliance.
- Take out the power cord from the slot which is in the centre of the base and mount this base on the lower part.
- Insert the screws in the base and tighten them.

USE

• Connect the appliance and put the main switch in the "ON" position and the upper central lamp will start working. The other halogen lamps can be switched on with their respective switches.
• Press the oscillation switch (TURN) to have the heater moving to the right and to the left.
• To switch off the appliance, put the switches in the "OFF" position and remove the plug from the power supply.
• Your appliance is fitted with two safety devices: the first one disconnects your appliance when it is tilted or tipped. If your appliance falls, switch it off, replace it correctly and switch it on again.
• In case your appliance does not work when you switch it on, check that it is correctly placed and that the safety device is not blocked.

MAINTENANCE AND CLEANING

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• The housing may be wiped with a slightly damp, lint-free cloth; do not use any abrasive scouring pad or steel wool.
  • The grids are particularly delicate; to clean them you can carefully use a vacuum cleaner.
• When you do not use the appliance, you can cover it and place it in a dry environment.

GUARANTEE

Never move the appliance while it is operating and make sure it does not fall, as this could destroy the tubes. No guarantee claims will be accepted in case of non-observance of these instructions.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing

waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
