Product type	Steam iron
Brand	Team
Model	DAI 28
Use	Domestic
Ironing modes	Dry and steam
Spray function	Yes, to moisten stubborn creases
Double steam function	Yes, for extra steam
Dry/steam regulator	Yes, adjustable
Temperature setting	Rotary thermostat with settings for different fabrics
Heating indicator	Yes, turns off when temperature is reached
Power supply	Mains electric (check the voltage on the appliance)
Recommended water type	Demineralized water
Tank capacity	Not specified
Safety	Do not immerse, do not leave unattended, damaged cord must be replaced by a qualified professional
Cleaning	Empty the tank after use, clean the interior by operating the steam
Storage	In vertical position on the heel rest, after cooling

Frequently Asked Questions - DAI 28 TEAM

How to fill the water tank?

Unplug the appliance, let it cool down, then fill through the filling opening with demineralized water. Make sure the dry/steam button is in the '0' position.

Why does water leak from the soleplate?

The soleplate temperature is too low. Increase the temperature using the temperature setting button. Wait for the heating indicator to turn off before ironing.

How to use the steam function?

Fill the tank, plug in the appliance, adjust the temperature and set the dry/steam regulator to the desired position. Wait for the indicator to turn off before steam ironing.

Can I use tap water?

It is recommended to use demineralized water to avoid limescale and prolong the life of your iron.

How to clean the inside of the iron?

Set the dry/steam button to maximum steam position, hold the iron horizontally and let the steam escape for one minute to remove deposits.

The dry/steam regulator button comes off, is that normal?

Yes, when you turn it to the '' position, it can be removed. Put it back before each use by pushing it in and turning clockwise.

How to store the iron after use?

Set the thermostat to '0', unplug, empty the tank by holding the iron tip down, then place it vertically on its heel rest to cool down and let moisture evaporate.

What to do if the cord is damaged?

Do not use the appliance. Have the cord replaced by a qualified competent service (manufacturer's after-sales service or authorized person).

Can I steam iron all fabrics?

Check the garment label. Some fabrics may be damaged by steam or water. Use dry ironing for them.

How to use the spray function?

Press the spray button to moisten stubborn creases. It works at all temperatures, with or without steam.

USER MANUAL DAI 28 TEAM

White iron iron with black buttons and a flat blade, shown against a plain background (no text or symbols visible)

Dampfbügeleisen mit Spray
Steam Iron with spray
Fer à vapeur avec spray
Stoomstrijkijzer met spray
Plancha a vapor con spray
Ferro a vapor com spray
Ferro a vapore com spray

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

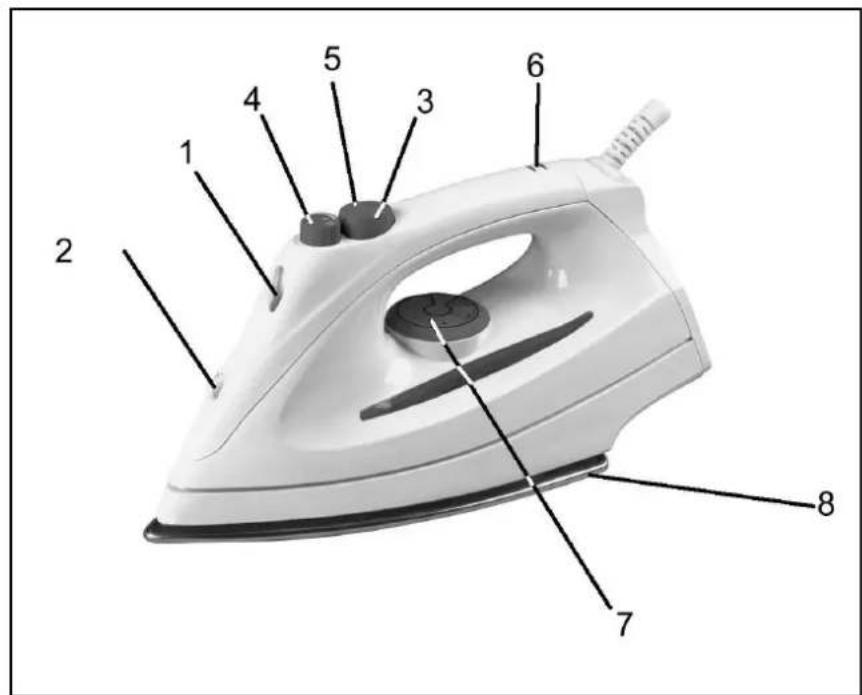

1. Fill opening
2. Spray nozzle
3. Double steamjet button
4. Variable steam/dry dial
5. Spray button
6. Temperature indicator
7. Temperature dial
8. Soleplate

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified electrician ^(*) .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician ^(3) .
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Never touch the hot parts of the appliance. Always use the handle.
☐ Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
□ Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
☐ To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam)
□ Always unplug the iron when not in use.

^* Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.

FILLING THE WATER TANK

Only use demineralized water. If you want to use the steam/dry dial fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it on a stable level surface.

2) Turn the temperature dial to "0" and variable steam/dry dial to the "0" setting.

3) Using a measuring cup, fill tank through the fill opening.

NOTE : never fill with anything but water.

TEMPERATURE SETTINGS

• You can chose the temperature setting in function with the cloth to iron.
• In order to turn the iron on, please turn the temperature knob clockwise into the required position.

DRY PRESSING

• Turn on the iron.
• Set temperature dial for the desired fabric.
  NOTE: be sure to check the garment label for fibre content and set for the fabric requiring the lowest temperature.
  • Turn the variable steam/dry dial on position "0".
• Set iron on heel rest and wait until temperature indicator light goes out.

STEAM PRESSING

• Fill the water tank (variable steam/dry dial on position "0").
- Turn on the iron.
- Turn the temperature dial clockwise into the required position.
- Turn variable steam/dry dial on on the quantity you want.
- Set the iron on its heel and wait until the temperature indicator goes out.
! Set the temperature dial within the steam range. If temperature setting is too low, water may drip from soleplate.
! Check the garment label before ironing because some coths may be damaged when exposed to steam or water.

SPRAY

• Produces a mist for removing stubborn creases.
- Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.
! Be sure to check the garment label for care instructions. Some fabrics may be damaged when exposed to steam or water.

STEAMJET

The steamjet feature provides additional steam for removing stubborn creases.

CARE AND CLEANING

- Cleaning the inside parts of the iron is done by turning the steam/dry dial into the position and holding the iron horizontally for about one minute so steam can escape.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

• When you turn the variable steam/dry dial into the , this goes up a little bit and you can take it out.
• There is no problem. YOU JUST HAVE TO PUT IT BACK IN ITS PROPER PLACE BEFORE EACH USE. Therefore just keep it deep (in the good position) and turn it clockwise.
  this goes up a little bit and you can
  [Non-Text]

WHEN YOU HAVE FINISHED IRONING

• Turn temperature dial to "0" and unplug iron from electrical outlet.
- With soleplate facing away from you, turn iron upside down to empty water.
- Then store the hot iron on its heel rest so that any remaining moisture will evaporate.

MODE D'EMPLOI

POUR VOTRE SECURITE

REPASSAGE AVEC VAPEUR

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

NETTOYAGE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

CUIDADOS A TER QUANDO TERMINA A PASSAGEM A FERRO

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM DAI 28

Deutsch	4
English	7
Français	10
Nederlands	13
Español	16
Português	19
Italiano	22
