Product Type	Steam Iron
Brand	Team
Model	DAI 27
Dimensions (approx.)	30 x 12 x 15 cm
Weight (approx.)	1.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power (approx.)	2000 W
Tank Capacity (approx.)	200 ml
Main Functions	Dry ironing, steam, spray, double steam
Temperature Adjustment	Yes, with positions MIN, ●, ●●, ●●● MAX
Steam Adjustment	3 positions (1, 2, 3)
Heating Indicator	Yes, turns off when temperature is reached
Soleplate	Not specified (likely stainless steel or ceramic)
Maintenance and Cleaning	Internal cleaning at maximum steam position; wipe the soleplate after use
Safety	Unplug before filling or cleaning; do not immerse; do not leave unattended
Included Accessories	No specific accessories mentioned
Intended Use	Household use only
General Information	Manual available in multiple languages; repairs by qualified service

Frequently Asked Questions - DAI 27 TEAM

How to fill the water tank of the DAI 27 iron ?

Unplug the appliance, let it cool down, then place it on its soleplate. Set the temperature dial to MIN and the dry/steam button to position (1). Use a suitable container to fill through the filling opening. Use only demineralized water.

What is the function of the spray button ?

The spray function moistens stubborn creases to make them easier to remove. It can be used at any temperature, with or without steam.

How to use the double steam function ?

The double steam function provides extra steam for difficult areas and stubborn creases. Activate it by pressing the dedicated button.

What temperature settings for each fabric type ?

Synthetics: MIN position (●); Silk and Wool: ●● position; Cotton and Linen: ●●●MAX position. Always check the garment care label before ironing.

Why does water leak from the soleplate ?

This can happen if the temperature is too low. Make sure the temperature setting is suitable for the fabric. Use a temperature high enough to vaporize the water properly.

How to clean the inside of the iron ?

Set the dry/steam button to the maximum steam position (3). Hold the iron horizontally for one minute to allow a large amount of steam to escape. This helps remove deposits.

Can I use tap water ?

It is recommended to use demineralized water to prevent scale buildup. Tap water may reduce the lifespan of the appliance.

How to store the iron after use ?

Set the thermostat to MIN and unplug the appliance. Empty the tank by holding the iron with the tip down, then place it upright on its heel to cool and allow moisture to evaporate.

What to do if the power cord is damaged ?

Do not use the appliance. The cord must be replaced by a qualified competent service (manufacturer or importer service) to avoid any danger.

How to adjust the dry/steam button after removing it ?

The button can be removed for cleaning. To put it back, hold it pressed in the correct position and turn it clockwise until it clicks.

USER MANUAL DAI 27 TEAM

Steam Iron with Spray

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

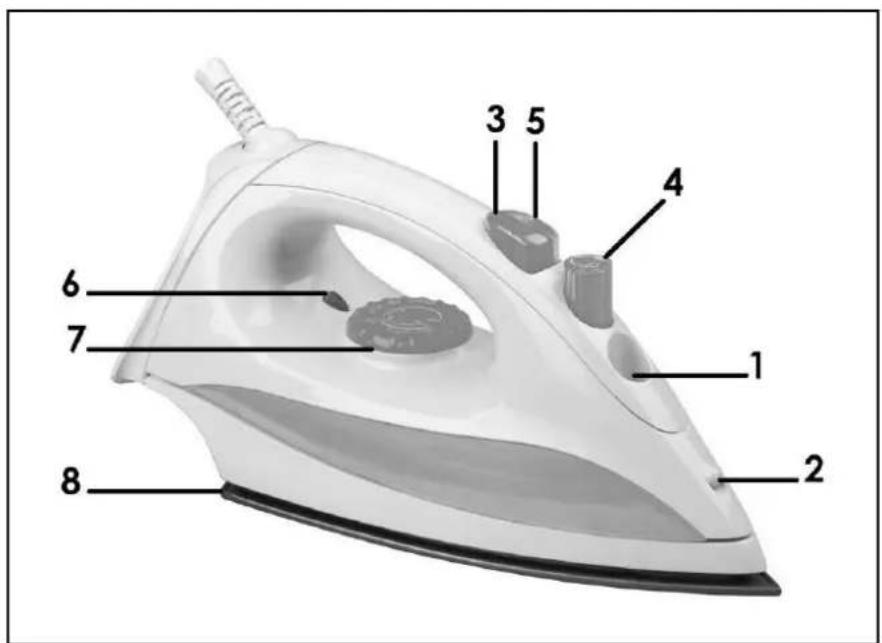

1. Fill opening
2. Spray nozzle
3. Double steamjet button
4. Variable steam/dry dial
5. Spray button
6. Temperature indicator
7. Temperature dial
8. Soleplate

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEMPERATURREGLER

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified electrician ^(*) .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician ⁽³⁾ .
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Never touch the hot parts of the appliance. Always use the handle.
☐ Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
□ Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
☐ To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam)
□ Always unplug the iron when not in use.

^* Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

FILLING THE WATER TANK

Only use demineralized water. If you want to use the steam/dry dial fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level surface.

2) Turn the temperature dial to "MIN" and variable steam/dry dial to the (1) setting.

3) Using a measuring cup, fill tank through the fill opening.

NOTE : never fill with anything but water.

TEMPERATURE SETTINGS

• You can chose the temperature setting in function with the cloth to iron.
• In order to turn the iron on, please turn the temperature knob clockwise into the required position.

DRY PRESSING

- Turn on the iron.

- Set temperature dial for the desired fabric.

NOTE: be sure to check the garment label for fibre content and set for the fabric requiring the lowest temperature.

• Turn the variable steam/dry dial on position "MIN".

- Set iron on heel rest and wait until temperature indicator light goes out.

STEAM PRESSING

Kind of textile	Temperature dial	Steam ironing
Synthetic (e.g. acetate, acrylic, viscose, Polyamide, polyester, ....)	MIN
	●
Silk Wool	●●
Cotton Linen	●●●MAX
Care and cleaning	●●●MAX

• Fill the water tank (variable steam/dry dial on position (1)).

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

• Turn on the iron.
• Turn the temperature dial clockwise into the required position.
• Turn variable steam/dry dial on (1) for minimum steam or on the positions (2) or (3) for a larger amount of steam.
• Set the iron on its heel and wait until the temperature indicator goes out.

! Set the temperature dial within the steam range. If temperature setting is too low, water may drip from soleplate.

! Check the garment label before ironing because some coths may be damaged when exposed to steam or water.

SPRAY

• Produces a mist for removing stubborn creases.
• Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.
  ! Be sure to check the garment label for care instructions. Some fabrics may be damaged when exposed to steam or water.

STEAMJET

The steamjet feature provides additional steam for removing stubborn creases.

CARE AND CLEANING

• Cleaning the inside parts of the iron is done by turning the steam/dry dial into the
- position and holding the iron horizontally for about one minute so steam can escape.
- When you turn the variable steam/dry dial into the 📄, this goes up a little bit and you can take it out.
- There is no problem. YOU JUST HAVE TO PUT IT BACK IN ITS PROPER PLACE BEFORE EACH USE. Therefore just keep it deep (in the good position) and turn it clockwise.

WHEN YOU HAVE FINISHED IRONING

• Turn temperature dial to "MIN" and unplug iron from electrical outlet.
• With soleplate facing away from you, turn iron upside down to empty water.
• Then store the hot iron on its heel rest so that any remaining moisture will evaporate.

MODE D'EMPLOI

POUR VOTRE SECURITE

REPASSAGE AVEC VAPEUR

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

BOTÃO REGULADOR DAS TEMPERATURAS

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM DAI 27

Deutsch	4
English	7
Français	10
Nederlands	13
Español	16
Português	19
Italiano	22
